  1. CRIMPING TOOLS INT-100

  2. INT-100

  3. A crimping tool is a tool designed to crimp or connect a connector to the end of a cable. For example, network cables and phone cables are created using a crimping tool to connect the RJ-45 and RJ-11 connectors to the end of the cable. In last slide is an example of what a crimping tool looks like, this example shows a tool capable of doing both RJ-11 and RJ-45 connectors. INT-100

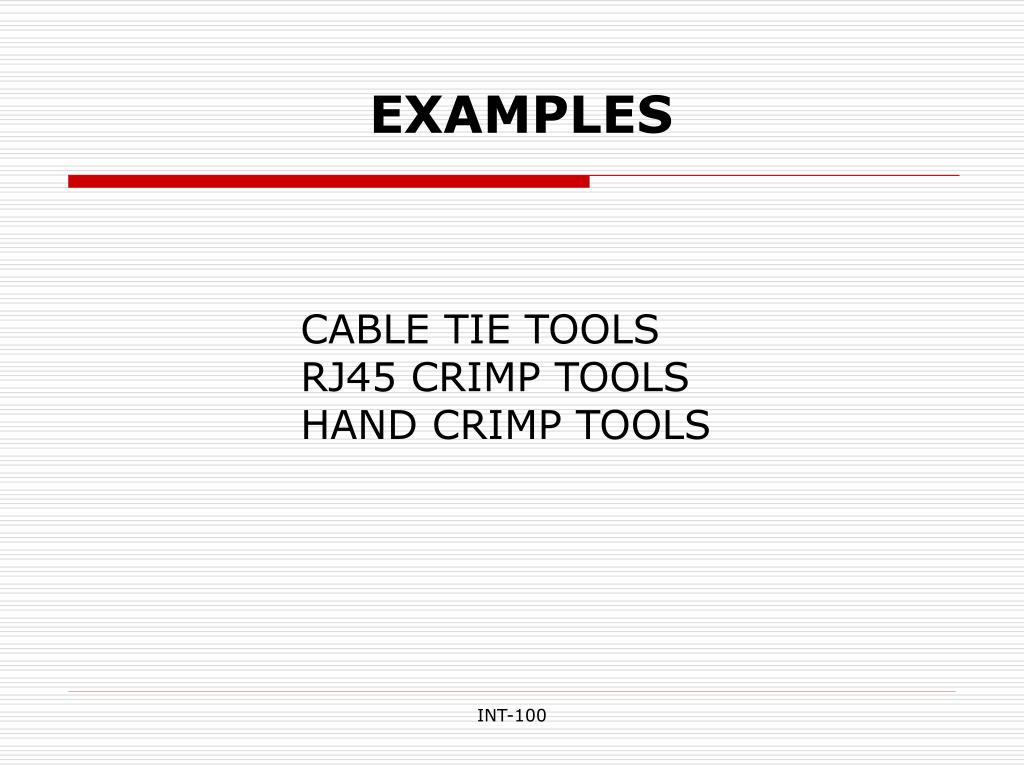

  4. EXAMPLES CABLE TIE TOOLS RJ45 CRIMP TOOLS HAND CRIMP TOOLS INT-100

  5. CABLE TIE TOOL INT-100

  6. All plastic / metal body • Economy design • Ideal for DIY users • Available with different function types • Function: for tensioning and cutting-off cable ties INT-100

  7. RJ-45 INT-100

  8. Short for Registered Jack-45, a RJ-45 is a 8-pinconnection used for Ethernet network adapters. This connector resembles to the RJ-11 or 6-pin connector used with telephones in the United States. In last slide is an example of image of what the RJ-45 looks like separate from the cable. INT-100

  9. HAND CRIMP TOOL INT-100

  10. A hand crimping tool having a first handle and a second handle connected to the first handle by a main pivot pin and a pair of jaws connected to the handles for movement together upon pivoting of the handles about the main pivot pin. A signal mechanism is provided to produce a sensory perception to the user of the completion of a predetermined crimping movement of the jaws. INT-100

  11. THANKS! INT-100
