K200B2008 is a 2.0 inch tft LCD module with optional resistive touch screen and capacitive touch screen control with a resolution of 176u00d7220 pixels. This size TFT display is portrait mode with wider viewing angle by POL adjustment, left: 45/right: 45/up: 45/down: 20 degrees (typical).Optional RTP or CTP.<br><br>https://laserlcd.com/2-0inch-tft-screen/

laserlcd1
Download Presentation

2.0inch lcd screen in USA | 2.2inch tft lcd display screen

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

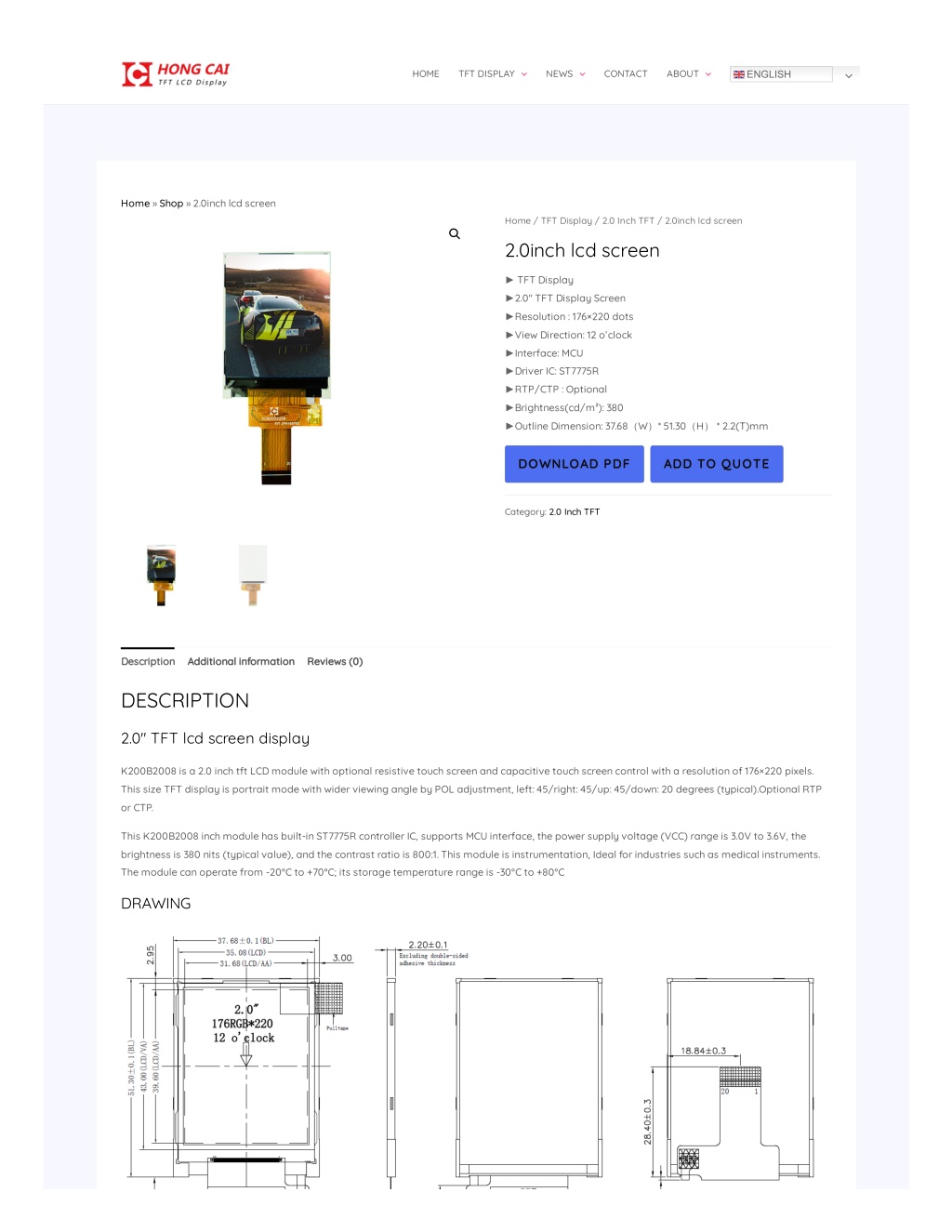

  1. HOME TFT DISPLAY NEWS CONTACT ABOUT ENGLISH Home » Shop » 2.0inch lcd screen Home / TFT Display / 2.0 Inch TFT / 2.0inch lcd screen 2.0inch lcd screen ► TFT Display ►2.0″ TFT Display Screen ►Resolution : 176×220 dots ►View Direction: 12 o’clock ►Interface: MCU ►Driver IC: ST7775R ►RTP/CTP : Optional ►Brightness(cd/m²): 380 ►Outline Dimension: 37.68（W）* 51.30（H） * 2.2(T)mm DOWNLOAD PDF ADD TO QUOTE Category: 2.0 Inch TFT Description Additional information Reviews (0) DESCRIPTION 2.0″ TFT lcd screen display K200B2008 is a 2.0 inch tft LCD module with optional resistive touch screen and capacitive touch screen control with a resolution of 176×220 pixels. This size TFT display is portrait mode with wider viewing angle by POL adjustment, left: 45/right: 45/up: 45/down: 20 degrees (typical).Optional RTP or CTP. This K200B2008 inch module has built-in ST7775R controller IC, supports MCU interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 380 nits (typical value), and the contrast ratio is 800:1. This module is instrumentation, Ideal for industries such as medical instruments. The module can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C DRAWING

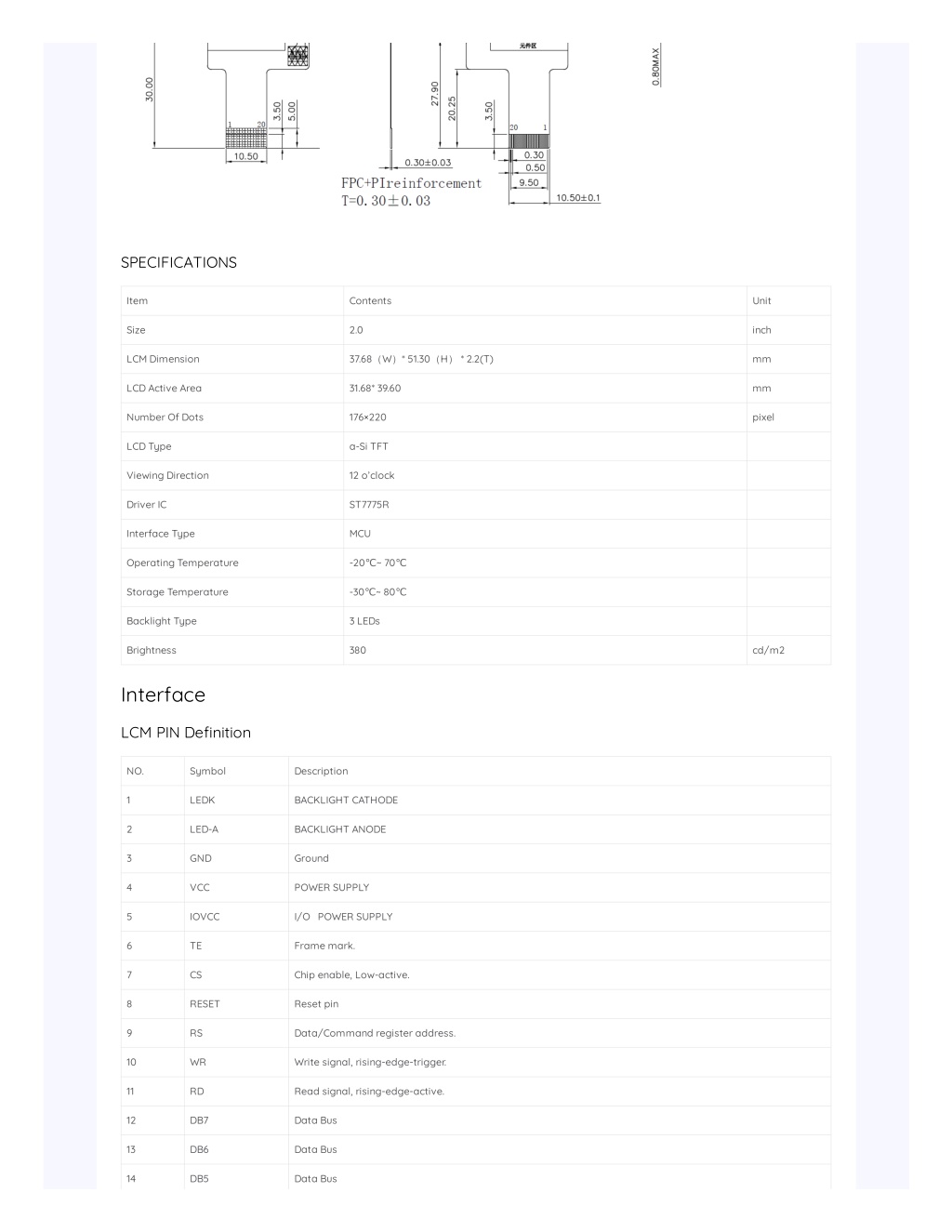

  2.   SPECIFICATIONS Item Contents Unit Size 2.0 inch LCM Dimension 37.68（W）* 51.30（H） * 2.2(T) mm LCD Active Area 31.68* 39.60 mm Number Of Dots 176×220 pixel LCD Type a-Si TFT Viewing Direction 12 o’clock Driver IC ST7775R Interface Type MCU Operating Temperature -20℃~ 70℃ Storage Temperature -30℃~ 80℃ Backlight Type 3 LEDs Brightness 380 cd/m2 Interface LCM PIN De?nition NO. Symbol Description 1 LEDK BACKLIGHT CATHODE 2 LED-A BACKLIGHT ANODE 3 GND Ground 4 VCC POWER SUPPLY 5 IOVCC I/O   POWER SUPPLY 6 TE Frame mark. 7 CS Chip enable, Low-active. 8 RESET Reset pin 9 RS Data/Command register address. 10 WR Write signal, rising-edge-trigger. 11 RD Read signal, rising-edge-active. 12 DB7 Data Bus 13 DB6 Data Bus 14 DB5 Data Bus

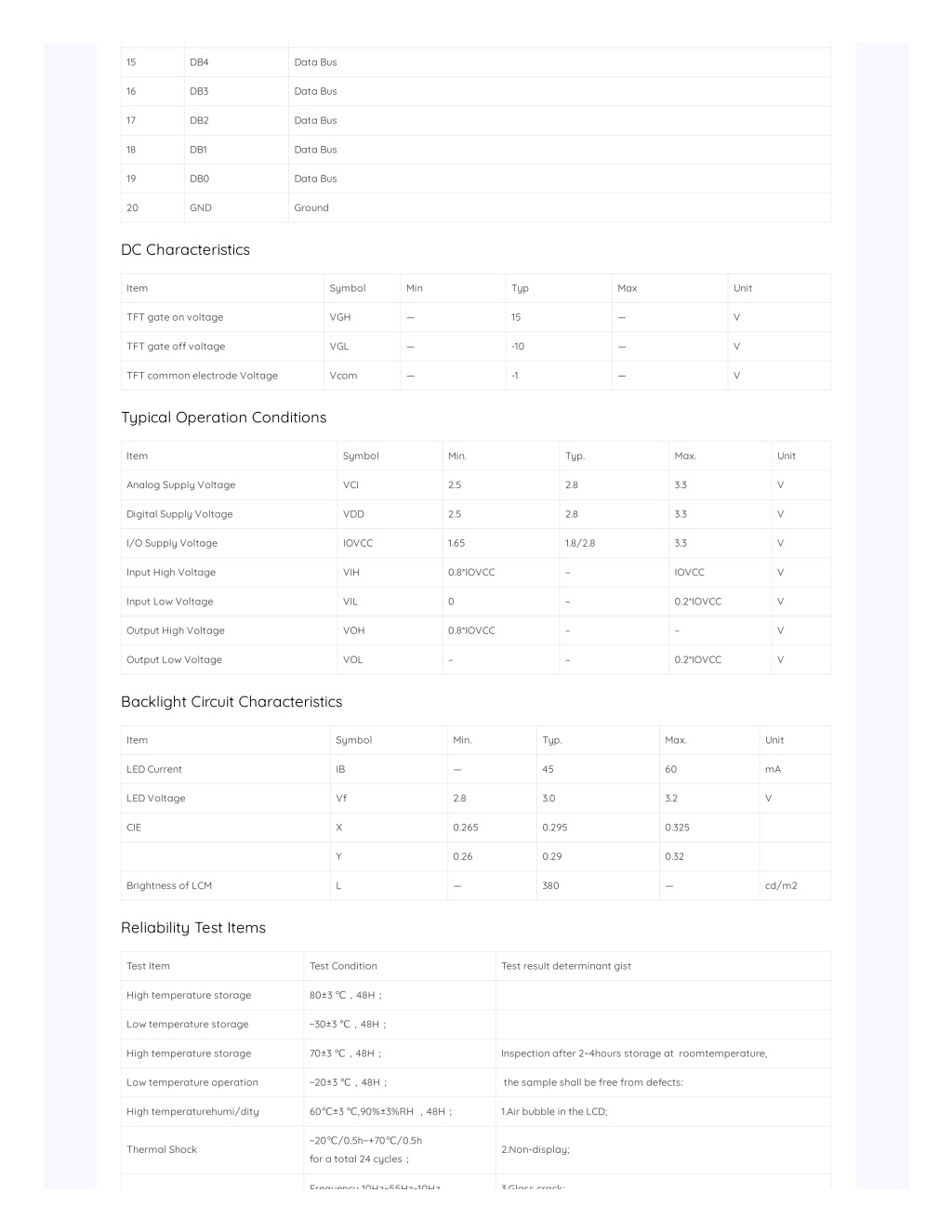

  3. 15 DB4 Data Bus 16 DB3 Data Bus 17 DB2 Data Bus 18 DB1 Data Bus 19 DB0 Data Bus 20 GND Ground DC Characteristics Item Symbol Min Typ Max Unit TFT gate on voltage VGH — 15 — V TFT gate o? voltage VGL — -10 — V TFT common electrode Voltage Vcom — -1 — V Typical Operation Conditions Item Symbol Min. Typ. Max. Unit Analog Supply Voltage VCI 2.5 2.8 3.3 V Digital Supply Voltage VDD 2.5 2.8 3.3 V I/O Supply Voltage IOVCC 1.65 1.8/2.8 3.3 V Input High Voltage VIH 0.8*IOVCC – IOVCC V Input Low Voltage VIL 0 – 0.2*IOVCC V Output High Voltage VOH 0.8*IOVCC – – V Output Low Voltage VOL – – 0.2*IOVCC V Backlight Circuit Characteristics Item Symbol Min. Typ. Max. Unit LED Current IB — 45 60 mA LED Voltage Vf 2.8 3.0 3.2 V CIE X 0.265 0.295 0.325 Y 0.26 0.29 0.32 Brightness of LCM L — 380 — cd/m2 Reliability Test Items Test Item Test Condition Test result determinant gist High temperature storage 80±3 ℃，48H； Low temperature storage ~30±3 ℃，48H； High temperature storage 70±3 ℃，48H； Inspection after 2~4hours storage at  roomtemperature, Low temperature operation ~20±3 ℃，48H；  the sample shall be free from defects: High temperaturehumi/dity 60℃±3 ℃,90%±3%RH ，48H； 1.Air bubble in the LCD; ~20℃/0.5h~+70℃/0.5h Thermal Shock 2.Non-display; for a total 24 cycles； Frequency 10Hz~55Hz~10Hz 3Glass crack;

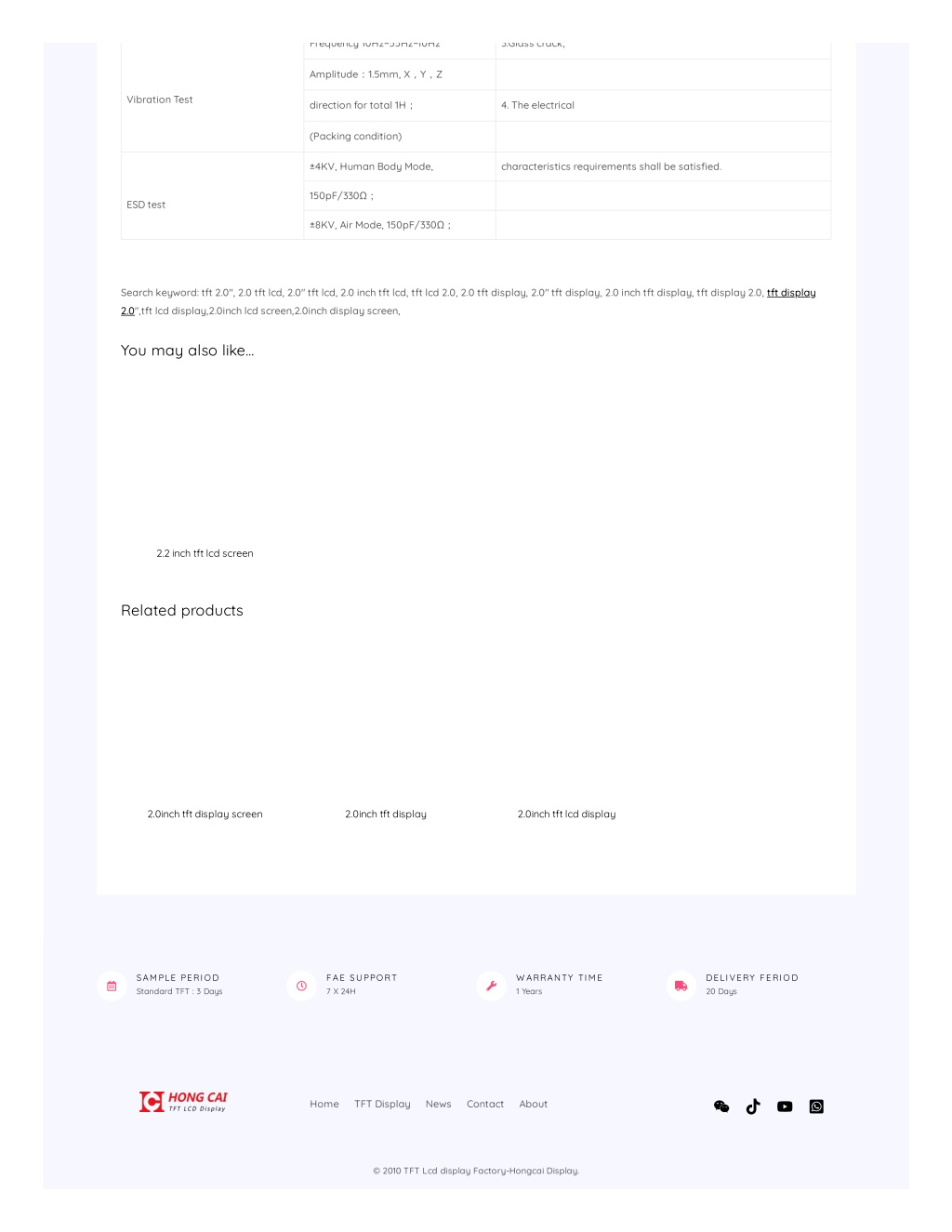

  4.   Frequency 10Hz~55Hz~10Hz 3.Glass crack;   Amplitude：1.5mm, X，Y，Z Vibration Test direction for total 1H； 4. The electrical   (Packing condition) ±4KV, Human Body Mode, characteristics requirements shall be satis?ed.   150pF/330Ω； ESD test ±8KV, Air Mode, 150pF/330Ω；   Search keyword: tft 2.0″, 2.0 tft lcd, 2.0″ tft lcd, 2.0 inch tft lcd, tft lcd 2.0, 2.0 tft display, 2.0″ tft display, 2.0 inch tft display, tft display 2.0, tft display 2.0″,tft lcd display,2.0inch lcd screen,2.0inch display screen, You may also like… 2.2 inch tft lcd screen Related products 2.0inch tft display screen 2.0inch tft display 2.0inch tft lcd display SAMPLE PERIOD Standard TFT : 3 Days FAE SUPPORT 7 X 24H WARRANTY TIME 1 Years DELIVERY FERIOD 20 Days     Home TFT Display News Contact About © 2010 TFT Lcd display Factory-Hongcai Display.
