  1. Quad Channel CoolingUpdate David Neuffer Fermilab

  2. Quad Channel • Previously developed by Makino, Johnstone, Errede, Berz • In this study, evaluated for Study 2A compatible case using ICOOL

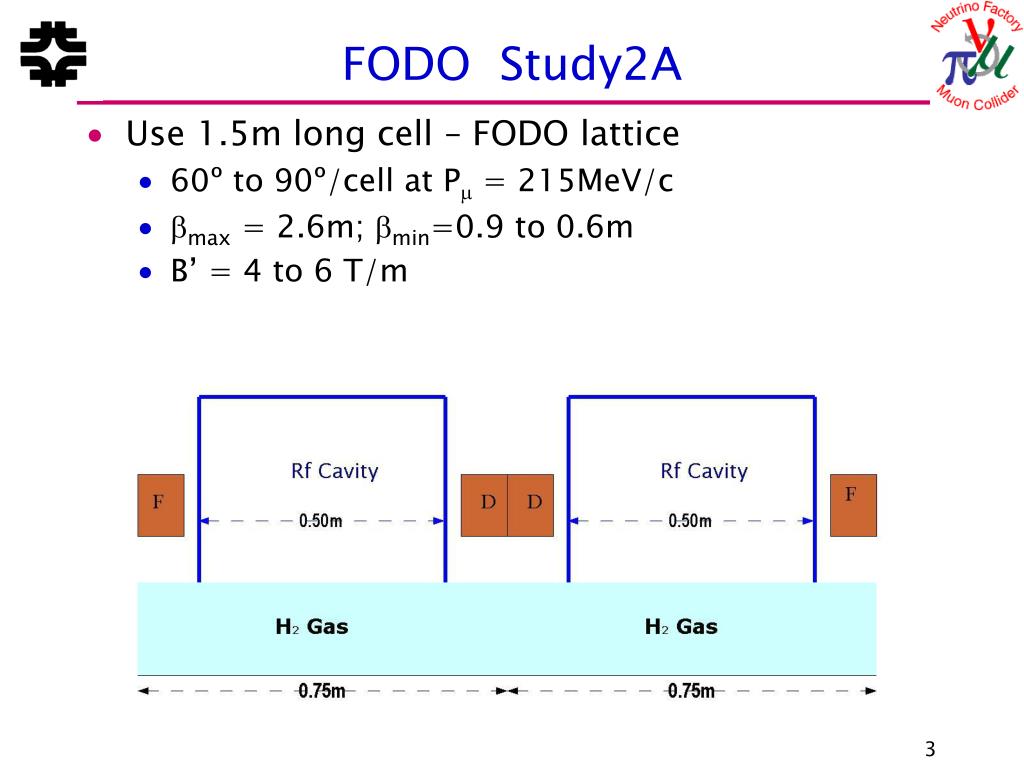

  3. FODO Study2A • Use 1.5m long cell – FODO lattice • 60º to 90º/cell at P = 215MeV/c • max = 2.6m;min=0.9 to 0.6m • B’ = 4 to 6 T/m

  4. Simulation Results • Cooling in FODO cells • 2 1cm LiH slabs • Gas H2

  5. Advantages of Quad Channel • No large magnetic fields along the axis • Reduced breakdown problems • Magnets much cheaper • No Amplitude–Momentum correlation in Cooling • No beam angular momentum effects • No preferred absorber location (gas cavity OK) Disadvantages of FODO Quad channel • No low * region • Relatively weak focusing • Elliptical beam profiles

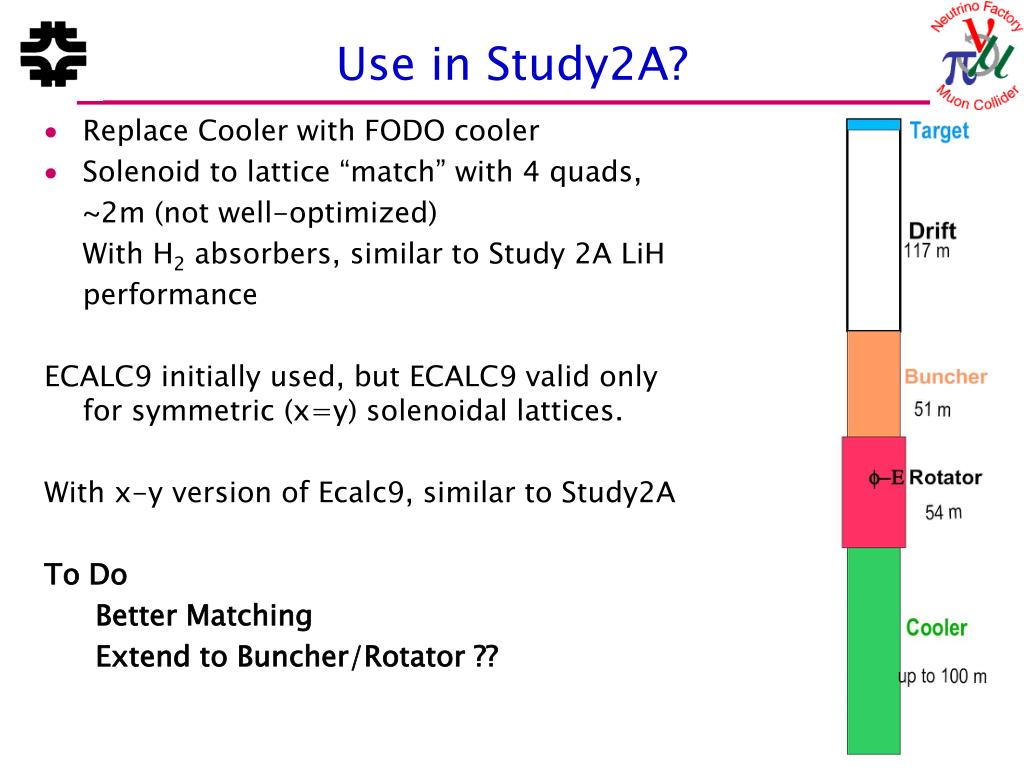

  6. Use in Study2A? • Replace Cooler with FODO cooler • Solenoid to lattice “match” with 4 quads, ~2m (not well-optimized) With H2 absorbers, similar to Study 2A LiH performance ECALC9 initially used, but ECALC9 valid only for symmetric (x=y) solenoidal lattices. With x-y version of Ecalc9, similar to Study2A To Do Better Matching Extend to Buncher/Rotator ??

  7. Evaluate with x-y emittances • Ecalc9xy written • Separately evaluates εx, εy, x, y, etc. • Acceptance is: • Ax + Ay < ref1, ref2 • with H2 absorber • Same as study 2A baseline • Study 2A acceptance same under ecalc9 and ecalc9xy • LiH absorber • Quad channel, match not well optimized Ecalc9xy quad channel Ecalc9 Study2A 5000 initial particles

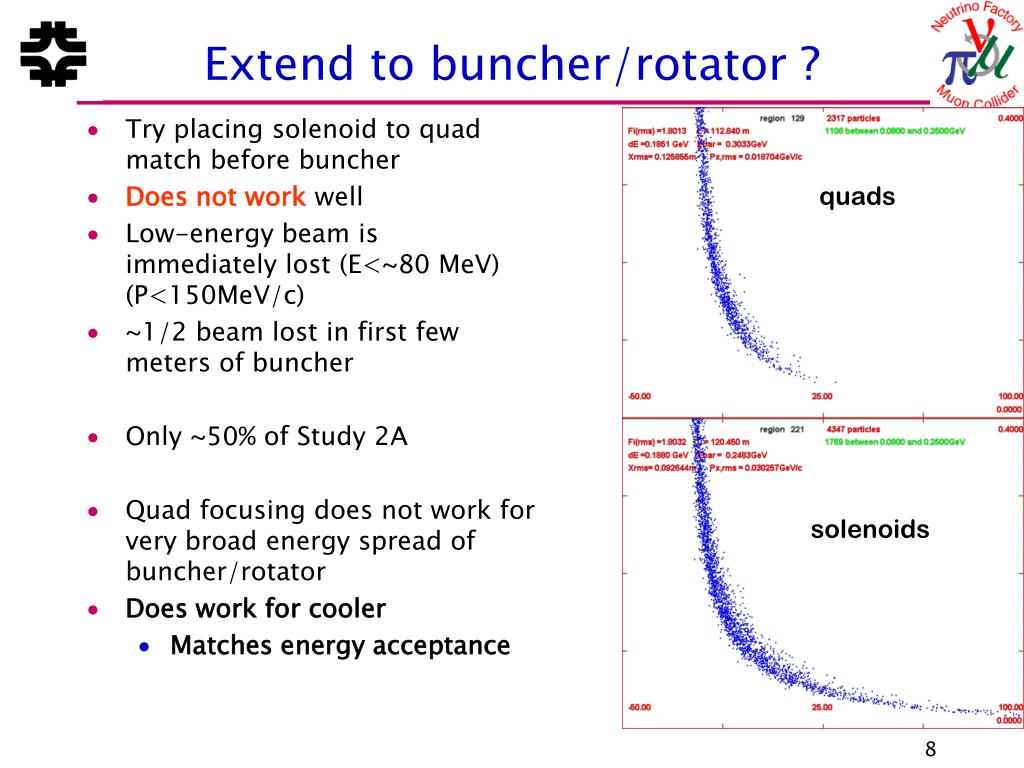

  8. Extend to buncher/rotator ? • Try placing solenoid to quad match before buncher • Does not work well • Low-energy beam is immediately lost (E<~80 MeV) (P<150MeV/c) • ~1/2 beam lost in first few meters of buncher • Only ~50% of Study 2A • Quad focusing does not work for very broad energy spread of buncher/rotator • Does work for cooler • Matches energy acceptance quads solenoids
