  1. A new Network Concept for transporting and storing digital video…………

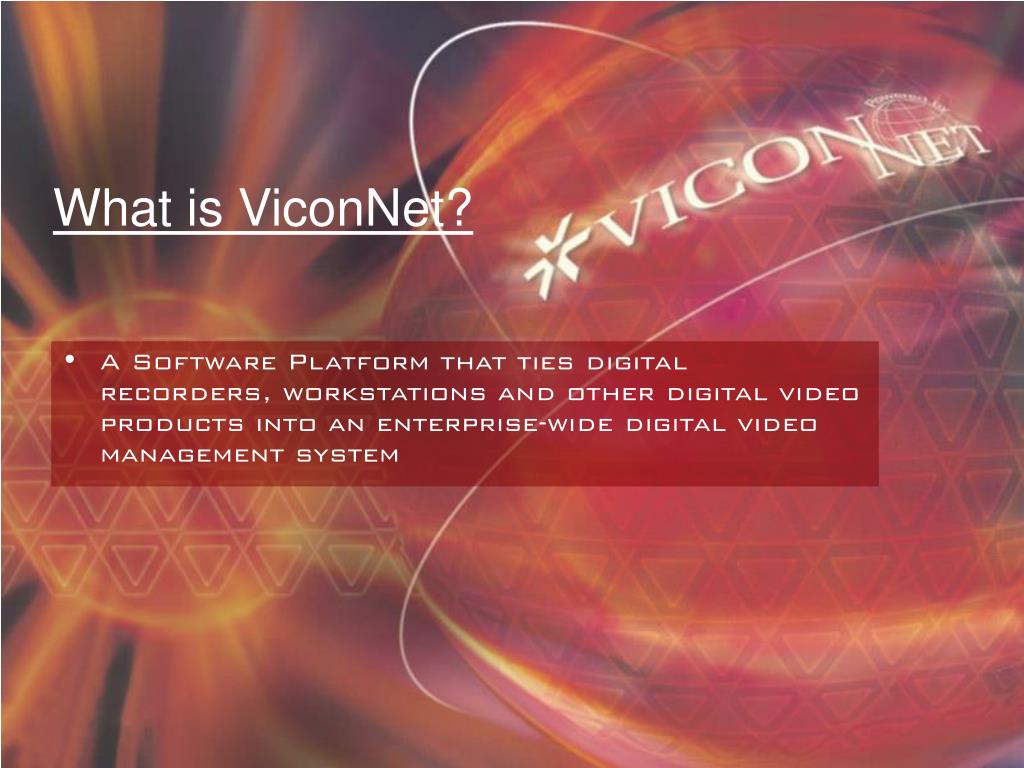

  2. What is ViconNet? • A Software Platform that ties digital recorders, workstations and other digital video products into an enterprise-wide digital video management system

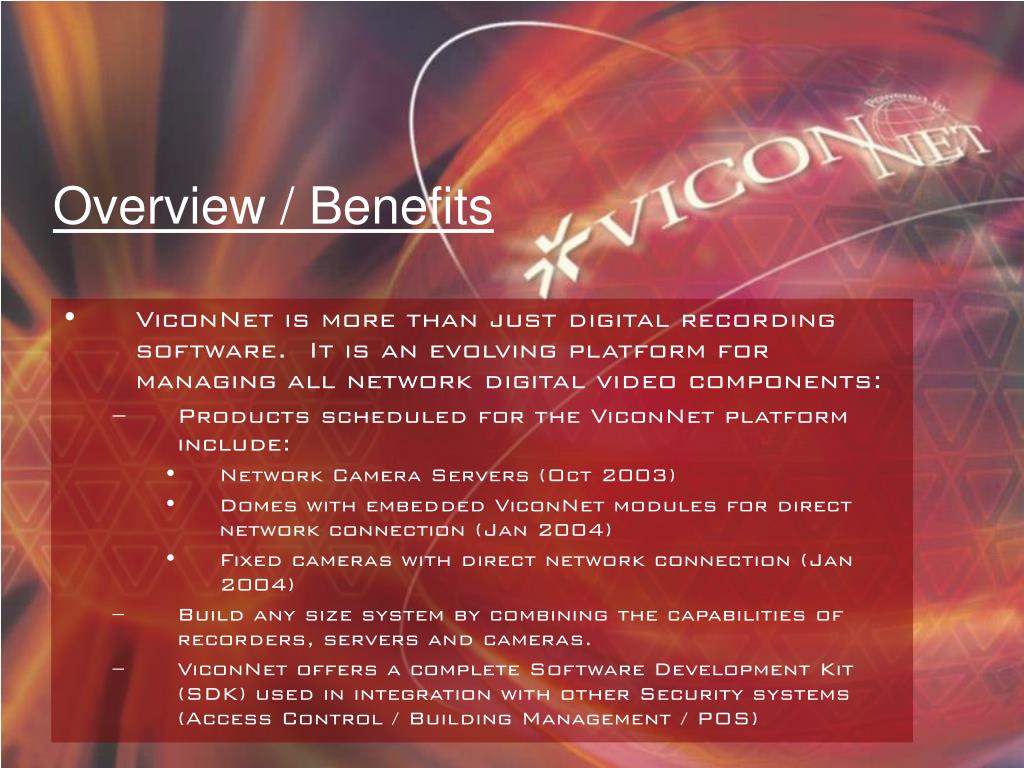

  3. Overview / Benefits • ViconNet is more than just digital recording software. It is an evolving platform for managing all network digital video components: • Products scheduled for the ViconNet platform include: • Network Camera Servers (Oct 2003) • Domes with embedded ViconNet modules for direct network connection (Jan 2004) • Fixed cameras with direct network connection (Jan 2004) • Build any size system by combining the capabilities of recorders, servers and cameras. • ViconNet offers a complete Software Development Kit (SDK) used in integration with other Security systems (Access Control / Building Management / POS)

  4. System Options • Network Video Management • Three Separate options ranging from basic viewing (free w/ recorder) to full system management for remote configuration and redundant recording • Purchased as software or pre-loaded PC • 16-channel Digital Video Manager and Recorder • 120 or 240 fps recording • Includes all Video Management Capabilities of ViconNet • 16-channel digital recorder • 30, 60 or 120 fps • ViconNet-based operating system

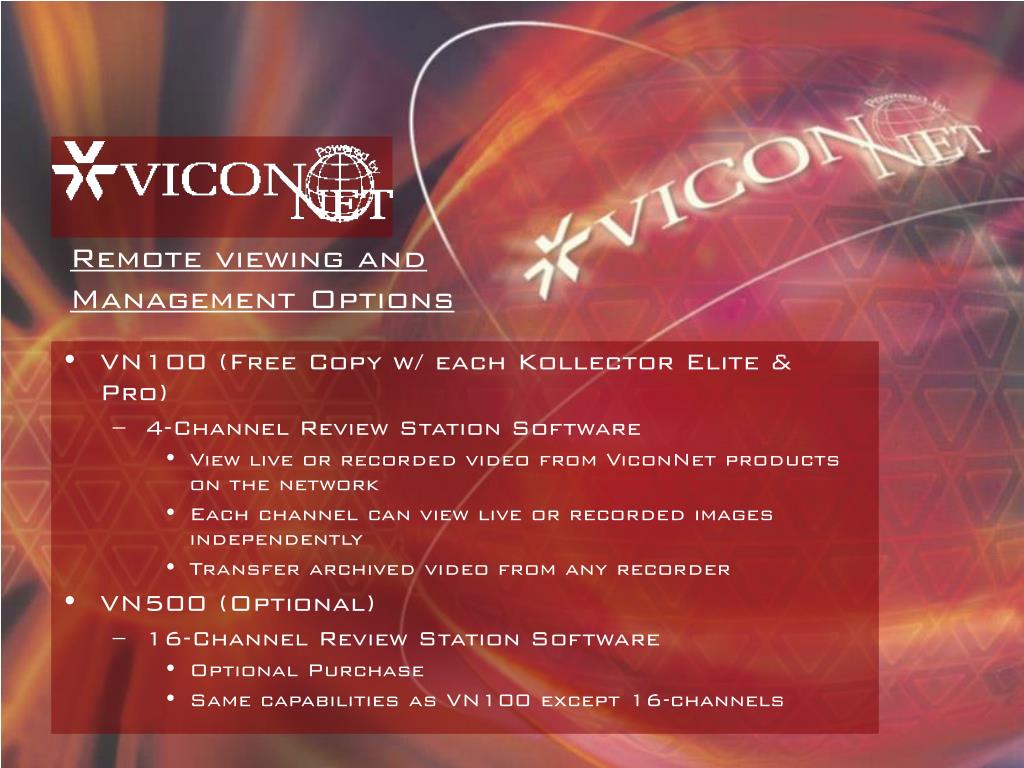

  5. Remote viewing and Management Options • VN100 (Free Copy w/ each Kollector Elite & Pro) • 4-Channel Review Station Software • View live or recorded video from ViconNet products on the network • Each channel can view live or recorded images independently • Transfer archived video from any recorder • VN500 (Optional) • 16-Channel Review Station Software • Optional Purchase • Same capabilities as VN100 except 16-channels

  6. Remote viewing and Management Options • VN1000: Network Video Management Software (Optional) • Complete control and Management of entire system • View 16-channels of live or recorded video simultaneously • Access recorded video seconds after event without downloading archived files • Record live or playback video streamed over the network on the PC HDD. • Redundant recording • Event transportation

  7. Remote viewing and Management Options • VN1000 Network Video Management Software (Optional) • Remote configuration of network recorders (Elite or Pro) • frame rate • Video quality • Programming and execution of macros • Creation/modification of recorder names and camera titles • Creation of multiple user groups with different levels of authorization

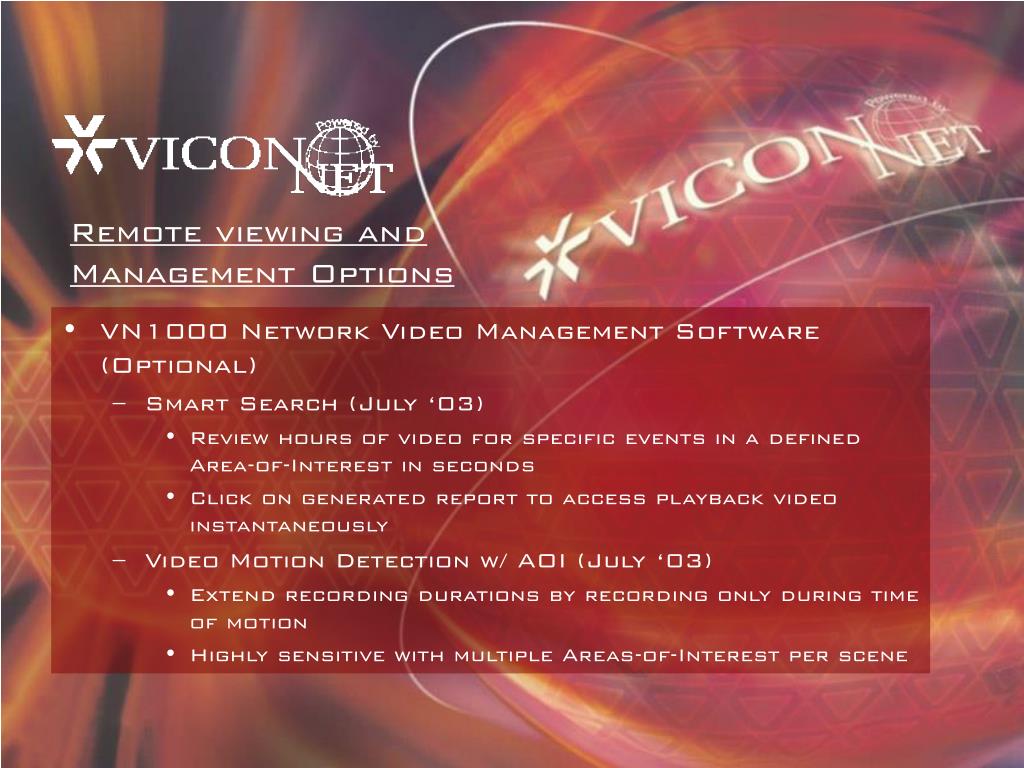

  8. Remote viewing and Management Options • VN1000 Network Video Management Software (Optional) • Smart Search (July ‘03) • Review hours of video for specific events in a defined Area-of-Interest in seconds • Click on generated report to access playback video instantaneously • Video Motion Detection w/ AOI (July ‘03) • Extend recording durations by recording only during time of motion • Highly sensitive with multiple Areas-of-Interest per scene

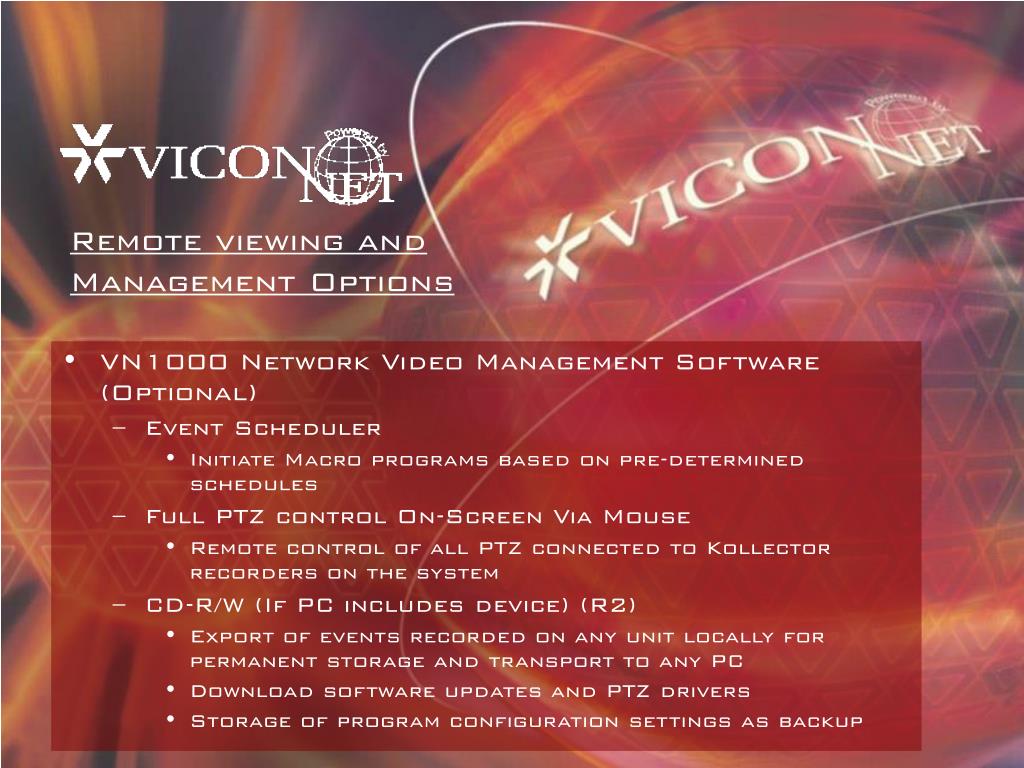

  9. Remote viewing and Management Options • VN1000 Network Video Management Software (Optional) • Event Scheduler • Initiate Macro programs based on pre-determined schedules • Full PTZ control On-Screen Via Mouse • Remote control of all PTZ connected to Kollector recorders on the system • CD-R/W (If PC includes device) (R2) • Export of events recorded on any unit locally for permanent storage and transport to any PC • Download software updates and PTZ drivers • Storage of program configuration settings as backup

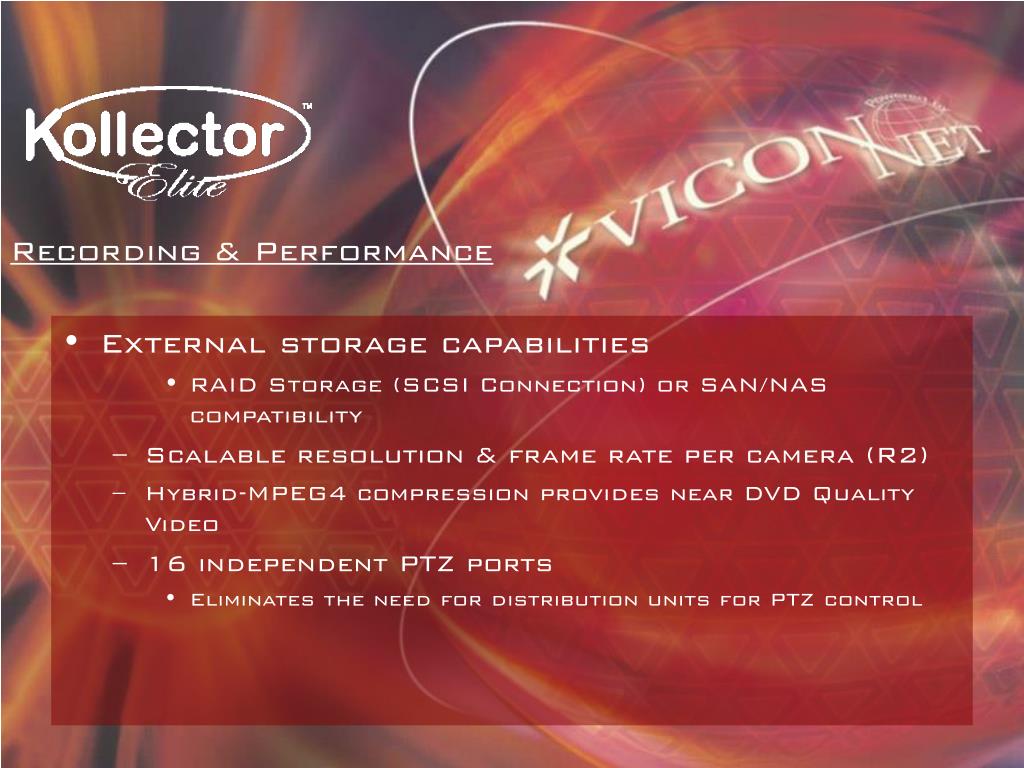

  10. Recording & Performance • External storage capabilities • RAID Storage (SCSI Connection) or SAN/NAS compatibility • Scalable resolution & frame rate per camera (R2) • Hybrid-MPEG4 compression provides near DVD Quality Video • 16 independent PTZ ports • Eliminates the need for distribution units for PTZ control

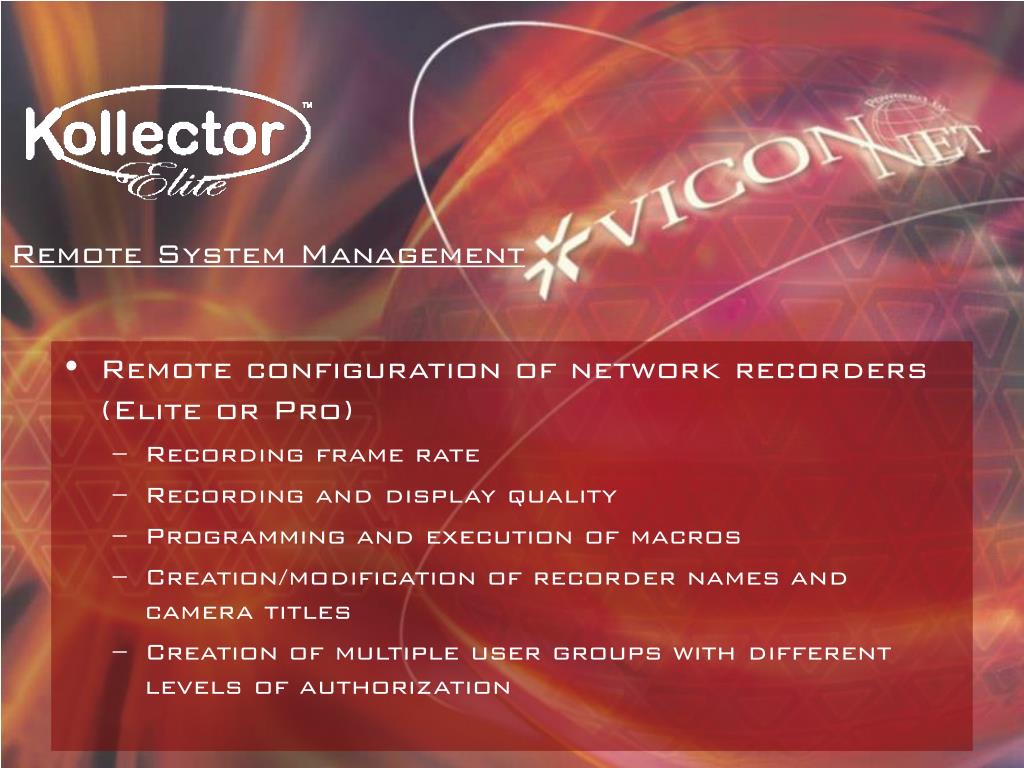

  11. Remote System Management • Remote configuration of network recorders (Elite or Pro) • Recording frame rate • Recording and display quality • Programming and execution of macros • Creation/modification of recorder names and camera titles • Creation of multiple user groups with different levels of authorization

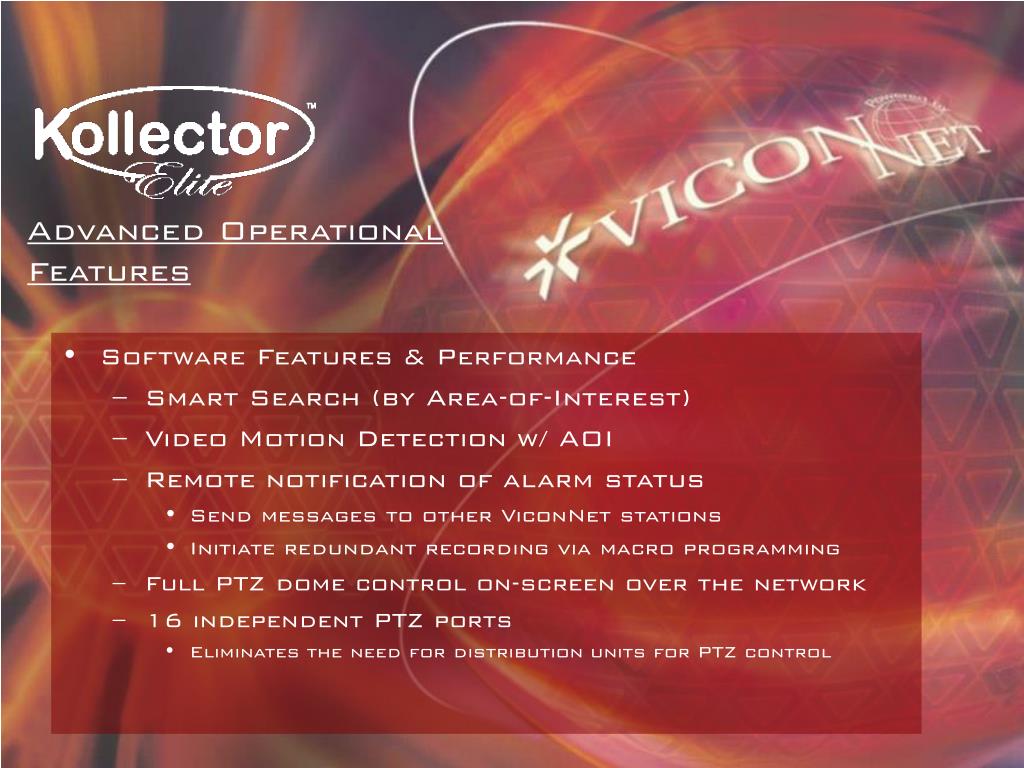

  12. Advanced Operational Features • Software Features & Performance • Smart Search (by Area-of-Interest) • Video Motion Detection w/ AOI • Remote notification of alarm status • Send messages to other ViconNet stations • Initiate redundant recording via macro programming • Full PTZ dome control on-screen over the network • 16 independent PTZ ports • Eliminates the need for distribution units for PTZ control

  13. 16-Channel Cost effective Recorders based on the same ViconNet platform • 30, 60 or 120 fps unit options • Internal Hard Drive Capacity: • 120, 280 & 440 GB Options • Same Compression and ViconNet interface as Kollector Elite except for Remote system management options • Can be remotely configured and controlled from a Kollector Elite

  14. Long-Term Development • Products: • Network servers (w & w/out internal HDD) (Nov ’04) • Surveyor dome w/ network module (Jan ’04) • Fixed camera w/ network module (Jan ’04) • 480 fps 16-channel recorder • 32 & 8-channel development • Features: • Area surveillance (Behavior monitoring) • Integrated GUI platform for NOVA 1500 and Viconnet • Extensive report generation tracking modifications and changes by user • Internet browser • Third-party integration to access & POS via API

  15. Support & Warranty • Kollector Elite and Pro Recorders • 18 Month Warranty • Support program for future upgrades and feature releases offered at the start of each following year (covers a total maximum of three years from date of shipment) • ViconNet VN1000 & VN500 Options • Upgrades and corrections free for the first year from date of shipment • Support program for future upgrades and feature releases offered at the start of each following year (covers a total maximum of three years from date of shipment)

  16. ViconNet is not DVR software. It is a network-based video management platform designed to manage all video products making it perfect for any size system, big or small.

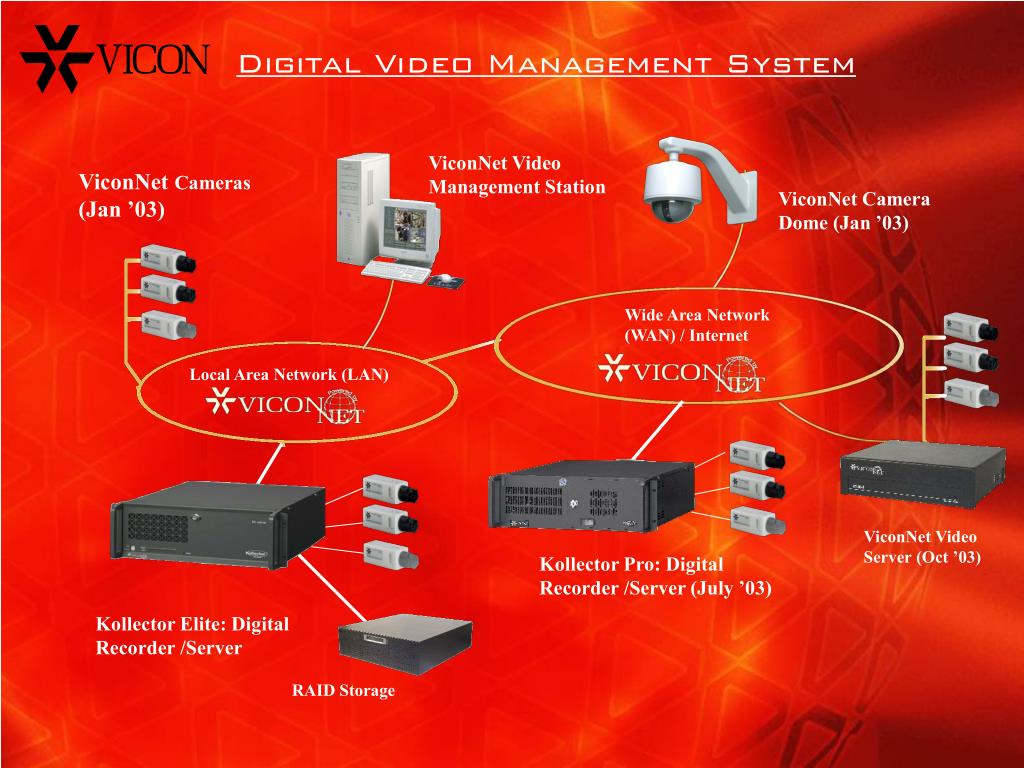

  17. Digital Video Management System ViconNet Video Management Station ViconNet Cameras (Jan ’03) ViconNet Camera Dome (Jan ’03) Wide Area Network (WAN) / Internet Local Area Network (LAN) ViconNet Video Server (Oct ’03) Kollector Pro: Digital Recorder /Server (July ’03) Kollector Elite: Digital Recorder /Server RAID Storage
