  1. DAQ for FAIR: uDAPL and XDAQ on an InfiniBand test cluster J. Adamczewski, H.G. Essel, S. Linev IT/EE Palaver 20.06.06 FAIR DAQ - J.Adamczewski, S.Linev

  2. Outline • Requirements of DAQ for CBM • The InfiniBand Cluster, uDAPL • XDAQ tests on the IB-Cluster • Summary and further evaluation FAIR DAQ - J.Adamczewski, S.Linev

  3. Detector Detector Detector FEE deliver time stamped data ~50000 FEE chips ~1000 collectors CNet collect data into buffers collect ~1000 active buffers data dispatcher TNet time distribution ~1000 links a 1 GB/sec 1000x1000 switching ~10 dispatchers →subfarm BNet sort time stamped data event dispatcher subfarm subfarm subfarm PNet process events level 1&2 selection ~100 subfarms ~100 nodes per subfarm processing HNet high level selection to high level computing and archiving ~1 GB/sec Output CBM data acquisition FAIR DAQ - J.Adamczewski, S.Linev

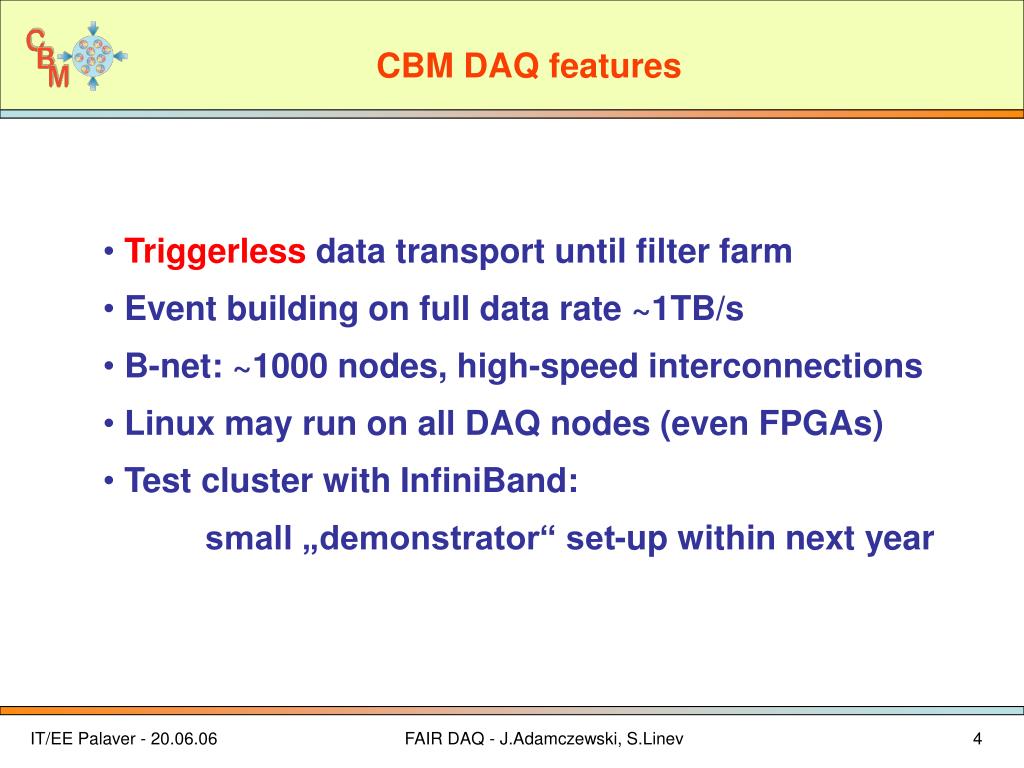

  4. CBM DAQ features • Triggerless data transport until filter farm • Event building on full data rate ~1TB/s • B-net: ~1000 nodes, high-speed interconnections • Linux may run on all DAQ nodes (even FPGAs) • Test cluster with InfiniBand: small „demonstrator“ set-up within next year FAIR DAQ - J.Adamczewski, S.Linev

  5. InfiniBand test cluster • 4 nodes: • Double Opteron 2.2 GHz, 2GB RAM • Mellanox MHES18-XT host adapter • 2x Gigabit Ethernet host adapters • SuSE Linux 9.3, x64bit version • Mellanox MTS2400 24X InfiniBand switch PCI Express x8 FAIR DAQ - J.Adamczewski, S.Linev

  6. Testcluster networks InfiniBand switch: MTS2400 Gigabit Ethernet switch Ethernet cabling InfiniBand cabling InfiniBand HCA: MHES18-XT FAIR DAQ - J.Adamczewski, S.Linev

  7. Mellanox IB Gold 1.8.0 IPoIB: IP over InfiniBand driver uDAPL: User Direct Access Programming Layer MPI: Message Passing Interface others ... InfiniBand software FAIR DAQ - J.Adamczewski, S.Linev

  8. Direct Access Transport • Developed by DAT collaborative - http://www.datcollaborative.org • Objectives: • Transport and platform (OS) independence • Define user- (uDAPL) and kernel-level (kDAPL) APIs • Features: • Zero-copy data transfer • RDMA - Remote Direct Memory Access FAIR DAQ - J.Adamczewski, S.Linev

  9. uDAPL test application • C++ wrapper for C-based uDAPL library • Same program runs on all nodes • All-to-all connectivity • Time synchronization between nodes ~2 µs • One master (deliver commands) and many slaves • Several kinds of traffic schedule can be generated and executed • Statistics like transfer rate, lost packets, schedule accuracy can be measured FAIR DAQ - J.Adamczewski, S.Linev

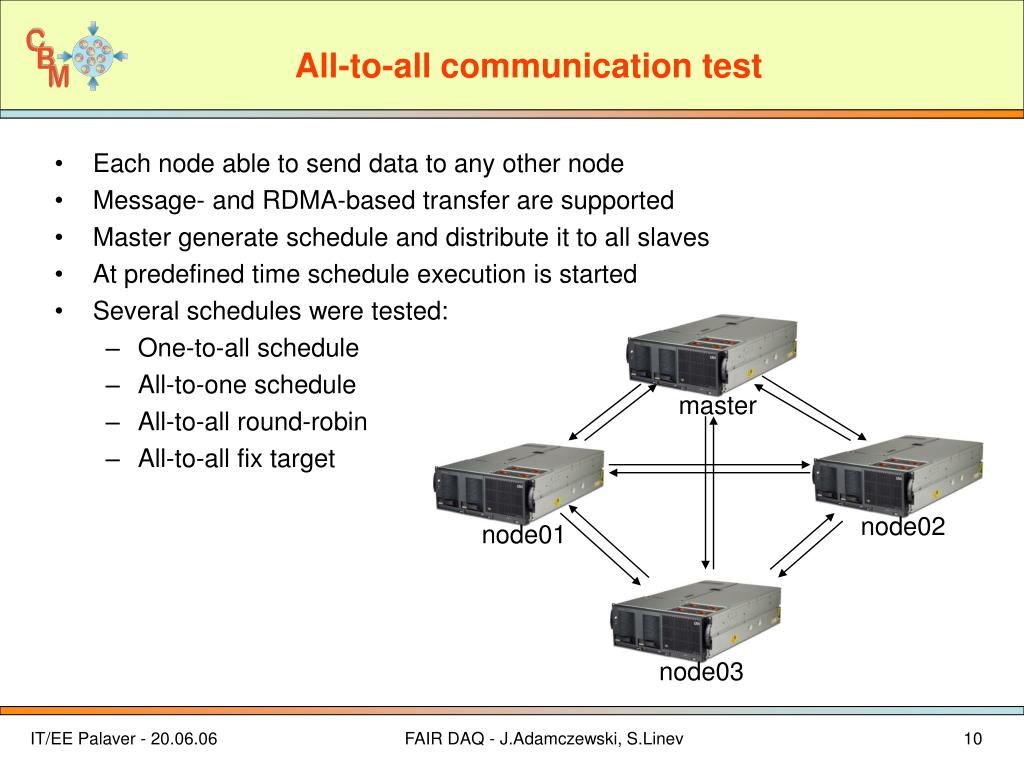

  10. master node02 node01 node03 All-to-all communication test • Each node able to send data to any other node • Message- and RDMA-based transfer are supported • Master generate schedule and distribute it to all slaves • At predefined time schedule execution is started • Several schedules were tested: • One-to-all schedule • All-to-one schedule • All-to-all round-robin • All-to-all fix target FAIR DAQ - J.Adamczewski, S.Linev

  11. Slight difference between message- and RDMA-based transfer Reasonable transfer rates starting from 16 KB buffers Scheduled test results FAIR DAQ - J.Adamczewski, S.Linev

  12. Chaotic (schedule-less) transfer tests • Packets send without schedule • Next packet send when previous is completed • Performance depends on receiving queue size • For small packets performance 2 times better than scheduled approach • Low CPU usage FAIR DAQ - J.Adamczewski, S.Linev

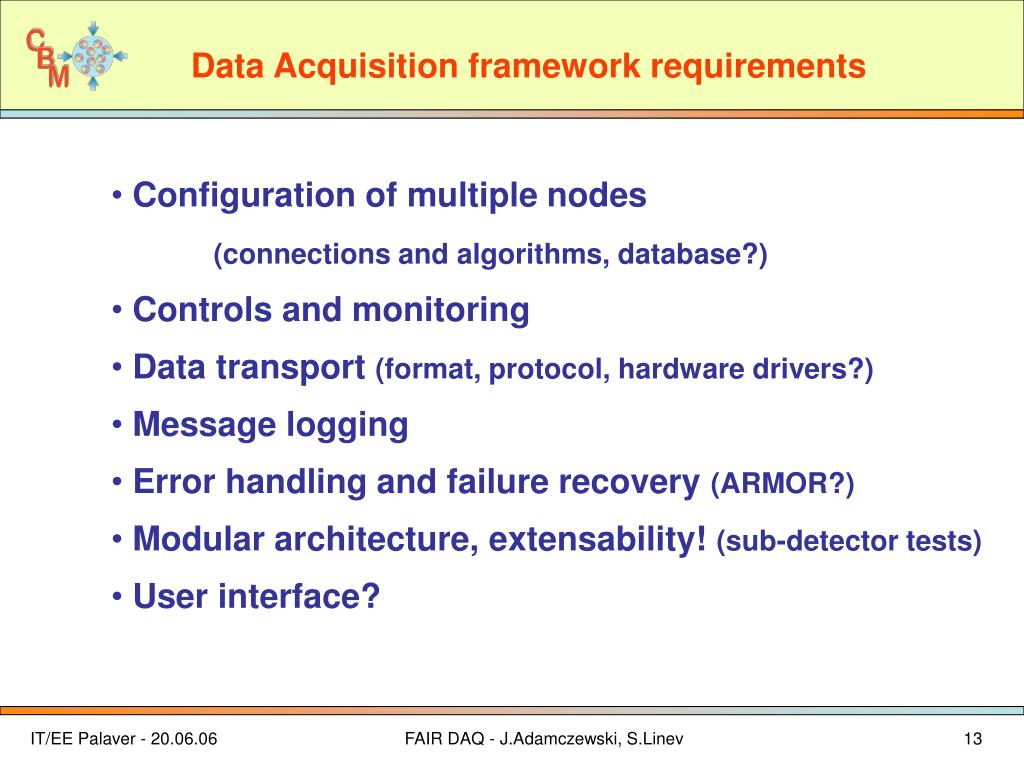

  13. Data Acquisition framework requirements • Configuration of multiple nodes (connections and algorithms, database?) • Controls and monitoring • Data transport (format, protocol, hardware drivers?) • Message logging • Error handling and failure recovery (ARMOR?) • Modular architecture, extensability! (sub-detector tests) • User interface? FAIR DAQ - J.Adamczewski, S.Linev

  14. The CMS XDAQ framework • Standard DAQ framework for LHC CMS experiment(Orsini, Gutleber) http://xdaqwiki.cern.ch • C++ libraries on Linux, modular packages • Each node: context, xdaq process with embedded xdaq applications • Configuration: XML • Data transport: I2O protocol (Intelligent IO) • Communication: http, cgi; SOAP messages FAIR DAQ - J.Adamczewski, S.Linev

  15. The CMS XDAQ framework • XDAQ features continued... http://xdaqwiki.cern.ch • State machines (sync/async FSM) • Message logger, error handler • Monitoring tool • Hardware access library (HAL) • Front End Driver (FED kit, for CMS!) • Job Control (task handler for node control) • others: • exceptions • threads • infospace • data (de)serializers , ... FAIR DAQ - J.Adamczewski, S.Linev

  16. XDAQ on the CBM InfiniBand cluster • Installation problems: • XDAQ distribution not 64 bit save! • Code adjustments required • kernel modules for CERN linux excluded! • drivers for CMS hardware (FED) excluded • coretools done, worksuite partially,… •  Basic evaluation possible! FAIR DAQ - J.Adamczewski, S.Linev

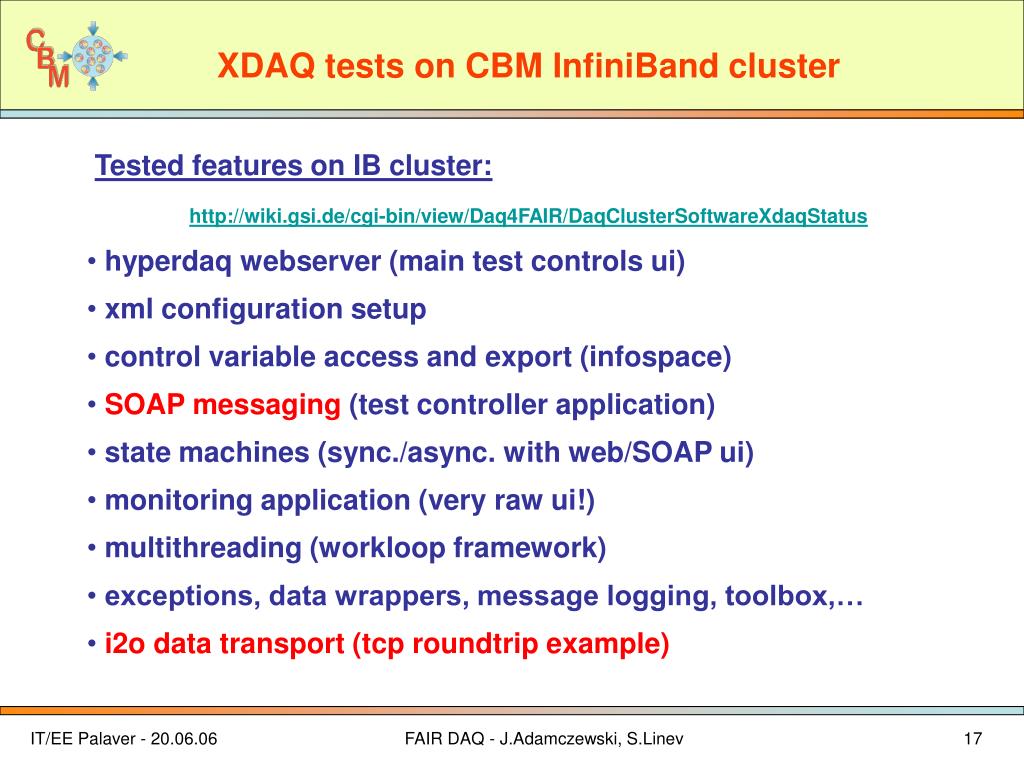

  17. XDAQ tests on CBM InfiniBand cluster • Tested features on IB cluster: http://wiki.gsi.de/cgi-bin/view/Daq4FAIR/DaqClusterSoftwareXdaqStatus • hyperdaq webserver (main test controls ui) • xml configuration setup • control variable access and export (infospace) • SOAP messaging (test controller application) • state machines (sync./async. with web/SOAP ui) • monitoring application (very raw ui!) • multithreading (workloop framework) • exceptions, data wrappers, message logging, toolbox,… • i2o data transport (tcp roundtrip example) FAIR DAQ - J.Adamczewski, S.Linev

  18. XDAQ: web server hyperdaq web interface FAIR DAQ - J.Adamczewski, S.Linev

  19. XDAQ executive with applications • Common XML configuration file: • Each node knows all applications on all nodes! • Unique addressing by context (url) and application id FAIR DAQ - J.Adamczewski, S.Linev

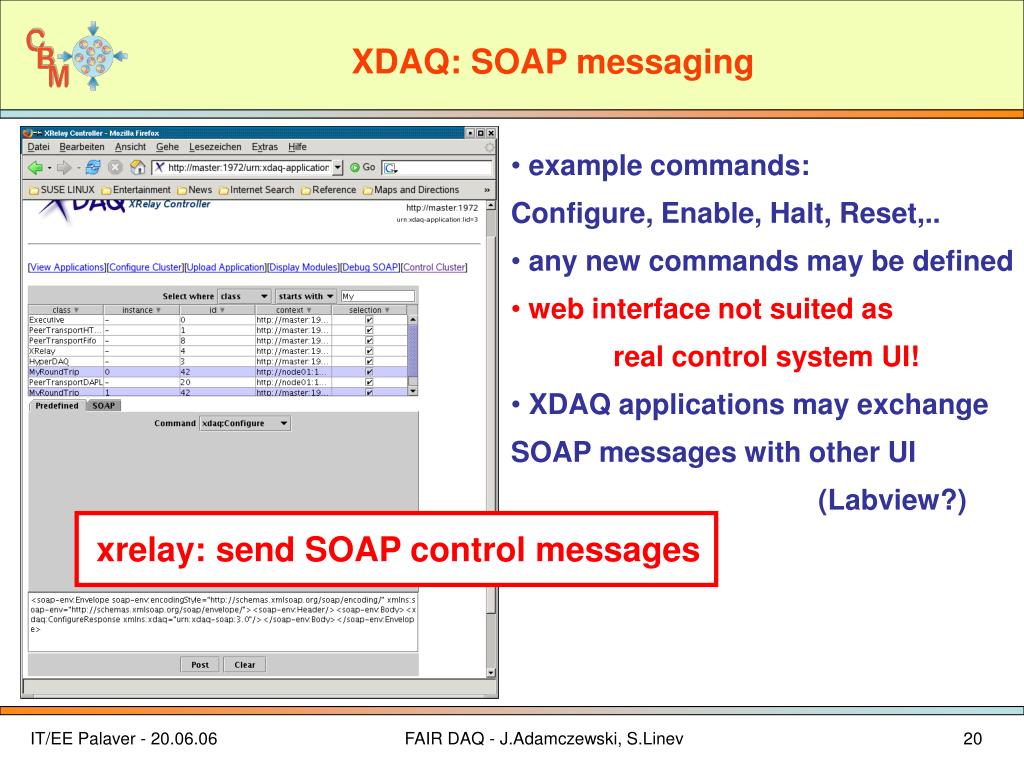

  20. XDAQ: SOAP messaging • example commands:Configure, Enable, Halt, Reset,.. • any new commands may be defined • web interface not suited as real control system UI! • XDAQ applications may exchange SOAP messages with other UI (Labview?) xrelay: send SOAP control messages FAIR DAQ - J.Adamczewski, S.Linev

  21. http SOAP fifo peer transport new development i2o tcp DAPL XDAQ: messaging and peer transport messages transport layer FAIR DAQ - J.Adamczewski, S.Linev

  22. XDAQ: I2O messaging and peer transport FAIR DAQ - J.Adamczewski, S.Linev

  23. Peer Transport DAPL (ptdapl) • GSI development 03/2006-05/2006 • C++ wrapper class for uDAPL C library (class TBasic) • peer transport tcp as „template“ (starting point) • uDAPL buffers managed within XDAQ memory pool(class TEndpointBuffer) • avoids memcopy and new buffer allocation for each send package: • lookup if posted memory reference is known as send buffer • user code can write directly into uDAPL send buffer • multiple threads for sending, releasing, and receiving buffer FAIR DAQ - J.Adamczewski, S.Linev

  24. Peer Transport DAPL structure sender receiver peer transport uDAPL channel messenger message (I2O) transmitter receiverloop buffer pool FAIR DAQ - J.Adamczewski, S.Linev

  25. MyRoundTrip state machine MyRoundTrip XDAQ executive I2O callback web application I2O callback HyperDAQ I2O roundtrip setup XDAQ executive sender receiver EnableAction() token() token() Peer Transport default() FAIR DAQ - J.Adamczewski, S.Linev

  26. MyDataSource state machine workloop (thread) I2O callback web application HyperDAQ HyperDAQ I2O sender/receiver setup XDAQ executive XDAQ executive sender receiver MyDataDrain EnableAction() Benchmark() token() Peer Transport default() default() FAIR DAQ - J.Adamczewski, S.Linev

  27. P: package size t : transfer time („latency“) Observation: t linear with P: P big: network limit P small: framework latency ! Transport bandwidth B and latency t t P B P FAIR DAQ - J.Adamczewski, S.Linev

  28. ptDAPL benchmark results FAIR DAQ - J.Adamczewski, S.Linev

  29. Benchmark summary 955 MB/s plain uDAPL 905 MB/s XDAQ, I2O, ptDAPL 234 MB/s XDAQ, I2O, TCP over IB FAIR DAQ - J.Adamczewski, S.Linev

  30. Summary and Outlook • CBM DAQ requires fast builder network: InfiniBand test cluster • IB hardware and software installed, tested,... • uDAPL: developed C++ wrapper and test applications • many tests with different traffic patterns were performed • more tests on bigger InfiniBand clusters are required • XDAQ as software framework: • tested features: SOAP, web server, data transport,... • I2O implementation for uDAPL done! • cluster configuration? control system? scalability? hardware access? FAIR DAQ - J.Adamczewski, S.Linev
