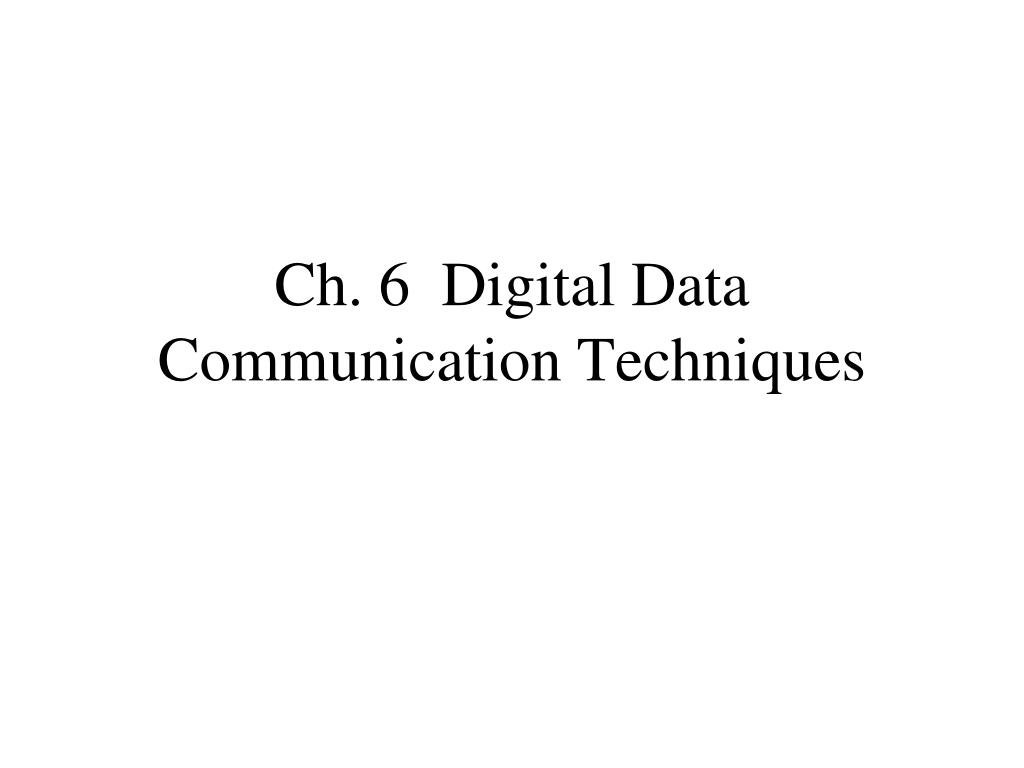

Ch. 6 Digital Data Communication Techniques. 6.1Asynchronous & Synchronous Transmission. Asynchronous Transmission : transmission in which each information character is individually synchronized (usually by the use of start and stop elements).
E N D
6.1Asynchronous & Synchronous Transmission • Asynchronous Transmission: transmission in which each information character is individually synchronized (usually by the use of start and stop elements). • Synchronous Transmission: transmission in which the time of occurrence of each signal representing a bit is related to a fixed time frame.

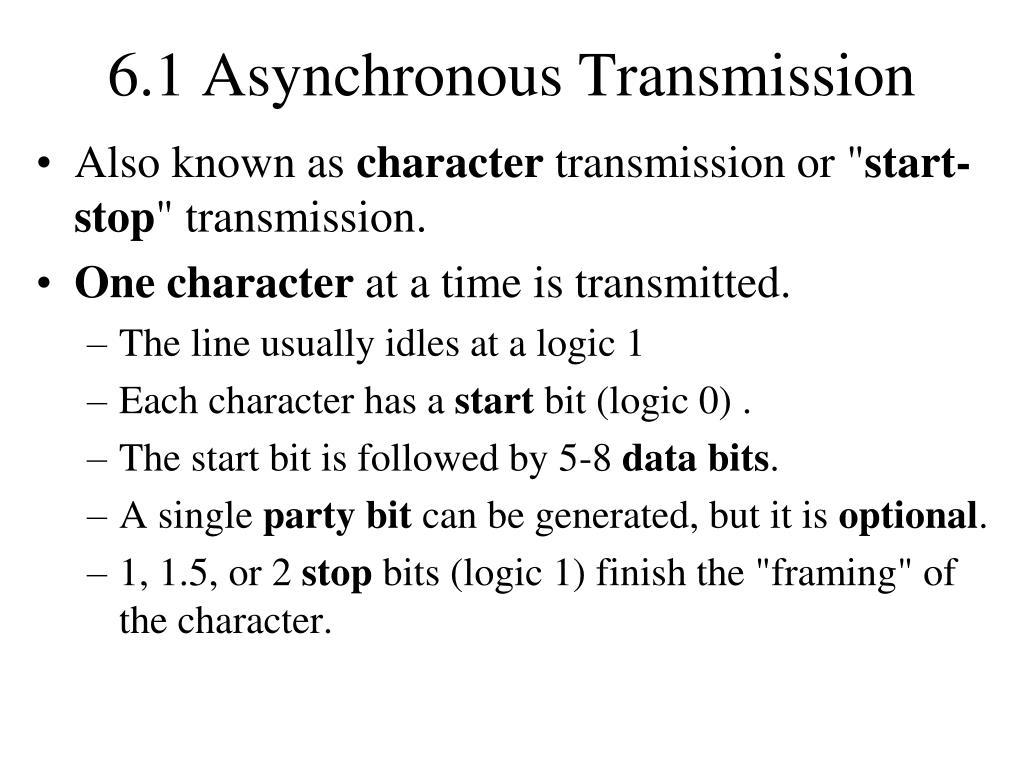

6.1 Asynchronous Transmission • Also known as character transmission or "start-stop" transmission. • One character at a time is transmitted. • The line usually idles at a logic 1 • Each character has a start bit (logic 0) . • The start bit is followed by 5-8 data bits. • A single party bit can be generated, but it is optional. • 1, 1.5, or 2 stop bits (logic 1) finish the "framing" of the character.
6.1 Asynchronous Transmission (Fig. 6.1) • The efficiency E = # of inf. bits/ total # of bits. • Example: ASCII code, odd parity, 2 stop bits. • # of inf. bits= 7 • Total =1 start + 7 data + 1 parity + 2 stop = 11 • Efficiency = 7/11= .64 or 64%. • Transmitter and receiver have a "shift-register" structure. • A separate clock exists at each end. • UART--Integrated circuit implementation.

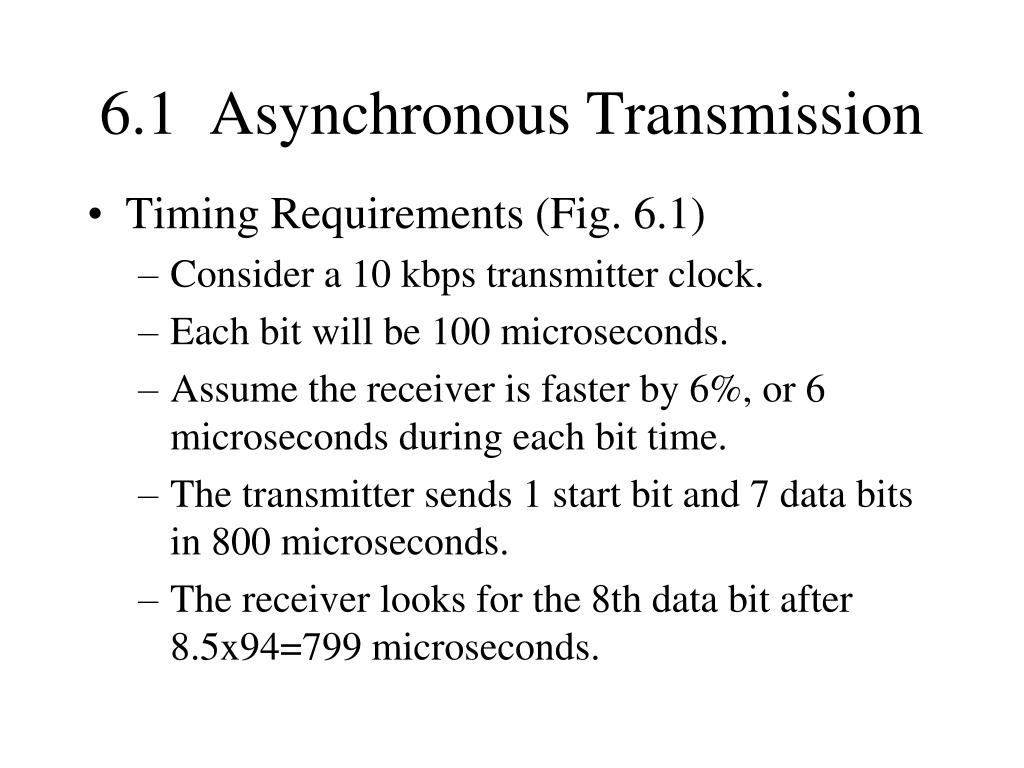

6.1 Asynchronous Transmission • Timing Requirements (Fig. 6.1) • Consider a 10 kbps transmitter clock. • Each bit will be 100 microseconds. • Assume the receiver is faster by 6%, or 6 microseconds during each bit time. • The transmitter sends 1 start bit and 7 data bits in 800 microseconds. • The receiver looks for the 8th data bit after 8.5x94=799 microseconds.

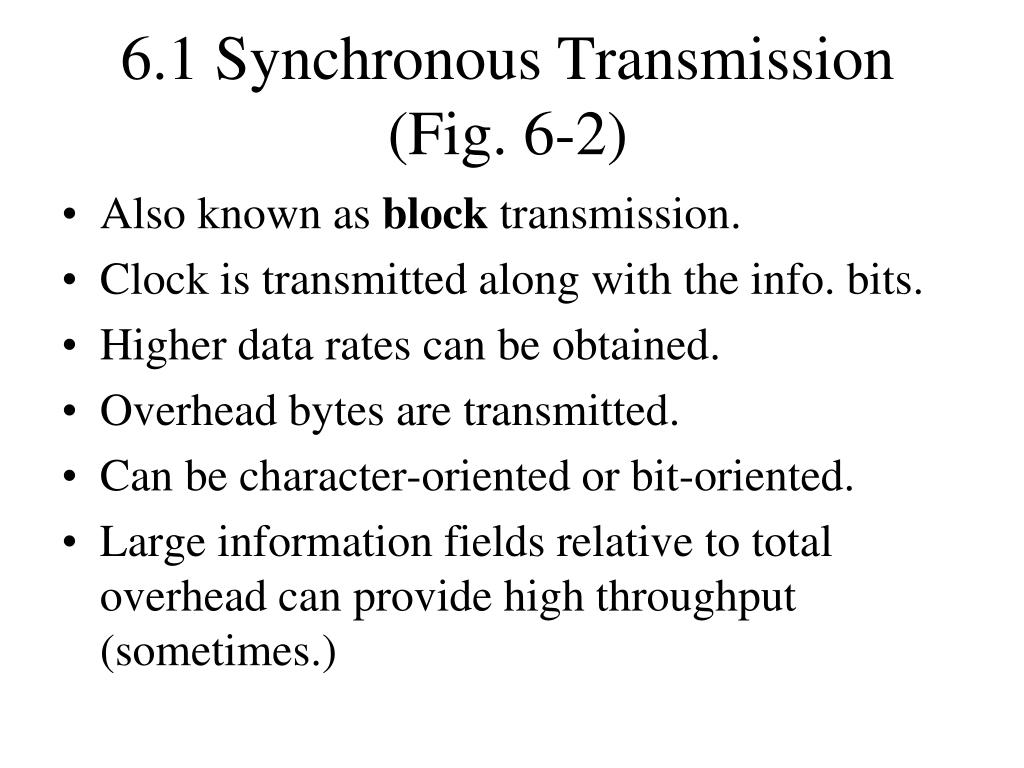

6.1 Synchronous Transmission (Fig. 6-2) • Also known as block transmission. • Clock is transmitted along with the info. bits. • Higher data rates can be obtained. • Overhead bytes are transmitted. • Can be character-oriented or bit-oriented. • Large information fields relative to total overhead can provide high throughput (sometimes.)

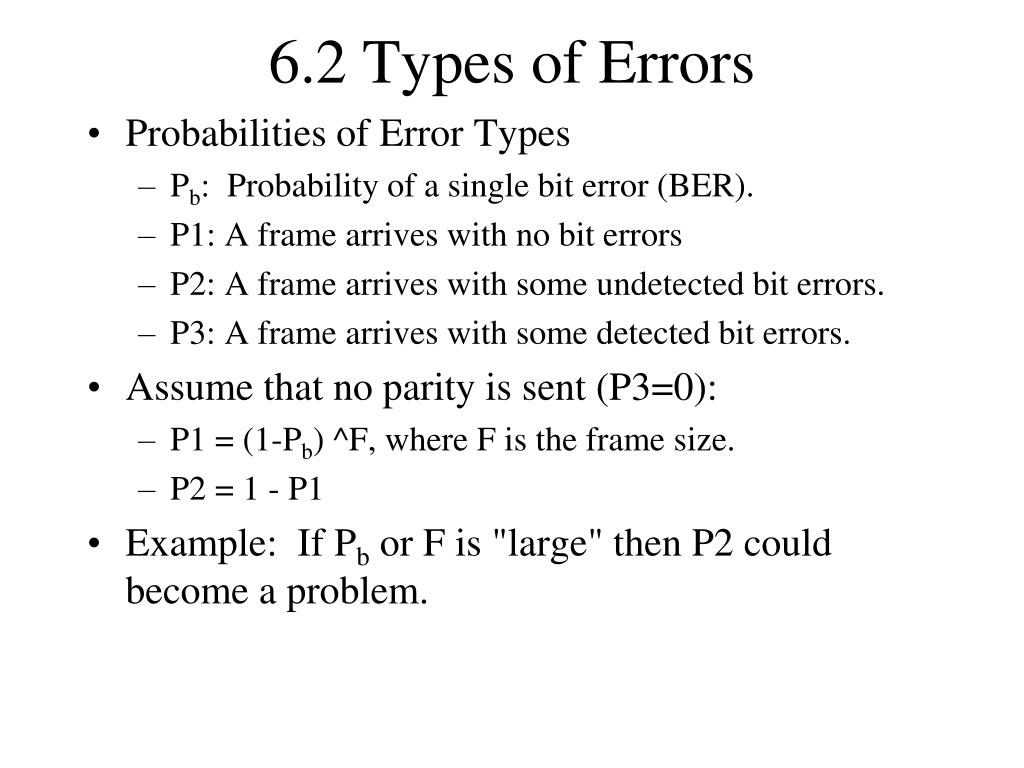

6.2 Types of Errors • Probabilities of Error Types • Pb: Probability of a single bit error (BER). • P1: A frame arrives with no bit errors • P2: A frame arrives with some undetected bit errors. • P3: A frame arrives with some detected bit errors. • Assume that no parity is sent (P3=0): • P1 = (1-Pb) ^F, where F is the frame size. • P2 = 1 - P1 • Example: If Pb or F is "large" then P2 could become a problem.

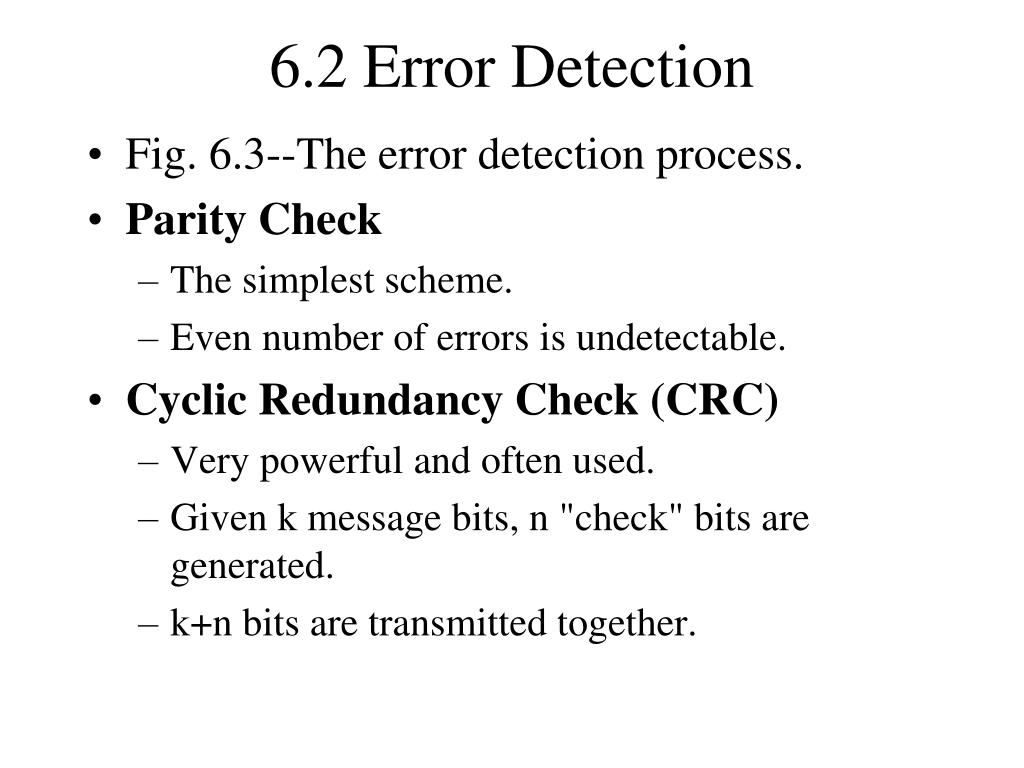

6.2 Error Detection • Fig. 6.3--The error detection process. • Parity Check • The simplest scheme. • Even number of errors is undetectable. • Cyclic Redundancy Check (CRC) • Very powerful and often used. • Given k message bits, n "check" bits are generated. • k+n bits are transmitted together.

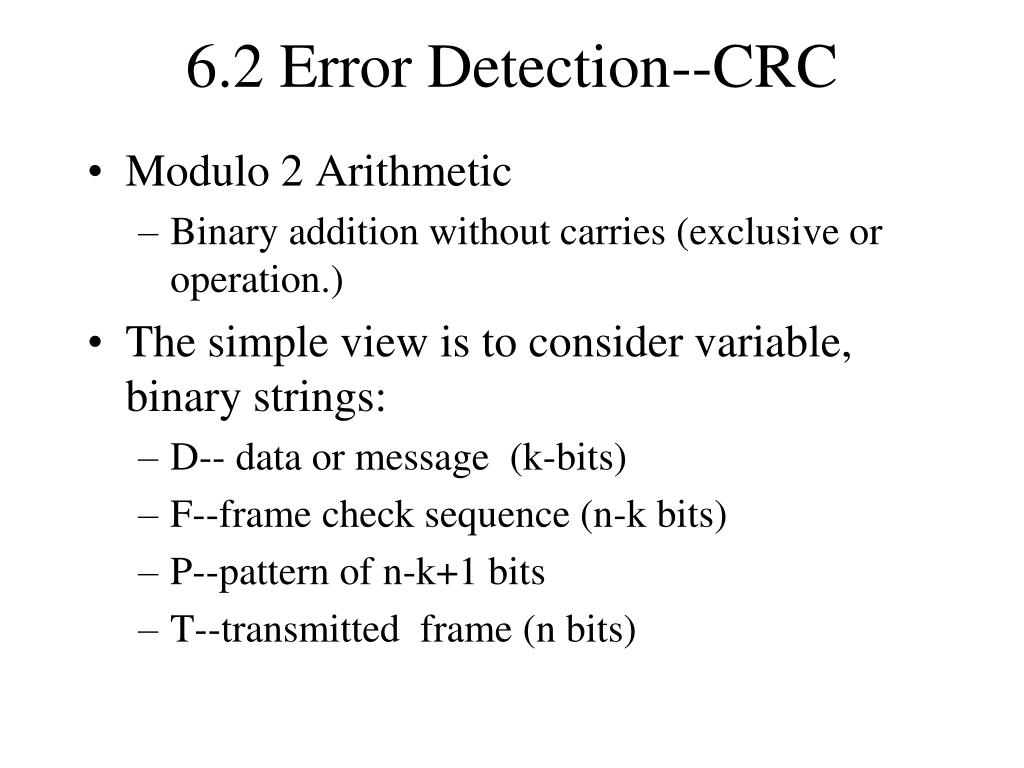

6.2 Error Detection--CRC • Modulo 2 Arithmetic • Binary addition without carries (exclusive or operation.) • The simple view is to consider variable, binary strings: • D-- data or message (k-bits) • F--frame check sequence (n-k bits) • P--pattern of n-k+1 bits • T--transmitted frame (n bits)
6.2 Error Detection--CRC (p.2) • Consider the following three step process: • STEP 1: Multiply D by 2n-k. • n-k 0's will be shifted in, from the right. • STEP 2: Divide by P • This will produce a quotient and a remainder. • The quotient (Q) will not be used, but the remainder (R) is used as F. • STEP 3: Add R to the shifted version of D to produce T. • R replaces the n 0's that were added to D. • T will be transmitted.
6.2 Error Detection--CRC (p.3) • Why does this work? • We are looking for something that is evenly divisible by P. • T/P =(D2n-k +R)/P = (D2n-k/P) + R/P =Q+R/P+ R/P. • But R/P + R/P =0, because of modulo 2 arithmetic. • Hence T/P=Q which is evenly divisible by P (remainder is 0). • Example 6.6--page 191.
6.2 Error Detection--CRC(p.4) • Suppose that bit errors are possible during transmission. • Model the error pattern (E) as a binary string with a 1 in the position of a bit that has been received incorrectly. • Received frame: Tr = T + E. • Divide by P: Tr/P = T/P + E/P= Q + E/P • If the remainder is 0, then assume E=0. • If P is chosen properly, very few error patterns will be evenly divisible by P (i.e. have a remainder of 0) and very few undetected errors will occur.
6.3 Error Detection--CRC (p.5) • Polynomials (Example 6.7 and Fig. 6.4) • The CRC process can be viewed as binary polynomials of X. • The coefficients of the polynomials correspond to the previously defined bit-string variables. • Arithmetic operations use modulo-2 (this makes it an "algebra.") • Generating Polynomials • Carefully chosen polynomials can allow the detection of many types of errors(p.193). • Ex: CRC-12, CRC-16, CRC-CCITT, CRC-32.

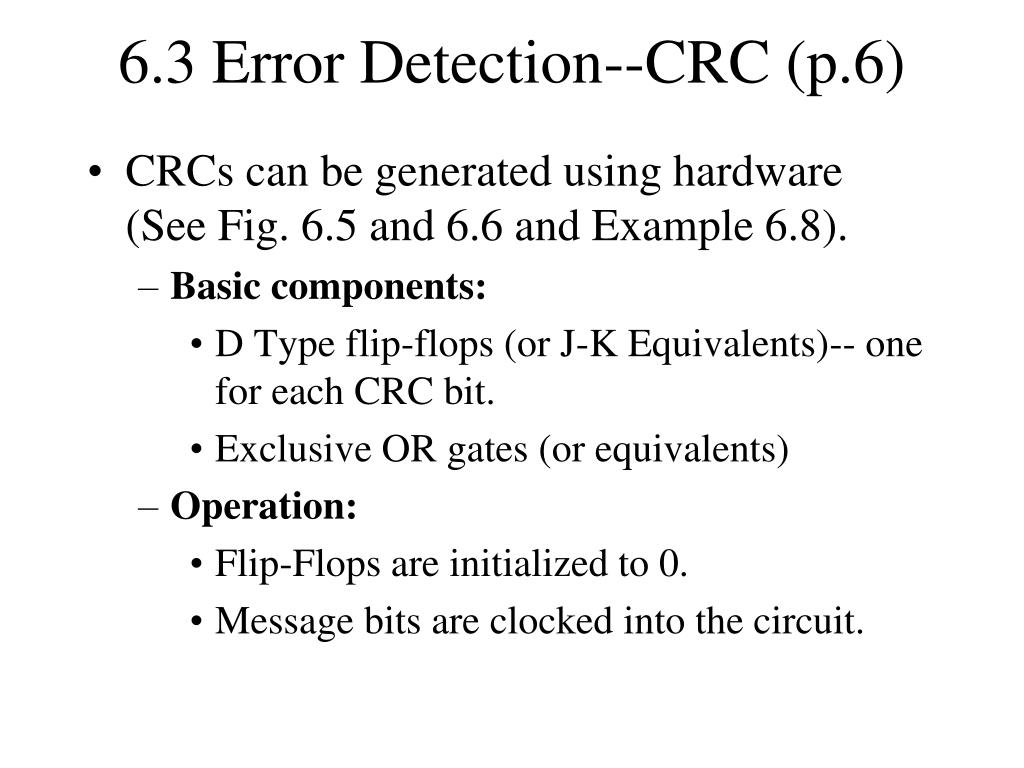

6.3 Error Detection--CRC (p.6) • CRCs can be generated using hardware (See Fig. 6.5 and 6.6 and Example 6.8). • Basic components: • D Type flip-flops (or J-K Equivalents)-- one for each CRC bit. • Exclusive OR gates (or equivalents) • Operation: • Flip-Flops are initialized to 0. • Message bits are clocked into the circuit.
6.4 Error Correction • Fig. 6.7 Error Correction Process • k bits are “mapped” into n bit block. • Result is called a codeword. • Example 6.7--Forward Error Correction • (n-k)/k is called the redundancy. • k/n is called the code rate. • Fig. 6.8 How Coding Improves System Performance
6.5 Line Configurations • Topology: refers to the physical arrangement of stations on a link. • Point-to-point • Multipoint--saves you money! • Duplexity: refers to the direction and timing of signal flow. • Full-duplex digital lines generally require 4-wires. • Half-duplex digital lines require 2 wires • Fig. 6-9 Traditional Computer/Terminal Configurations.
6.5 Line Discipline • Point-to-Point: Three Phases (not in 8th Edition) • Establishment • Data Transfer • Termination • Multipoint Links • Poll--the primary requests data from secondary • Select--the primary has data to send and informs secondary that data are coming. • Contention--no primary; a station can transmit when the line is free used in LANs and satellite systems.

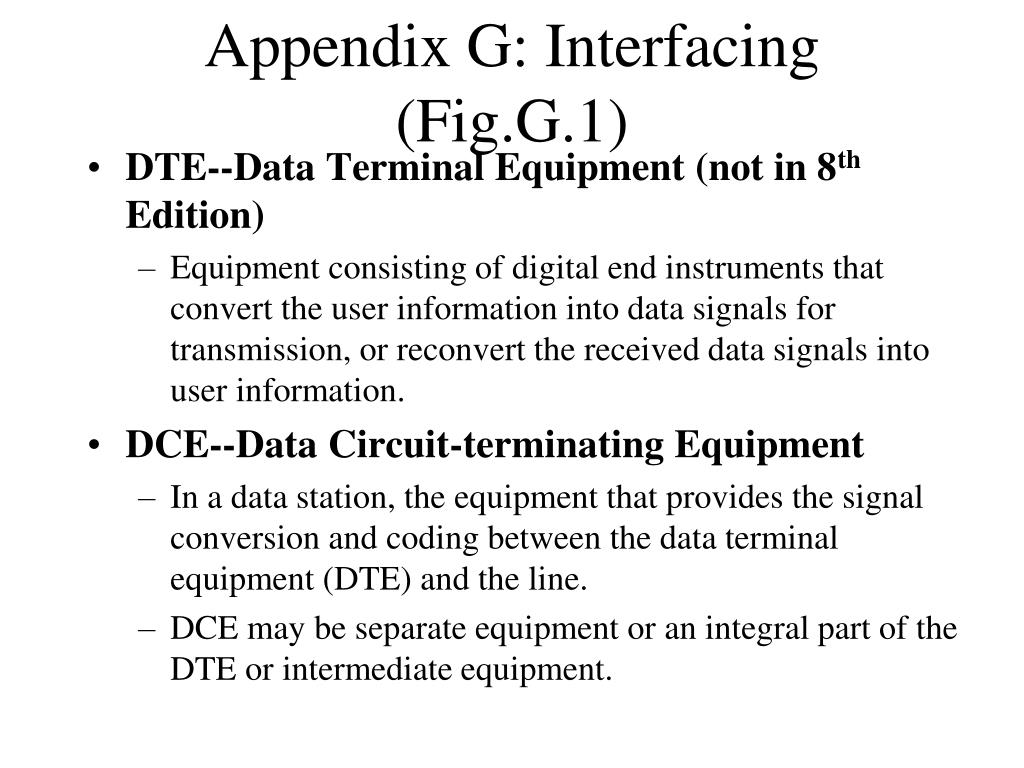

Appendix G: Interfacing (Fig.G.1) • DTE--Data Terminal Equipment (not in 8th Edition) • Equipment consisting of digital end instruments that convert the user information into data signals for transmission, or reconvert the received data signals into user information. • DCE--Data Circuit-terminating Equipment • In a data station, the equipment that provides the signal conversion and coding between the data terminal equipment (DTE) and the line. • DCE may be separate equipment or an integral part of the DTE or intermediate equipment.
G.1 Interfacing (cont.) • Interchange Circuits • The connection between the DTE and DCE. • Standards--Physical Layer of the OSI Model • V.24/EIA-232-F (RS-232--1962) • X.21--15 wire interface for public switched network interfacing. • ISDN Physical Interface (8 wire interface).

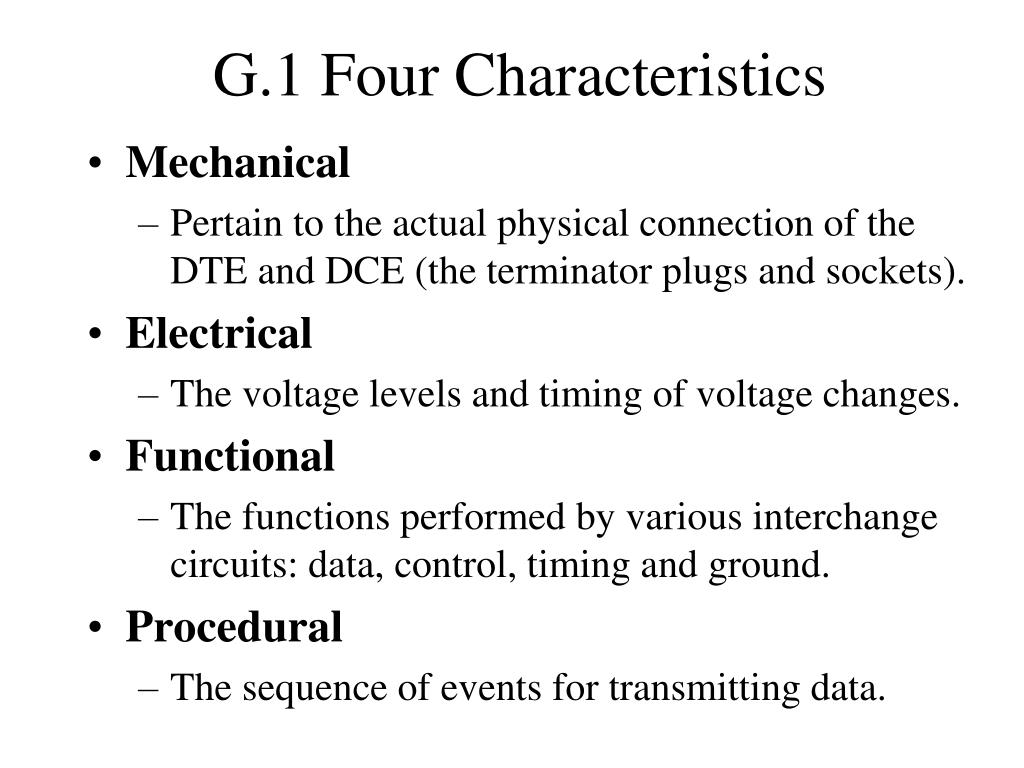

G.1 Four Characteristics • Mechanical • Pertain to the actual physical connection of the DTE and DCE (the terminator plugs and sockets). • Electrical • The voltage levels and timing of voltage changes. • Functional • The functions performed by various interchange circuits: data, control, timing and ground. • Procedural • The sequence of events for transmitting data.

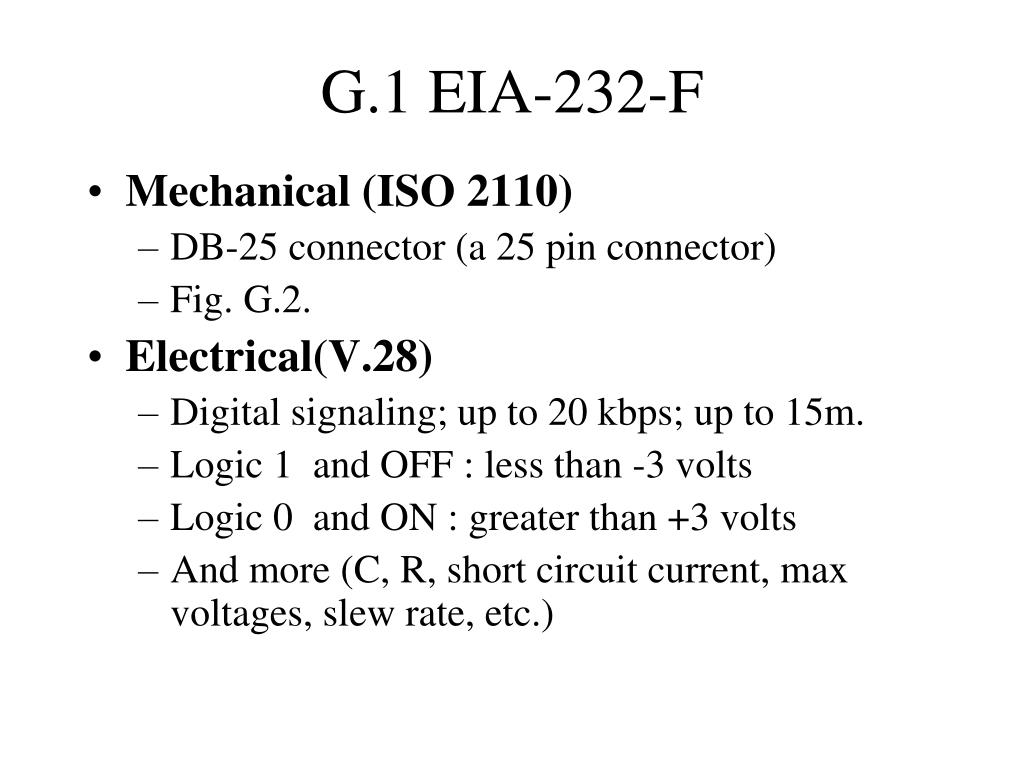

G.1 EIA-232-F • Mechanical (ISO 2110) • DB-25 connector (a 25 pin connector) • Fig. G.2. • Electrical(V.28) • Digital signaling; up to 20 kbps; up to 15m. • Logic 1 and OFF : less than -3 volts • Logic 0 and ON : greater than +3 volts • And more (C, R, short circuit current, max voltages, slew rate, etc.)
G.1 EIA-232-F (p.2) • Functional (V.24) • Table G-1--Interchange Circuits • Procedural (V.24) • Fig. G.4

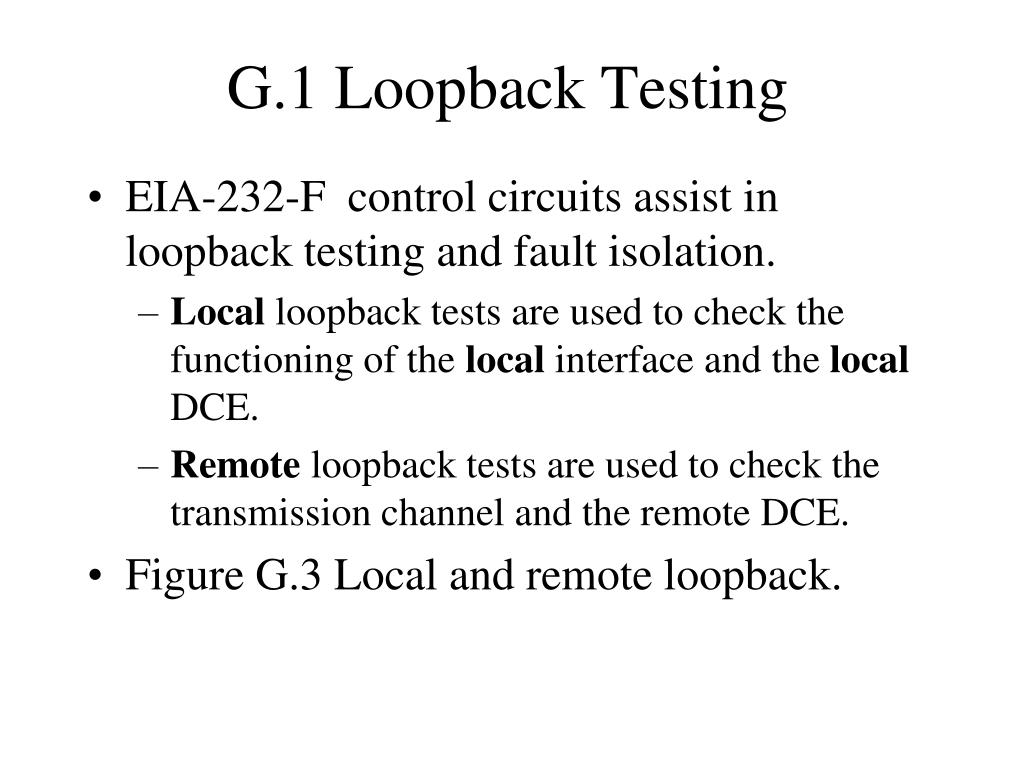

G.1 Loopback Testing • EIA-232-F control circuits assist in loopback testing and fault isolation. • Local loopback tests are used to check the functioning of the local interface and the local DCE. • Remote loopback tests are used to check the transmission channel and the remote DCE. • Figure G.3 Local and remote loopback.

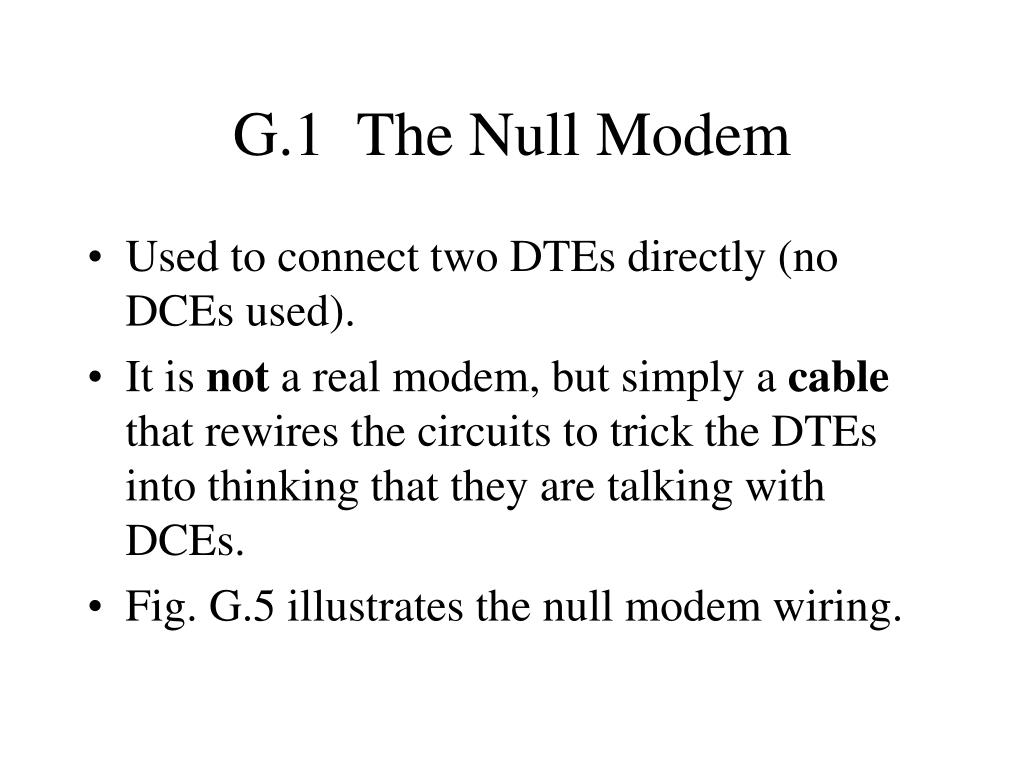

G.1 The Null Modem • Used to connect two DTEs directly (no DCEs used). • It is not a real modem, but simply a cable that rewires the circuits to trick the DTEs into thinking that they are talking with DCEs. • Fig. G.5 illustrates the null modem wiring.

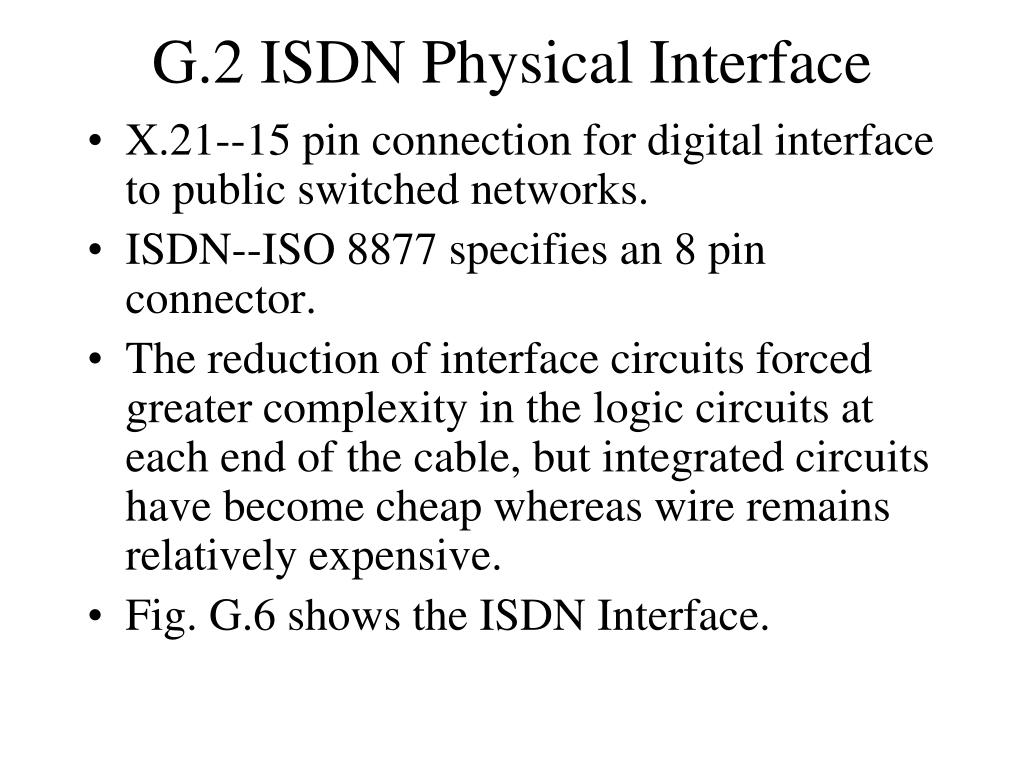

G.2 ISDN Physical Interface • X.21--15 pin connection for digital interface to public switched networks. • ISDN--ISO 8877 specifies an 8 pin connector. • The reduction of interface circuits forced greater complexity in the logic circuits at each end of the cable, but integrated circuits have become cheap whereas wire remains relatively expensive. • Fig. G.6 shows the ISDN Interface.
