a scalable approach to architectural level reliability prediction

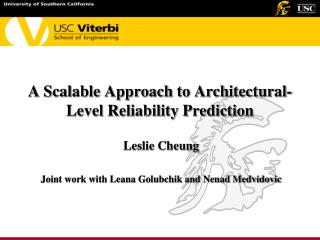

A Scalable Approach to Architectural-Level Reliability Prediction

Leslie Cheung

Joint work with Leana Golubchik and Nenad Medvidovic

motivation
Motivation
  • Many design decisions are made early in the software development process
    • These decisions affect software quality
  • Need to assess software quality early
    • If problems are discovered later (e.g., after implementation), they may be costly to address
motivation3
Motivation
  • We focus on assessing software reliability using architectural models in this talk
    • Reliability: the fraction of time that the system operates correctly
    • Architectural models: describes system structure, behavior, and interactions
case study midas
Case Study: MIDAS

Measure room temperature and adjust the temperature according to a user-specified threshold by turning on/off the AC

Sensor: measures temperature and sends the measured data to a Gateway

Gateway: aggregates and translates the data and sends it to a Hub

Hub: determines whether it should turn the AC on or off

AC: Control the AC

GUI: View current temperature, and change thresholds

motivations
Motivations
  • Existing approaches for concurrent systems: keeps track of the states of all components
  • MIDAS Example
    • State: (Sensor1, Sensor2, Gateway, Hub, GUI, AC)
motivations6
Motivations

(Taking Measurements, idle, idle, idle, Processing User Request, idle)

  • Existing approaches for concurrent systems: keeps track of the states of all components
  • MIDAS Example
    • State: (Sensor1, Sensor2, Gateway, Hub, GUI, AC)
motivations7
Motivations

(Failed!, idle, idle, idle, Processing User Request, idle)

  • Existing approaches for concurrent systems: keeps track of the states of all components
  • MIDAS Example
    • State: (Sensor1, Sensor2, Gateway, Hub, GUI, AC)
motivations8
Motivations

(Taking Measurements, idle, idle, idle, Processing User Request, idle)

  • Existing approaches for concurrent systems: keeps track of the states of all components
  • MIDAS Example
    • State: (Sensor1, Sensor2, Gateway, Hub, GUI, AC)
  • Problem: Scalability
    • e.g., 2 Gateways,10 Sensors each
    • >5000 states
    • How about real-world applications, which may have 100s of Sensors and Gateways?
    •  The models are too big to solve
the sharp framework
The SHARP Framework
  • SHARP: Scalable, Hierarchical, Architectural-Level Reliability Prediction Framework
  • Idea: generate part of the system model at a time by leveraging use-case scenarios
    • Solving many smaller models is more efficient than solving one huge model
midas use case scenarios
MIDAS Use-Case Scenarios
  • MIDAS example
    • Sensor Measurement
    • GUI Request
    • Control AC
the sharp framework11
Modeling concurrency: instances of scenarios may run simultaneously

MIDAS Example

Processing a GUI request while processing sensor measurements  Sensor Measurement and GUI request scenarios run simultaneously

Multiple sensors  Multiple instances of the Sensor Measurement scenario

The SHARP Framework
the sharp framework12
The SHARP Framework
  • Generate and solve submodels according to the system’s use-case scenarios
  • Generate and solve a coarser-level model for system reliability
    • Describe what happens when multiple instances of scenarios are running
    • Make use of results from the submodels
the sharp framework16
The SHARP Framework
  • Generate and solve submodels according to the system’s use-case scenarios
  • Generate and solve a coarser-level model for system reliability
    • Describe the number of active instances of each scenarios
    • Make use of results from the submodels
the sharp framework20
The SHARP Framework

m1

R1

m2

R2

m3

R3

the sharp framework21
The SHARP Framework

m1

R1

m2

R2

R

m3

R3

evaluation
Evaluation
  • To show…
    • SHARP has better scalability than a flat model that can be derived from existing approaches, and
    • SHARP is accurate, using results from the flat model as “ground truth”
  • Experiments
    • Computational cost in practice
    • Sensitivity analysis
computational cost in practice
Computational cost in practice
  • Example: MIDAS system, varying the number of Sensor component (x-axis)
  • Y-axis: number of operations needed to solve the model
sensitivity analysis
Sensitivity Analysis

We are primarily interested in what-if analysis

Is Architecture A “better” than Architecture B?

but not

Will my system’s reliability greater than 90%?

What is the probability that I can run my system for 100 hours without any failure?

Focusing on trendsis meaningful at the architectural level

sensitivity analysis25
Sensitivity Analysis

“Ground truth”: results from the flat model

Vary Sensor failure rate

conclusions
Conclusions
  • Assessing software quality early is desirable
  • Scalability is a major challenge in reliability prediction of concurrent systems using architectural models
  • We tackle address this challenge by leveraging a system’s use-case scenarios in SHARP
  • Future Work: Contention modeling
    • Work thus far: assume no contention
    • However, concurrency  contention
defects
Defects
  • Architectural: Mismatches between architectural models
    • e.g., An interaction protocol mismatch between 2 comps
  • System: Limitations of components
    • e.g., Sensor has limited power
  • Allow system designers to evaluate how much reliability will improve if defects are addressed
    • Cost
