design and implementation of mobile peer to peer application
S-38.3310 Thesis Seminar on Networking Technology

Design and Implementation of Mobile Peer-to-Peer Application

Juuso Lehtinen

[email protected]

Thesis written at Networking Laboratory,

Department of Electrical and Communications Engineering,

Helsinki University of Technology

Author: Juuso Lehtinen

Supervisor: Prof. Raimo Kantola

Instructor: Nicklas Beijar, Lic.Tech.

agenda

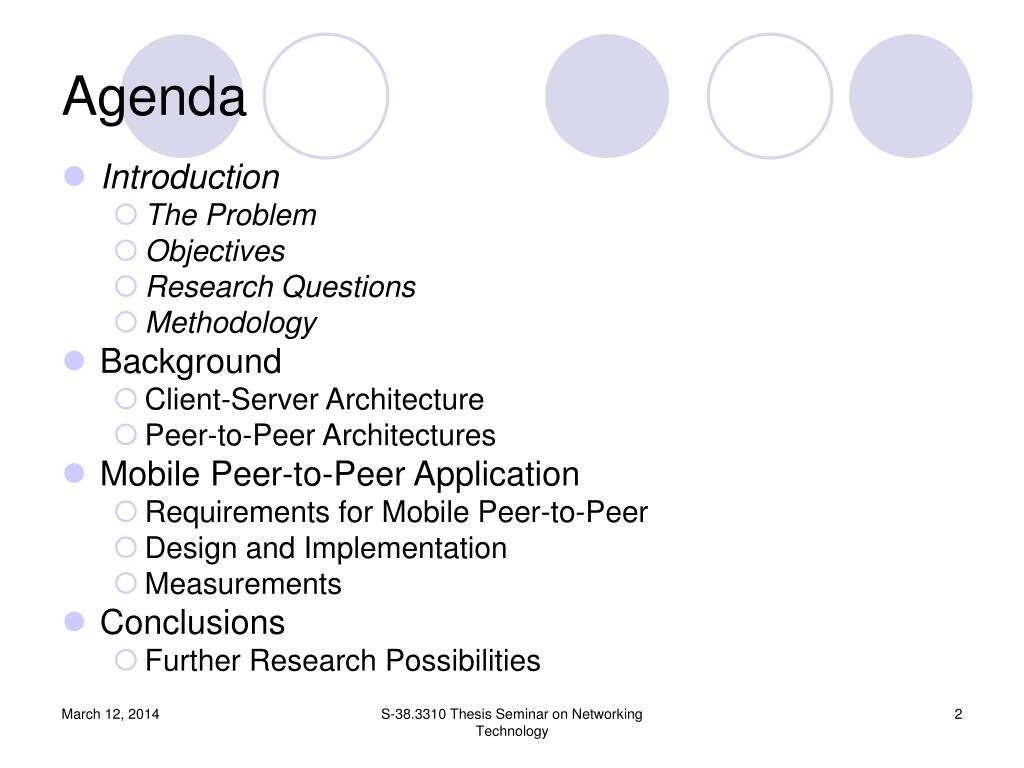

Agenda
  • Introduction
    • The Problem
    • Objectives
    • Research Questions
    • Methodology
  • Background
    • Client-Server Architecture
    • Peer-to-Peer Architectures
  • Mobile Peer-to-Peer Application
    • Requirements for Mobile Peer-to-Peer
    • Design and Implementation
    • Measurements
  • Conclusions
    • Further Research Possibilities

S-38.3310 Thesis Seminar on Networking Technology

introduction

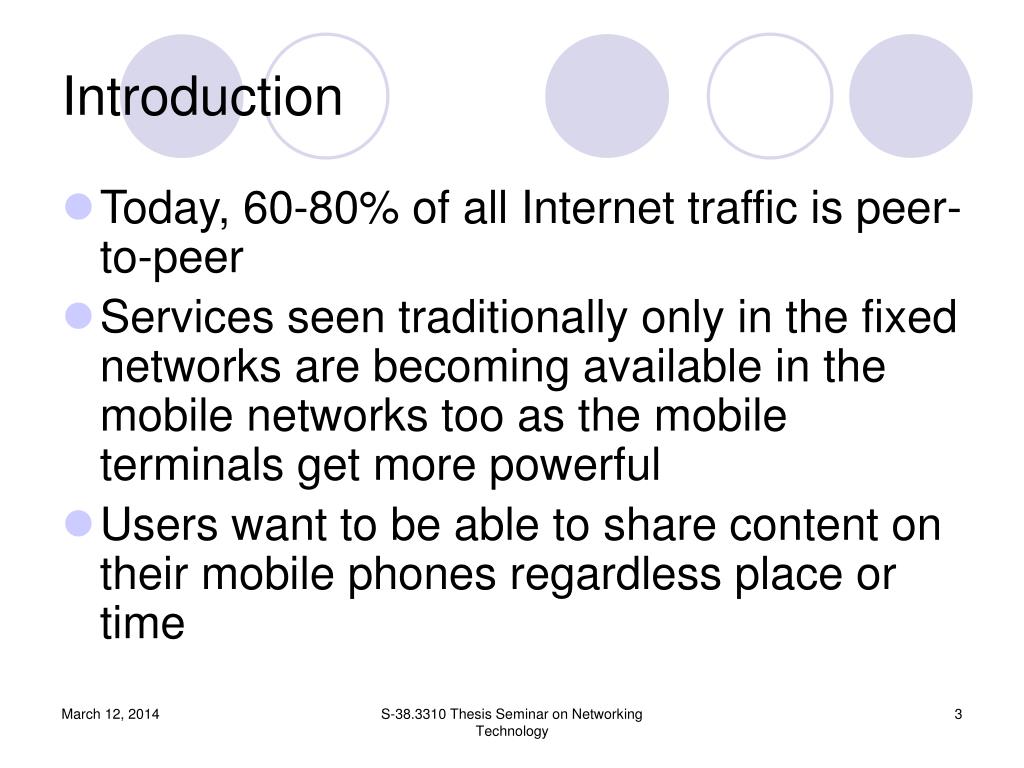

Introduction
  • Today, 60-80% of all Internet traffic is peer-to-peer
  • Services seen traditionally only in the fixed networks are becoming available in the mobile networks too as the mobile terminals get more powerful
  • Users want to be able to share content on their mobile phones regardless place or time

S-38.3310 Thesis Seminar on Networking Technology

the problem user perspective

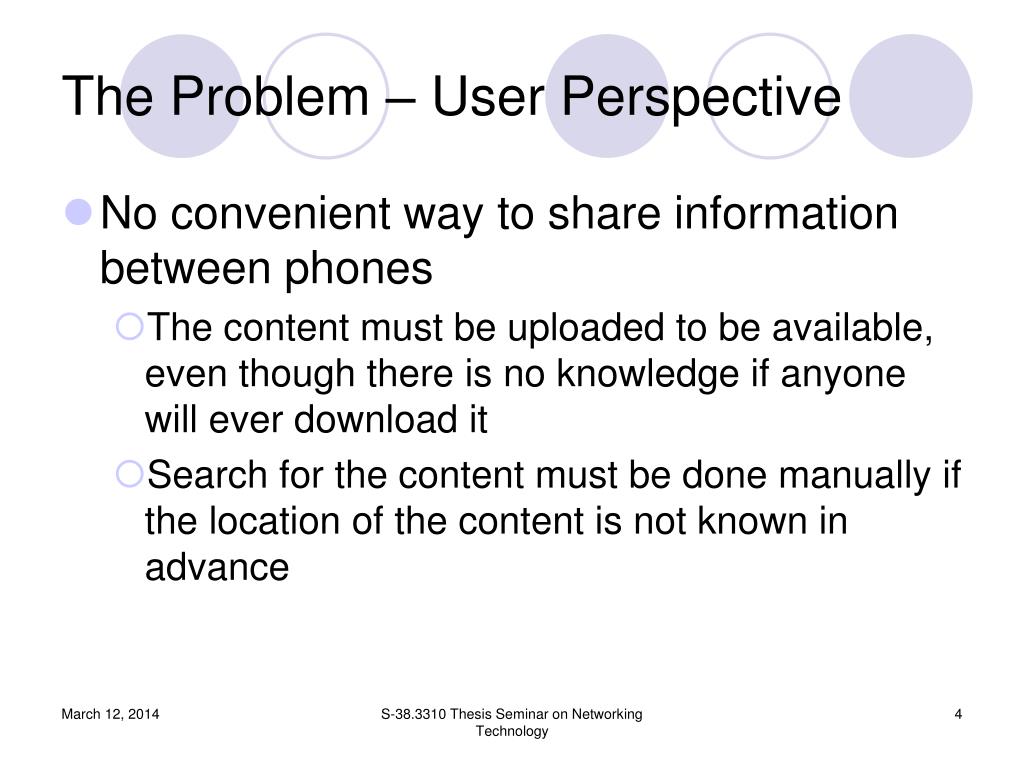

The Problem – User Perspective
  • No convenient way to share information between phones
    • The content must be uploaded to be available, even though there is no knowledge if anyone will ever download it
    • Search for the content must be done manually if the location of the content is not known in advance

S-38.3310 Thesis Seminar on Networking Technology

the problem operator perspective

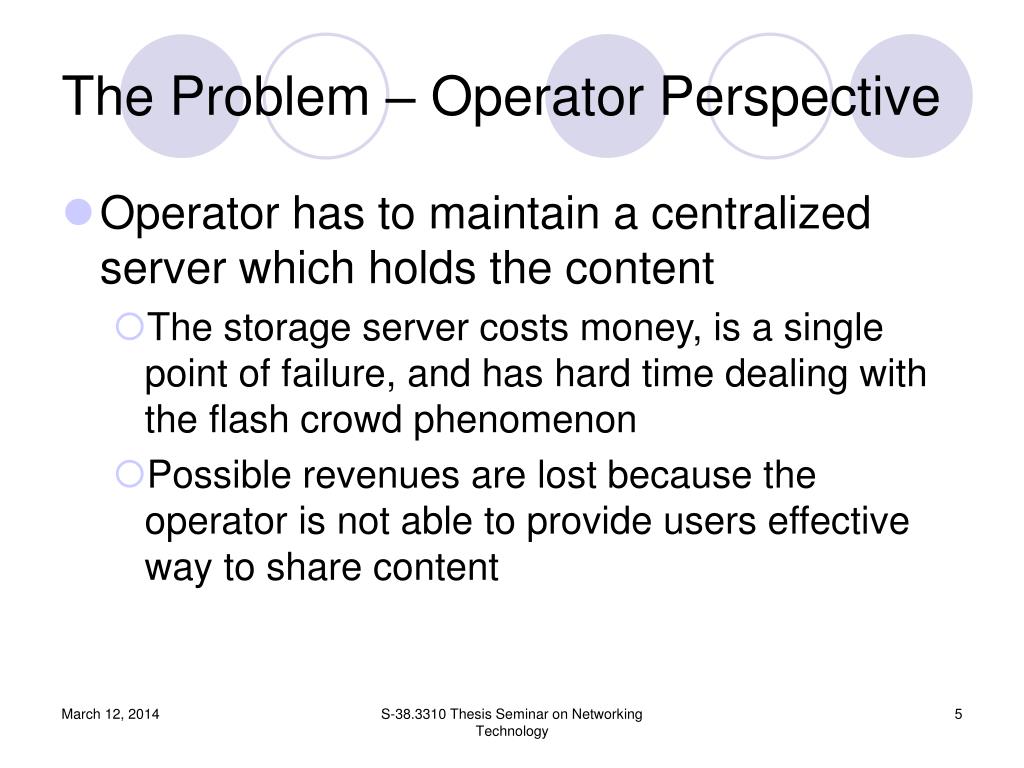

The Problem – Operator Perspective
  • Operator has to maintain a centralized server which holds the content
    • The storage server costs money, is a single point of failure, and has hard time dealing with the flash crowd phenomenon
    • Possible revenues are lost because the operator is not able to provide users effective way to share content

S-38.3310 Thesis Seminar on Networking Technology

objectives 1 2

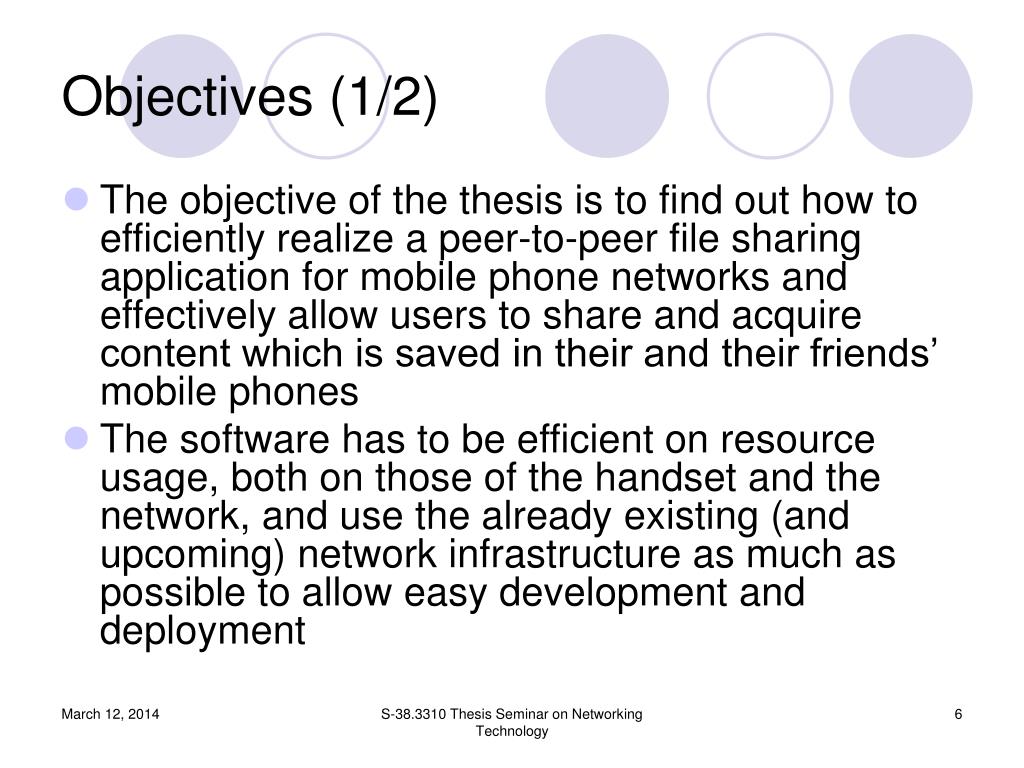

Objectives (1/2)
  • The objective of the thesis is to find out how to efficiently realize a peer-to-peer file sharing application for mobile phone networks and effectively allow users to share and acquire content which is saved in their and their friends’ mobile phones
  • The software has to be efficient on resource usage, both on those of the handset and the network, and use the already existing (and upcoming) network infrastructure as much as possible to allow easy development and deployment

S-38.3310 Thesis Seminar on Networking Technology

objectives 2 2
Objectives (2/2)
  • The Session Initiation Protocol (SIP) is used as the underlying signaling protocol
    • Use of SIP allows easy integration with the future IMS networks
    • Charging and billing for the application can be easily implemented in the SIP-aware core network

S-38.3310 Thesis Seminar on Networking Technology

research questions

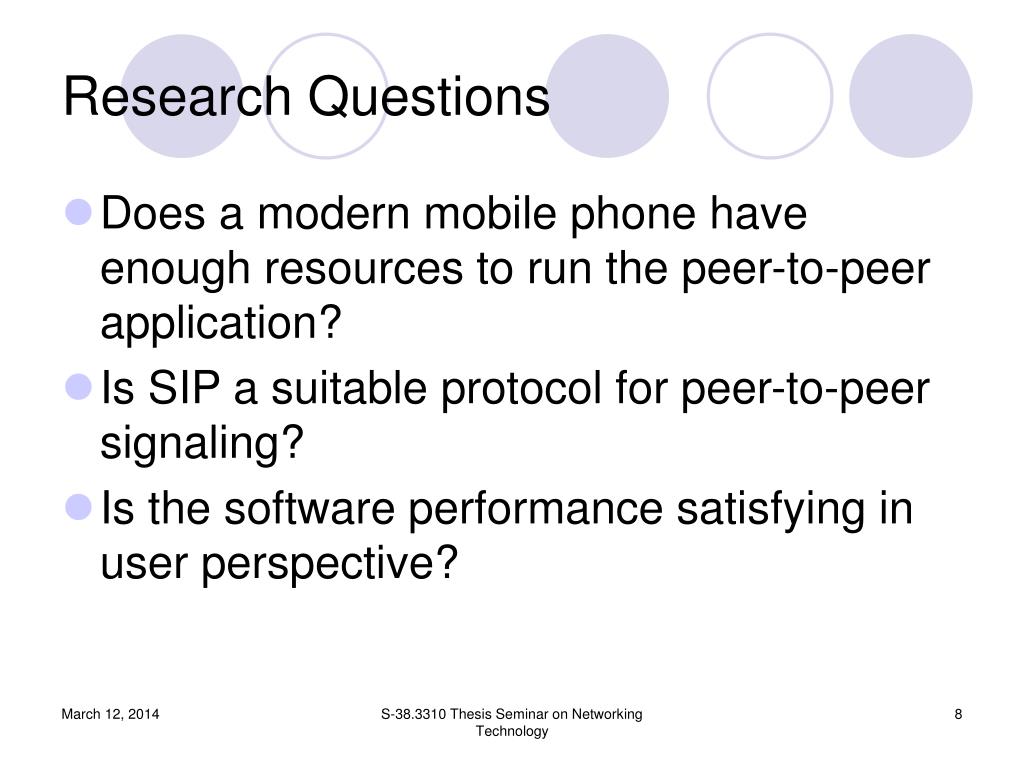

Research Questions
  • Does a modern mobile phone have enough resources to run the peer-to-peer application?
  • Is SIP a suitable protocol for peer-to-peer signaling?
  • Is the software performance satisfying in user perspective?

S-38.3310 Thesis Seminar on Networking Technology

methodology

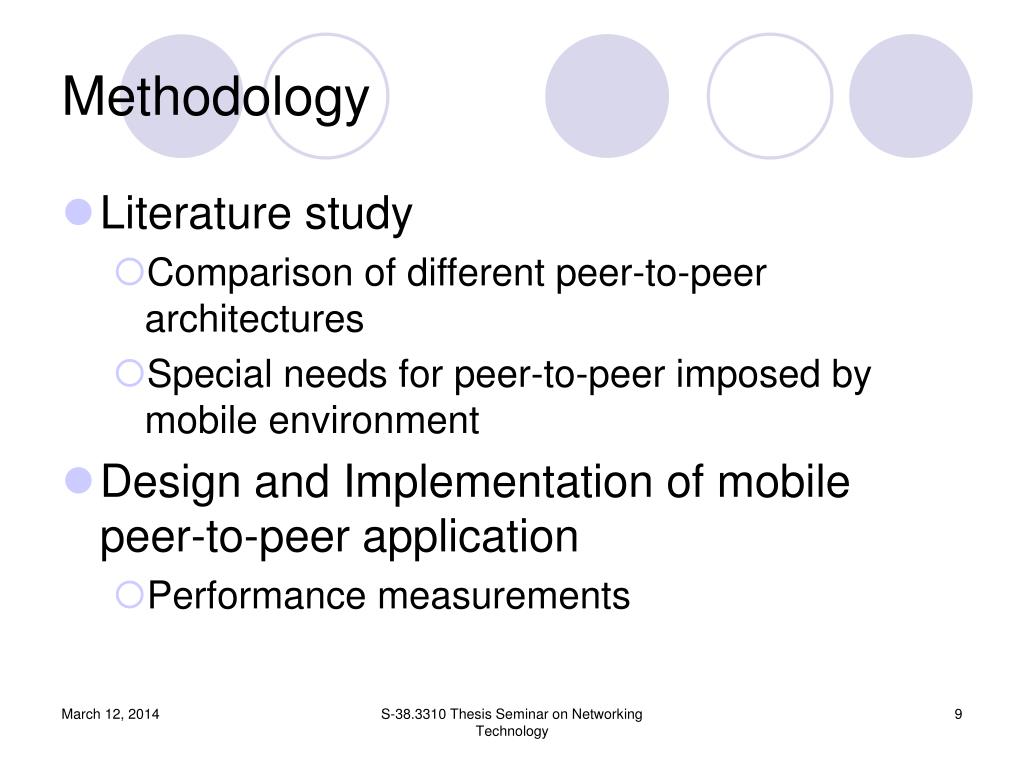

Methodology
  • Literature study
    • Comparison of different peer-to-peer architectures
    • Special needs for peer-to-peer imposed by mobile environment
  • Design and Implementation of mobile peer-to-peer application
    • Performance measurements

S-38.3310 Thesis Seminar on Networking Technology

agenda10
Agenda
  • Introduction
    • The Problem
    • Objectives
    • Research Questions
    • Methodology
  • Background
    • Client-Server Architecture
    • Peer-to-Peer Architectures
  • Mobile Peer-to-Peer Application
    • Requirements for Mobile Peer-to-Peer
    • Design and Implementation
    • Measurements
  • Conclusions
    • Further Research Possibilities

S-38.3310 Thesis Seminar on Networking Technology

client server architecture

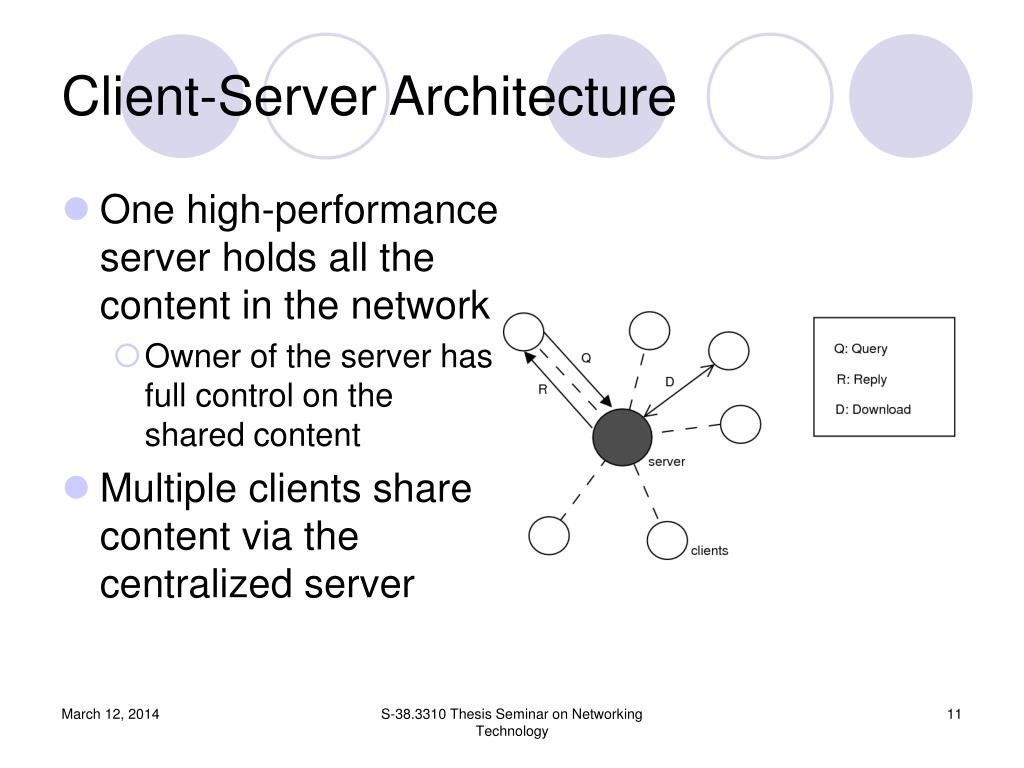

Client-Server Architecture
  • One high-performance server holds all the content in the network
    • Owner of the server has full control on the shared content
  • Multiple clients share content via the centralized server

S-38.3310 Thesis Seminar on Networking Technology

peer to peer architectures

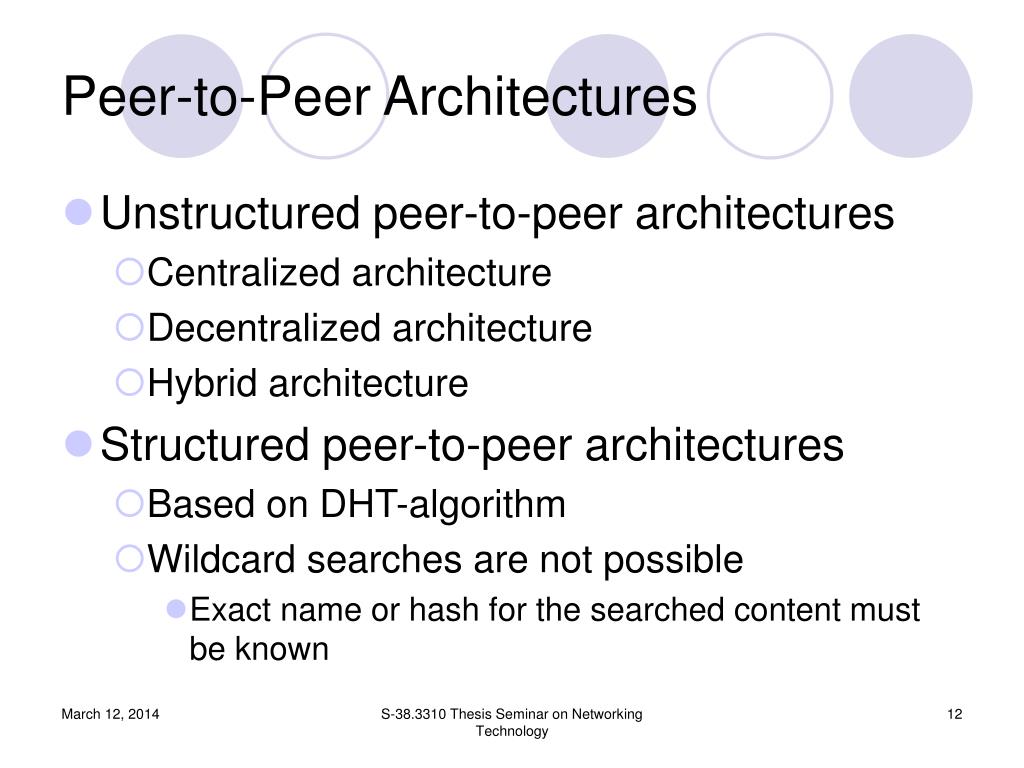

Peer-to-Peer Architectures
  • Unstructured peer-to-peer architectures
    • Centralized architecture
    • Decentralized architecture
    • Hybrid architecture
  • Structured peer-to-peer architectures
    • Based on DHT-algorithm
    • Wildcard searches are not possible
      • Exact name or hash for the searched content must be known

S-38.3310 Thesis Seminar on Networking Technology

centralized peer to peer architecture
Centralized Peer-to-Peer Architecture
  • A centralized server, or a cluster of servers holds information about the files available on the clients
    • Owner of the server has high control on content
  • The clients transfer content directly without the server involvement
    • The server is used only for content searches

S-38.3310 Thesis Seminar on Networking Technology

decentralized peer to peer architecture

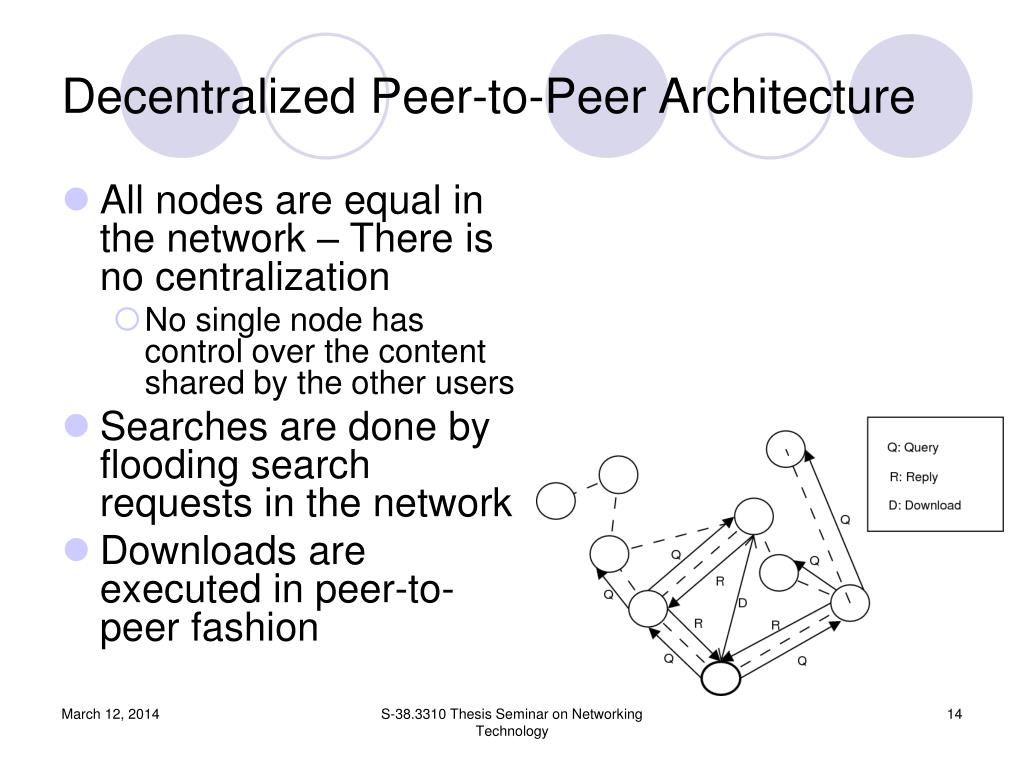

Decentralized Peer-to-Peer Architecture
  • All nodes are equal in the network – There is no centralization
    • No single node has control over the content shared by the other users
  • Searches are done by flooding search requests in the network
  • Downloads are executed in peer-to-peer fashion

S-38.3310 Thesis Seminar on Networking Technology

hybrid peer to peer architecture
Hybrid Peer-to-Peer Architecture
  • Ordinary clients are connected to super-peers as in centralized peer-to-peer architecture
    • A super-peer has high control on content shared by ordinary nodes connected to it
  • Super-peers are connected to each other in decentralized manner
    • Super-peers do not have control on content announced by the other super-peers
  • Downloads are executed in peer-to-peer fashion

S-38.3310 Thesis Seminar on Networking Technology

agenda16
Agenda
  • Introduction
    • The Problem
    • Objectives
    • Research Questions
    • Methodology
  • Background
    • Client-Server Architecture
    • Peer-to-Peer Architectures
  • Mobile Peer-to-Peer Application
    • Requirements for Mobile Peer-to-Peer
    • Design and Implementation
    • Measurements
  • Conclusions
    • Further Research Possibilities

S-38.3310 Thesis Seminar on Networking Technology

requirements for mobile peer to peer 1 2

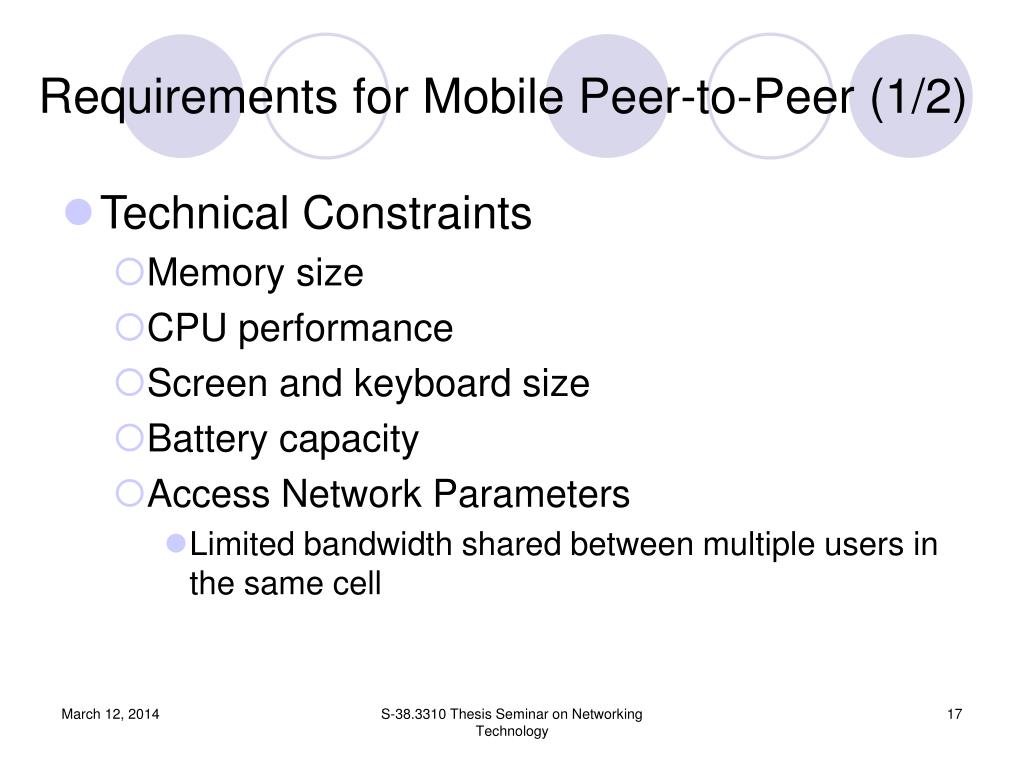

Requirements for Mobile Peer-to-Peer (1/2)
  • Technical Constraints
    • Memory size
    • CPU performance
    • Screen and keyboard size
    • Battery capacity
    • Access Network Parameters
      • Limited bandwidth shared between multiple users in the same cell

S-38.3310 Thesis Seminar on Networking Technology

requirements for mobile peer to peer 2 2
Requirements for Mobile Peer-to-Peer (2/2)
  • Special Needs of Mobile Environment
    • Support for various access networks
    • Operator control
    • Feasible bandwidth pricing
  • User Requirements
    • Quick response times
    • Rapid downloads
    • Group management features for sharing private content
      • Lot of content is probably self-created, like pictures/videos taken with camera-phone

S-38.3310 Thesis Seminar on Networking Technology

optimal architecture

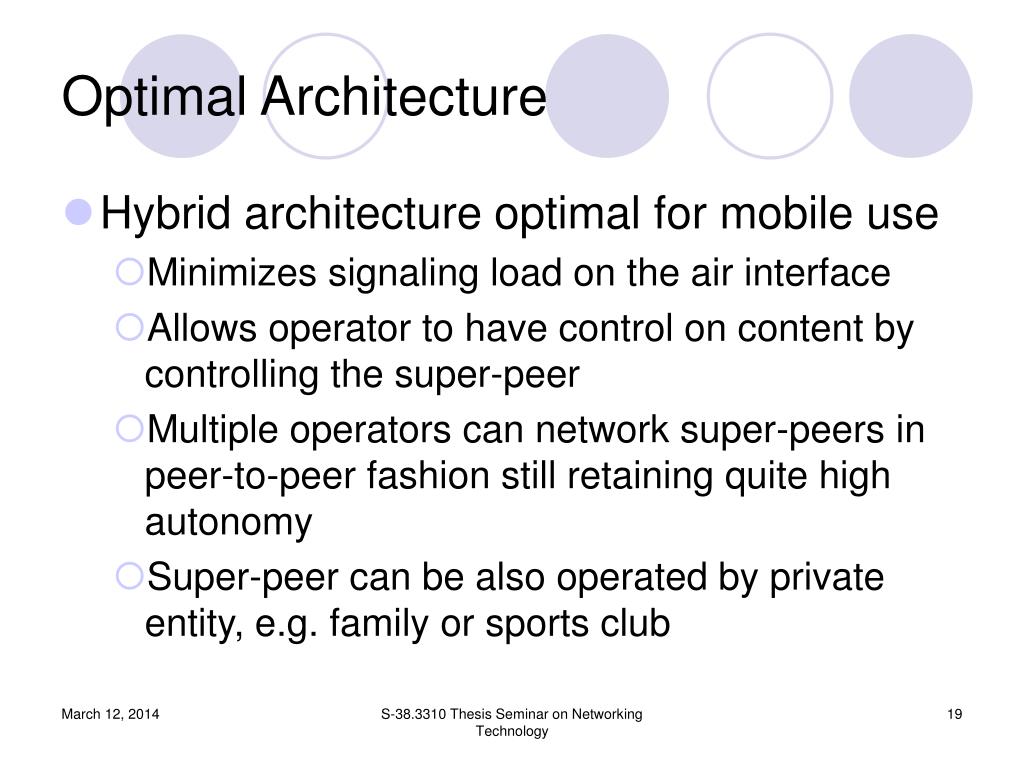

Optimal Architecture
  • Hybrid architecture optimal for mobile use
    • Minimizes signaling load on the air interface
    • Allows operator to have control on content by controlling the super-peer
    • Multiple operators can network super-peers in peer-to-peer fashion still retaining quite high autonomy
    • Super-peer can be also operated by private entity, e.g. family or sports club

S-38.3310 Thesis Seminar on Networking Technology

design and implementation of mp2p
Design and Implementation of MP2P
  • Hybrid peer-to-peer architecture was chosen for implementation
  • Software was implemented in C++ on Nokia Series 60 Platform
  • SIP functionality is provided by phone’s built-in SIP-stack

S-38.3310 Thesis Seminar on Networking Technology

implementation

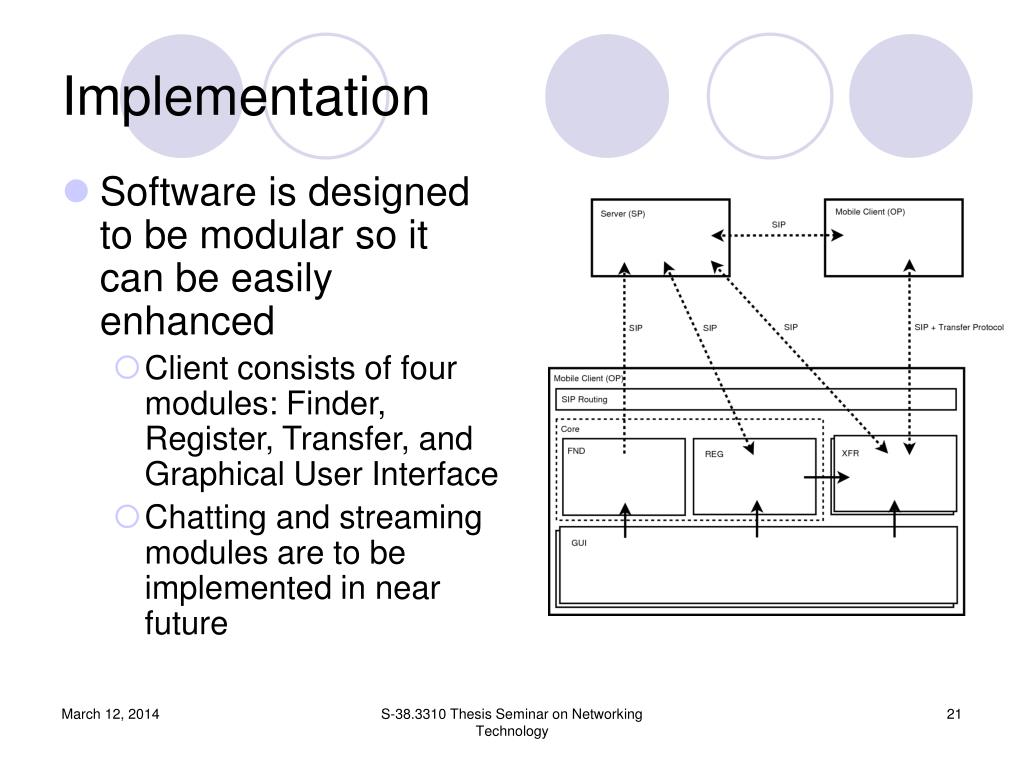

Implementation
  • Software is designed to be modular so it can be easily enhanced
    • Client consists of four modules: Finder, Register, Transfer, and Graphical User Interface
    • Chatting and streaming modules are to be implemented in near future

S-38.3310 Thesis Seminar on Networking Technology

sip requests used for peer to peer signaling

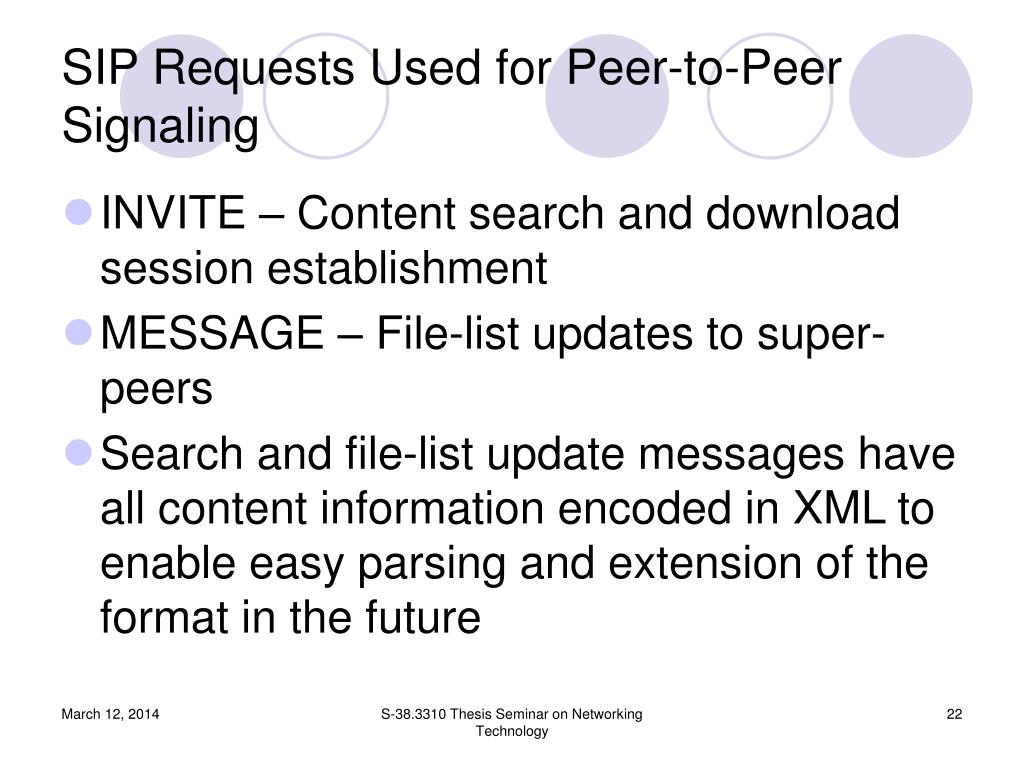

SIP Requests Used for Peer-to-Peer Signaling
  • INVITE – Content search and download session establishment
  • MESSAGE – File-list updates to super-peers
  • Search and file-list update messages have all content information encoded in XML to enable easy parsing and extension of the format in the future

S-38.3310 Thesis Seminar on Networking Technology

use case search and download

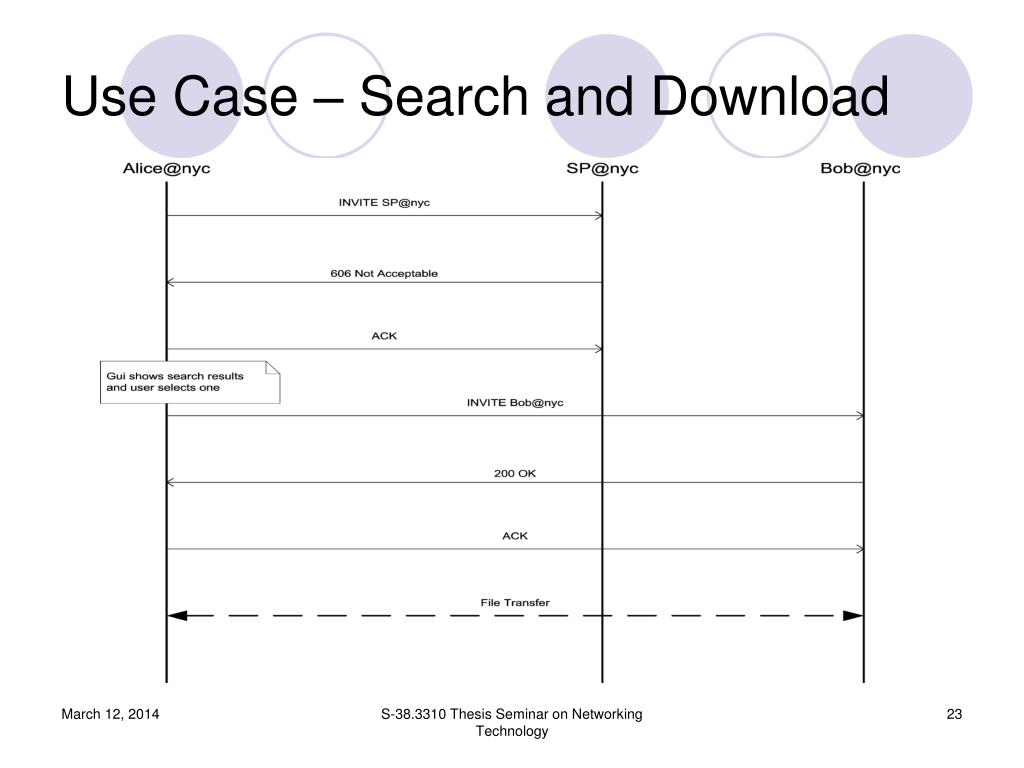

Use Case – Search and Download

S-38.3310 Thesis Seminar on Networking Technology

measurements
Measurements
  • Both signaling delays, and file transfer bandwidth were measured
    • All measurements were conducted in 3G/WCDMA network
  • Search delays were measured to be under 700ms in most of the cases
  • Signaling delays for download session set-ups were measured to be under 1.5s
  • File transfer speeds were around 11kB/s
    • This is restricted by the available upstream bandwidth in the mobile network (upstream 128kbit/s, downstream: 384kbit/s)

S-38.3310 Thesis Seminar on Networking Technology

agenda25
Agenda
  • Introduction
    • The Problem
    • Objectives
    • Research Questions
    • Methodology
  • Background
    • Client-Server Architecture
    • Peer-to-Peer Architectures
  • Mobile Peer-to-Peer Application
    • Requirements for Mobile Peer-to-Peer
    • Design and Implementation
    • Measurements
  • Conclusions
    • Further Research Possibilities

S-38.3310 Thesis Seminar on Networking Technology

conclusions

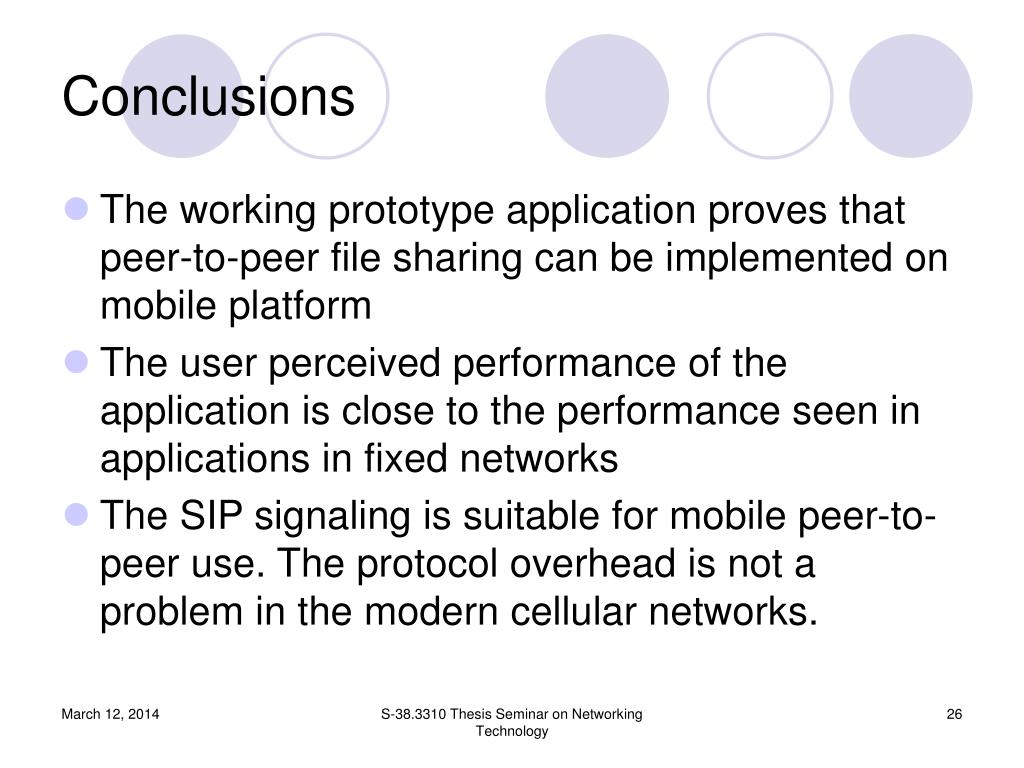

Conclusions
  • The working prototype application proves that peer-to-peer file sharing can be implemented on mobile platform
  • The user perceived performance of the application is close to the performance seen in applications in fixed networks
  • The SIP signaling is suitable for mobile peer-to-peer use. The protocol overhead is not a problem in the modern cellular networks.

S-38.3310 Thesis Seminar on Networking Technology

further research possibilities

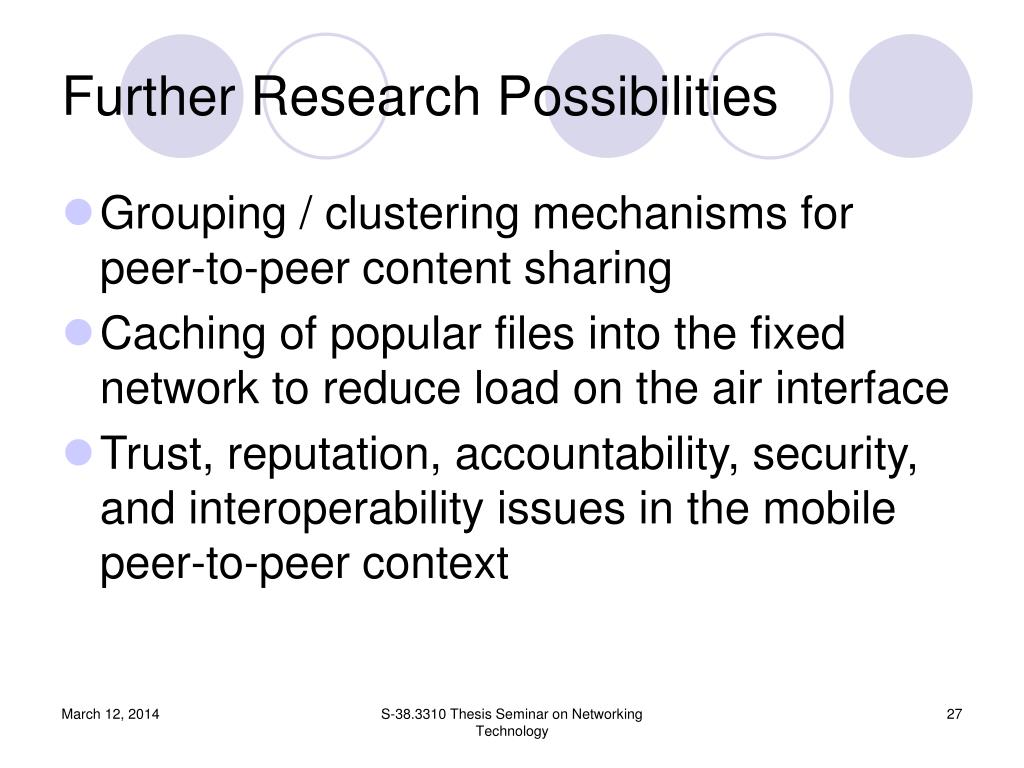

Further Research Possibilities
  • Grouping / clustering mechanisms for peer-to-peer content sharing
  • Caching of popular files into the fixed network to reduce load on the air interface
  • Trust, reputation, accountability, security, and interoperability issues in the mobile peer-to-peer context

S-38.3310 Thesis Seminar on Networking Technology

slide28

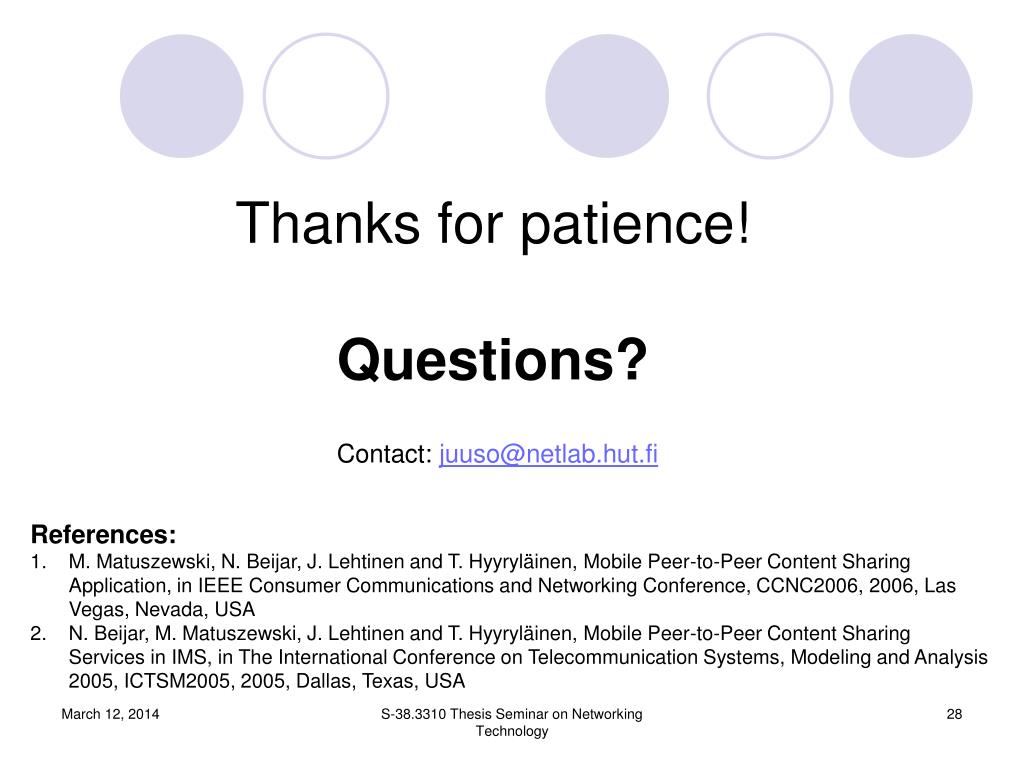

Thanks for patience!

Questions?

Contact: [email protected]

  • References:
  • M. Matuszewski, N. Beijar, J. Lehtinen and T. Hyyryläinen, Mobile Peer-to-Peer Content Sharing Application, in IEEE Consumer Communications and Networking Conference, CCNC2006, 2006, Las Vegas, Nevada, USA
  • N. Beijar, M. Matuszewski, J. Lehtinen and T. Hyyryläinen, Mobile Peer-to-Peer Content Sharing Services in IMS, in The International Conference on Telecommunication Systems, Modeling and Analysis 2005, ICTSM2005, 2005, Dallas, Texas, USA
