Presentation Transcript
neurons and synapses

Neurons and synapses

IB2 Biology

Jin Young Huh

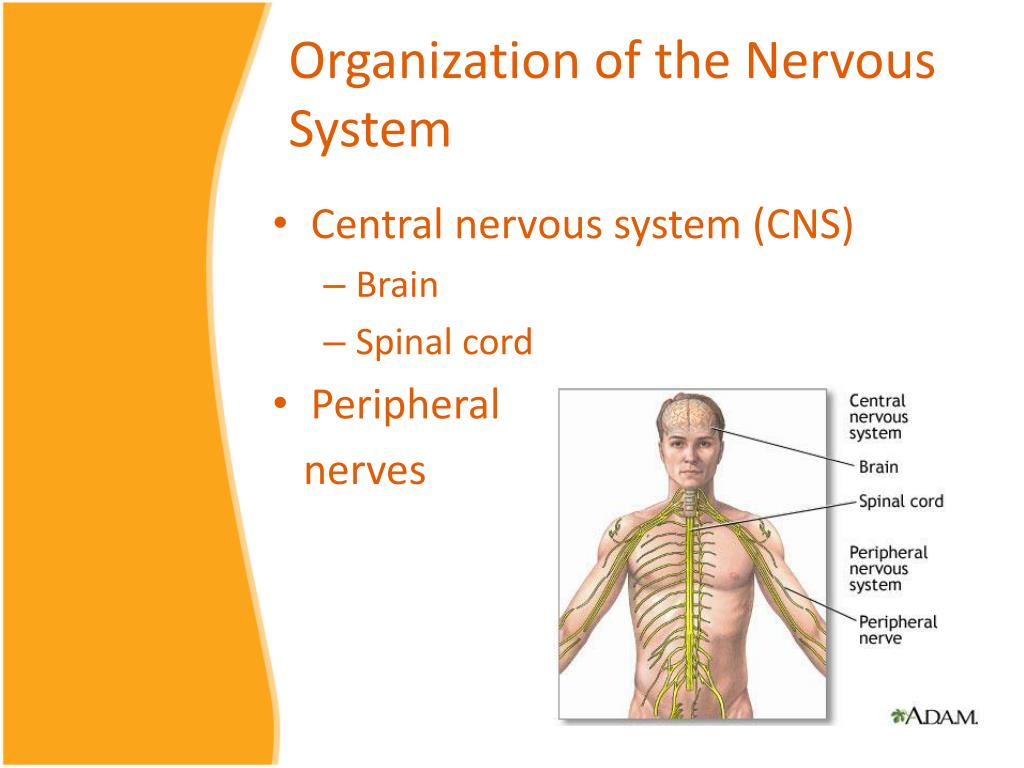

organization of the nervous system
Organization of the Nervous System
  • Central nervous system (CNS)
    • Brain
    • Spinal cord
  • Peripheral


sensory and motor neurons
Sensory and motor neurons
  • Sensory neurons
    • receptors (sensory cells)
    • CNS
  • Motor neurons
    • CNS
    • effectors (muscle and gland cells)
  • Relay neurons
    • between neurons

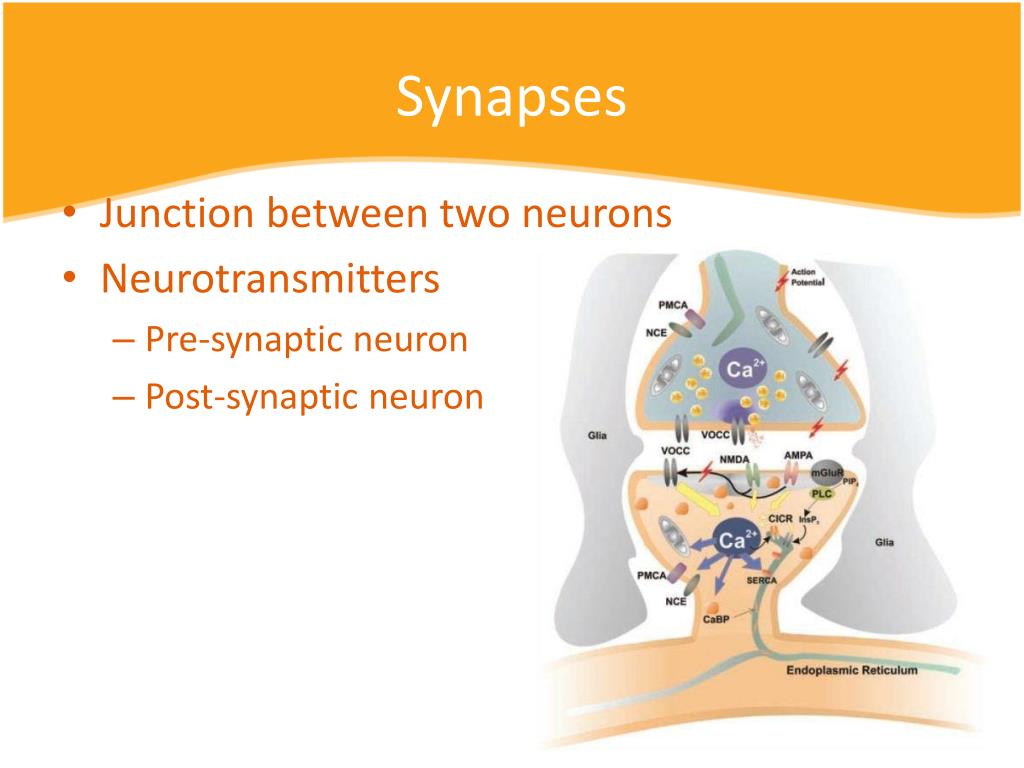

  • Junction between two neurons
  • Neurotransmitters
    • Pre-synaptic neuron
    • Post-synaptic neuron

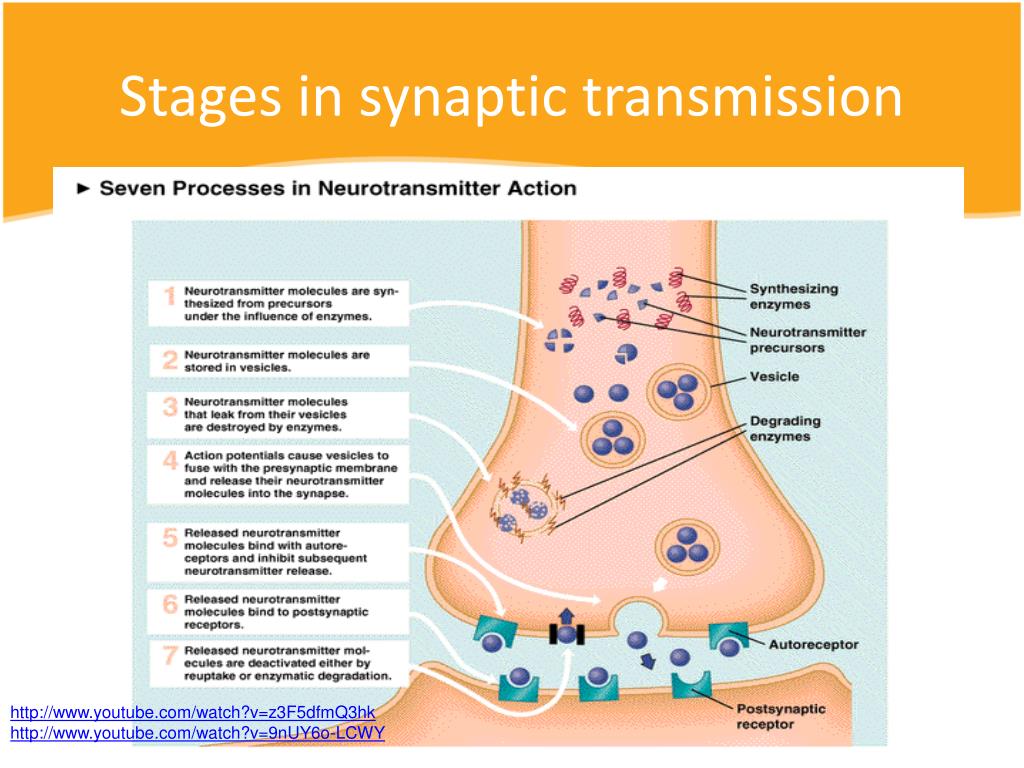

stages in synaptic transmission
Stages in synaptic transmission

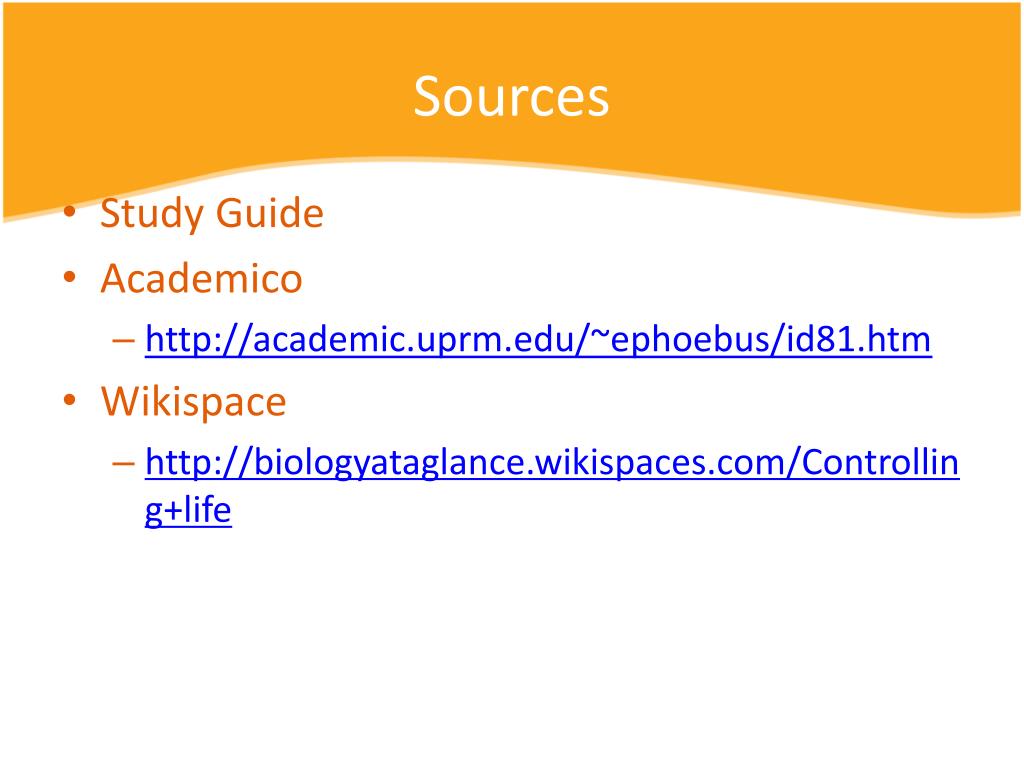

  • Study Guide
  • Academico
  • Wikispace

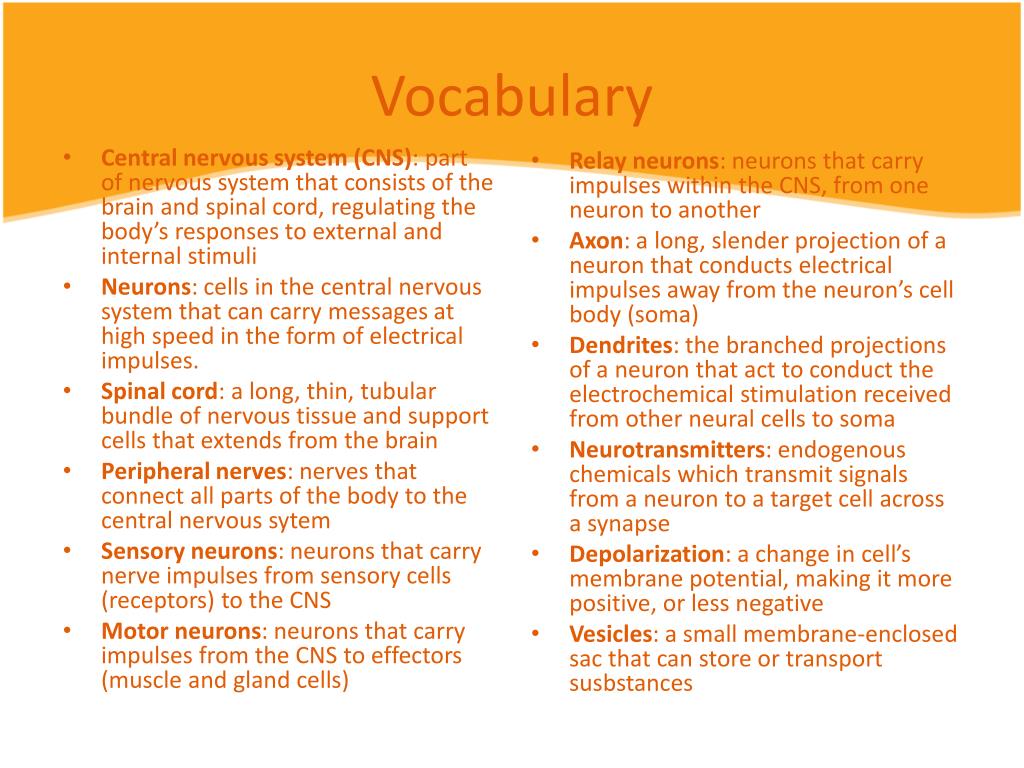

Central nervous system (CNS): part of nervous system that consists of the brain and spinal cord, regulating the body’s responses to external and internal stimuli

Neurons: cells in the central nervous system that can carry messages at high speed in the form of electrical impulses.

Spinal cord: a long, thin, tubular bundle of nervous tissue and support cells that extends from the brain

Peripheral nerves: nerves that connect all parts of the body to the central nervous sytem

Sensory neurons: neurons that carry nerve impulses from sensory cells (receptors) to the CNS

Motor neurons: neurons that carry impulses from the CNS to effectors (muscle and gland cells)

Relay neurons: neurons that carry impulses within the CNS, from one neuron to another

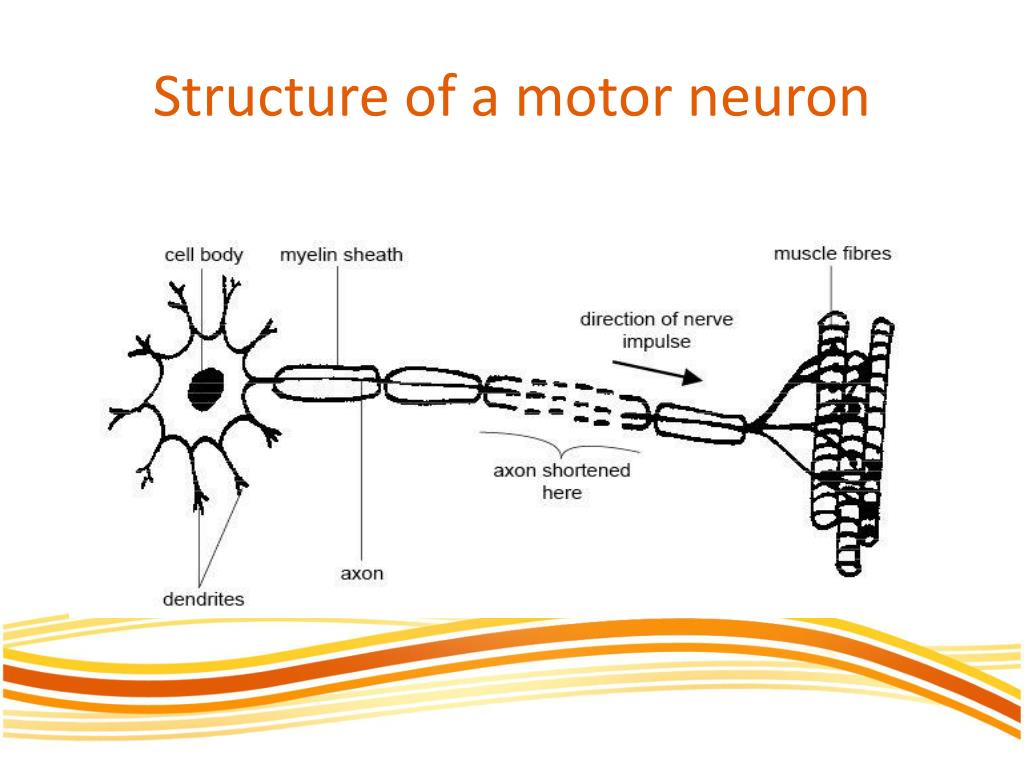

Axon: a long, slender projection of a neuron that conducts electrical impulses away from the neuron’s cell body (soma)

Dendrites: the branched projections of a neuron that act to conduct the electrochemical stimulation received from other neural cells to soma

Neurotransmitters: endogenous chemicals which transmit signals from a neuron to a target cell across a synapse

Depolarization: a change in cell’s membrane potential, making it more positive, or less negative

Vesicles: a small membrane-enclosed sac that can store or transport susbstances
