Adjustable Art Table

This project showcases the development of an adjustable art table specifically designed for artists with disabilities. The table features a larger tabletop of 72”x30”, gas springs for easy adjustment, unibearings capable of holding up to 300 lbs, and a sturdy base to prevent rocking. The table is user-friendly, meets wheelchair accessibility requirements, and can accommodate multiple users. The design process involved overcoming challenges from the previous model to create a more functional and inclusive workspace. With a budget of $750, the final product successfully fulfills the needs and preferences of clients. The project was made possible with funding from the National Science Foundation and the collaboration of a dedicated team.

lakeisha-lesa
Download Presentation

Adjustable Art Table

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Adjustable Art Table Team 9 Bruce Bassi Kristen Haldeman Richard Sierra Client Coordinator: Dr. Brooke Hallowell Supervising Professor: Dr. John D. Enderle Funding: National Science Foundation

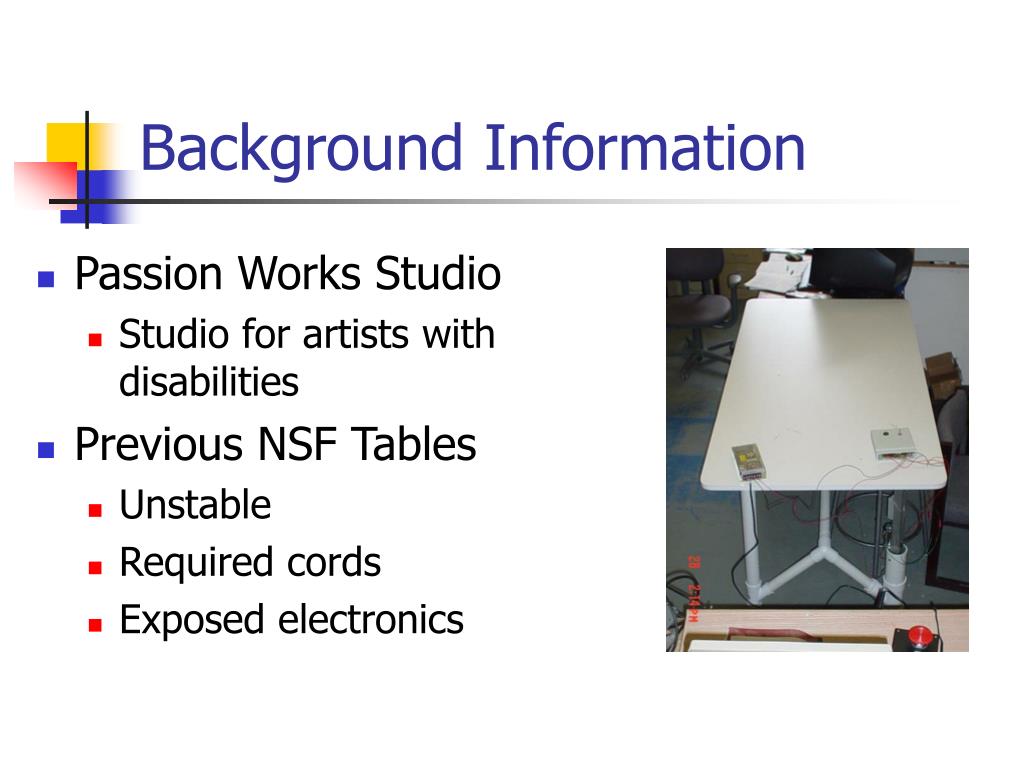

  2. Background Information • Passion Works Studio • Studio for artists with disabilities • Previous NSF Tables • Unstable • Required cords • Exposed electronics

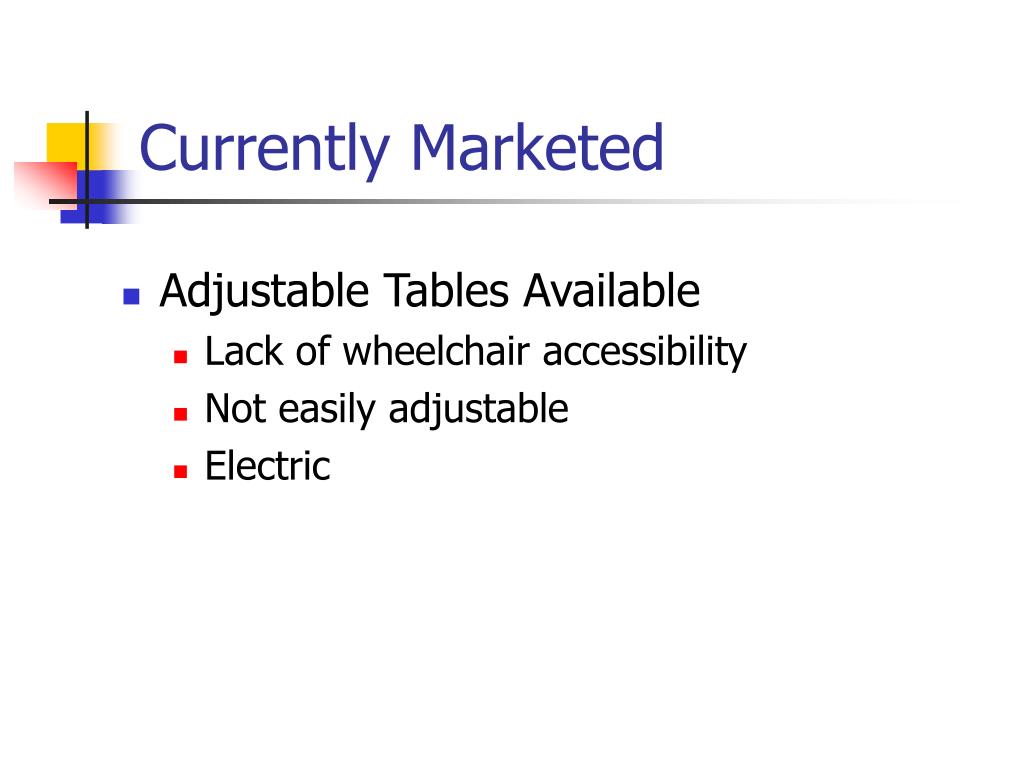

  3. Currently Marketed • Adjustable Tables Available • Lack of wheelchair accessibility • Not easily adjustable • Electric

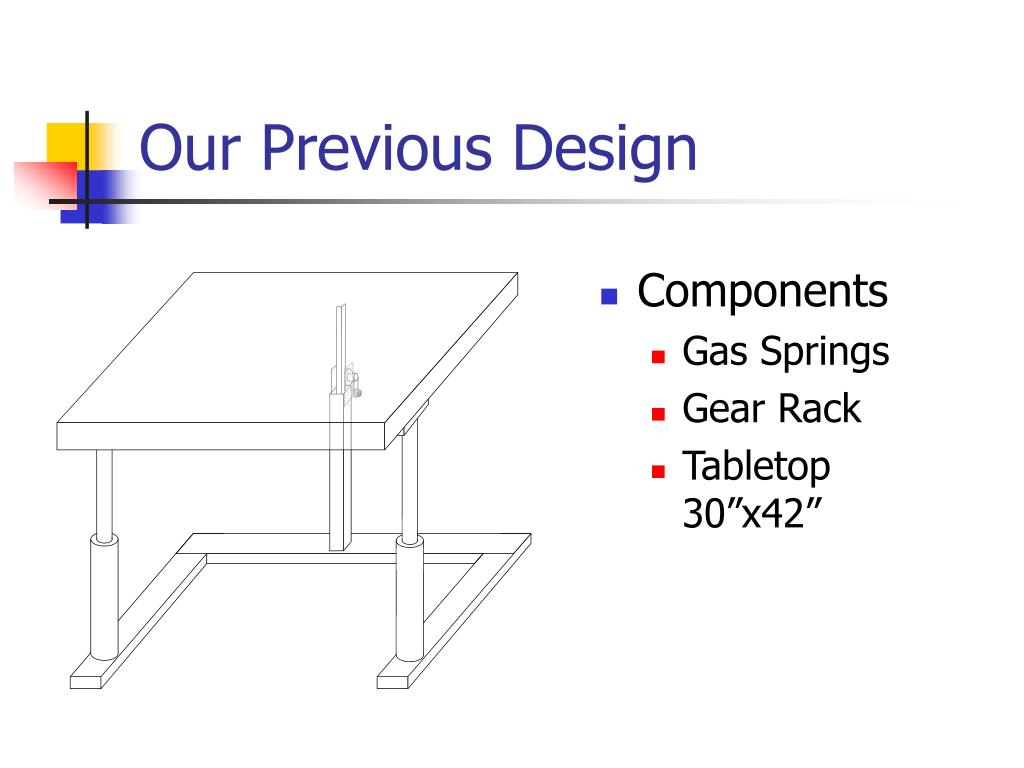

  4. Our Previous Design • Components • Gas Springs • Gear Rack • Tabletop 30”x42”

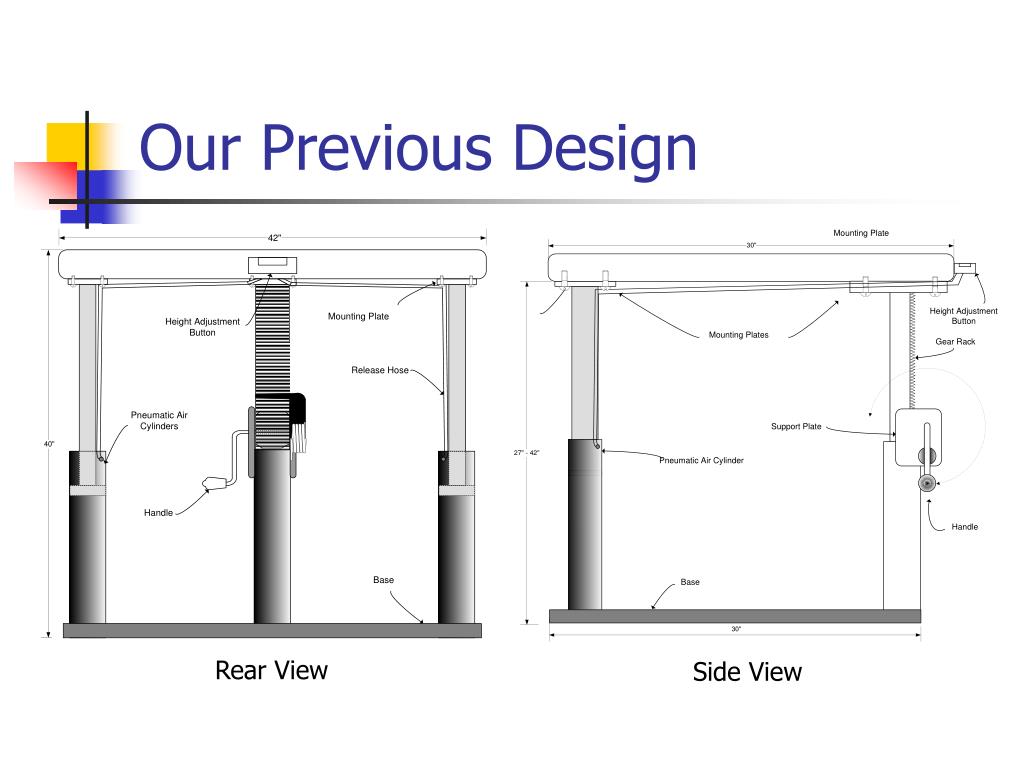

  5. Our Previous Design Rear View Side View

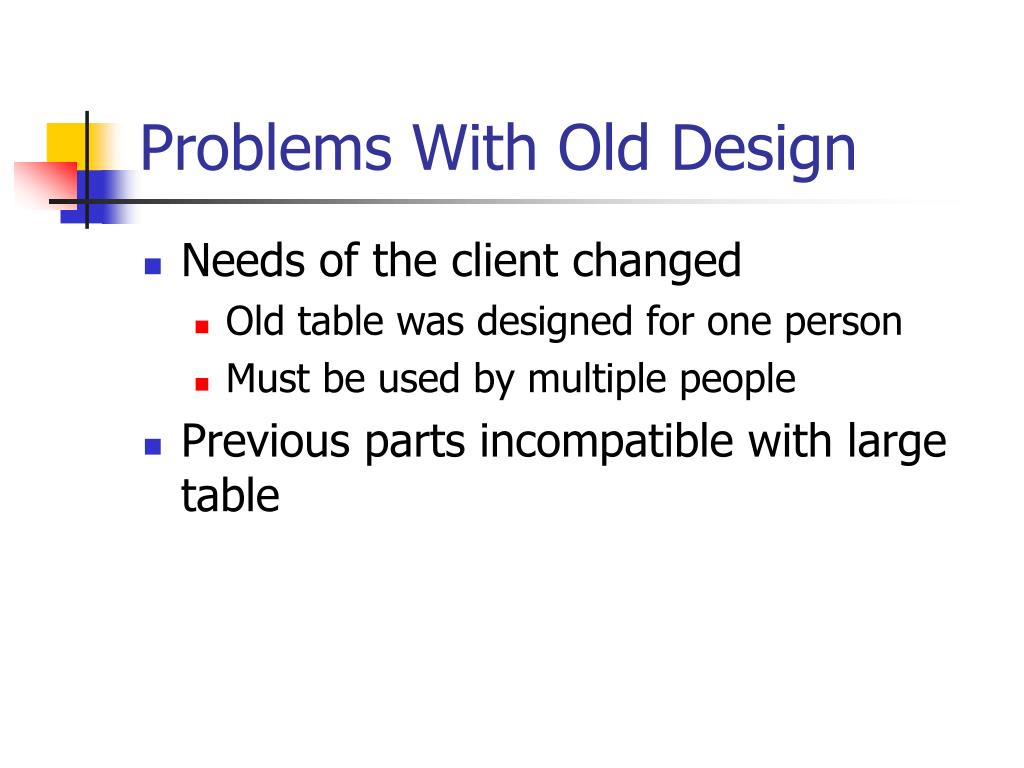

  6. Problems With Old Design • Needs of the client changed • Old table was designed for one person • Must be used by multiple people • Previous parts incompatible with large table

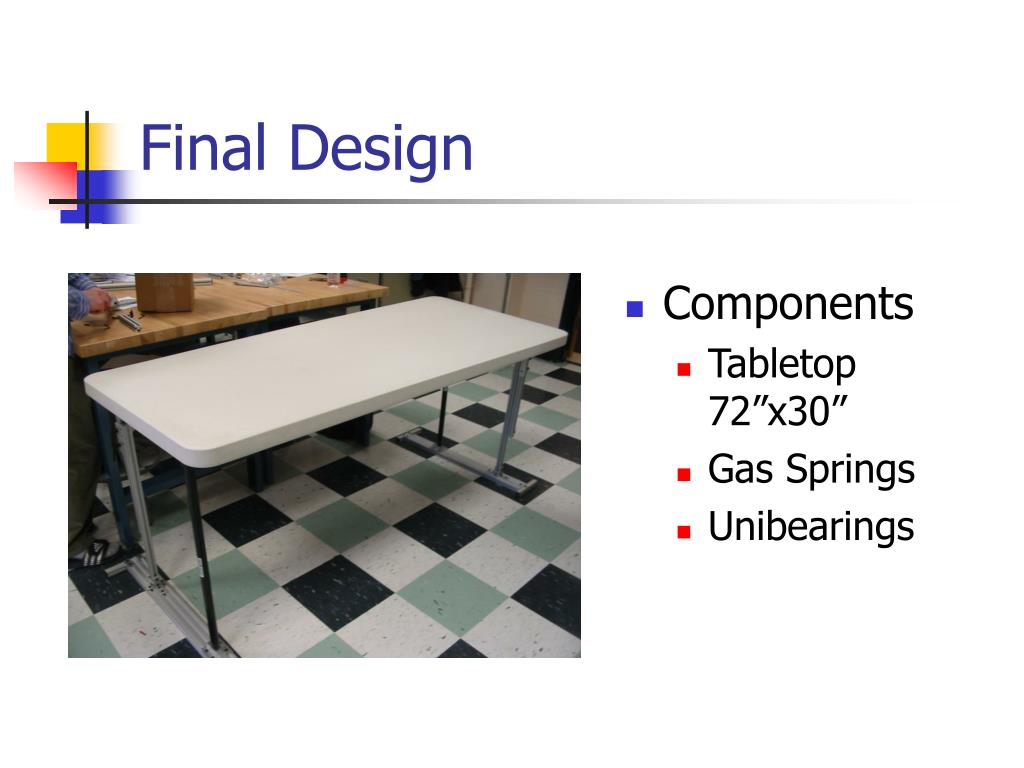

  7. Final Design • Components • Tabletop 72”x30” • Gas Springs • Unibearings

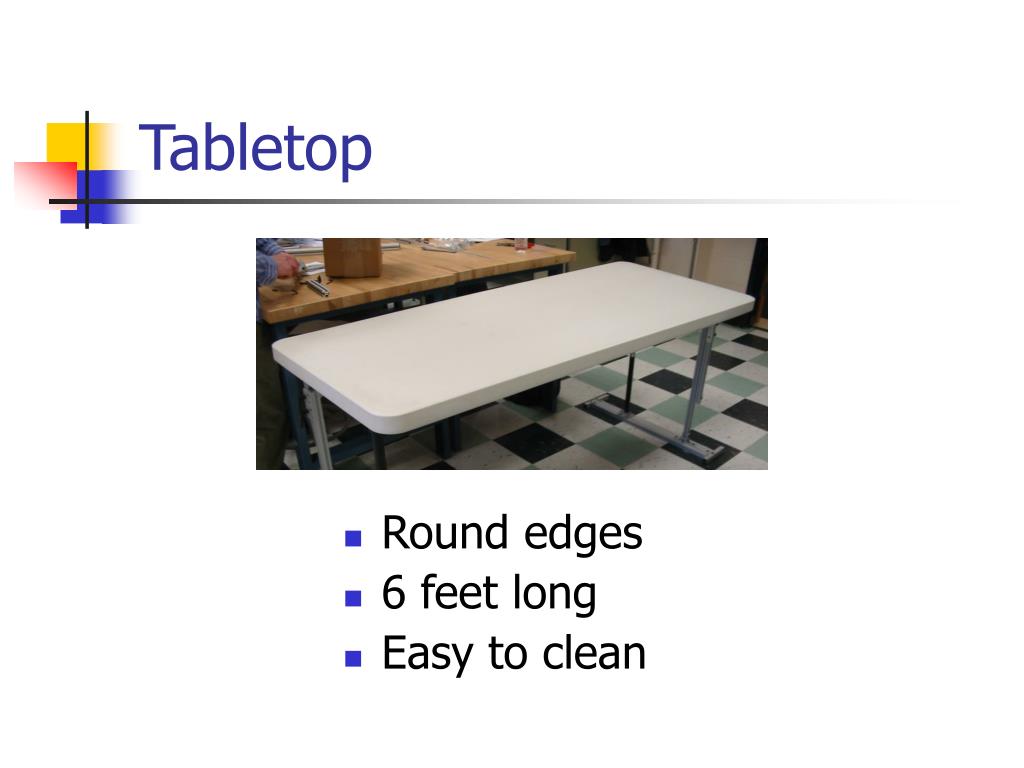

  8. Tabletop • Round edges • 6 feet long • Easy to clean

  9. Gas Springs • Stroke length: 13” • Can hold 2,000 lbs • Locking • Slowly raise with 14 lbs force

  10. Hydraulic Release

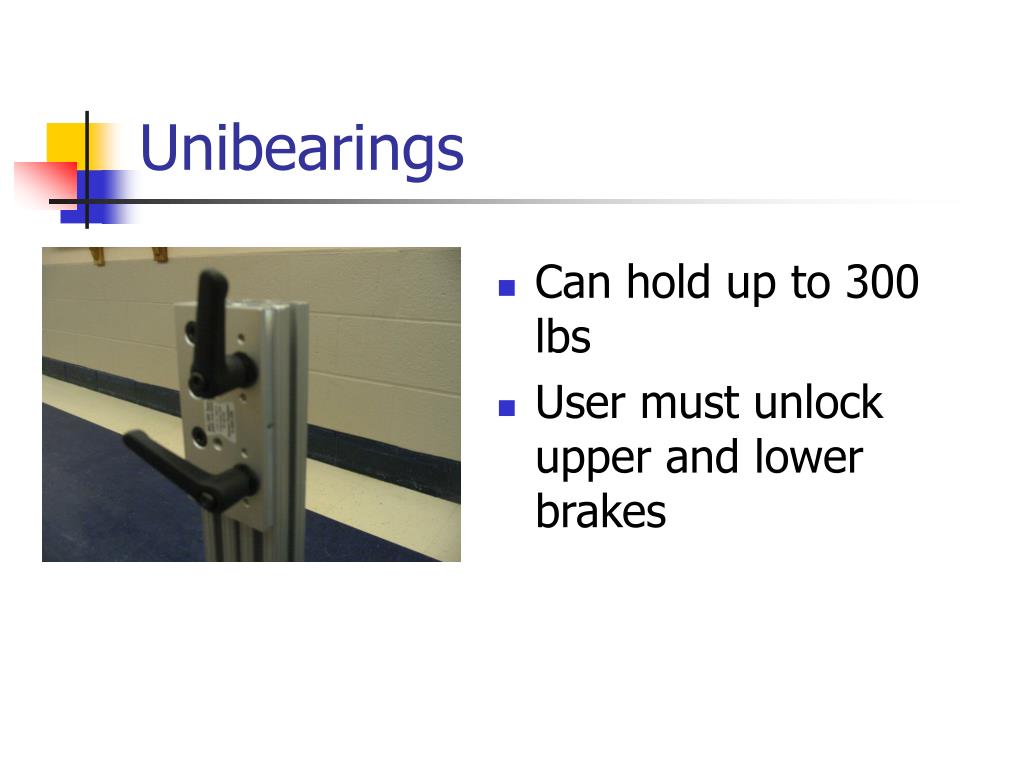

  11. Unibearings • Can hold up to 300 lbs • User must unlock upper and lower brakes

  12. How to use unibearings • Must be disengaged to adjust table • Make sure that the unibearings are tight before the table is used

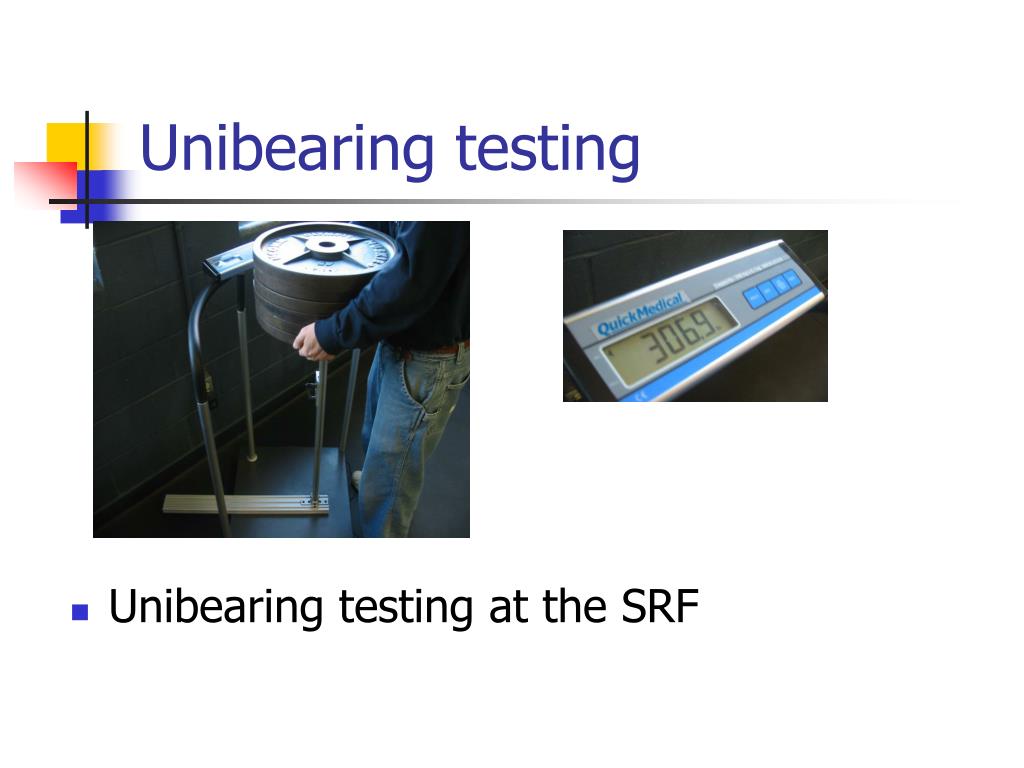

  13. Unibearing testing • Unibearing testing at the SRF

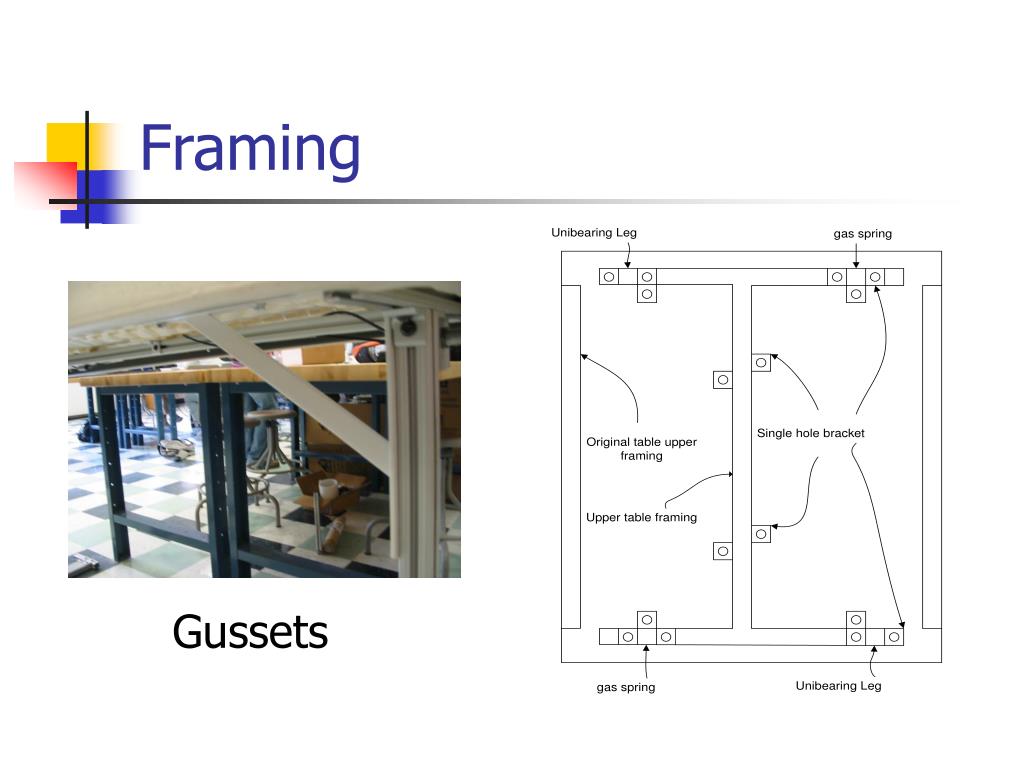

  14. Framing Gussets

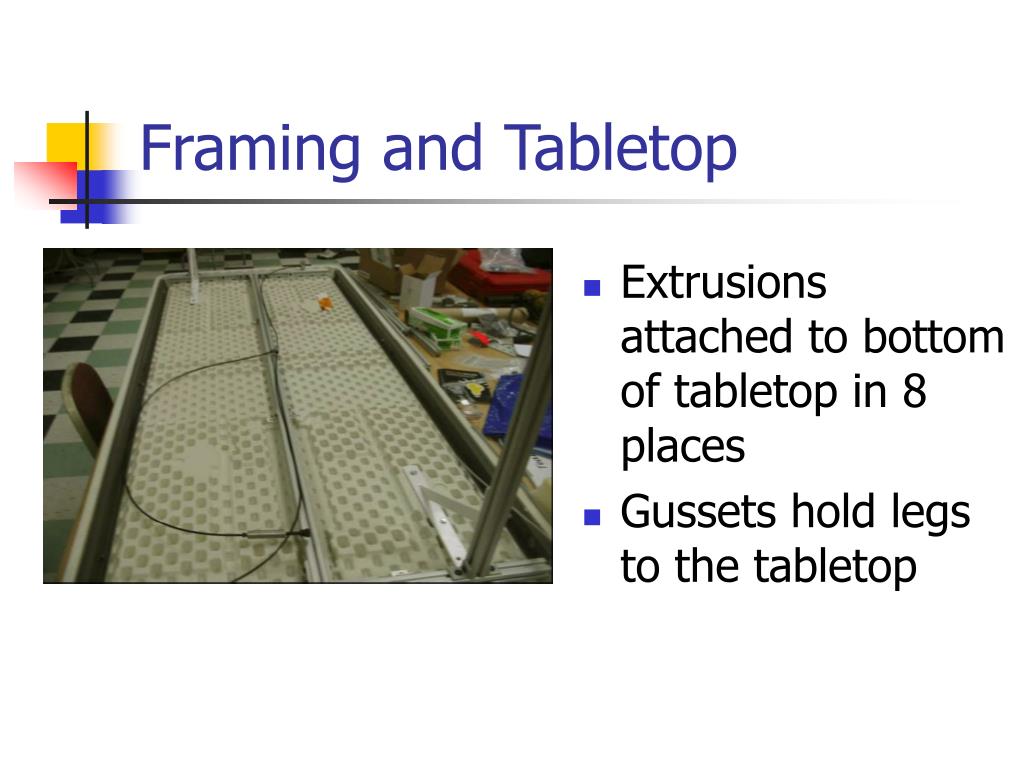

  15. Framing and Tabletop • Extrusions attached to bottom of tabletop in 8 places • Gussets hold legs to the tabletop

  16. Base • Four base extensions prevent rocking

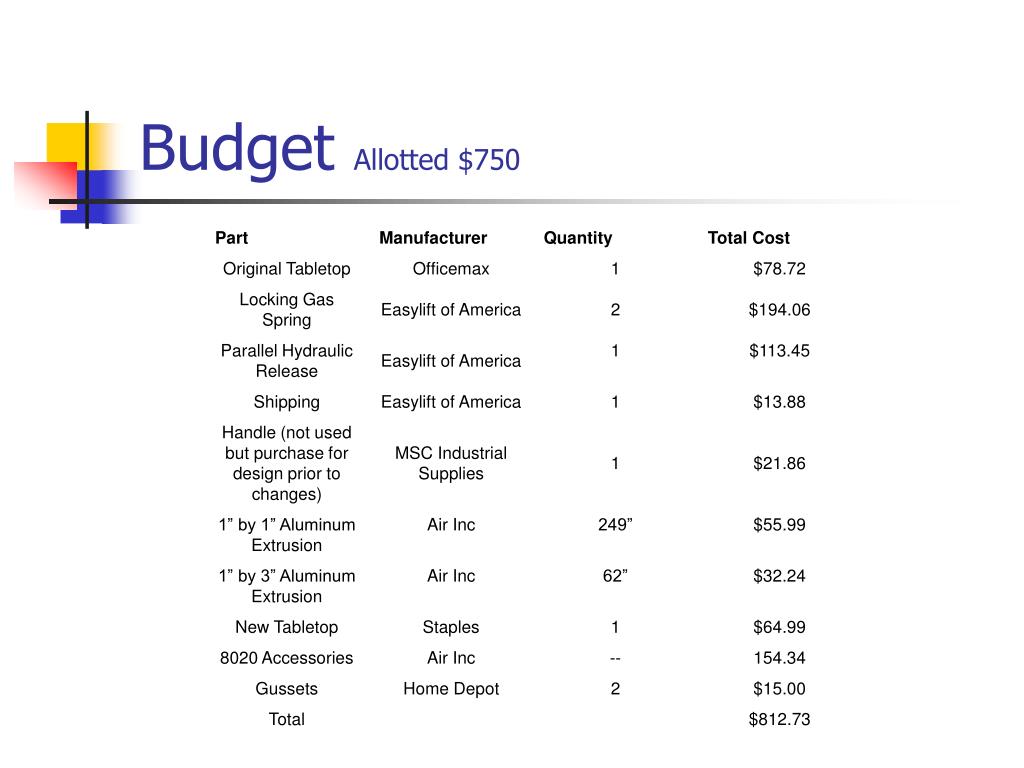

  17. Budget Allotted $750

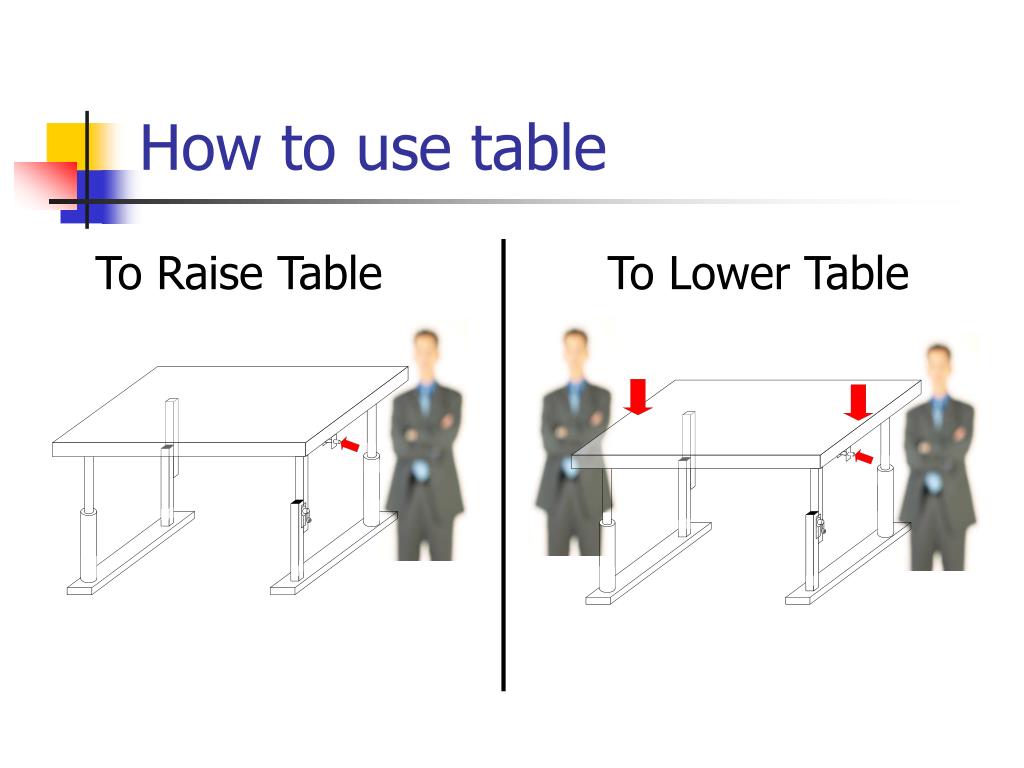

  18. How to use table To Lower Table To Raise Table

  19. Testing Final Product • The table works well with wheelchairs • Original requirements have been met

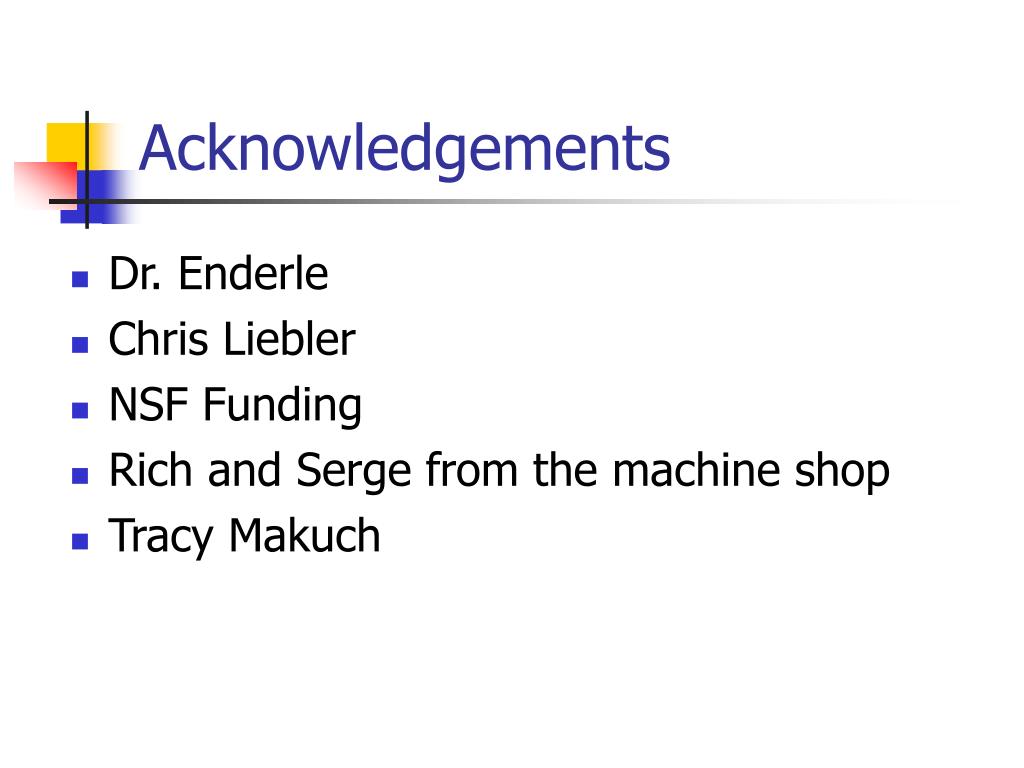

  20. Acknowledgements • Dr. Enderle • Chris Liebler • NSF Funding • Rich and Serge from the machine shop • Tracy Makuch

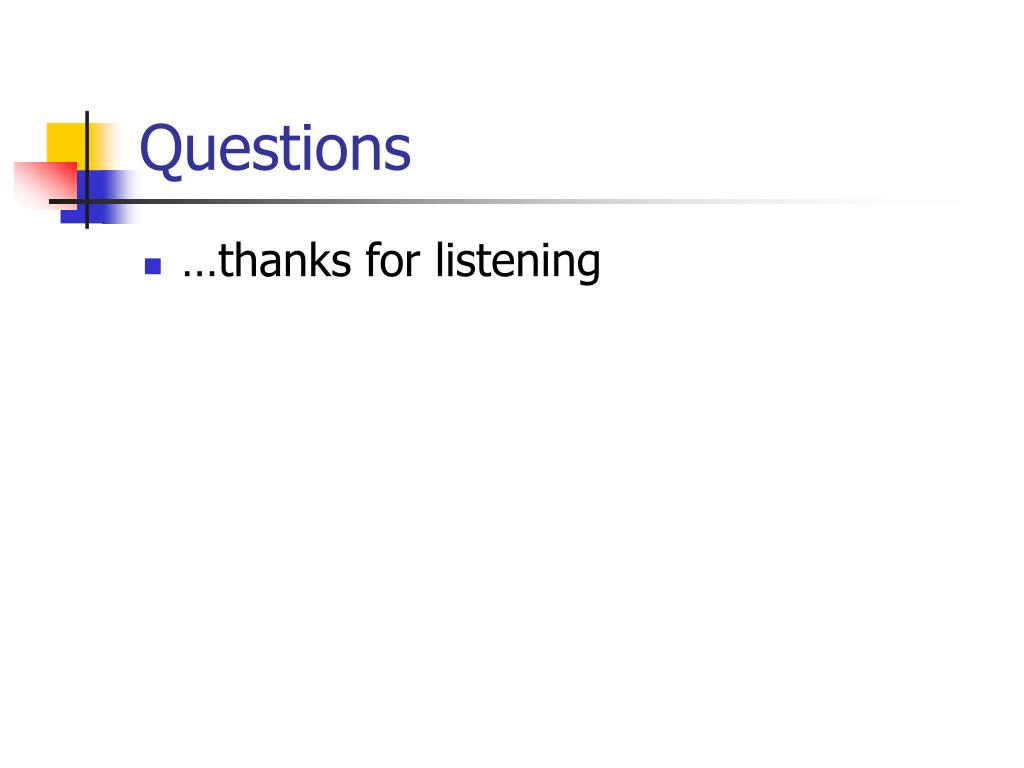

  21. Questions • …thanks for listening

  22. Appendix • The following figures and tables have been included to aid in explanations for questions.

  23. Gas Spring Specifications

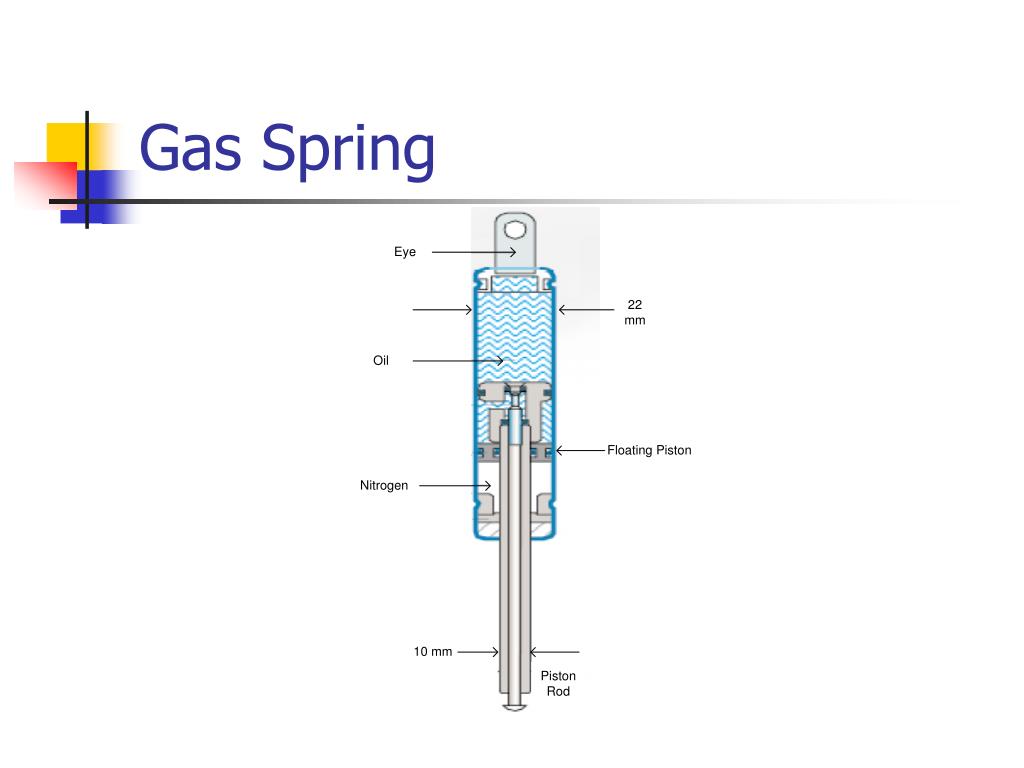

  24. Gas Spring

  25. Parallel Hydraulic Release

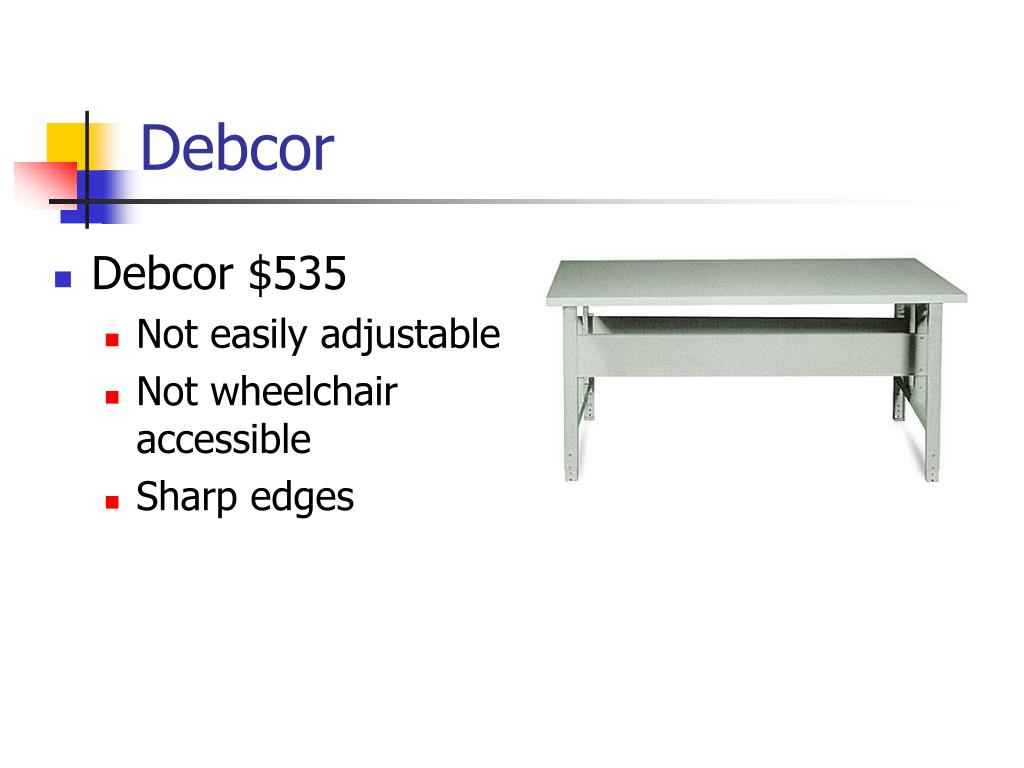

  26. Debcor • Debcor $535 • Not easily adjustable • Not wheelchair accessible • Sharp edges

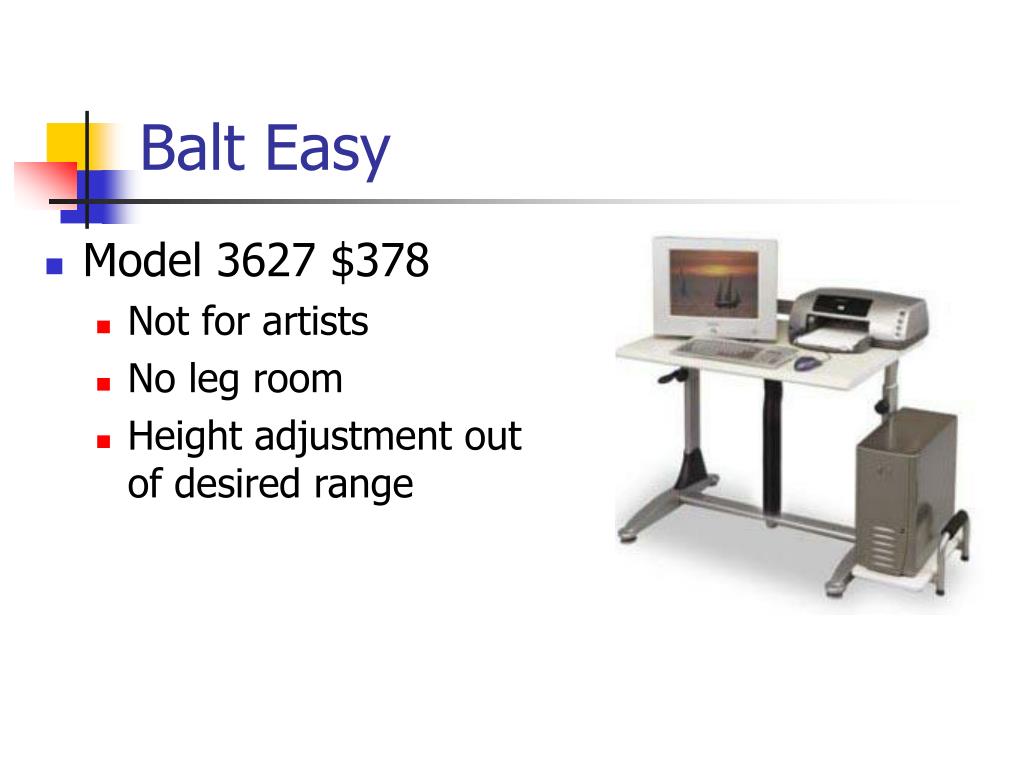

  27. Balt Easy • Model 3627 $378 • Not for artists • No leg room • Height adjustment out of desired range

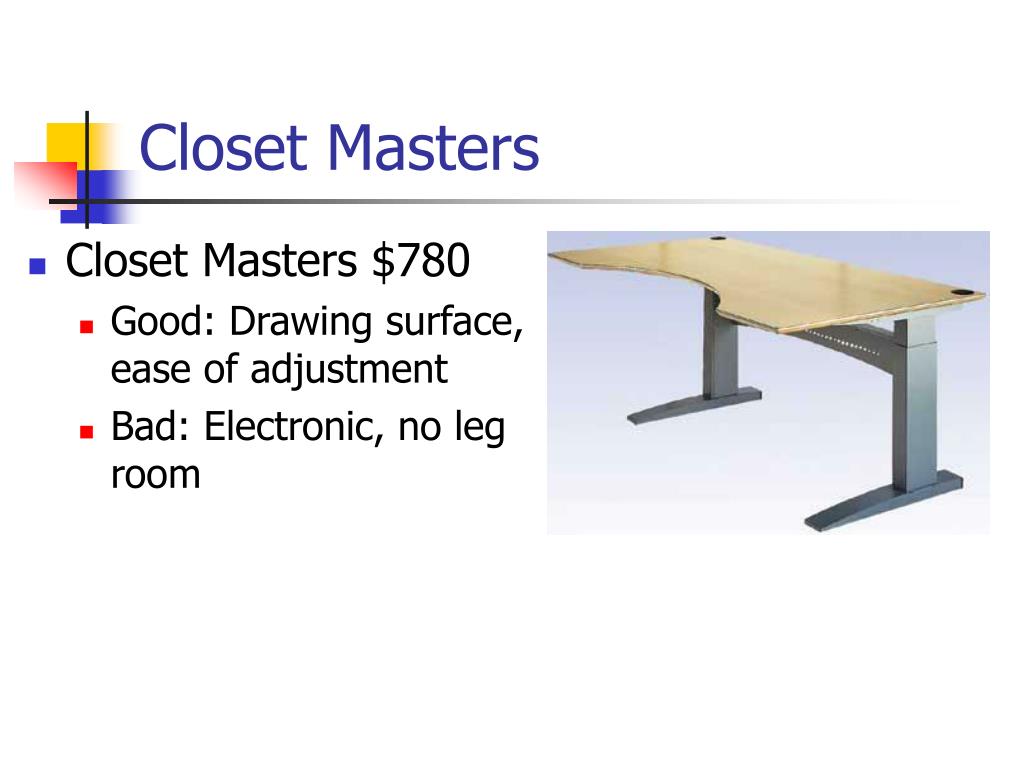

  28. Closet Masters • Closet Masters $780 • Good: Drawing surface, ease of adjustment • Bad: Electronic, no leg room

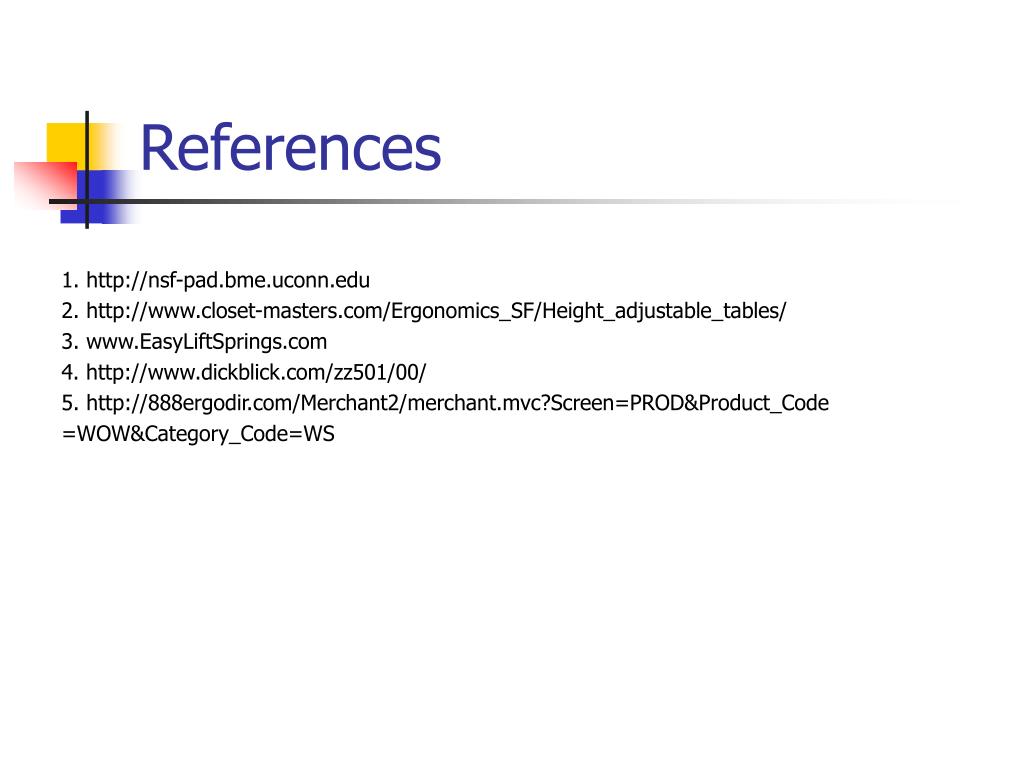

  29. References 1. http://nsf-pad.bme.uconn.edu 2. http://www.closet-masters.com/Ergonomics_SF/Height_adjustable_tables/ 3. www.EasyLiftSprings.com 4. http://www.dickblick.com/zz501/00/ 5. http://888ergodir.com/Merchant2/merchant.mvc?Screen=PROD&Product_Code =WOW&Category_Code=WS
