Lecture 2.0

Thermodynamics in Chip Processing

Terry Ring

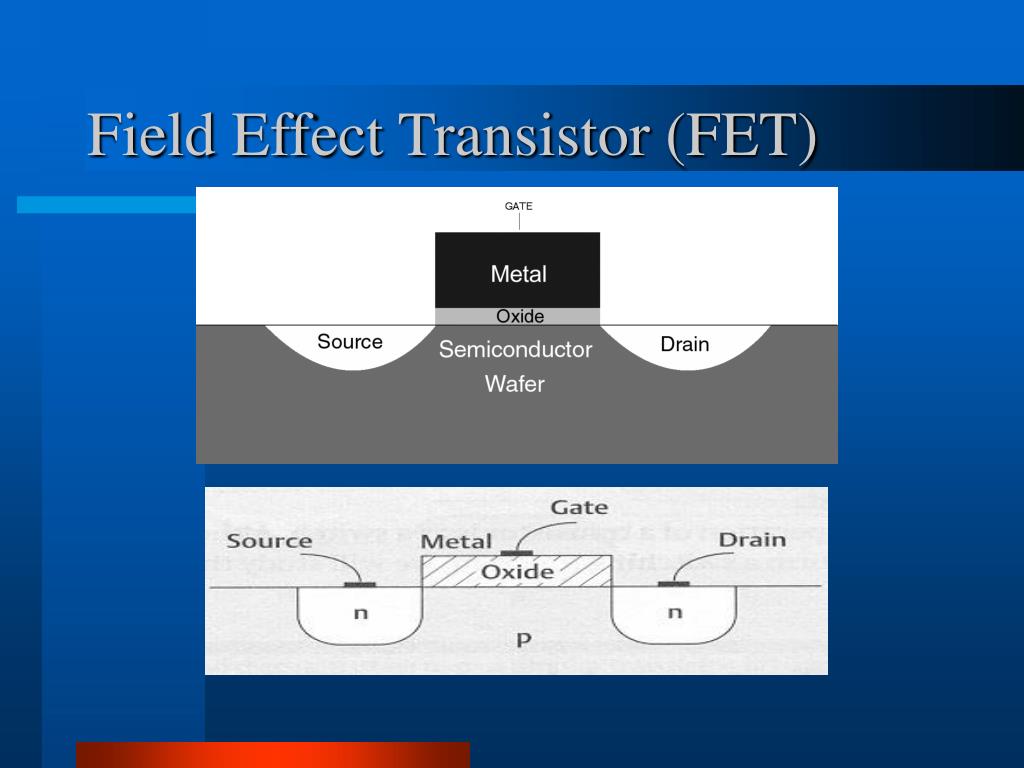

gate oxide

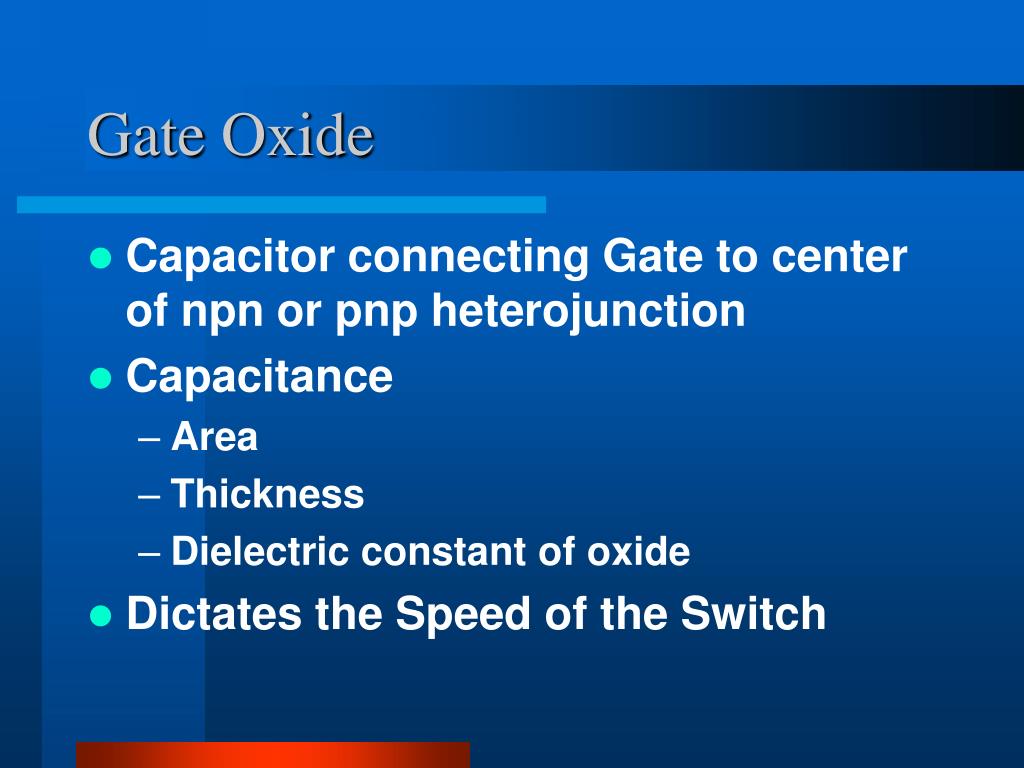

Gate Oxide
  • Capacitor connecting Gate to center of npn or pnp heterojunction
  • Capacitance
    • Area
    • Thickness
    • Dielectric constant of oxide
  • Dictates the Speed of the Switch
gate oxide capacitance
Gate Oxide Capacitance

C=oA/d

=C/Co

=1+e

e =

electric

susceptibility

silicon oxidation
Silicon Oxidation
  • Thermodynamics
      • (yes/no? How Far? Heat/cool)
    • Furnace at T=850C
    • Pure Oxygen
      • Si + O2 SiO2
  • Kinetics (how fast)
    • BL-Mass Transfer
      • J=Kg(CA-0)
    • SS-Diffusion
      • J=DO-SiO2 (dC/dx)
    • Heat Transfer
      • BL, q=h(T1-T)
      • Solid, q=kSiO2(dT/dx)
    • J=q/Hrxn
thermodynamics of reactions
Thermodynamics of Reactions
  • Thermodynamics Can Tell you Three Things
    • Is reaction spontaneous
      • Gibbs Free Energy, ΔGrxn(T)
        • Grxn<0, Spontaneous
        • Grxn>0, Non-Spontaneous
    • What are Equilibrium Ratios?
      • ΔGrxn(T)= - RT ln(Keq)
    • Does Reaction create heat?
      • Heat of Reaction, ΔHrxn(T)
        • Exothermic, ΔHrxn(T)<0, get hot!
        • Endothermic, ΔHrxn(T)>0
reaction to make sio 2
Reaction to Make SiO2
  • Si (s) + O2 (g)  SiO2(s)
    • Done in Vacuum Furnace.
  • Does the Reaction Go?
    • Po2 =0.001 atm
    • T= 600 C
gibbs free energy
Gibbs Free Energy
  • Si (s) + O2 (g)  SiO2(s)
  • ΔGrxn(T)=GSiO2 (T)- GSi(T) - GO2 (T) = - RT ln(Keq)
  • -ΔGorxn(T)=GSiO2 (T)- GSi(T) - GO2 (T)
  • Keq=Xo2=Po2/PTot
  • If ΔGrxn(T)=0, then
      • ΔGorxn(T) = - RT ln(Po2)
  • GSiO2 (T)= ΔHSiO2(T) -TΔSoSiO2
      • ΔHSiO2(T) =Hof-SiO2+To∫TCp-SiO2(T) dT
  • GSi(T)= ΔHSi(T) -TΔSoSi
      • ΔHSi(T) =Hof-Si+To∫TCp-Si(T) dT

Grxn<0, Spontaneous

webbook.nist.gov/chemistry/

slide10
Po2 = 0.001 atm
  • T = 600 C

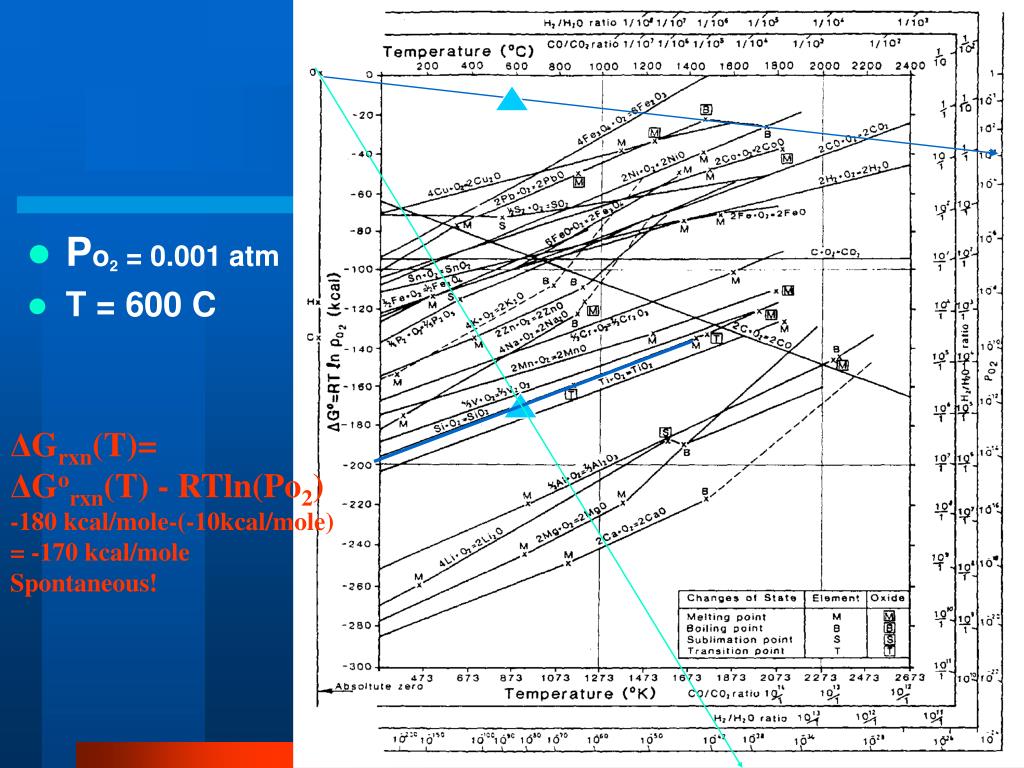

ΔGrxn(T)=

ΔGorxn(T)- RTln(Po2)

-180 kcal/mole-(-10kcal/mole)

= -170 kcal/mole

Spontaneous!

want to create o 2 with wet h 2
Want to Create O2 with wet H2
  • H2O(g)   H2(g) + ½ O2(g)
  • Equilibium
  • ΔGrxn(T)= - RT ln(Keq)
  • Keq = (XH2 √Xo2)/XH2O
  • ΔGrxn(T)= ΔGH2 (T)+1/2 ΔGo2(T)- ΔGH2O(T)
slide12
At
  • T = 600 C
  • What H2/H2O Ratio?
want to create o 2 with co co 2 ratio
Want to Create O2 with CO/CO2 ratio
  • 2CO2(g)   2CO(g) + O2(g)
  • Equilibium
  • ΔGrxn(T)= - RT ln(Keq)
  • Keq = (XCO2 Xo2)/XCO22
  • ΔGrxn(T)= 2ΔGCO (T)+ΔGo2(T) - 2ΔGCO2(T)
slide14
At
  • T = 600 C

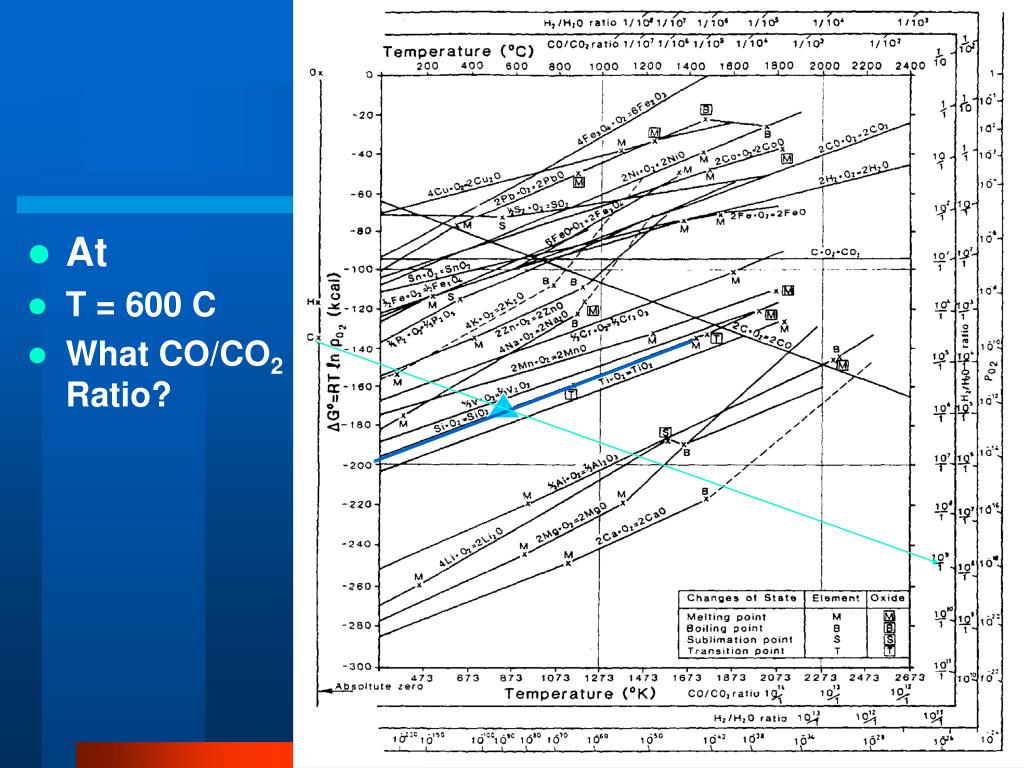

  • What CO/CO2 Ratio?
metalization
Metalization
  • Transistor Contacts
    • Base
    • Emitter
    • Gate
  • Metal Deposition
    • Chemical Vapor Deposition
cvd of poly si gate conductor

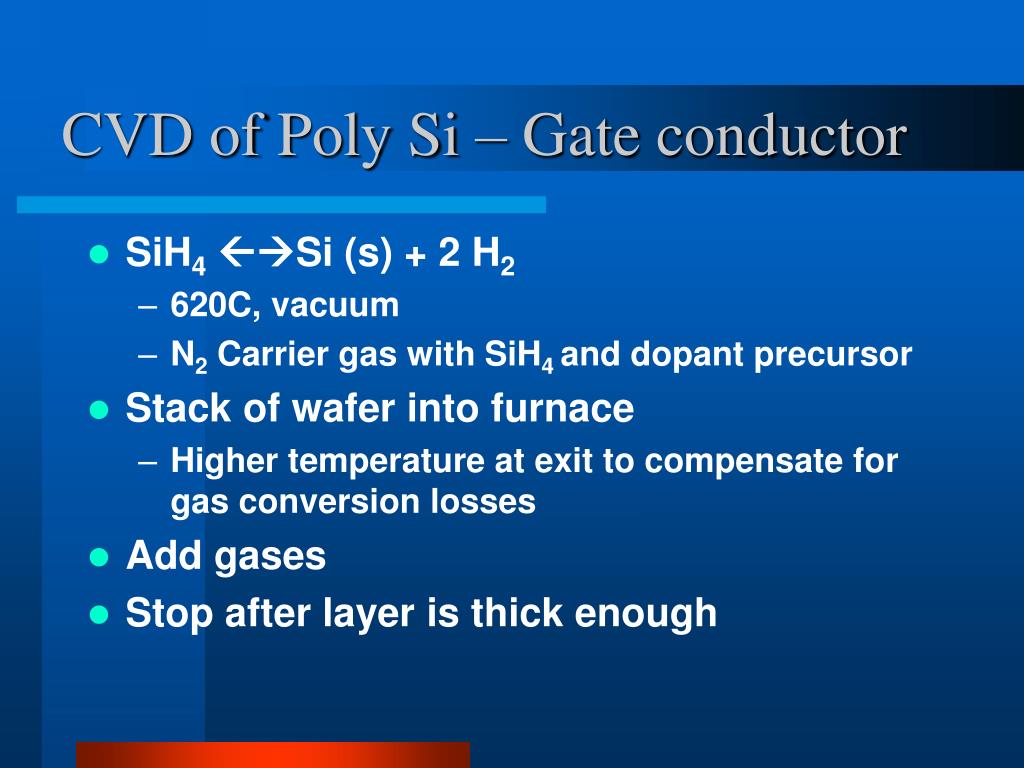

CVD of Poly Si – Gate conductor
  • SiH4Si (s) + 2 H2
    • 620C, vacuum
    • N2 Carrier gas with SiH4 and dopant precursor
  • Stack of wafer into furnace
    • Higher temperature at exit to compensate for gas conversion losses
  • Add gases
  • Stop after layer is thick enough
cvd reactor
CVD Reactor
  • Wafers in Carriage (Quartz)
  • Gasses enter
  • Pumped out via vacuum system
  • Plug Flow Reactor

Vacuum

cvd of w metal plugs
CVD of W – Metal plugs
  • 3H2+WF6 W (s) + 6HF
    • T>800C, vacuum
    • He carrier gas with WF6

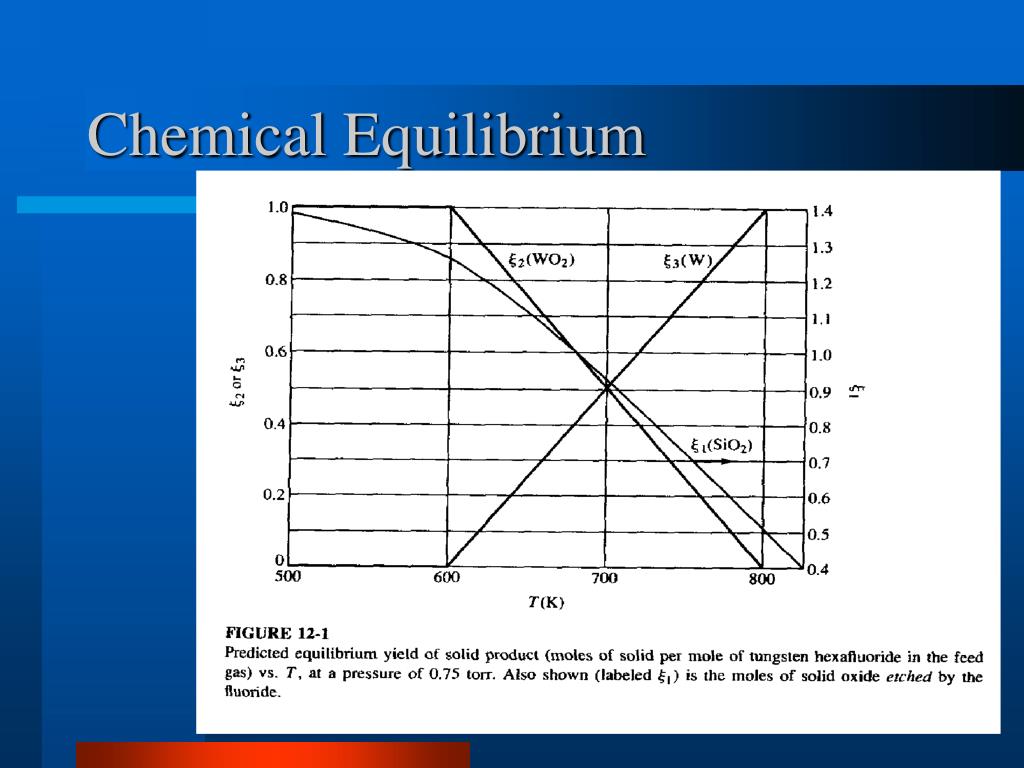

    • Side Reactions at lower temperatures
      • Oxide etching reactions
      • 2H2+2WF6+3SiO2 3SiF4 + 2WO2 + 2H2O
      • SiO2 + 4HF  2H2O +SiF4
  • Stack of wafer into furnace
  • Add gases
  • Stop after layer is thick enough

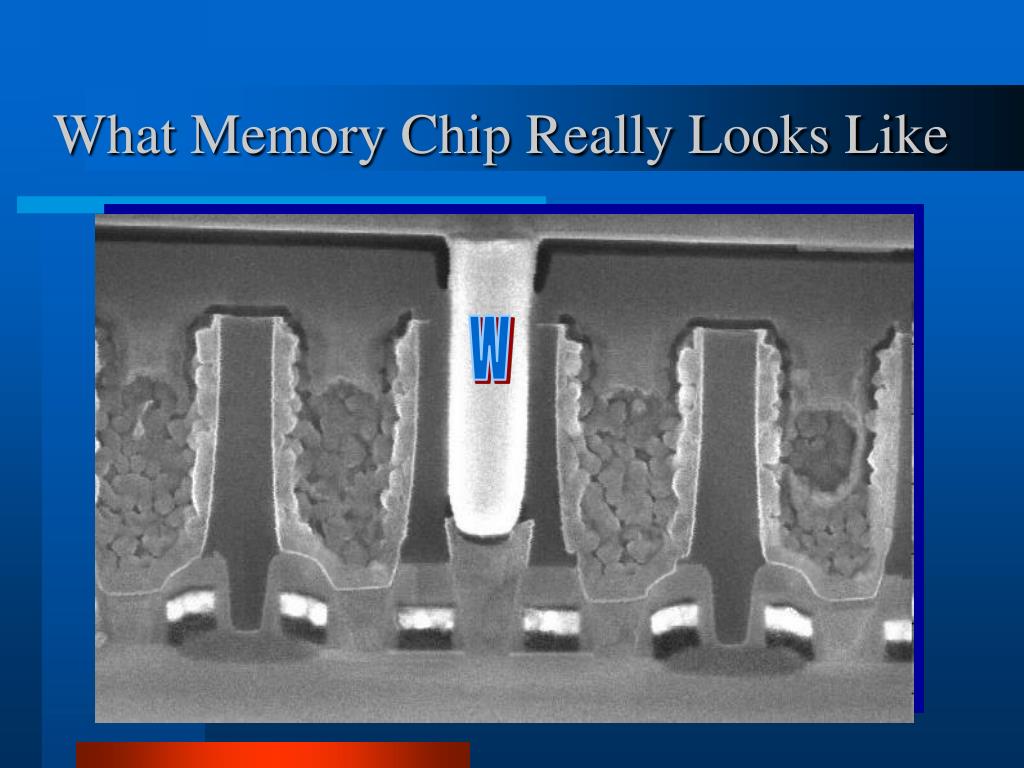

dram memory cell

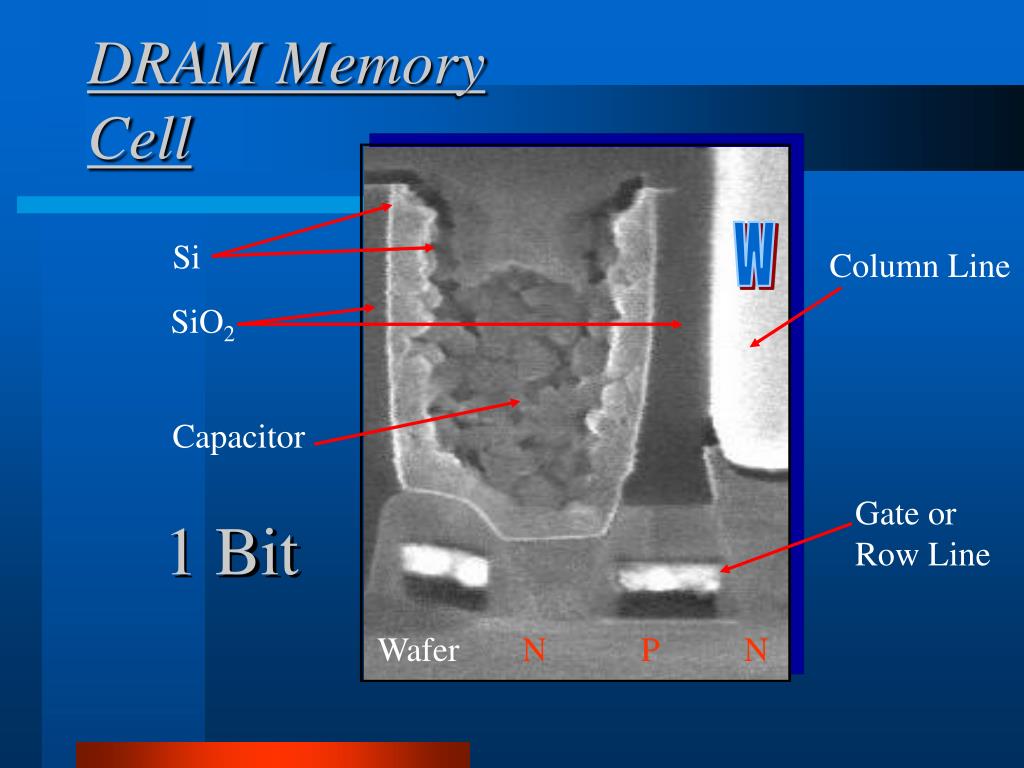

DRAM Memory Cell

W

Si

Column Line

SiO2

Capacitor

Gate or Row Line

1 Bit

Wafer

N P N

cvd of sio 2 dielectric

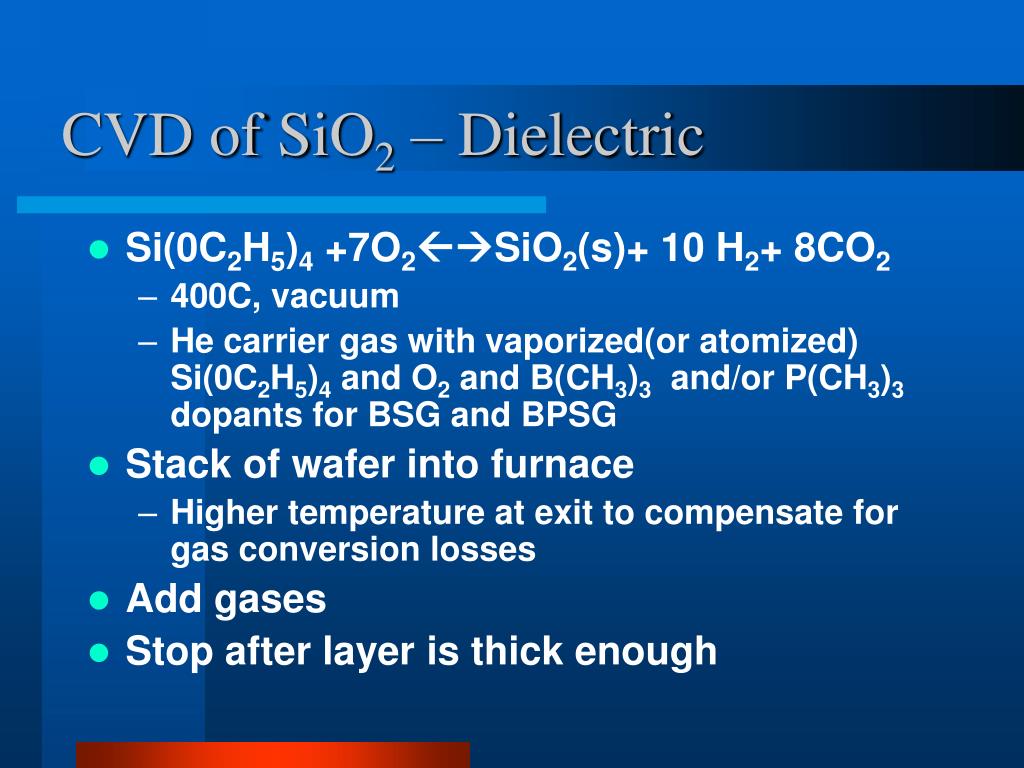

CVD of SiO2 – Dielectric
  • Si(0C2H5)4 +7O2SiO2(s)+ 10 H2+ 8CO2
    • 400C, vacuum
    • He carrier gas with vaporized(or atomized) Si(0C2H5)4and O2 and B(CH3)3 and/or P(CH3)3 dopants for BSG and BPSG
  • Stack of wafer into furnace
    • Higher temperature at exit to compensate for gas conversion losses
  • Add gases
  • Stop after layer is thick enough
cvd of si 3 n 4 implantation mask
CVD of Si3N4 - Implantation mask
  • 3 SiH2Cl2 + 4 NH3Si3N4(s)+ 6 HCl + 6 H2
    • 780C, vacuum
    • Carrier gas with NH3 / SiH2Cl2 >>1
  • Stack of wafer into furnace
    • Higher temperature at exit to compensate for gas conversion losses
  • Add gases
  • Stop after layer is thick enough
