Pocket-Dissolved-oxygen-meter

A polarographic sensor is included in theu00a0pocket dissolved oxygen tester to measure the amount of dissolved oxygen. There are 6 parameters that can be set in the dissolved oxygen meter's system menu. for more visit www.labtron.uk

labtronuk
Download Presentation

Pocket-Dissolved-oxygen-meter

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

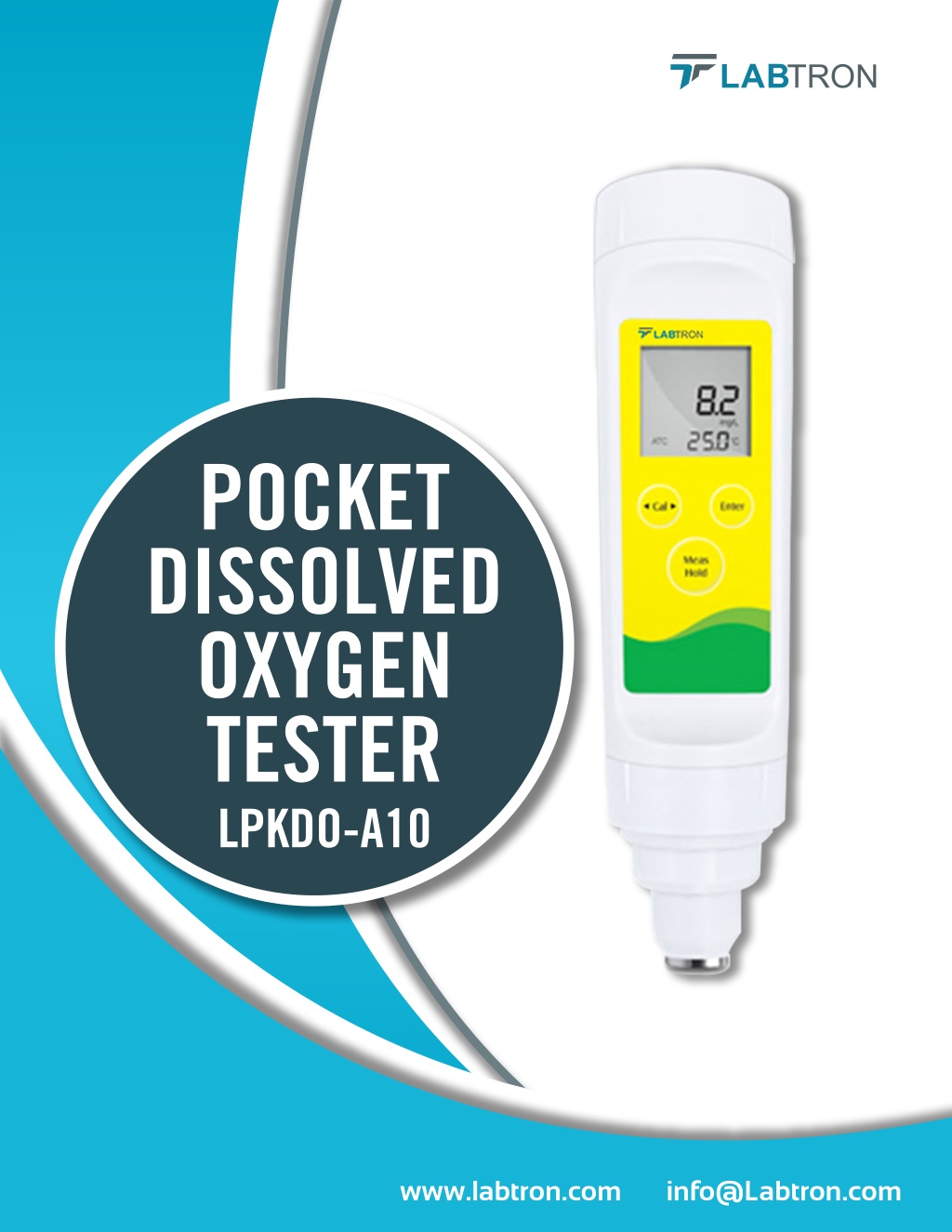

  1. POCKET DISSOLVED OXYGEN TESTER LPKDO-A10 www.labtron.com info@Labtron.com

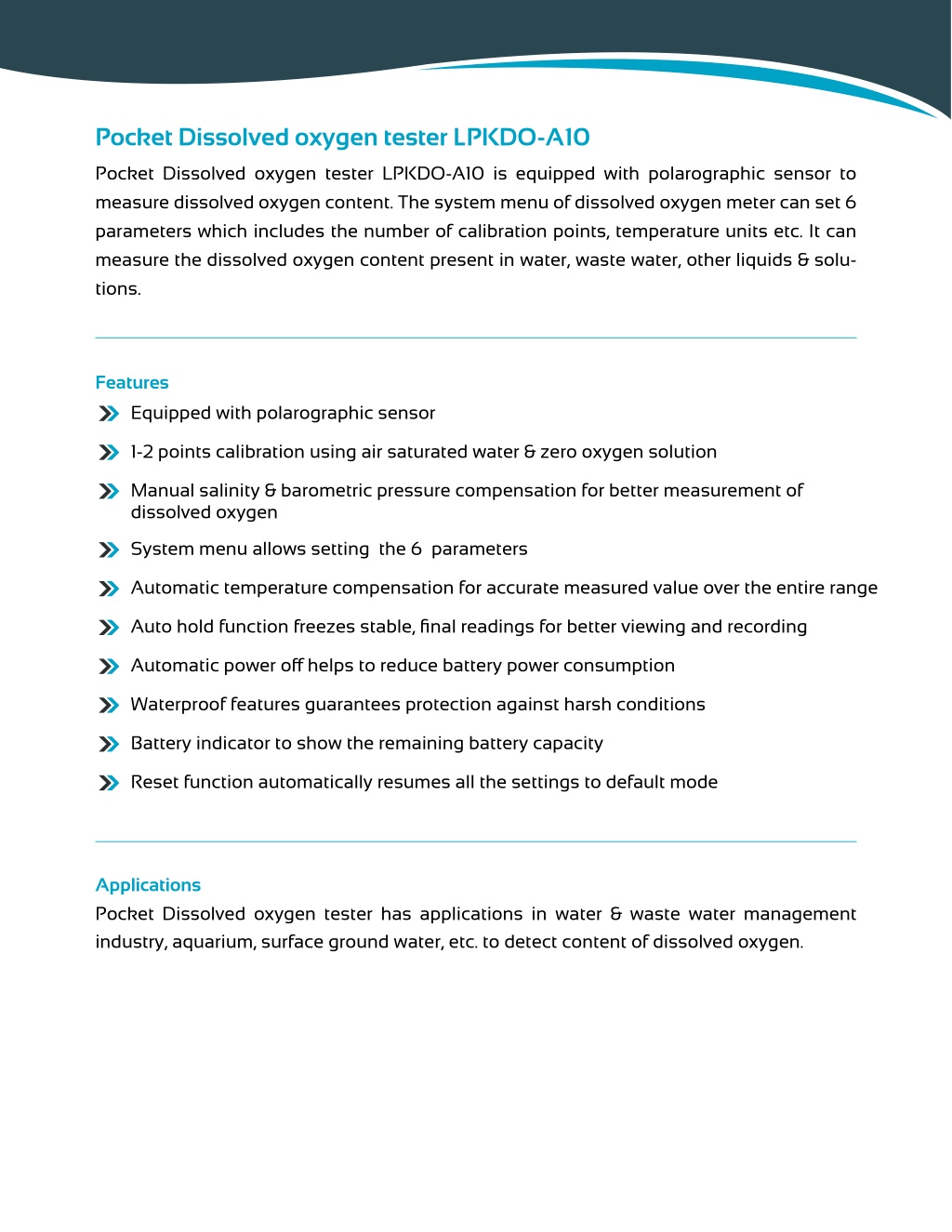

  2. Pocket Dissolved oxygen tester LPKDO-A10 Pocket Dissolved oxygen tester LPKDO-A10 is equipped with polarographic sensor to measure dissolved oxygen content. The system menu of dissolved oxygen meter can set 6 parameters which includes the number of calibration points, temperature units etc. It can measure the dissolved oxygen content present in water, waste water, other liquids & solu- tions. Features Equipped with polarographic sensor 1-2 points calibration using air saturated water & zero oxygen solution Manual salinity & barometric pressure compensation for better measurement of dissolved oxygen System menu allows setting the 6 parameters Automatic temperature compensation for accurate measured value over the entire range Auto hold function freezes stable, final readings for better viewing and recording Automatic power off helps to reduce battery power consumption Waterproof features guarantees protection against harsh conditions Battery indicator to show the remaining battery capacity Reset function automatically resumes all the settings to default mode Applications Pocket Dissolved oxygen tester has applications in water & waste water management industry, aquarium, surface ground water, etc. to detect content of dissolved oxygen.

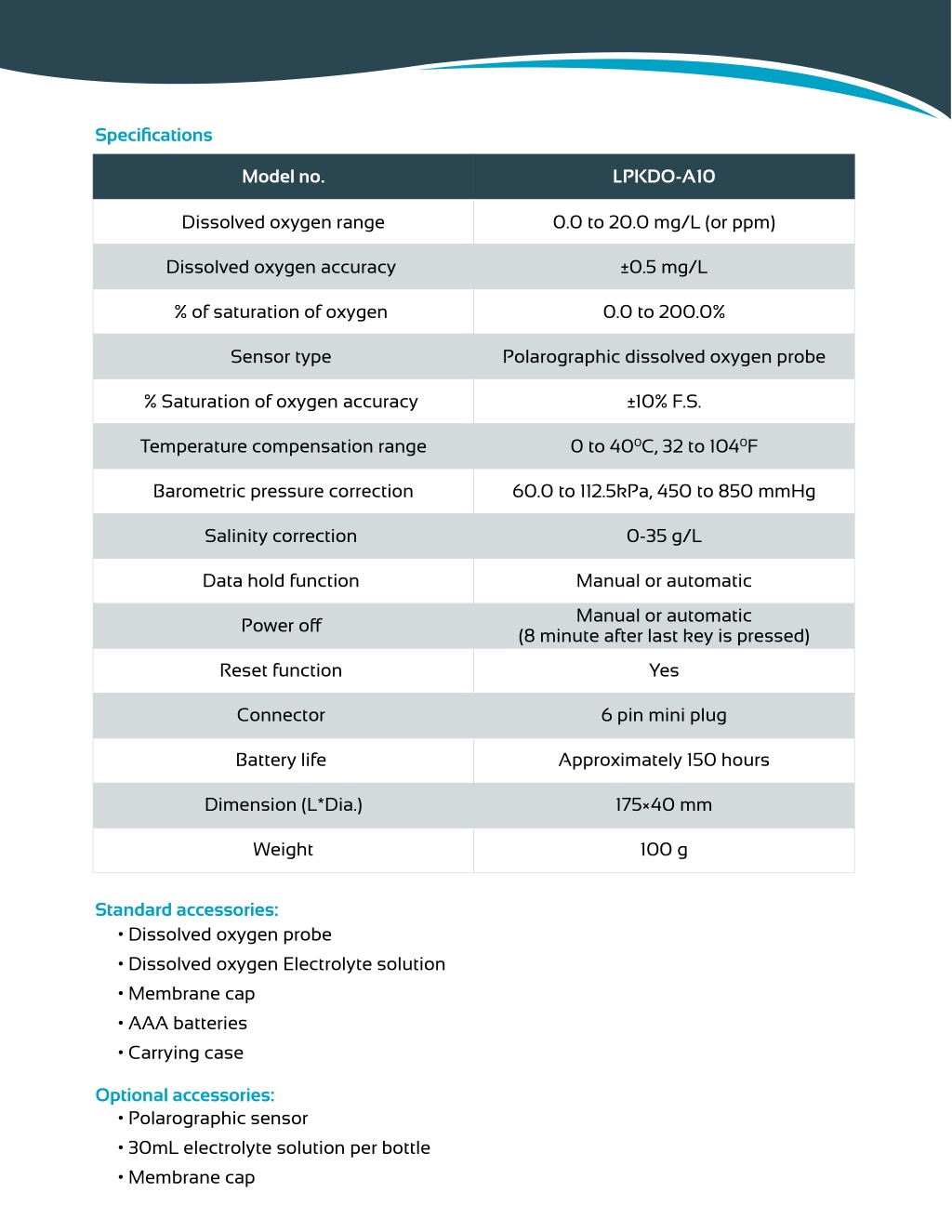

  3. Specifications LPKDO-A10 Model no. Dissolved oxygen range 0.0 to 20.0 mg/L (or ppm) Dissolved oxygen accuracy ±0.5 mg/L % of saturation of oxygen 0.0 to 200.0% Sensor type Polarographic dissolved oxygen probe % Saturation of oxygen accuracy ±10% F.S. 0 to 400C, 32 to 1040F Temperature compensation range 60.0 to 112.5kPa, 450 to 850 mmHg Barometric pressure correction 0-35 g/L Salinity correction Manual or automatic Data hold function Manual or automatic (8 minute after last key is pressed) Power off Yes Reset function 6 pin mini plug Connector Approximately 150 hours Battery life 175×40 mm Dimension (L*Dia.) 100 g Weight Standard accessories: • Dissolved oxygen probe • Dissolved oxygen Electrolyte solution • Membrane cap • AAA batteries • Carrying case Optional accessories: • Polarographic sensor • 30mL electrolyte solution per bottle • Membrane cap
