XRF-Spectrometer

We offer a high-quality XRF-Spectrometer LXRF-A10 having measurable elements of S to U, a Detection limit of 1 ppm, Stability of 0.001, Weight of 45kg, etc. at Labtron.com!

labtrondigital
Download Presentation

XRF-Spectrometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

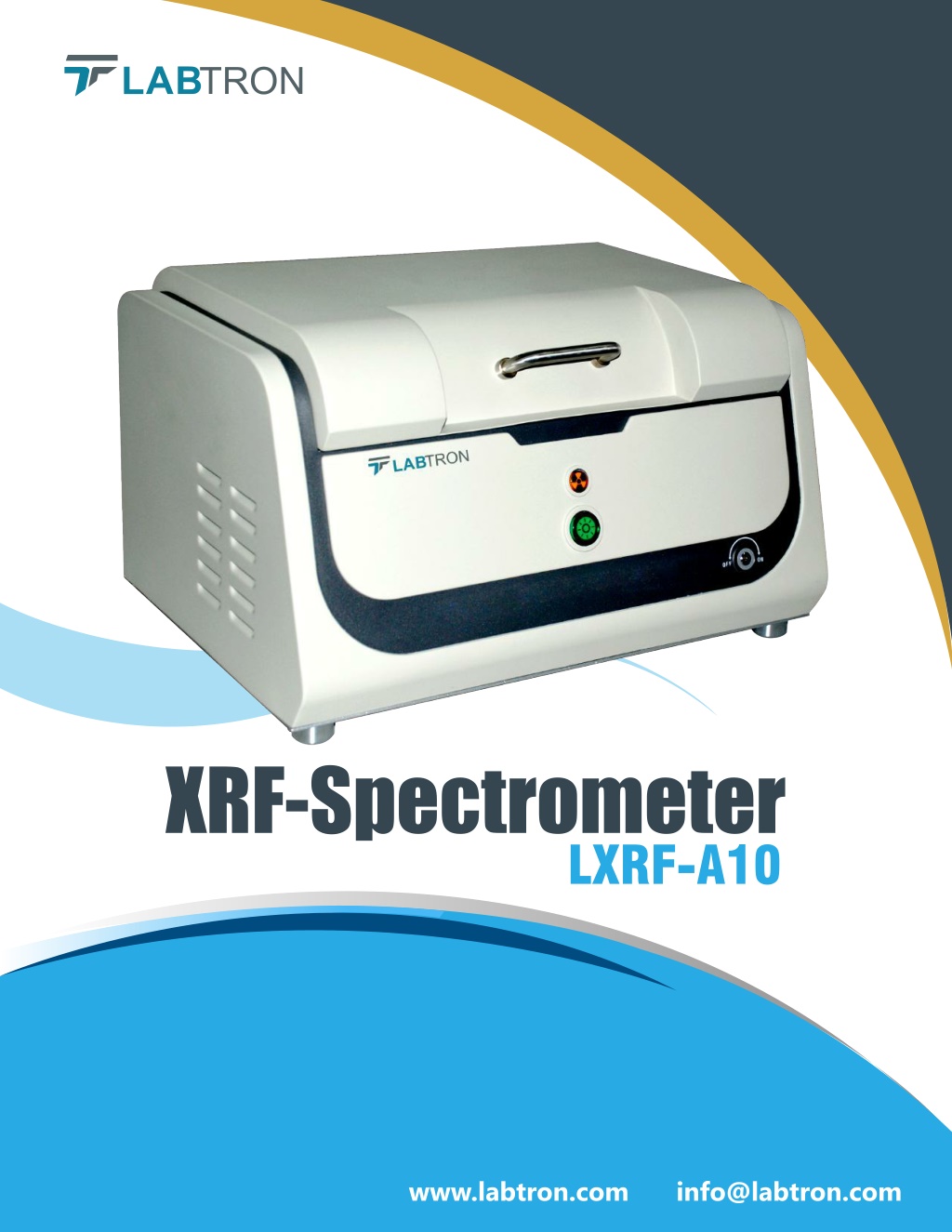

  1. XRF-Spectrometer LXRF-A10 www.labtron.com info@labtron.com

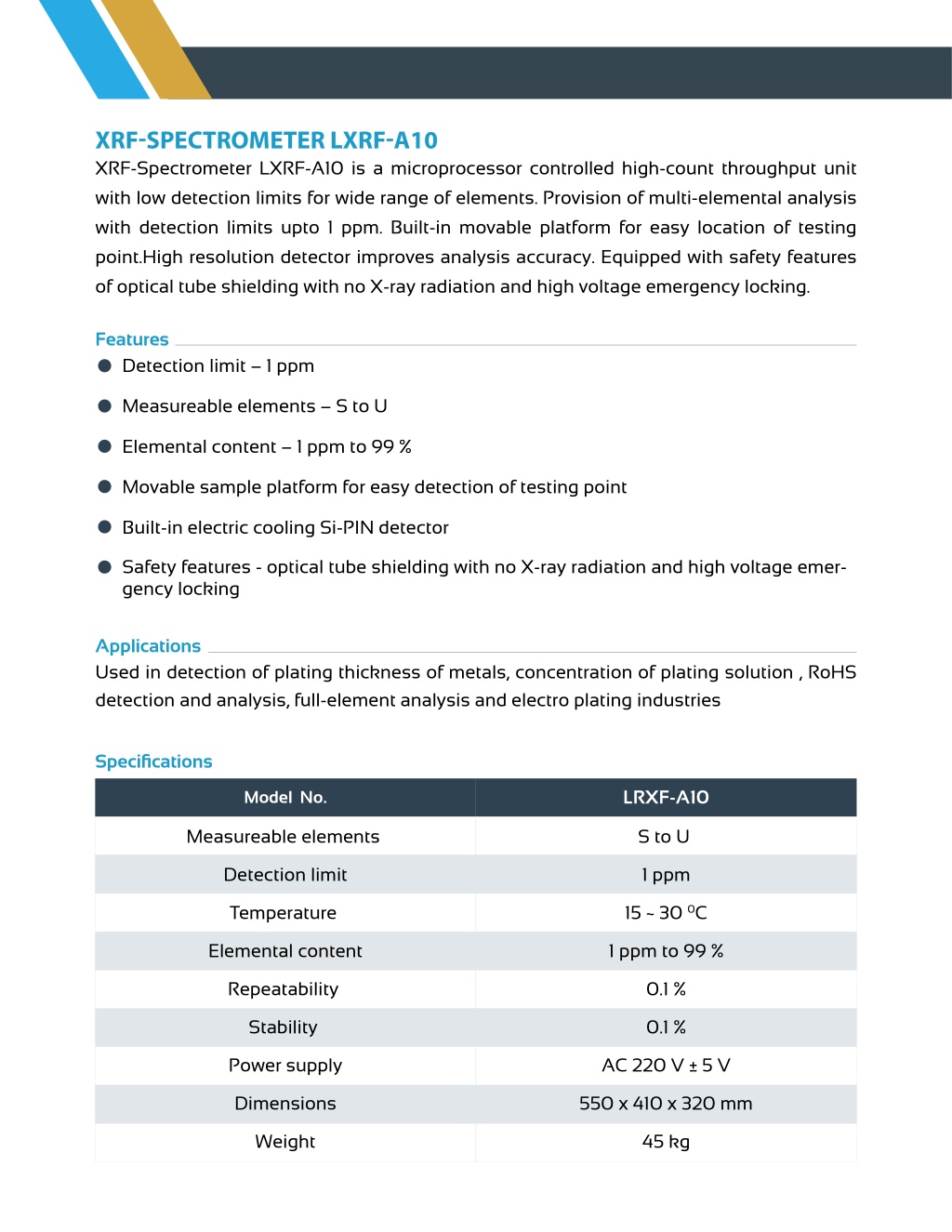

  2. XRF-SPECTROMETER LXRF-A10 XRF-Spectrometer LXRF-A10 is a microprocessor controlled high-count throughput unit with low detection limits for wide range of elements. Provision of multi-elemental analysis with detection limits upto 1 ppm. Built-in movable platform for easy location of testing point.High resolution detector improves analysis accuracy. Equipped with safety features of optical tube shielding with no X-ray radiation and high voltage emergency locking. Features Detection limit – 1 ppm Measureable elements – S to U Elemental content – 1 ppm to 99 % Movable sample platform for easy detection of testing point Built-in electric cooling Si-PIN detector Safety features - optical tube shielding with no X-ray radiation and high voltage emer- gency locking Applications Used in detection of plating thickness of metals, concentration of plating solution , RoHS detection and analysis, full-element analysis and electro plating industries Specifications LRXF-A10 Model No. Measureable elements S to U Detection limit 1 ppm 15 ~ 30 0C Temperature 1 ppm to 99 % Elemental content 0.1 % Repeatability 0.1 % Stability Power supply AC 220 V ± 5 V 550 x 410 x 320 mm Dimensions 45 kg Weight
