Textile-Balance-LTXB-A1

Textile Balance LTXB-A10 is a high precision load cell sensor with a compact design and a capacity of 110gm manufactured by Labtron that provides accurate measurements.

labtrondigital
Download Presentation

Textile-Balance-LTXB-A1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

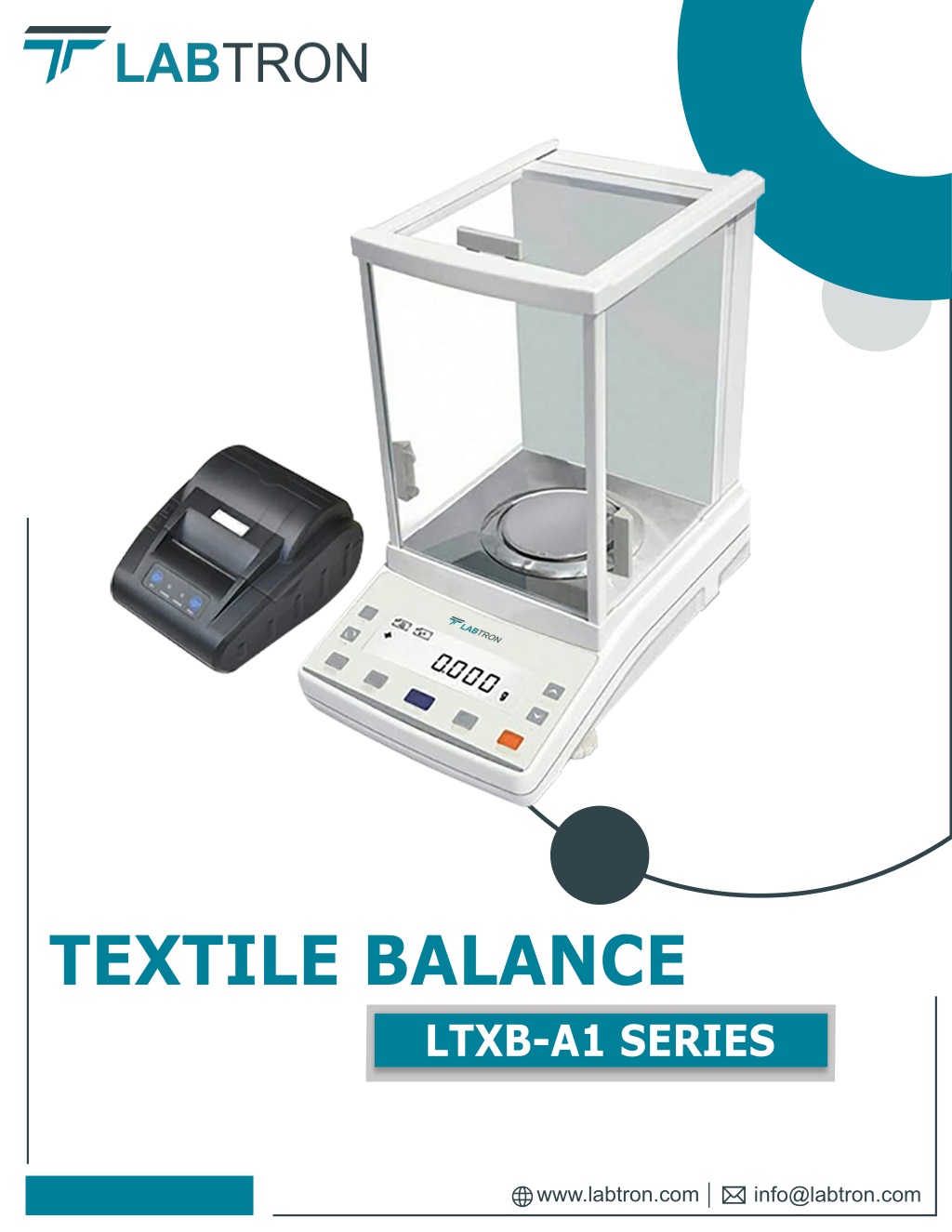

  1. TEXTILE BALANCE LTXB-A1 SERIES www.labtron.com info@labtron.com

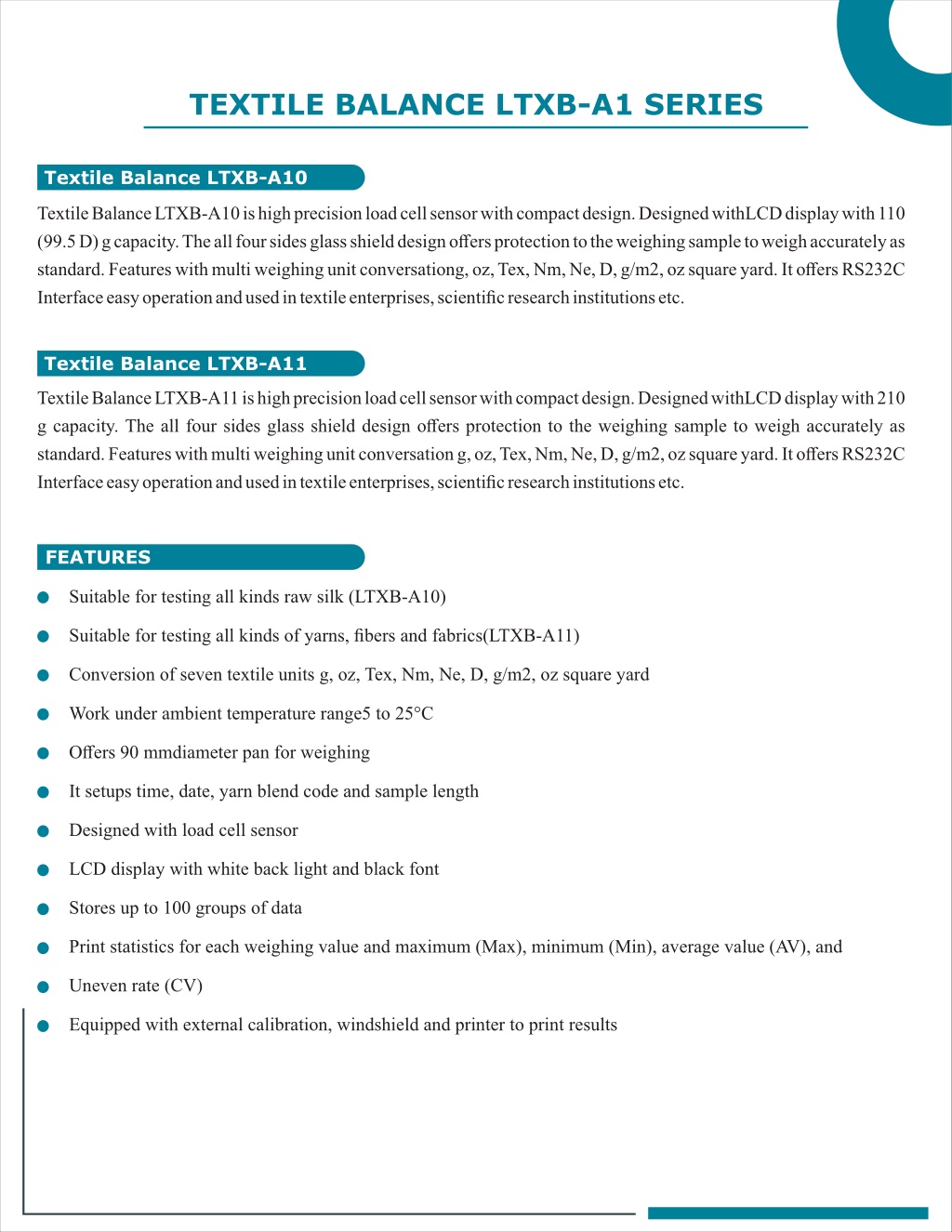

  2. TEXTILE BALANCE LTXB-A1 SERIES Textile Balance LTXB-A10 Textile Balance LTXB-A10 is high precision load cell sensor with compact design. Designed withLCD display with 110 (99.5 D) g capacity. The all four sides glass shield design offers protection to the weighing sample to weigh accurately as standard. Features with multi weighing unit conversationg, oz, Tex, Nm, Ne, D, g/m2, oz square yard. It offers RS232C Interface easy operation and used in textile enterprises, scientific research institutions etc. Textile Balance LTXB-A11 Textile Balance LTXB-A11 is high precision load cell sensor with compact design. Designed withLCD display with 210 g capacity. The all four sides glass shield design offers protection to the weighing sample to weigh accurately as standard. Features with multi weighing unit conversation g, oz, Tex, Nm, Ne, D, g/m2, oz square yard. It offers RS232C Interface easy operation and used in textile enterprises, scientific research institutions etc. FEATURES Suitable for testing all kinds raw silk (LTXB-A10) S uitable for testing all kinds of yarns, fibers and fabrics(LTXB-A11) C onversion of seven textile units g, oz, Tex, Nm, Ne, D, g/m2, oz square yard W ork under ambient temperature range5 to 25°C O ffers 90 mmdiameter pan for weighing I t setups time, date, yarn blend code and sample length D esigned with load cell sensor L CD display with white back light and black font S tores up to 100 groups of data P rint statistics for each weighing value and maximum (Max), minimum (Min), average value (AV), and Uneven rate (CV) E quipped with external calibration, windshield and printer to print results

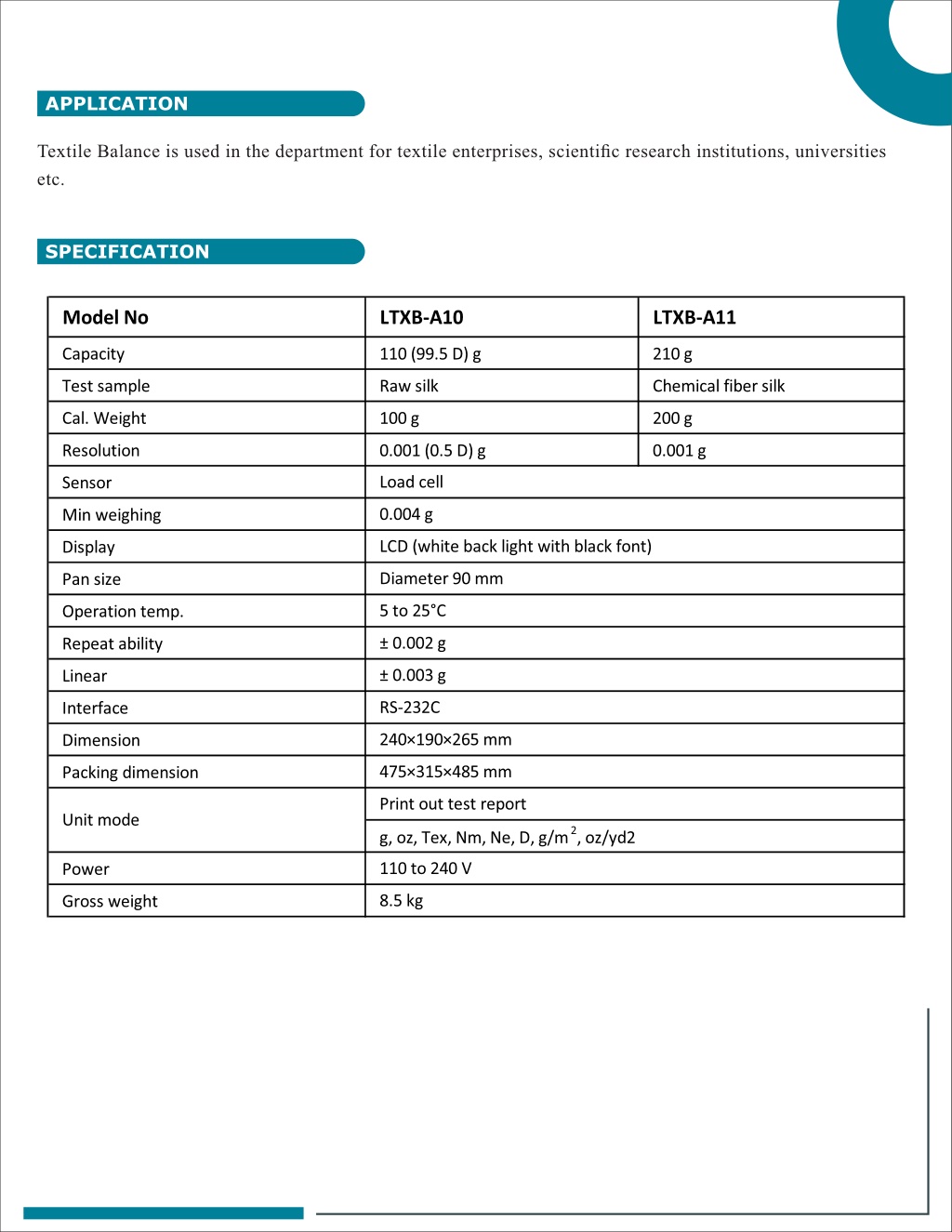

  3. APPLICATION Textile Balance is used in the department for textile enterprises, scientific research institutions, universities etc. SPECIFICATION Model No Capacity Test sample Cal. Weight Resolution Sensor Min weighing Display Pan size Operation temp. Repeat ability Linear Interface Dimension Packing dimension LTXB-A10 110 (99.5 D) g Raw silk 100 g 0.001 (0.5 D) g Load cell 0.004 g LCD (white back light with black font) Diameter 90 mm 5 to 25°C ± 0.002 g ± 0.003 g RS-232C 240×190×265 mm 475×315×485 mm Print out test report g, oz, Tex, Nm, Ne, D, g/m2, oz/yd2 110 to 240 V 8.5 kg LTXB-A11 210 g Chemical fiber silk 200 g 0.001 g Unit mode Power Gross weight
