Temperature-and-Humidity-Test-Chamber

Temperature and Humidity Test Chamber LTHC u2013A10 is designed to simulate constant climatic conditions for testing a wide variety of products for their quality, performance, shelf life and stability. It's used to simulate constant temperature and humidity conditions, thereby creating a physiologically ideal environment for product testing. A good temperature humidity chamber is essential for evaluating potential success or failure of a product in the field.<br><br>

labtrondigital
Download Presentation

Temperature-and-Humidity-Test-Chamber

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

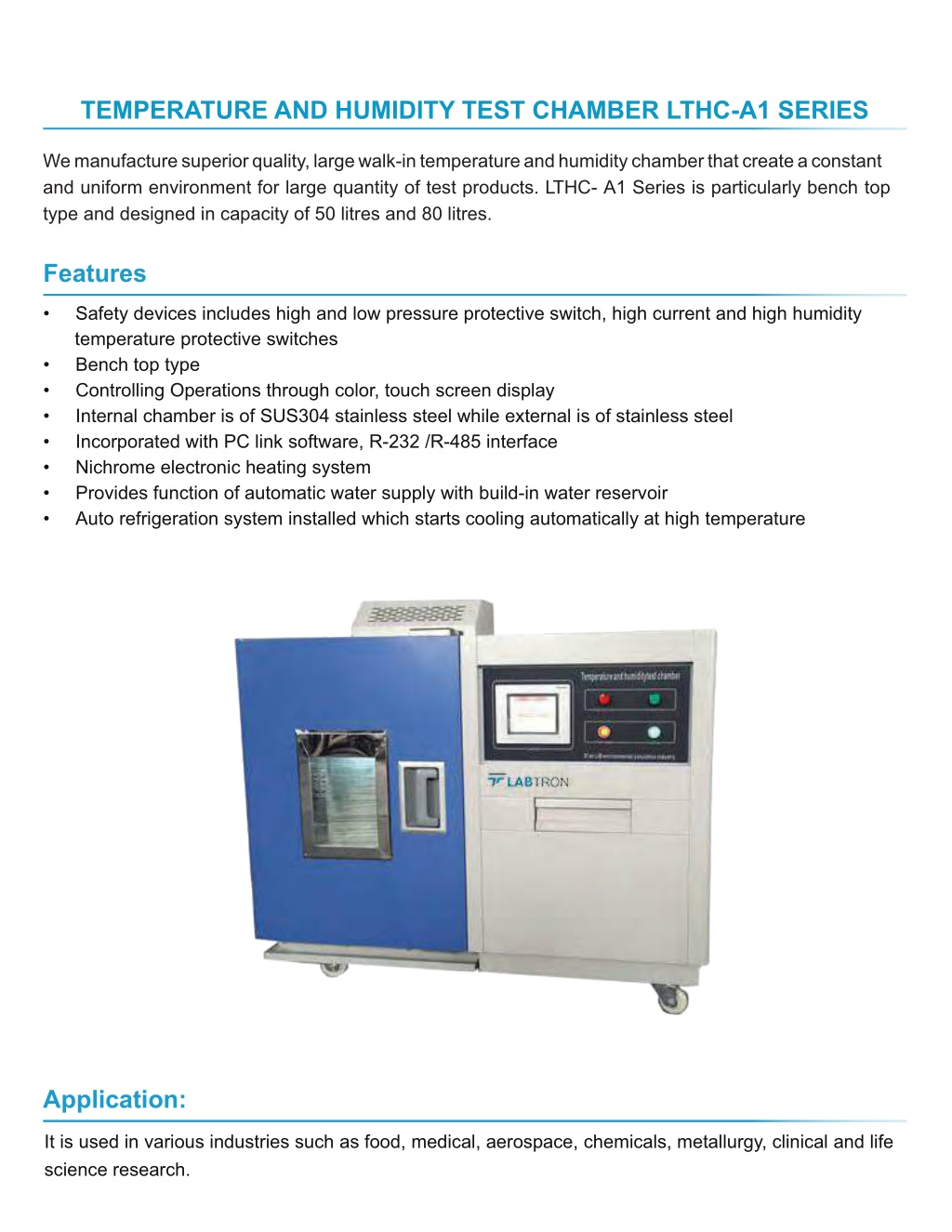

  1. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-A1 SERIES We manufacture superior quality, large walk-in temperature and humidity chamber that create a constant and uniform environment for large quantity of test products. LTHC- A1 Series is particularly bench top type and designed in capacity of 50 litres and 80 litres. Features • Safety devices includes high and low pressure protective switch, high current and high humidity temperature protective switches • Bench top type • Controlling Operations through color, touch screen display • Internal chamber is of SUS304 stainless steel while external is of stainless steel • Incorporated with PC link software, R-232 /R-485 interface • Nichrome electronic heating system • Provides function of automatic water supply with build-in water reservoir • Auto refrigeration system installed which starts cooling automatically at high temperature Application: It is used in various industries such as food, medical, aerospace, chemicals, metallurgy, clinical and life science research.

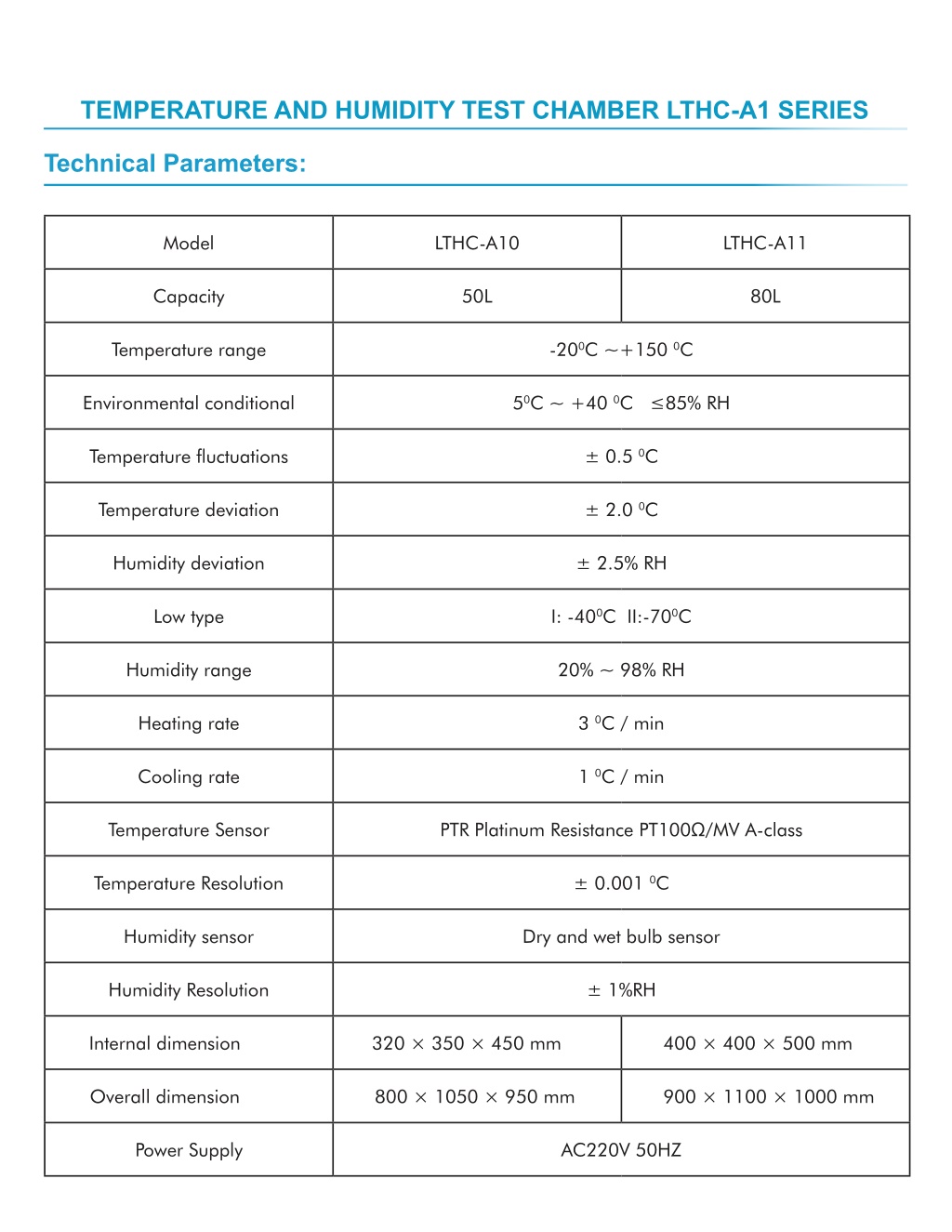

  2. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-A1 SERIES Technical Parameters: Model LTHC-A10 LTHC-A11 Capacity 50L 80L 0 0 -20 C ~+150 C Temperature range 0 0 Environmental conditional 5 C ~ +40 C ≤85% RH 0 ± 0.5 C 0 Temperature deviation ± 2.0 C Humidity deviation ± 2.5% RH 0 0 Low type I: -40 C II:-70 C Humidity range 20% ~ 98% RH 0 Heating rate 3 C / min 0 Cooling rate 1 C / min Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class 0 Temperature Resolution ± 0.001 C Humidity sensor Dry and wet bulb sensor Humidity Resolution ± 1%RH Internal dimension 320 × 350 × 450 mm 400 × 400 × 500 mm Overall dimension 800 × 1050 × 950 mm 900 × 1100 × 1000 mm Power Supply AC220V 50HZ

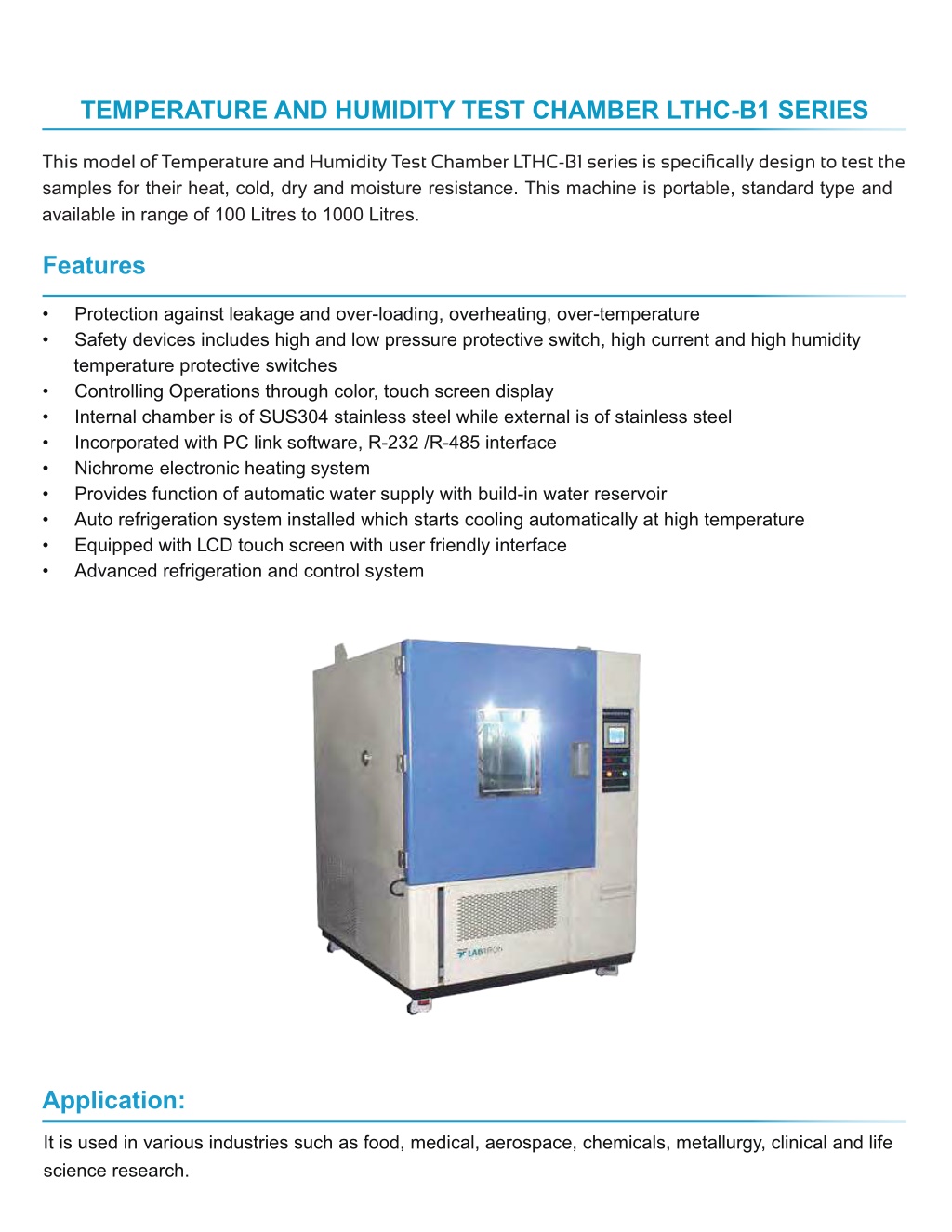

  3. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-B1 SERIES samples for their heat, cold, dry and moisture resistance. This machine is portable, standard type and available in range of 100 Litres to 1000 Litres. Features • Protection against leakage and over-loading, overheating, over-temperature • Safety devices includes high and low pressure protective switch, high current and high humidity temperature protective switches • Controlling Operations through color, touch screen display • Internal chamber is of SUS304 stainless steel while external is of stainless steel • Incorporated with PC link software, R-232 /R-485 interface • Nichrome electronic heating system • Provides function of automatic water supply with build-in water reservoir • Auto refrigeration system installed which starts cooling automatically at high temperature • Equipped with LCD touch screen with user friendly interface • Advanced refrigeration and control system Application: It is used in various industries such as food, medical, aerospace, chemicals, metallurgy, clinical and life science research.

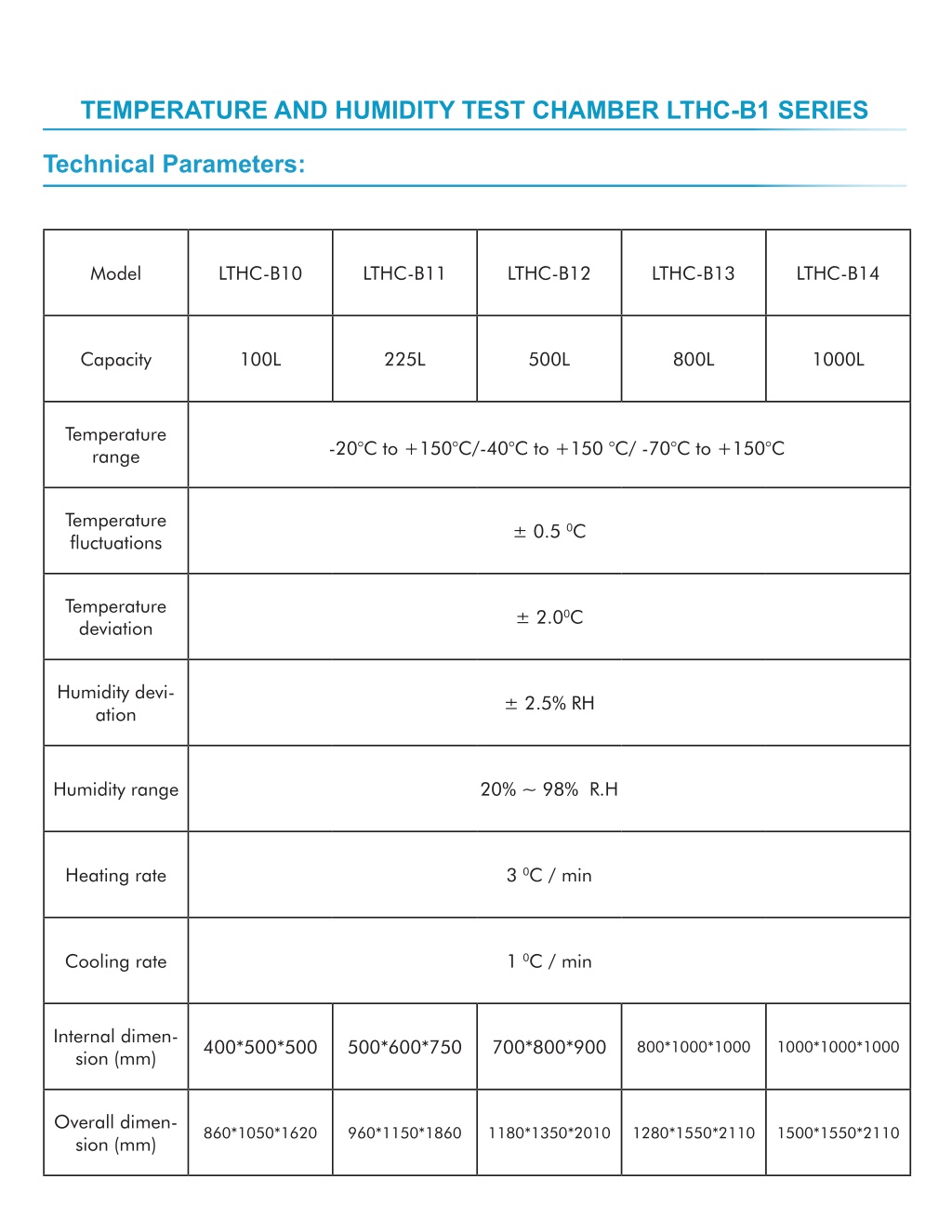

  4. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-B1 SERIES Technical Parameters: Model LTHC-B10 LTHC-B11 LTHC-B12 LTHC-B13 LTHC-B14 Capacity 100L 225L 500L 800L 1000L Temperature -20°C to +150°C/-40°C to +150 °C/ -70°C to +150°C range Temperature 0 ± 0.5 C Temperature 0 ± 2.0 C deviation Humidity devi- ± 2.5% RH ation Humidity range 20% ~ 98% R.H 0 Heating rate 3 C / min 0 Cooling rate 1 C / min Internal dimen- 800*1000*1000 1000*1000*1000 400*500*500 500*600*750 700*800*900 sion (mm) Overall dimen- 860*1050*1620 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110 sion (mm)

  5. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-B2 SERIES samples for their heat, cold, dry and moisture resistance. This machine is portable, standard type and available in range of 100 Litres to 1000 Litres. Features • Protection against leakage and over-loading, overheating, over-temperature • Safety devices includes high and low pressure protective switch, high current and high humidity temperature protective switches • Controlling Operations through color, touch screen display • Internal chamber is of SUS304 stainless steel while external is of stainless steel • Incorporated with PC link software, R-232 /R-485 interface • Nichrome electronic heating system • Provides function of automatic water supply with build-in water reservoir • Auto refrigeration system installed which starts cooling automatically at high temperature • Equipped with LCD touch screen with user friendly interface • Advanced refrigeration and control system Application: It is used in various industries such as food, medical, aerospace, chemicals, metallurgy, clinical and life science research.

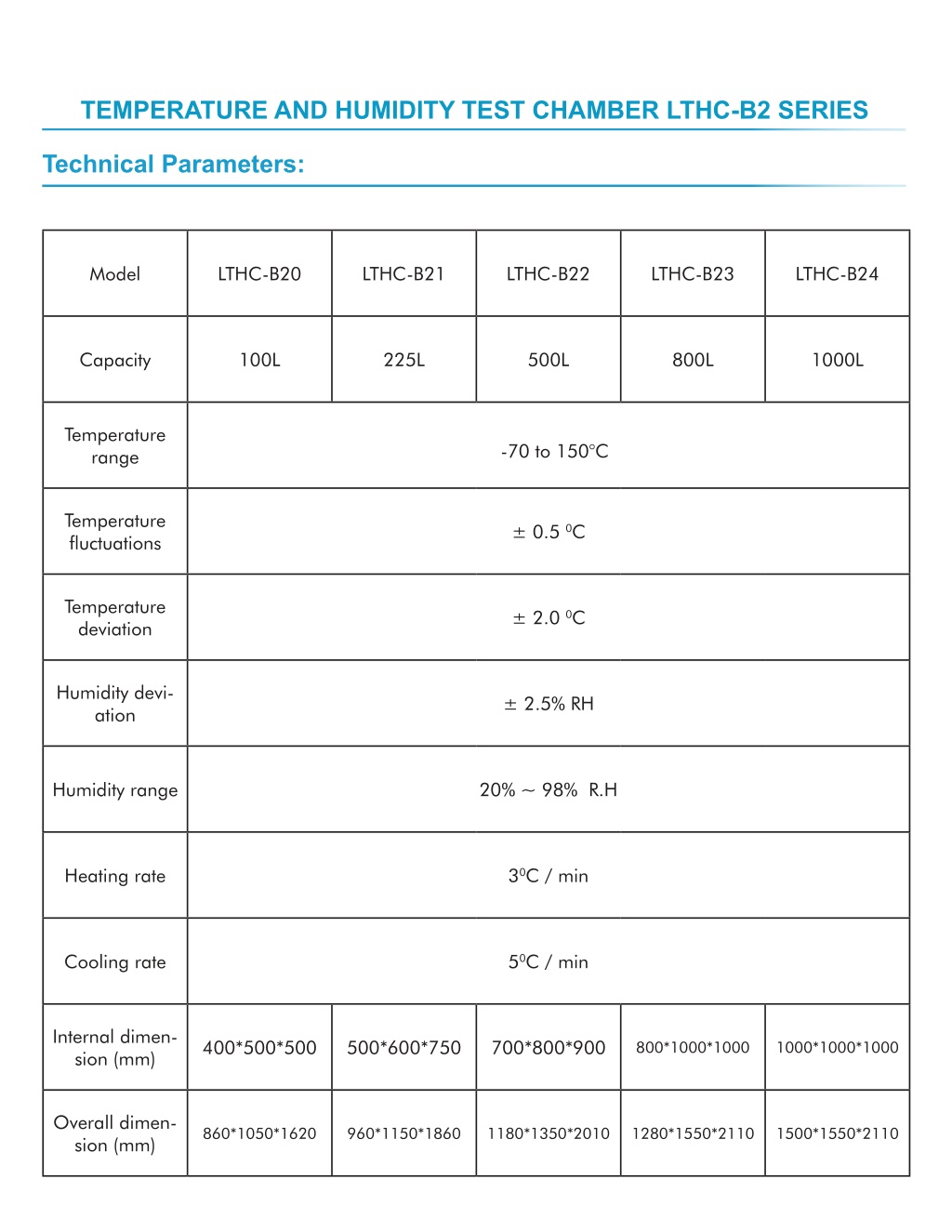

  6. TEMPERATURE AND HUMIDITY TEST CHAMBER LTHC-B2 SERIES Technical Parameters: Model LTHC-B20 LTHC-B21 LTHC-B22 LTHC-B23 LTHC-B24 Capacity 100L 225L 500L 800L 1000L Temperature -70 to 150°C range Temperature 0 ± 0.5 C Temperature 0 ± 2.0 C deviation Humidity devi- ± 2.5% RH ation Humidity range 20% ~ 98% R.H 0 Heating rate 3 C / min 0 Cooling rate 5 C / min Internal dimen- 800*1000*1000 1000*1000*1000 400*500*500 500*600*750 700*800*900 sion (mm) Overall dimen- 860*1050*1620 960*1150*1860 1180*1350*2010 1280*1550*2110 1500*1550*2110 sion (mm)
