Stroboscope-LSBS-A1

Stroboscope LSBS-A10 is handheld unit with 50 to 12,000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time.<br><br>

labtrondigital
Download Presentation

Stroboscope-LSBS-A1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

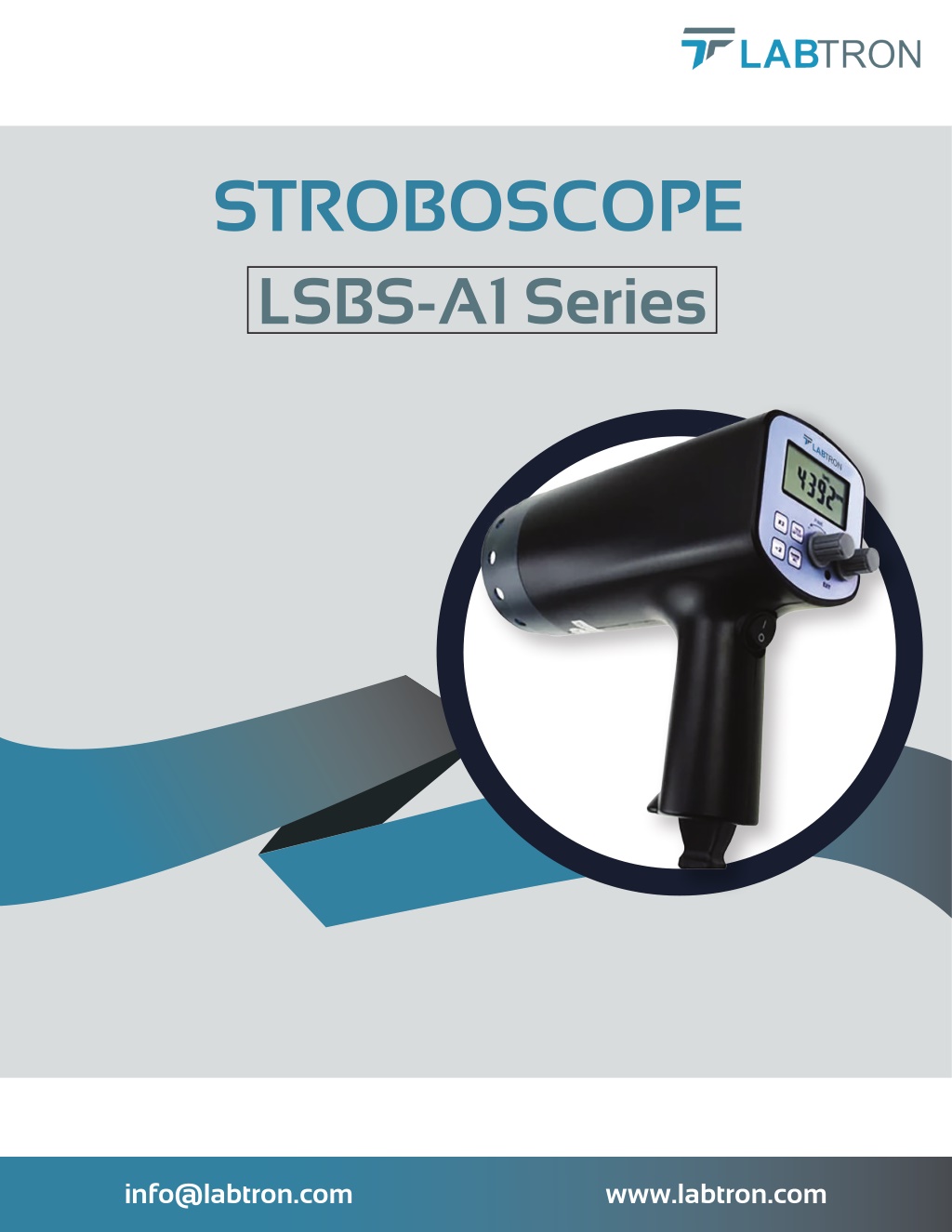

  1. STROBOSCOPE LSBS-A1 Series info@labtron.com www.labtron.com

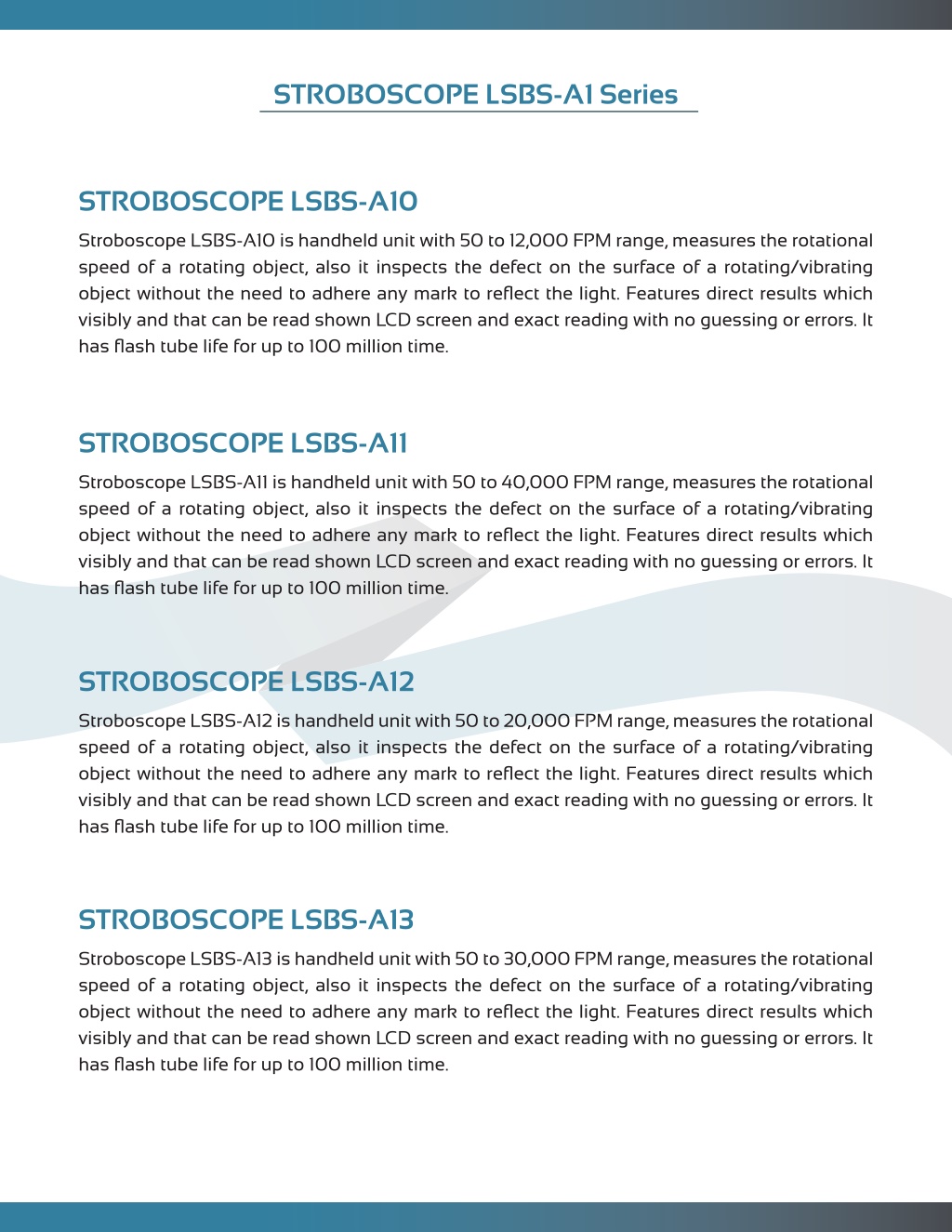

  2. STROBOSCOPE LSBS-A1 Series STROBOSCOPE LSBS-A10 Stroboscope LSBS-A10 is handheld unit with 50 to 12,000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time. STROBOSCOPE LSBS-A11 Stroboscope LSBS-A11 is handheld unit with 50 to 40,000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time. STROBOSCOPE LSBS-A12 Stroboscope LSBS-A12 is handheld unit with 50 to 20,000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time. STROBOSCOPE LSBS-A13 Stroboscope LSBS-A13 is handheld unit with 50 to 30,000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time.

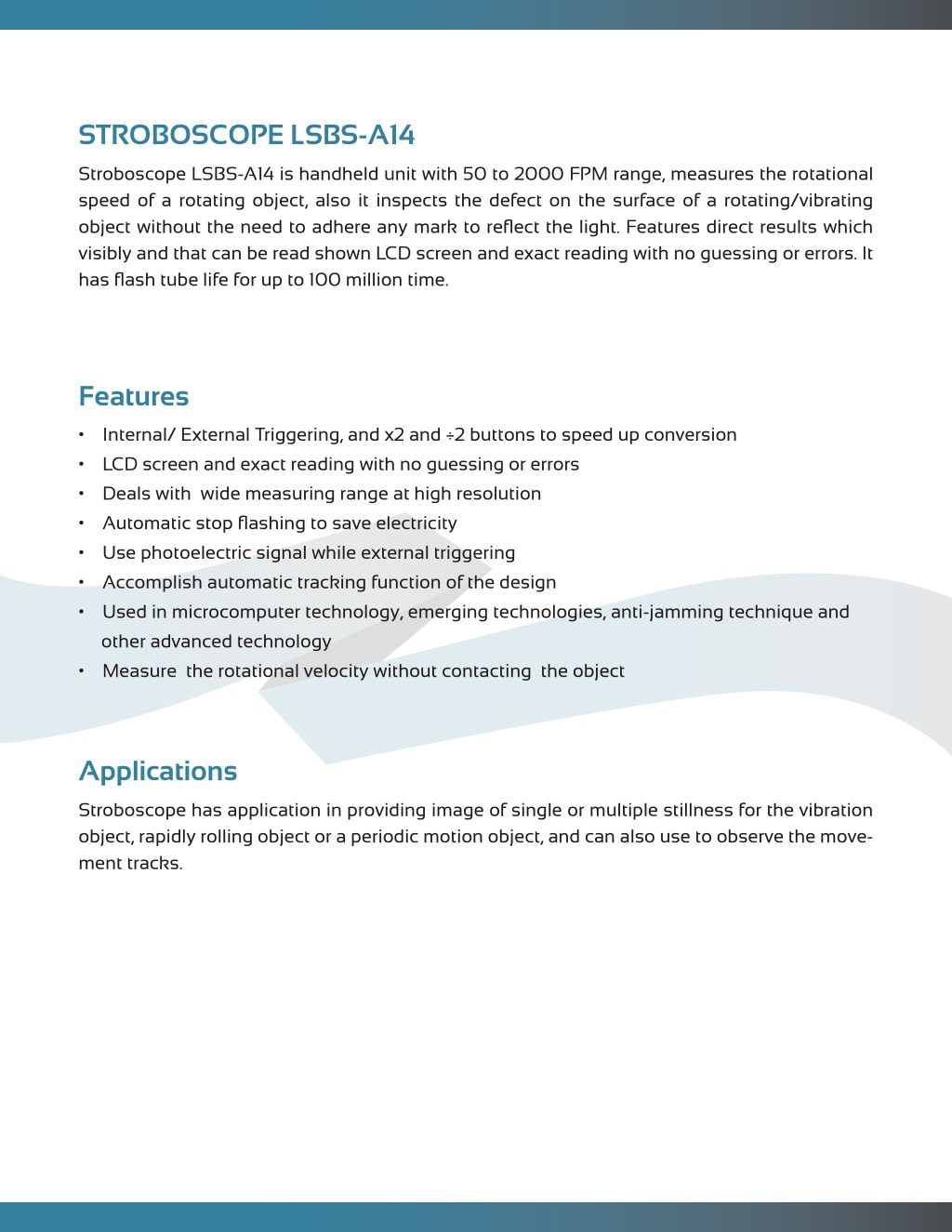

  3. STROBOSCOPE LSBS-A14 Stroboscope LSBS-A14 is handheld unit with 50 to 2000 FPM range, measures the rotational speed of a rotating object, also it inspects the defect on the surface of a rotating/vibrating object without the need to adhere any mark to reflect the light. Features direct results which visibly and that can be read shown LCD screen and exact reading with no guessing or errors. It has flash tube life for up to 100 million time. Features • Internal/ External Triggering, and x2 and ÷2 buttons to speed up conversion • LCD screen and exact reading with no guessing or errors • Deals with wide measuring range at high resolution • Automatic stop flashing to save electricity • Use photoelectric signal while external triggering • Accomplish automatic tracking function of the design • Used in microcomputer technology, emerging technologies, anti-jamming technique and other advanced technology • Measure the rotational velocity without contacting the object Applications Stroboscope has application in providing image of single or multiple stillness for the vibration object, rapidly rolling object or a periodic motion object, and can also use to observe the move- ment tracks.

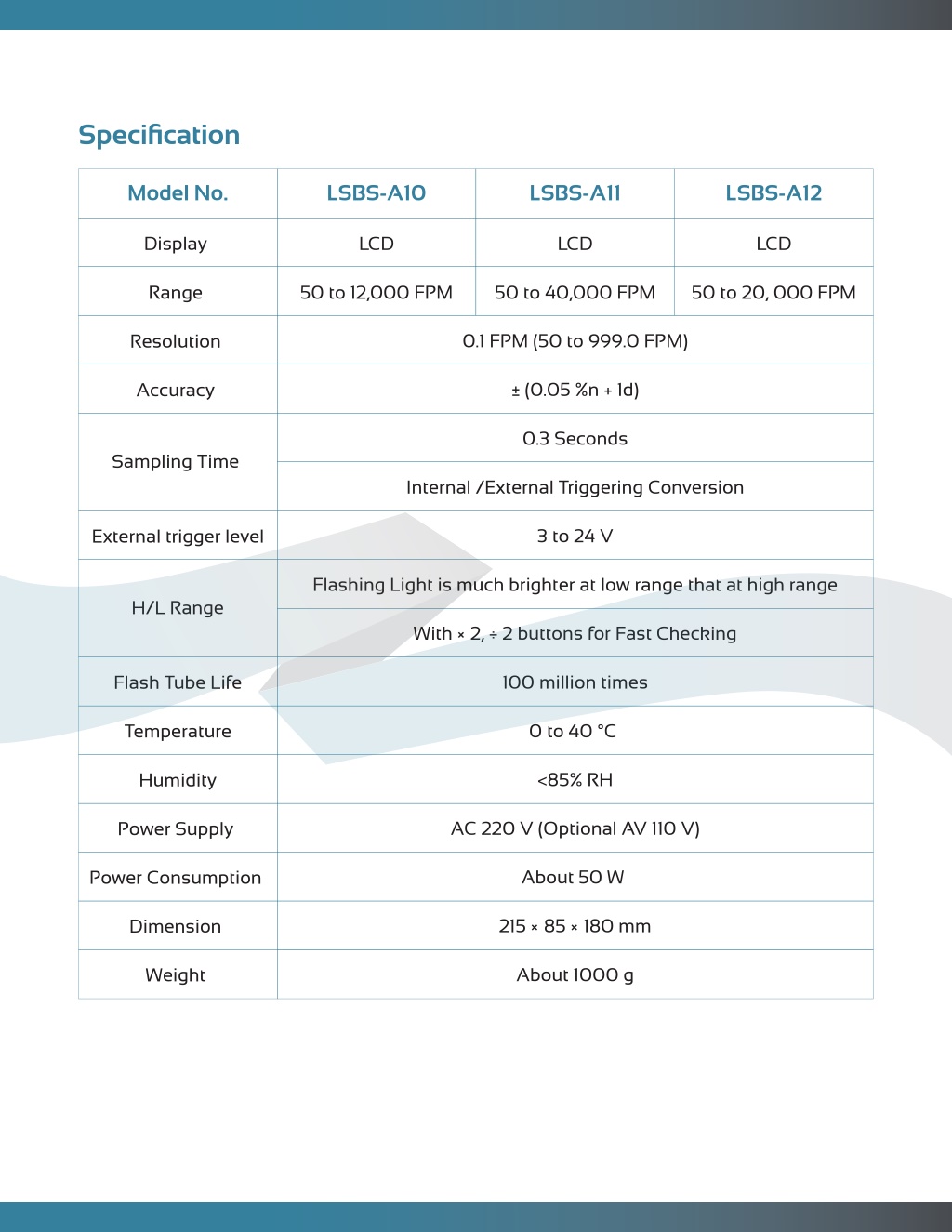

  4. Specification Model No. LSBS-A10 LSBS-A11 LSBS-A12 Display LCD LCD LCD Range 50 to 12,000 FPM 50 to 40,000 FPM 50 to 20, 000 FPM 0.1 FPM (50 to 999.0 FPM) Resolution ± (0.05 %n + 1d) Accuracy 0.3 Seconds Sampling Time Internal /External Triggering Conversion 3 to 24 V External trigger level Flashing Light is much brighter at low range that at high range H/L Range With × 2, ÷ 2 buttons for Fast Checking 100 million times Flash Tube Life 0 to 40 °C Temperature <85% RH Humidity AC 220 V (Optional AV 110 V) Power Supply About 50 W Power Consumption 215 × 85 × 180 mm Dimension About 1000 g Weight

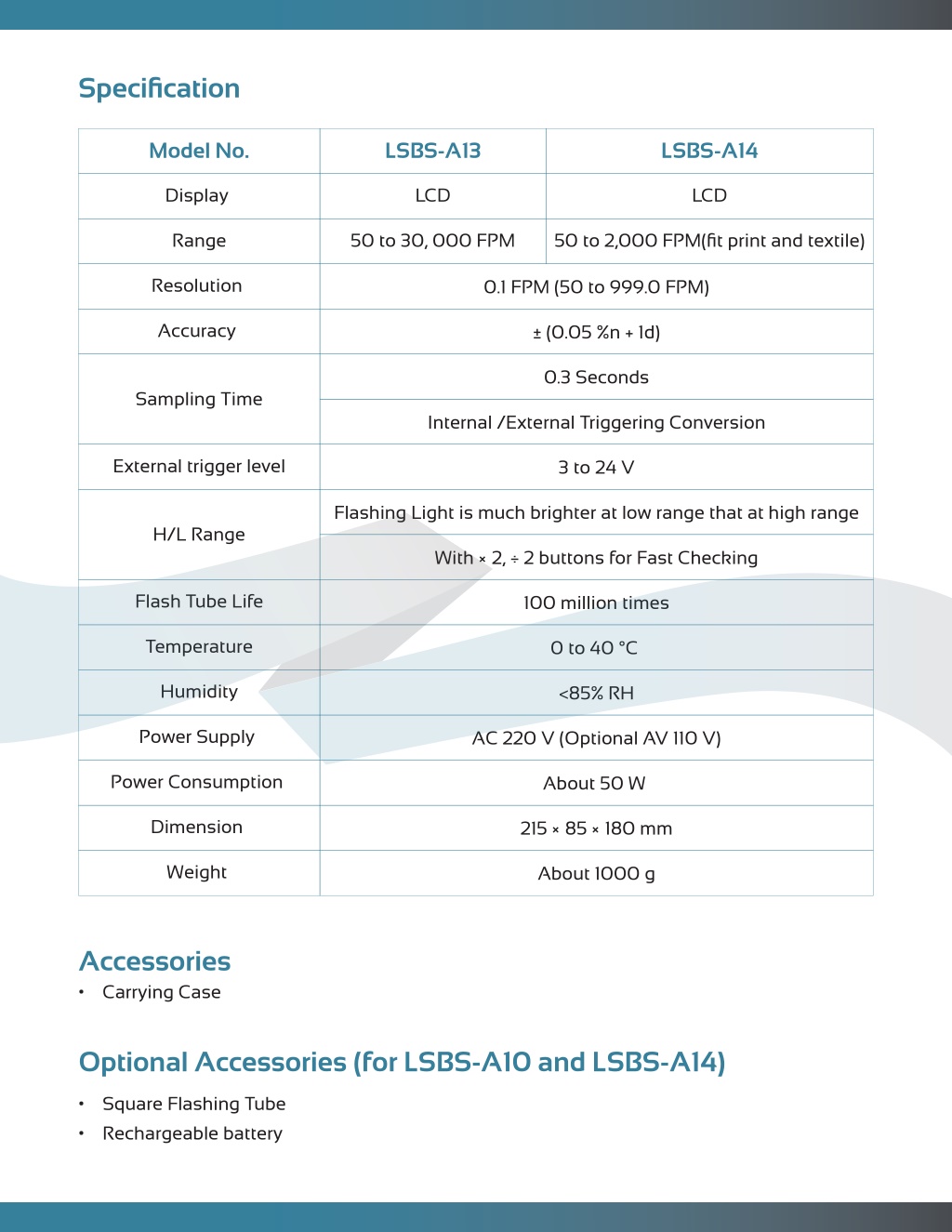

  5. Specification Model No. LSBS-A13 LSBS-A14 Display LCD LCD Range 50 to 30, 000 FPM 50 to 2,000 FPM(fit print and textile) Resolution 0.1 FPM (50 to 999.0 FPM) Accuracy ± (0.05 %n + 1d) 0.3 Seconds Sampling Time Internal /External Triggering Conversion External trigger level 3 to 24 V Flashing Light is much brighter at low range that at high range H/L Range With × 2, ÷ 2 buttons for Fast Checking Flash Tube Life 100 million times Temperature 0 to 40 °C Humidity <85% RH Power Supply AC 220 V (Optional AV 110 V) Power Consumption About 50 W Dimension 215 × 85 × 180 mm Weight About 1000 g Accessories • Carrying Case Optional Accessories (for LSBS-A10 and LSBS-A14) • Square Flashing Tube • Rechargeable battery
