Online-Dissloved-Oxygen-Controller-LODC

Online Dissolved Oxygen Controller LODC-A10 features 1 to 2 points dissolved oxygen calibration system, and 4 to 20 mA output signal transmitter. The large and clear back light LCD displays Calibration and setup values, temperature values, ATC (automatic temperature compensation) values, high and low limit of measurement. It measures the amount of dissolved oxygen in mg/l, ppm units or in % of saturation. The accuracy of measurement is improved by manual salinity and barometric pressure compensation mode.

labtrondigital
Download Presentation

Online-Dissloved-Oxygen-Controller-LODC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

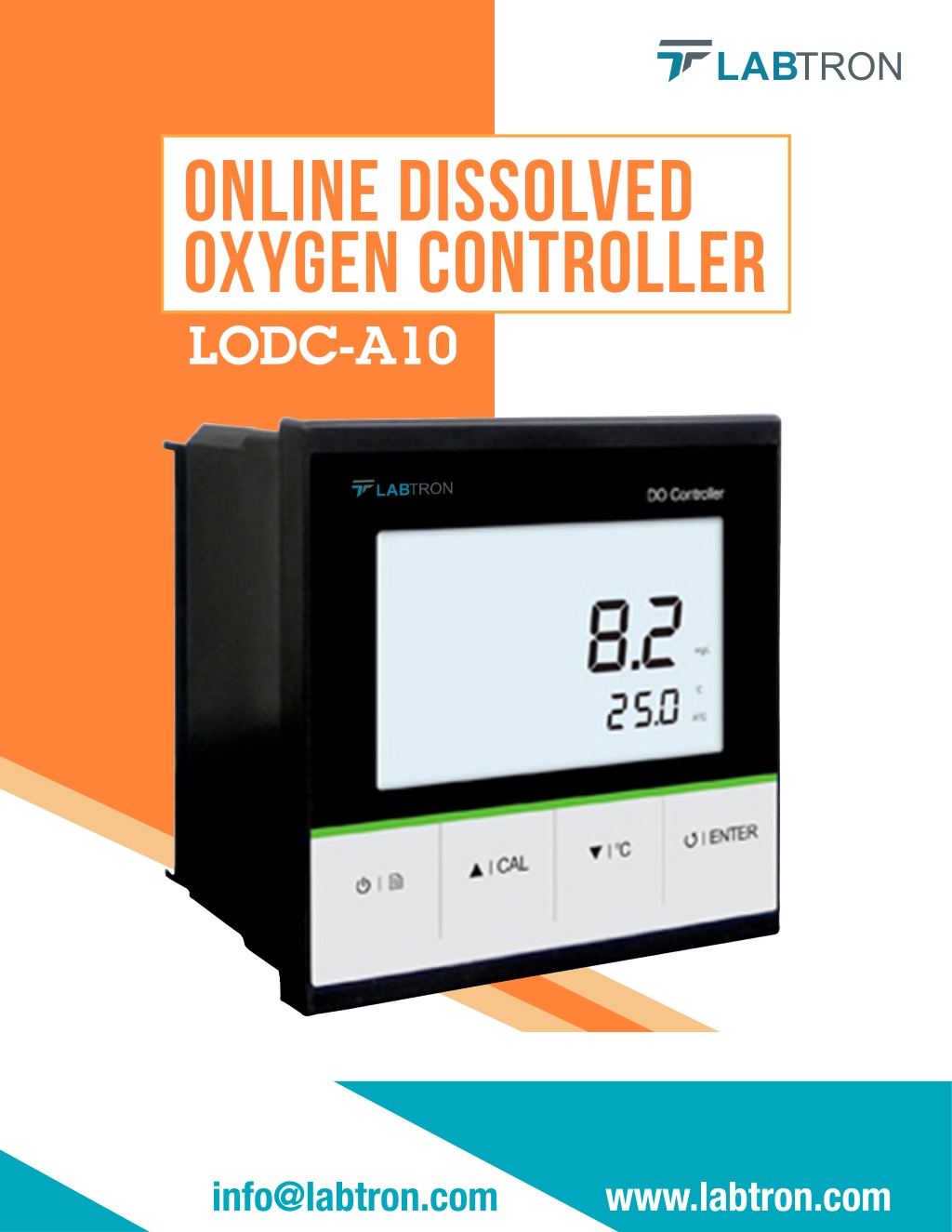

  1. Online Dissolved Oxygen Controller LODC-A10 info@labtron.com www.labtron.com

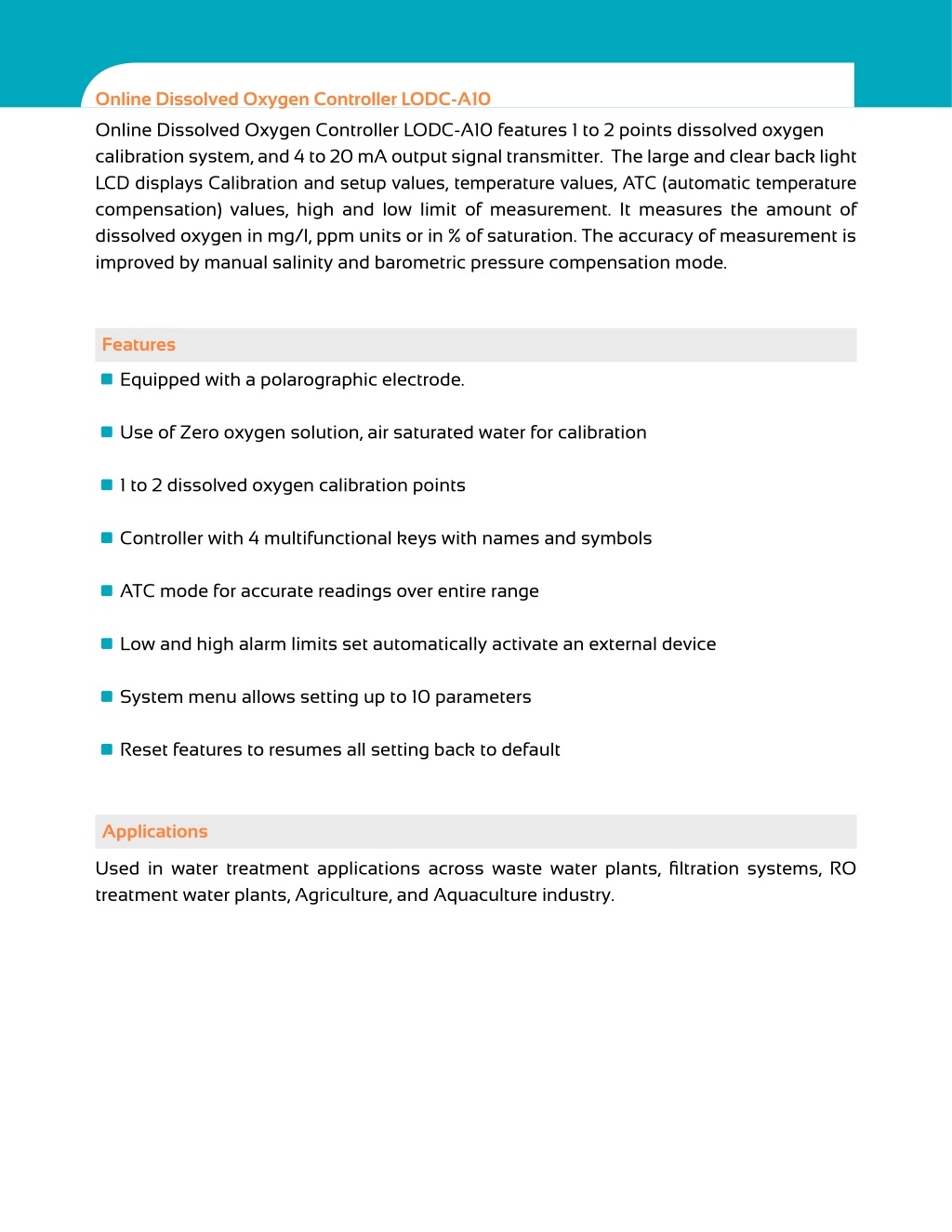

  2. Online Dissolved Oxygen Controller LODC-A10 Online Dissolved Oxygen Controller LODC-A10 features 1 to 2 points dissolved oxygen calibration system, and 4 to 20 mA output signal transmitter. The large and clear back light LCD displays Calibration and setup values, temperature values, ATC (automatic temperature compensation) values, high and low limit of measurement. It measures the amount of dissolved oxygen in mg/l, ppm units or in % of saturation. The accuracy of measurement is improved by manual salinity and barometric pressure compensation mode. Features Equipped with a polarographic electrode. Use of Zero oxygen solution, air saturated water for calibration 1 to 2 dissolved oxygen calibration points Controller with 4 multifunctional keys with names and symbols ATC mode for accurate readings over entire range Low and high alarm limits set automatically activate an external device System menu allows setting up to 10 parameters Reset features to resumes all setting back to default Applications Used in water treatment applications across waste water plants, filtration systems, RO treatment water plants, Agriculture, and Aquaculture industry.

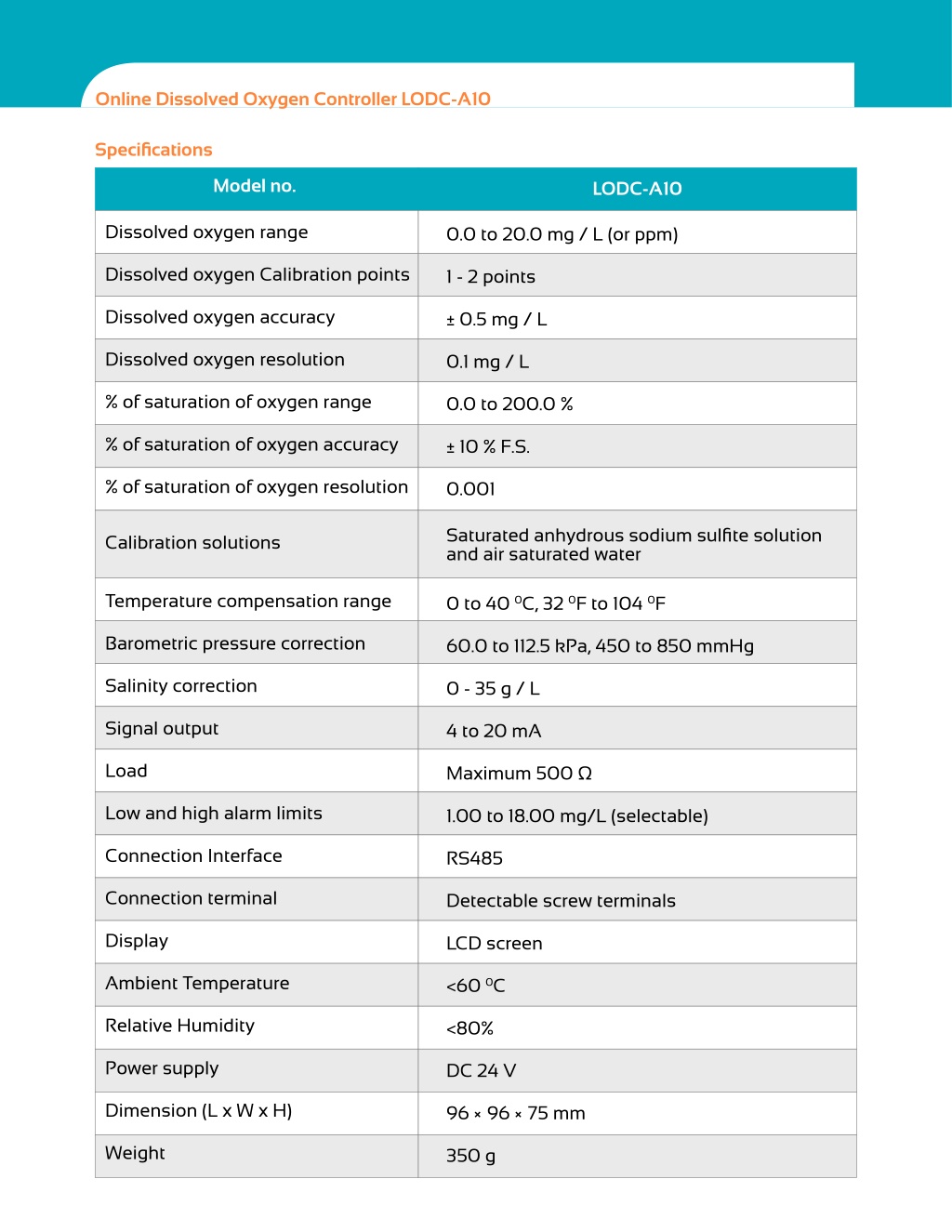

  3. Online Dissolved Oxygen Controller LODC-A10 Specifications Model no. LODC-A10 Dissolved oxygen range 0.0 to 20.0 mg / L (or ppm) Dissolved oxygen Calibration points 1 - 2 points Dissolved oxygen accuracy ± 0.5 mg / L Dissolved oxygen resolution 0.1 mg / L % of saturation of oxygen range 0.0 to 200.0 % % of saturation of oxygen accuracy ± 10 % F.S. % of saturation of oxygen resolution 0.001 Saturated anhydrous sodium sulfite solution and air saturated water Calibration solutions Temperature compensation range 0 to 40 0C, 32 0F to 104 0F Barometric pressure correction 60.0 to 112.5 kPa, 450 to 850 mmHg Salinity correction 0 - 35 g / L Signal output 4 to 20 mA Load Maximum 500 Ω Low and high alarm limits 1.00 to 18.00 mg/L (selectable) Connection Interface RS485 Connection terminal Detectable screw terminals Display LCD screen Ambient Temperature <60 0C Relative Humidity <80% Power supply DC 24 V Dimension (L x W x H) 96 × 96 × 75 mm Weight 350 g

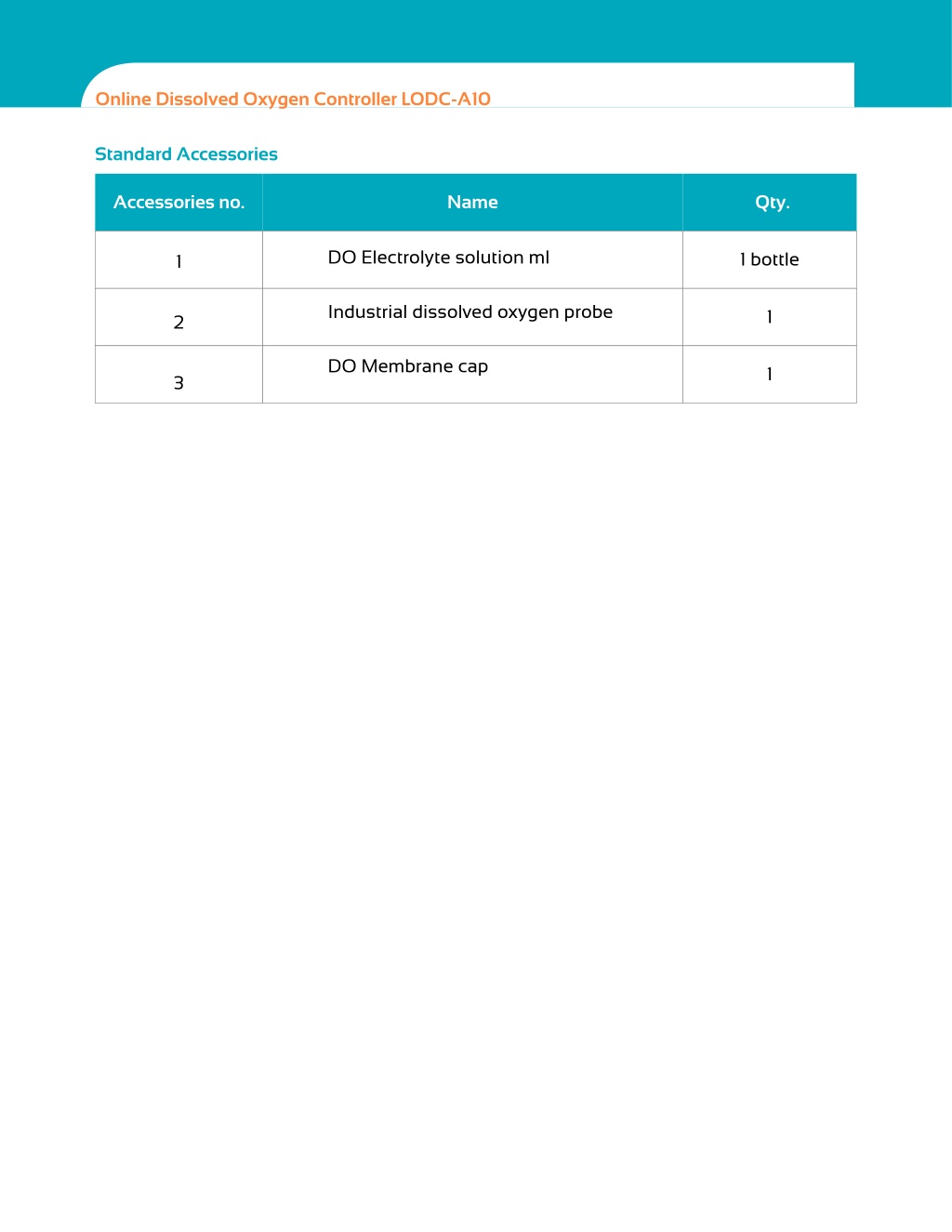

  4. Online Dissolved Oxygen Controller LODC-A10 Standard Accessories Accessories no. Name Qty. DO Electrolyte solution ml 1 bottle 1 Industrial dissolved oxygen probe 1 2 DO Membrane cap 1 3
