Laser Particle Size Analyzer LLPA

Laser Particle Size Analyzer LLPA-A10 is an intelligent wet laser particle size analyzer, adopted with MIE scattering principle, high-sensitive ring photoelectric detector, and unconstrained free fitting software technology. Designed as per ISO13320-1:1999 standard configurations, offers 0.1 to 300 u03bcm of measuring range with 39 channels and 350 ml sample pool. Equipped with high-performance semiconductor laser and built-in dispersion unit, features auto optical alignment, auto water supply, auto drainage, auto bubble removing, auto ultrasonic dispersion etc. through one-key operation. Incorpor

labtrondigital
Download Presentation

Laser Particle Size Analyzer LLPA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

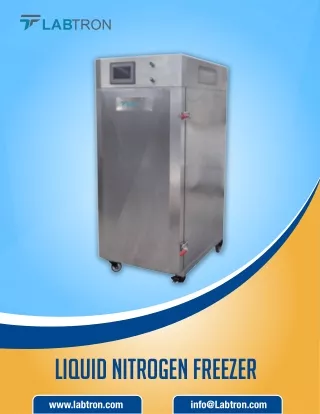

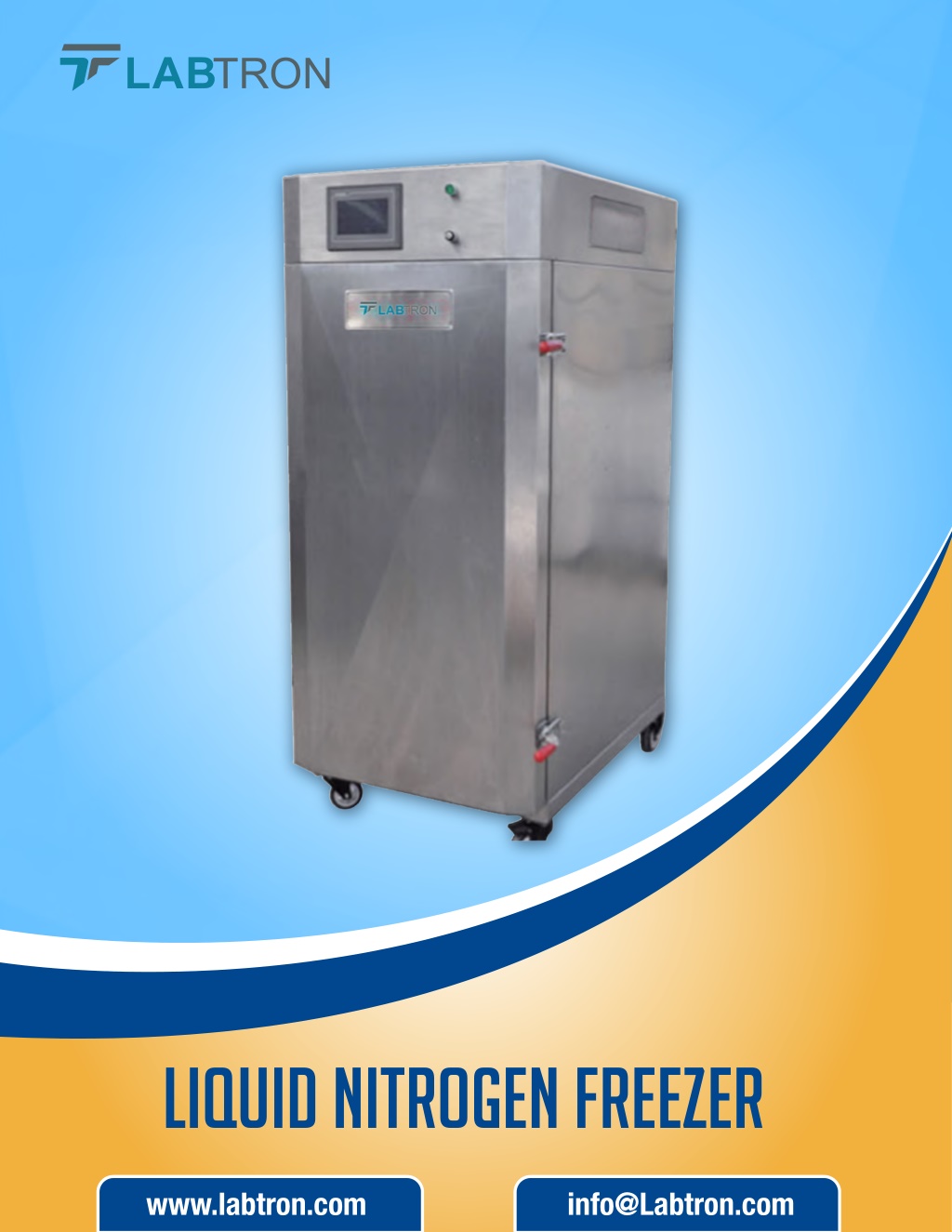

  1. Liquid Nitrogen Freezer www.labtron.com info@Labtron.com

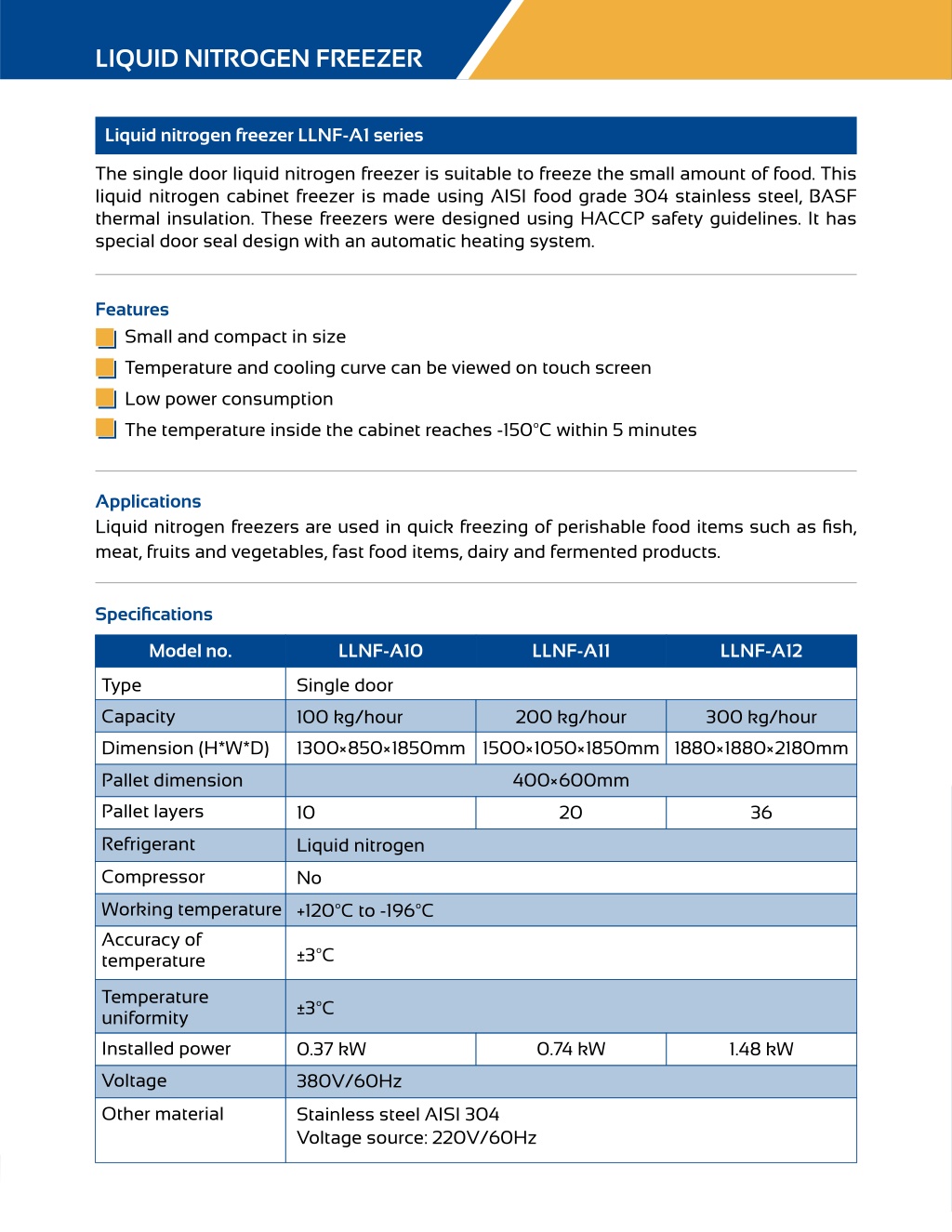

  2. LIQUID NITROGEN FREEZER Liquid nitrogen freezer LLNF-A1 series The single door liquid nitrogen freezer is suitable to freeze the small amount of food. This liquid nitrogen cabinet freezer is made using AISI food grade 304 stainless steel, BASF thermal insulation. These freezers were designed using HACCP safety guidelines. It has special door seal design with an automatic heating system. Features Small and compact in size Temperature and cooling curve can be viewed on touch screen Low power consumption The temperature inside the cabinet reaches -150ºC within 5 minutes Applications Liquid nitrogen freezers are used in quick freezing of perishable food items such as fish, meat, fruits and vegetables, fast food items, dairy and fermented products. Specifications Model no. LLNF-A10 LLNF-A11 LLNF-A12 Type Single door Capacity 100 kg/hour 200 kg/hour 300 kg/hour Dimension (H*W*D) 1300×850×1850mm 1500×1050×1850mm 1880×1880×2180mm Pallet dimension 400×600mm Pallet layers 10 20 36 Refrigerant Liquid nitrogen Compressor No Working temperature +120ºC to -196ºC Accuracy of temperature ±3ºC Temperature uniformity ±3ºC Installed power 0.74 kW 0.37 kW 1.48 kW Voltage 380V/60Hz Other material Stainless steel AISI 304 Voltage source: 220V/60Hz

  3. Labtron Equipment Ltd Sentinel House, Ancells Business Park, Harvest Crescent, Fleet GU51 2UZ, UK Telephone: 01252 413773 www.labtron.com • info@Labtron.com
