1 / 4

Laser-particle-size-analyzer-LLPA

Laser particle size analyzer LLPA-C10 is an intelligent and automatic model integrated with wet and dry dispersion system. It uses laser diffraction measurement principle for measuring over 0.01 - 2000 u03bcm particle size range for both wet and dry dispersion system and is the prior choice for industries and research institutions.

labtrondigital
Download Presentation

Laser-particle-size-analyzer-LLPA

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

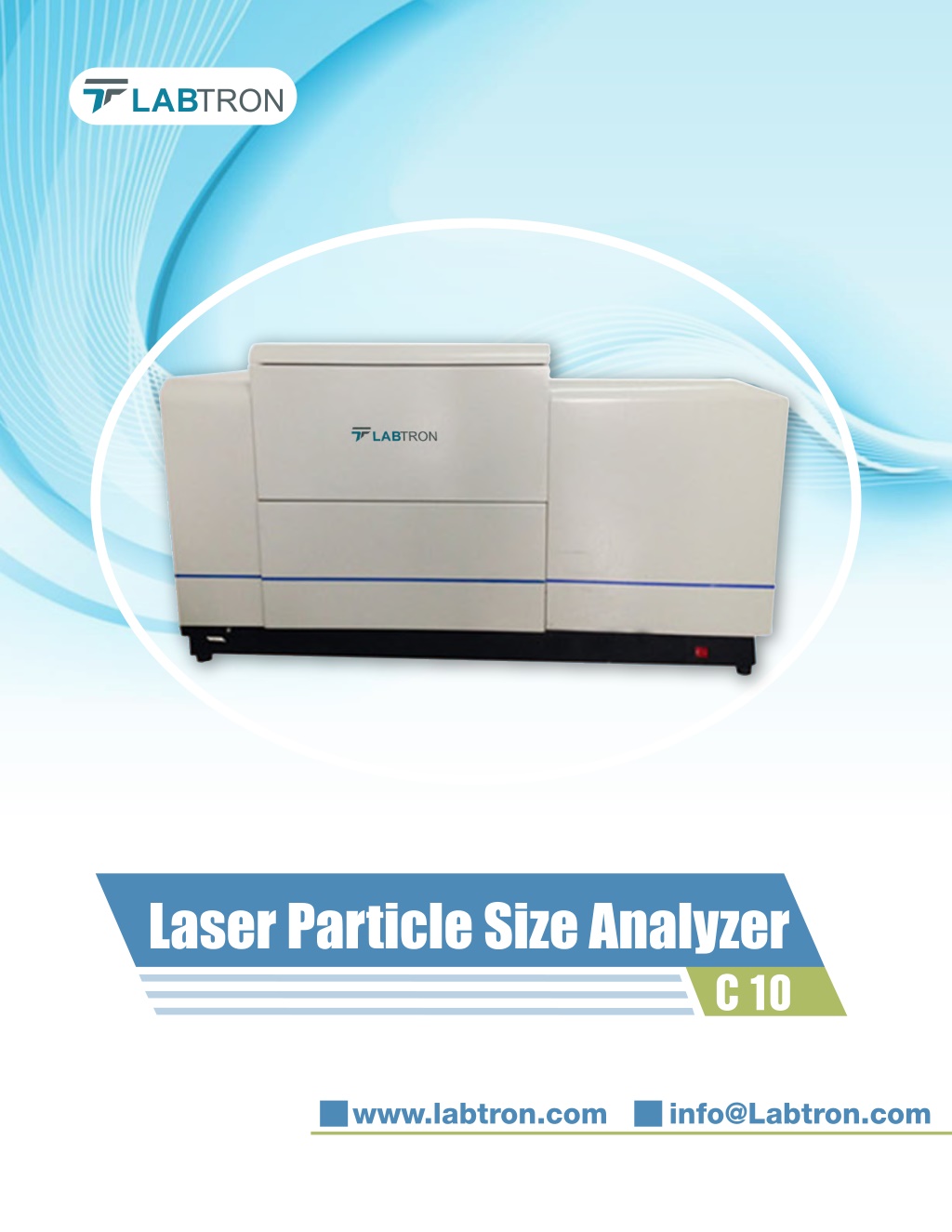

  1. www.labtron.com info@Labtron.com

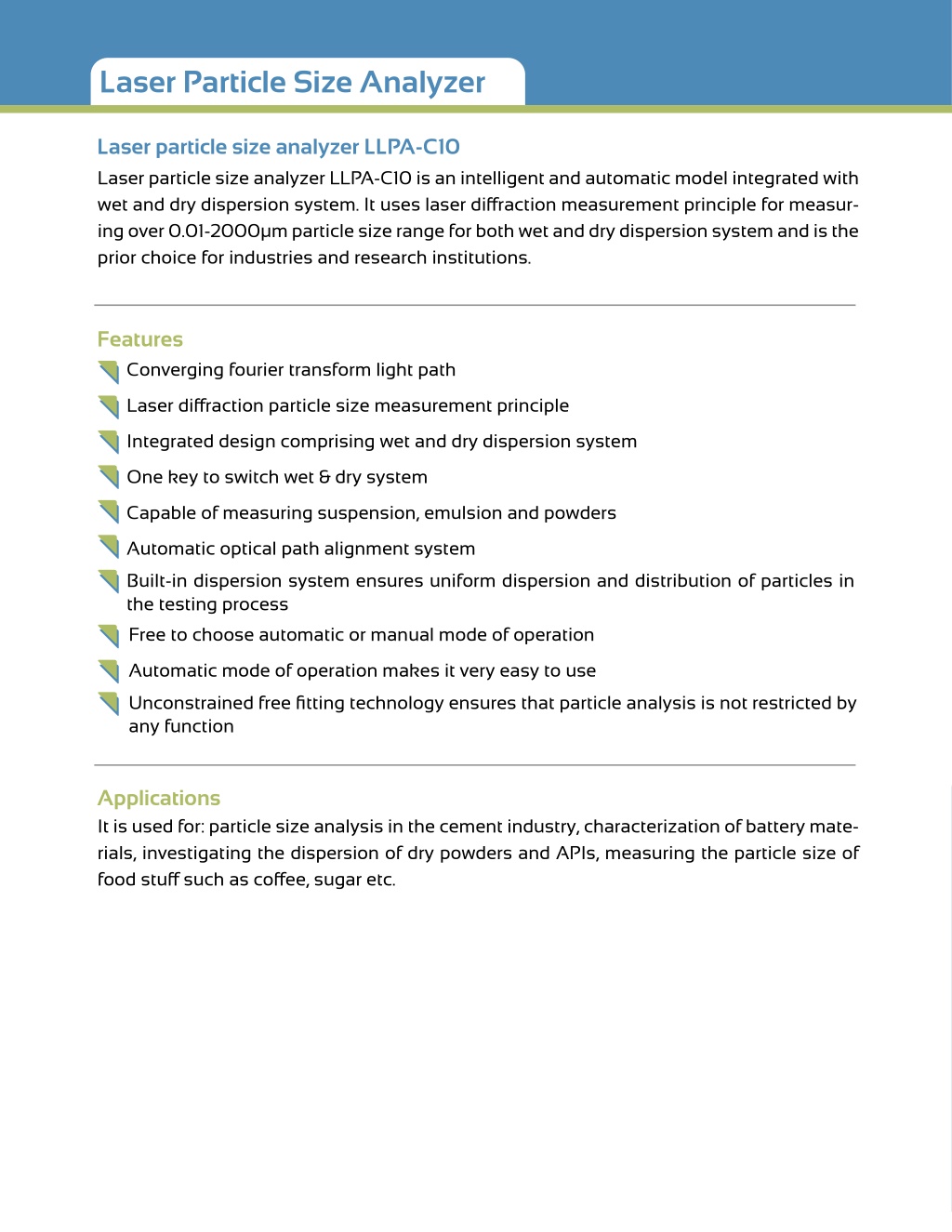

  2. Laser Particle Size Analyzer Laser particle size analyzer LLPA-C10 Laser particle size analyzer LLPA-C10 is an intelligent and automatic model integrated with wet and dry dispersion system. It uses laser diffraction measurement principle for measur- ing over 0.01-2000µm particle size range for both wet and dry dispersion system and is the prior choice for industries and research institutions. Features Converging fourier transform light path Laser diffraction particle size measurement principle Integrated design comprising wet and dry dispersion system One key to switch wet & dry system Capable of measuring suspension, emulsion and powders Automatic optical path alignment system Built-in dispersion system ensures uniform dispersion and distribution of particles in the testing process Free to choose automatic or manual mode of operation Automatic mode of operation makes it very easy to use Unconstrained free fitting technology ensures that particle analysis is not restricted by any function Applications It is used for: particle size analysis in the cement industry, characterization of battery mate- rials, investigating the dispersion of dry powders and APIs, measuring the particle size of food stuff such as coffee, sugar etc.

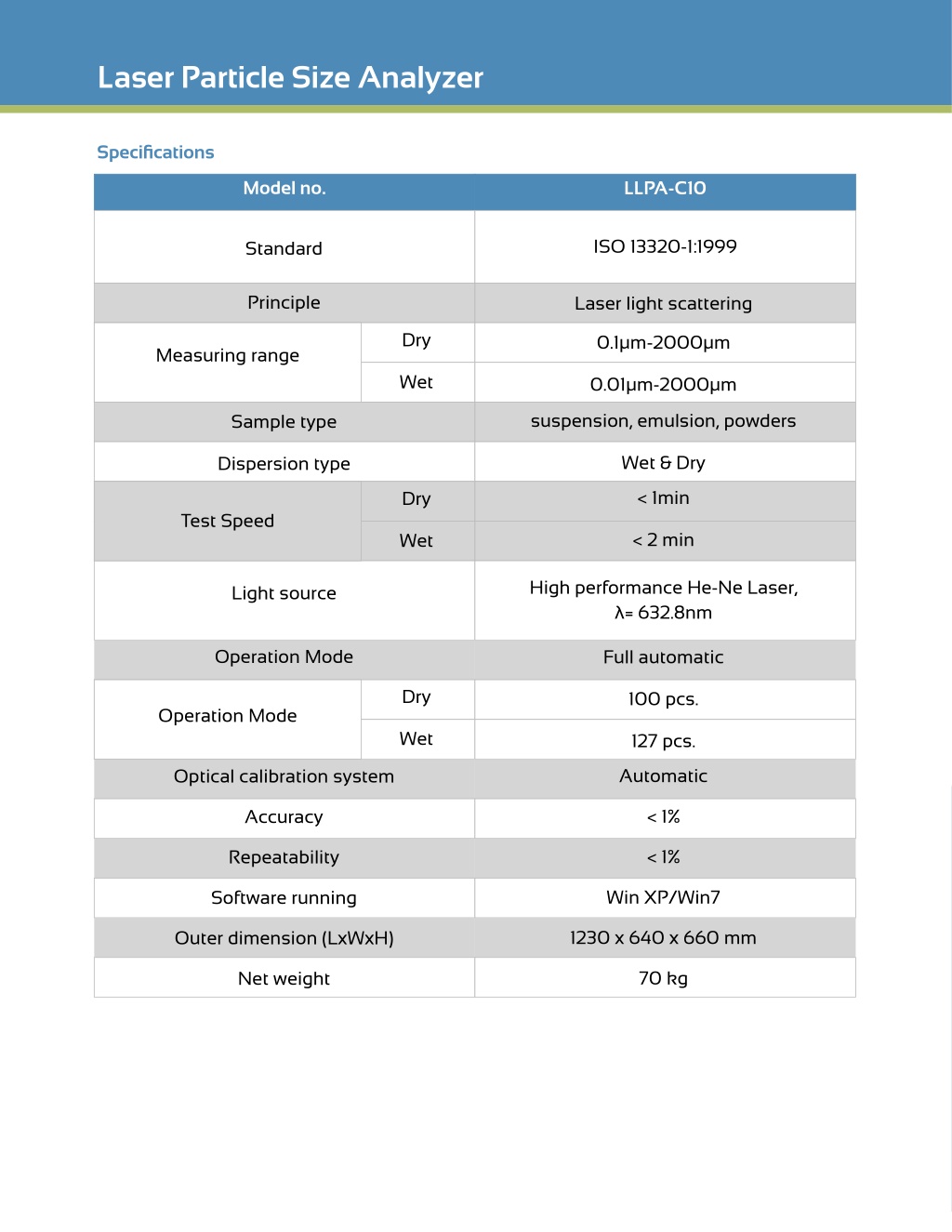

  3. Laser Particle Size Analyzer Specifications Model no. LLPA-C10 ISO 13320-1:1999 Standard Principle Laser light scattering Dry 0.1µm-2000µm Measuring range Wet 0.01µm-2000µm suspension, emulsion, powders Sample type Wet & Dry Dispersion type < 1min Dry Test Speed < 2 min Wet High performance He-Ne Laser, λ= 632.8nm Light source Operation Mode Full automatic Dry 100 pcs. Operation Mode Wet 127 pcs. Automatic Optical calibration system < 1% Accuracy < 1% Repeatability Win XP/Win7 Software running 1230 x 640 x 660 mm Outer dimension (LxWxH) 70 kg Net weight

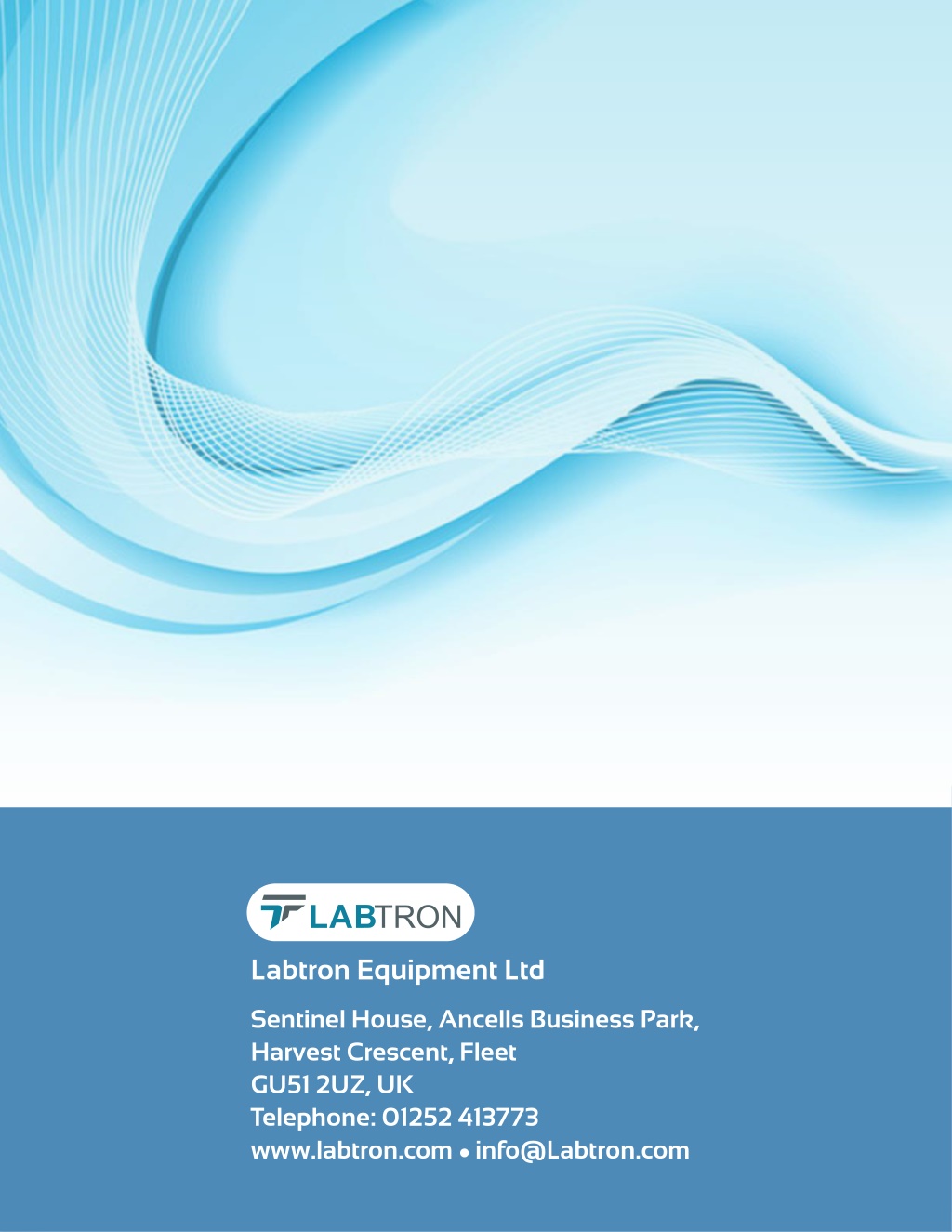

  4. Labtron Equipment Ltd Sentinel House, Ancells Business Park, Harvest Crescent, Fleet GU51 2UZ, UK Telephone: 01252 413773 www.labtron.com info@Labtron.com
