B2-Biological-Safety-Cabinets

B2 Biological Safety Cabinets LZ-BSC-C110 are easy to handle and provide operator safety specifications Normal Size: 1.8 m. For more information, visit www.Labozon.com.

labozonscientific
Download Presentation

B2-Biological-Safety-Cabinets

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

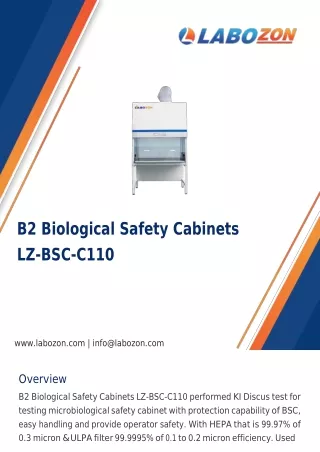

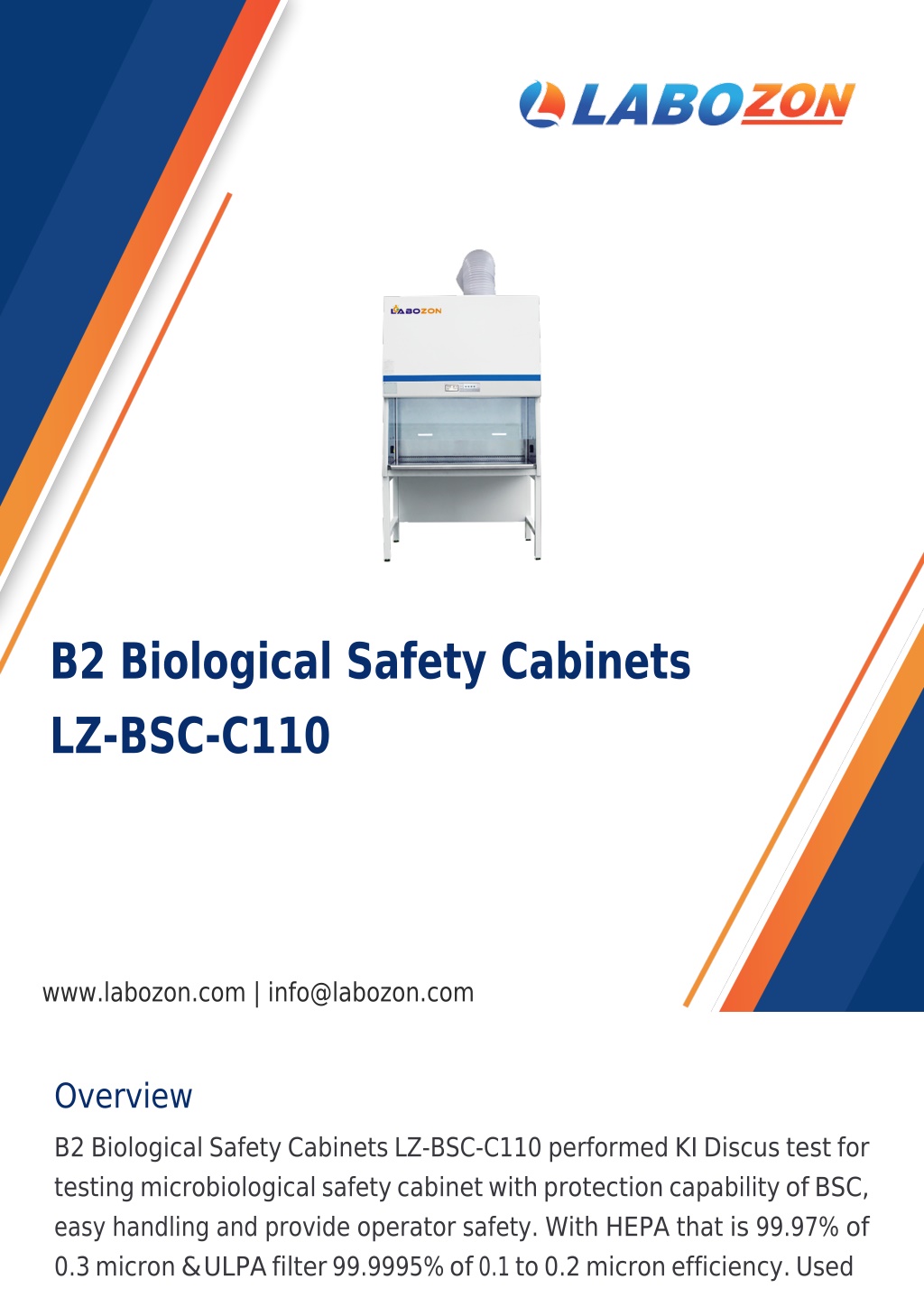

  1. B2 Biological Safety Cabinets LZ-BSC-C110 www.labozon.com | info@labozon.com Overview B2 Biological Safety Cabinets LZ-BSC-C110 performed KI Discus test for testing microbiological safety cabinet with protection capability of BSC, easy handling and provide operator safety. With HEPA that is 99.97% of 0.3 micron&ULPA filter 99.9995% of 0.1 to 0.2 micron efficiency. Used

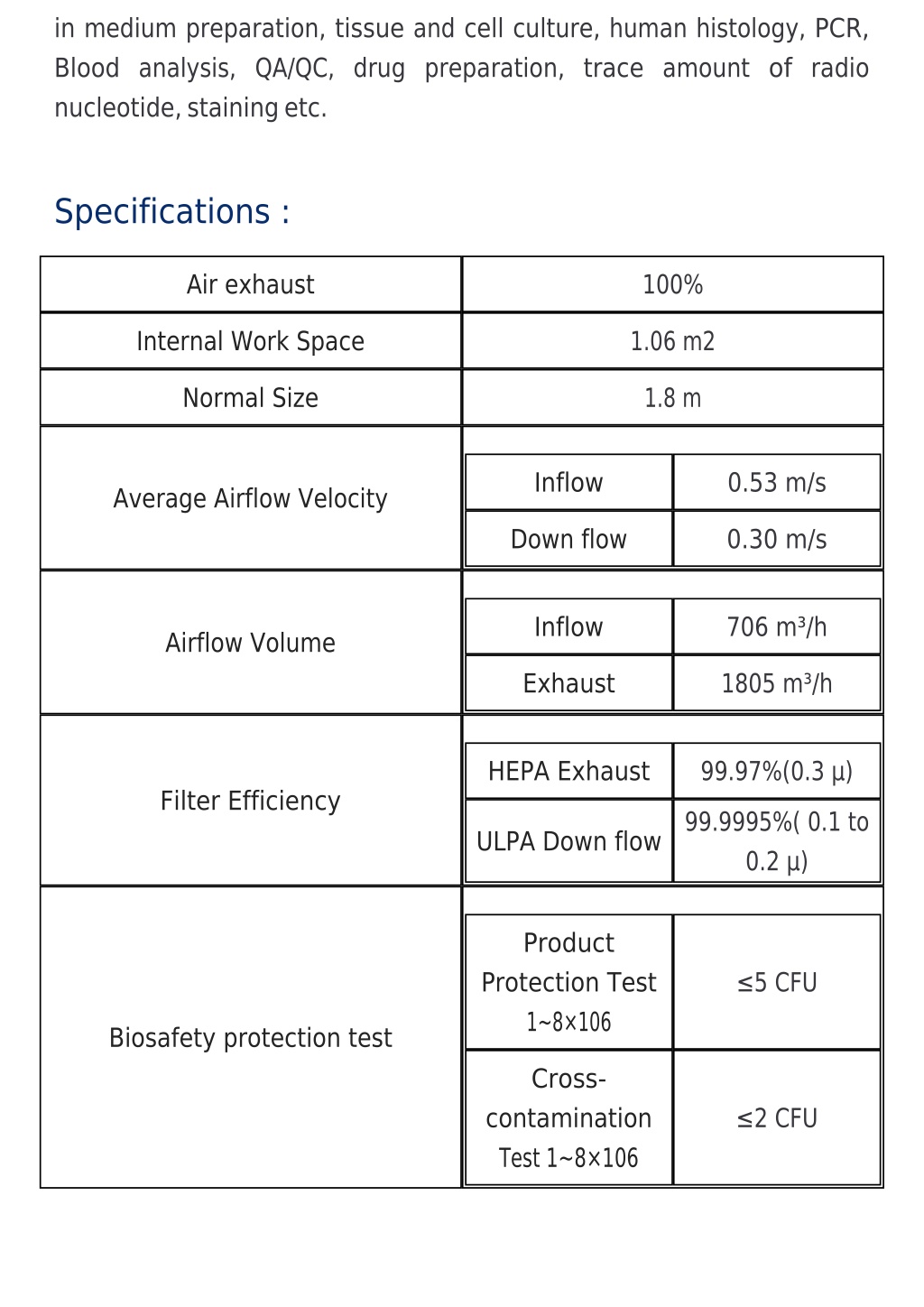

  2. in medium preparation, tissue and cell culture, human histology, PCR, Blood analysis, QA/QC, drug preparation, trace amount of radio nucleotide, staining etc. Specifications : Air exhaust 100% Internal Work Space 1.06 m2 Normal Size 1.8 m Inflow 0.53 m/s Average Airflow Velocity Down flow 0.30 m/s Inflow 706 m³/h Airflow Volume Exhaust 1805 m³/h HEPA Exhaust 99.97%(0.3 µ) Filter Efficiency 99.9995%( 0.1 to 0.2 µ) ULPA Down flow Product Protection Test 1~8×106 ≤5 CFU Biosafety protection test Cross- contamination Test 1~8×106 ≤2 CFU

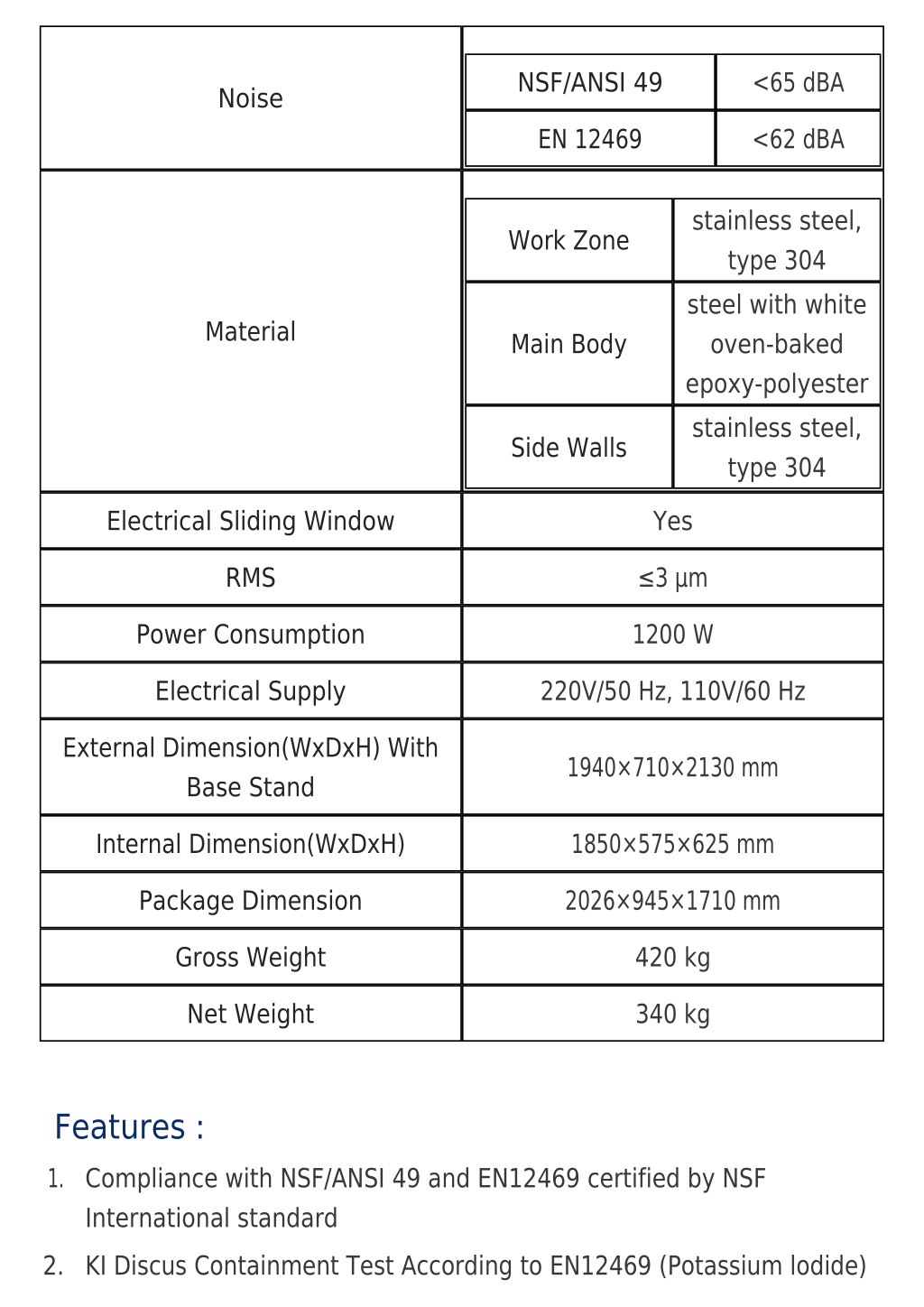

  3. NSF/ANSI 49 <65 dBA Noise EN 12469 <62 dBA stainless steel, type 304 Work Zone steel with white oven-baked epoxy-polyester Material Main Body stainless steel, type 304 Side Walls Electrical Sliding Window Yes RMS ≤3 μm Power Consumption 1200 W Electrical Supply 220V/50 Hz, 110V/60 Hz External Dimension(WxDxH) With Base Stand 1940×710×2130 mm Internal Dimension(WxDxH) 1850×575×625 mm Package Dimension 2026×945×1710 mm Gross Weight 420 kg Net Weight 340 kg Features : 1. Compliance with NSF/ANSI 49 and EN12469 certified by NSF International standard 2. KI Discus Containment Test According to EN12469 (Potassium lodide)

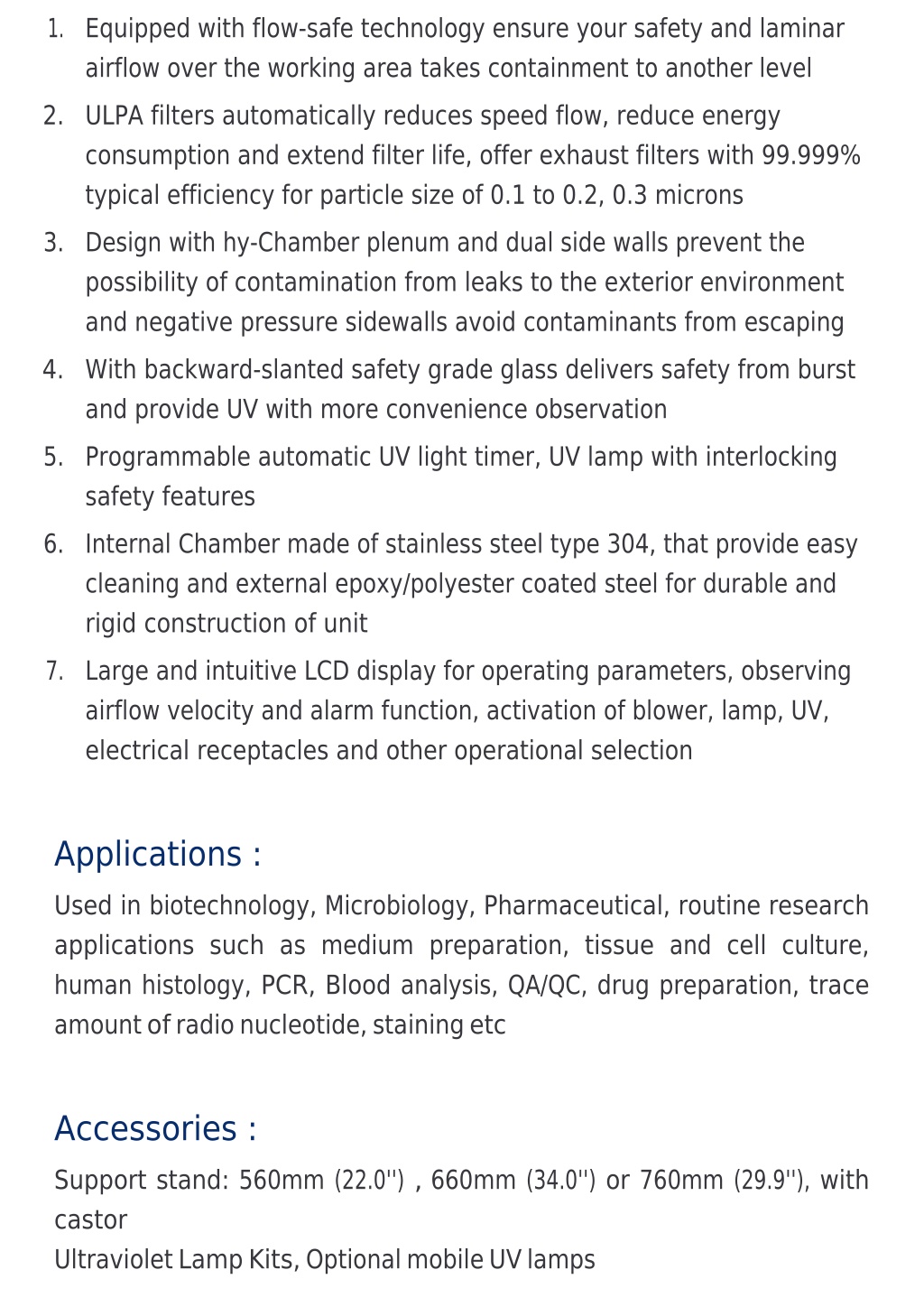

  4. 1. Equipped with flow-safe technology ensure your safety and laminar airflow over the working area takes containment to another level 2. ULPA filters automatically reduces speed flow, reduce energy consumption and extend filter life, offer exhaust filters with 99.999% typical efficiency for particle size of 0.1 to 0.2, 0.3 microns 3. Design with hy-Chamber plenum and dual side walls prevent the possibility of contamination from leaks to the exterior environment and negative pressure sidewalls avoid contaminants from escaping 4. With backward-slanted safety grade glass delivers safety from burst and provide UV with more convenience observation 5. Programmable automatic UV light timer, UV lamp with interlocking safety features 6. Internal Chamber made of stainless steel type 304, that provide easy cleaning and external epoxy/polyester coated steel for durable and rigid construction of unit 7. Large and intuitive LCD display for operating parameters, observing airflow velocity and alarm function, activation of blower, lamp, UV, electrical receptacles and other operational selection Applications : Used in biotechnology, Microbiology, Pharmaceutical, routine research applications such as medium preparation, tissue and cell culture, human histology, PCR, Blood analysis, QA/QC, drug preparation, trace amount of radio nucleotide, staining etc Accessories : Support stand: 560mm (22.0'') , 660mm (34.0'') or 760mm (29.9''), with castor Ultraviolet Lamp Kits, Optional mobile UV lamps

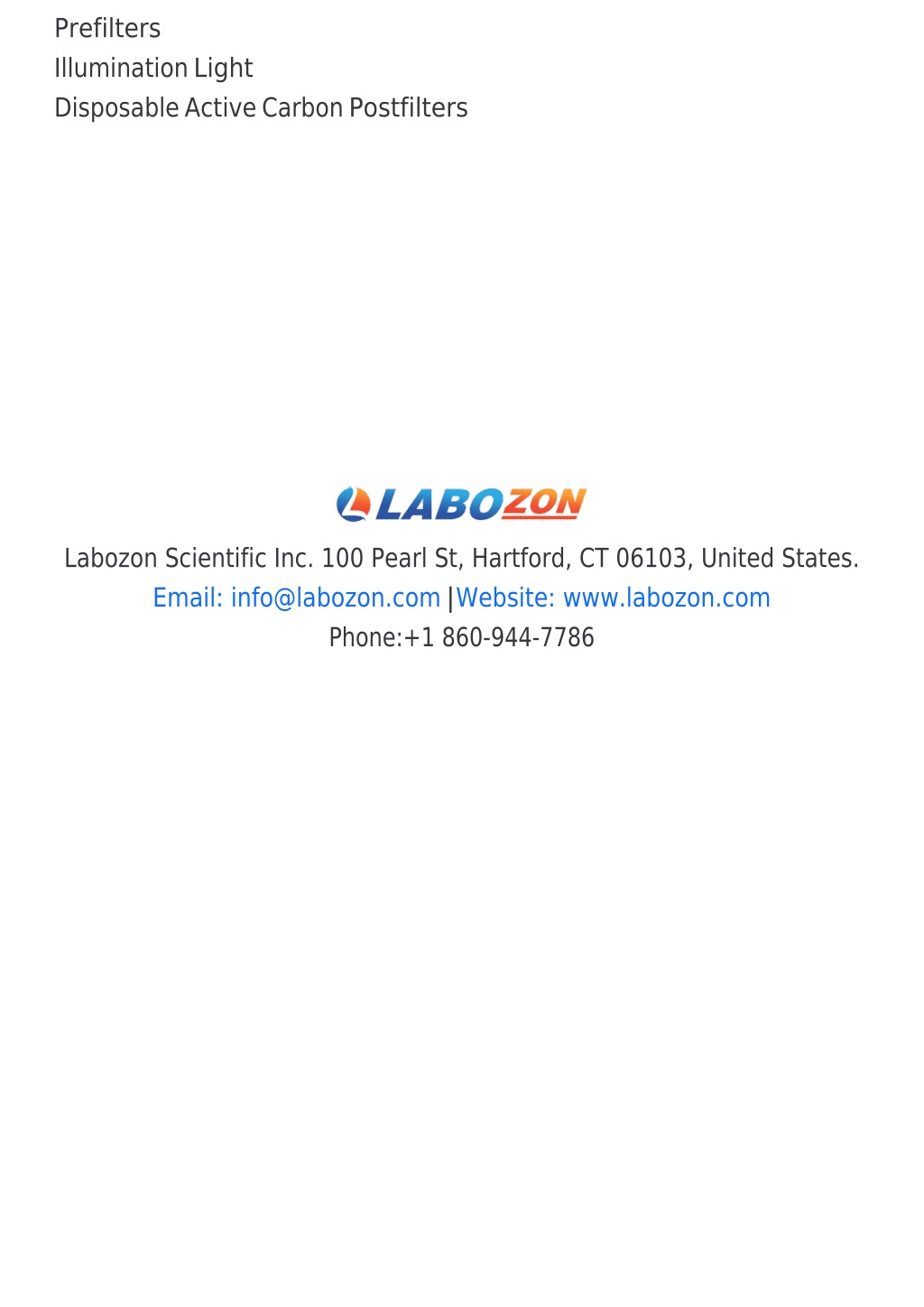

  5. Prefilters Illumination Light Disposable Active Carbon Postfilters Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
