LABNICS-Flame-Photometer-NFP-100

Flame Photometer NFP-100 is an analytical instrument that determines concentration of metal ions like K and Na in a test sample on the basis of their flame color and excitation wavelengths. It is supported with USB interface for data transfer and storage. It is featured with large color screen that displays and represents analyzed data in graphical curve format.

labnics14
Download Presentation

LABNICS-Flame-Photometer-NFP-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

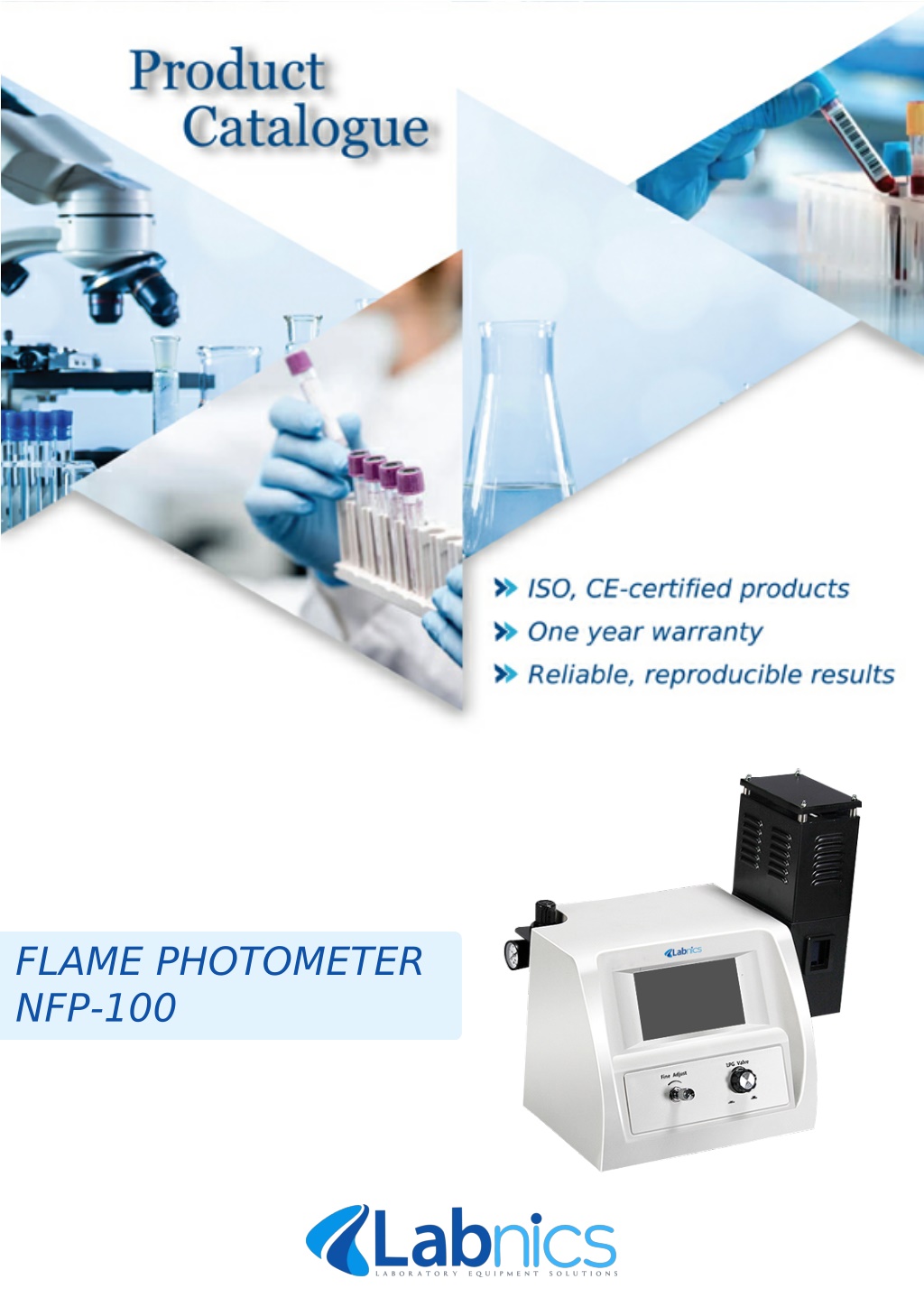

  1. FLAME PHOTOMETER NFP-100

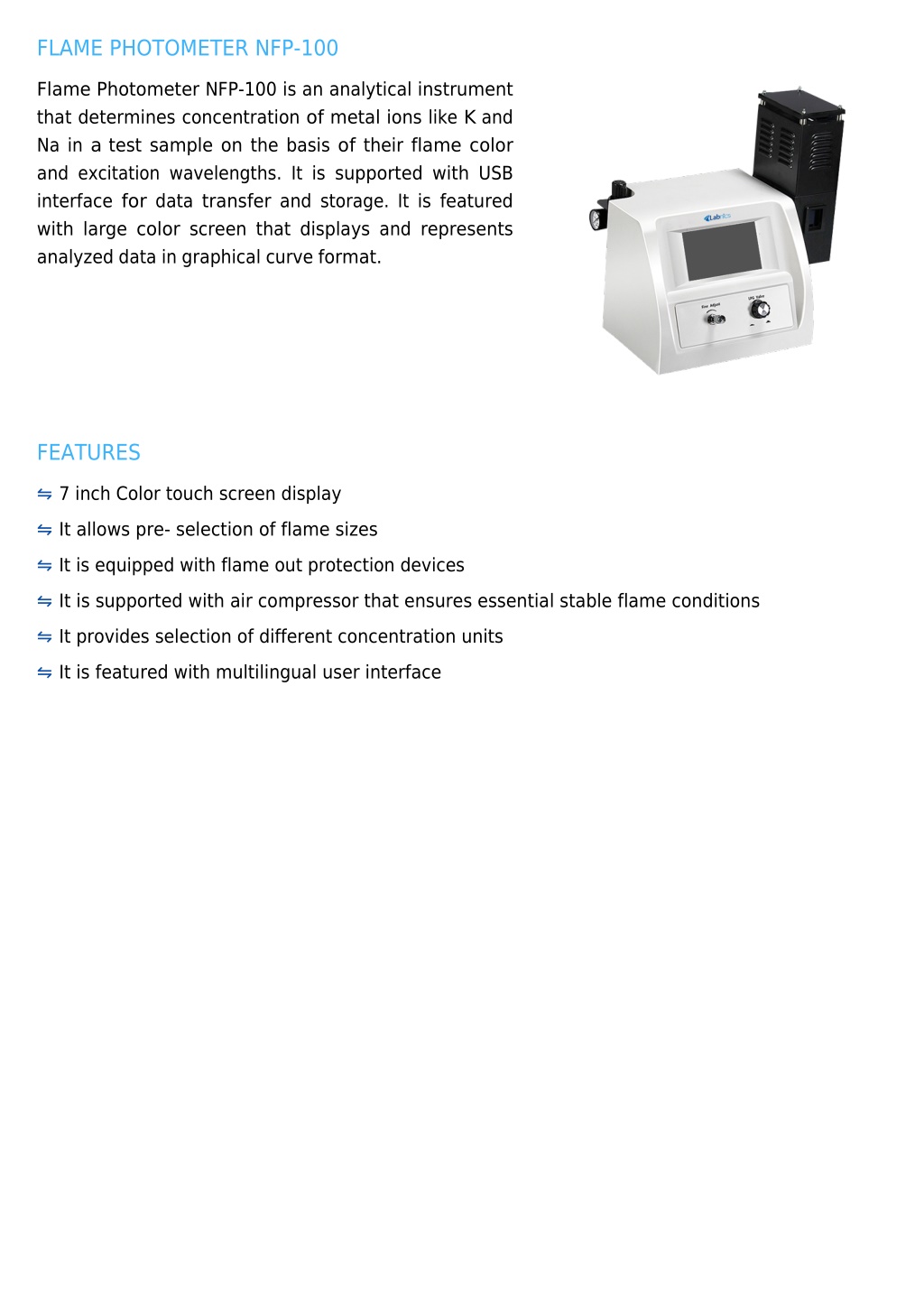

  2. FLAME PHOTOMETER NFP-100 Flame Photometer NFP-100 is an analytical instrument that determines concentration of metal ions like K and Na in a test sample on the basis of their flame color and excitation wavelengths. It is supported with USB interface for data transfer and storage. It is featured with large color screen that displays and represents analyzed data in graphical curve format. FEATURES ⇋ 7 inch Color touch screen display ⇋ It allows pre- selection of flame sizes ⇋ It is equipped with flame out protection devices ⇋ It is supported with air compressor that ensures essential stable flame conditions ⇋ It provides selection of different concentration units ⇋ It is featured with multilingual user interface

  3. SPECIFICATIONS Testing Elements Display Value No of Channels Data Range Range LOD (in ppm) Linear Error Response Sample uptake Stability Reproducibility Fuel Power consumption Power supply Working Temperature Relative Humidity Overall Dimensions Weight K,Na Optical power 2 0000~9999 K (0-100 ppm), Na(0-160 ppm) K (0.01 ppm), Na(0.01 ppm) K (0.195 ppm), Na (0.69 ppm) time <8s <6ml/min <3% drift over 15s during continuous aspiration <3% coefficient of variation for 7 consecutive samples LPG 250 W AC 220V±22V 50Hz±1Hz 10°C -35°C ≤ 85% RH 780×560×390 mm 18 kg APPLICATIONS It has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, pharmaceutical and beverage industries. ADDITIONAL INFORMATION {}

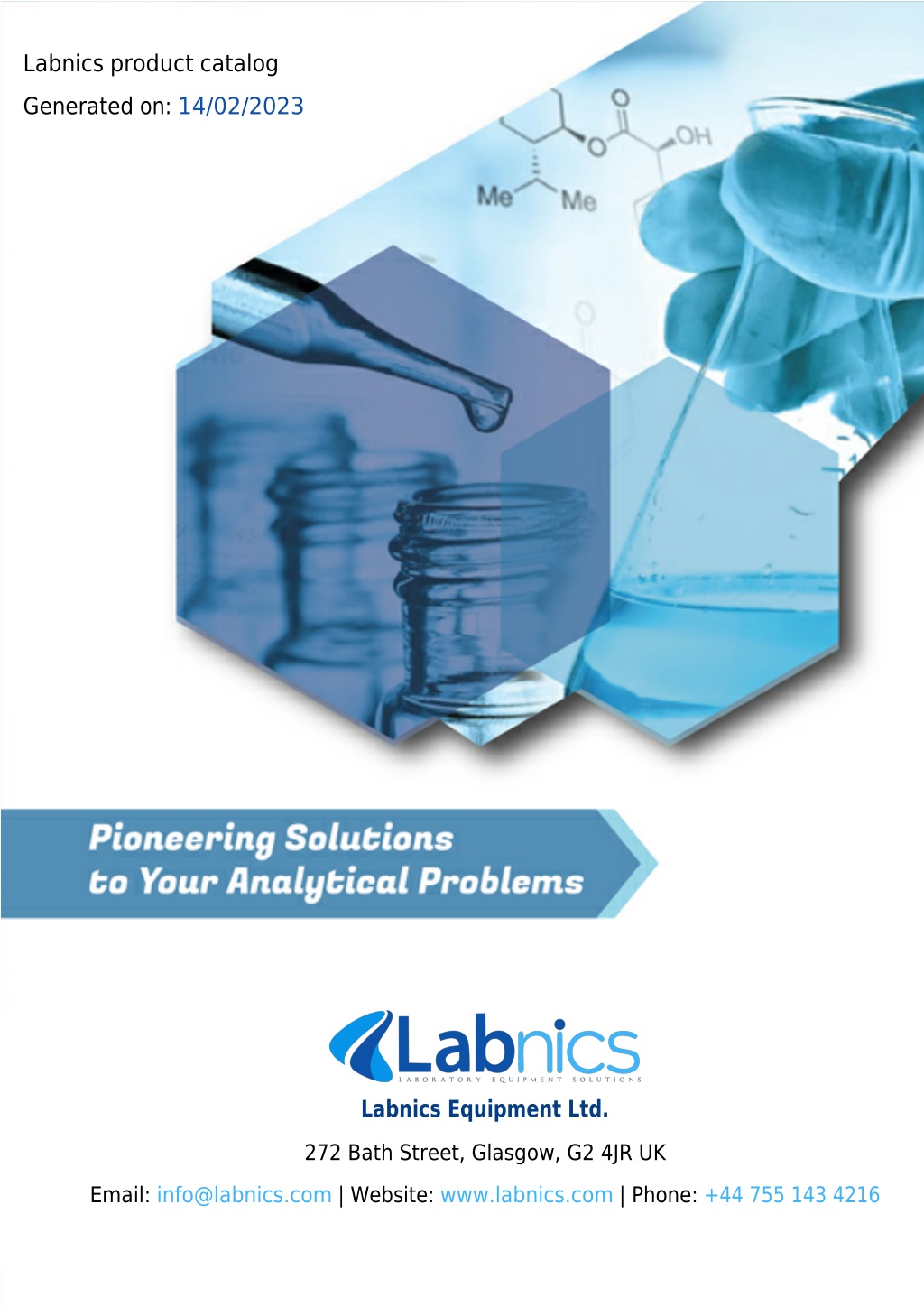

  4. Labnics product catalog Generated on: 14/02/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
