  1. FIXED GAS ANALYZER NFXA-210

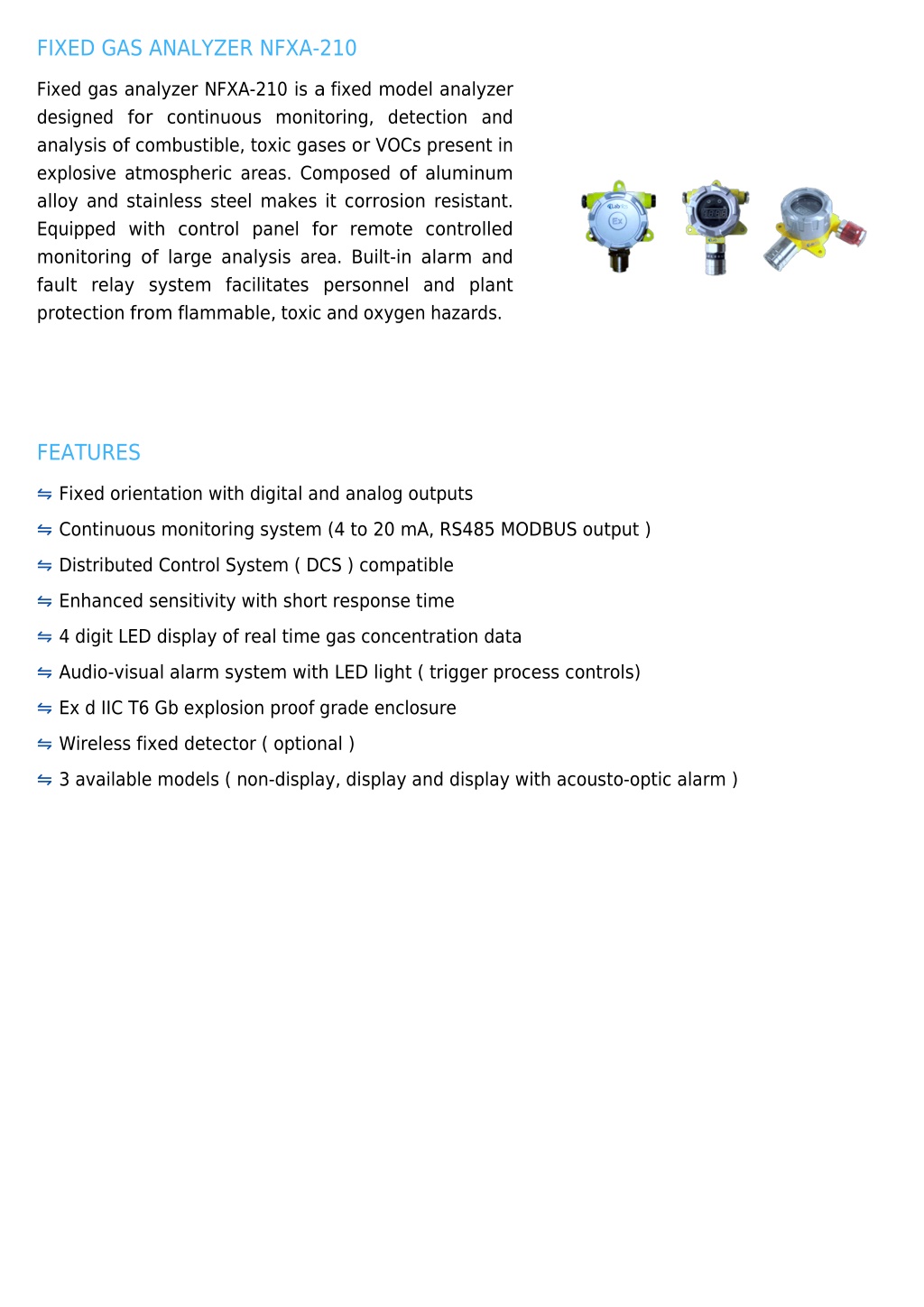

  2. FIXED GAS ANALYZER NFXA-210 Fixed gas analyzer NFXA-210 is a fixed model analyzer designed for continuous monitoring, detection and analysis of combustible, toxic gases or VOCs present in explosive atmospheric areas. Composed of aluminum alloy and stainless steel makes it corrosion resistant. Equipped with control panel for remote controlled monitoring of large analysis area. Built-in alarm and fault relay system facilitates personnel and plant protection from flammable, toxic and oxygen hazards. FEATURES ⇋ Fixed orientation with digital and analog outputs ⇋ Continuous monitoring system (4 to 20 mA, RS485 MODBUS output ) ⇋ Distributed Control System ( DCS ) compatible ⇋ Enhanced sensitivity with short response time ⇋ 4 digit LED display of real time gas concentration data ⇋ Audio-visual alarm system with LED light ( trigger process controls) ⇋ Ex d IIC T6 Gb explosion proof grade enclosure ⇋ Wireless fixed detector ( optional ) ⇋ 3 available models ( non-display, display and display with acousto-optic alarm )

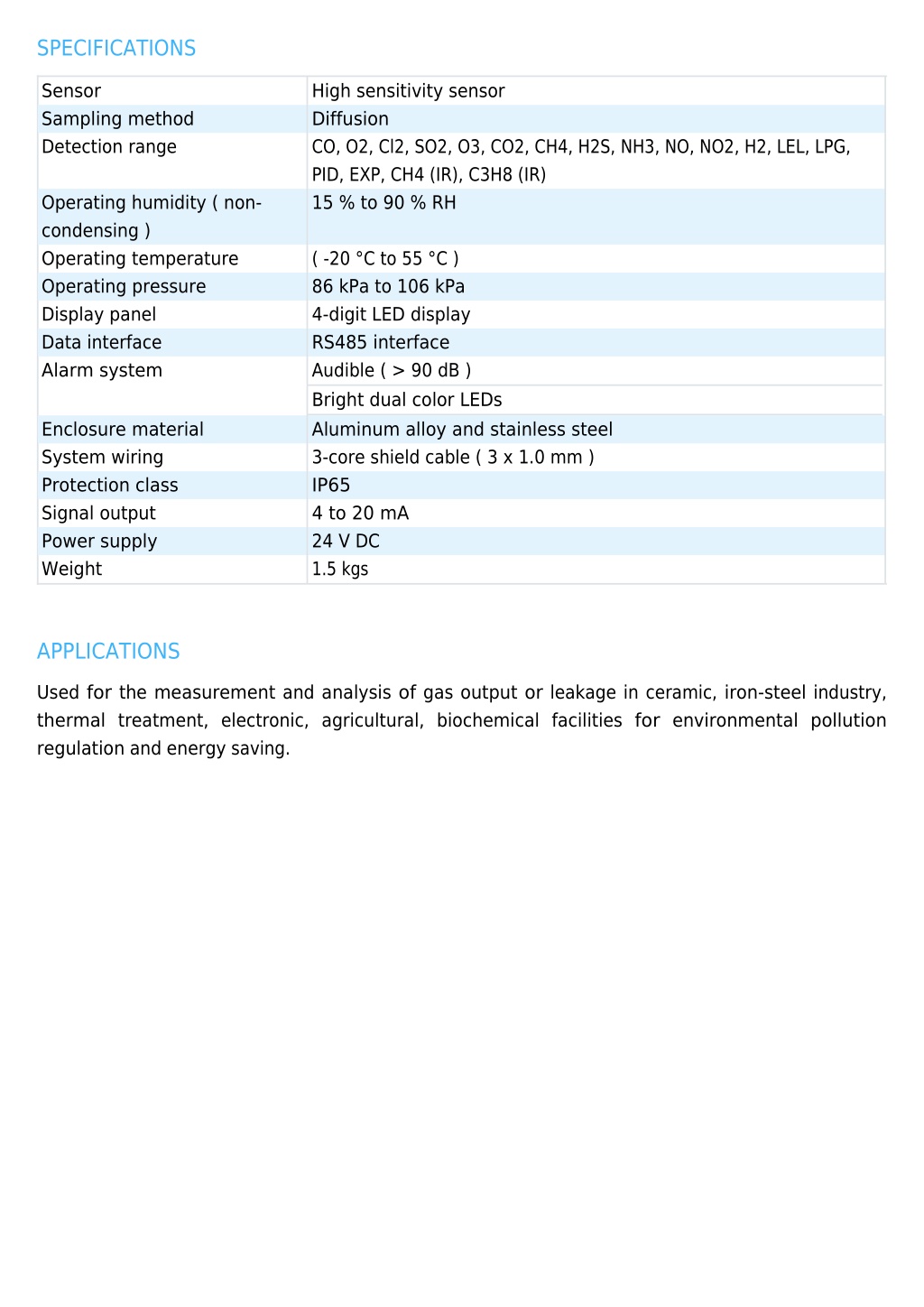

  3. SPECIFICATIONS Sensor Sampling method Detection range High sensitivity sensor Diffusion CO, O2, Cl2, SO2, O3, CO2, CH4, H2S, NH3, NO, NO2, H2, LEL, LPG, PID, EXP, CH4 (IR), C3H8 (IR) 15 % to 90 % RH Operating humidity ( non- condensing ) Operating temperature Operating pressure Display panel Data interface Alarm system ( -20 °C to 55 °C ) 86 kPa to 106 kPa 4-digit LED display RS485 interface Audible ( > 90 dB ) Bright dual color LEDs Aluminum alloy and stainless steel 3-core shield cable ( 3 x 1.0 mm ) IP65 4 to 20 mA 24 V DC 1.5 kgs Enclosure material System wiring Protection class Signal output Power supply Weight APPLICATIONS Used for the measurement and analysis of gas output or leakage in ceramic, iron-steel industry, thermal treatment, electronic, agricultural, biochemical facilities for environmental pollution regulation and energy saving.

  4. Labnics product catalog Generated on: 07/02/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
