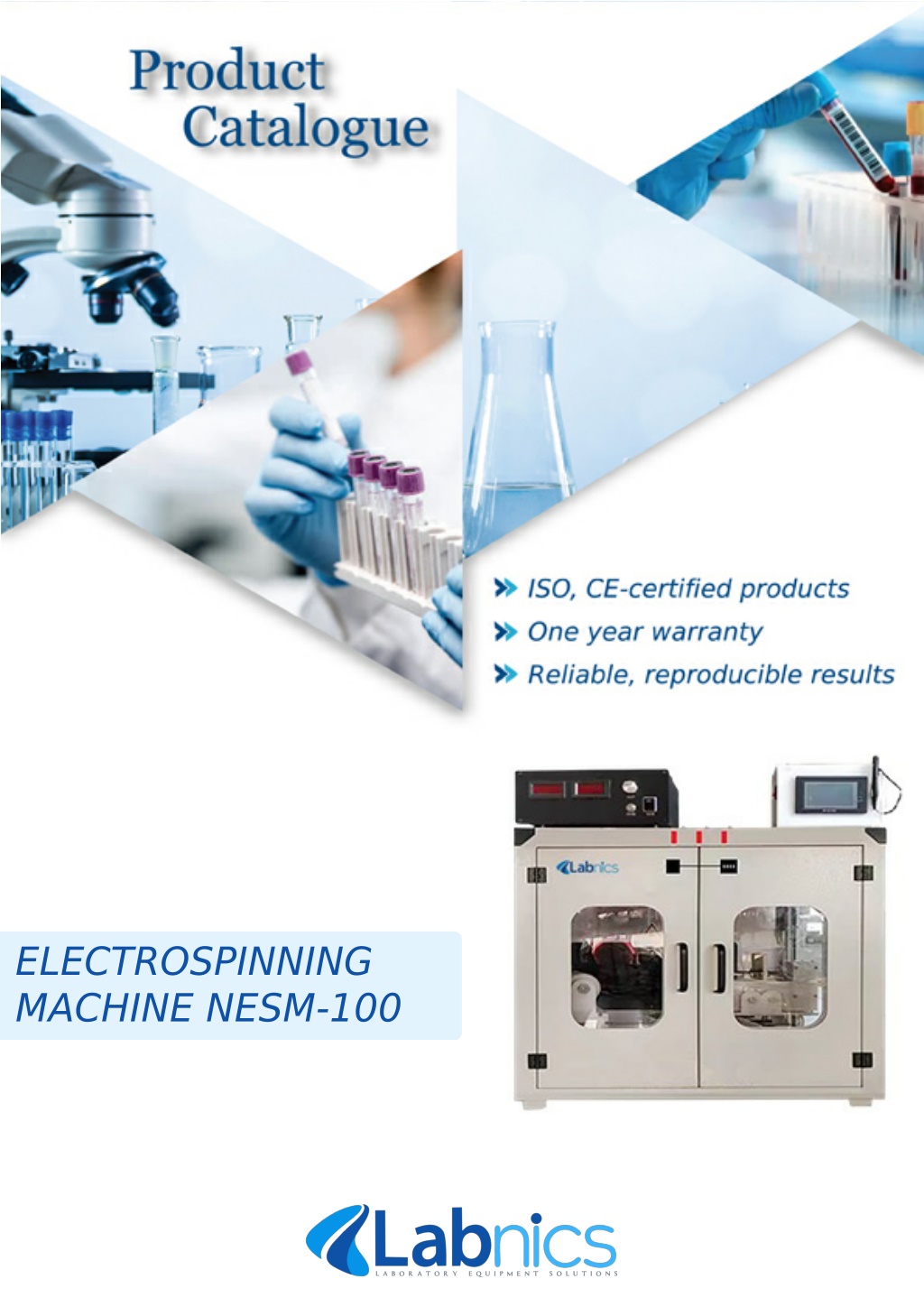

  1. ELECTROSPINNING MACHINE NESM-100

  2. ELECTROSPINNING MACHINE NESM-100 The electrospinning machine NESM-100 is equipped with a one-dimensional technology which has the positive high voltage of high the advantages of simple manufacturing equipment, low spinning cost, various types of spinnable polymers, and controllable spinning process. nanofiber preparation FEATURES ⇋ Easy to observe spinning with naked eyes ⇋ Insulating inner wall ⇋ Three-sided observation window exhaust system ⇋ Anti - corrosion coating ⇋ Low spinning cost

  3. SPECIFICATIONS Propulsion system Applicable syringes: 1ml, 5ml, 10ml, 20ml, 30ml, 50ml, 100ml: 3 card slots (can put 3 syringes): dual channel push pump Nozzle bracket 3 holes, adjustable for height, any angle, and distance from receiving pole 0.1-1.6mm Sprinkler system Single nozzle inner diameter Nozzle moving device Moving distance precision speed regulation (digital display) Rotation speed High speed Precision Plate collector Cabinet Metal 0~200m 1~1500 mm/min 120-3000rpm 1r/min Size: 20*20cm: release sticker (easy to take film) shell + anti-corrosion coating + insulating inner wall + three-sided observation window exhaust system Easy to observe spinning with naked eyes 220V 0-30KV 0-10KV 800mm× 600 mm × 700mm 35kg Lighting system Power supply Positive high voltage Negative high voltage Dimensions Net weight APPLICATIONS Electrospinning machine is widely used to produce nano scale fibers both in laboratory and industrially. Because of its wide application such as medicine, filtration, textile, etc.

  4. Labnics product catalog Generated on: 04/02/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
