LABNICS-Dissolution-Tester-NDST-100

Dissolution Tester NDST-100 is a U-shaped vessel composed apparatus engineered to determine the velocity of dissolution of pharmaceutical tablets or capsules. The basket units and paddle units are made up of stainless steel with resistance to exposure to high temperature. The magnetism pumped circulating water systems enables to maintain the uniform temperature of the liquid in the vessels

labnics14
Download Presentation

LABNICS-Dissolution-Tester-NDST-100

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

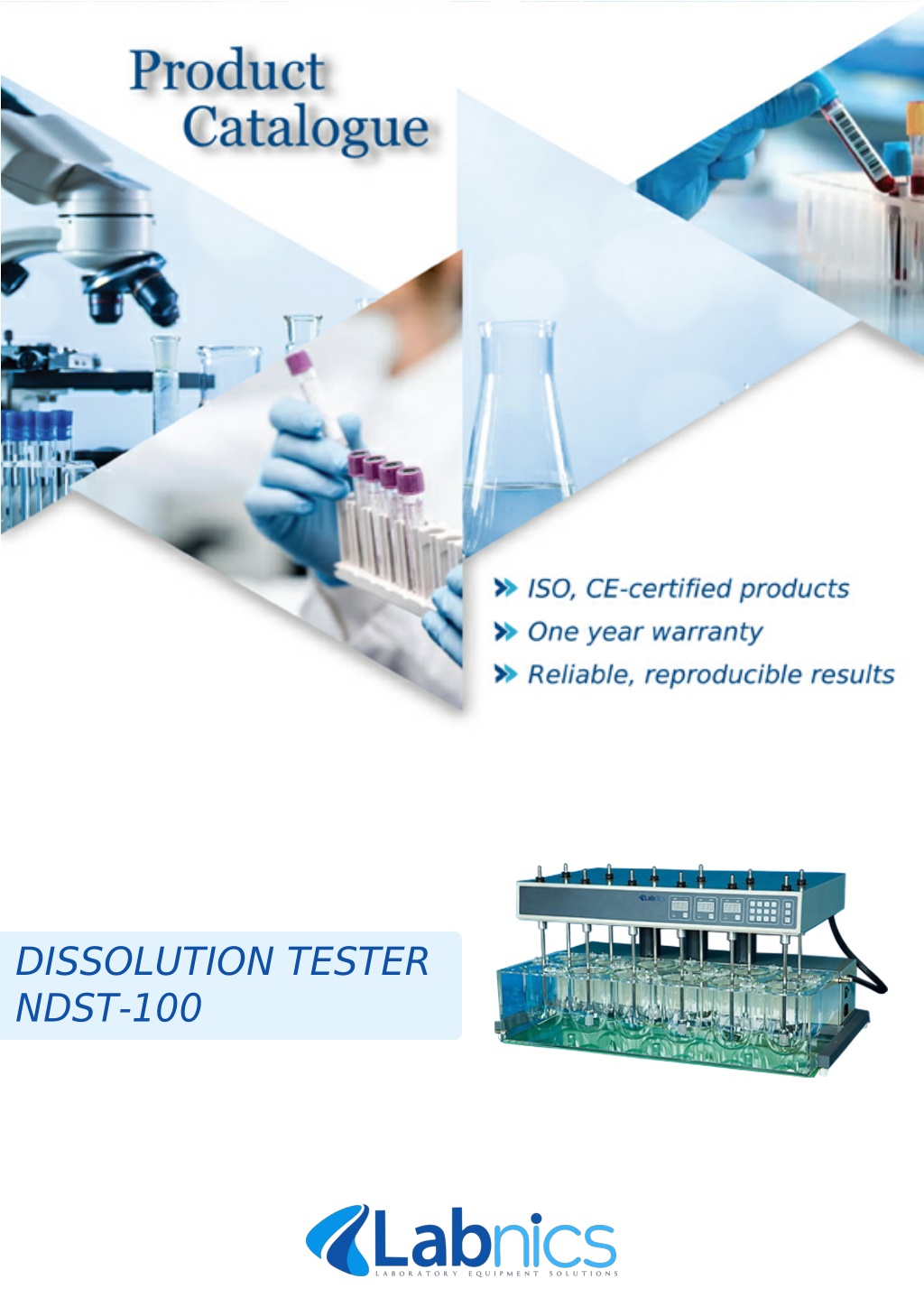

  1. DISSOLUTION TESTER NDST-100

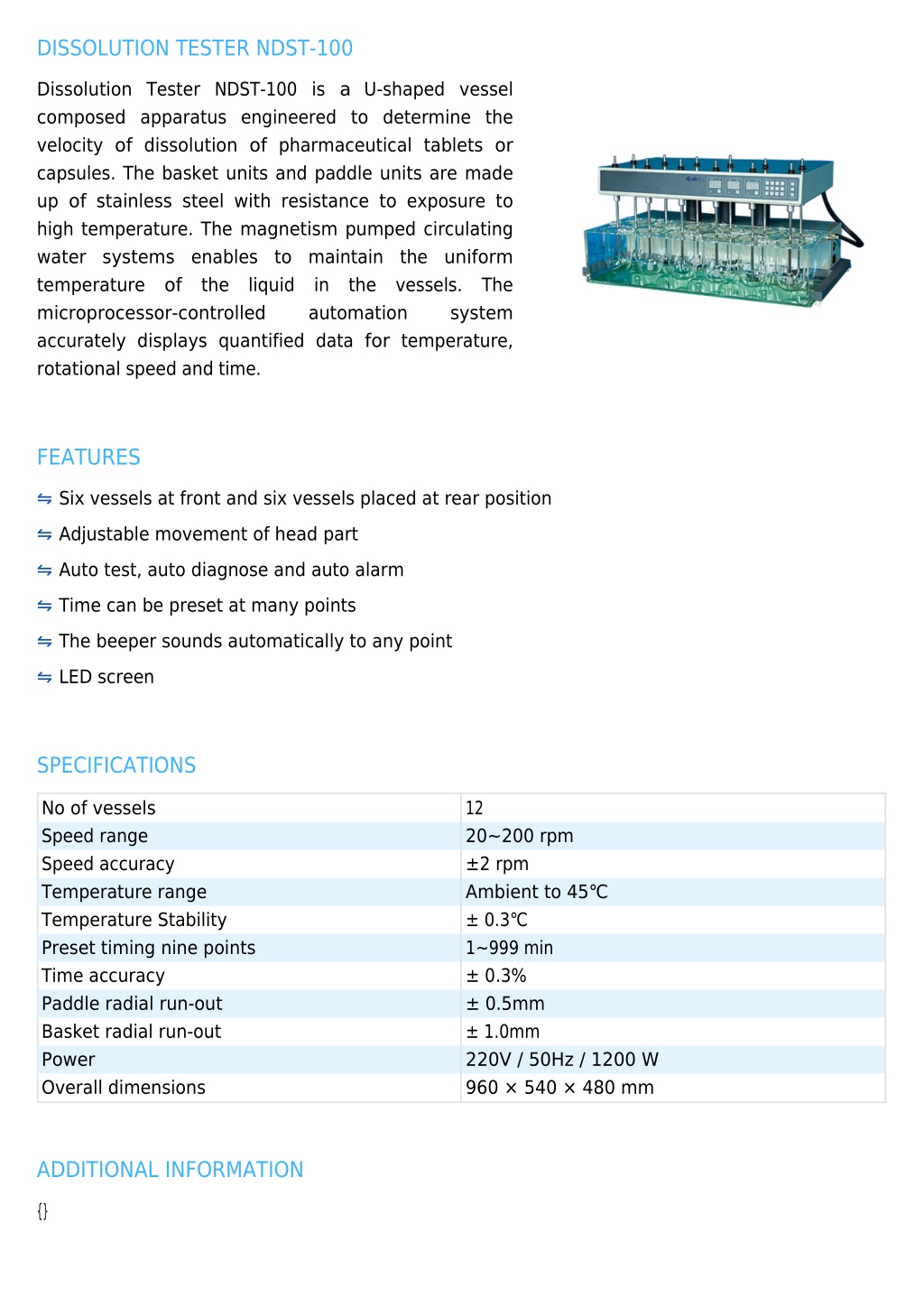

  2. DISSOLUTION TESTER NDST-100 Dissolution Tester NDST-100 is a U-shaped vessel composed apparatus engineered to determine the velocity of dissolution of pharmaceutical tablets or capsules. The basket units and paddle units are made up of stainless steel with resistance to exposure to high temperature. The magnetism pumped circulating water systems enables to temperature of the liquid microprocessor-controlled accurately displays quantified data for temperature, rotational speed and time. maintain in automation the uniform vessels. system the The FEATURES ⇋ Six vessels at front and six vessels placed at rear position ⇋ Adjustable movement of head part ⇋ Auto test, auto diagnose and auto alarm ⇋ Time can be preset at many points ⇋ The beeper sounds automatically to any point ⇋ LED screen SPECIFICATIONS No of vessels Speed range Speed accuracy Temperature range Temperature Stability Preset timing nine points Time accuracy Paddle radial run-out Basket radial run-out Power Overall dimensions 12 20~200 rpm ±2 rpm Ambient to 45℃ ± 0.3℃ 1~999 min ± 0.3% ± 0.5mm ± 1.0mm 220V / 50Hz / 1200 W 960 × 540 × 480 mm ADDITIONAL INFORMATION {}

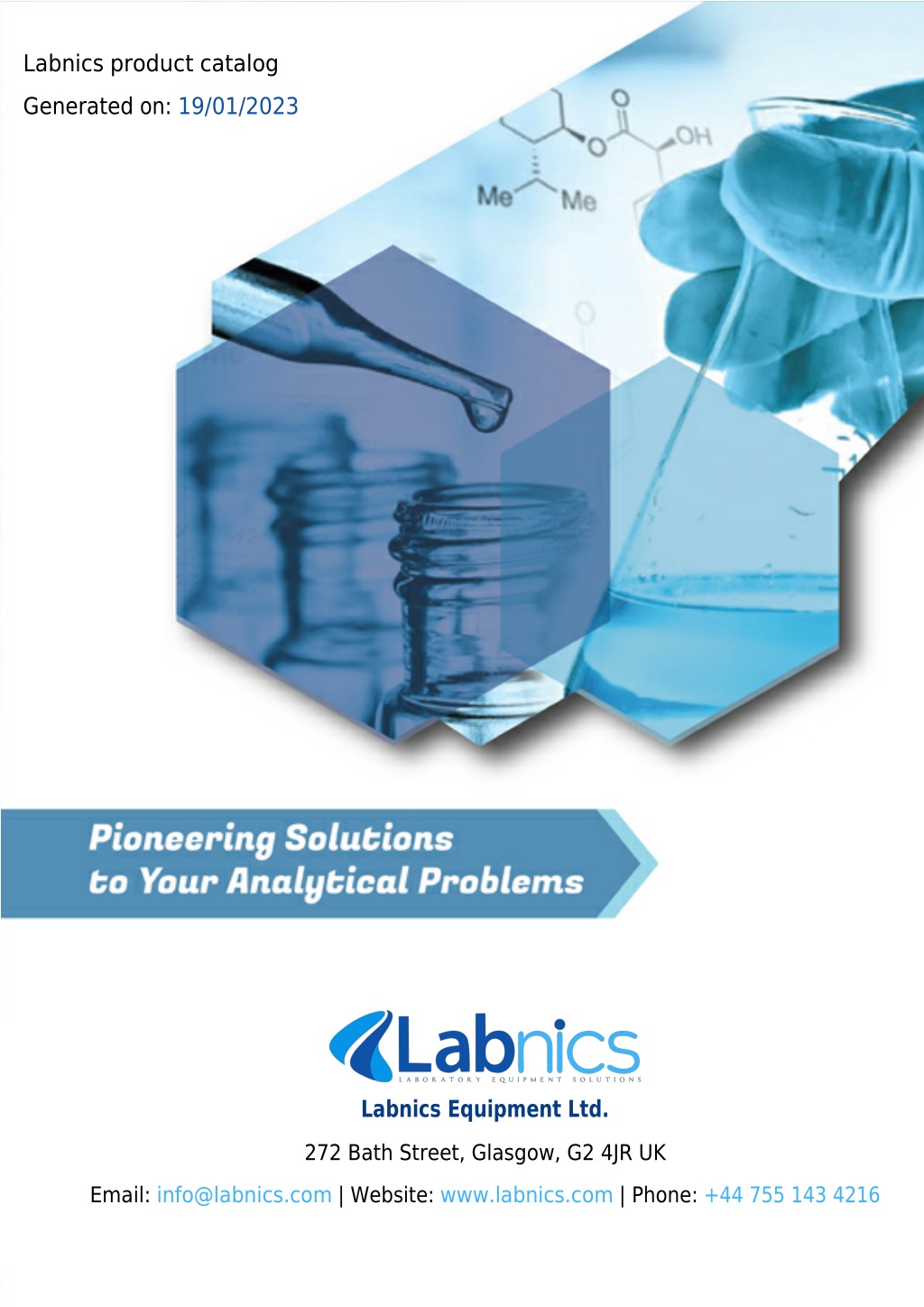

  3. Labnics product catalog Generated on: 19/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
