LABNICS-Benchtop-vortex-mixer-NBVM-101

Benchtop Vortex Mixer NBVM-101 is a highly efficient research laboratory apparatus that mixes various liquid samples rapidly through oscillating circular motions. As the motor runs, the rubber cap oscillates rapidly in a circular motion and a vortex is created. It is a compact model which allows gentle mixing of samples producing low noise levels.

labnics14
Download Presentation

LABNICS-Benchtop-vortex-mixer-NBVM-101

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

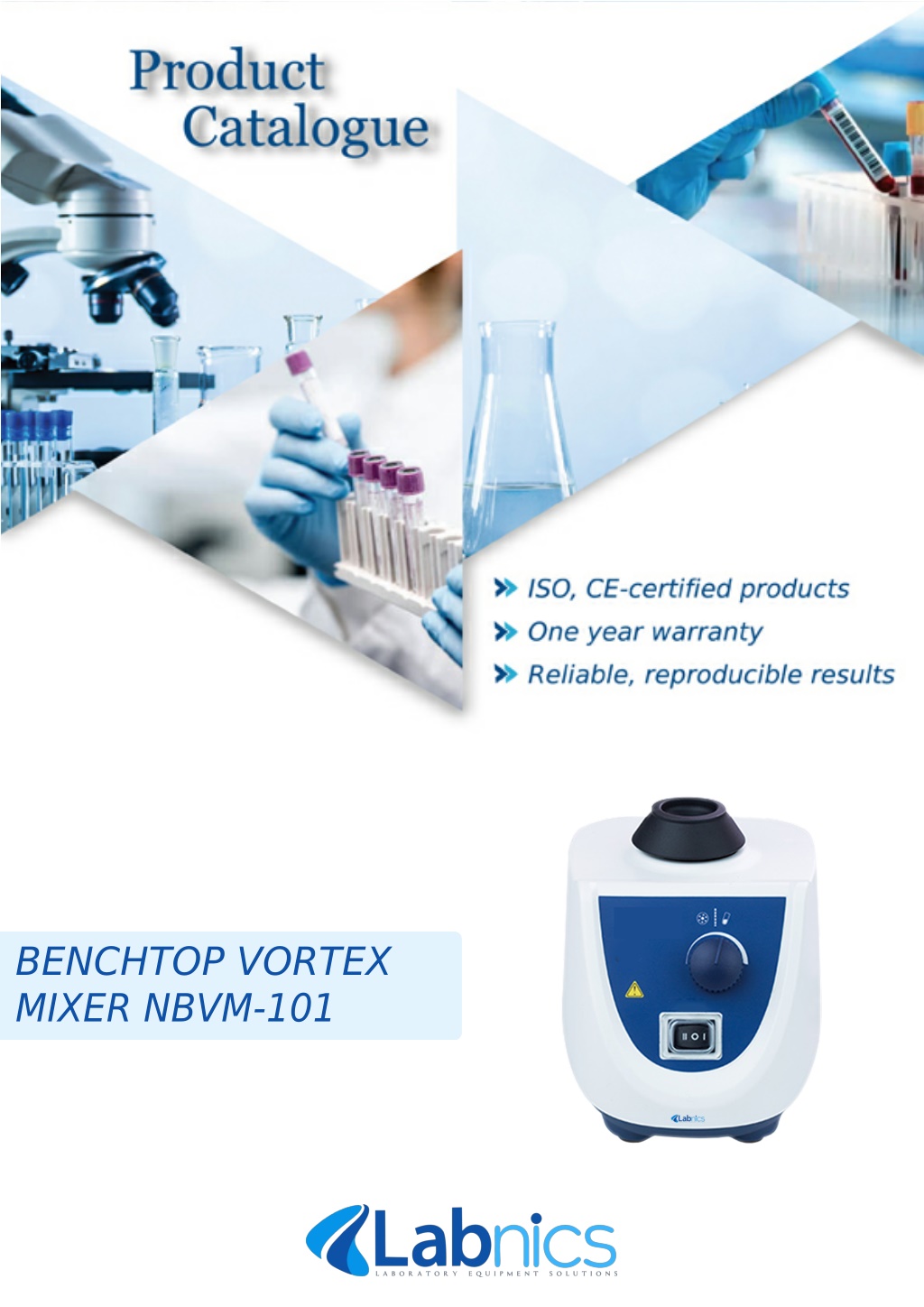

  1. BENCHTOP VORTEX MIXER NBVM-101

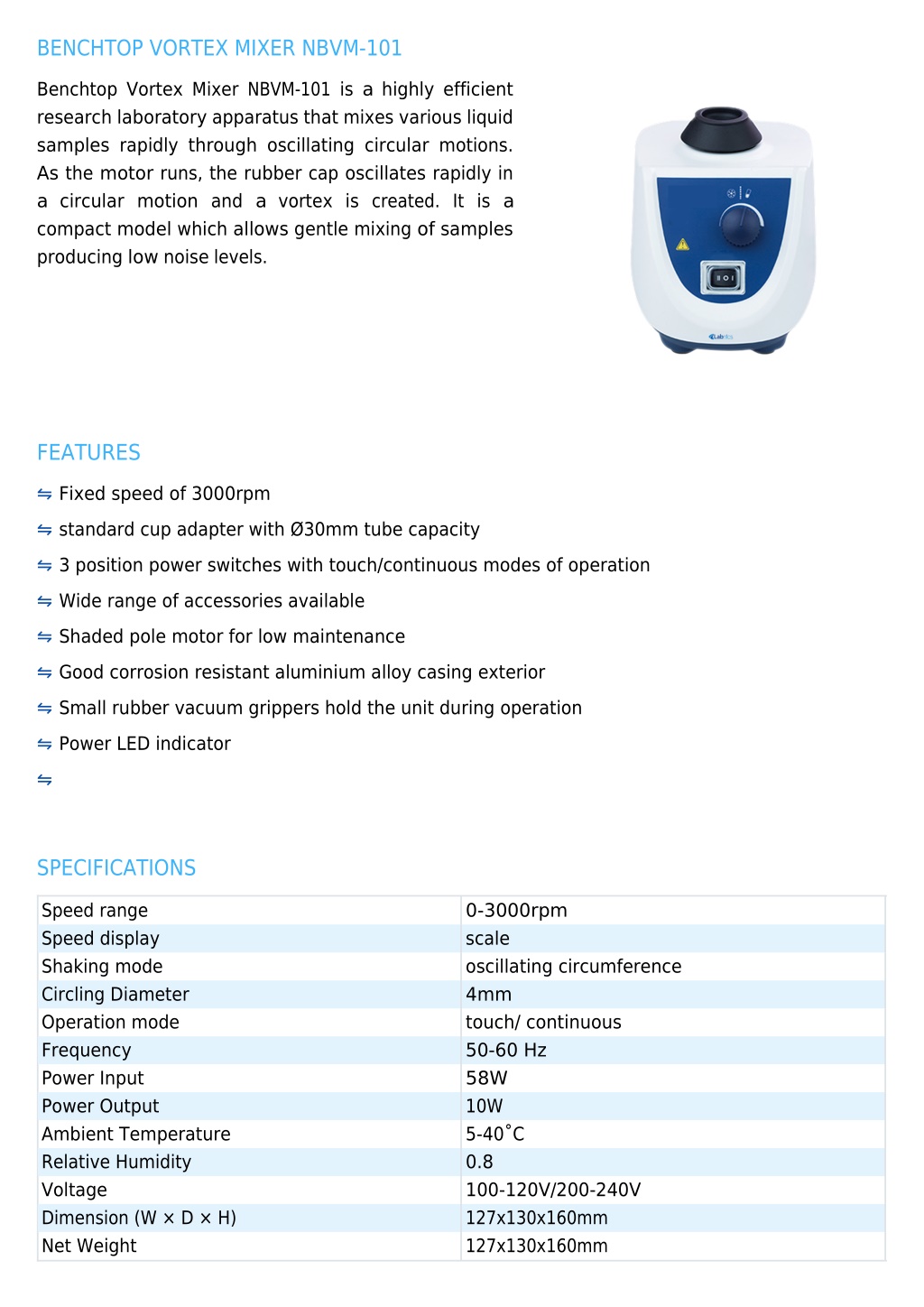

  2. BENCHTOP VORTEX MIXER NBVM-101 Benchtop Vortex Mixer NBVM-101 is a highly efficient research laboratory apparatus that mixes various liquid samples rapidly through oscillating circular motions. As the motor runs, the rubber cap oscillates rapidly in a circular motion and a vortex is created. It is a compact model which allows gentle mixing of samples producing low noise levels. FEATURES ⇋ Fixed speed of 3000rpm ⇋ standard cup adapter with Ø30mm tube capacity ⇋ 3 position power switches with touch/continuous modes of operation ⇋ Wide range of accessories available ⇋ Shaded pole motor for low maintenance ⇋ Good corrosion resistant aluminium alloy casing exterior ⇋ Small rubber vacuum grippers hold the unit during operation ⇋ Power LED indicator ⇋ SPECIFICATIONS Speed range Speed display Shaking mode Circling Diameter Operation mode Frequency Power Input Power Output Ambient Temperature Relative Humidity Voltage Dimension (W × D × H) Net Weight 0-3000rpm scale oscillating circumference 4mm touch/ continuous 50-60 Hz 58W 10W 5-40˚C 0.8 100-120V/200-240V 127x130x160mm 127x130x160mm

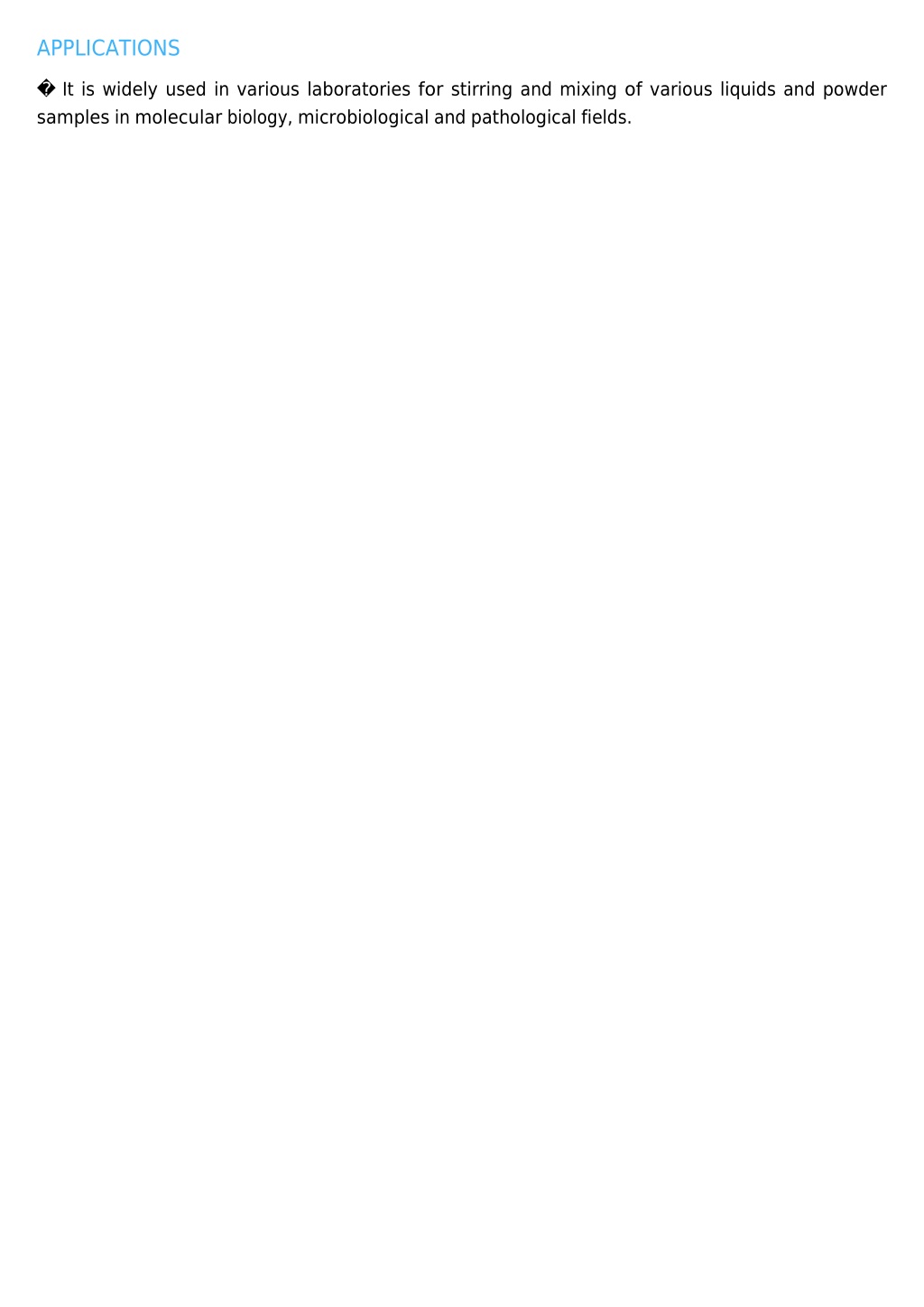

  3. APPLICATIONS � It is widely used in various laboratories for stirring and mixing of various liquids and powder samples in molecular biology, microbiological and pathological fields.

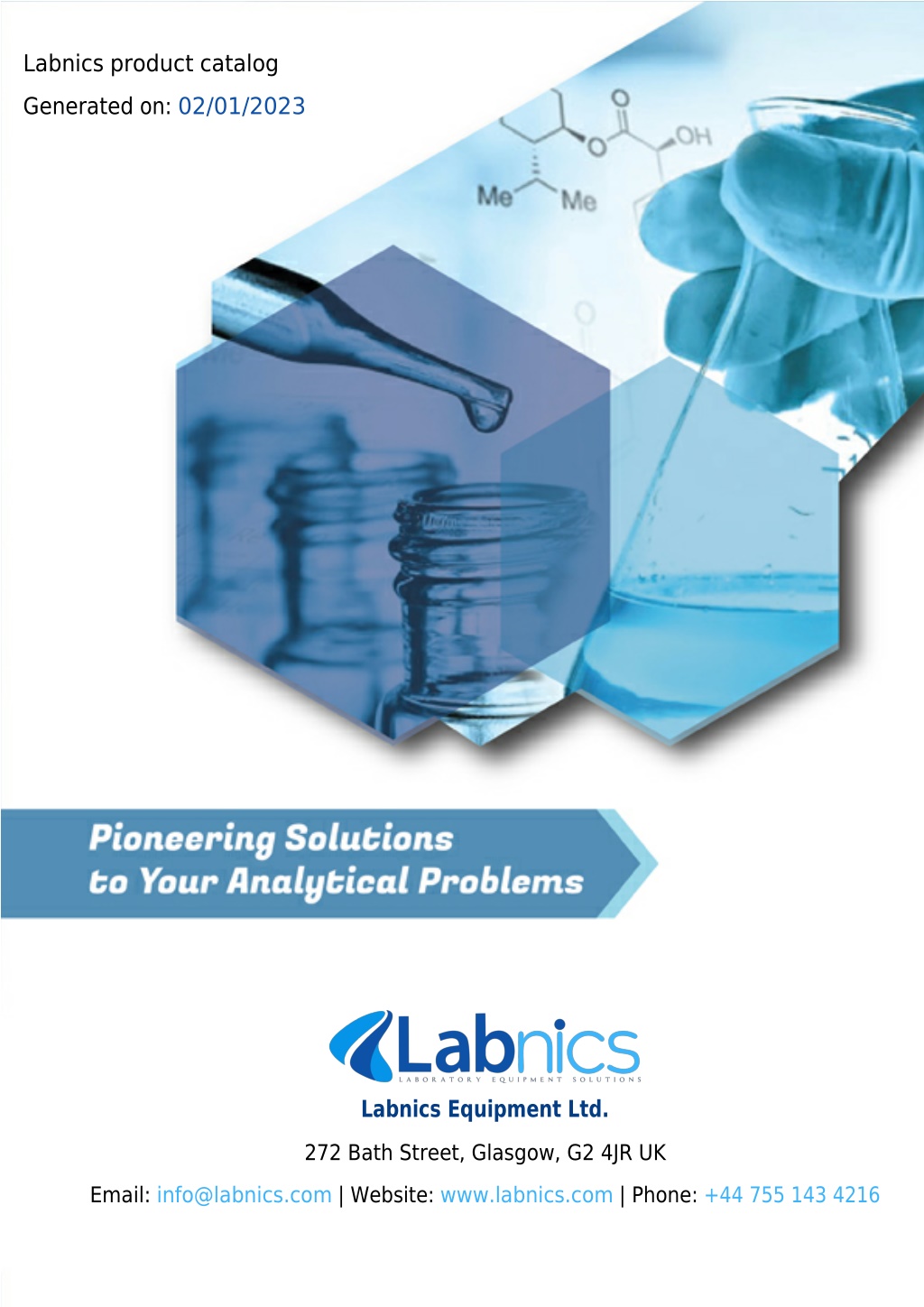

  4. Labnics product catalog Generated on: 02/01/2023 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
