  1. AUTOMATIC MELTING POINT METER NMPM- 100

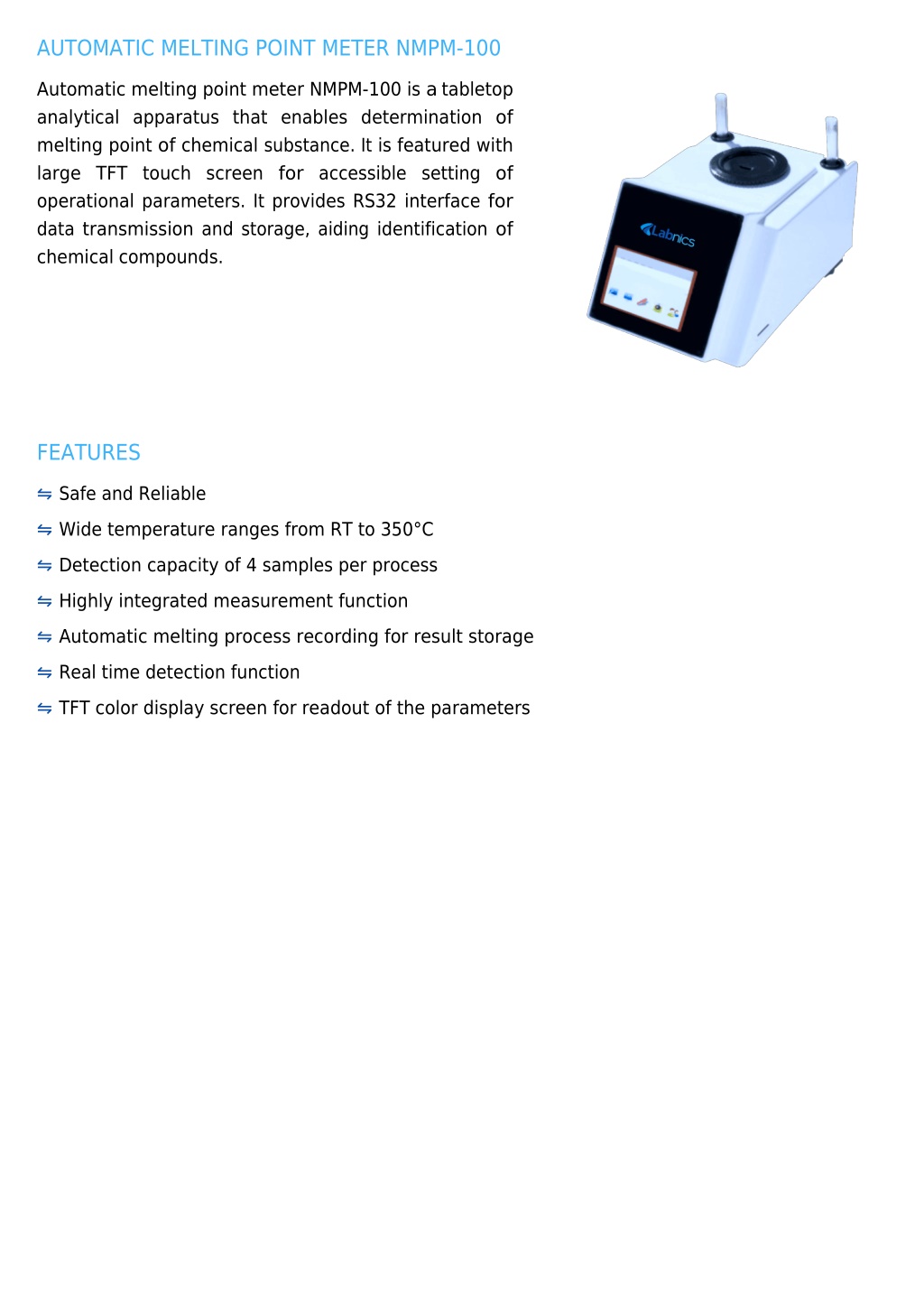

  2. AUTOMATIC MELTING POINT METER NMPM-100 Automatic melting point meter NMPM-100 is a tabletop analytical apparatus that enables determination of melting point of chemical substance. It is featured with large TFT touch screen for accessible setting of operational parameters. It provides RS32 interface for data transmission and storage, aiding identification of chemical compounds. FEATURES ⇋ Safe and Reliable ⇋ Wide temperature ranges from RT to 350°C ⇋ Detection capacity of 4 samples per process ⇋ Highly integrated measurement function ⇋ Automatic melting process recording for result storage ⇋ Real time detection function ⇋ TFT color display screen for readout of the parameters

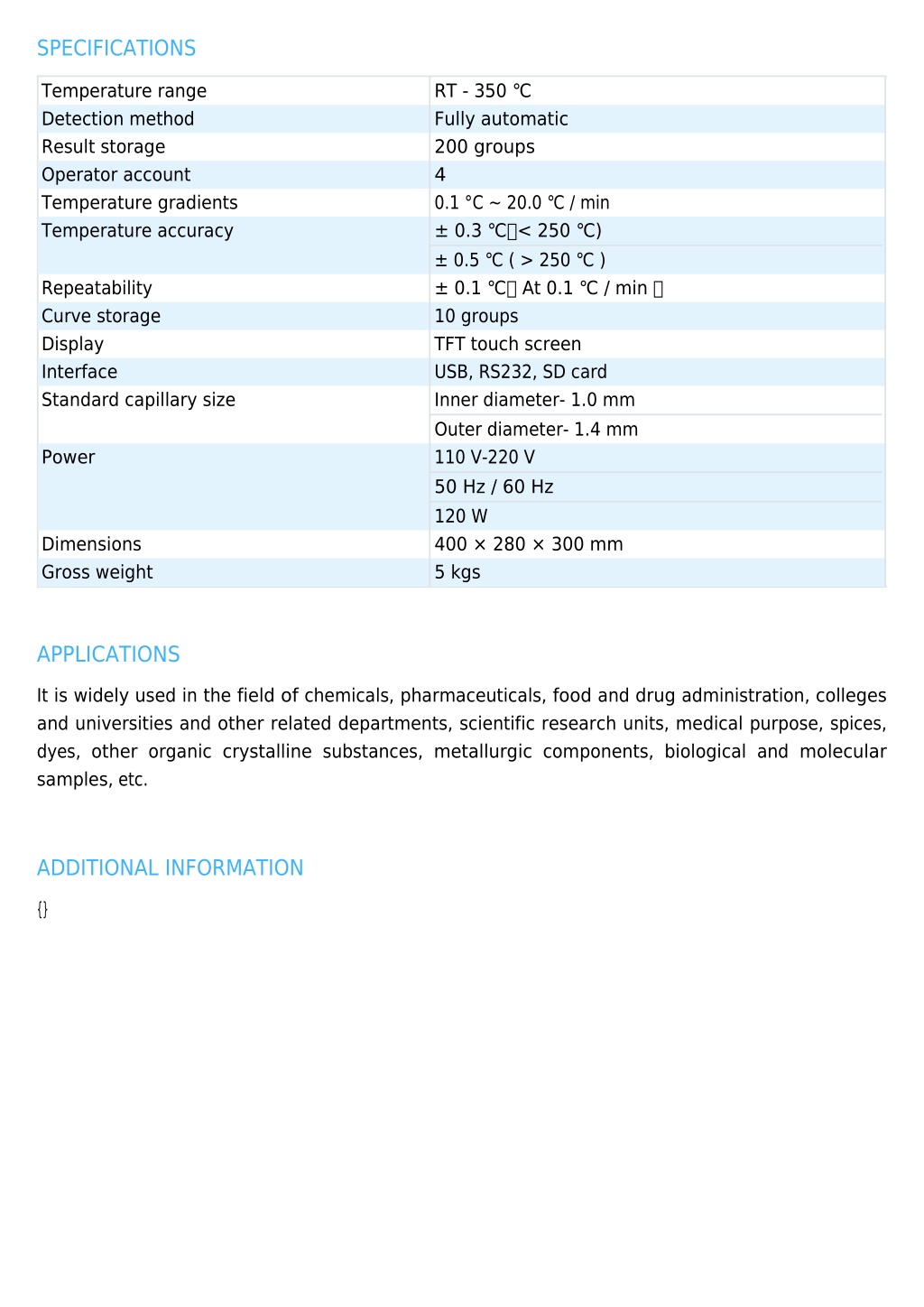

  3. SPECIFICATIONS Temperature range Detection method Result storage Operator account Temperature gradients Temperature accuracy RT - 350 ℃ Fully automatic 200 groups 4 0.1 °C ~ 20.0 ℃ / min ± 0.3 ℃（< 250 ℃) ± 0.5 ℃ ( > 250 ℃ ) ± 0.1 ℃（ At 0.1 ℃ / min ） 10 groups TFT touch screen USB, RS232, SD card Inner diameter- 1.0 mm Outer diameter- 1.4 mm 110 V-220 V 50 Hz / 60 Hz 120 W 400 × 280 × 300 mm 5 kgs Repeatability Curve storage Display Interface Standard capillary size Power Dimensions Gross weight APPLICATIONS It is widely used in the field of chemicals, pharmaceuticals, food and drug administration, colleges and universities and other related departments, scientific research units, medical purpose, spices, dyes, other organic crystalline substances, metallurgic components, biological and molecular samples, etc. ADDITIONAL INFORMATION {}

  4. Labnics product catalog Generated on: 26/12/2022 Labnics Equipment Ltd. 272 Bath Street, Glasgow, G2 4JR UK Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
