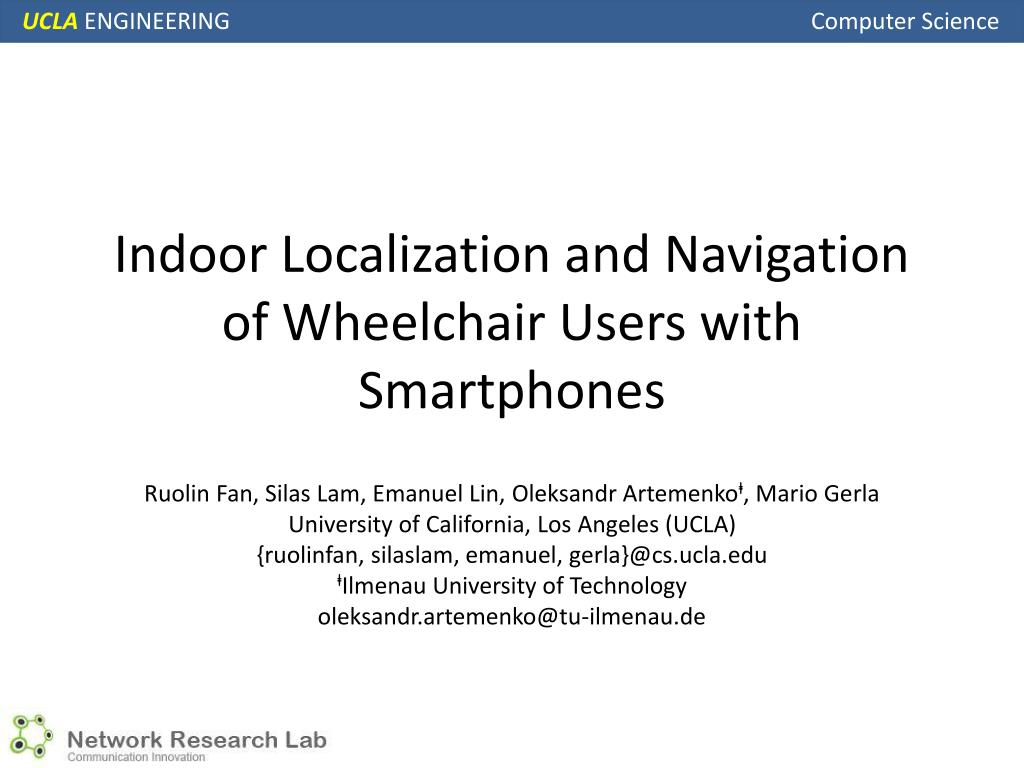

1. Indoor Localization and Navigation of Wheelchair Users with Smartphones Ruolin Fan, Silas Lam, Emanuel Lin, OleksandrArtemenkoⱡ, Mario Gerla University of California, Los Angeles (UCLA) {ruolinfan, silaslam, emanuel, gerla}@cs.ucla.edu ⱡIlmenau University of Technology oleksandr.artemenko@tu-ilmenau.de

2. Outline Introduction Background System Design Implementation Evaluation Conclusion

3. Introduction • GPS does not work indoors • Lack of satellite signals • Need an alternative way to position ourselves indoors • Try to utilize unique features pertaining to wheelchairs • Transform measured wheel rotations into both distance and angular displacement • Crowd sourcing popular wheelchair access paths • Useful for blind/impaired wheelchair riders

4. Background: Indoor Localization • Triangulation methods from cellular, WiFi, or acoustic (Signal strength or signature) • Require landmark placement knowledge, previous mapping of the site; affected by obstacles • Dead reckoning • Compute the current position based on a previously known position and incremental displacement • Can complement and rescue GPS and triangulation methods (egAutogait[Percom 10])

5. Wheelchair Dead Reckoning - Overview • Get initial position of the wheelchair via GPS coordinates or other means • Mark the wheels on the wheelchair at each spoke • Track the wheelchair’s movements by counting rotations of the wheels using the marks (a “tick”) • Simple model (perfect traction, no sliding): • If wheels rotate at the same rate => straight movement • If wheels rotate at different speeds => turns

6. Inferring Movements • Straight forward movement: • Both wheels move at the same rate • cwheel: the wheel’s circumference • n: the number of marks on each wheel • Sharp turns: • One wheel is moving while the other stays still • wchair: the width of the wheelchair • cchairTurn: The circumference when the chair turns a full circle • dtravelled: The distance travelled by the turning wheel

7. Inferring Movements (Cont’d) • General Turns • One wheel moves faster than the other • Derive equation using radians • , • And therefore • In degrees,

8. Implementation • Wheelchair Specifications • 8 magnets per wheel • 1 reed switch per wheel • Reed switches connected to Bluetooth mouse • When magnet moves close to reed switch, it trigger a mouse click event

9. Implementation (Cont’d) • Translate left/right mouse clicks to distance/direction traveled • Base calculations on physical wheelchair measurements • Implemented straight movement and sharp turns • Clicks detected by JavaScript in web browser • Events are sent via AJAX to PHP server and MySQL database • Visualize wheelchair movement on a map

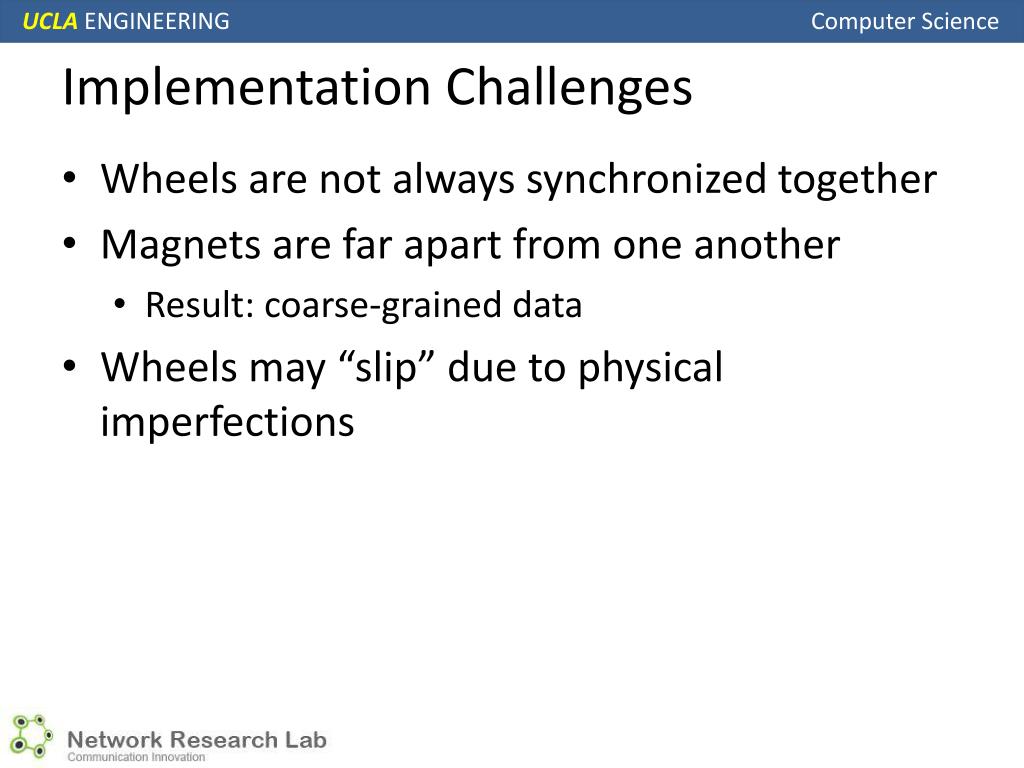

10. Implementation Challenges • Wheels are not always synchronized together • Magnets are far apart from one another • Result: coarse-grained data • Wheels may “slip” due to physical imperfections

11. Our Solution (can you explain better please??) • Find ways to do “approximately equals” • Made our own low-pass filter in counting the clicks • Single values that look like (1,0) would behave like (1,1), and pairs like (1,0),(0,1) would also behave like (1,1) • Count small turns as straight movements until confirmed to be a turn • When a turn is confirmed, backtrack the last forward movement and aggregate the turn

12. Example Forward +-----------+-------+-----------------+ | time | state | magnitude | +-----------+-------+-----------------+ | ... | ... | ... | | 855742327 | F | 0.9106 | | 855743328 | F/R | 1.13825 | | 855744328 | F | 0.9106 | | 855745328 | F | 0 | | 855746327 | F/L | 1.13825 | | 855747352 | F | 0.9106 | | 855748332 | F/L | 1.13825 | | 855749332 | F | 0.9106 |

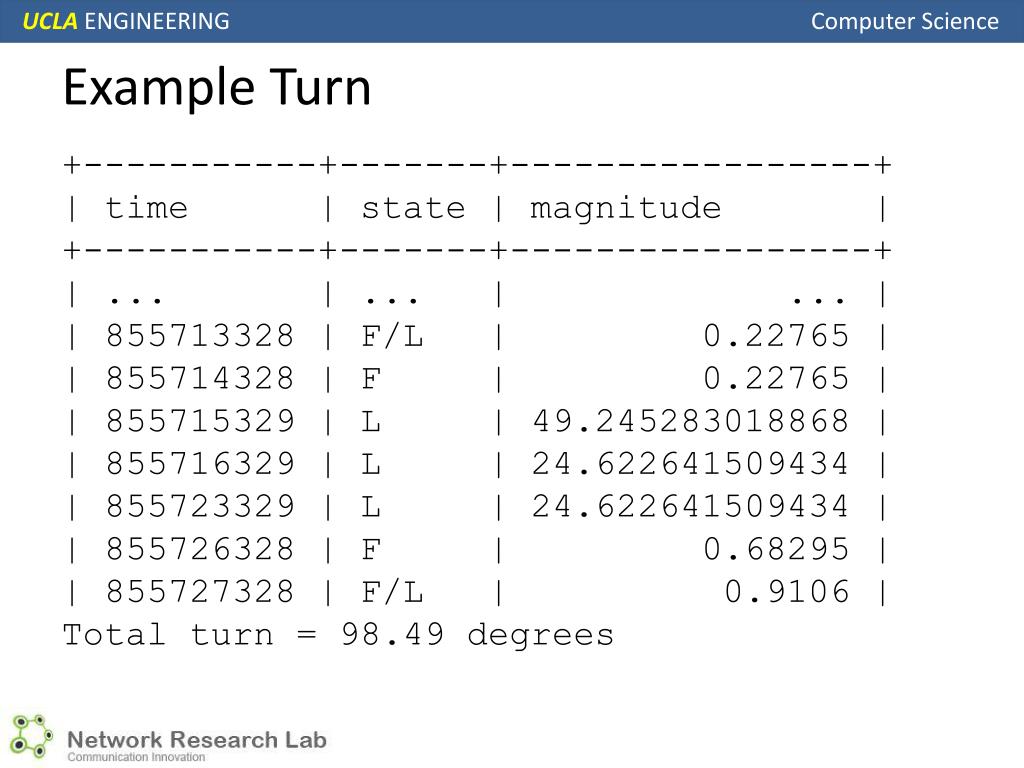

13. Example Turn +-----------+-------+-----------------+ | time | state | magnitude | +-----------+-------+-----------------+ | ... | ... | ... | | 855713328 | F/L | 0.22765 | | 855714328 | F | 0.22765 | | 855715329 | L | 49.245283018868 | | 855716329 | L | 24.622641509434 | | 855723329 | L | 24.622641509434 | | 855726328 | F | 0.68295 | | 855727328 | F/L | 0.9106 | Total turn = 98.49 degrees

14. Evaluation - General Movements • Move the wheelchair around Boelter Hall 3rd floor, the main engineering building at UCLA • Straight forward movement is accurate • Turns are off • Only 8 magnets on a wheel: can only measure degrees in increments of 24.5 • The closest to a 90 degree turn is 98 degrees

15. Evaluation – Straight Movements Error Rate vs. Travelling Speed

16. Evaluation – Straight Movements (Cont’d) Error Rate vs. Update Period (Fast Travelling Speeds)

17. Improving Turn Accuracyassuming blue print is known • Right angle correction • Assume 90 degree turns when the turning angle is close to it • Correction via boundary detection • Detect building boundary and make corrections accordingly Projected results Projected results

18. Conclusions • Indoor localization with a wheelchair can be accomplished by translating wheel rotation measurements into distance and direction • Accuracy is high for slow to medium speeds, but decreases as speed goes up • Improvements can be made by simply adding magnets • Successful proof of concept project

19. Future Work • Improve the accuracy by exploiting existing smartphone sensors: • Compass, altimeter (in a multilevel building), gyroscope, accelerometer • Synergize wheelchair dead reckoning with WiFi signature methods • The wheelchair is used as surveyor, to calibrate the signatures

20. Thank You!
