fsn 1500 week 7

FSN 1500 Week 7

Organic Compounds, the Periodic Table and Related Topics

organic compounds

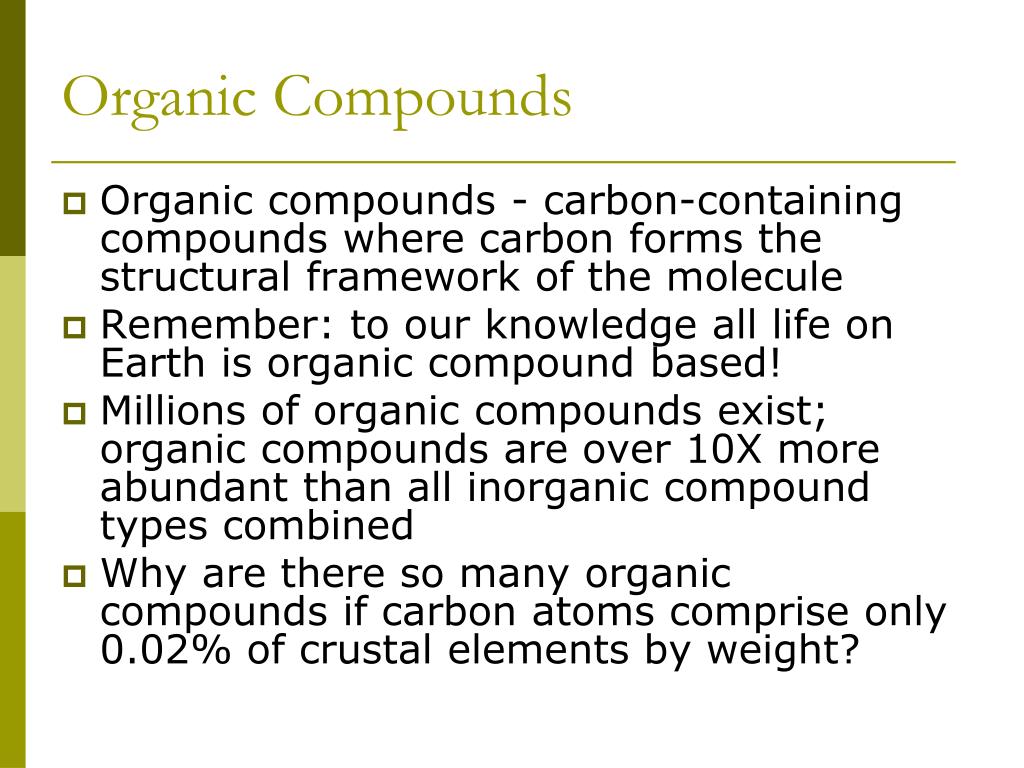

Organic Compounds
  • Organic compounds - carbon-containing compounds where carbon forms the structural framework of the molecule
  • Remember: to our knowledge all life on Earth is organic compound based!
  • Millions of organic compounds exist; organic compounds are over 10X more abundant than all inorganic compound types combined
  • Why are there so many organic compounds if carbon atoms comprise only 0.02% of crustal elements by weight?

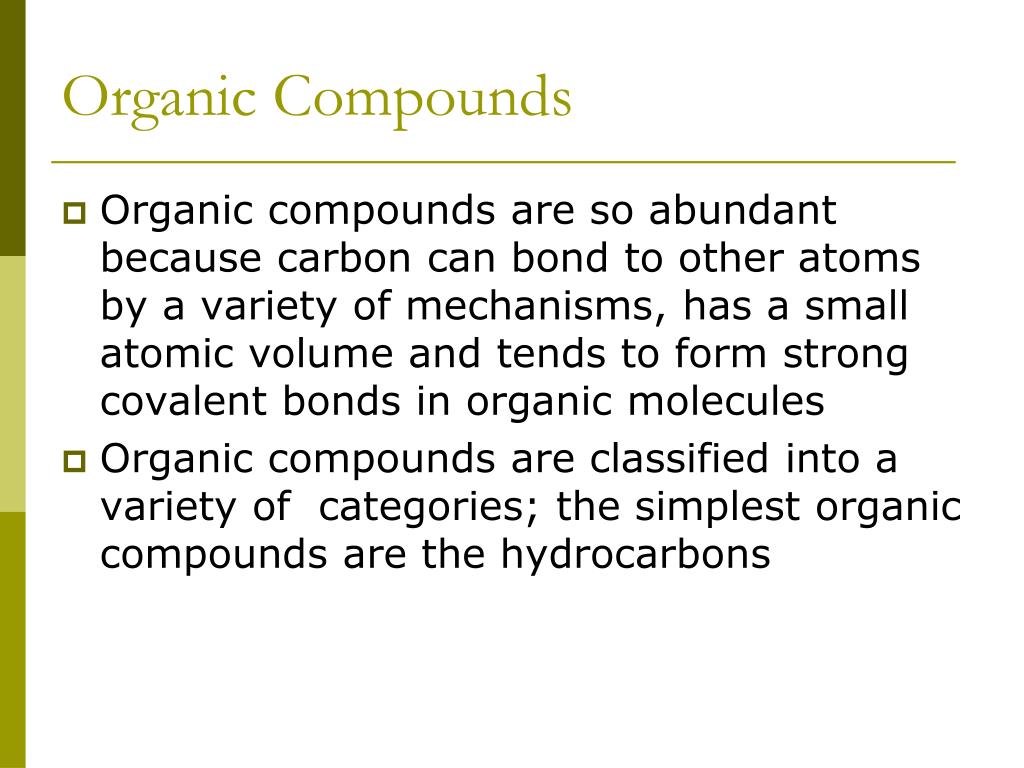

organic compounds1
Organic Compounds
  • Organic compounds are so abundant because carbon can bond to other atoms by a variety of mechanisms, has a small atomic volume and tends to form strong covalent bonds in organic molecules
  • Organic compounds are classified into a variety of categories; the simplest organic compounds are the hydrocarbons
organic compounds hydrocarbons

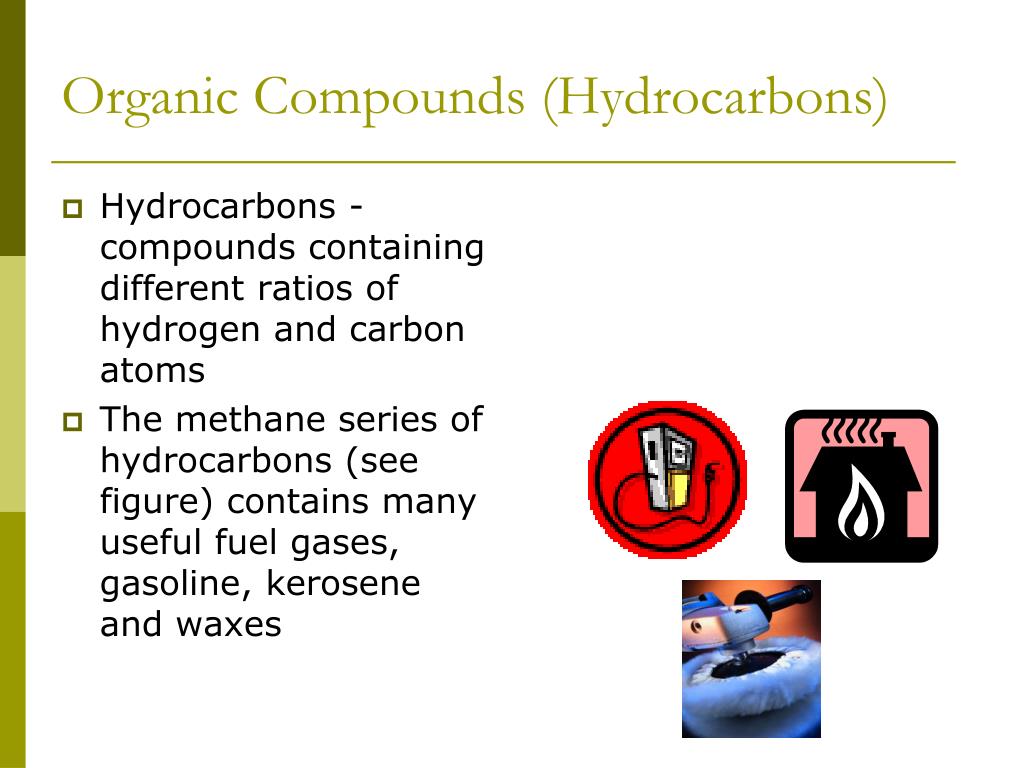

Organic Compounds (Hydrocarbons)
  • Hydrocarbons - compounds containing different ratios of hydrogen and carbon atoms
  • The methane series of hydrocarbons (see figure) contains many useful fuel gases, gasoline, kerosene and waxes
organic compounds2
Organic Compounds
  • All organic compounds can have their molecular structures represented through Lewis Structures
  • The line segment between atoms represents a single covalent bond (one pair of electrons shared)

Butane (C4H10)

Lewis Structure Diagram

organic compounds3
Organic Compounds

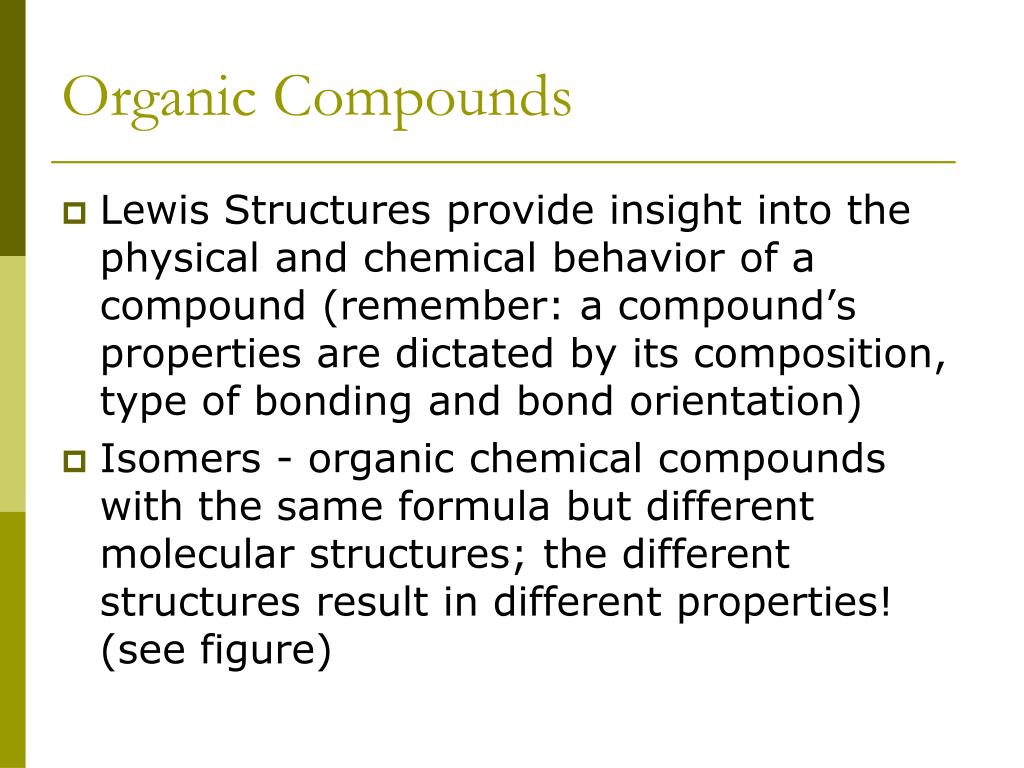

  • Lewis Structures provide insight into the physical and chemical behavior of a compound (remember: a compound’s properties are dictated by its composition, type of bonding and bond orientation)
  • Isomers - organic chemical compounds with the same formula but different molecular structures; the different structures result in different properties! (see figure)

Isomers – organic chemical

compounds with the same

chemical formula but different

molecular structures.

Note how the different

structures results in

different properties for

the isomers.

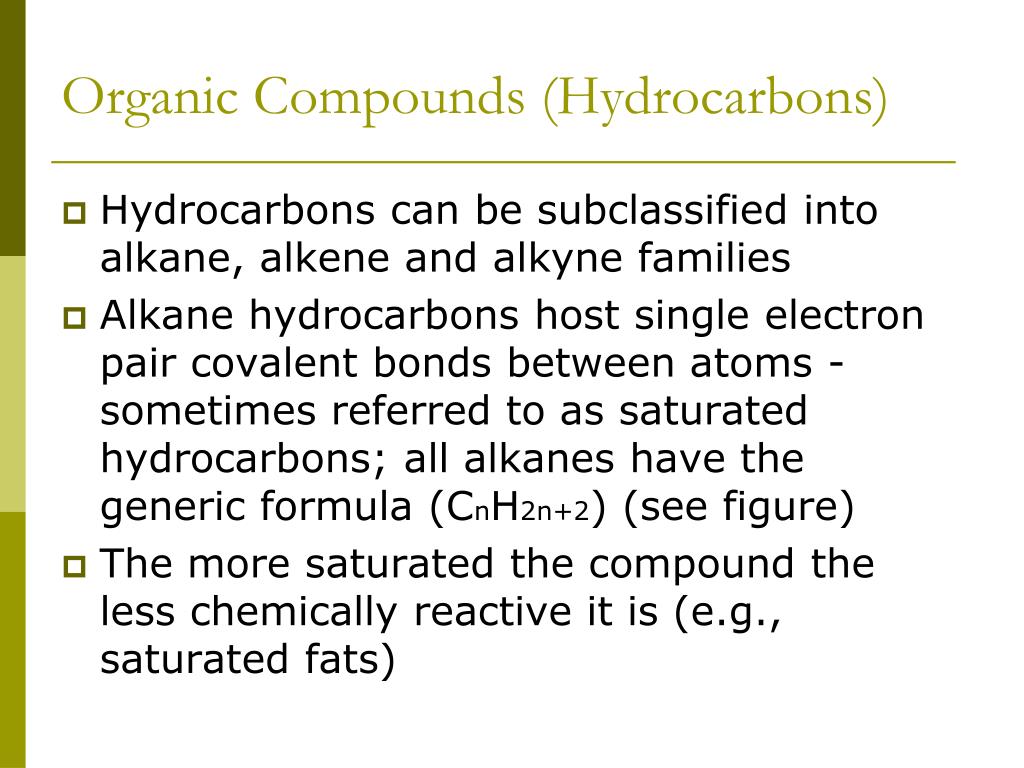

organic compounds hydrocarbons1
Organic Compounds (Hydrocarbons)

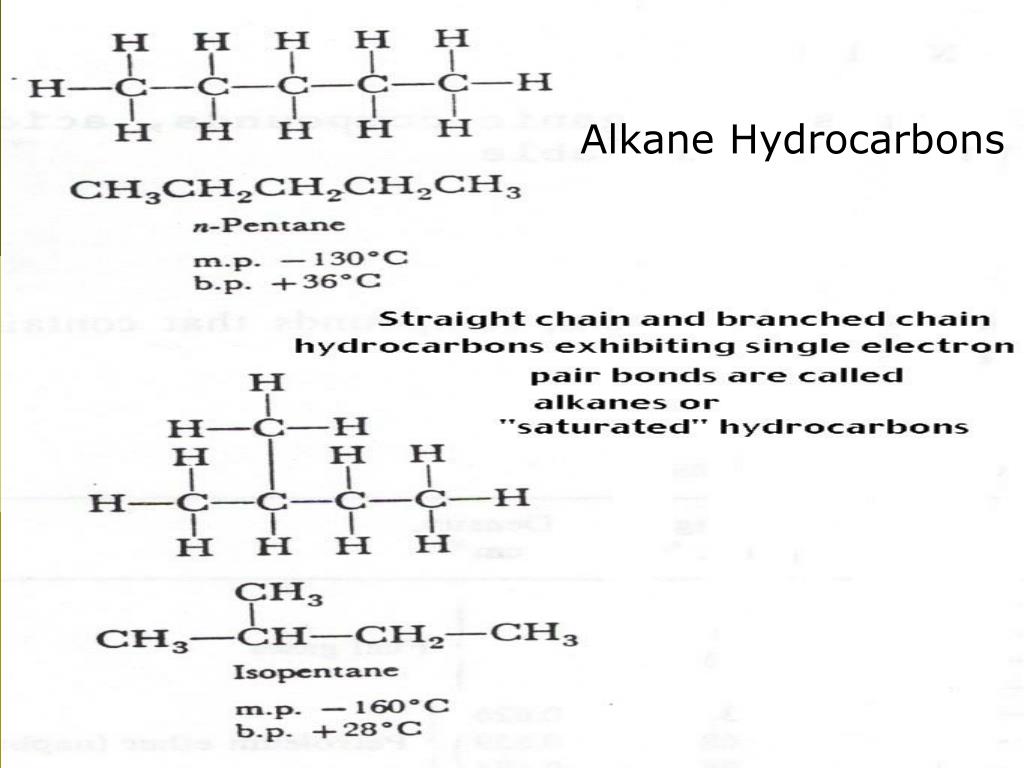

  • Hydrocarbons can be subclassified into alkane, alkene and alkyne families
  • Alkane hydrocarbons host single electron pair covalent bonds between atoms - sometimes referred to as saturated hydrocarbons; all alkanes have the generic formula (CnH2n+2) (see figure)
  • The more saturated the compound the less chemically reactive it is (e.g., saturated fats)
organic compounds hydrocarbons2

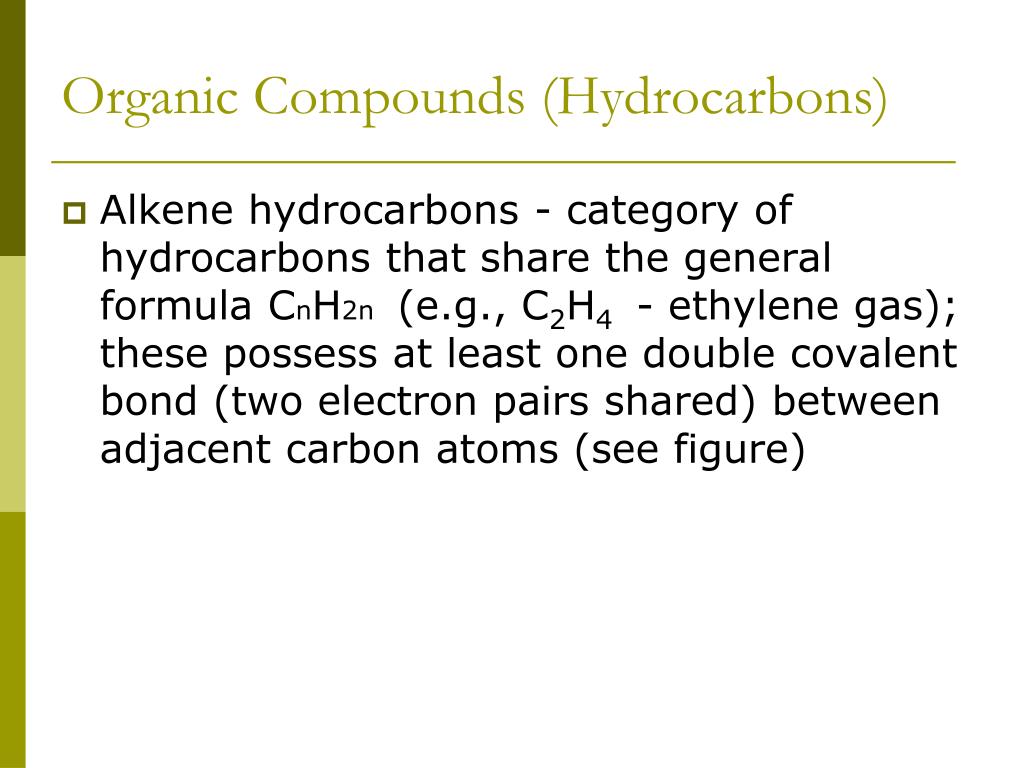

Organic Compounds (Hydrocarbons)
  • Alkene hydrocarbons - category of hydrocarbons that share the general formula CnH2n (e.g., C2H4 - ethylene gas); these possess at least one double covalent bond (two electron pairs shared) between adjacent carbon atoms (see figure)

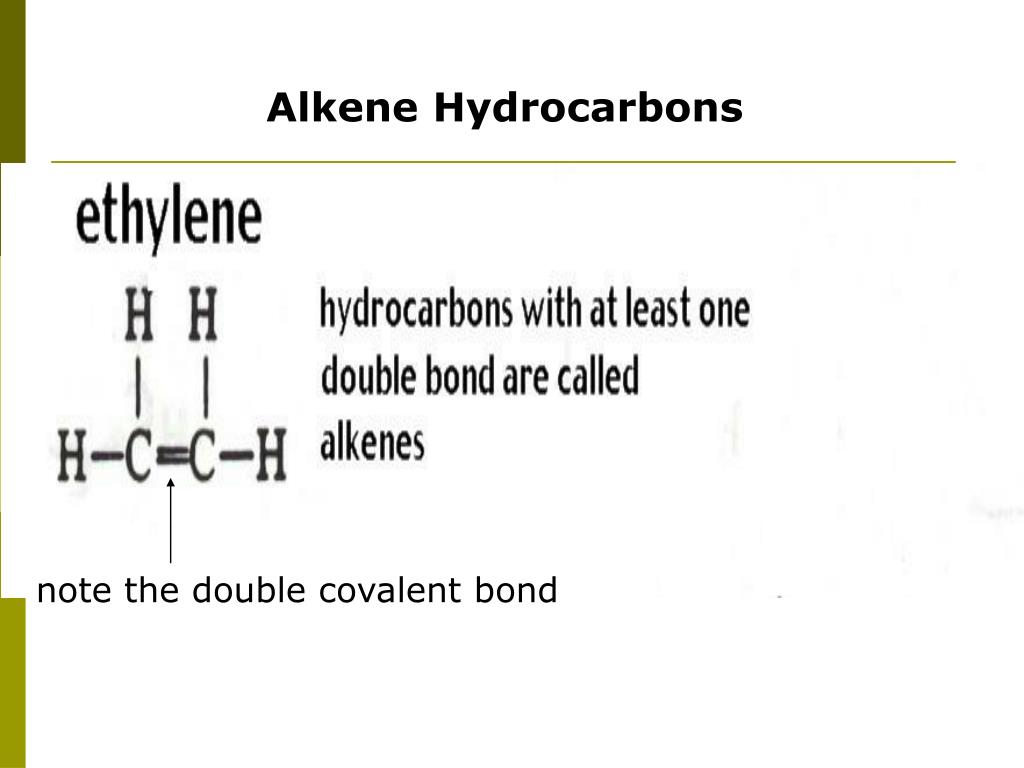

Alkene Hydrocarbons

note the double covalent bond

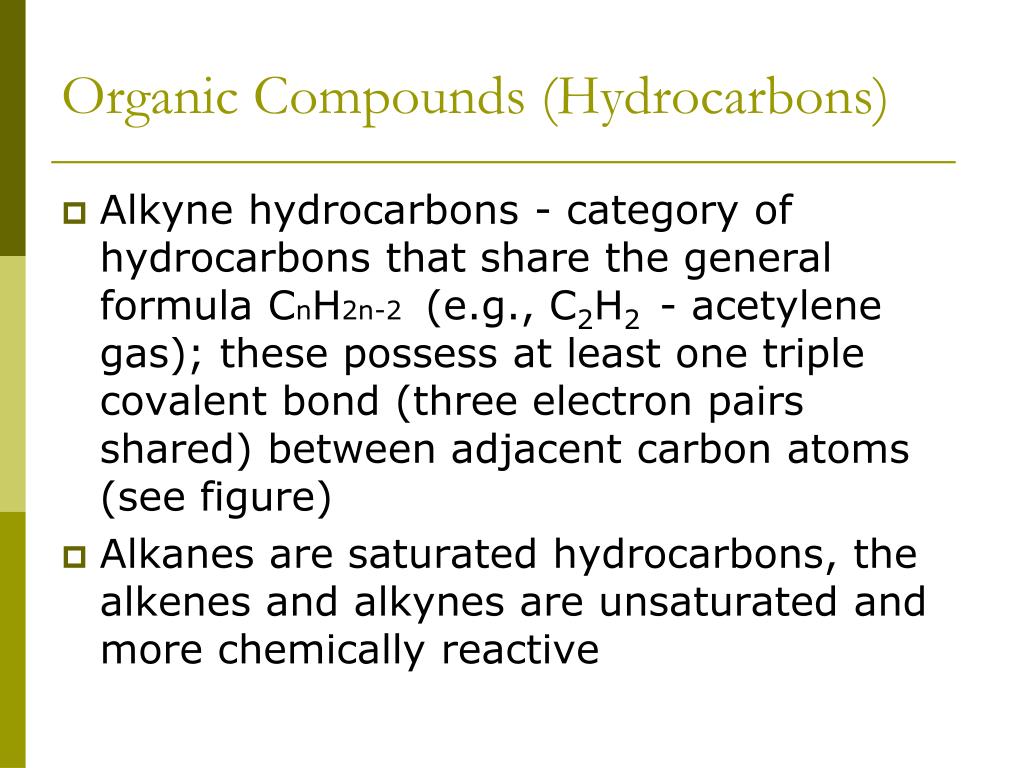

organic compounds hydrocarbons3
Organic Compounds (Hydrocarbons)
  • Alkyne hydrocarbons - category of hydrocarbons that share the general formula CnH2n-2 (e.g., C2H2 - acetylene gas); these possess at least one triple covalent bond (three electron pairs shared) between adjacent carbon atoms (see figure)
  • Alkanes are saturated hydrocarbons, the alkenes and alkynes are unsaturated and more chemically reactive

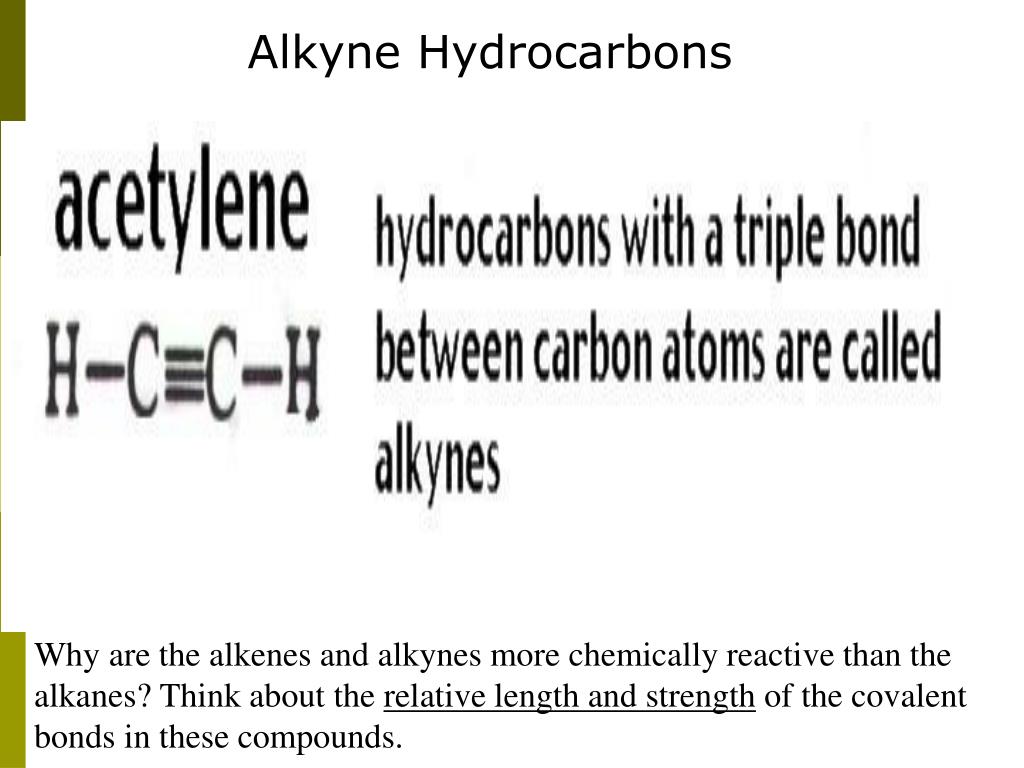

Alkyne Hydrocarbons

Why are the alkenes and alkynes more chemically reactive than the

alkanes? Think about the relative length and strength of the covalent

bonds in these compounds.

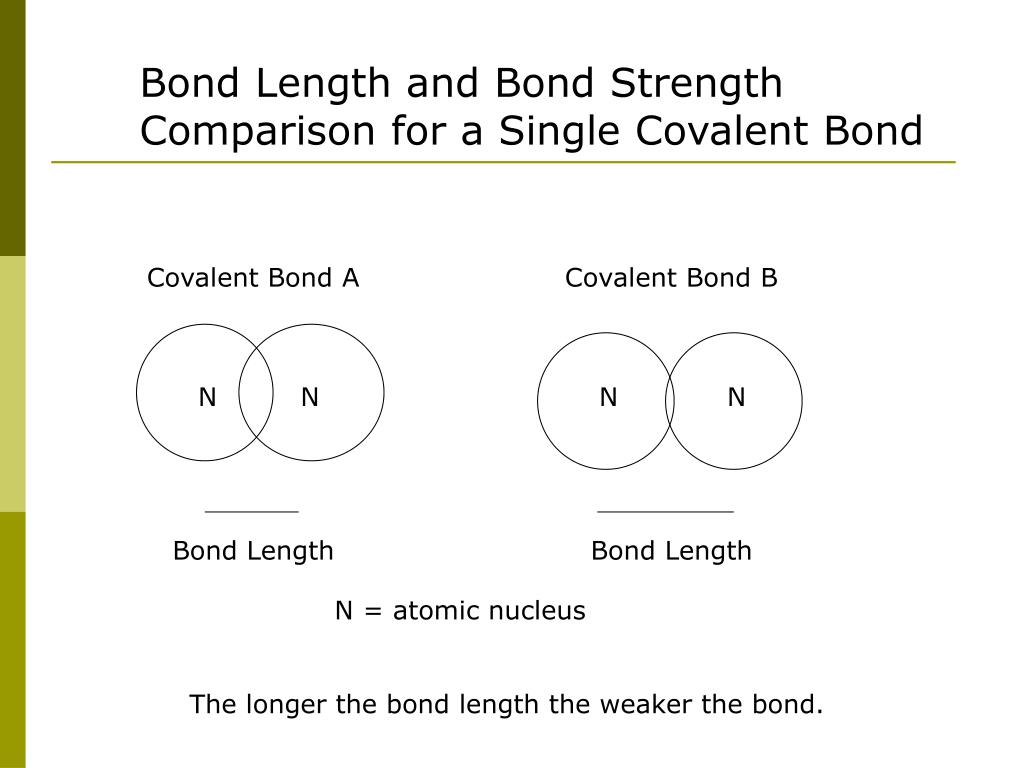

Bond Length and Bond Strength

Comparison for a Single Covalent Bond

Covalent Bond A

Covalent Bond B





Bond Length

Bond Length

N = atomic nucleus

The longer the bond length the weaker the bond.

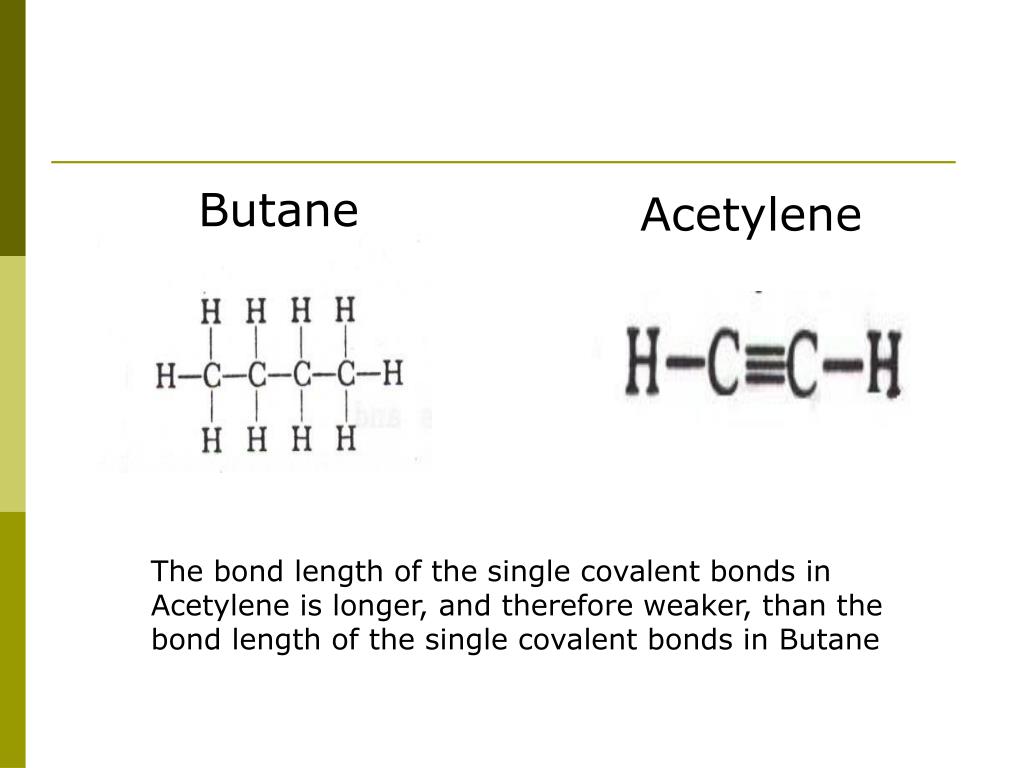

The bond length of the single covalent bonds in

Acetylene is longer, and therefore weaker, than the

bond length of the single covalent bonds in Butane

organic compounds hydrocarbons4
Organic Compounds (Hydrocarbons)

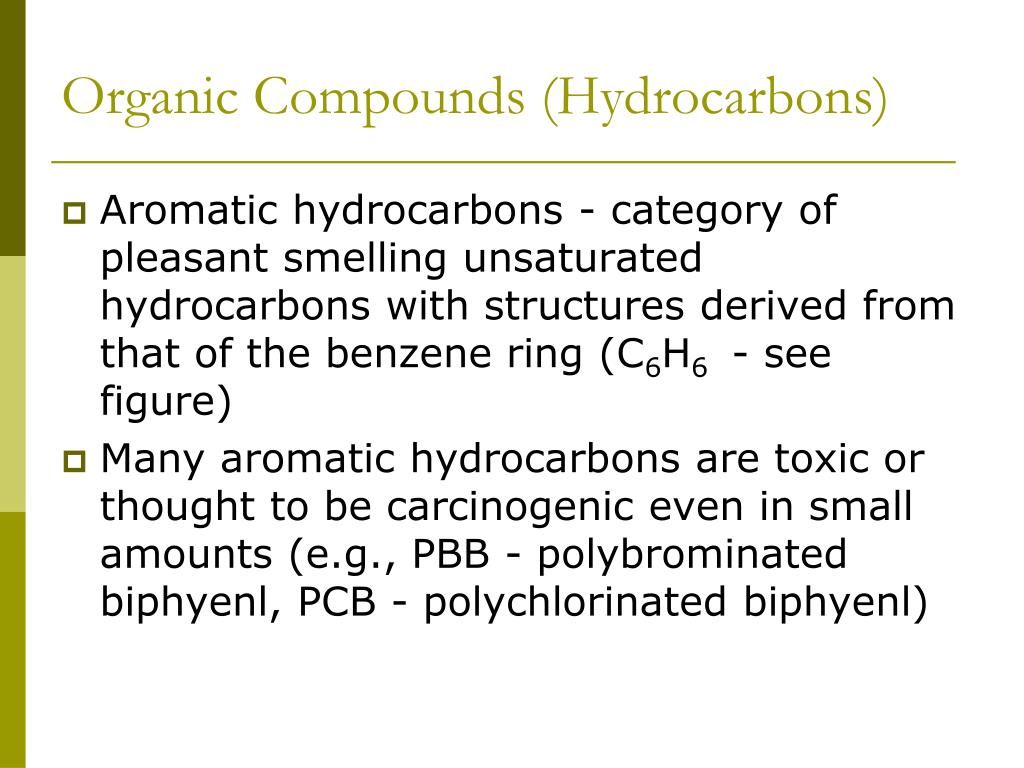

  • Aromatic hydrocarbons - category of pleasant smelling unsaturated hydrocarbons with structures derived from that of the benzene ring (C6H6 - see figure)
  • Many aromatic hydrocarbons are toxic or thought to be carcinogenic even in small amounts (e.g., PBB - polybrominated biphyenl, PCB - polychlorinated biphyenl)

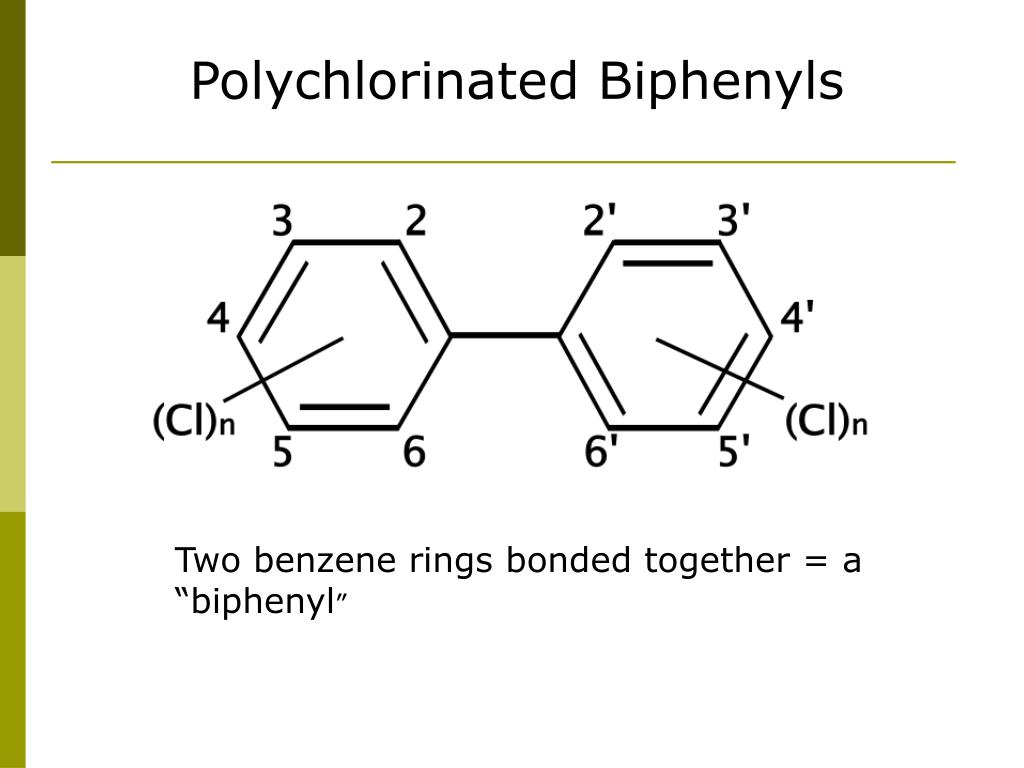

Polychlorinated Biphenyls

Two benzene rings bonded together = a “biphenyl”

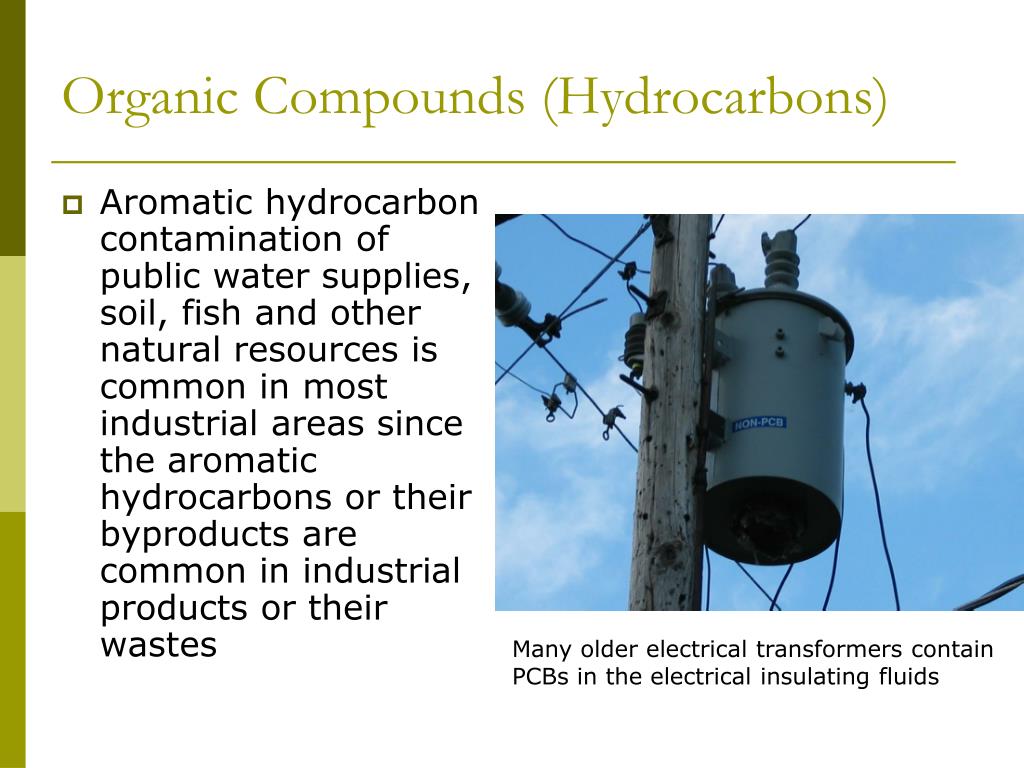

organic compounds hydrocarbons5
Organic Compounds (Hydrocarbons)
  • Aromatic hydrocarbon contamination of public water supplies, soil, fish and other natural resources is common in most industrial areas since the aromatic hydrocarbons or their byproducts are common in industrial products or their wastes

Many older electrical transformers contain

PCBs in the electrical insulating fluids

organic compounds alcohols
Organic Compounds (Alcohols)
  • Alcohols - organic compounds similar to the hydrocarbons, but one or more of the H atoms is replaced by an hydroxide (OH) group (see figure)

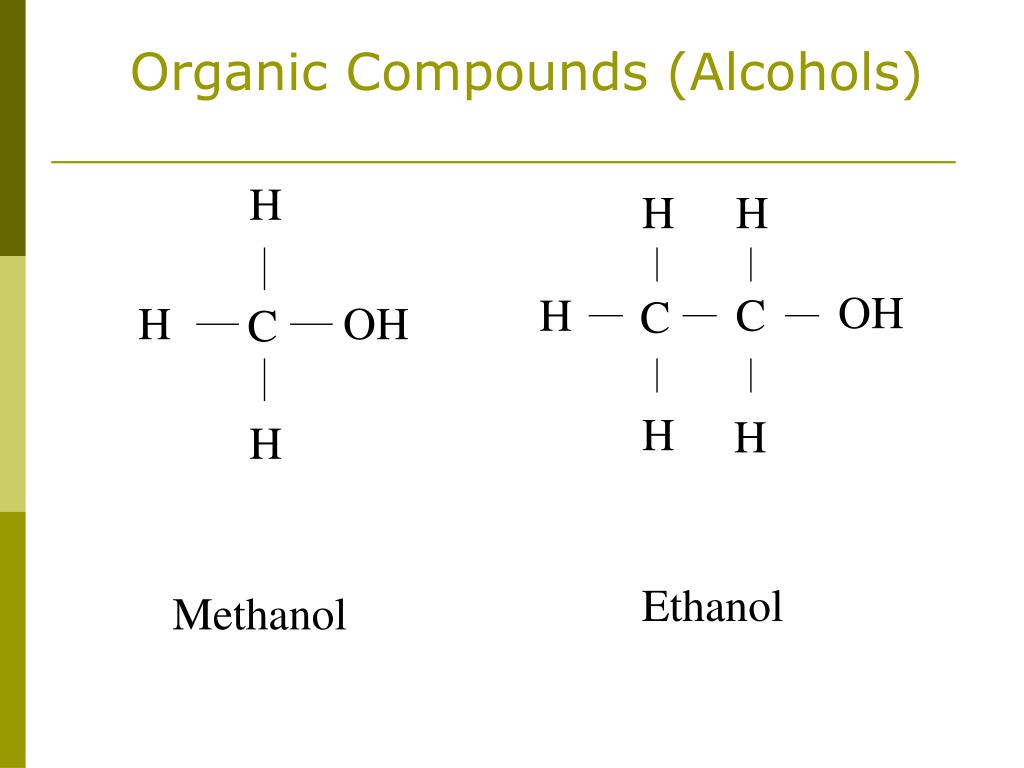

Organic Compounds (Alcohols)

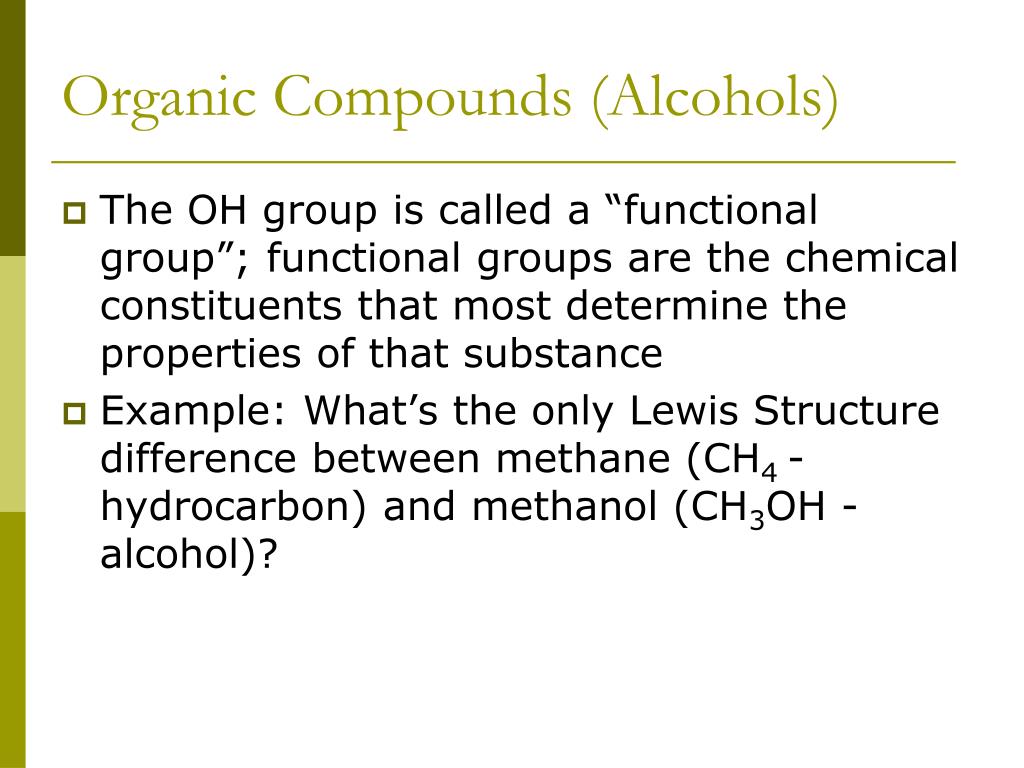

organic compounds alcohols1
Organic Compounds (Alcohols)
  • The OH group is called a “functional group”; functional groups are the chemical constituents that most determine the properties of that substance
  • Example: What’s the only Lewis Structure difference between methane (CH4 - hydrocarbon) and methanol (CH3OH - alcohol)?
organic compounds organic acids
Organic Compounds (Organic Acids)
  • Organic acids - organic compounds that generate acidic solutions; the functional group for these compounds is the carboxyl group (COOH); acetic acid (the acid of vinegar) is an example; see figure
  • Organic acids are produced from decaying organic matter and may be important agents of chemical weathering
organic compounds fats
Organic Compounds (Fats)
  • Fats - organic compounds that belong to a broader category called esters; esters are formed by the reaction between an alcohol and an acid (see figure)
  • Solid fats are saturated; the fats in liquid oils are technically unsaturated - be careful: some cooking oils have small particles of solid fat blended into them
organic compounds fats1
Organic Compounds (Fats)

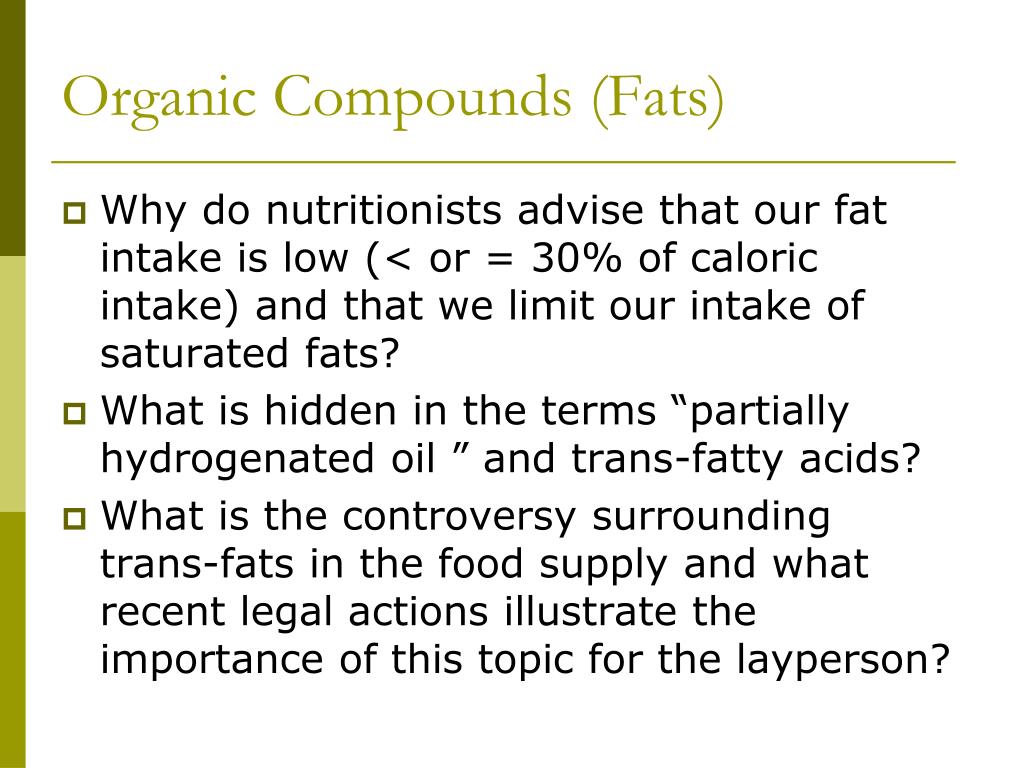

  • Why do nutritionists advise that our fat intake is low (< or = 30% of caloric intake) and that we limit our intake of saturated fats?
  • What is hidden in the terms “partially hydrogenated oil ” and trans-fatty acids?
  • What is the controversy surrounding trans-fats in the food supply and what recent legal actions illustrate the importance of this topic for the layperson?
organic compounds fats2
Organic Compounds (Fats)

What is hidden in the terms “partially hydrogenated oil ” and trans-fatty acids?

What is the controversy surrounding trans-fats in the food supply and what recent legal actions illustrate the importance of this topic for the layperson?

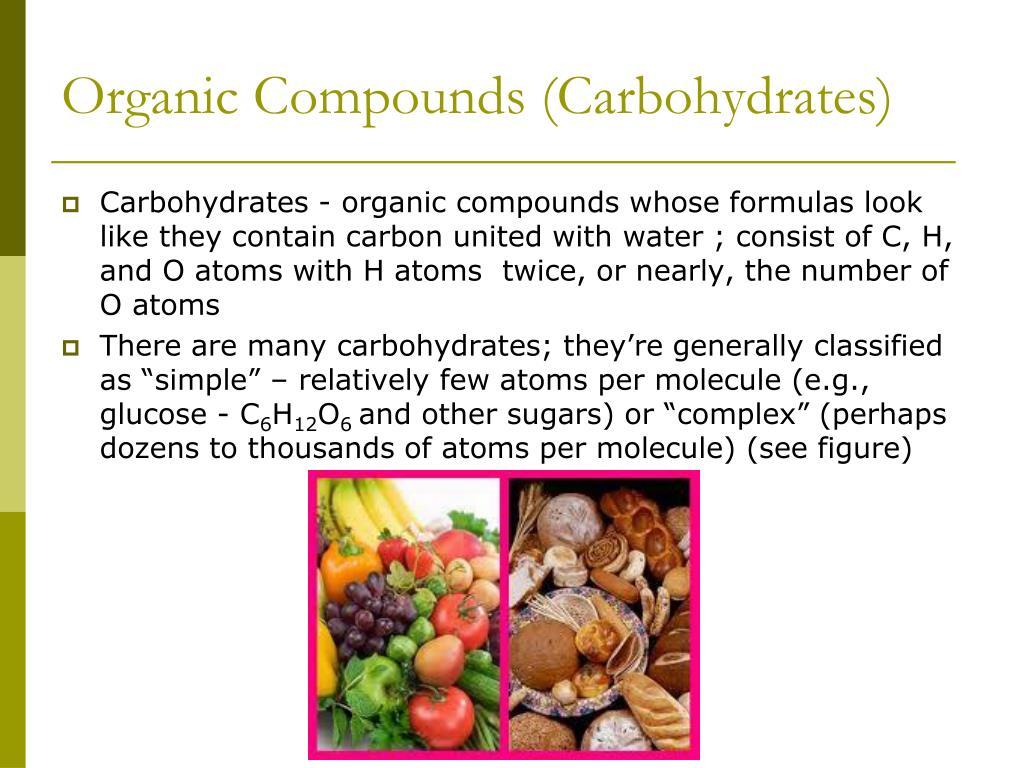

organic compounds carbohydrates
Organic Compounds (Carbohydrates)
  • Carbohydrates - organic compounds whose formulas look like they contain carbon united with water ; consist of C, H, and O atoms with H atoms twice, or nearly, the number of O atoms
  • There are many carbohydrates; they’re generally classified as “simple” – relatively few atoms per molecule (e.g., glucose - C6H12O6 and other sugars) or “complex” (perhaps dozens to thousands of atoms per molecule) (see figure)
organic compounds carbohydrates1
Organic Compounds (Carbohydrates)

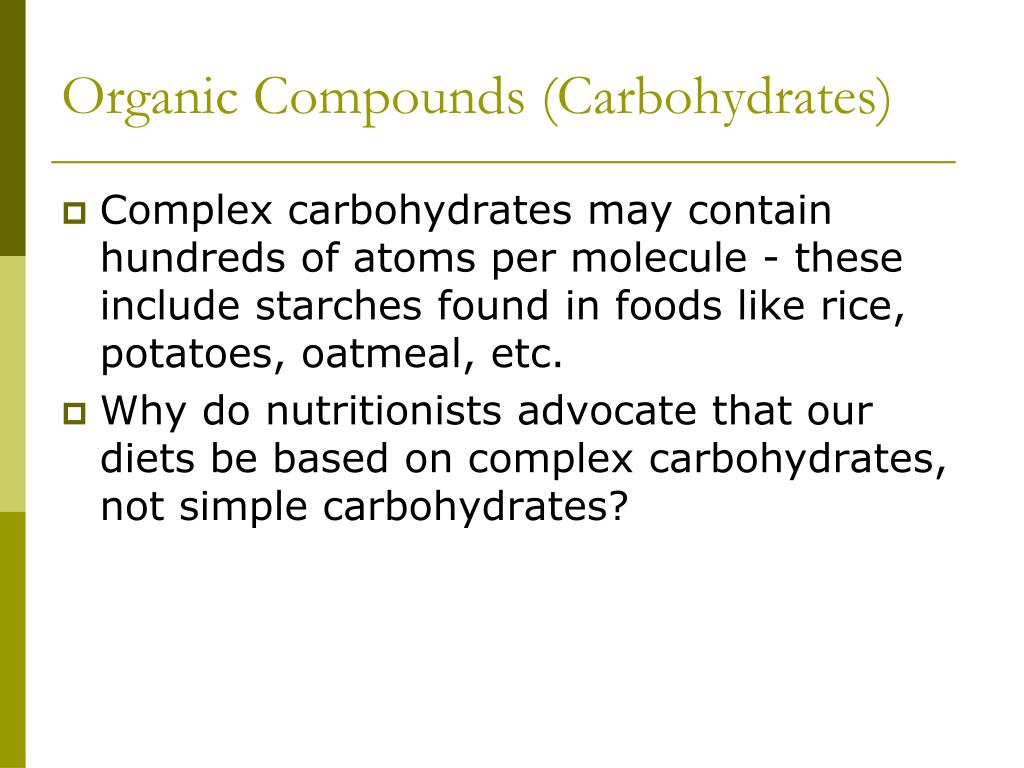

  • Complex carbohydrates may contain hundreds of atoms per molecule - these include starches found in foods like rice, potatoes, oatmeal, etc.
  • Why do nutritionists advocate that our diets be based on complex carbohydrates, not simple carbohydrates?

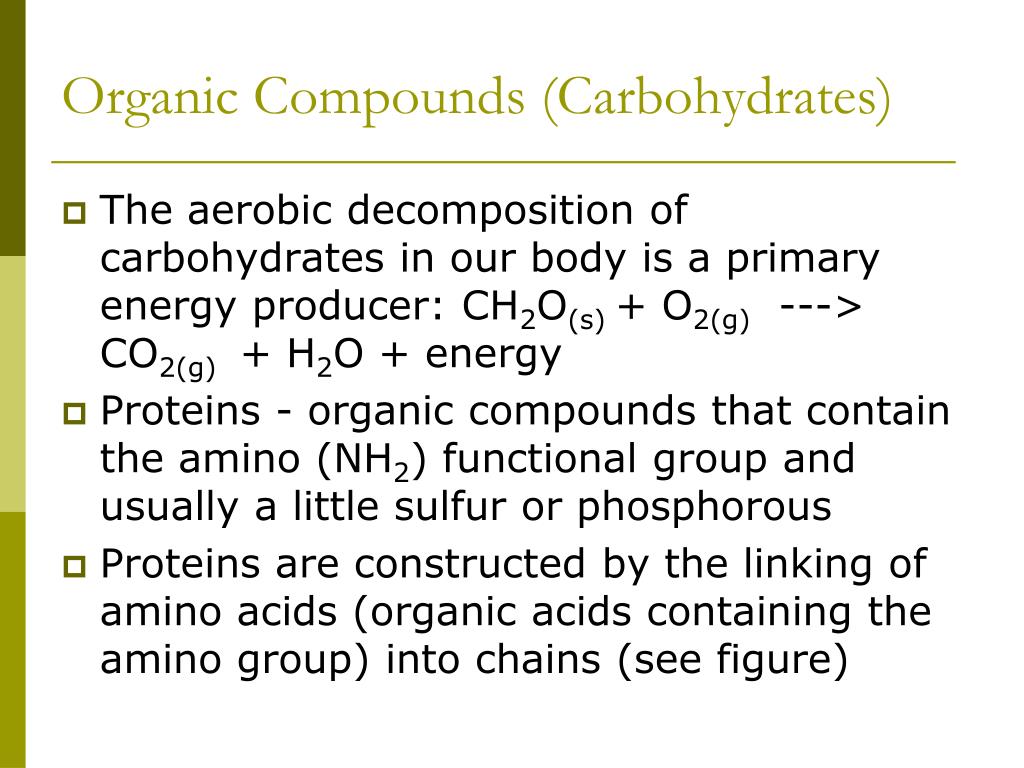

organic compounds carbohydrates2
Organic Compounds (Carbohydrates)
  • The aerobic decomposition of carbohydrates in our body is a primary energy producer: CH2O(s) + O2(g) ---> CO2(g) + H2O + energy
  • Proteins - organic compounds that contain the amino (NH2) functional group and usually a little sulfur or phosphorous
  • Proteins are constructed by the linking of amino acids (organic acids containing the amino group) into chains (see figure)
organic compounds proteins

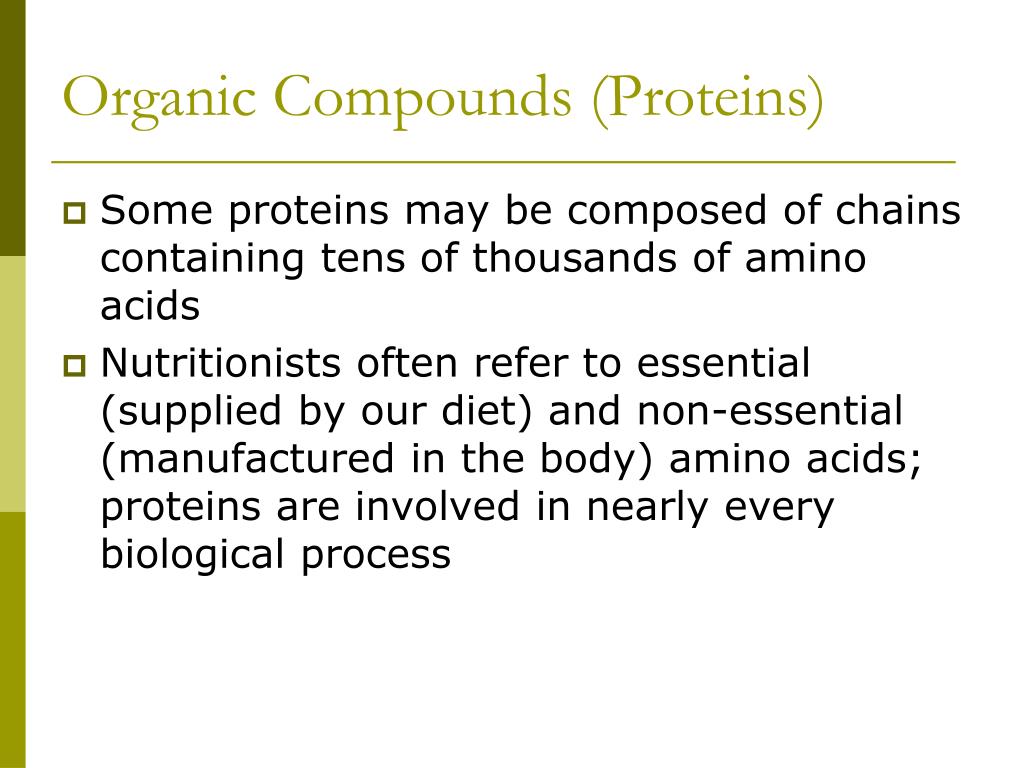

Organic Compounds (Proteins)
  • Some proteins may be composed of chains containing tens of thousands of amino acids
  • Nutritionists often refer to essential (supplied by our diet) and non-essential (manufactured in the body) amino acids; proteins are involved in nearly every biological process
the periodic table

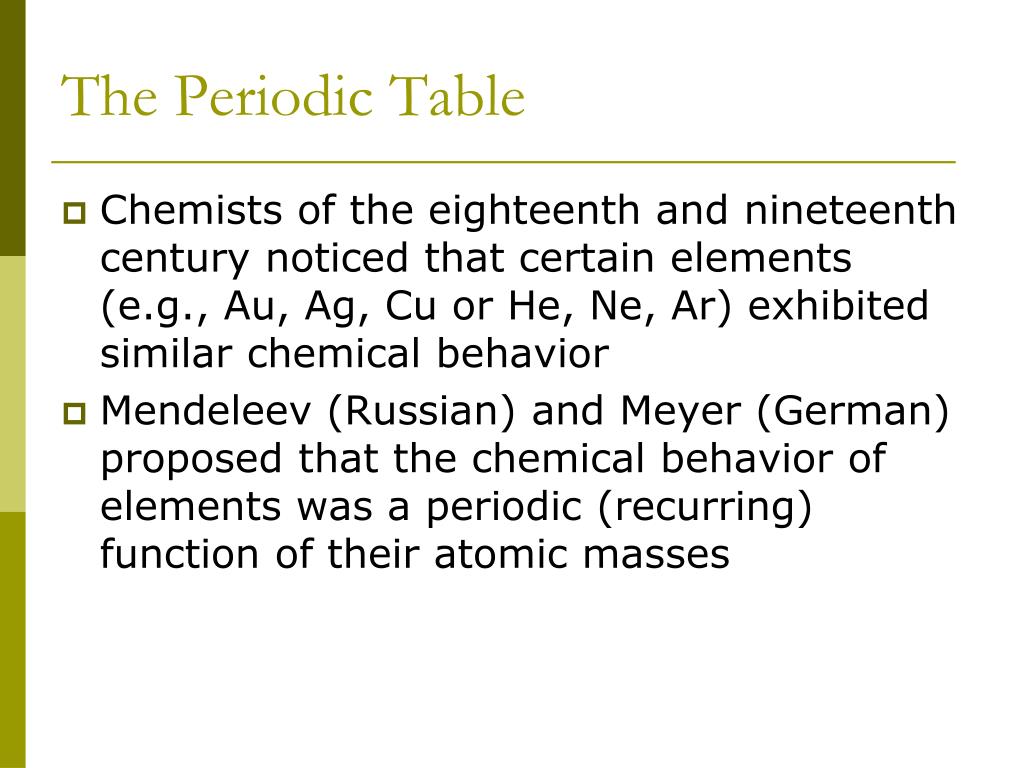

The Periodic Table
  • Chemists of the eighteenth and nineteenth century noticed that certain elements (e.g., Au, Ag, Cu or He, Ne, Ar) exhibited similar chemical behavior
  • Mendeleev (Russian) and Meyer (German) proposed that the chemical behavior of elements was a periodic (recurring) function of their atomic masses
the periodic table1

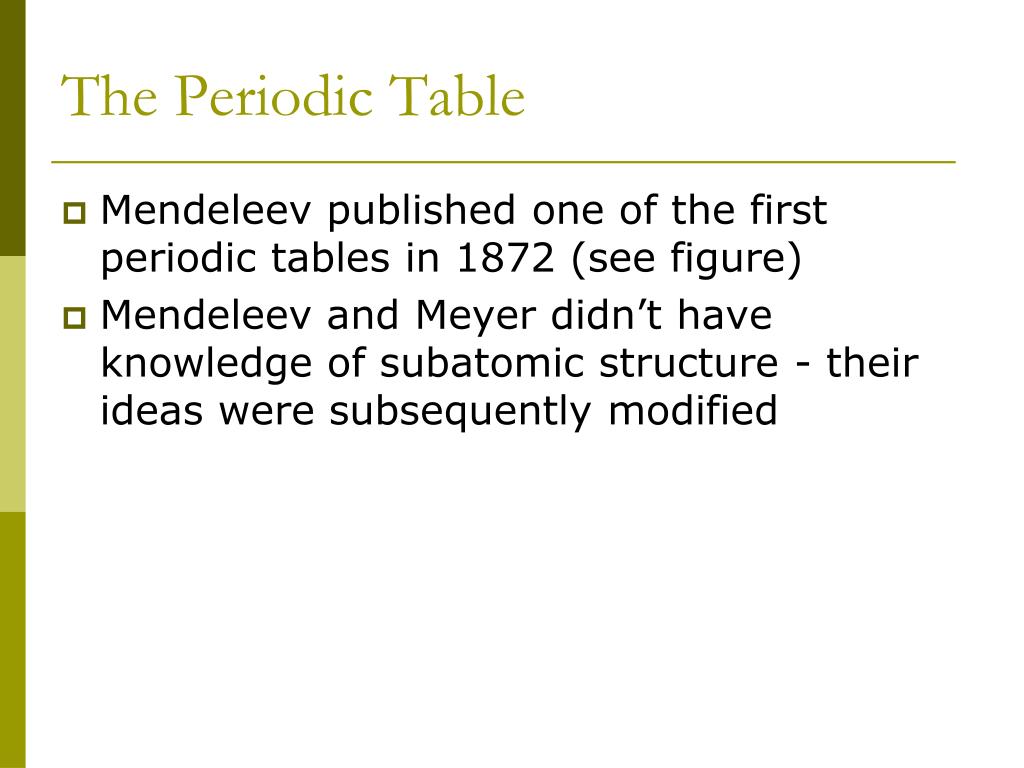

The Periodic Table
  • Mendeleev published one of the first periodic tables in 1872 (see figure)
  • Mendeleev and Meyer didn’t have knowledge of subatomic structure - their ideas were subsequently modified
the periodic table2
The Periodic Table
  • Modern Periodic Law - the chemical behavior of the elements is a periodic function of their atomic number
  • We now know that the electron distribution around the nucleus controls the atom’s chemical behavior. In an uncharged atom what controls the number of electrons? The number of protons (atomic number) in the nucleus.
  • The modern periodic table is arranged into an array (series of rows and columns) of increasing atomic number elements
the periodic table3

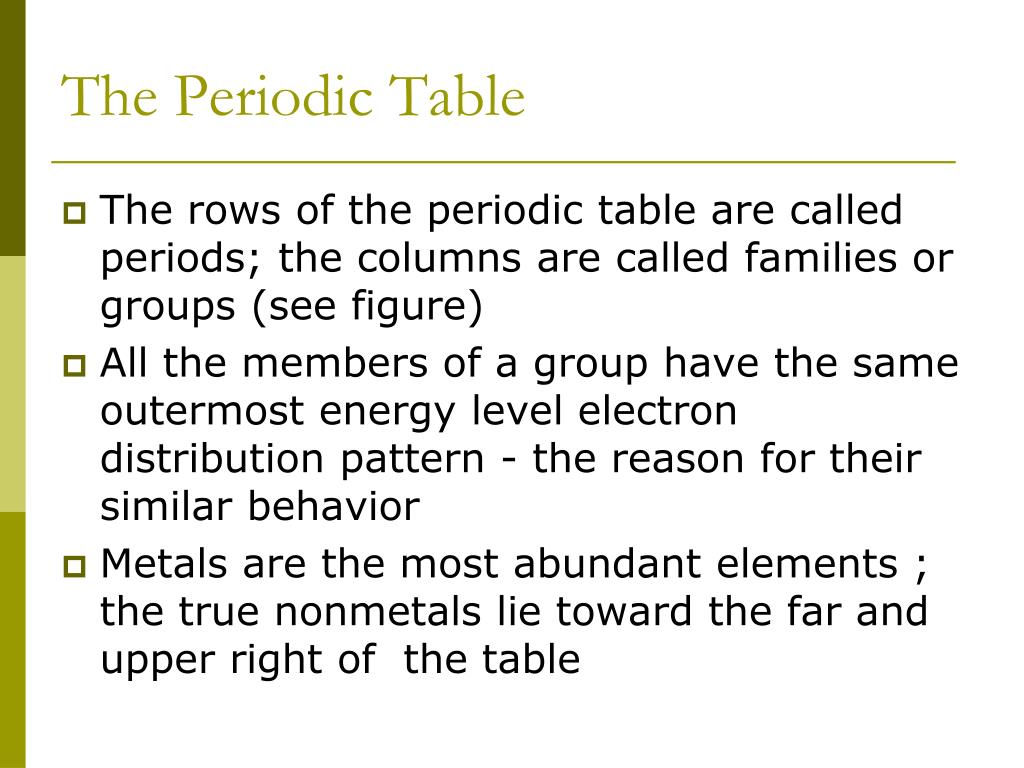

The Periodic Table
  • The rows of the periodic table are called periods; the columns are called families or groups (see figure)
  • All the members of a group have the same outermost energy level electron distribution pattern - the reason for their similar behavior
  • Metals are the most abundant elements ; the true nonmetals lie toward the far and upper right of the table
the periodic table4
The Periodic Table
  • A few elements (e.g., As, Po) are called metalloids - they have properties of both metals and nonmetals
  • Across a period (left to right) the properties of the elements trend from strongly metallic to strongly non-metallic with the last member of each period a noble gas
the periodic table5
The Periodic Table
  • Brief Overview of Some Groups:
  • Noble Gases (VIIIA) - all have the electron distribution required for energetic stability and therefore have no tendency to chemically react
  • Halogens (VIIA) - all need one electron to complete their energy stability requirements; hal - salt, gen - genesis
the periodic table6
The Periodic Table
  • The halogens commonly react with elements that need to lose one electron to become energetically stable: Na1+ + Cl1- NaCl (table salt)
  • The alkali metals (IA) are metals that react with water to form alkaline (basic) solutions; they commonly react with the halogens
the periodic table7
The Periodic Table

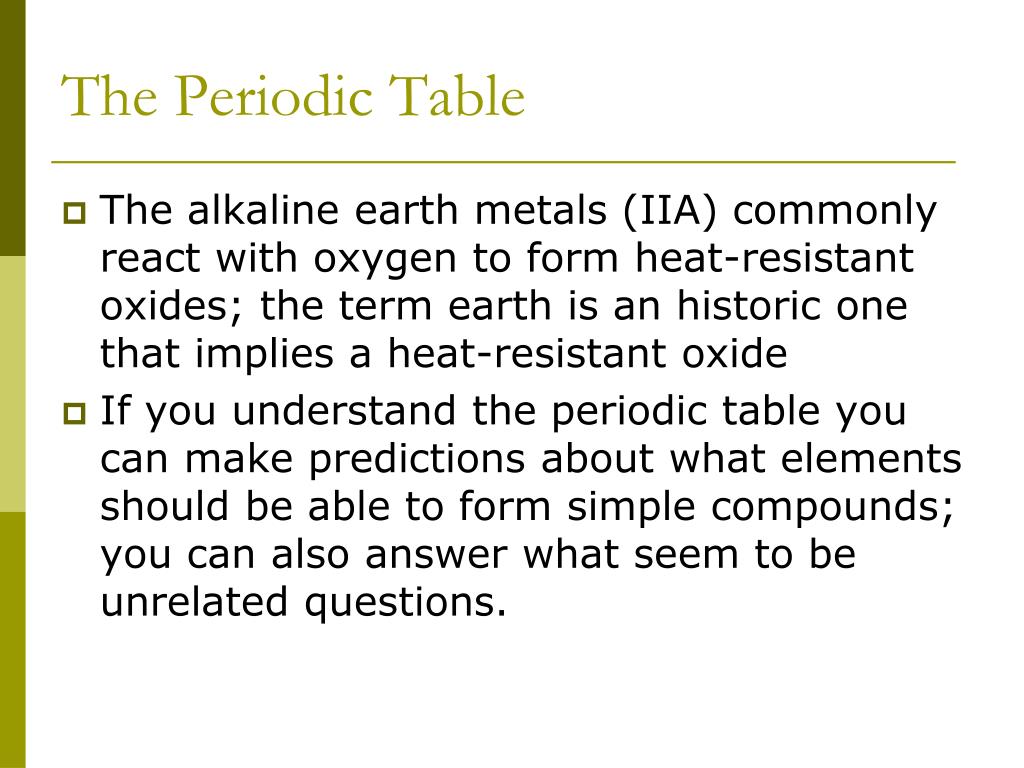

  • The alkaline earth metals (IIA) commonly react with oxygen to form heat-resistant oxides; the term earth is an historic one that implies a heat-resistant oxide
  • If you understand the periodic table you can make predictions about what elements should be able to form simple compounds; you can also answer what seem to be unrelated questions.
the periodic table8

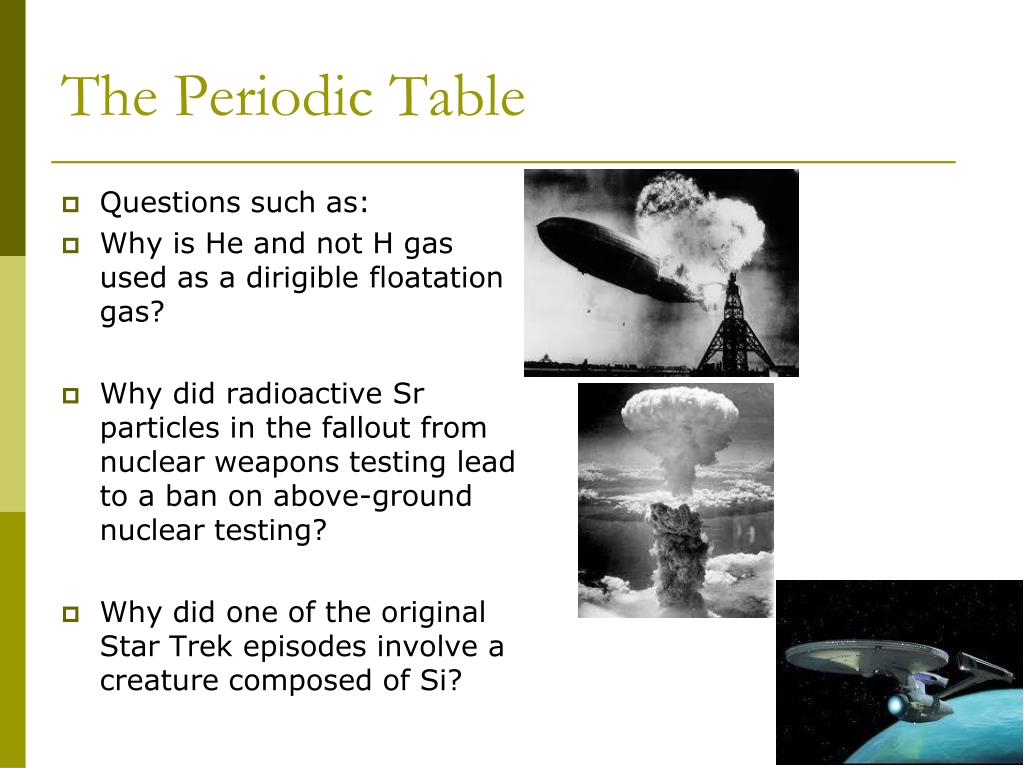

The Periodic Table
  • Questions such as:
  • Why is He and not H gas used as a dirigible floatation gas?
  • Why did radioactive Sr particles in the fallout from nuclear weapons testing lead to a ban on above-ground nuclear testing?
  • Why did one of the original Star Trek episodes involve a creature composed of Si?
the periodic table9
The Periodic Table

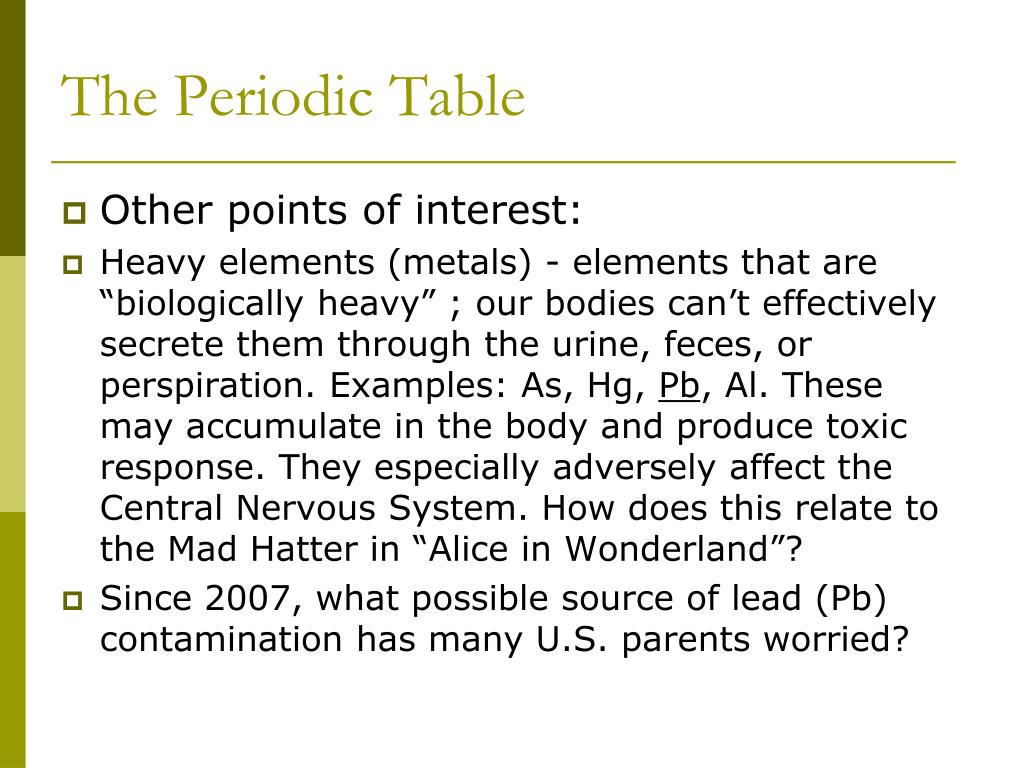

  • Other points of interest:
  • Heavy elements (metals) - elements that are “biologically heavy” ; our bodies can’t effectively secrete them through the urine, feces, or perspiration. Examples: As, Hg, Pb, Al. These may accumulate in the body and produce toxic response. They especially adversely affect the Central Nervous System. How does this relate to the Mad Hatter in “Alice in Wonderland”?
  • Since 2007, what possible source of lead (Pb) contamination has many U.S. parents worried?
the periodic table10

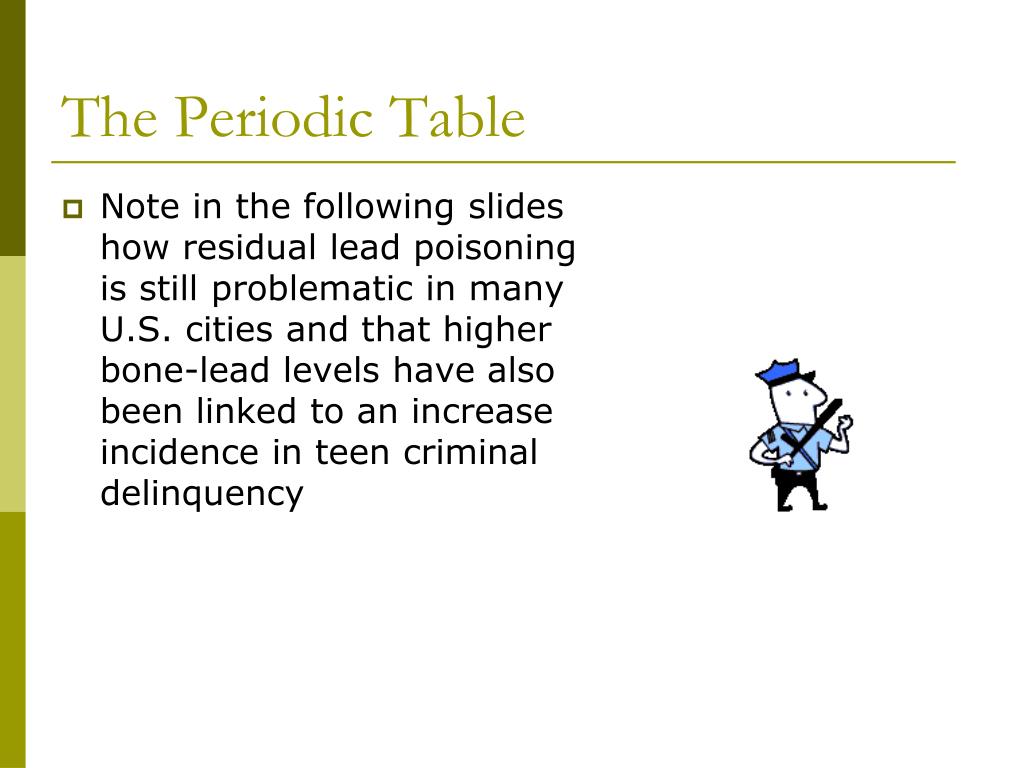

The Periodic Table
  • Note in the following slides how residual lead poisoning is still problematic in many U.S. cities and that higher bone-lead levels have also been linked to an increase incidence in teen criminal delinquency

Lead Sources?

Soil, pre-1980s

paints, lead

municipal water

pipes (Detroit), old

lead smelters (Detroit)

Source: Geotimes, May 2005

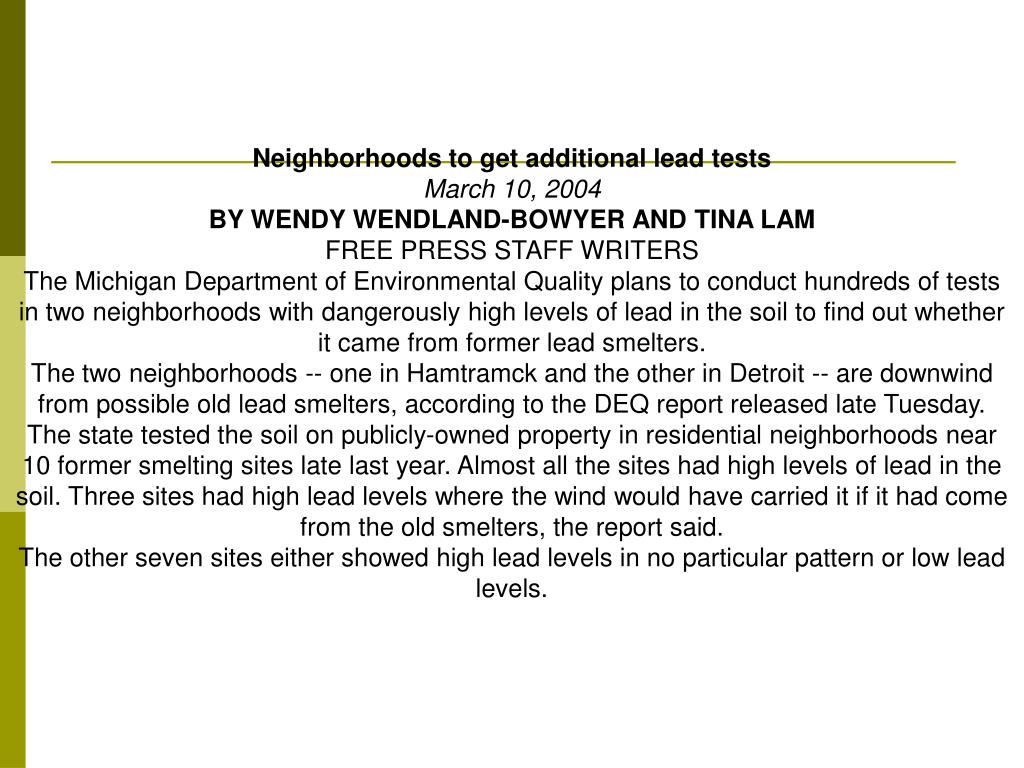

Neighborhoods to get additional lead tests

March 10, 2004


The Michigan Department of Environmental Quality plans to conduct hundreds of tests in two neighborhoods with dangerously high levels of lead in the soil to find out whether it came from former lead smelters.

The two neighborhoods -- one in Hamtramck and the other in Detroit -- are downwind from possible old lead smelters, according to the DEQ report released late Tuesday.

The state tested the soil on publicly-owned property in residential neighborhoods near 10 former smelting sites late last year. Almost all the sites had high levels of lead in the soil. Three sites had high lead levels where the wind would have carried it if it had come from the old smelters, the report said.

The other seven sites either showed high lead levels in no particular pattern or low lead levels.

the periodic table11
The Periodic Table
  • Note how this issue remains in the news.
  • Be forewarned: cadmium, another heavy metal, has replaced lead in many manufactured products such as some toys

detnews.com; 12/25/2009

the periodic table12
The Periodic Table
  • Mercury (Hg) is another heavy metal of concern; note that the source of most of this contamination is coal-fired electric power plants
the periodic table13
The Periodic Table

Pay attention to this issue; it’s not commonly discussed in the local or state press.

the periodic table14
The Periodic Table
  • Superconductivity - the transfer of electricity with 100% efficiency. Since 1986 research advances have produced superconductors which operate at about -2200F; not widely applicable yet
  • What would be some possible applications of higher-temperature (say ~ 00 – 600F) superconductors?
the periodic table15
The Periodic Table
  • On a related note, nearly 100% efficient electrical transfer using carbon nanotubes, essentially folded layers of graphite, has been achieved in the laboratory! (see figure)


of a carbon


the periodic table16
The Periodic Table
  • Application? Scientists and engineers are salivating over possibly being able to connect multiple carbon nanotubes to create carbon-based molecular electronic devices to replace silicon-based computer chips. This is just one possible application.
  • Single layers of graphite (graphene) may also have numerous applications.
