reporter 2013 10 31

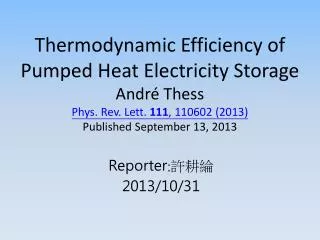

Thermodynamic Efficiency of Pumped Heat Electricity StorageAndré ThessPhys. Rev. Lett. 111, 110602 (2013)Published September 13, 2013

Reporter:許耕綸

2013/10/31

slide2
大綱
  • 前言
  • 傳統非化學儲能技術
  • Pumped Heat Electricity Storage(PHES)和Pumped Cryogenic Electricity Storage(PCES)介紹
  • 模型建立與假設
  • 效率計算
  • 預測、分析、修正
  • 總結
slide3
前言
  • 為了解決間歇性再生能源電力儲存的問題,最近發展出PHES系統,比起傳統非化學儲能技術Pumped Hydro Stroage(PHS)和Compressed Air Energy Storage(CAES)所需的限制少且可建造於任何地方。然而大型PHES系統還不存在,理論預測也不多,系統的效率是未知的,於是作者制定出簡單的熱力學模型來預測PHES的效率。
phes pces
PHES和PCES介紹
  • 概念:電能經由Heat Pump轉換為熱能儲存,熱能經由Heat Engine轉換回電能。
  • 優點:不受地形、位置影響。
  • 目的:解決GWh量級規模儲能問題。
the thermodynamic efficiency
The Thermodynamic Efficiency
  • 熱力學效率(又稱round-trip efficiency)
slide9
理想PHES

(Carnot heat pump with efficiency)

(Carnot power cycle with efficiency)

slide10
建立分析模型
  • The simplest nontrivial thermodynamic model
  • 尋找可以通用在普遍PHES的最小可變參數

Otto cycle

Rankine cycle

Gas turbine cycle

Two-vessel storage systems

One-vessel storage systems

slide11
模型假設
  • 充、放電循環都是卡諾循環
  • 卡諾循環與環境、儲存物溫度互相作用
  • 唯一不可逆來源:

環境與卡諾循環的溫度差熱轉移

* :特定一小段(有限)時間內的溫度差

  • 每個溫度差都與線性熱轉移相關連
slide12

熱交換器充放電時的熱轉移系數相等

交互作用的時間為有限時間熱力學且充放電循環皆相等

放電作用於最大功率熱機

PCES

PHES

carnot cycle
Carnot Cycle

*1-2,3-4:等溫過程,2-3,4-1:絕熱過程。

heat pump cycle
Heat Pump Cycle效率
  • Heat pump cycle效率:
power cycle
Power Cycle效率
  • 最大功率Power cycle(假設(7))
  • Curzon-Ahlborn engine Theory:
  • Power cycle效率:
round trip efficiency
Round-Trip Efficiency
  • 最大往返效率:
phes pces2
不同PHES和PCES系統性能預測

TABLE I. Predicted performance of PHES and PCES systems.

*(l)潛熱-物質在相變化過程中,溫度沒有變化的情況下,吸收或釋放的能量;(s)顯熱. Granite花崗岩. Refractory耐熱材料

slide20
分析
  • 其中PHES利用熱水儲能雖然效率不及PHS(70-80%),但是儲能密度比PHS高出20倍以上。
  • 液態高溫鋁儲能PHES,當 時往返效率超過CAES(50%),當 仍然高於先進絕熱技術CAES。
slide22
結論
  • 作者制定了簡單的PHES模型,找到往返效率和溫度的關係,並預測其性能縮放比例。PHES模型雖然缺乏具體測試,但式(2)(3)的預測經的起時間的考驗。
slide23
參考資料
  • PHS & CAES- http://www.creighton.edu/green/energytutorials/formsofenergy/storingenergy/index.php
  • Carnot Cycle- http://willyyanto.wordpress.com/2009/10/17/a-brief-view-upon-carnot-cycle-and-gas-power-cycles/
  • Curzon-Ahlborn engine Theory -http://large.stanford.edu/courses/2010/ph240/askarov2/
