Chapter 10

Chapter 10

Operating Systems


Chapter goals
Chapter Goals

  • A little History of Operating Systems

  • Be familiar with current Major Operating Systems

  • Contrast Applications Software and Systems Software

  • Describe the main responsibilities of an operating system


More chapter goals os responsibilities

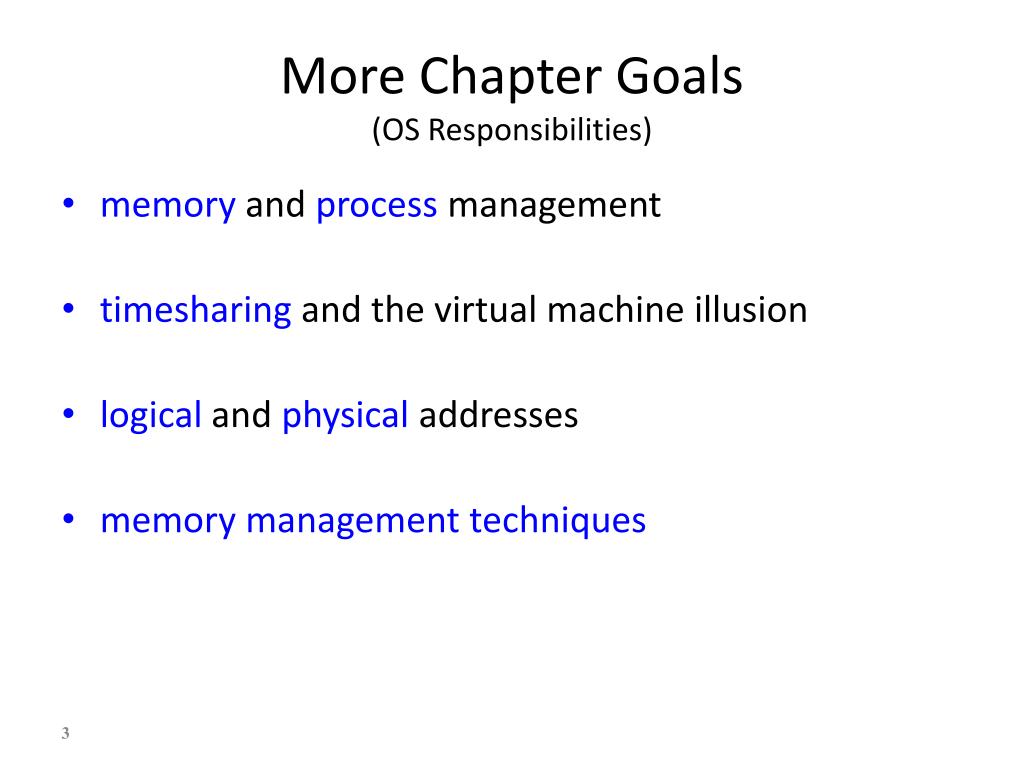

More Chapter Goals(OS Responsibilities)

  • memory and process management

  • timesharing and the virtual machine illusion

  • logical and physical addresses

  • memory management techniques


More chapter goals os responsibilities1

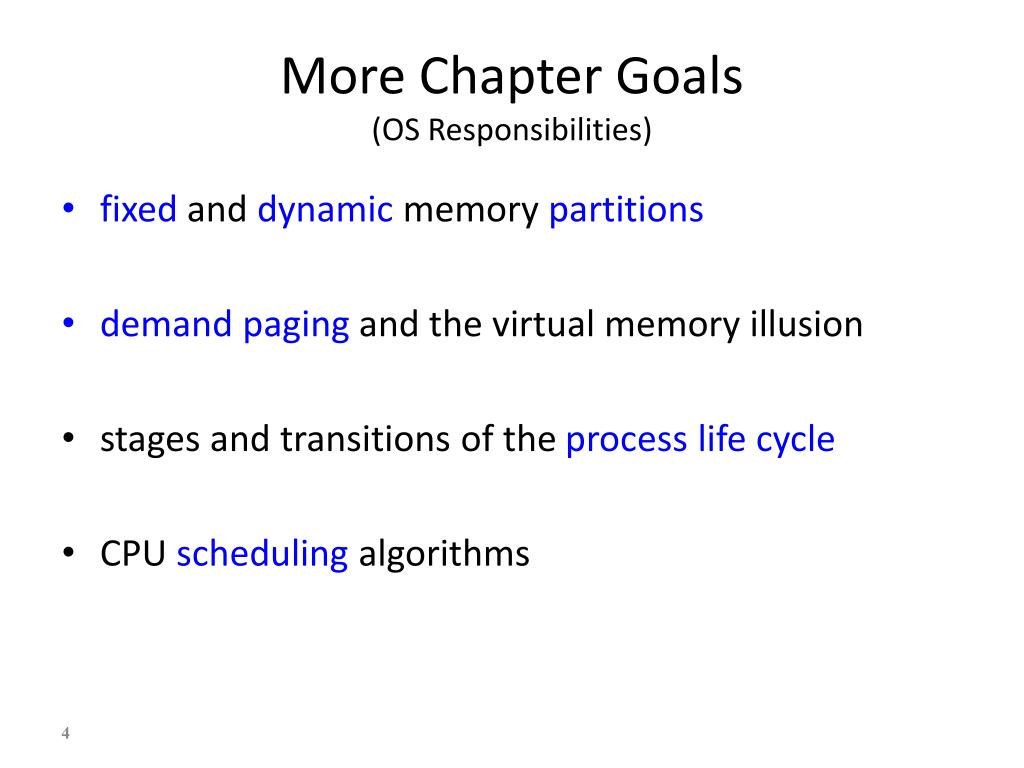

More Chapter Goals(OS Responsibilities)

  • fixed and dynamic memory partitions

  • demand paging and the virtual memory illusion

  • stages and transitions of the process life cycle

  • CPU scheduling algorithms


2 kinds of software

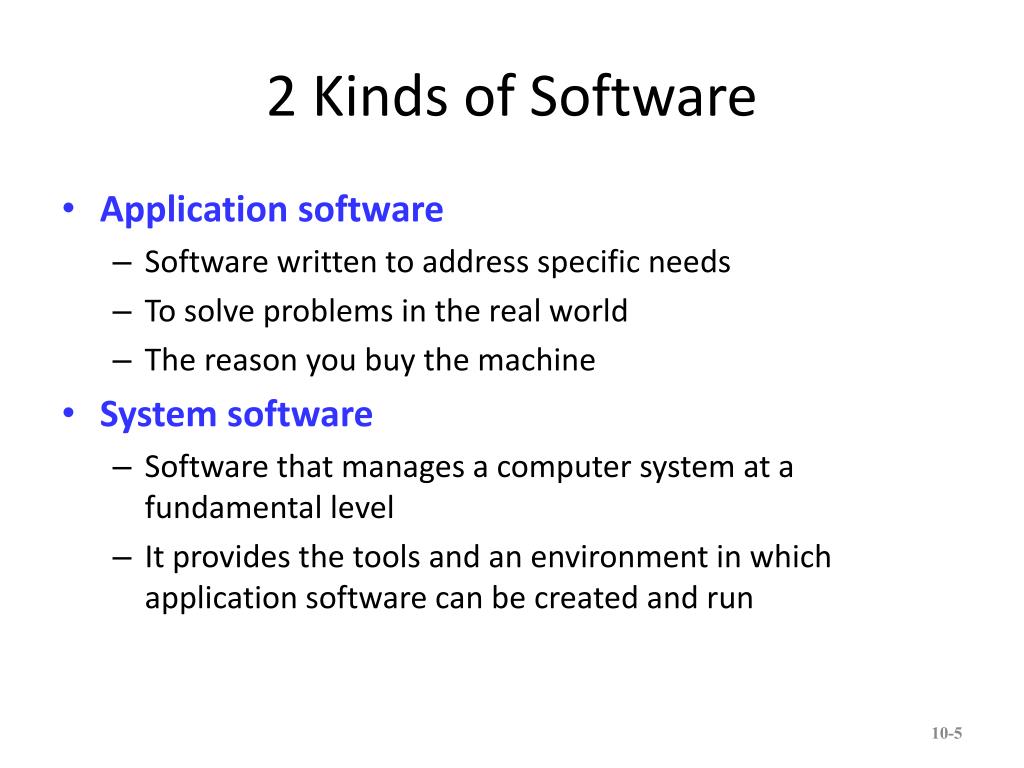

2 Kinds of Software

  • Application software

    • Software written to address specific needs

    • To solve problems in the real world

    • The reason you buy the machine

  • System software

    • Software that manages a computer system at a fundamental level

    • It provides the tools and an environment in which application software can be created and run


Application software

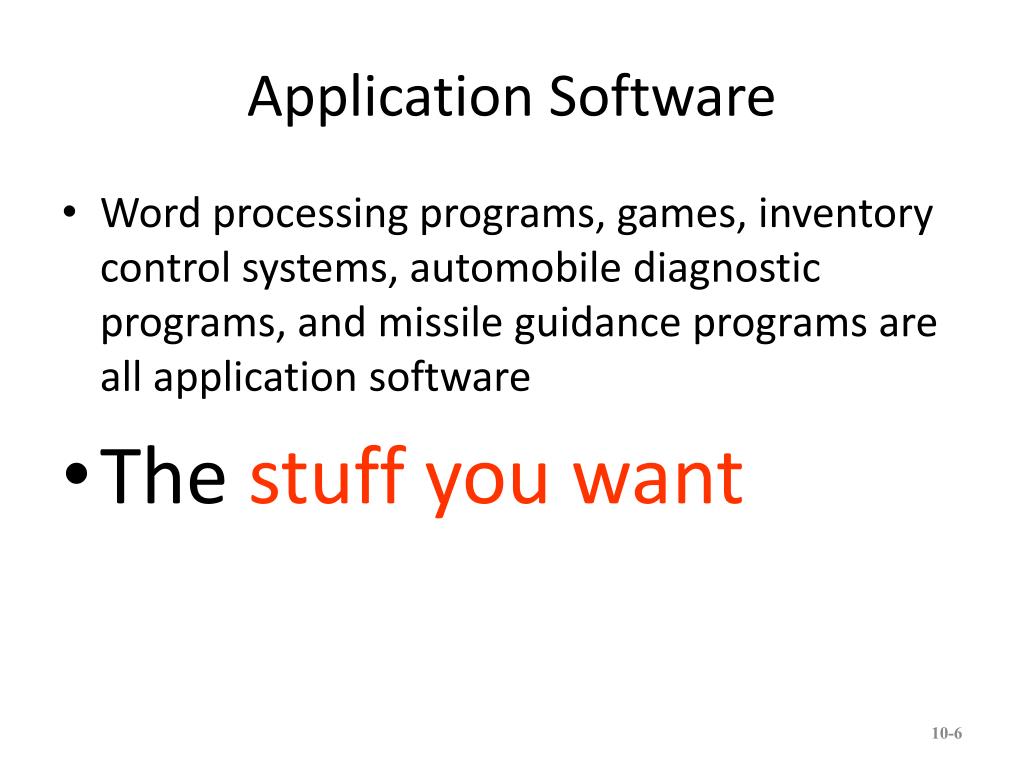

Application Software

  • Word processing programs, games, inventory control systems, automobile diagnostic programs, and missile guidance programs are all application software

  • The stuff you want


Systems software

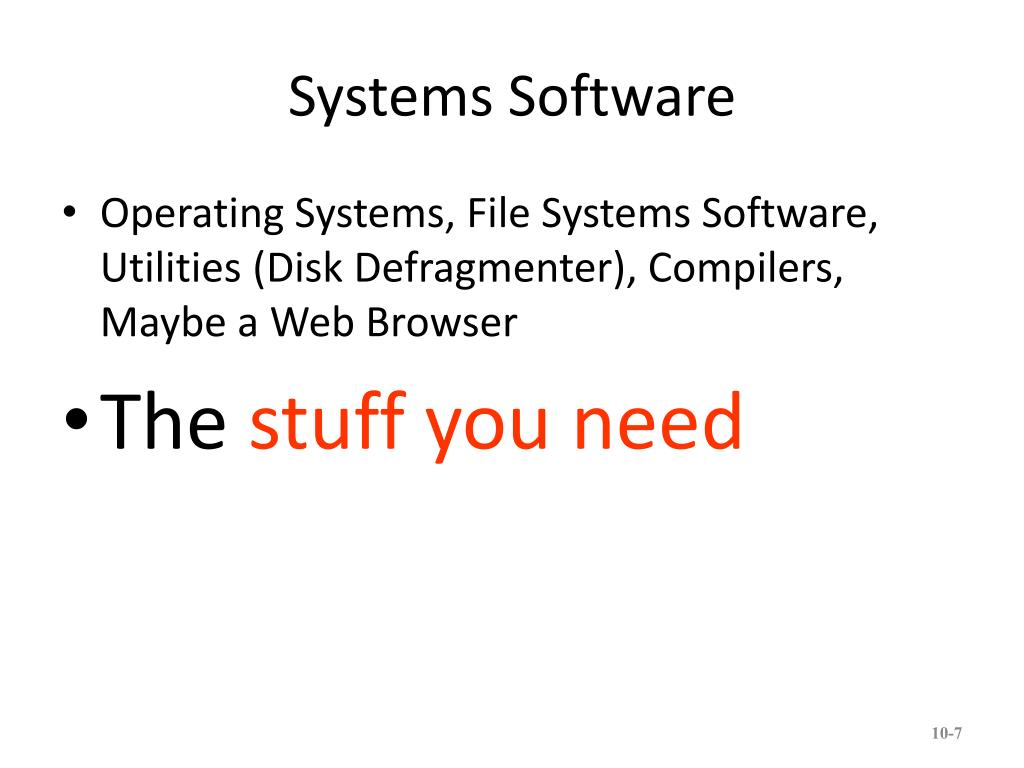

Systems Software

  • Operating Systems, File Systems Software, Utilities (Disk Defragmenter), Compilers, Maybe a Web Browser

  • The stuff you need


Major os s
Major OS’s

  • Unix

  • Windows

  • Linux

  • Mac OS

  • Embedded OS’s (Android, iOS)

  • Real-Time OS’s


Which is the best os

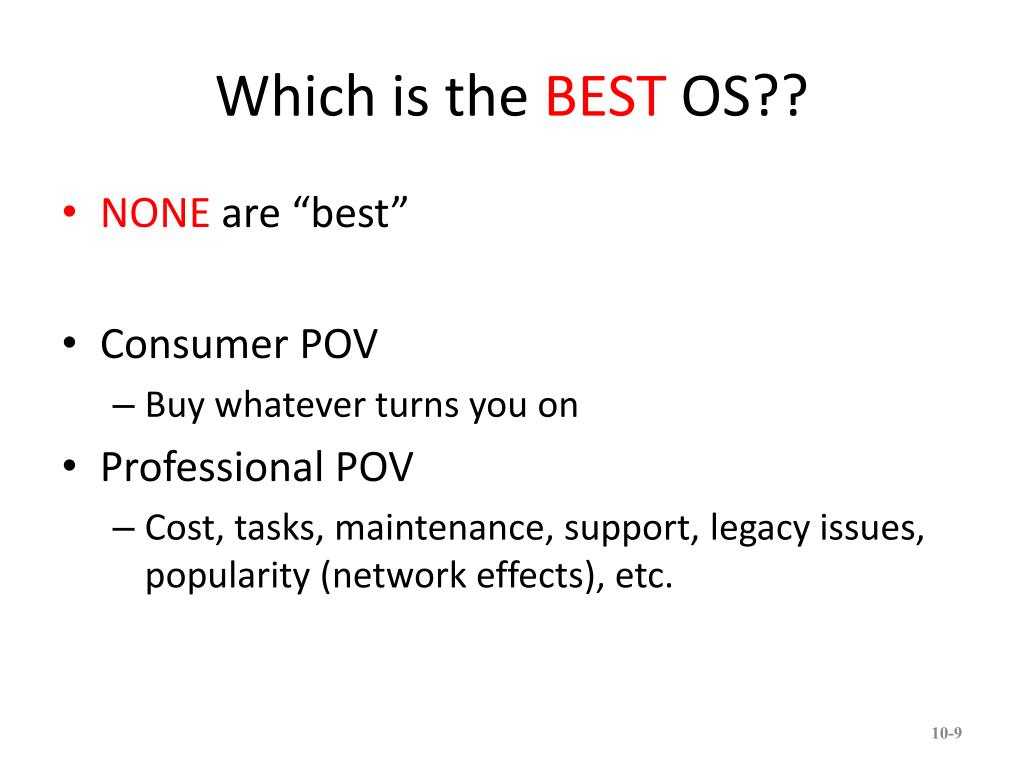

Which is the BEST OS??

  • NONE are “best”

  • Consumer POV

    • Buy whatever turns you on

  • Professional POV

    • Cost, tasks, maintenance, support, legacy issues, popularity (network effects), etc.


A little history mainframes
A Little History - Mainframes

  • Mainframes – from 1950

    • Earliest computers had no OS at all!

    • Proprietary (custom) OS’s

    • VMX

    • Early Unix versions

    • Unix was invented at AT&T Bell Labs


Mainframe
Mainframe

  • Circa 1950


Mainframe1
Mainframe

  • IBM System 360 circa 1964


A little history unix
A Little History - Unix

  • Mainframes were often shared by many users

  • A multiuser OS was needed

  • Unix arose to fill this need

    • IBM, Digital Equipment Corporation (DEC), Honeywell, Hewlett Packard

    • Each had their own proprietary version on Unix


A little history early personal computers

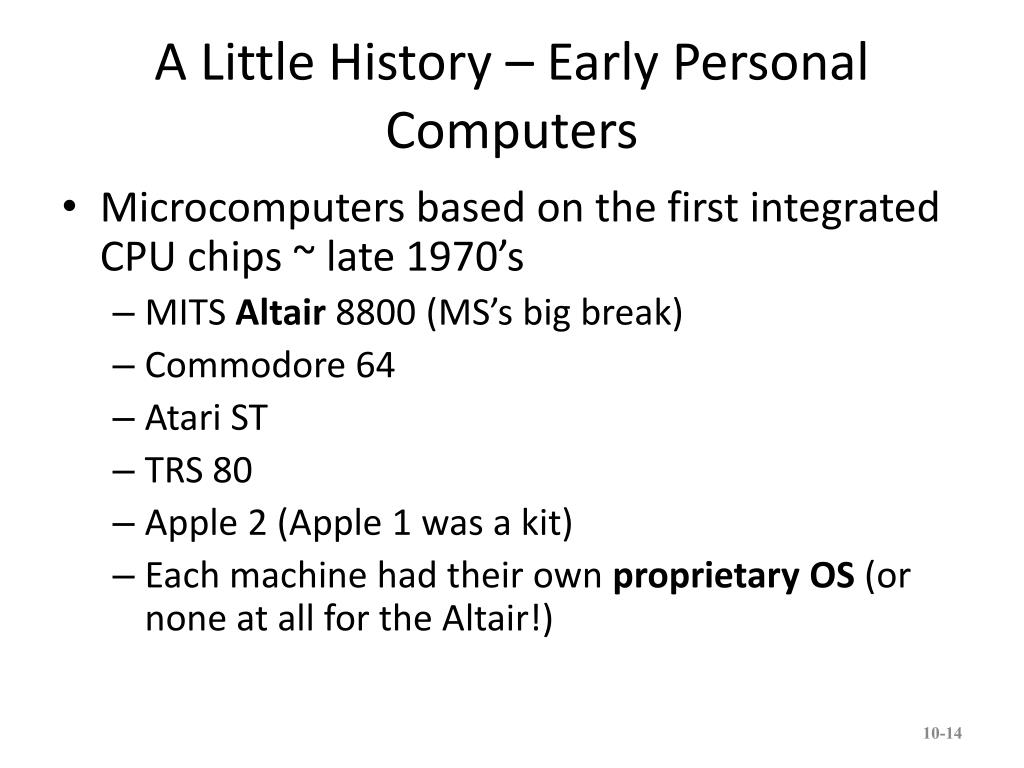

A Little History – Early Personal Computers

  • Microcomputers based on the first integrated CPU chips ~ late 1970’s

    • MITS Altair 8800 (MS’s big break)

    • Commodore 64

    • Atari ST

    • TRS 80

    • Apple 2 (Apple 1 was a kit)

    • Each machine had their own proprietary OS (or none at all for the Altair!)


The microprocessor

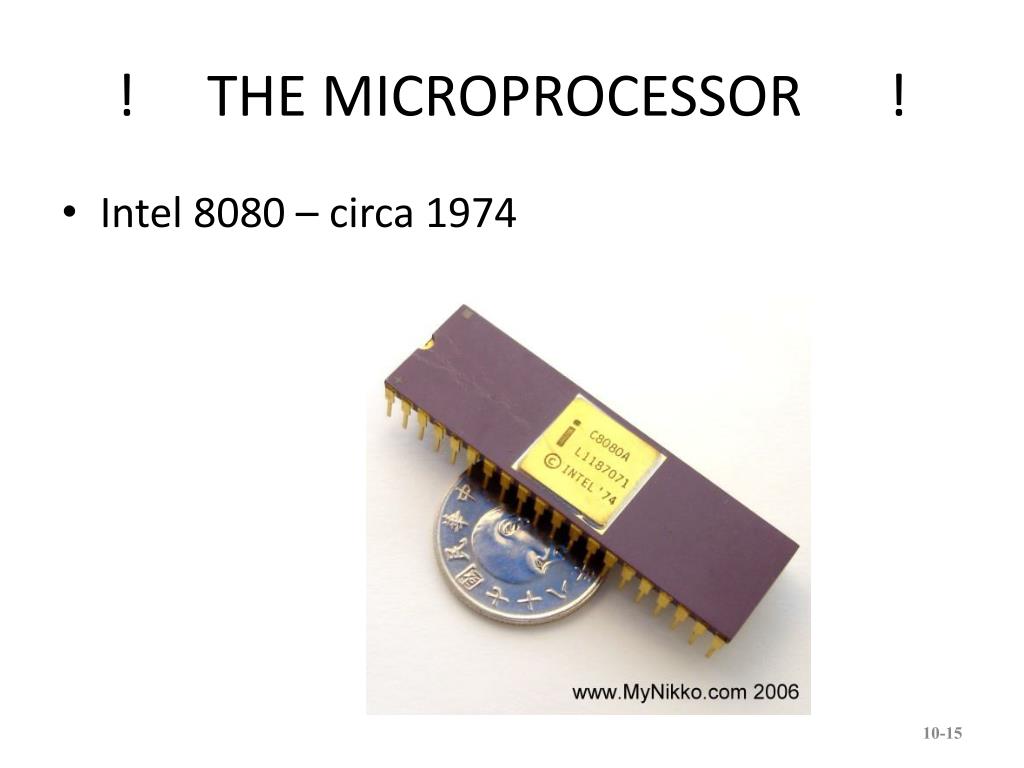

! THE MICROPROCESSOR !

  • Intel 8080 – circa 1974



A little history pc s n macs
A Little History – PC’s n Macs

  • PC’s and Macs – 1980’s

    • IBM PC

      • IBM hired MS to supply DOS (A basic command-line OS)

      • MS bought DOS from another party

    • Apple Macintosh

      • Apple wrote there own GUI OS

      • Apple borrowed the idea from Xerox PARC


A little history windows os
A Little History – Windows OS

  • IBM PC needed a GUI

    • IBM hired MS to write OS2 for PS2 (not Playstation!)

    • MS wrote Windows at the same time

    • Guess who won?

    • Why did MS win?

      • DOS was a “cash cow” for MS

      • Windows had backward compatibility w DOS

      • PC hardware was cheaper than Mac HW


What is linux
What is Linux???

  • Linux is based on a free source code version of UNIX

  • This source is compiled to Intel CPU machine code

  • Commercial versions are available

  • Internal SW architecture is circa 1960’s

    (A multi-user OS for a single-user machine)


What is linux1

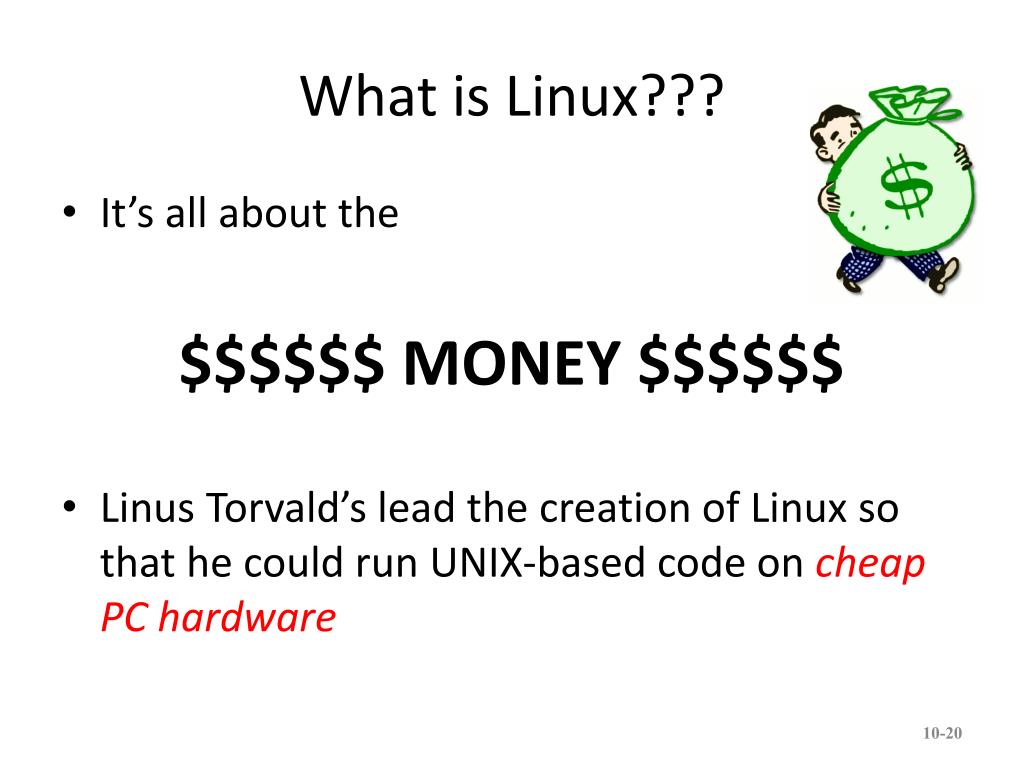

What is Linux???

  • It’s all about the

    $$$$$$ MONEY $$$$$$

  • Linus Torvald’s lead the creation of Linux so that he could run UNIX-based code on cheap PC hardware


Where are the computers
Where are the computers??

  • The machines you SEE

    • Windows: Almost every desktop in the USA and the world

  • The machines you DON’T SEE

    • There are lots of UNIX-based machines behind closed doors


Why is linux important

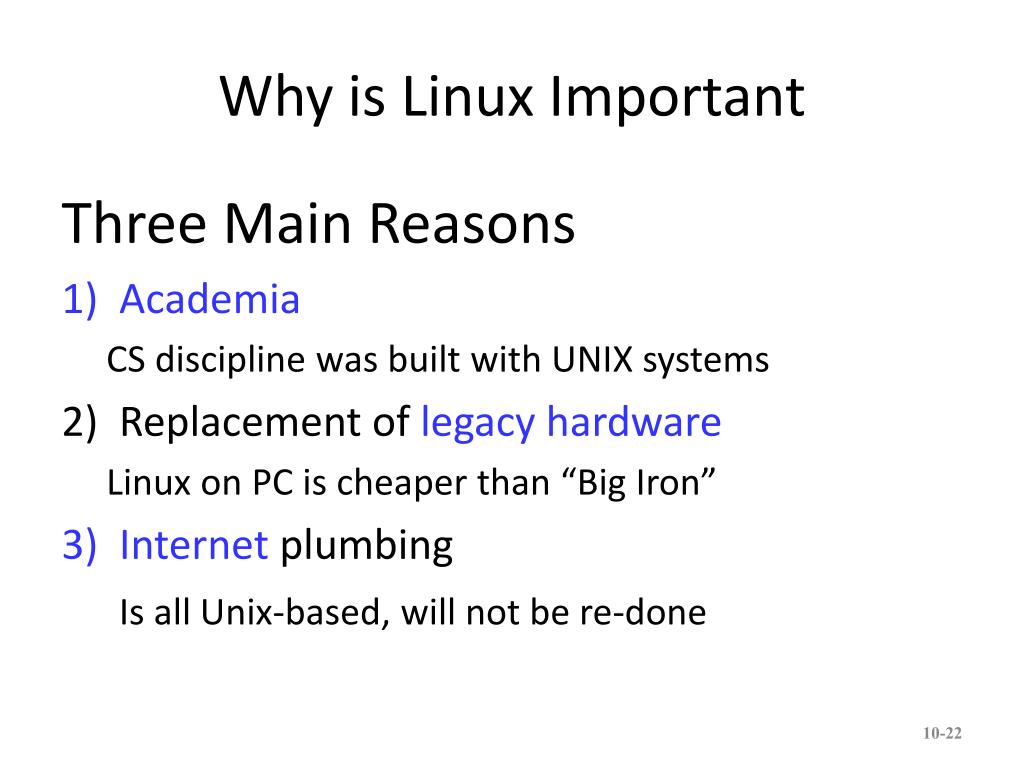

Why is Linux Important

Three Main Reasons

  • Academia

    CS discipline was built with UNIX systems

  • Replacement of legacy hardware

    Linux on PC is cheaper than “Big Iron”

  • Internet plumbing

    Is all Unix-based, will not be re-done


Why is linux important academia

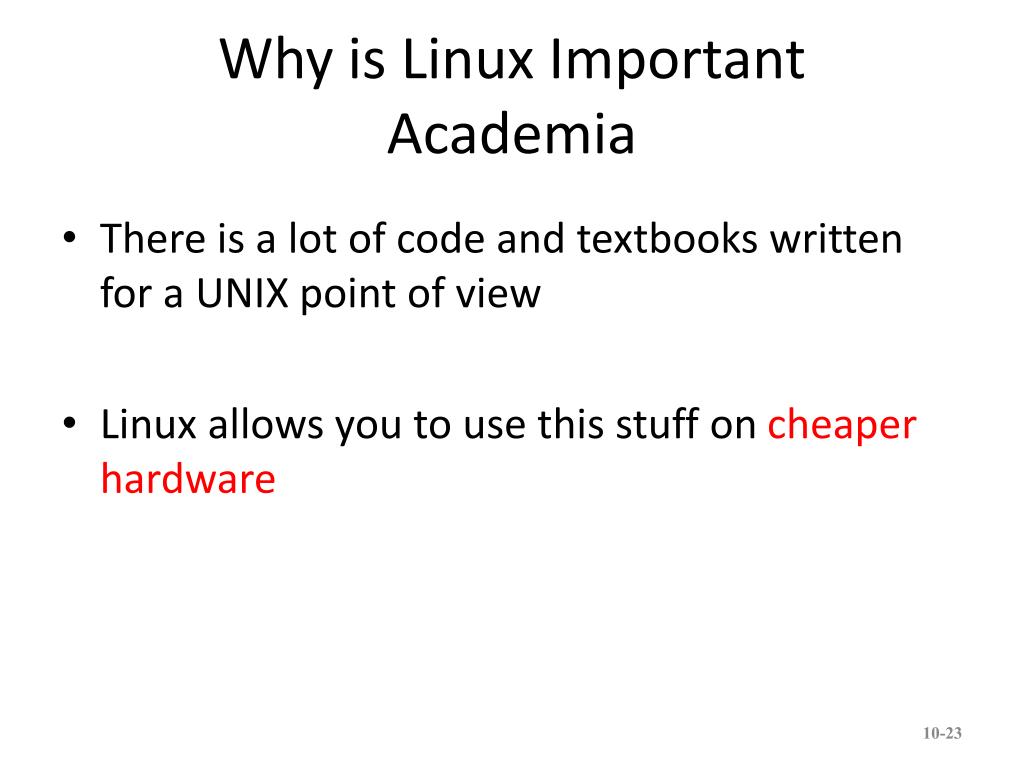

Why is Linux ImportantAcademia

  • There is a lot of code and textbooks written for a UNIX point of view

  • Linux allows you to use this stuff on cheaper hardware


Why is linux important the unix legacy

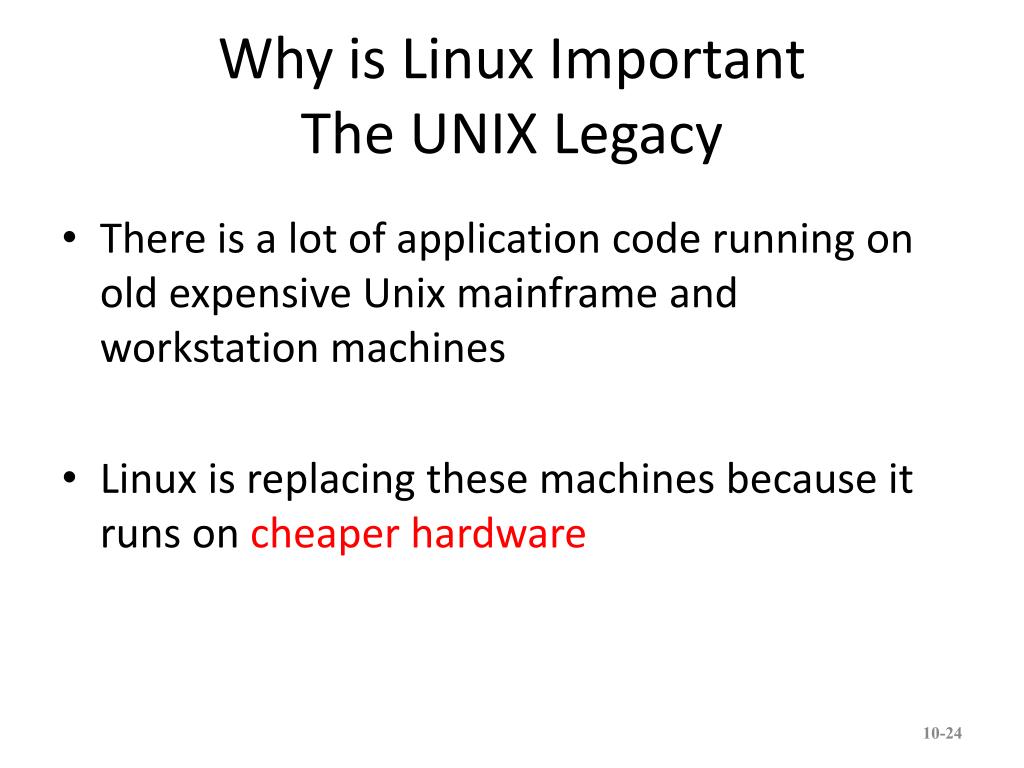

Why is Linux ImportantThe UNIX Legacy

  • There is a lot of application code running on old expensive Unix mainframe and workstation machines

  • Linux is replacing these machines because it runs on cheaper hardware


Why is linux important the internet

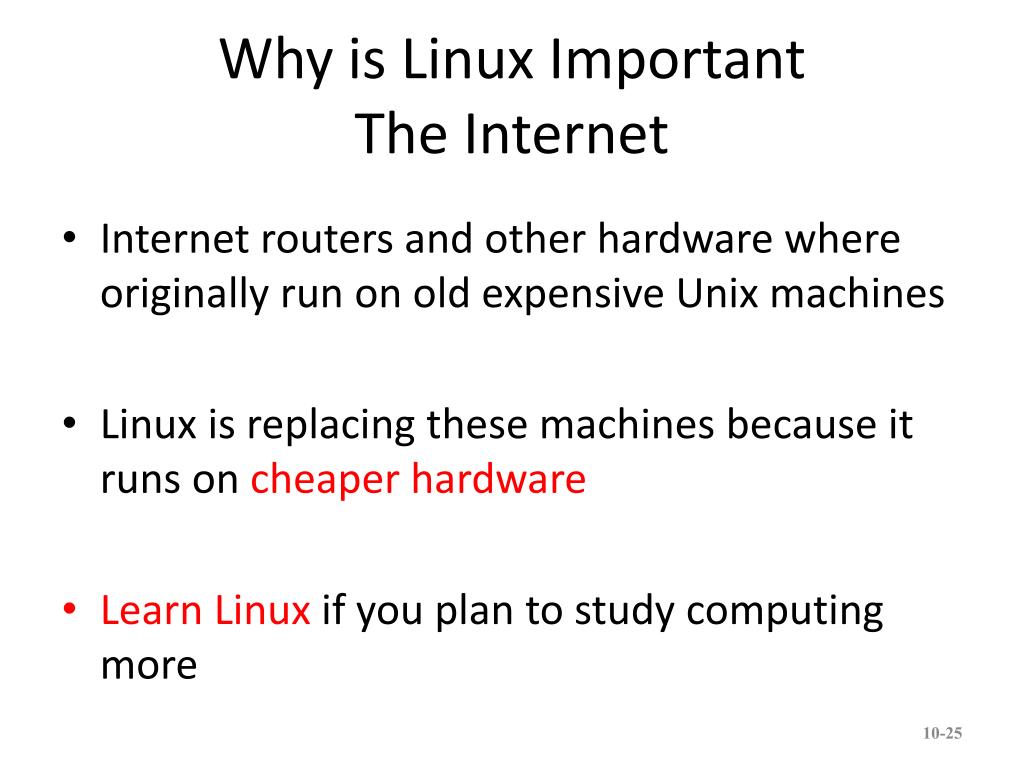

Why is Linux ImportantThe Internet

  • Internet routers and other hardware where originally run on old expensive Unix machines

  • Linux is replacing these machines because it runs on cheaper hardware

  • Learn Linux if you plan to study computing more


What about wintell

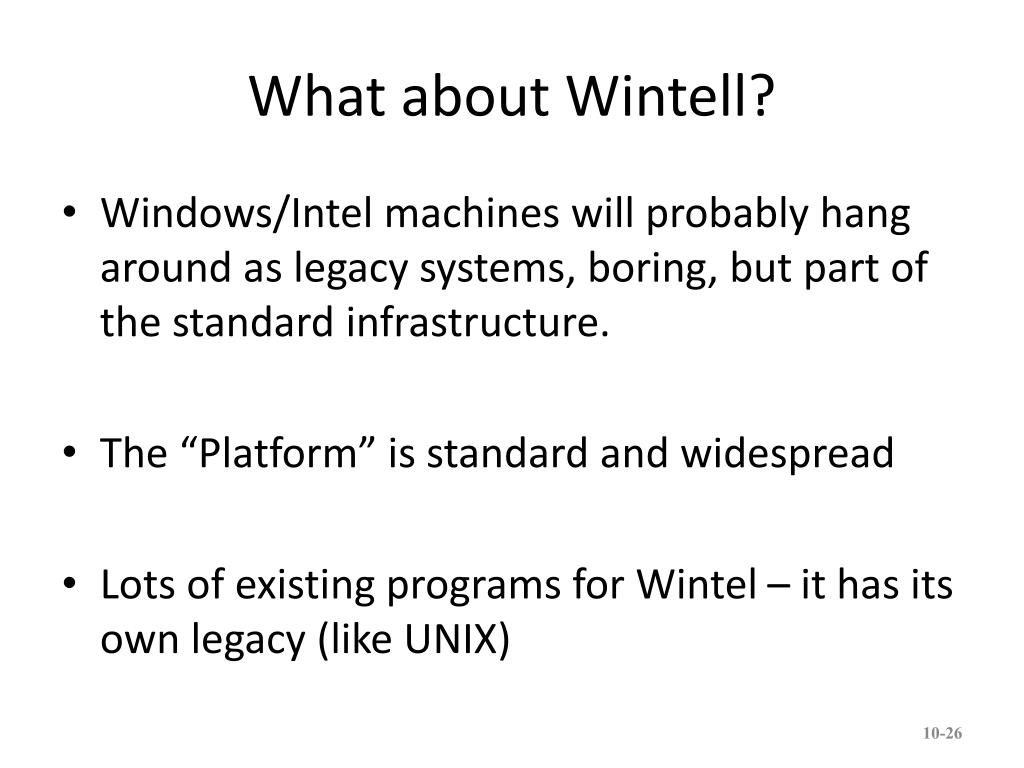

What about Wintell?

  • Windows/Intel machines will probably hang around as legacy systems, boring, but part of the standard infrastructure.

  • The “Platform” is standard and widespread

  • Lots of existing programs for Wintel – it has its own legacy (like UNIX)


Dominant os s the recent past
Dominant OS’s: The Recent Past

  • Windows on the “front end”

  • Linux on the “back end”


Dominant os s present and near future
Dominant OS’s: Present and Near Future

  • Mini Front End (Simple Interfacing Tasks)

    • Tablets and Smart Phones

  • Maxi Front End (More demanding specialized work)

    • Windows

  • Back End (Server processing)

    • Linux


Lets get technical
LETS GET TECHNICAL

  • A major OS job is to provide:

    INTERFACES


Os interfaces
OS: Interfaces

Figure 10.1 An operating system interacts with many aspects of a computer system.


Lets get technical1
LETS GET TECHNICAL

  • The OS is there mainly to do what we all learned in Kindergarten:

    SHARING NICELY


Os resource management

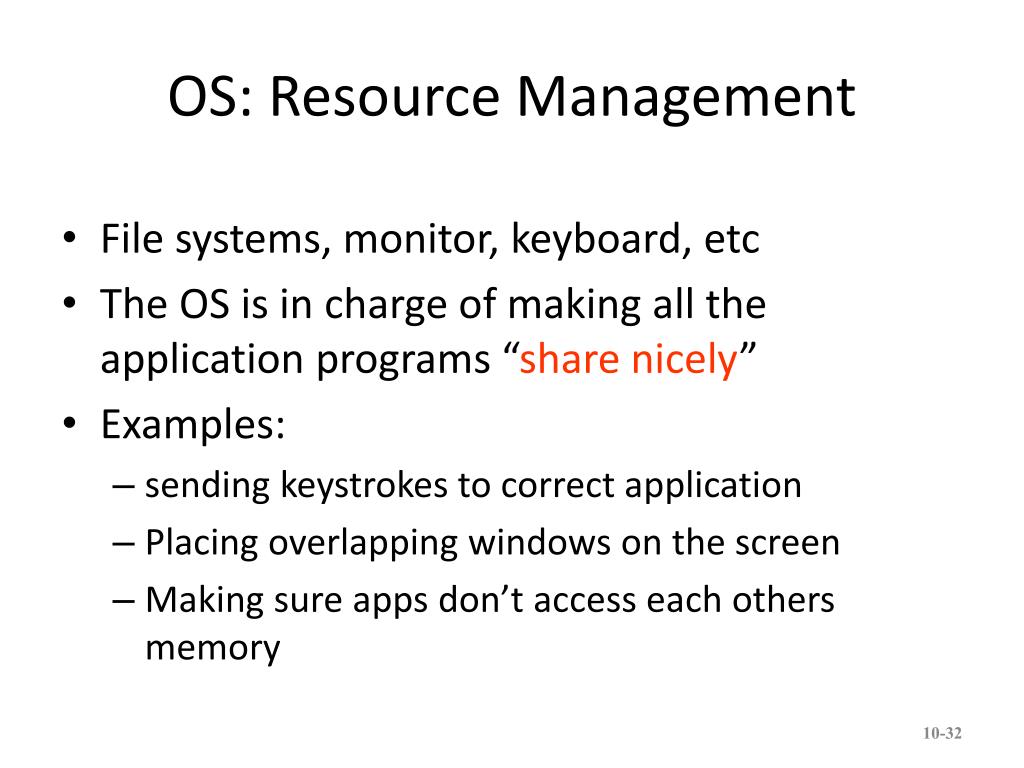

OS: Resource Management

  • File systems, monitor, keyboard, etc

  • The OS is in charge of making all the application programs “share nicely”

  • Examples:

    • sending keystrokes to correct application

    • Placing overlapping windows on the screen

    • Making sure apps don’t access each others memory


Operating system resource management sharing
Operating System Resource Management (Sharing)

  • Process Management (Sharing the CPU)

  • Sharing IO devices

  • Main (Primary Memory) Management

    (Shared among many programs)

  • Disk (Secondary) Memory) Management (More sharing)


Process management sharing the cpu
Process ManagementSharing the CPU


Os process management
OS: Process Management

  • Process A program in execution

  • Process managementkeeping track of processes and the states they are in

  • CPU scheduling determines which process in memory is executed by the CPU at any given instant in time


More history 1950 s 1960 s
More History 1950’s-1960’s

  • Batch Processing

    • One big (expensive) machine

    • One human operating system – “The Operator” (ala The Matrix)

    • Several similar jobs were organized into “batches” that required the same resources

    • Example:

      • Load the compiler

      • Run all the programs to be compiled


History batch processing

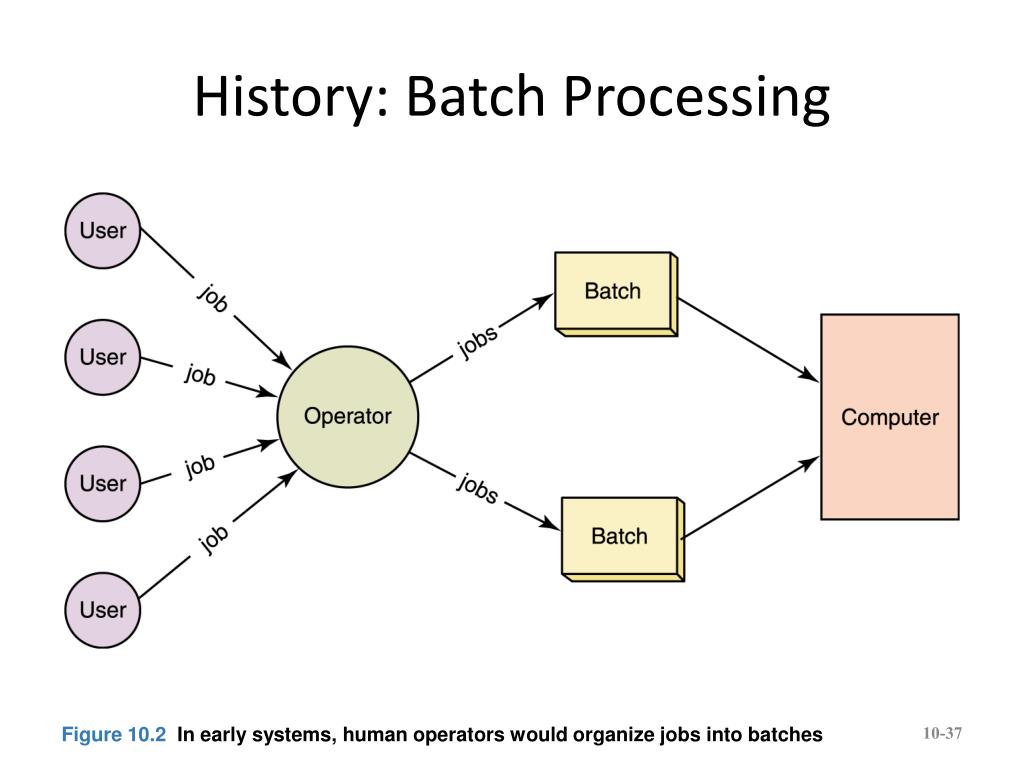

History: Batch Processing

Figure 10.2 In early systems, human operators would organize jobs into batches


More history 1960 s 1970 s
More History: 1960’s-1970’s

  • Timesharing

    • One big (expensive) machine

    • Each user had her own virtual machine, in which all system resources seem to be available for use

    • In reality, resources are shared

  • Unix was created as a multi-user timesharing operating system


More history 1970 s now
More History: 1970’s-now

  • Multitasking

    • Lots of cheap PC machines

    • Timesharing evolved into multitasking

    • ONE user running MANY PROGRAMS

    • Still, resources must be shared by several programs

  • Windows was created as a single-user multitasking operating system


Process states
Process States

  • The Process States

Figure 10.8 The process life cycle


The process control block

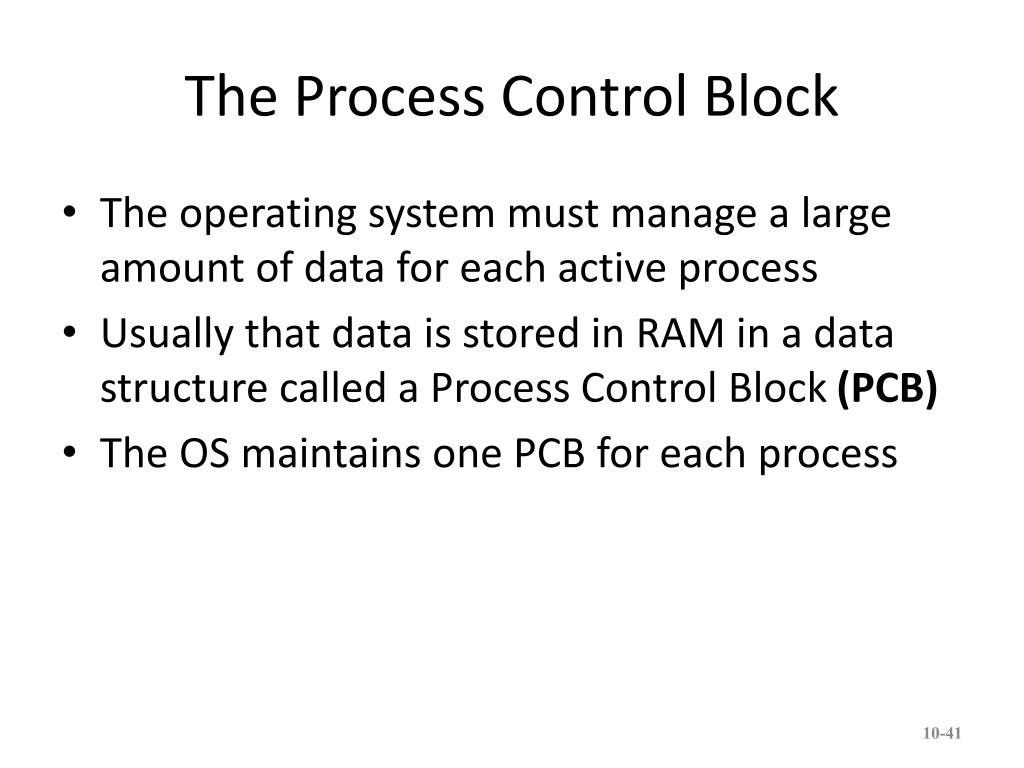

The Process Control Block

  • The operating system must manage a large amount of data for each active process

  • Usually that data is stored in RAM in a data structure called a Process Control Block (PCB)

  • The OS maintains one PCB for each process


Processes are like several cooks sharing one kitchen
Processes are like Several Cooks Sharing ONE Kitchen


Cpu context switch
CPU Context Switch

  • There is only one CPU and therefore only one set of CPU registers

    • These registers contain the values for the currently executing process

  • Each time a process is moved to the running state:

    • Register values for the currently running process are stored into its PCB

    • Register values of the new running state are loaded into the CPU

    • This exchange of information is called a context switch


Cpu scheduling

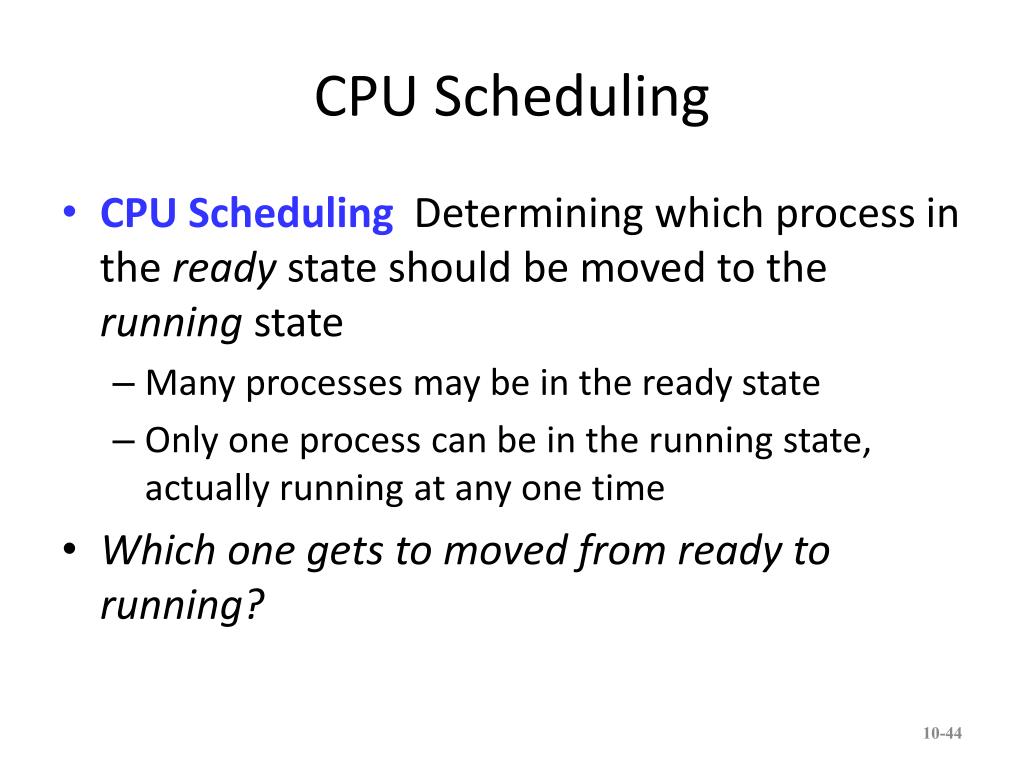

CPU Scheduling

  • CPU Scheduling Determining which process in the ready state should be moved to the running state

    • Many processes may be in the ready state

    • Only one process can be in the running state, actually running at any one time

  • Which one gets to moved from ready to running?


Cpu scheduling1
CPU Scheduling

  • Nonpreemptive scheduling The currently executing process gives up the CPU voluntarily

    • Batch Processing, the old Mac OS, Windows 3.1 circa 1990

  • Preemptive scheduling The operating system decides to favor another process, preempting the currently executing process

    • Win 9x and later, Unix, and most other modern OS’s


Cpu scheduling algorithms

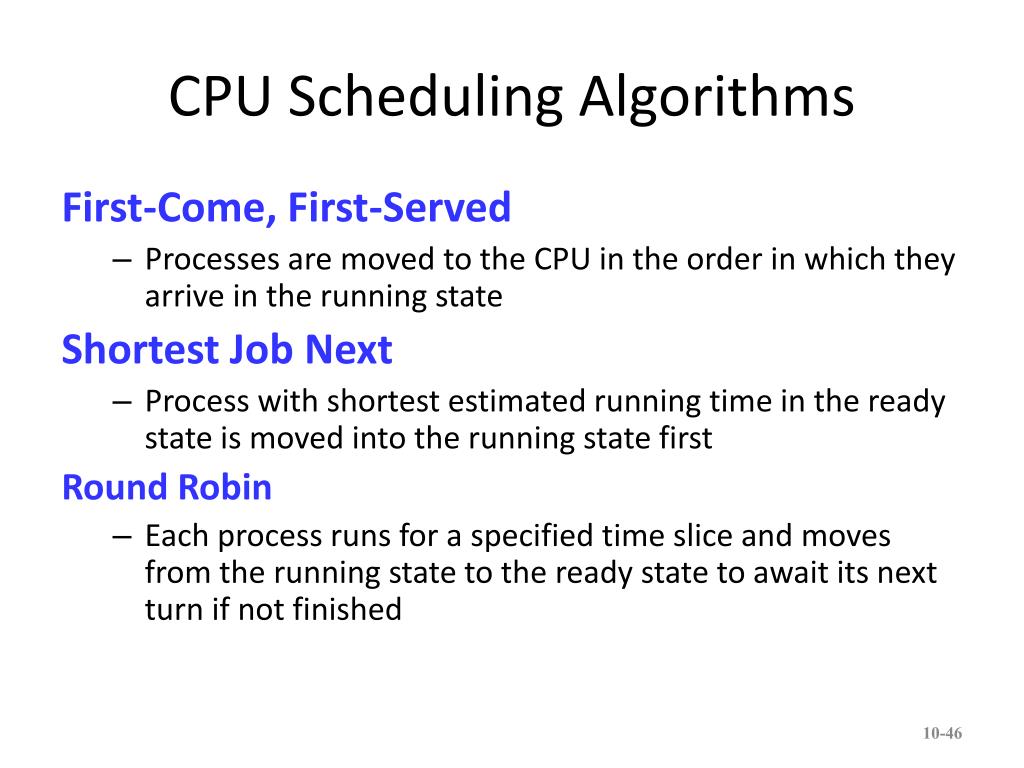

CPU Scheduling Algorithms

First-Come, First-Served

  • Processes are moved to the CPU in the order in which they arrive in the running state

    Shortest Job Next

  • Process with shortest estimated running time in the ready state is moved into the running state first

    Round Robin

  • Each process runs for a specified time slice and moves from the running state to the ready state to await its next turn if not finished



Shortest job next
Shortest Job Next

  • Looks at all processes in the ready state and dispatches the one with the smallest service time

Page 337


Round robin
Round Robin

  • Distributes the processing time equitably among all ready processes

  • Aka “Taking Turns”

  • The algorithm uses a time slice, which is the amount of time each process is allowed to run before it is the next process’ turn


Round robin1
Round Robin

  • Suppose the time slice was 50

Page 339


Cpu scheduling algorithms1
CPU Scheduling Algorithms

Are they preemptive or non-preemptive? Explain

  • First-Come, First-Served?

  • Shortest Job Next?

  • Round Robin?


Memory management sharing primary memory ram
Memory ManagementSharing Primary Memory (RAM)


Memory management
Memory Management

  • Memory managementThe process of keeping track of what programs are in memory and where in memory they reside


Memory management1
Memory Management

Figure 10.3 Memory is a continuous set of bits referenced by specific addresses


The problem
The Problem

  • Every Program Wants to be Loaded to RAM address ZERO

Address Machine Code

------------------------------------------

0000 04000BBR Main

0003 0000 sum: .WORD 0x0000

0005 0000 num1: .BLOCK 2

0007 0000 num2: .BLOCK 2

0009 0000 num3: .BLOCK 2

000B C10003 Main: LDA sum,d

000E 310005 DECI num1,d

0011 710005 ADDA num1,d

0014 310007 DECI num2,d

0017 710007 ADDA num2,d

001A 310009 DECI num3,d

001D 710009 ADDA num3,d

0020 E10003 STA sum,d

0023 390003 DECO sum,d

0026 00 STOP

0027 .END

Branching wants to jump to some particular address


The solution
The Solution

  • Load them elsewhere and LIE TO THEM

  • Aka “Address Relocation”

  • A part of “Memory Management”

  • When programs ask for bytes from some RAM location, the OS will give them bytes from somewhere else


Memory management2
Memory Management

  • Track where a program resides in memory

  • Convert logical addresses into physicaladdresses

  • Logical address An address that the program uses

    • All programs start at logical address ZERO

  • Physical address An actual address in the main memory device

    • A program may not actually be loaded starting at physical address zero


Single contiguous memory management
Single Contiguous Memory Management

  • The Simplest Way:

  • Only two programs in memory

    • The operating system

    • The application program


Single contiguous memory management1
Single Contiguous Memory Management

  • A logical address is simply an integer value relative to the starting point of the program

  • To produce a physical address, we add a logical address to the starting address of the program in physical main memory



Partition memory management
Partition Memory Management

  • Partitions Main memory is divided into a particular number of partitions

  • Programs are loaded into available partitions

  • Note: A main memory partition is not the same thing as a hard disk partition


Partition memory management1
Partition Memory Management

  • memory is divided into a set of partitions, some empty and some allocated to programs

  • Base register A register that holds the beginning address of the current partition

  • Bounds register A register that holds the length of the current partition


Paged memory management
Paged Memory Management

  • Paged memory technique Processes are divided into fixed-size pages and stored in memory frames

    • Frame A piece of main memory that holds a process page

    • Page A piece of a process that is stored into a memory frame

    • Page-map table (PMT) A table used by the operating system to keep track of page/frame relationships


Paged memory management1
Paged Memory Management

  • To produce a physical address, you first look up the page in the PMT to find the frame number in which it is stored

  • Then multiply the frame number by the frame size and add the offset to get the physical address


Paged memory management2
Paged Memory Management

  • Demand pagingAn important extension of paged memory management

    • Not all parts of a program actually have to be in memory at the same time

    • In demand paging, the pages are brought into memory on demand

  • Page swapThe act of bringing in a page from secondary memory, which often causes another page to be written back to secondary memory


Paged memory management3
Paged Memory Management

  • The demand paging approach gives rise to the idea of virtual memory, the illusion that there are no restrictions on the size of a program

  • Too much page swapping, however, is called thrashingand can seriously degrade system performance.
