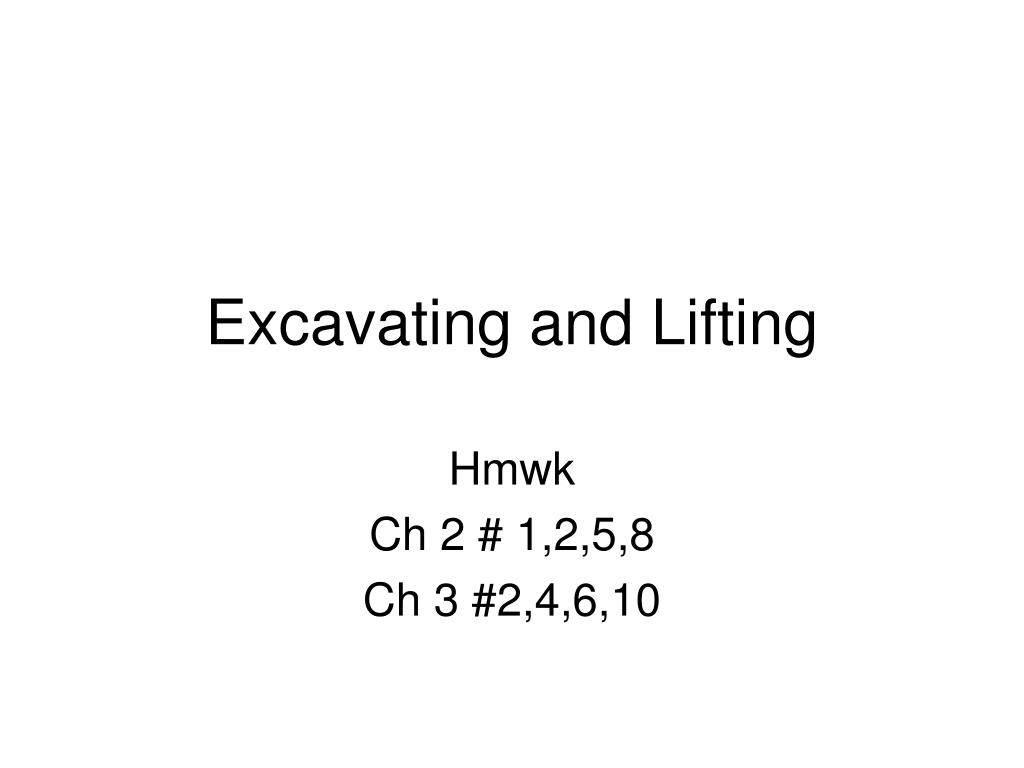

  1. Excavating and Lifting Hmwk Ch 2 # 1,2,5,8 Ch 3 #2,4,6,10

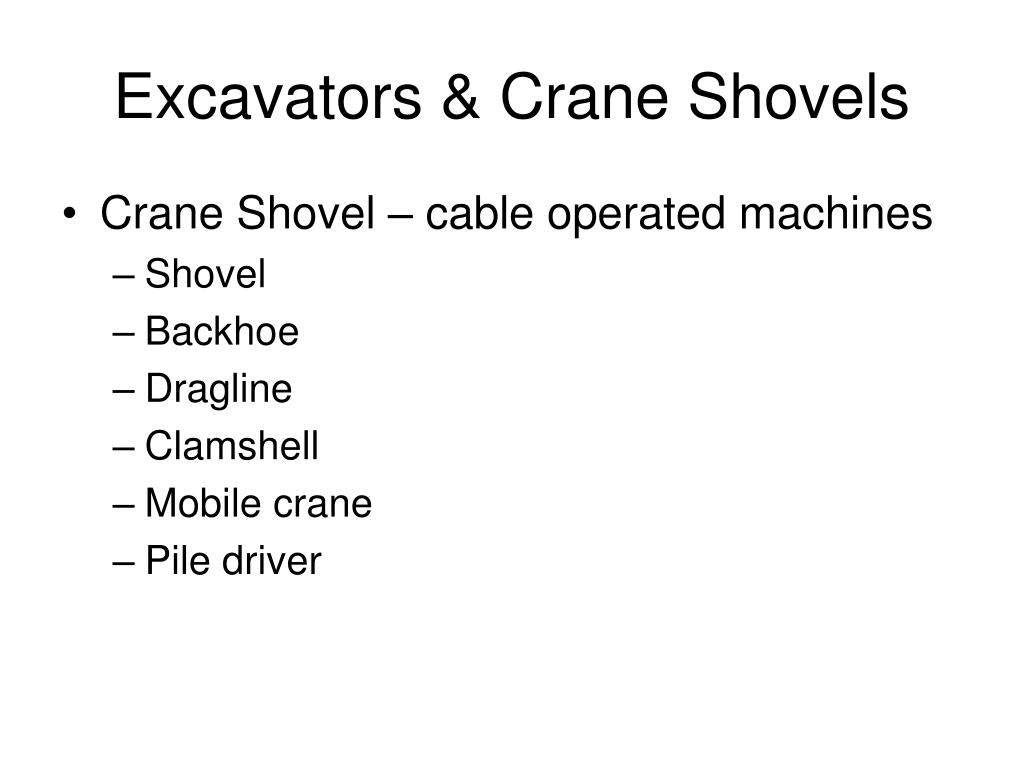

  2. Excavators & Crane Shovels • Crane Shovel – cable operated machines • Shovel • Backhoe • Dragline • Clamshell • Mobile crane • Pile driver

  3. Excavators & Crane Shovels • Hydraulic Excavators • Faster cycle time than shovels • Higher bucket penetrating force • More precise digging • Easier operator control • Attachments – pg 41 - 43

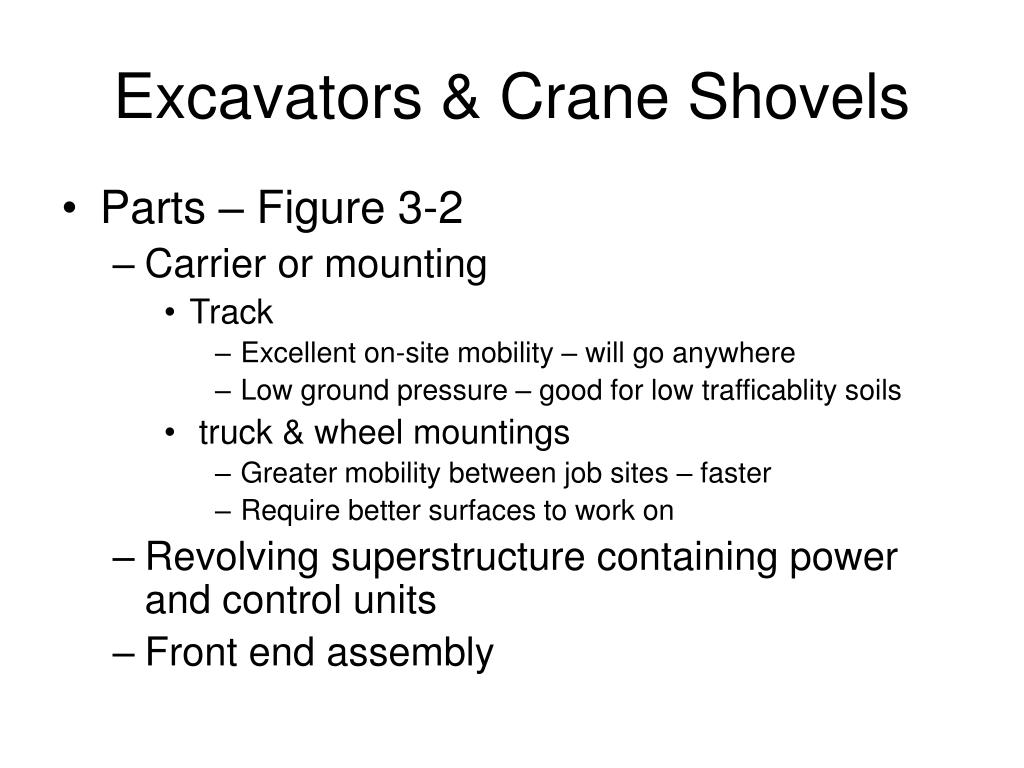

  4. Excavators & Crane Shovels • Parts – Figure 3-2 • Carrier or mounting • Track • Excellent on-site mobility – will go anywhere • Low ground pressure – good for low trafficablity soils • truck & wheel mountings • Greater mobility between job sites – faster • Require better surfaces to work on • Revolving superstructure containing power and control units • Front end assembly

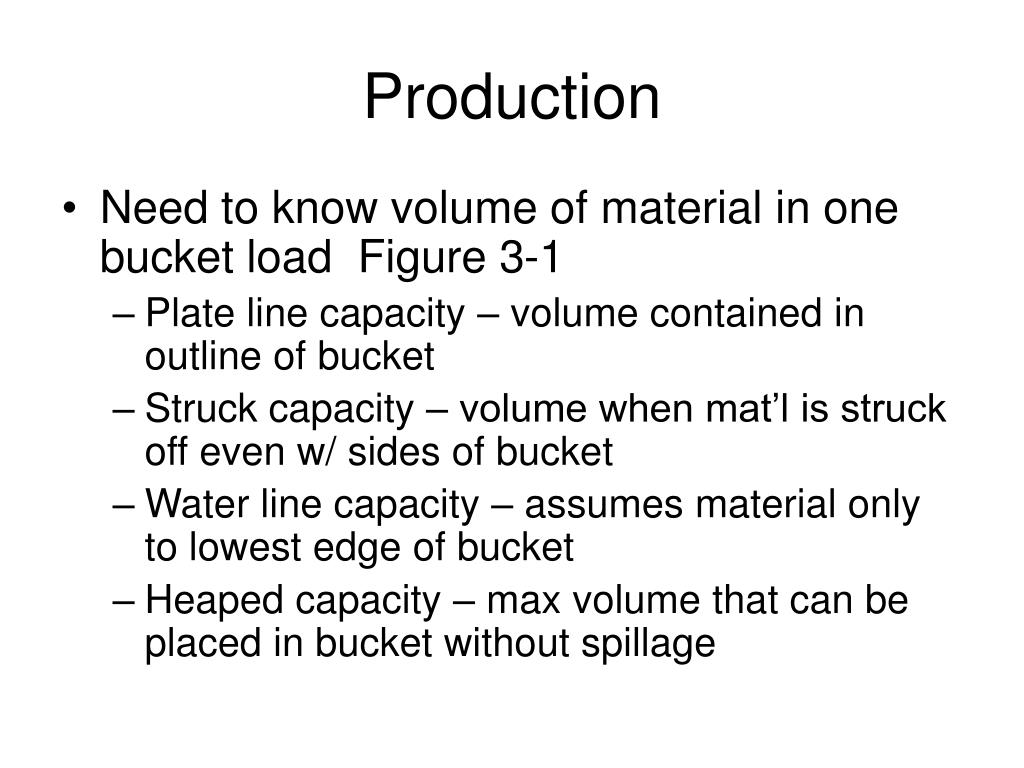

  5. Production • Need to know volume of material in one bucket load Figure 3-1 • Plate line capacity – volume contained in outline of bucket • Struck capacity – volume when mat’l is struck off even w/ sides of bucket • Water line capacity – assumes material only to lowest edge of bucket • Heaped capacity – max volume that can be placed in bucket without spillage

  6. Production • Ratings usually based on struck volume • Assumption is made that since bucket is usually heaped that a 5 cy bucket will pick up 5 cy of bank not loose • Better to use bucket fill factors – Table 3-2

  7. Operation & Employment • Excavators • Fig 3-3 & 3-4 • Trenching work • Production estimating • Production (LCY/hr) = CxSxVxBxE • C – cycles/hr • S – swing depth factor T 3-4 • V – heaped bucket volume • B – bucket fill factor • E – job efficiency • Trenching work may also require a fall in factor for dirt going back in the trench T 3-5

  8. Shovels • Larger than excavators • Good for excavating above track line • Digs using • Breakout force and crowding force • Can form its own roadway • Can shape sides of cut and dress slopes • Should have a vertical face to dig against • Production is found same way

  9. Trenching Technology • Good for digging a narrow trench with the spoil going to the side of the trench • Chain trenchers, ladder trenchers, bucket wheel trenchers

  10. Trenchless Tech • Pipe jacking • Thrust boring • Pipe bursting

  11. Cranes • Lifting, lowering transporting loads over 3D • Components Fig 3-22 • Load chart F 3-24 • Heavy Lift cranes • F 3-25 – 26 • Tower Cranes • F 3-27 - 29
