1. Lifting Part 3: Designing Update Operators Ref: SIGGRAPH 96

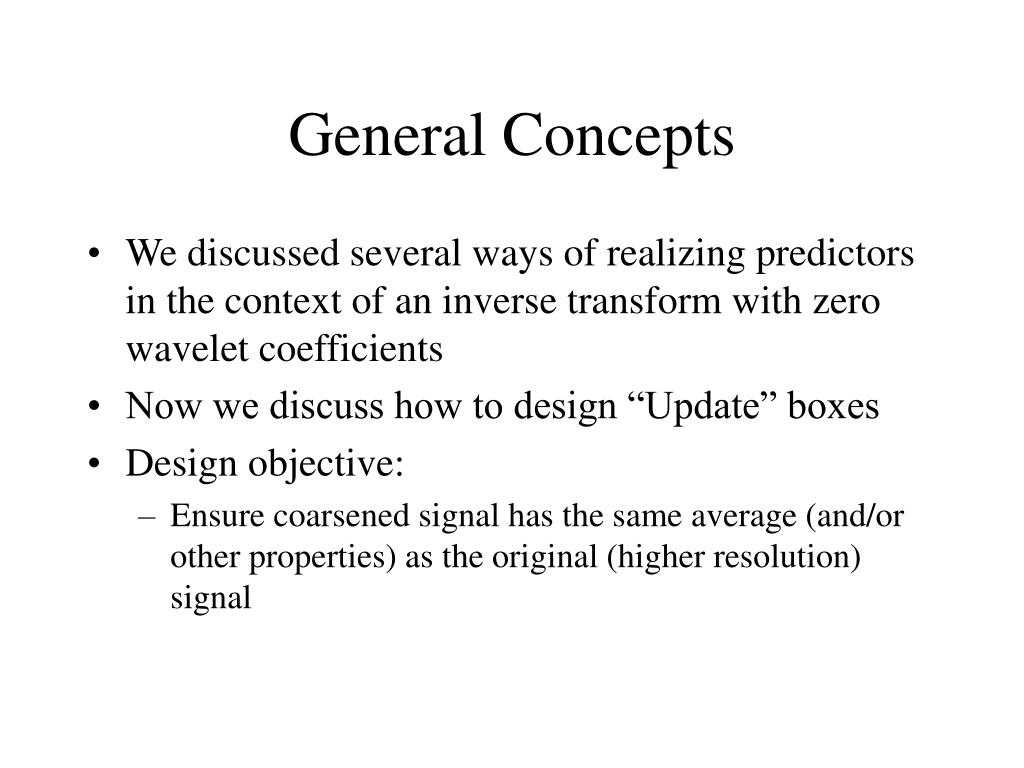

2. General Concepts • We discussed several ways of realizing predictors in the context of an inverse transform with zero wavelet coefficients • Now we discuss how to design “Update” boxes • Design objective: • Ensure coarsened signal has the same average (and/or other properties) as the original (higher resolution) signal

3. Begin with m DOFs 2m DOFs after one step The extra m DOFs: the difference between Vj and Vj+1 in resolution Design update boxes is all about manipulating the inbetweeen DOFs So that the coarser signal (m DOFs) and finer signal (2m DOFs) are “similar” DOF Analysis of Inverse Transform

5. Recall Cascade Algorithm • Scaling functions and wavelets

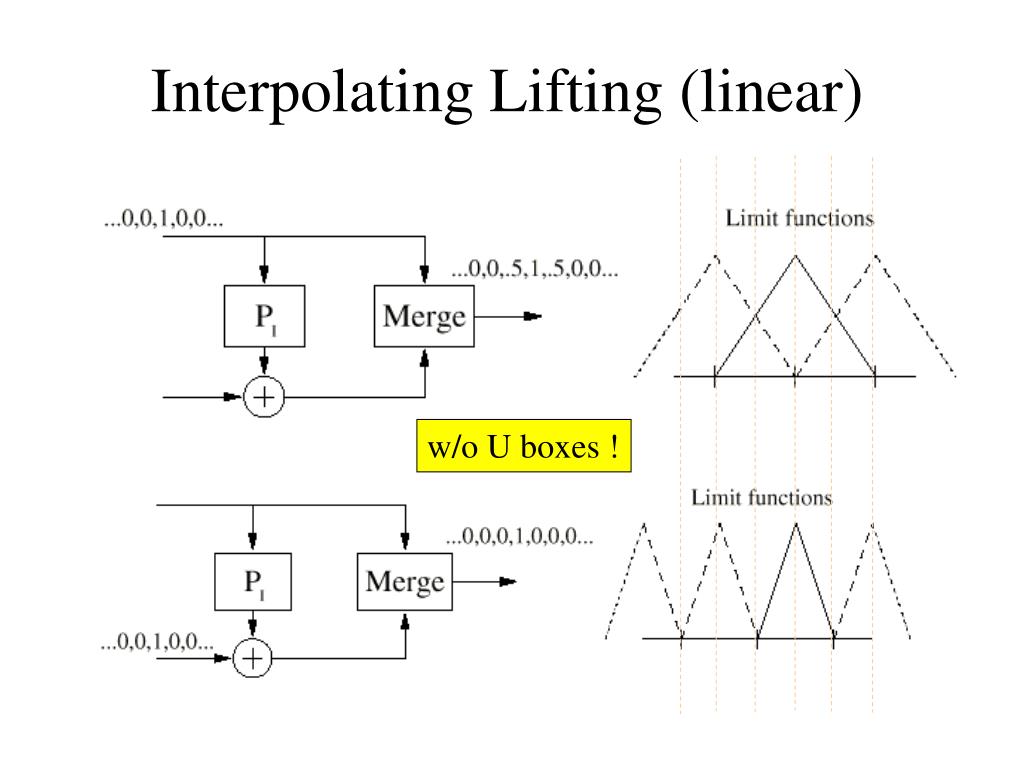

6. Interpolating Lifting (linear) w/o U boxes !

7. Merge PI Details (lo-wire)

8. Merge Details

9. Observation • These “wavelet” generated by the low wire do not have zero integral, a condition must be satisfied to ensure equality of the sample average • Manipulate the extra m DOF to achieve this goal • Design methodology: • Start from lazy wavelet and incorporate scaling functions of the same level to build a more performing wavelet Interlace splitting

10. …0,0,1,0,0… Hi-Wire (after U) Lo-Wire (after P) Merged result should sum up to zero: A=1/4

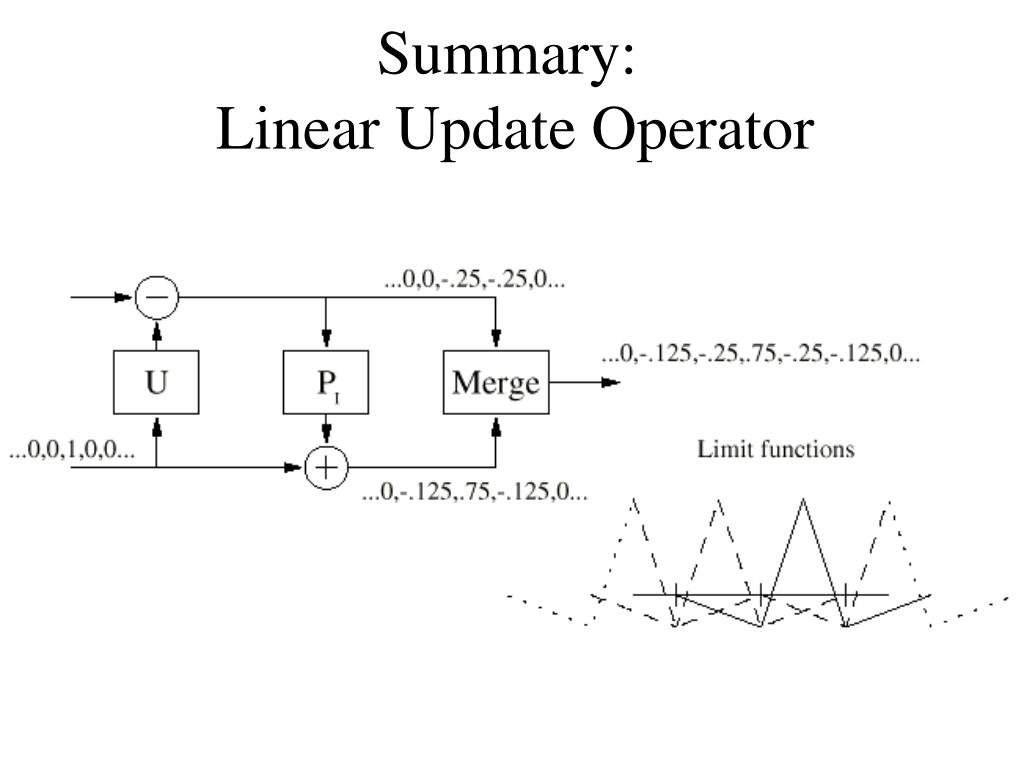

11. Summary: Linear Update Operator

12. Graphically, …

13. even odd Forward Linear Wavelet Transform

14. even odd Inverse Linear Wavelet Transform

15. Wavelet Basis • Cascading on the lower wire (with update) to get wavelet function

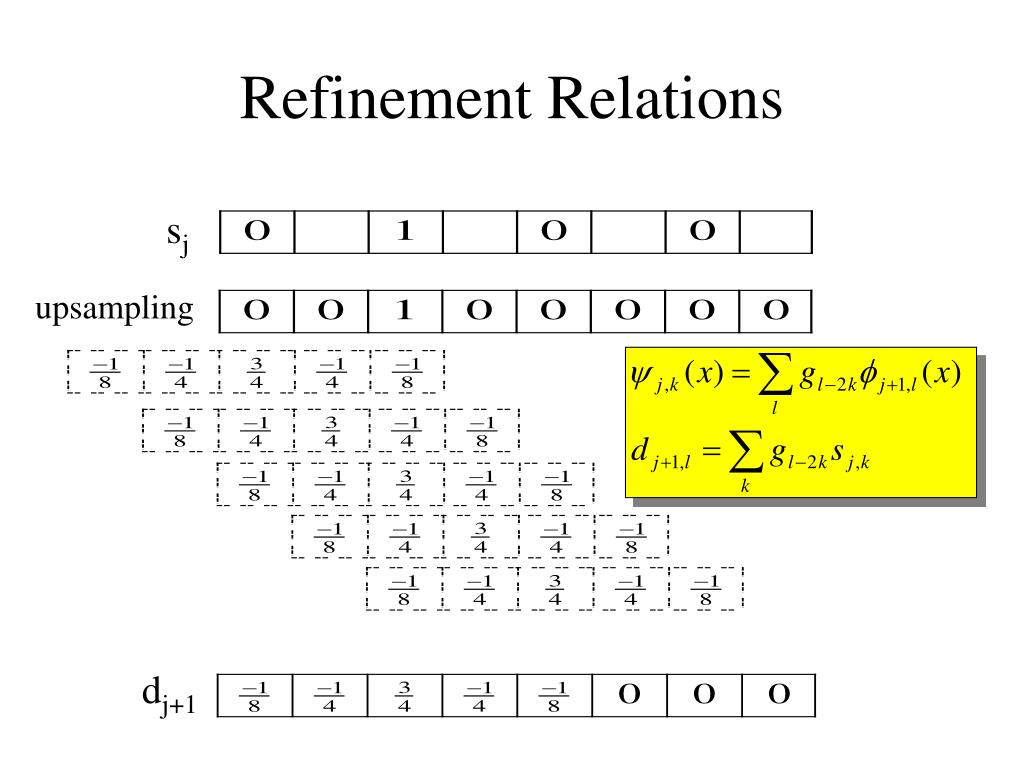

16. sj upsampling Refinement Relations dj+1

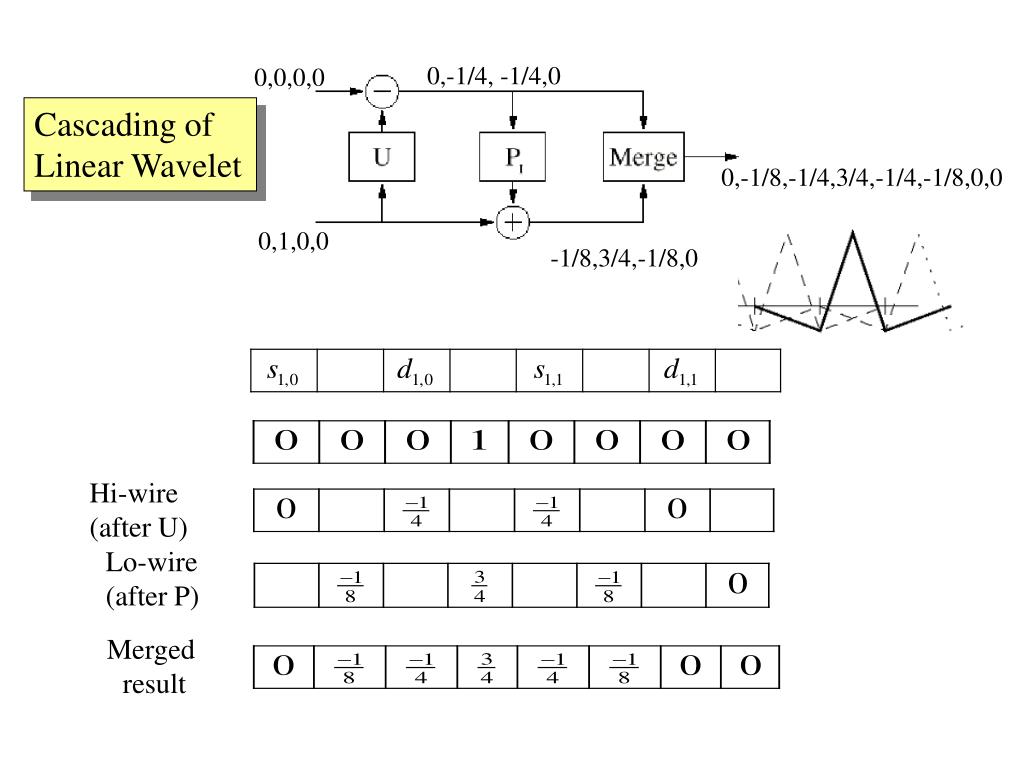

17. 0,-1/4, -1/4,0 0,0,0,0 0,-1/8,-1/4,3/4,-1/4,-1/8,0,0 0,1,0,0 -1/8,3/4,-1/8,0 Hi-wire (after U) Lo-wire (after P) Merged result Cascading of Linear Wavelet

18. 0,0,0,0 0,1,0,0 Cascading to Reach Limit Function

19. Wavelets from Interpolating Subdivision

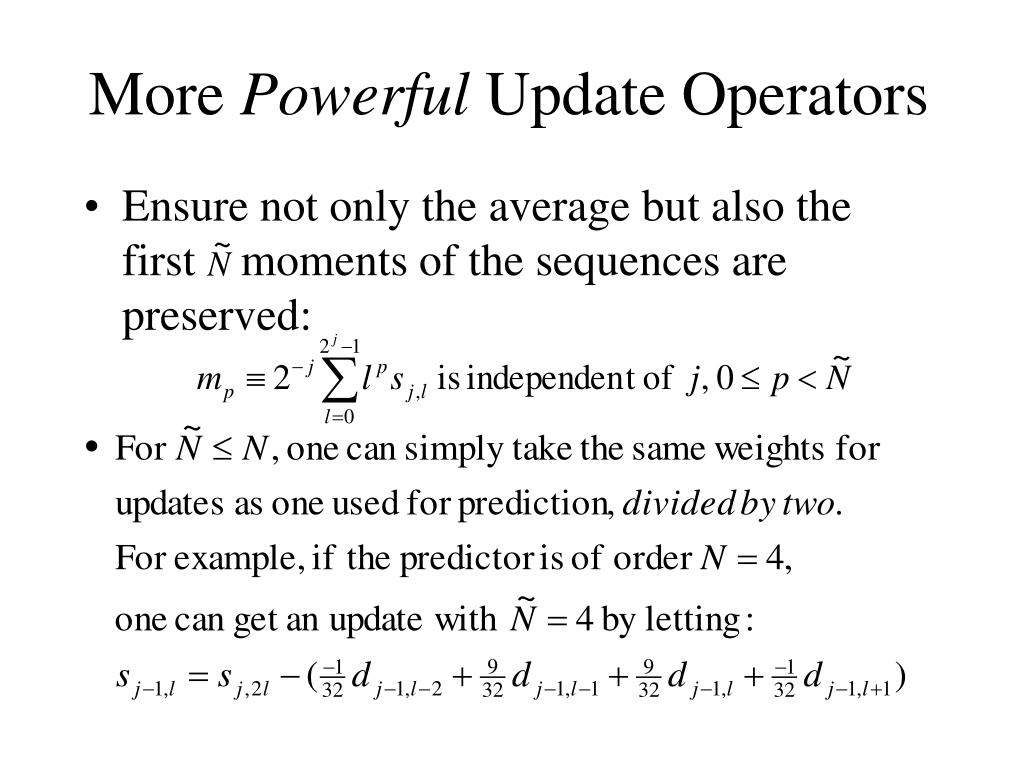

20. More Powerful Update Operators • Ensure not only the average but also the first moments of the sequences are preserved:

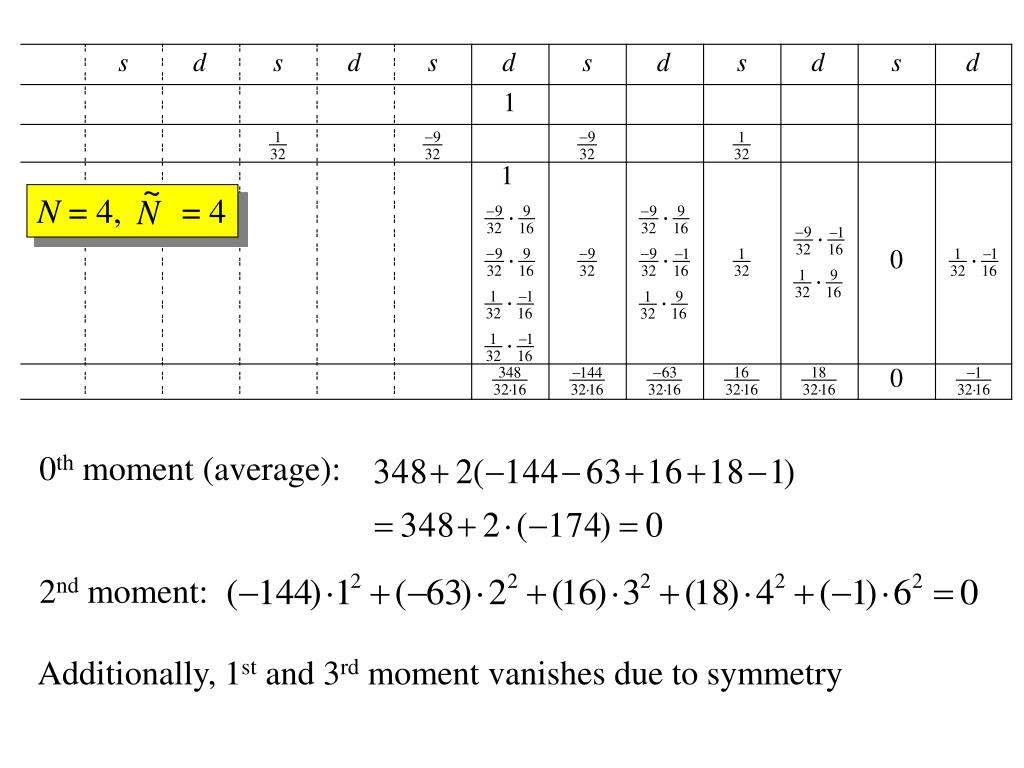

21. N = 4, = 4 0th moment (average): 2nd moment: Additionally, 1st and 3rd moment vanishes due to symmetry

22. Design Higher Order Update • Note that symmetry is the key of this form • Solve A and B by requiring the vanishing of 0th and 2nd moment • Due to symmetry, 1st and 3rd moments are zero • Dual order is 4

23. N = 2, = 4

24. Update for Average-Interpolating Lifting

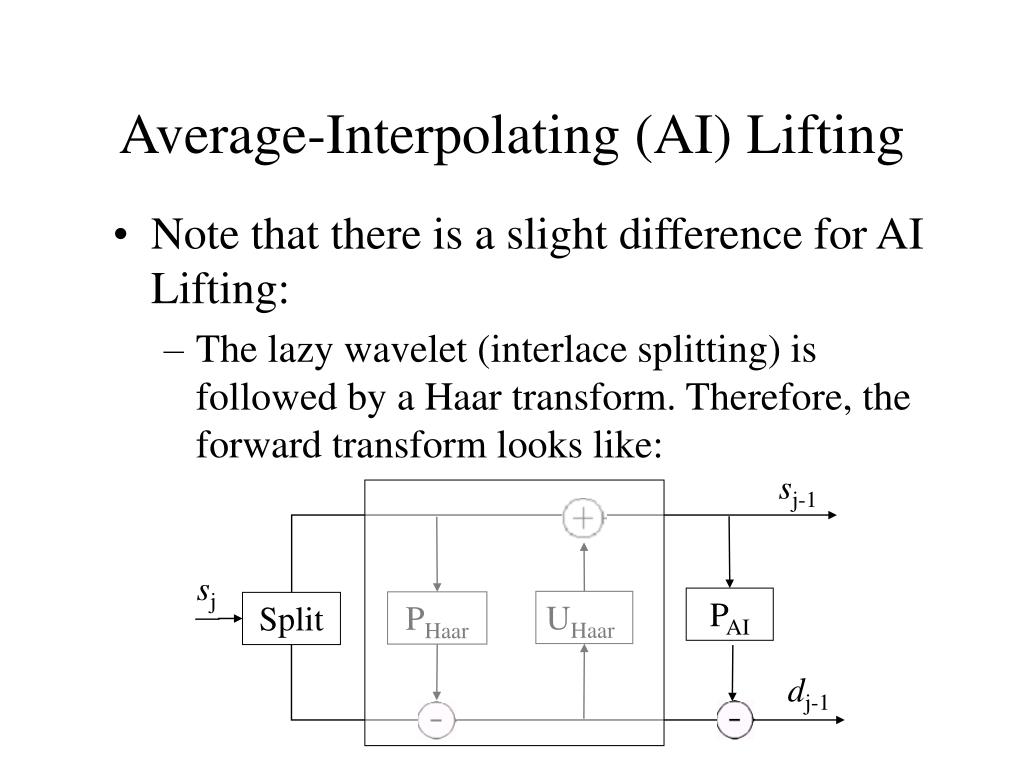

25. sj-1 sj PAI UHaar PHaar Split dj-1 Average-Interpolating (AI) Lifting • Note that there is a slight difference for AI Lifting: • The lazy wavelet (interlace splitting) is followed by a Haar transform. Therefore, the forward transform looks like:

26. sj-1 sj PAI UHaar PHaar Split dj-1 Properties of AI Lifting • Use the update of Haar to preserve average • No need to further design new update operator (unless further vanishing moments requested) Same Average! (from Haar)

27. sj-1 sj dj-1 AI Lifting (cont) • Inverse Transform

28. Ex: AI Transform (forward) sj+1,k After PHaar After UHaar After PAI sj,k: coarsened signal dj,k: difference signal

29. Ex: AI Transform (inverse) 3, 4, 1, 4 4, 3, 2, 3.5 3, 5, 4, 2, 1, 3, 4, 3 2.125, -1.5, 1.875, -1.5 2, -2, 2, -1 5, 2, 3, 3

30. 0, -1/2, 0, 0 0, 0, 0, 0 0, 0, -1/2, 1/2, 0, 0, 0, 0 0, 1, 0, 0 0, 1/2, 0, 0 0, 1/16, -9/16, 7/16, 1/16, 0, 0, 0 0, -1/16, -7/16, 9/16, -1/16, 0, 0, 0 0, -1/8, 1/8, 1/8, -1/8, 0, 0, 0 AI Wavelets by Cascading (N=3) Merged result: 0, 0, 1/16, -1/16, -9/16, -7/16, 7/16, 9/16, 1/16, -1/16, 0, 0, 0

31. Wavelets from Average-Interpolation

32. MRA (Part 2)

33. Function Projection • Consider an initial signal, its coarser approximation: • Their difference lies in the space spanned by the wavelet functions

34. There are many things related to the definition of dn-1(x) how dn-1,l is computed (the forward transform) The basis (wavelets) If the order of MRA is N, then the wavelet transform started from any polynomial sn(x) with degree less than N will yield zero dn-1,l That is, …
