Week 14 - Friday

### CS322

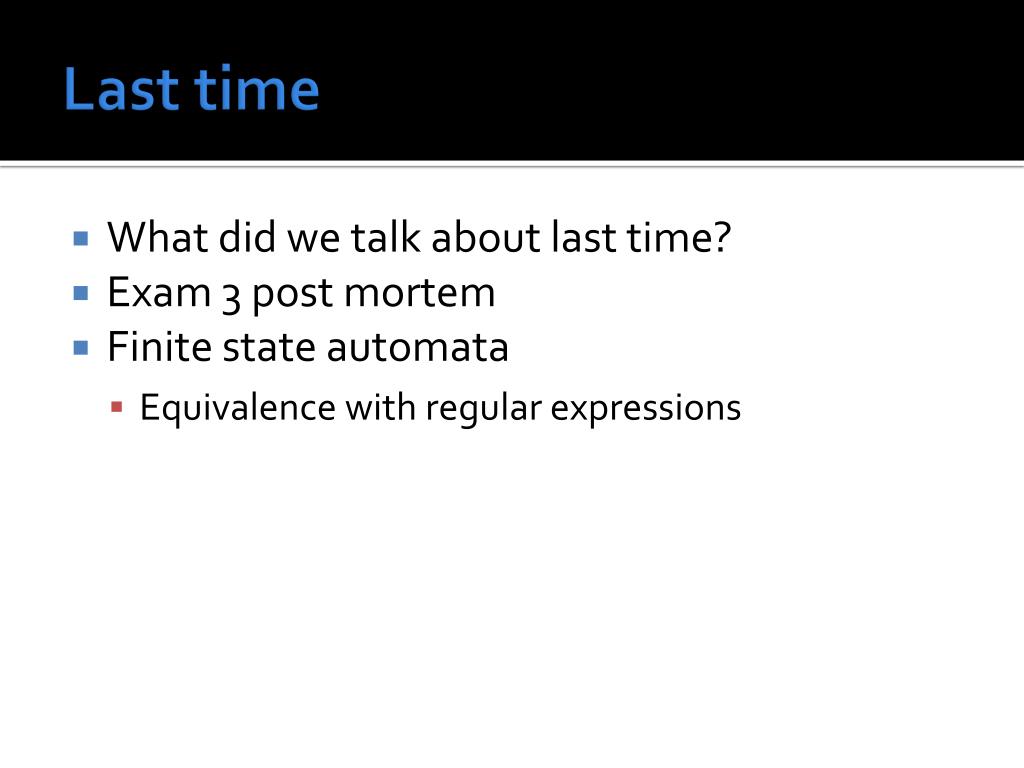

Last time
• What did we talk about last time?
• Exam 3 post mortem
• Finite state automata
• Equivalence with regular expressions

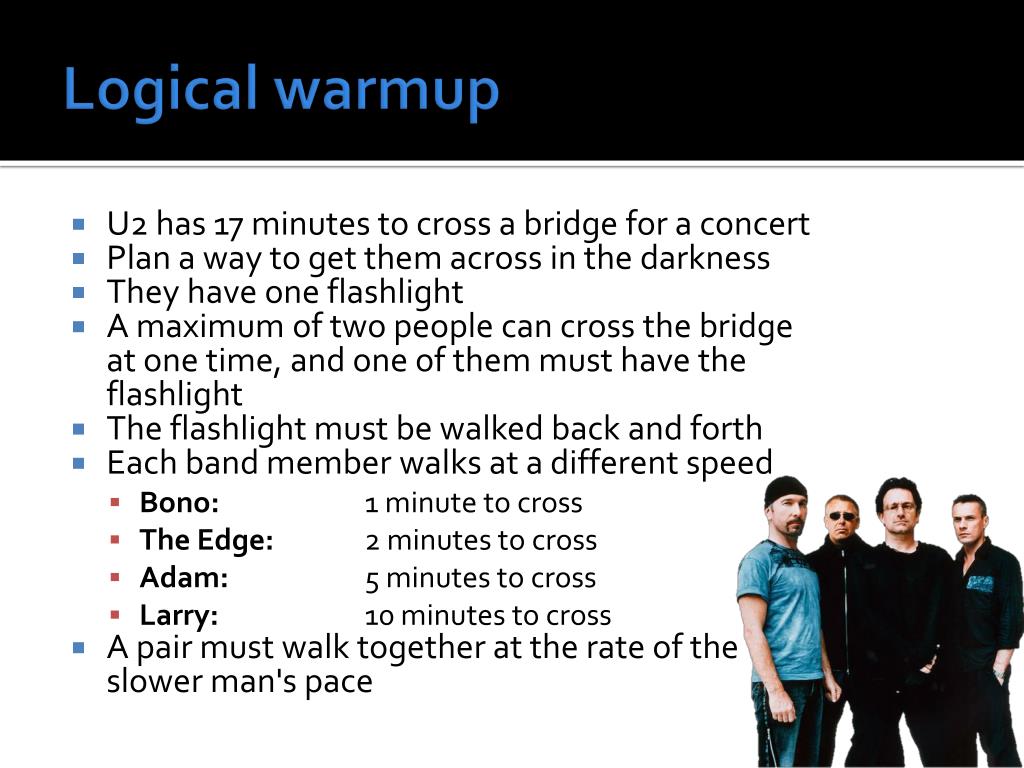

Logical warmup
• U2 has 17 minutes to cross a bridge for a concert
• Plan a way to get them across in the darkness
• They have one flashlight
• A maximum of two people can cross the bridge at one time, and one of them must have the flashlight
• The flashlight must be walked back and forth
• Each band member walks at a different speed
• Bono: 1 minute to cross
• The Edge: 2 minutes to cross
• Adam: 5 minutes to cross
• Larry: 10 minutes to cross
• A pair must walk together at the rate of the slower man's pace

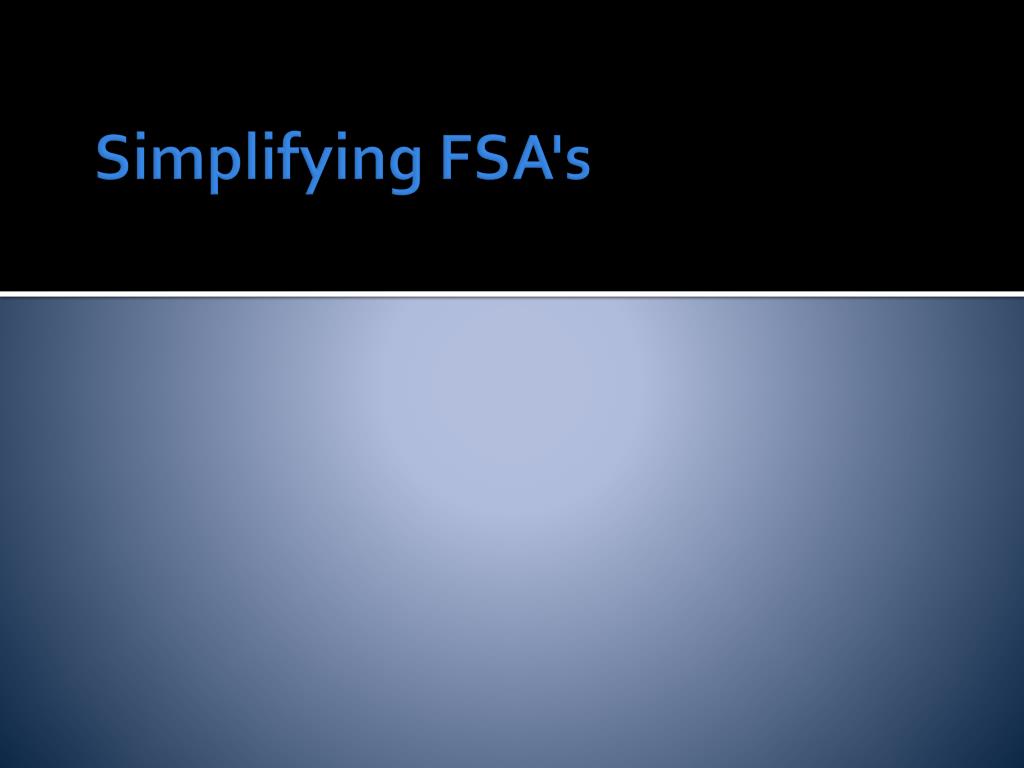

Simplifying FSA's

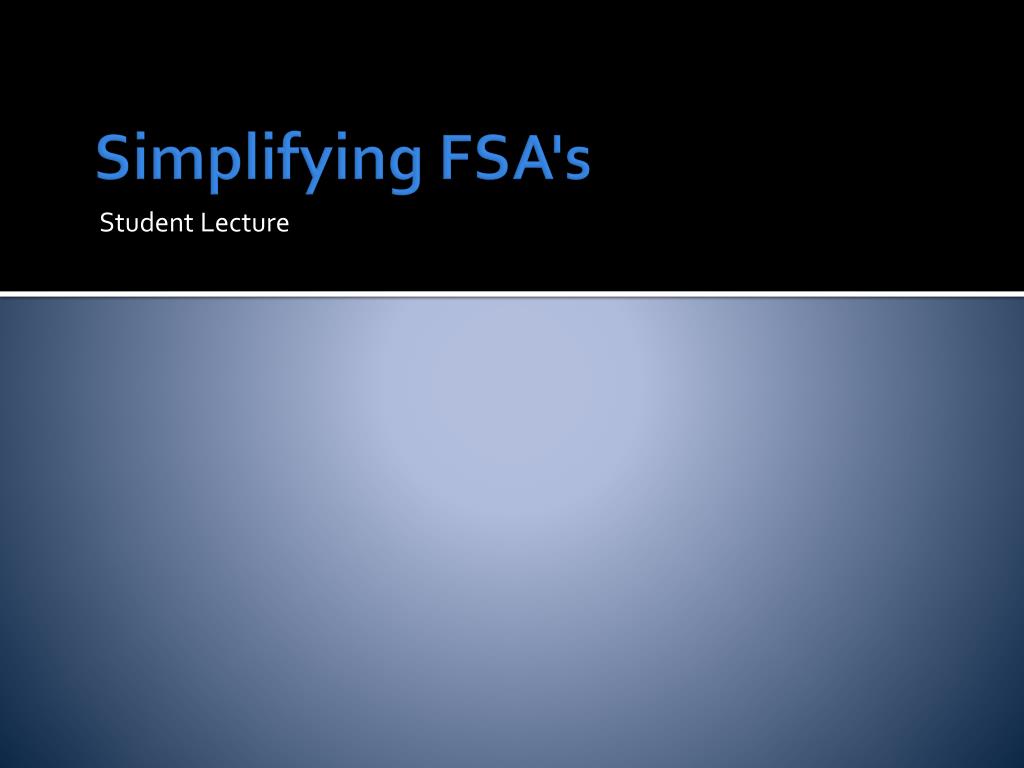

Student Lecture

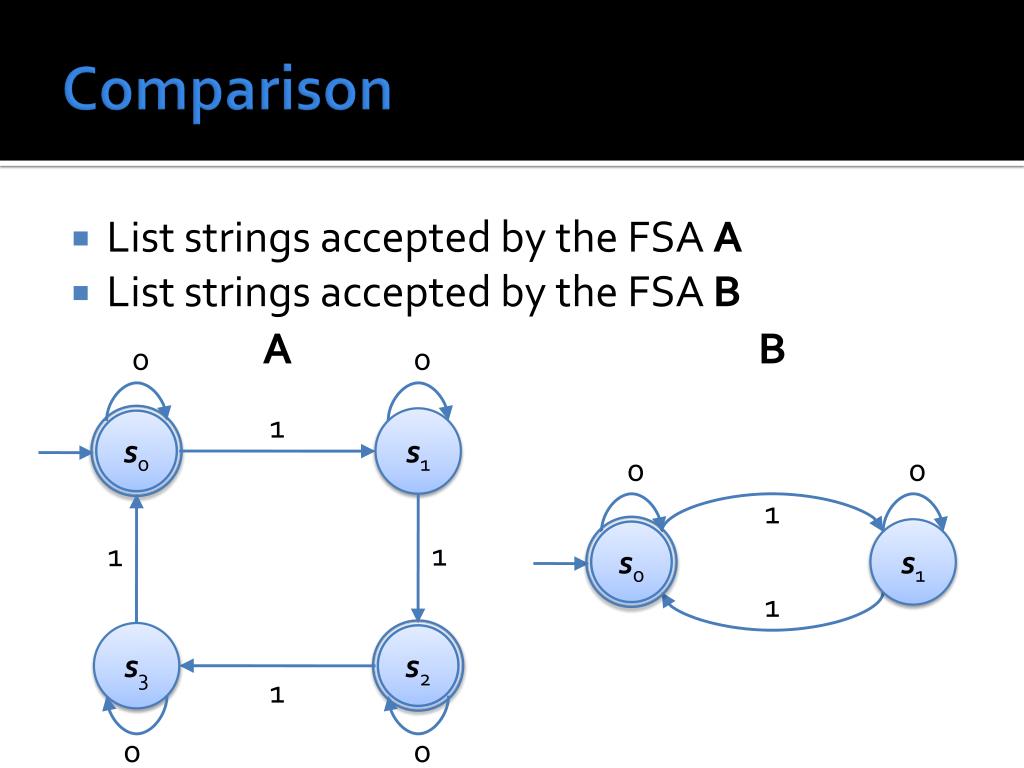

Comparison
• List strings accepted by the FSA A
• List strings accepted by the FSA B

A

B

0

0

1

s0

s1

0

0

1

s0

s1

1

1

1

s3

s2

1

0

0

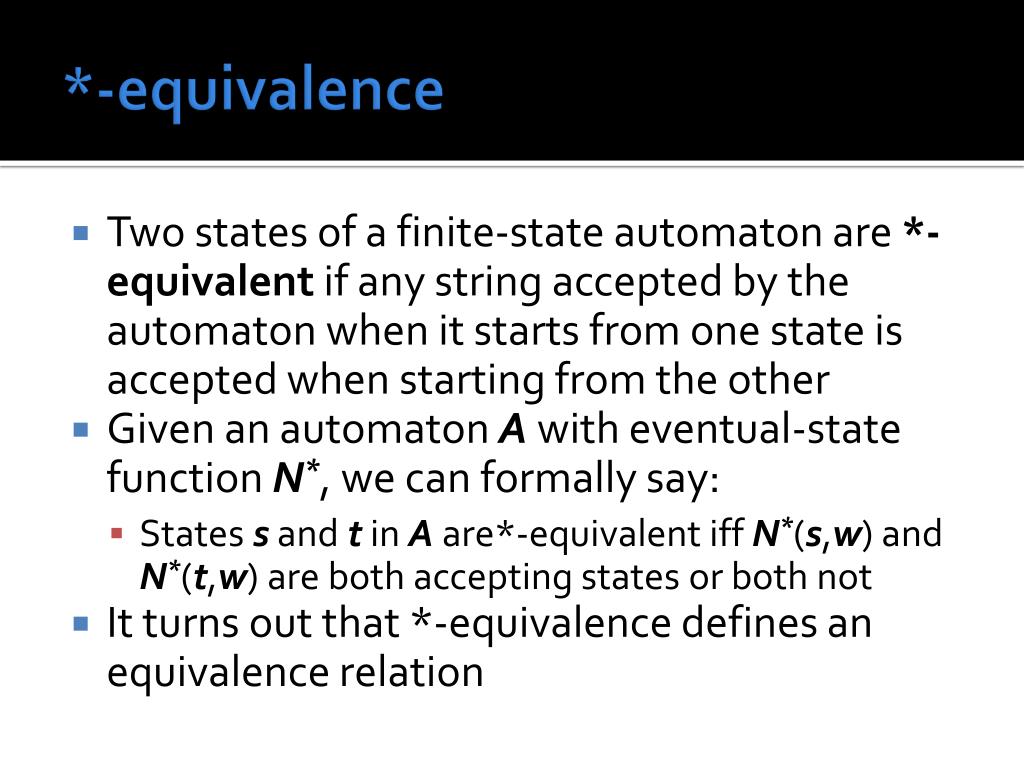

*-equivalence
• Two states of a finite-state automaton are *-equivalent if any string accepted by the automaton when it starts from one state is accepted when starting from the other
• Given an automaton A with eventual-state function N*, we can formally say:
• States s and t in A are*-equivalent iffN*(s,w) and N*(t,w) are both accepting states or both not
• It turns out that *-equivalence defines an equivalence relation

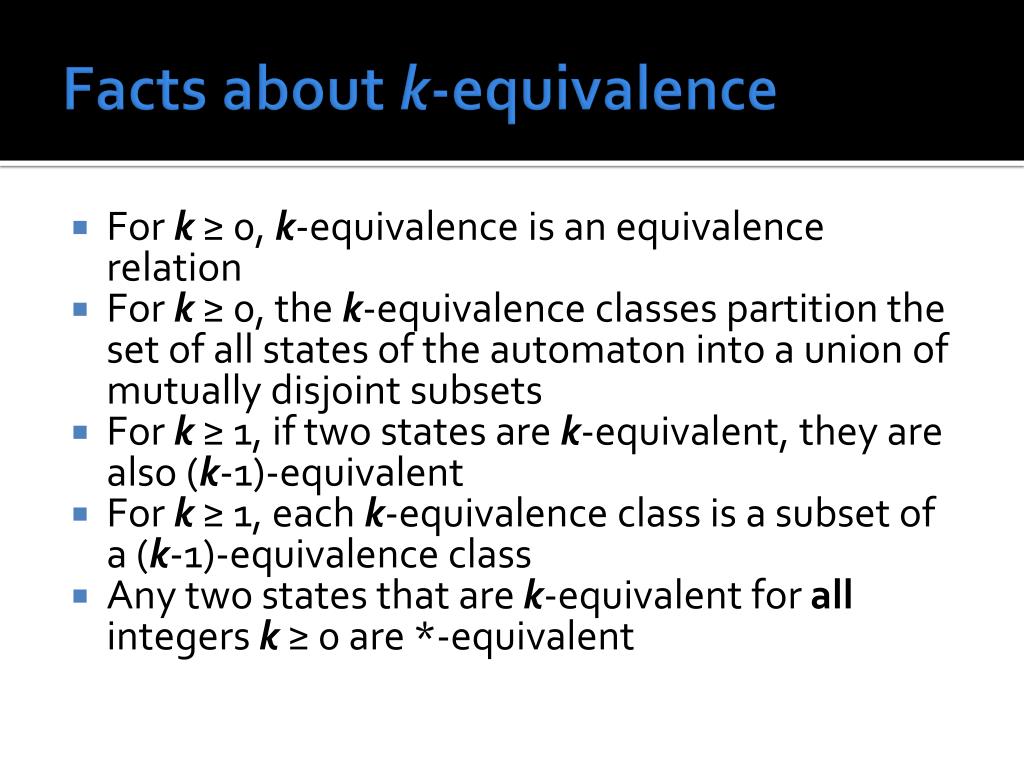

k-equivalence
• *-equivalence is hard to demonstrate directly
• Instead, we'll focus on equivalence after k or fewer inputs
• Given an automaton A with eventual-state function N*, we can formally say:
• States s and t in A are k-equivalent iffN*(s,w) and N*(t,w) are both accepting states or both not, for all strings w of length k or less
• For k ≥ 0, k-equivalence is an equivalence relation
• For k ≥ 0, the k-equivalence classes partition the set of all states of the automaton into a union of mutually disjoint subsets
• For k ≥ 1, if two states are k-equivalent, they are also (k-1)-equivalent
• For k ≥ 1, each k-equivalence class is a subset of a (k-1)-equivalence class
• Any two states that are k-equivalent for all integers k ≥ 0 are *-equivalent

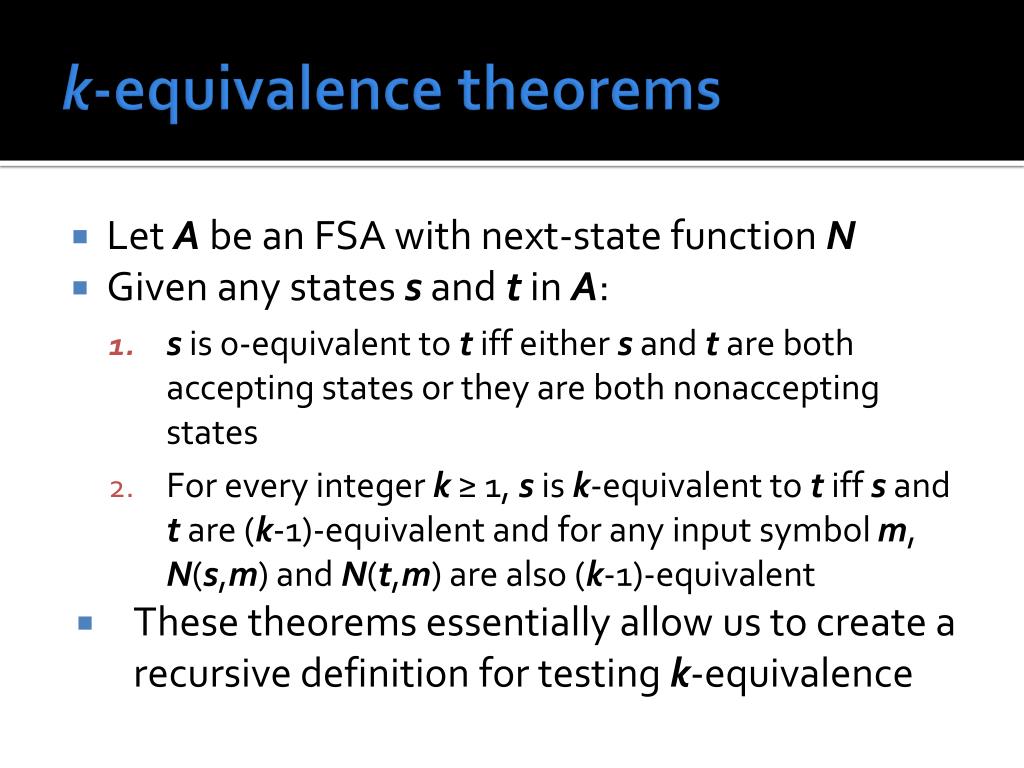

k-equivalence theorems
• Let A be an FSA with next-state function N
• Given any states s and t in A:
• s is 0-equivalent to tiff either s and t are both accepting states or they are both nonaccepting states
• For every integer k ≥ 1, s is k-equivalent to tiffs and t are (k-1)-equivalent and for any input symbol m, N(s,m) and N(t,m) are also (k-1)-equivalent
• These theorems essentially allow us to create a recursive definition for testing k-equivalence

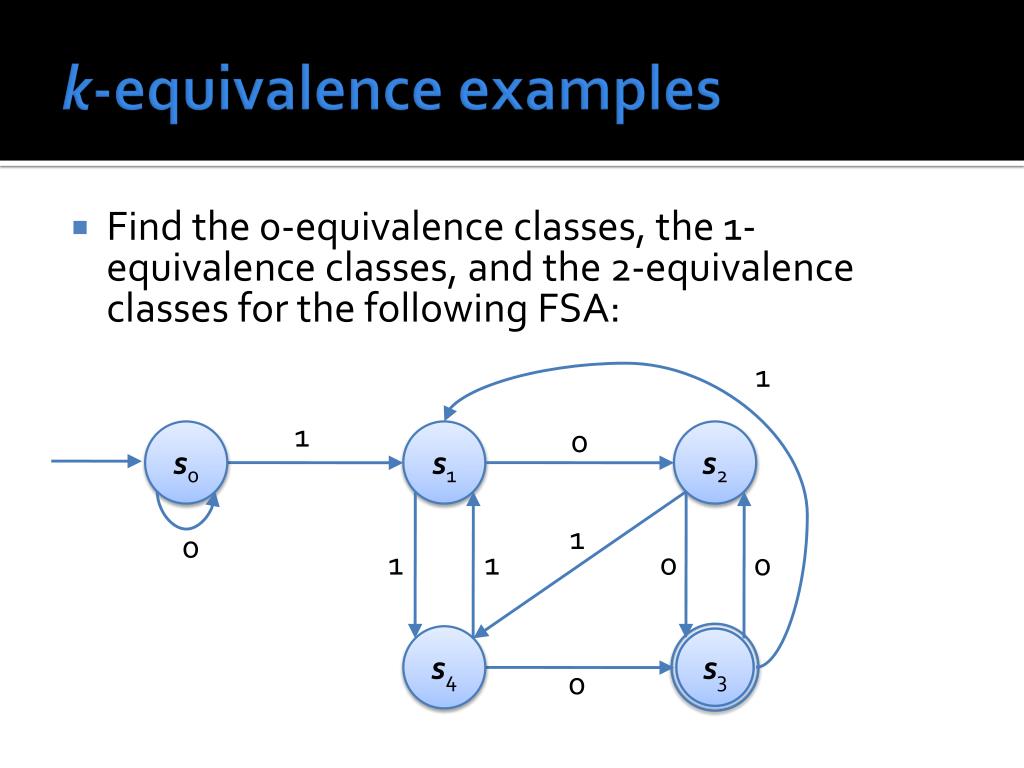

k-equivalence examples
• Find the 0-equivalence classes, the 1-equivalence classes, and the 2-equivalence classes for the following FSA:

1

1

0

s0

s1

s2

1

0

1

1

0

0

s4

s3

0

Finding the *-equivalence classes
• Keep finding k-equivalence classes for larger and larger values of k
• If you ever find that the set of k-equivalence classes is equal to the set of (k+1)-equivalence classes, that is the set of *-equivalence classes
• This is known as a fixed point in mathematics

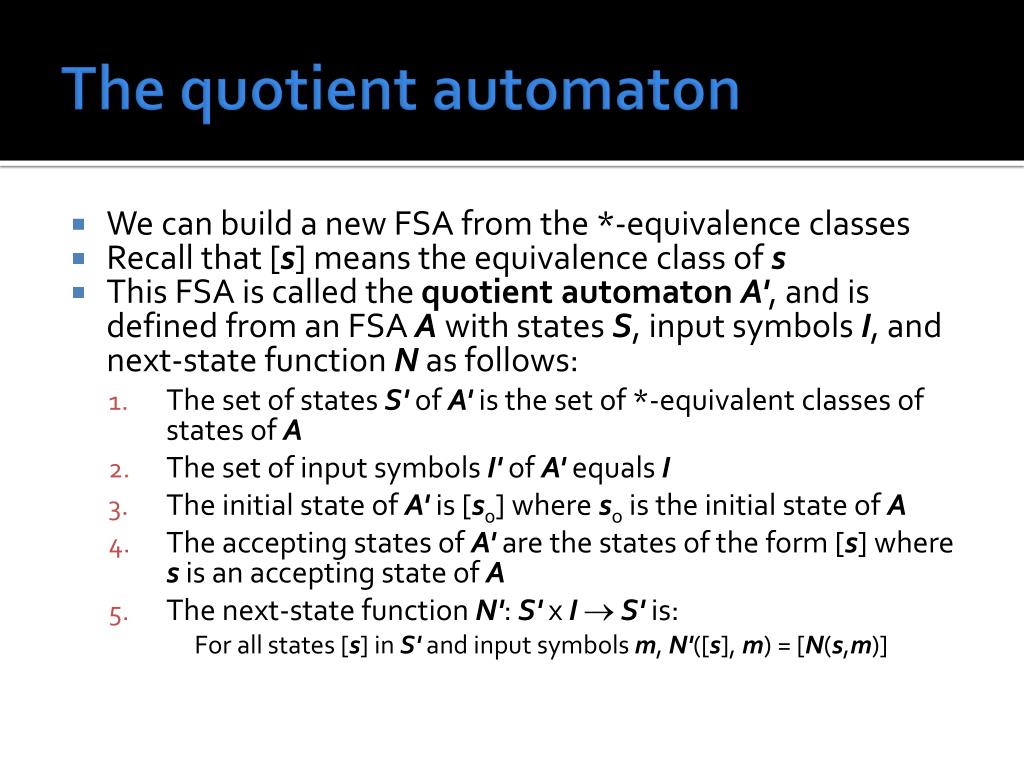

The quotient automaton
• We can build a new FSA from the *-equivalence classes
• Recall that [s] means the equivalence class of s
• This FSA is called the quotient automatonA', and is defined from an FSA A with states S, input symbols I, and next-state function N as follows:
• The set of states S' of A' is the set of *-equivalent classes of states of A
• The set of input symbols I' of A' equals I
• The initial state of A' is [s0] where so is the initial state of A
• The accepting states of A' are the states of the form [s] where s is an accepting state of A
• The next-state function N': S' x I S' is:

For all states [s] in S' and input symbols m, N'([s], m) = [N(s,m)]

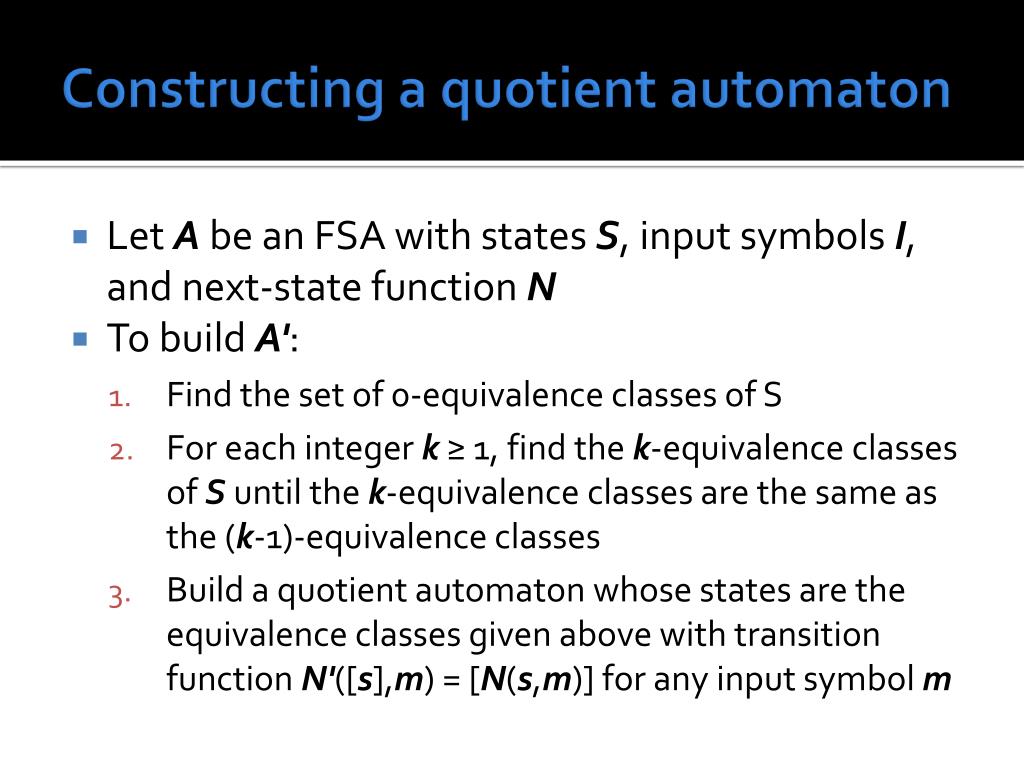

Constructing a quotient automaton
• Let A be an FSA with states S, input symbols I, and next-state function N
• To build A':
• Find the set of 0-equivalence classes of S
• For each integer k ≥ 1, find the k-equivalence classes of S until the k-equivalence classes are the same as the (k-1)-equivalence classes
• Build a quotient automaton whose states are the equivalence classes given above with transition function N'([s],m) = [N(s,m)] for any input symbol m

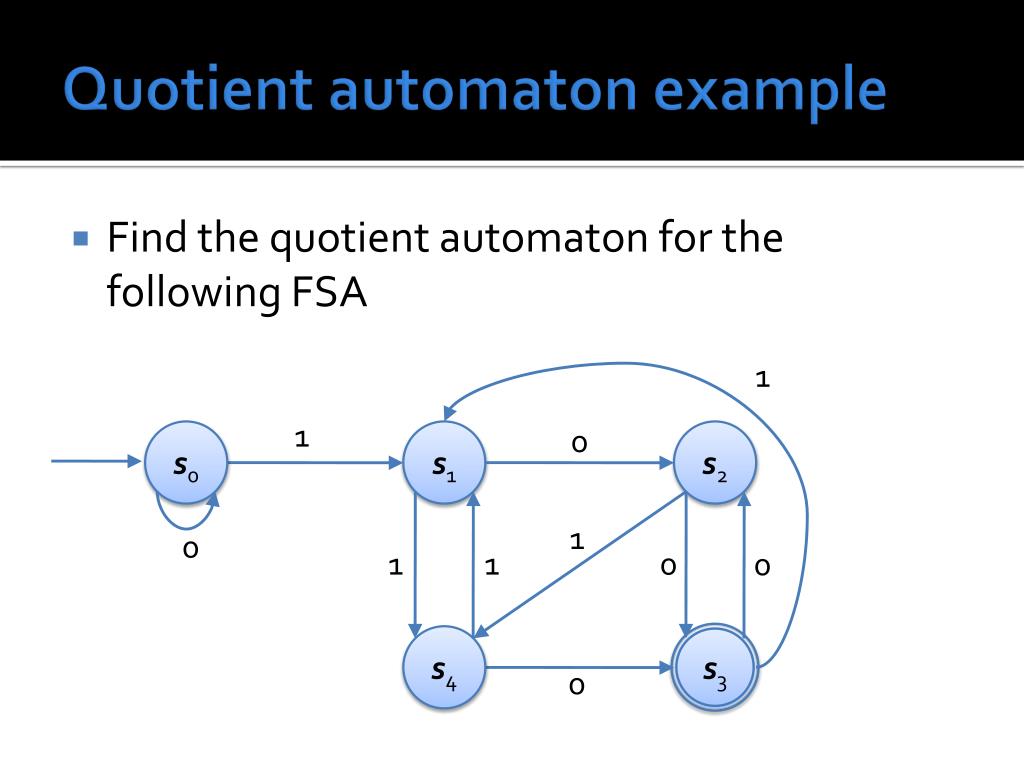

Quotient automaton example
• Find the quotient automaton for the following FSA

1

1

0

s0

s1

s2

1

0

1

1

0

0

s4

s3

0

Equivalent automata
• Two automata A1 and A2 are equivalent iffL(A1) = L(A2)
• Proving the languages accepted by two automata can be difficult
• However, the quotient automata for both A1 and A2 will be the same (except for labeling) if A1 is equivalent to A2
Proving equivalence
• Prove that the following two automata are equivalent by finding their quotient automata

s2

s1'

0, 1

0

1

1

0

0

1

1

s0

s0'

s2'

s1

0

0

0

1

1

1

s3

s3'

0

Context free languages
• A context free language is one that can be described by a context free grammar
• Every regular language is context free, but there are context free languages that are not regular
• Classic examples:
• Strings of k 0's followed by k 1's
• Palindromes made up of a's and b's
• Legally nested parentheses
• All of these involve counting arbitrary numbers of characters
• Regular expressions can't count

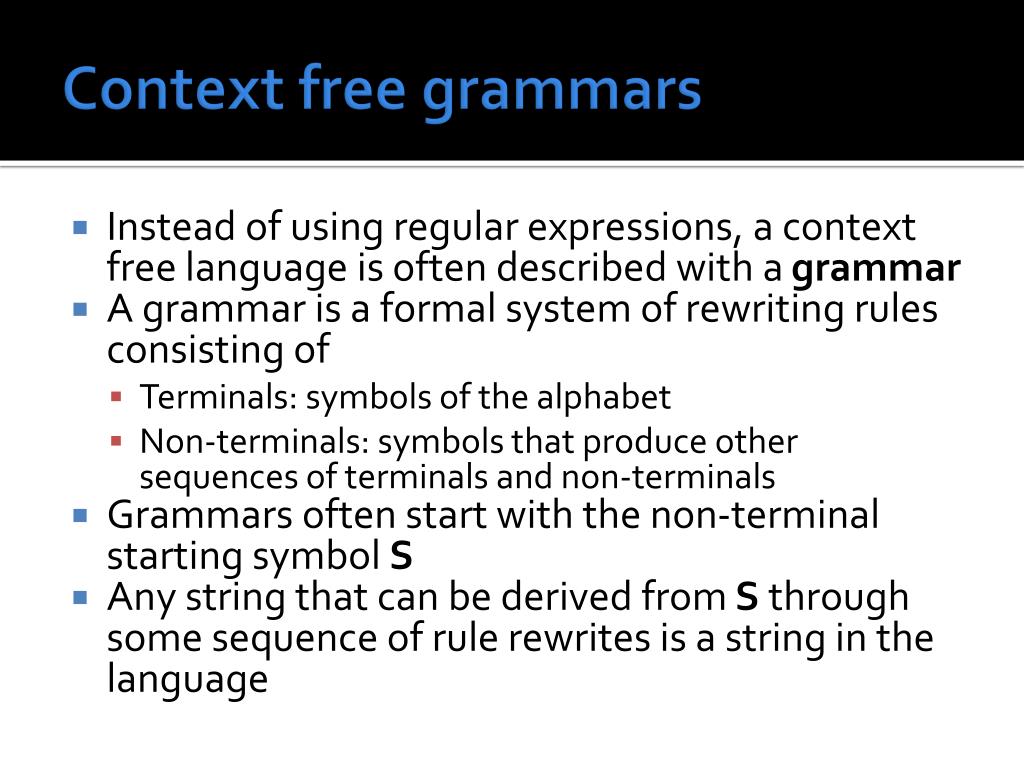

Context free grammars
• Instead of using regular expressions, a context free language is often described with a grammar
• A grammar is a formal system of rewriting rules consisting of
• Terminals: symbols of the alphabet
• Non-terminals: symbols that produce other sequences of terminals and non-terminals
• Any string that can be derived from S through some sequence of rule rewrites is a string in the language

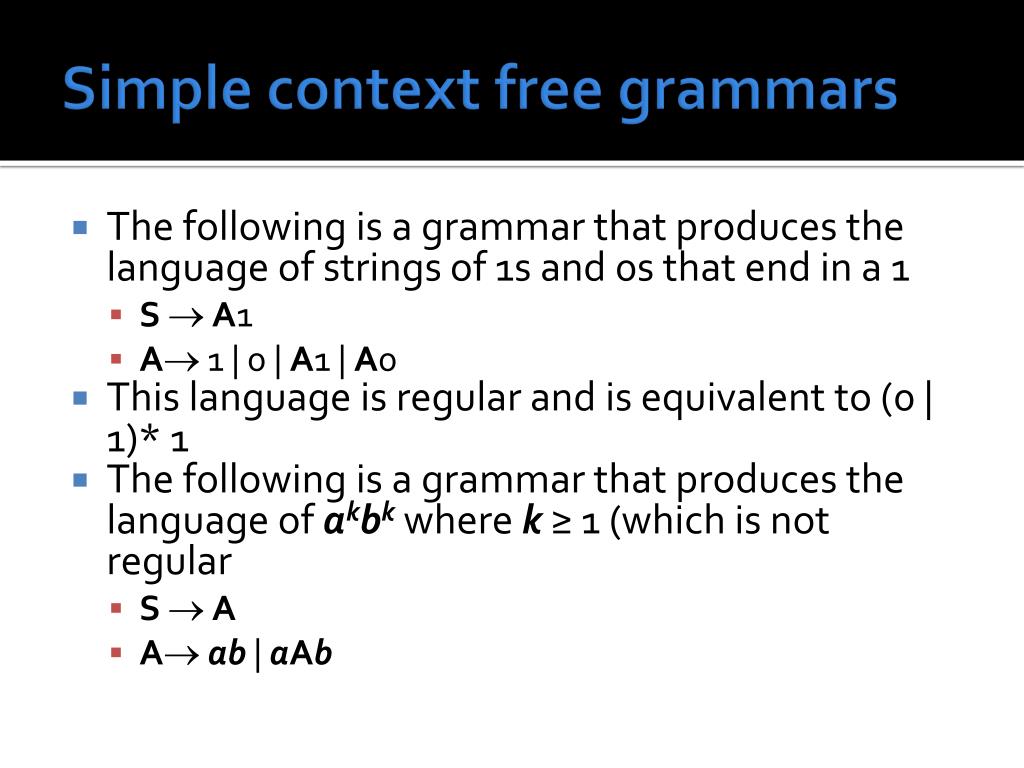

Simple context free grammars
• The following is a grammar that produces the language of strings of 1s and 0s that end in a 1
• SA1
• A 1 | 0 | A1 | A0
• This language is regular and is equivalent to (0 | 1)* 1
• The following is a grammar that produces the language of akbk where k ≥ 1 (which is not regular
• SA
• Aab| aAb
CFG examples
• Write a grammar that legal nesting of parentheses and braces in Java
• Don't worry about the stuff that goes inside
• Write a grammar for legal mathematical expressions in Java using variables and integers, +, -, *, /, and parentheses
• Write a grammar that corresponds to the same language defined by the regular expression ab* (a | bb) (ba)*

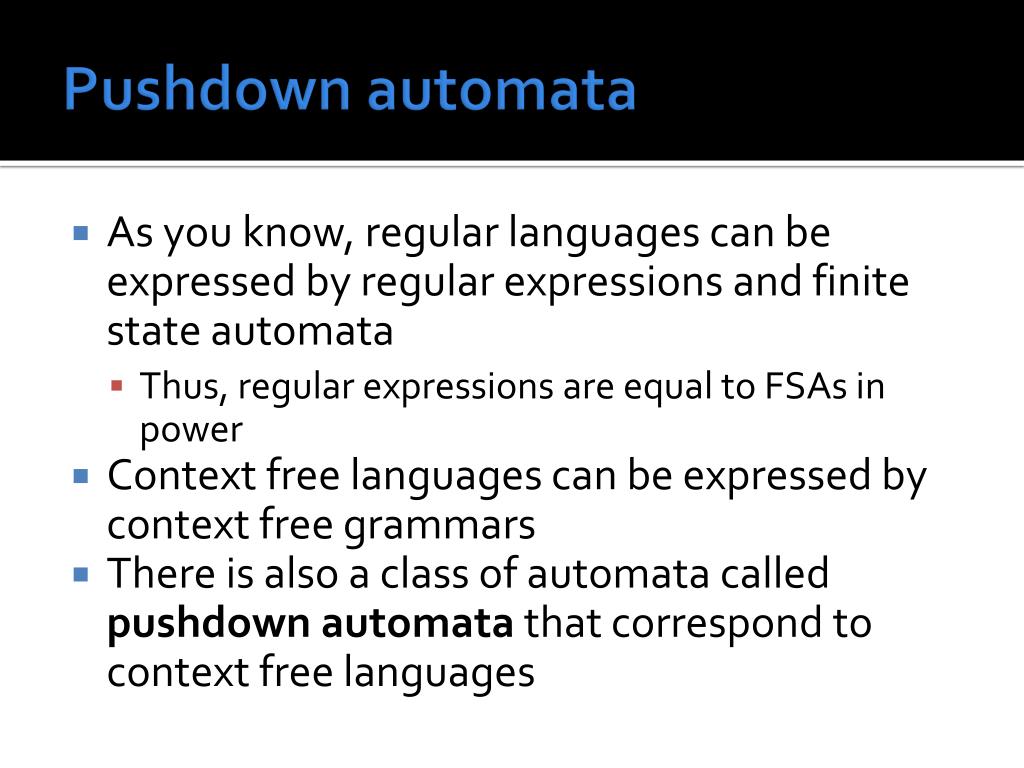

Pushdown automata
• As you know, regular languages can be expressed by regular expressions and finite state automata
• Thus, regular expressions are equal to FSAs in power
• Context free languages can be expressed by context free grammars
• There is also a class of automata called pushdown automata that correspond to context free languages

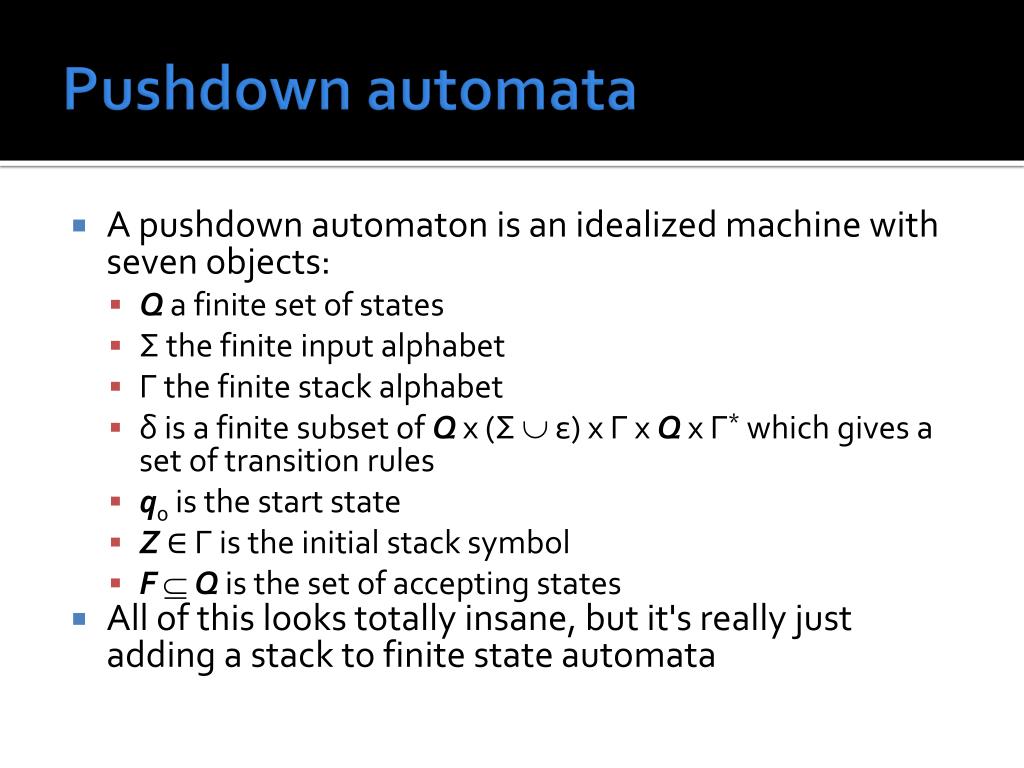

Pushdown automata
• A pushdown automaton is an idealized machine with seven objects:
• Q a finite set of states
• Σ the finite input alphabet
• Γ the finite stack alphabet
• δ is a finite subset of Q x (Σ  ε) x Γ x Q x Γ*which gives a set of transition rules
• q0is the start state
• Z Γ is the initial stack symbol
• F Q is the set of accepting states
• All of this looks totally insane, but it's really just adding a stack to finite state automata

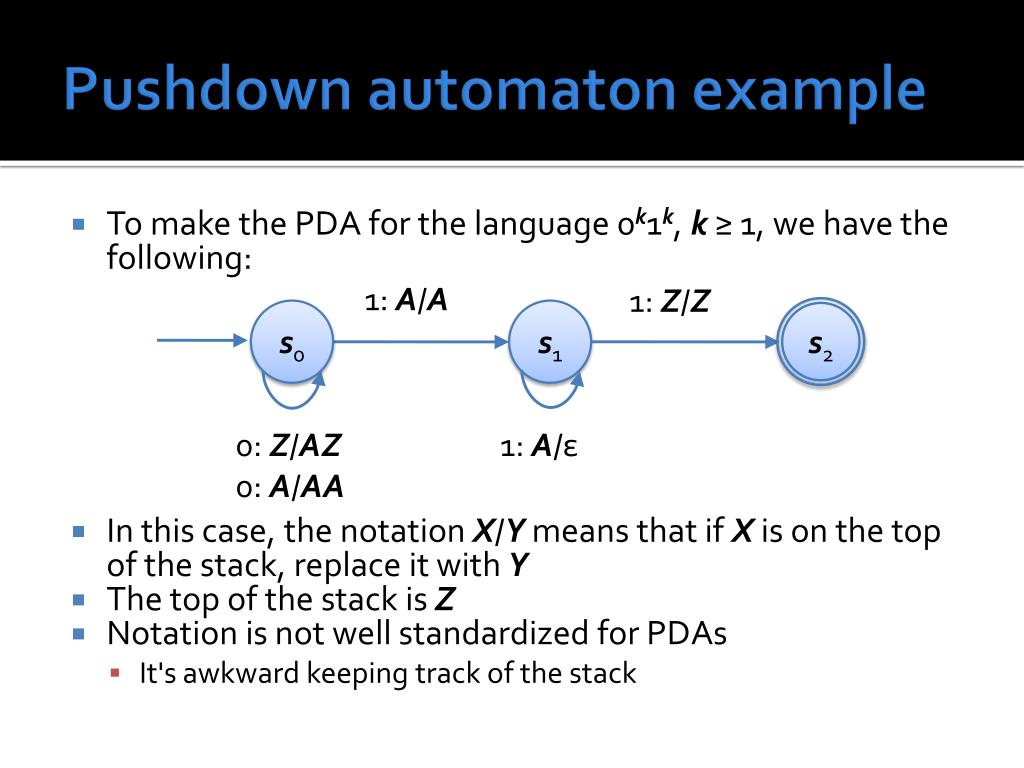

Pushdown automaton example
• To make the PDA for the language 0k1k, k ≥ 1, we have the following:
• In this case, the notation X/Ymeans that if X is on the top of the stack, replace it with Y
• The top of the stack is Z
• Notation is not well standardized for PDAs
• It's awkward keeping track of the stack

1: A/A

1: Z/Z

s0

s1

s2

0: Z/AZ

0: A/AA

1: A/ε

Chomsky hierarchy
• Noam Chomsky is a brilliant linguist who has recently focused mostly on political activism
• Remember that a grammar consists of terminals (alphabet symbols), non-terminals, production rules, and a start symbol
• He noted that grammars can be divided into four levels in terms of expressiveness:
• Type-0 (Unrestricted grammars)
• Type-1 (Context sensitive grammars)
• Type-2 (Context free grammars)
• Type-3 (Regular grammars)

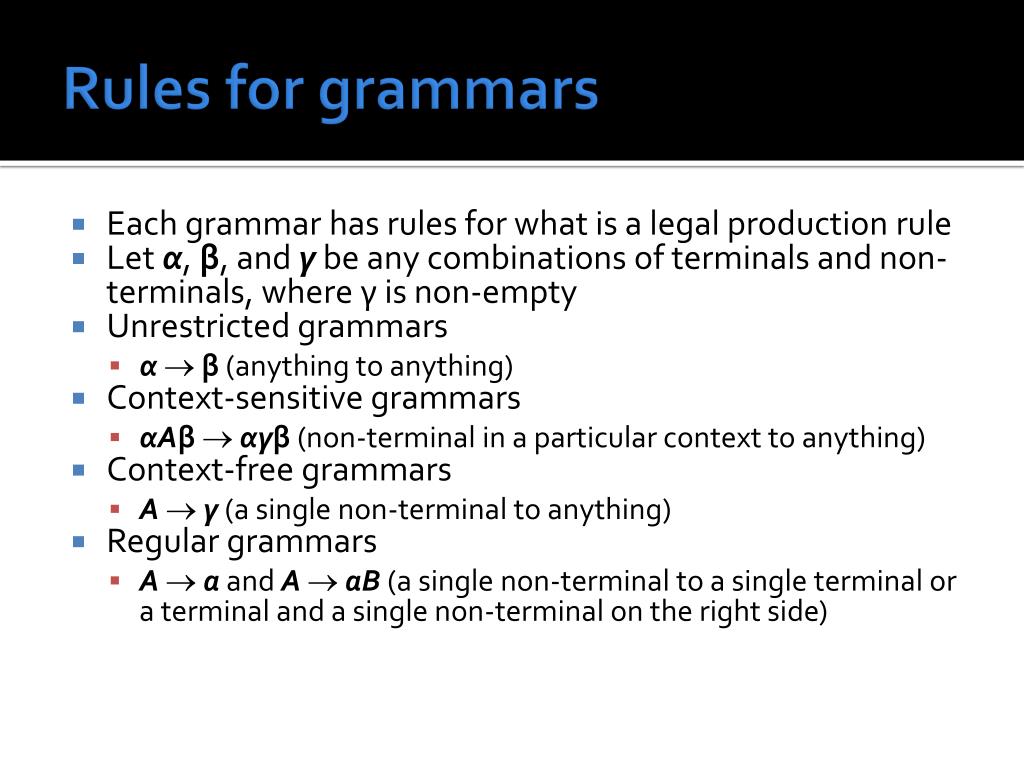

Rules for grammars
• Each grammar has rules for what is a legal production rule
• Let α, β, and γbe any combinations of terminals and non-terminals, where γ is non-empty
• Unrestricted grammars
• αβ(anything to anything)
• Context-sensitive grammars
• αAβαγβ(non-terminal in a particular context to anything)
• Context-free grammars
• A γ(a single non-terminal to anything)
• Regular grammars
• Aa and A aB(a single non-terminal to a single terminal or a terminal and a single non-terminal on the right side)

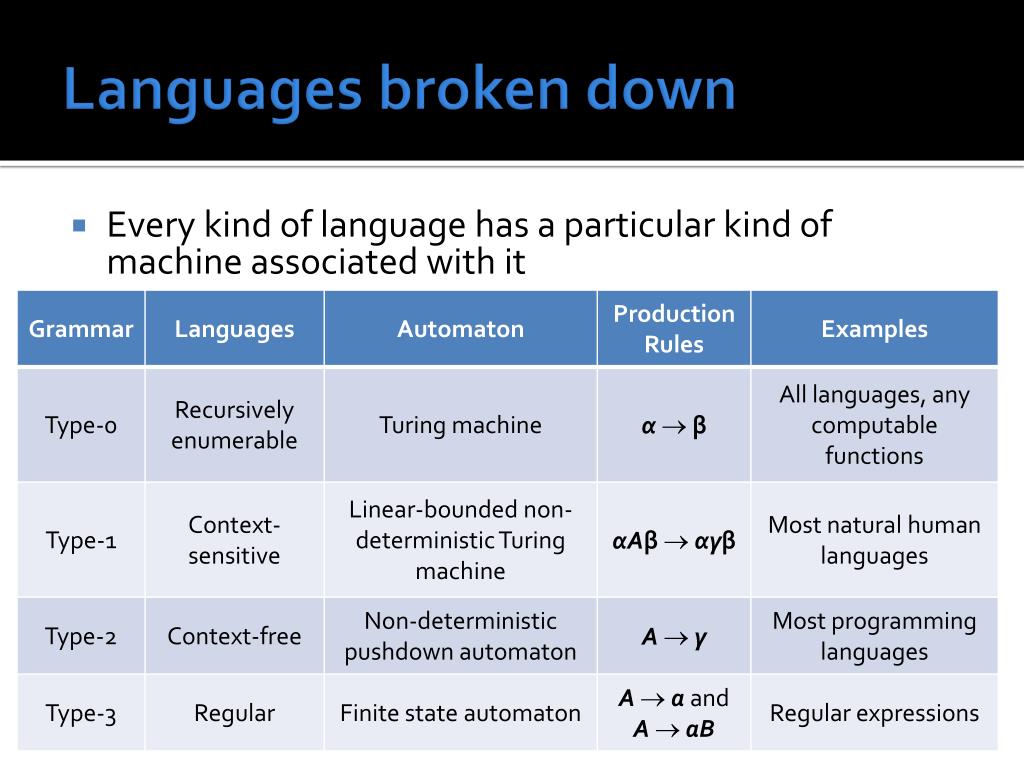

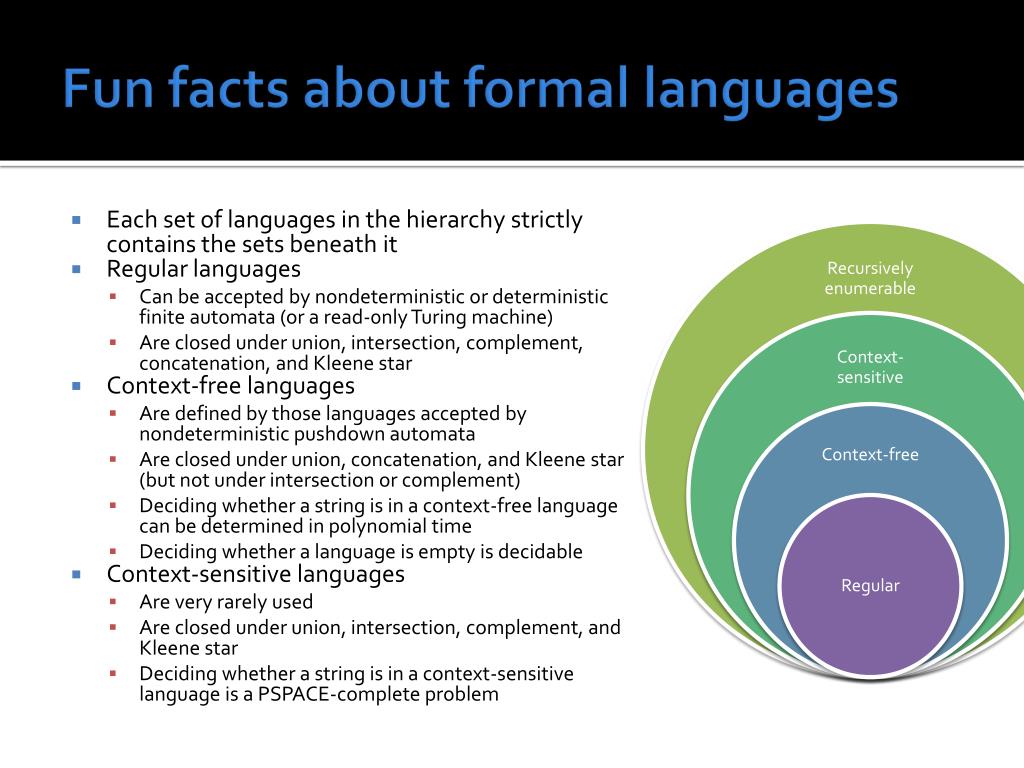

Languages broken down
• Every kind of language has a particular kind of machine associated with it
• Each set of languages in the hierarchy strictly contains the sets beneath it
• Regular languages
• Can be accepted by nondeterministic or deterministic finite automata (or a read-0nly Turing machine)
• Are closed under union, intersection, complement, concatenation, and Kleene star
• Context-free languages
• Are defined by those languages accepted by nondeterministic pushdown automata
• Are closed under union, concatenation, and Kleene star (but not under intersection or complement)
• Deciding whether a string is in a context-free language can be determined in polynomial time
• Deciding whether a language is empty is decidable
• Context-sensitive languages
• Are very rarely used
• Are closed under union, intersection, complement, and Kleene star
• Deciding whether a string is in a context-sensitive language is a PSPACE-complete problem

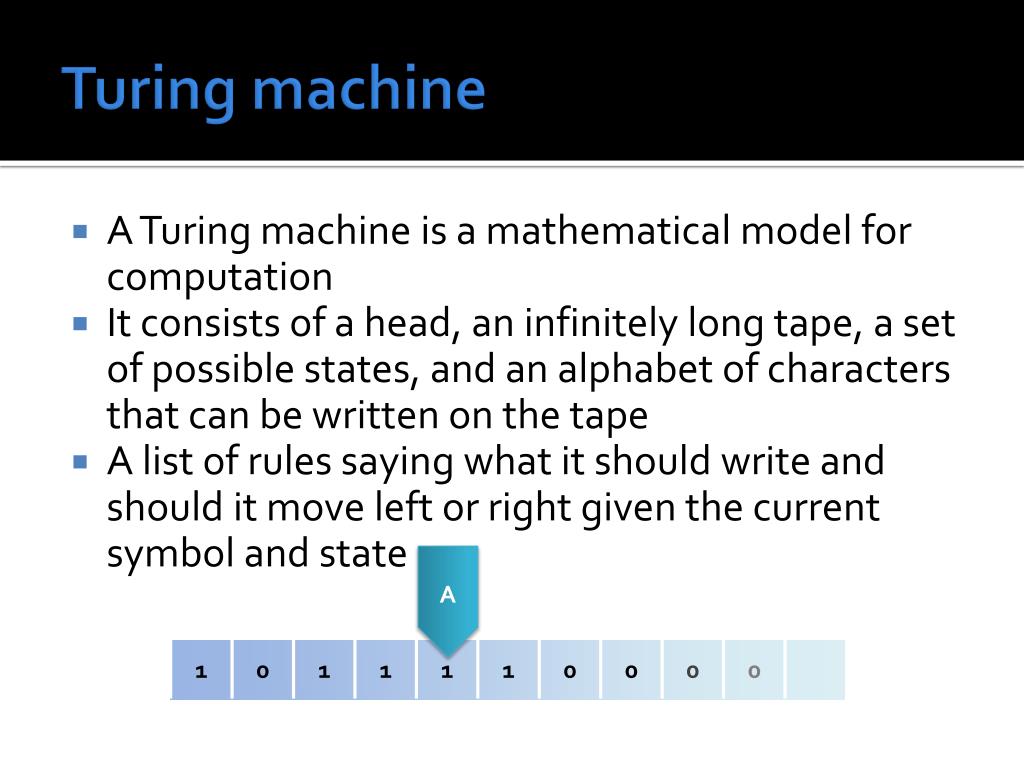

Turing machine
• A Turing machine is a mathematical model for computation
• It consists of a head, an infinitely long tape, a set of possible states, and an alphabet of characters that can be written on the tape
• A list of rules saying what it should write and should it move left or right given the current symbol and state

A

Turing machine example
• You can specify a Turing machine with a table giving its behavior for a specific configuration
• Turing's first example machine printed an infinite sequence of alternating 1s and 0s, separated by spaces:

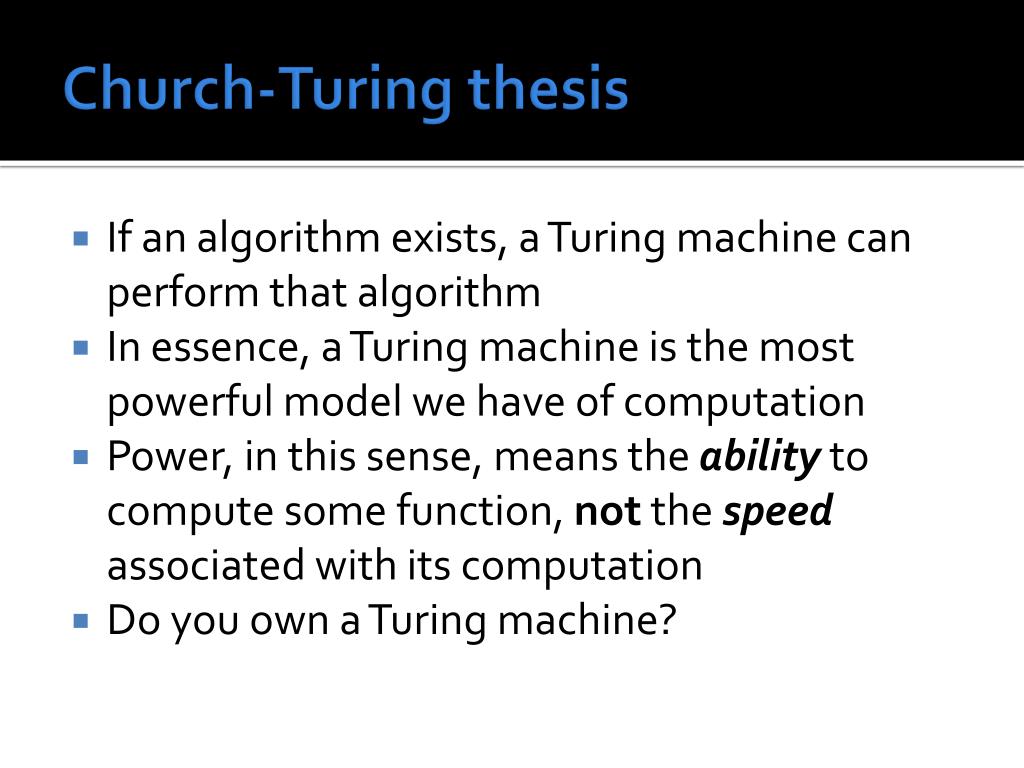

Church-Turing thesis
• If an algorithm exists, a Turing machine can perform that algorithm
• In essence, a Turing machine is the most powerful model we have of computation
• Power, in this sense, means the ability to compute some function, not the speed associated with its computation
• Do you own a Turing machine?
Halting problem
• Given a Turing machine and input x, does it reach the halt state?
• As you know, there is no algorithm to determine this
• If you had a Turing machine that could solve the halting problem, it would cause a logical contradiction

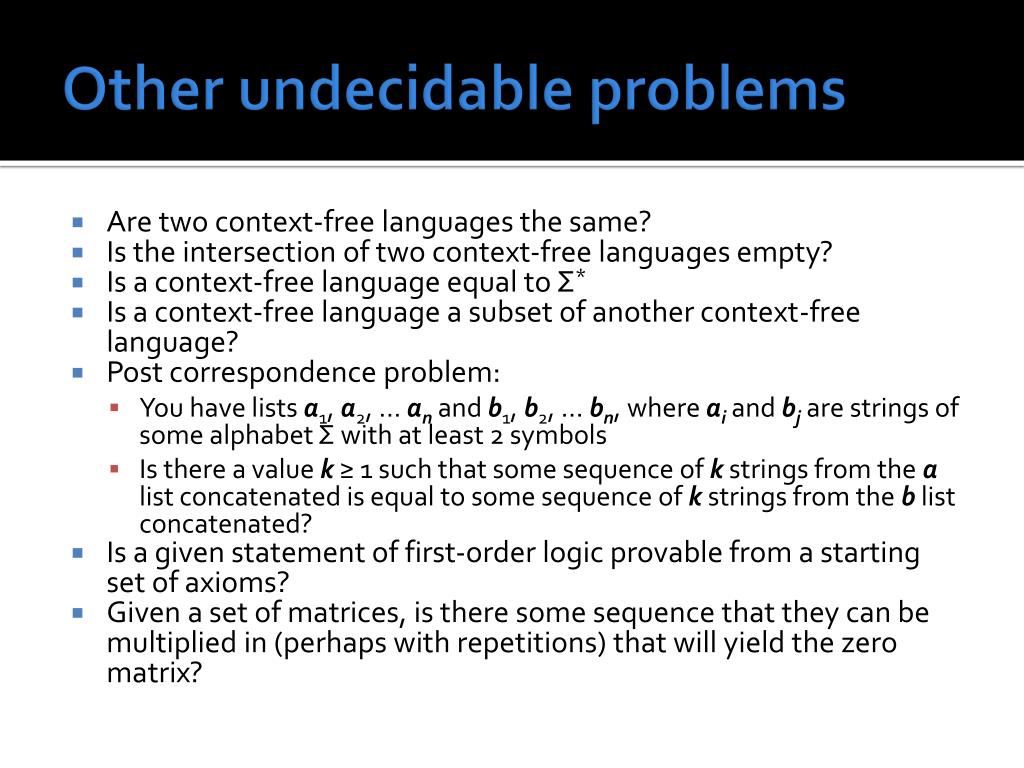

Other undecidable problems
• Are two context-free languages the same?
• Is the intersection of two context-free languages empty?
• Is a context-free language equal to Σ*
• Is a context-free language a subset of another context-free language?
• Post correspondence problem:
• You have lists a1, a2, … an and b1, b2, … bn, where ai and bj are strings of some alphabet Σ with at least 2 symbols
• Is there a value k ≥ 1 such that some sequence of k strings from the a list concatenated is equal to some sequence of k strings from the b list concatenated?
• Is a given statement of first-order logic provable from a starting set of axioms?
• Given a set of matrices, is there some sequence that they can be multiplied in (perhaps with repetitions) that will yield the zero matrix?

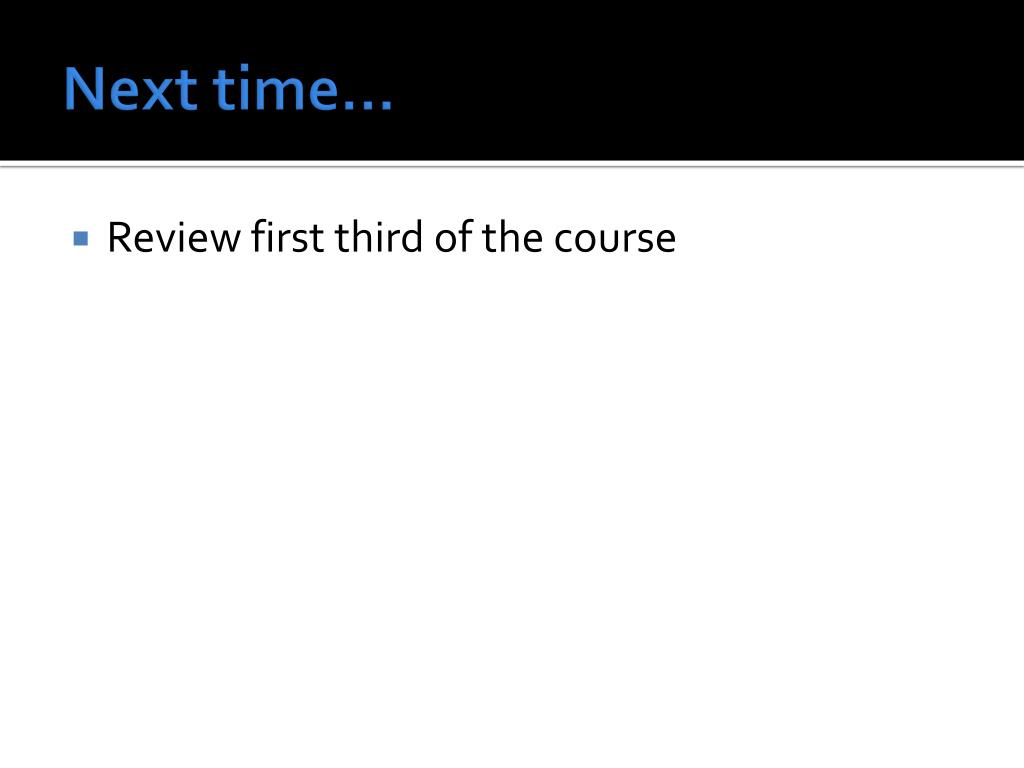

Next time…
• Review first third of the course
Reminders
• Review chapters 2 - 6
• Finish Assignment 10
• Due tonight before midnight
