copper ion analysis

Copper Ion Analysis

Cory Sennett

November 15, 2006

CH EN 4903

overview

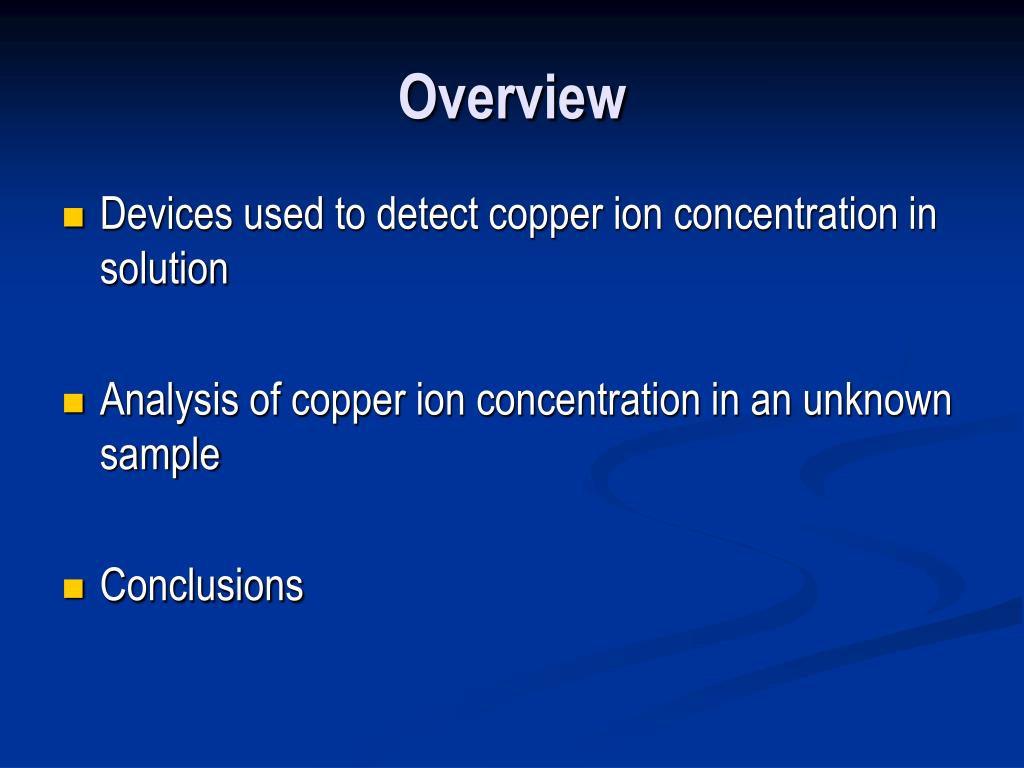

Overview
  • Devices used to detect copper ion concentration in solution
  • Analysis of copper ion concentration in an unknown sample
  • Conclusions
devices

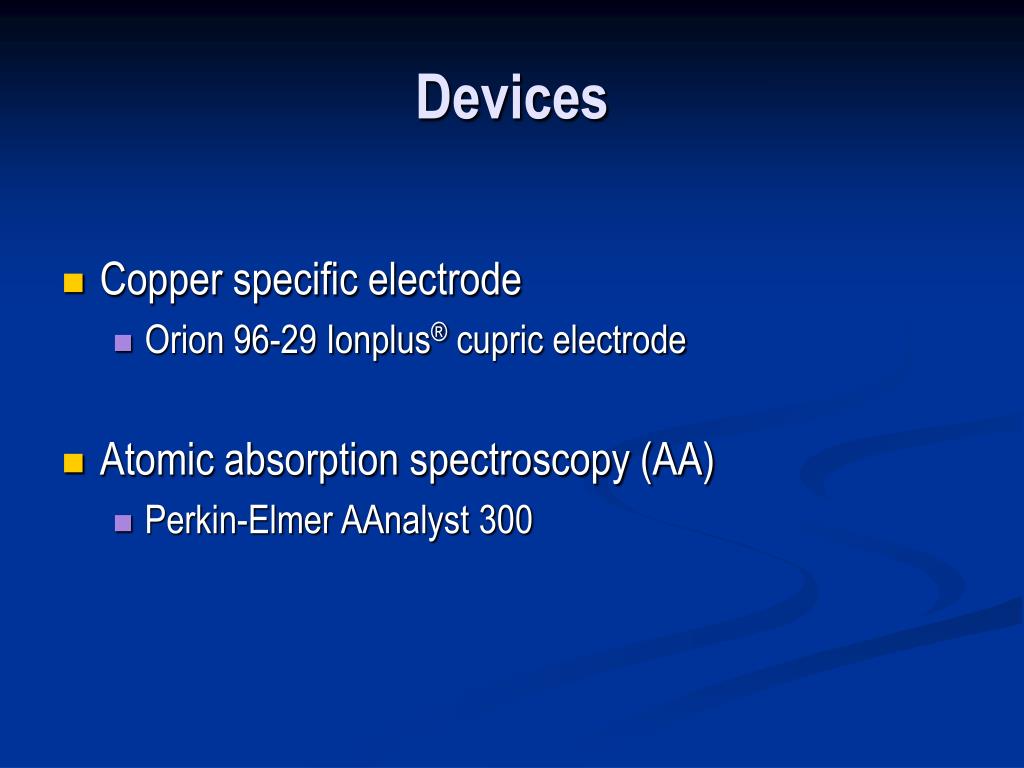

Devices
  • Copper specific electrode
    • Orion 96-29 Ionplus® cupric electrode
  • Atomic absorption spectroscopy (AA)
    • Perkin-Elmer AAnalyst 300
orion 96 29 ionplus electrode

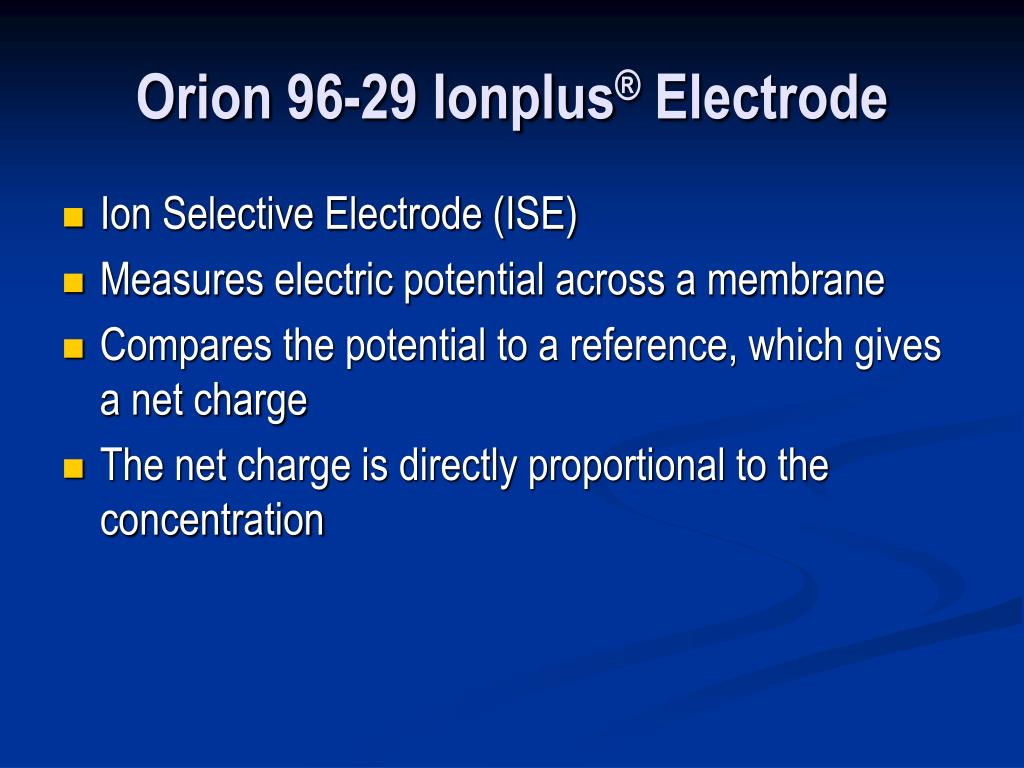

Orion 96-29 Ionplus® Electrode
  • Ion Selective Electrode (ISE)
  • Measures electric potential across a membrane
  • Compares the potential to a reference, which gives a net charge
  • The net charge is directly proportional to the concentration
orion 96 29 ionplus electrode1

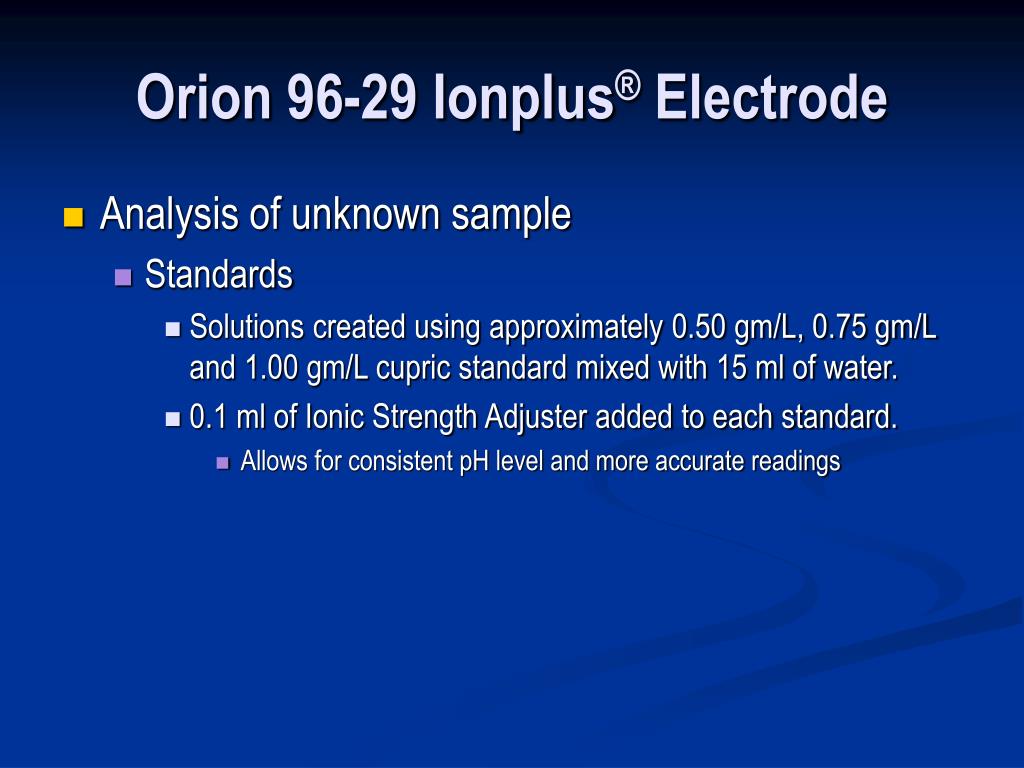

Orion 96-29 Ionplus® Electrode
  • Analysis of unknown sample
    • Standards
      • Solutions created using approximately 0.50 gm/L, 0.75 gm/L and 1.00 gm/L cupric standard mixed with 15 ml of water.
      • 0.1 ml of Ionic Strength Adjuster added to each standard.
        • Allows for consistent pH level and more accurate readings
orion 96 29 ionplus electrode2

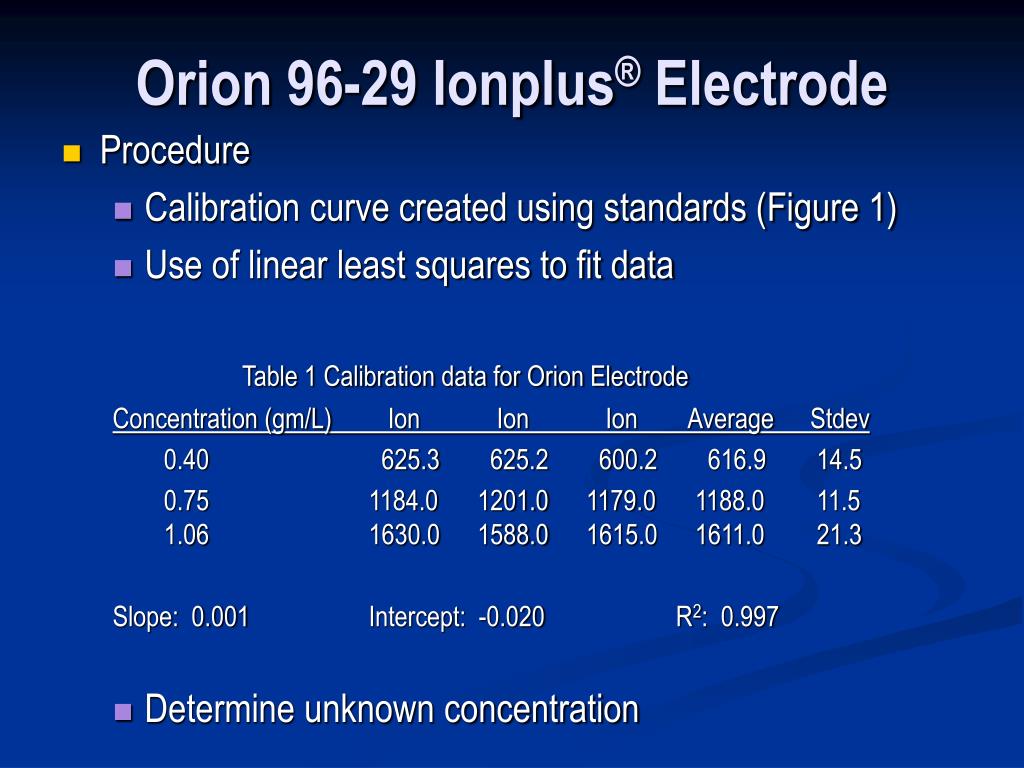

Orion 96-29 Ionplus® Electrode
  • Procedure
    • Calibration curve created using standards (Figure 1)
    • Use of linear least squares to fit data

Table 1 Calibration data for Orion Electrode

Concentration (gm/L) Ion Ion Ion Average Stdev

0.40 625.3 625.2 600.2 616.9 14.5

0.75 1184.0 1201.0 1179.0 1188.0 11.5 1.06 1630.0 1588.0 1615.0 1611.0 21.3

Slope: 0.001 Intercept: -0.020 R2: 0.997

    • Determine unknown concentration
slide7

Figure 1 Orion electrode calibration curve showing standard solution concentration versus ion concentrations.

orion 96 29 ionplus electrode3
Orion 96-29 Ionplus® Electrode
  • Results
    • 0.625±0.014 gm/L (confidence level 95%)
    • Reproducibility: ±2.2%
aanalyst 300

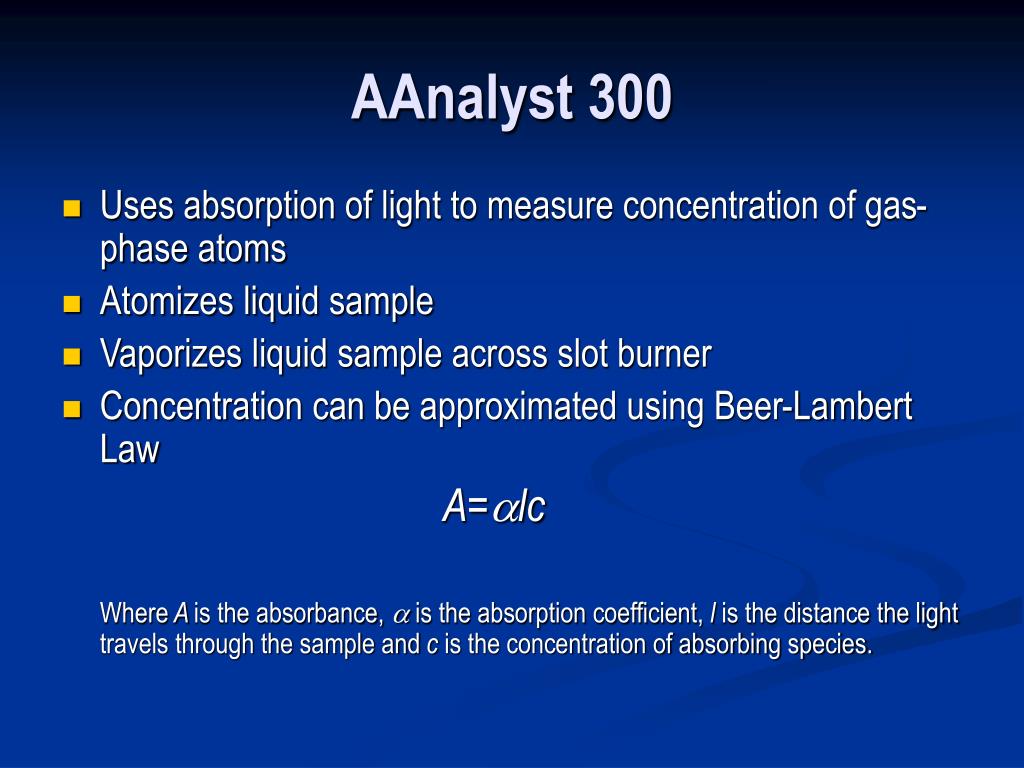

AAnalyst 300
  • Uses absorption of light to measure concentration of gas-phase atoms
  • Atomizes liquid sample
  • Vaporizes liquid sample across slot burner
  • Concentration can be approximated using Beer-Lambert Law

A=alc

Where A is the absorbance,ais the absorption coefficient, l is the distance the light travels through the sample and c is the concentration of absorbing species.

aanalyst 3001

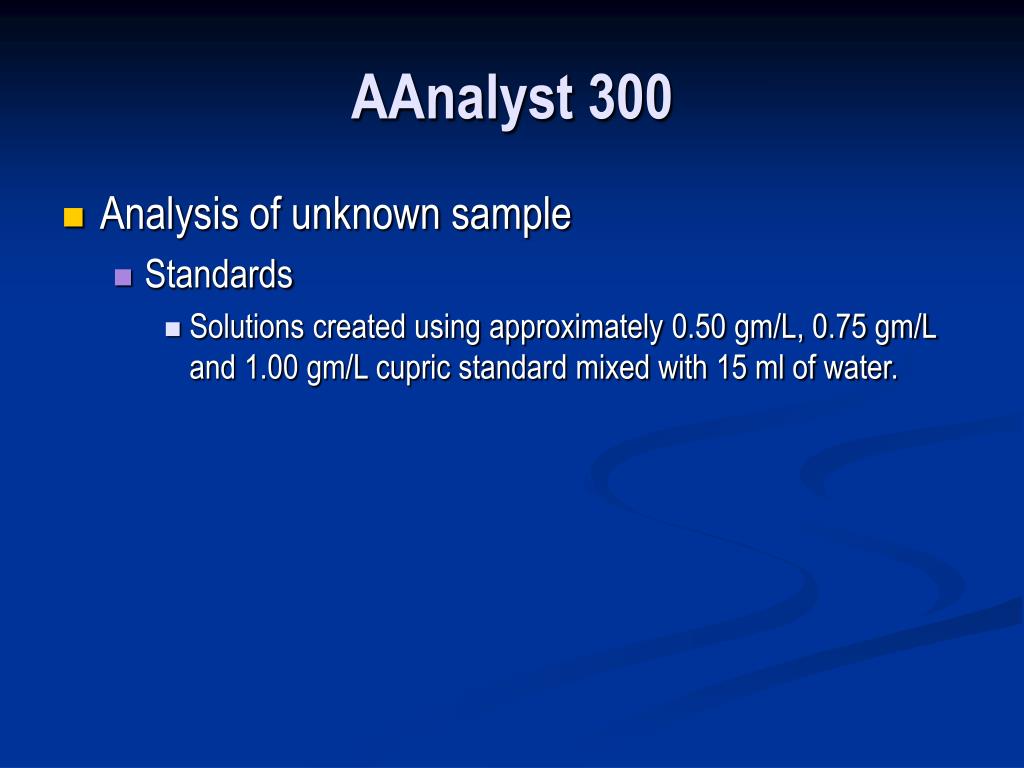

AAnalyst 300
  • Analysis of unknown sample
    • Standards
      • Solutions created using approximately 0.50 gm/L, 0.75 gm/L and 1.00 gm/L cupric standard mixed with 15 ml of water.
aanalyst 3002

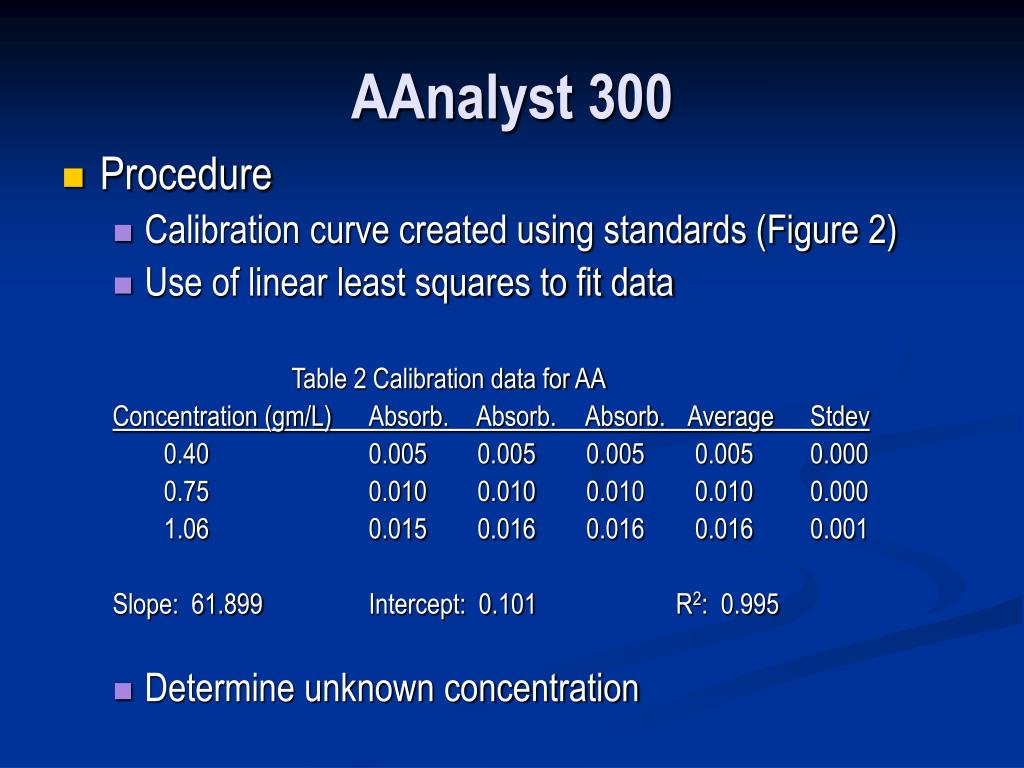

AAnalyst 300
  • Procedure

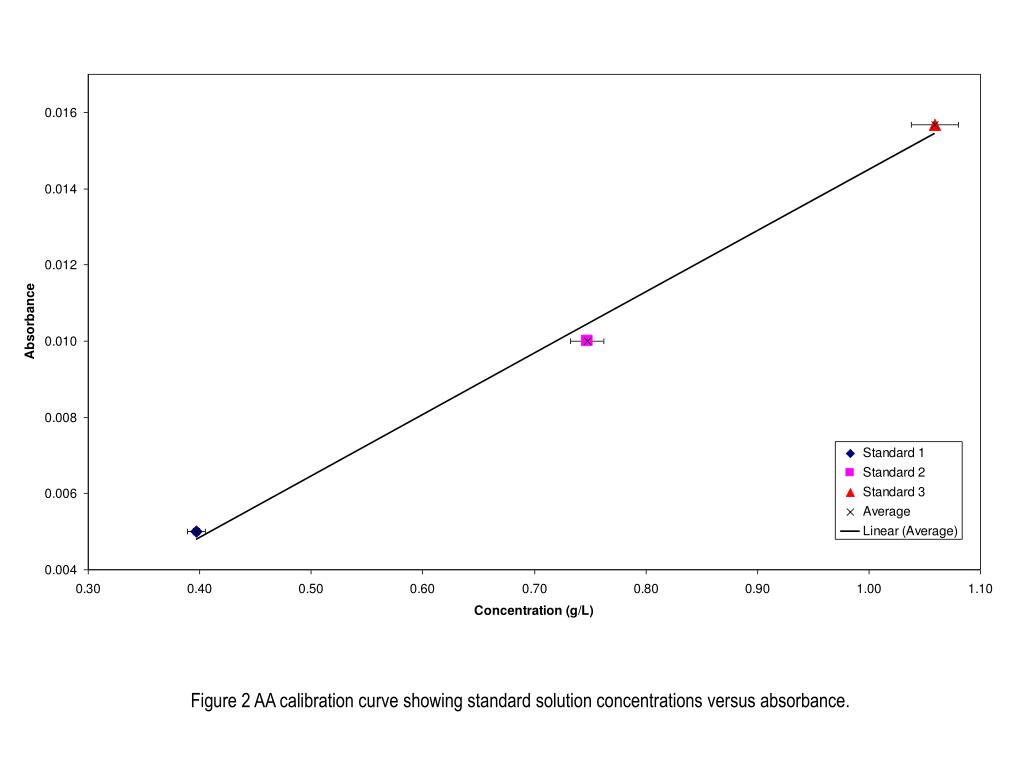

    • Calibration curve created using standards (Figure 2)
    • Use of linear least squares to fit data

Table 2 Calibration data for AA

Concentration (gm/L) Absorb. Absorb. Absorb. Average Stdev

0.40 0.005 0.005 0.005 0.005 0.000

0.75 0.010 0.010 0.010 0.010 0.000

1.06 0.015 0.016 0.016 0.016 0.001

Slope: 61.899 Intercept: 0.101 R2: 0.995

    • Determine unknown concentration
aanalyst 3003

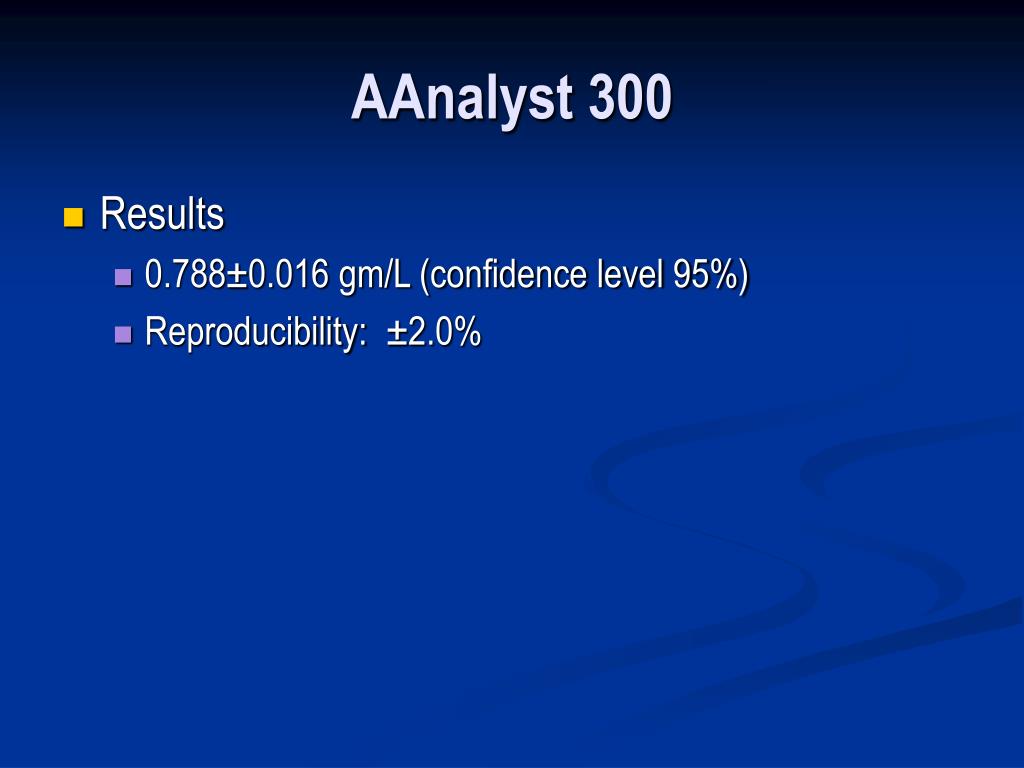

AAnalyst 300
  • Results
    • 0.788±0.016 gm/L (confidence level 95%)
    • Reproducibility: ±2.0%

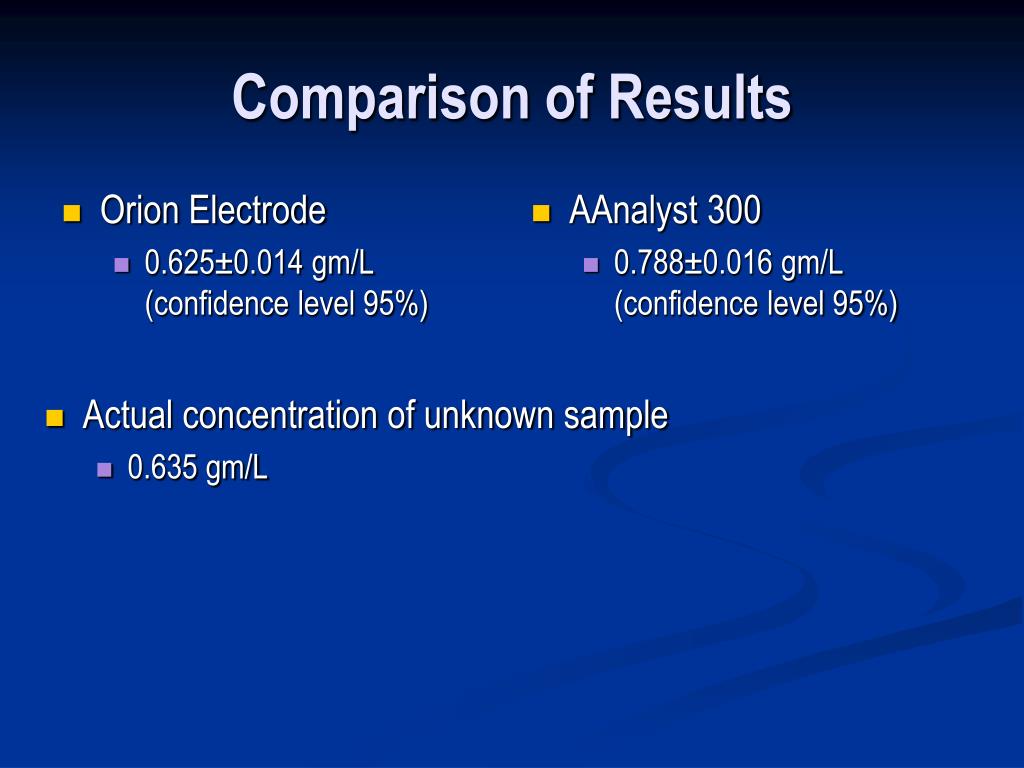

comparison of results
Orion Electrode

0.625±0.014 gm/L (confidence level 95%)

AAnalyst 300

0.788±0.016 gm/L (confidence level 95%)

Comparison of Results
  • Actual concentration of unknown sample
    • 0.635 gm/L
conclusions

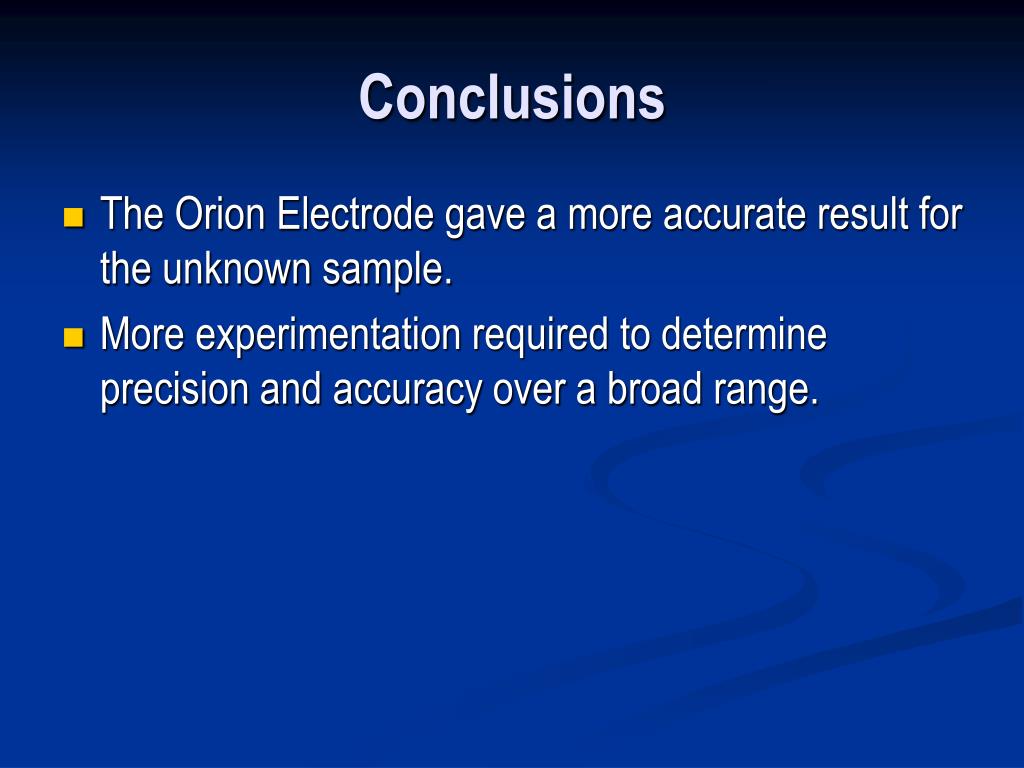

Conclusions
  • The Orion Electrode gave a more accurate result for the unknown sample.
  • More experimentation required to determine precision and accuracy over a broad range.
references

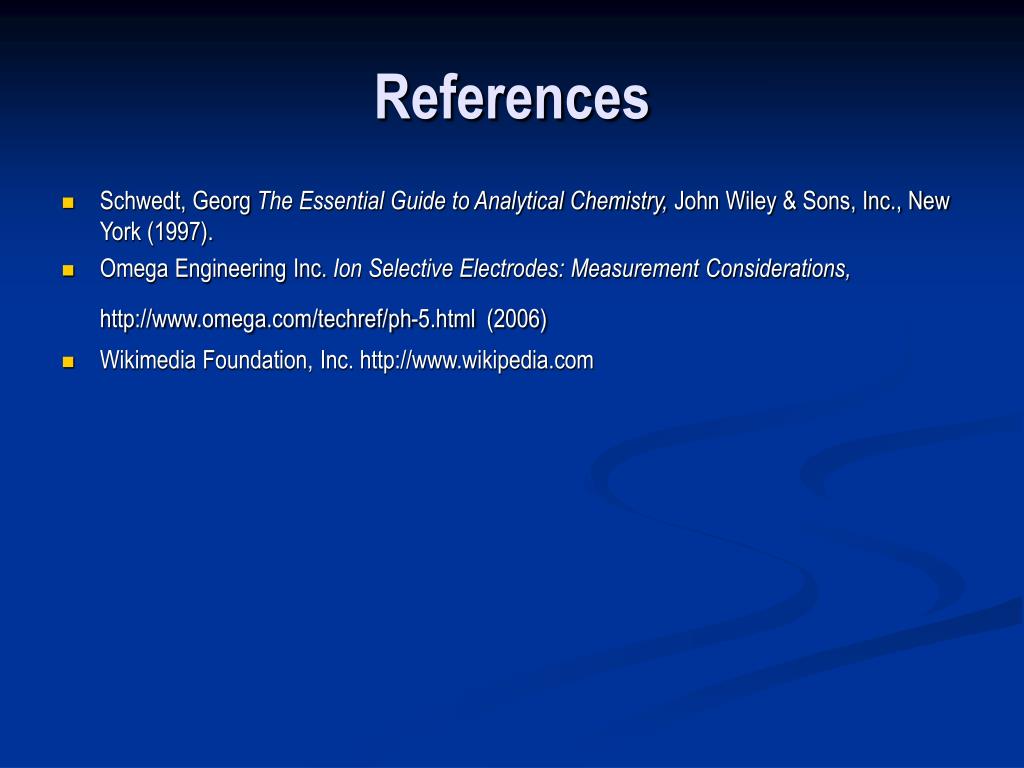

References
  • Schwedt, Georg The Essential Guide to Analytical Chemistry, John Wiley & Sons, Inc., New York (1997).
  • Omega Engineering Inc. Ion Selective Electrodes: Measurement Considerations, http://www.omega.com/techref/ph-5.html(2006)
  • Wikimedia Foundation, Inc. http://www.wikipedia.com
