    1. SUSTAINABLE BUILDING SYSTEMS By: Justin Kramer

    2. Off-Grid Zero Emissions Building (OGZEB)

    3. What is the OGZEB?? • Platinum Green • Water Efficient • Sustainable Site • Materials • Indoor Air Quality • Energy

    4. Energy Efficiency Source: Daniel Kammen, UC Berkeley, ER 100 Lecture 1, Fall 2005

    5. Energy Efficiency Energy Consumption by Application

    6. Energy Efficiency • Building Efficiency • Structural Insulated Panels • Consumer Efficiency • HVAC • Water Heater • Lighting

    7. $116/barrel in April 2008

    8. Energy Production

    9. $116/barrel in April 2008

    10. $116/barrel in April 2008

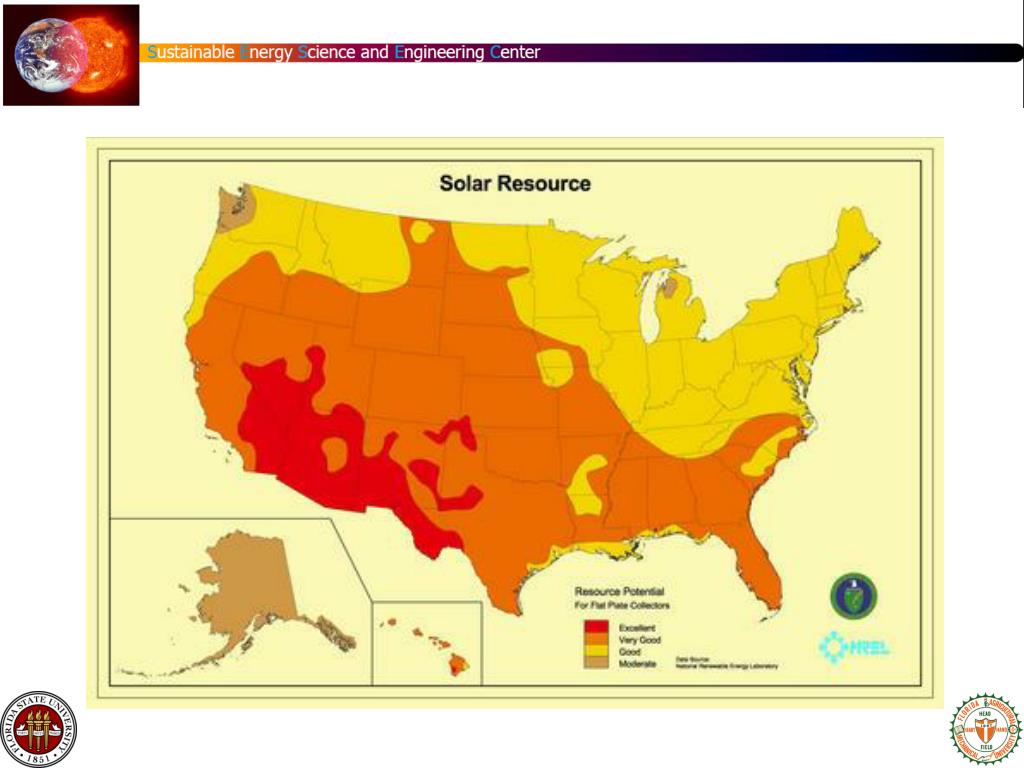

    11. Photovoltaic Panels • First Generation • 6 kW Array • 500 sqft • Solar Thermal • 120 sqft Collector • 300 gallon tank www.solarenergy.com Energy Collection

    12. Energy Storage

    13. H O 2 Energy Storage O H 2 H 2 H 2 H 2 H H O 2 2 H H 2 2 Electrolyzer Fuel Cell

    14. Energy Storage Thermal H 2 H 2 H 2 H 2 H 2 H H 2 2

    15. Energy Consumers Energy Consumption by Application

    16. Energy Storage

    17. Hydrogen Properties

    18. Combustion Properties

    19. Premixing Properties No Premixing 50% Premixing 100% Premixing No Premixing <- - - - - - - - -Propane - - - - - - - - -> Hydrogen

    20. Hydrogen Properties Experimental Setup

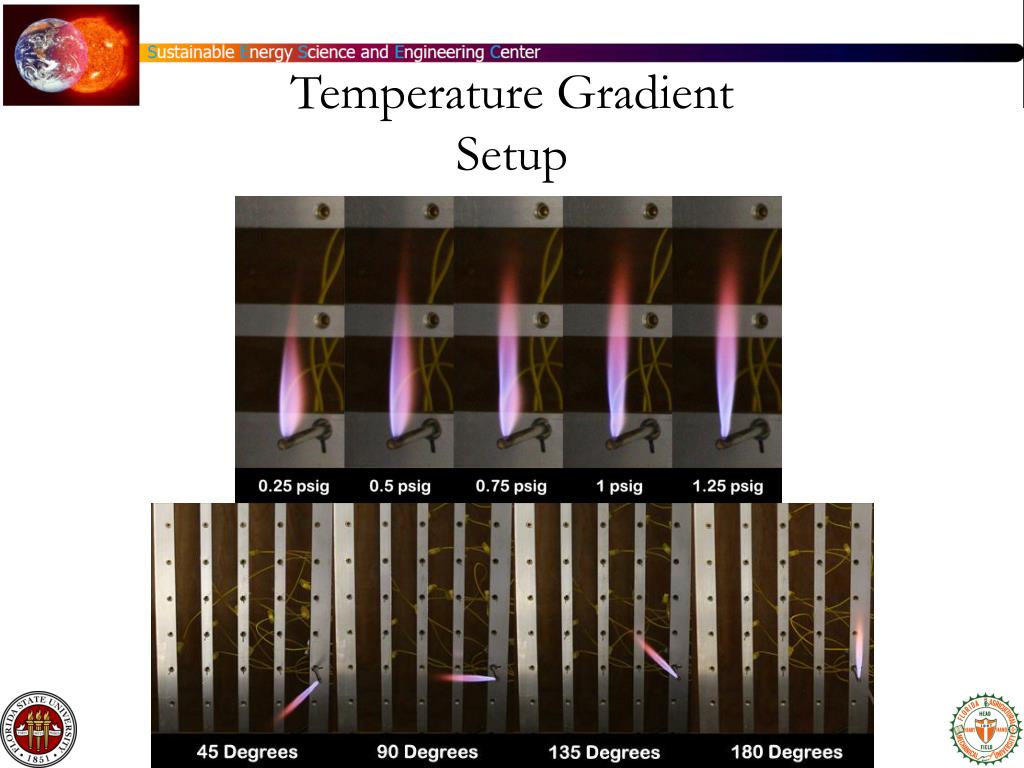

    21. Temperature Gradient Setup

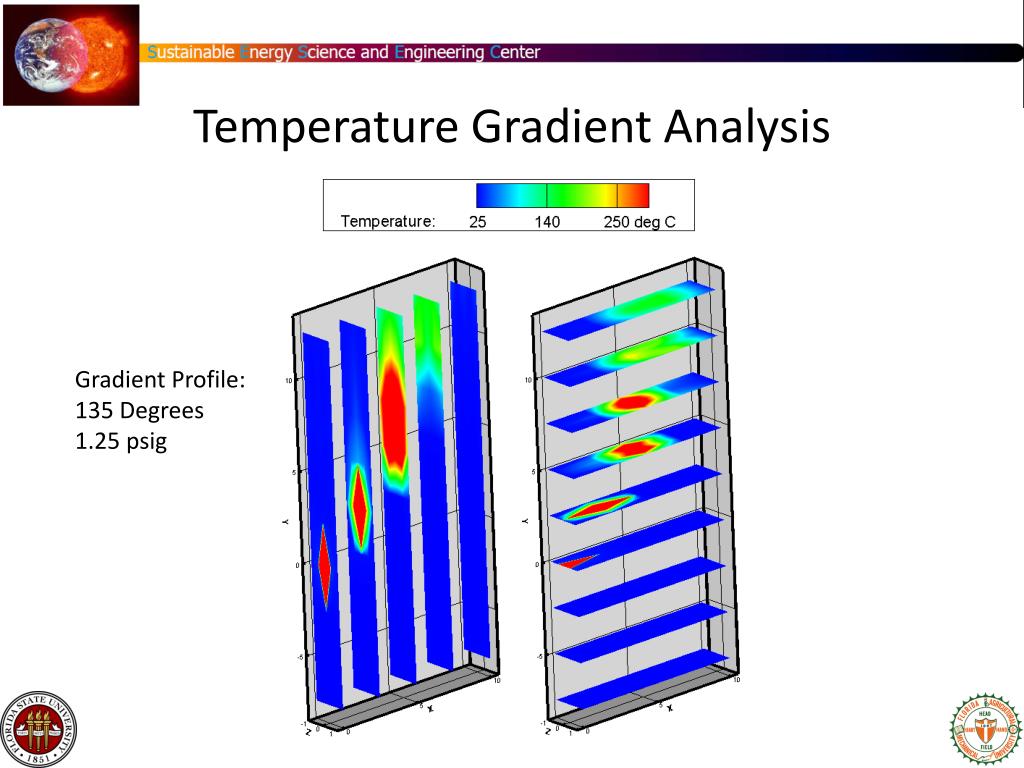

    22. Temperature Gradient Analysis Gradient Profile: 135 Degrees 1.25 psig

    23. Gradient Profile: 135 Degrees 1.25 psig

    24. Gradient Profile: 135 Degrees 1.25 psig Z=0 Z=0.5 z=1

    25. Gradient Profile: 135 Degrees 1.25 psig

    26. Hydrogen Retrofits

    27. Solaire Grill

    28. Solaire Burner

    29. Burner Considerations

    30. Hydrogen Burner

    31. Thermocouple Plate

    32. Rinnai Water Heater

    33. Rinnai Burner

    34. Burner Considerations 135 Degrees 180 Degrees Both have a 0.0156 in Diameter Orifice Both at 0.5 psig

    35. Hydrogen Burner

    36. Hydrogen Burner Testing

    37. Hydrogen Burner Results

    38. Hydrogen Burner Results

    39. Hydrogen Burner Results

    40. Hydrogen Burner Results

    41. Hydrogen Safety

    42. Hydrogen vs. Gasoline 0 sec University of Miami Test By: Dr. M. Swain
