Presentation Transcript
purpose
Purpose
  • The valve body and associated mechanisms are designed to control the fluid flow to the various clutch pistons and servos within the transmission
  • The valve body must control the following fluid flow properties
    • Timing (when does it flow)
    • Rate (how much flows)
    • Pressure
hydraulic basics

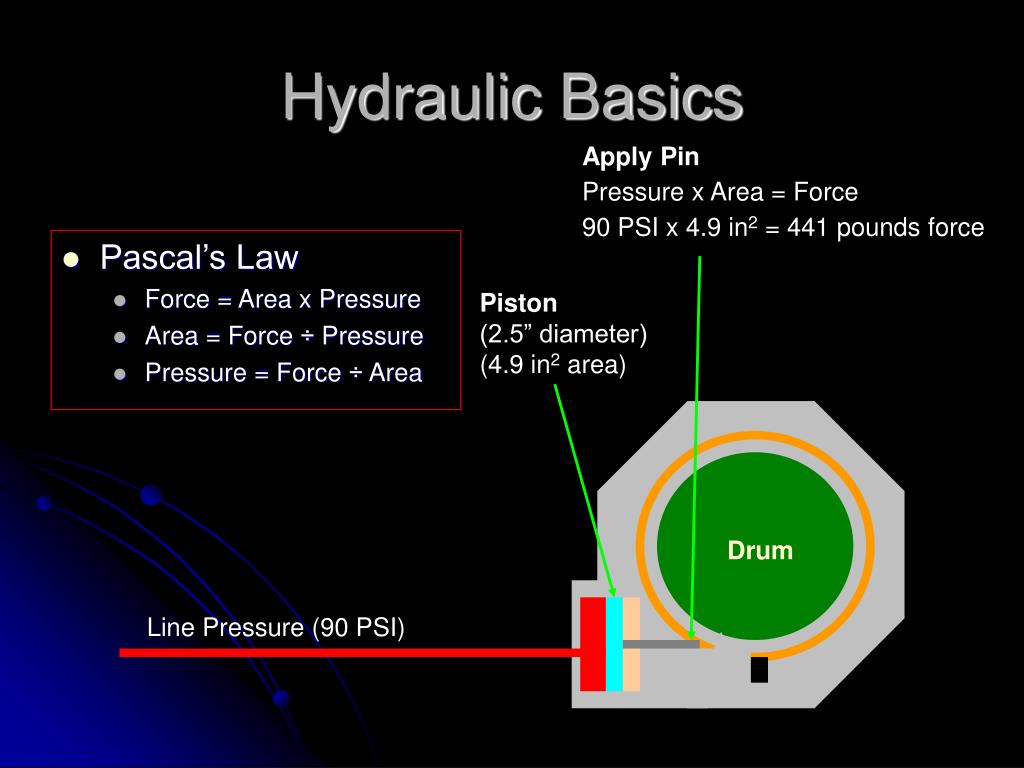

Hydraulic Basics

Apply Pin

Pressure x Area = Force

90 PSI x 4.9 in2 = 441 pounds force

  • Pascal’s Law
    • Force = Area x Pressure
    • Area = Force ÷ Pressure
    • Pressure = Force ÷ Area

Piston (2.5” diameter) (4.9 in2 area)

Drum

Line Pressure (90 PSI)

basic hydraulics
Basic Hydraulics
  • Flow vs. Pressure when fluid is passing through an orifice

Flow

90 PSI

27 PSI

basic hydraulics5
Basic Hydraulics
  • Flow vs. Pressure when fluid is passing through an orifice

Increased Spring Pressure = Reduced Flow = Higher Apply pressure

Reduced Flow

90 PSI

57 PSI

basic hydraulics6
Basic Hydraulics
  • Holding pressure

No Flow = No Pressure Drop

No Flow

90 PSI

90 PSI

basic hydraulics7
Basic Hydraulics
  • Holding Pressure

Exhaust/Bleed creates flow

Minimal Flow Creates small pressure drop

Minimal Flow

90 PSI

70 PSI

basic hydraulics8
Basic Hydraulics
  • Servo Release

Orifice creates a pressure drop = slow release

Flow

0 PSI

30 PSI

basic hydraulics9

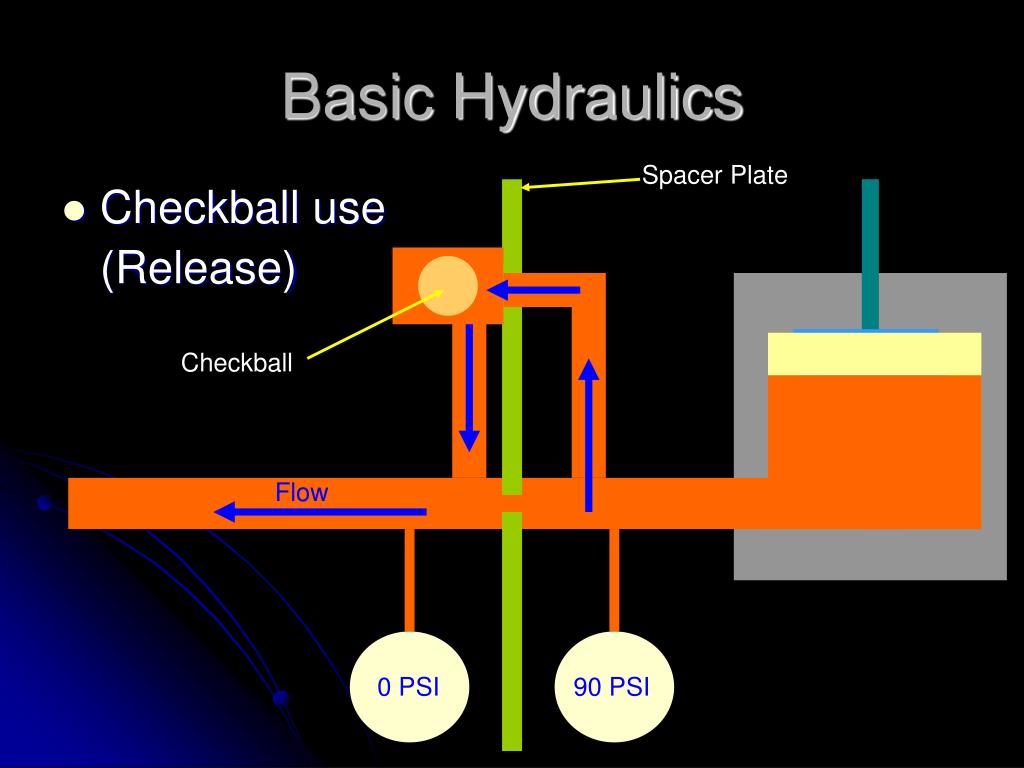

Basic Hydraulics

Spacer Plate

  • Checkball use

(Release)

Checkball

Flow

0 PSI

90 PSI

basic hydraulics10

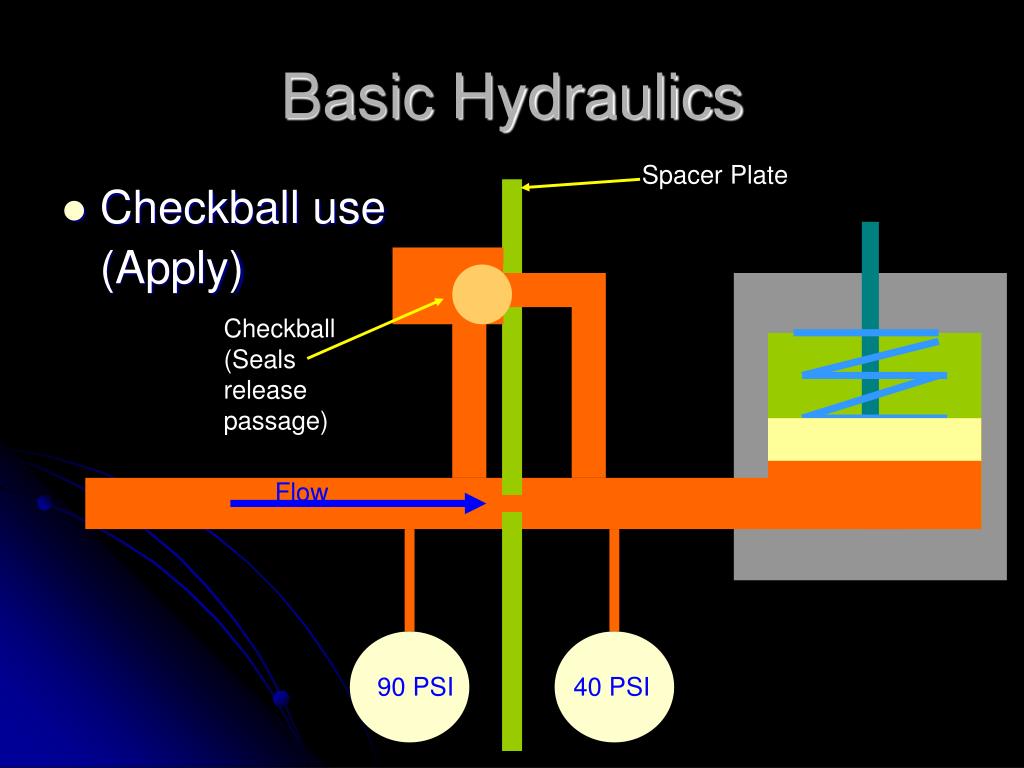

Basic Hydraulics

Spacer Plate

  • Checkball use

(Apply)

Checkball (Seals release passage)

Flow

90 PSI

40 PSI

spool valve features
Spool Valve Features

Valleys

Faces

Lands

types of valves
Types of Valves
  • Balanced
    • Controls pressure
      • Pressure regulator
      • Governor
      • TV
      • Modulator
  • Unbalanced
    • Directs pressure
      • Shift valves
  • Sequencing
    • Positions another valve or prevents unwanted function
      • Reverse lockout (idiot valve)
      • Low control valve (TH-350)
balanced valve
Balanced Valve
  • Forces on valve in opposite directions are balanced at a certain point
  • Used to modulate pressure

Exhaust

Line Pressure

unbalanced valve

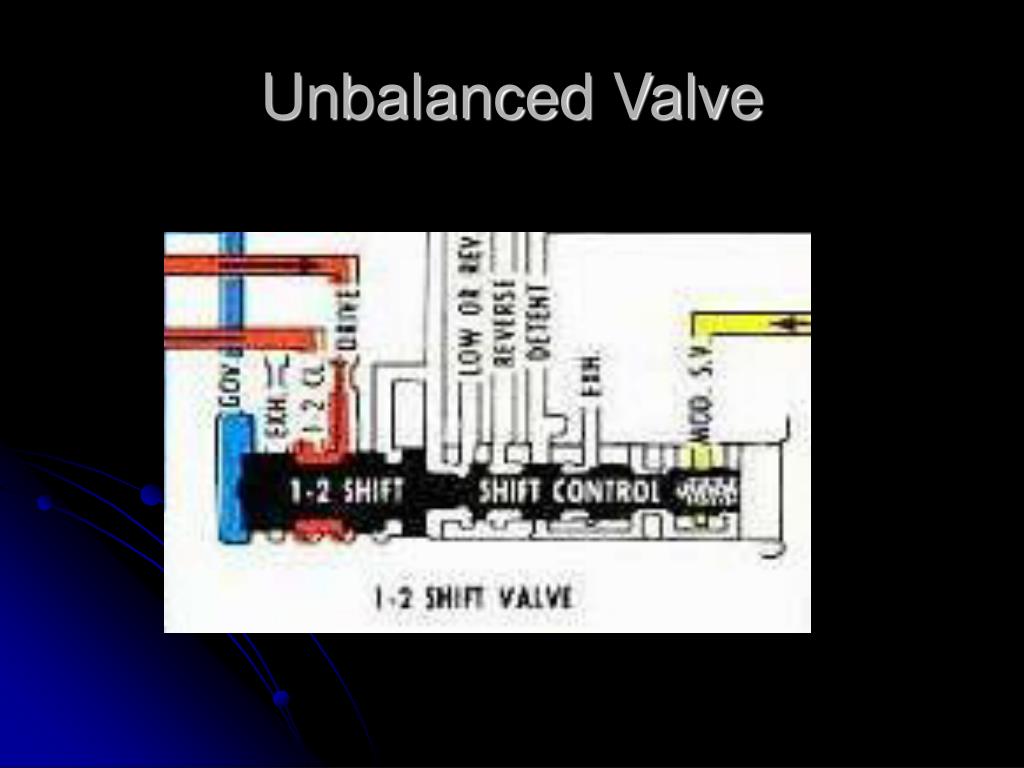

Unbalanced Valve
  • During the operation of an unbalanced valve, the forces in one direction or the other will be greater
    • Shift valves

1-2 Shift Valve (i.e. Powerglide)

Line Pressure

Governor Pressure

Modulator Pressure

Passage to low band servo

Passage to high clutch

scheduling valve
Scheduling Valve
  • Scheduling valves are used to prevent unwanted actions from occurring
    • (i.e. shift to M1 @ 80 MPH)

TH 350 Low Control Valve @ 20 MPH in D

To 1-2 Shift Valve

M1Oil

Governor Oil

15 Pounds

10 PSI

M1Oil

1 in2 Valve

scheduling valve19
Scheduling Valve
  • Scheduling valves are used to prevent unwanted actions from occurring
    • (i.e. shift to M1 @ 80 MPH)

TH 350 Low Control Valve @ 80 MPH in D

To 1-2 Shift Valve

M1Oil

Governor Oil

40 PSI

15 Pounds

M1Oil

1 in2 Valve

scheduling valve20
Scheduling Valve
  • Scheduling valves are used to prevent unwanted actions from occurring
    • (i.e. shift to M1 @ 80 MPH)

TH 350 Low Control Valve @ 80 MPH in M1

To 1-2 Shift Valve

M1Oil (60 PSI)

Governor Oil

15 Pounds

40 PSI

M1Oil

1 in2 Valve
