  1. New Age Enthalpy Transfer

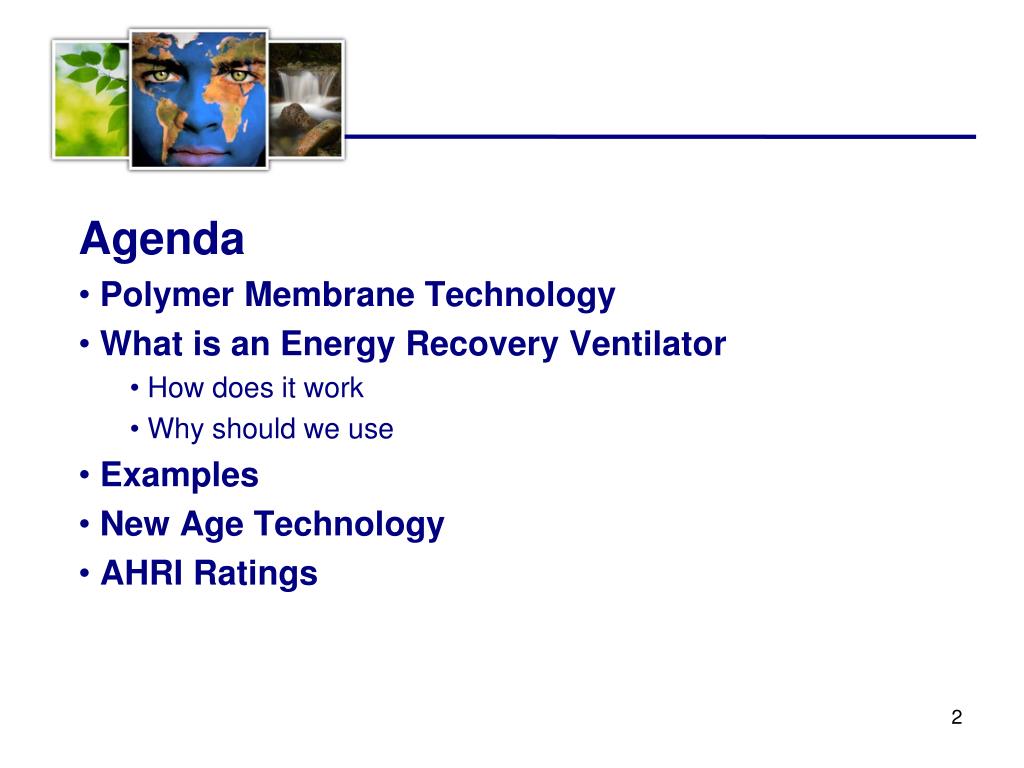

  2. Agenda Polymer Membrane Technology What is an Energy Recovery Ventilator How does it work Why should we use Examples New Age Technology AHRI Ratings

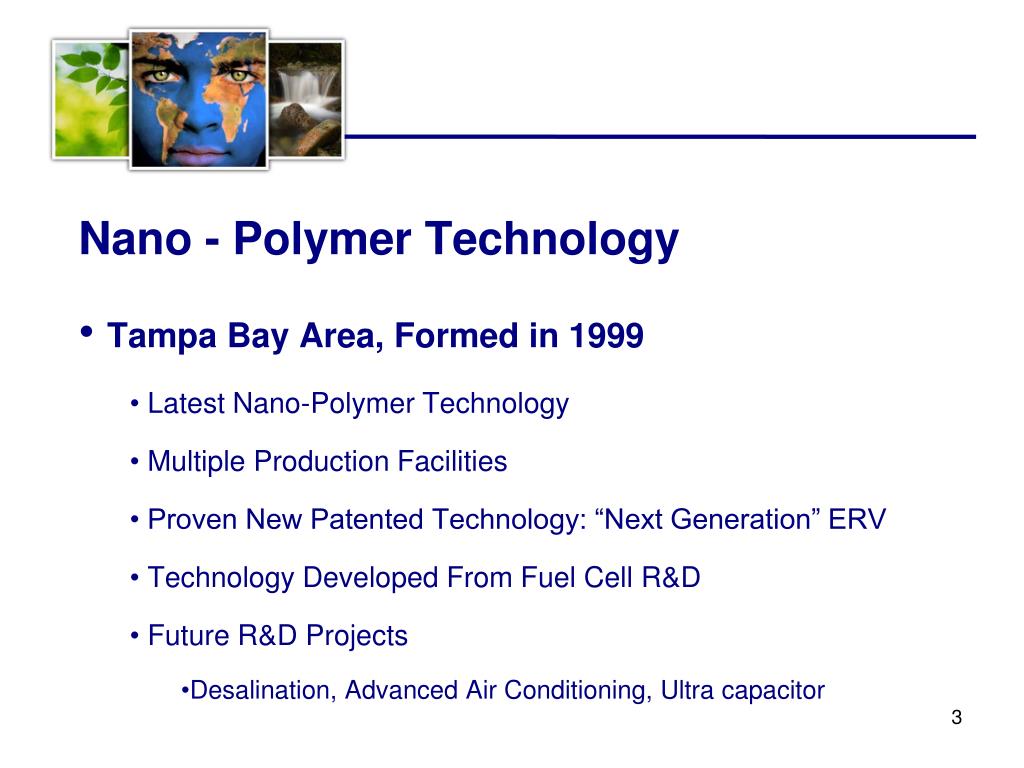

  3. Nano - Polymer Technology Tampa Bay Area, Formed in 1999 Latest Nano-Polymer Technology Multiple Production Facilities Proven New Patented Technology: “Next Generation” ERV Technology Developed From Fuel Cell R&D Future R&D Projects Desalination, Advanced Air Conditioning, Ultra capacitor

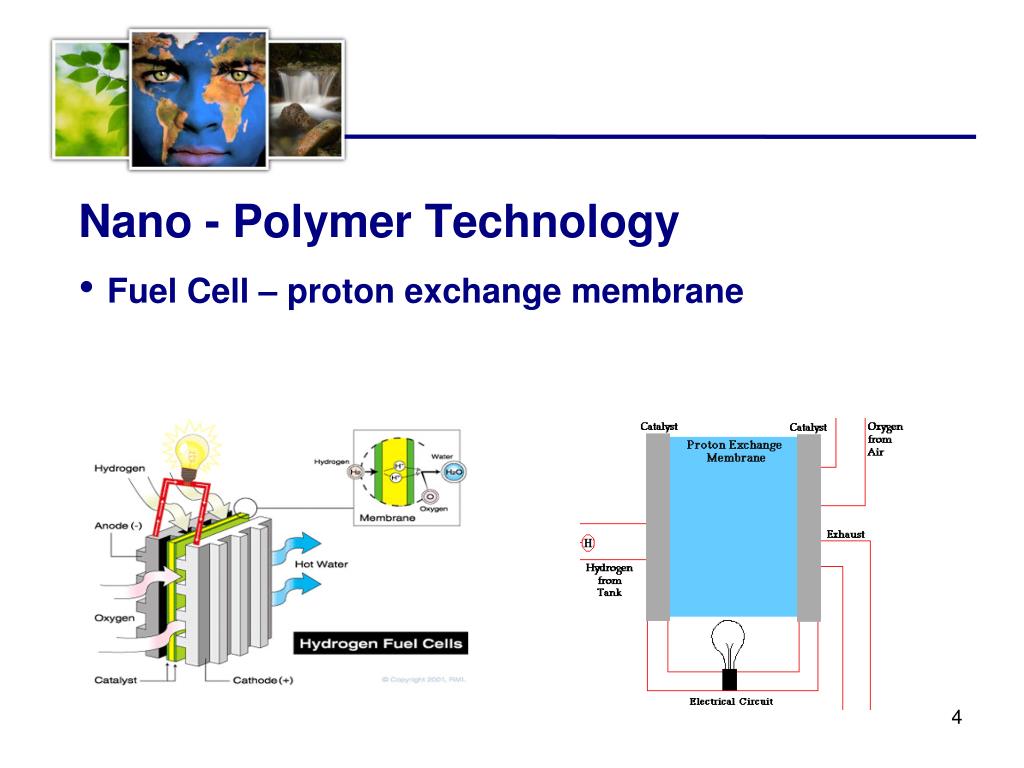

  4. Nano - Polymer Technology Fuel Cell – proton exchange membrane

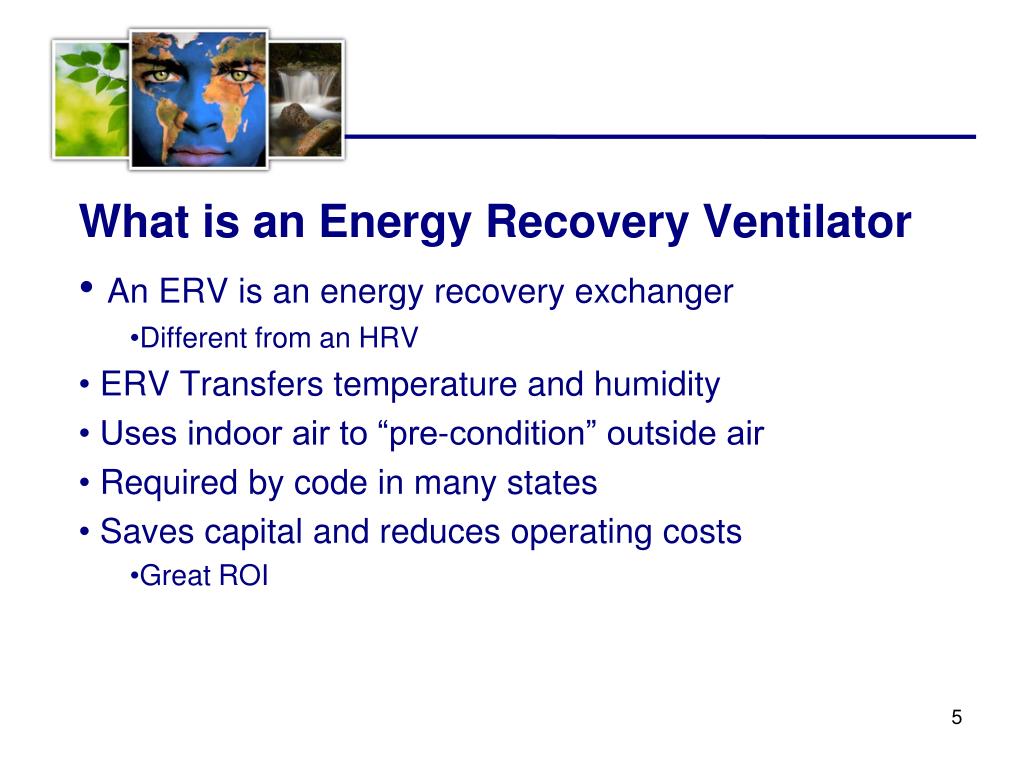

  5. What is an Energy Recovery Ventilator An ERV is an energy recovery exchanger Different from an HRV ERV Transfers temperature and humidity Uses indoor air to “pre-condition” outside air Required by code in many states Saves capital and reduces operating costs Great ROI

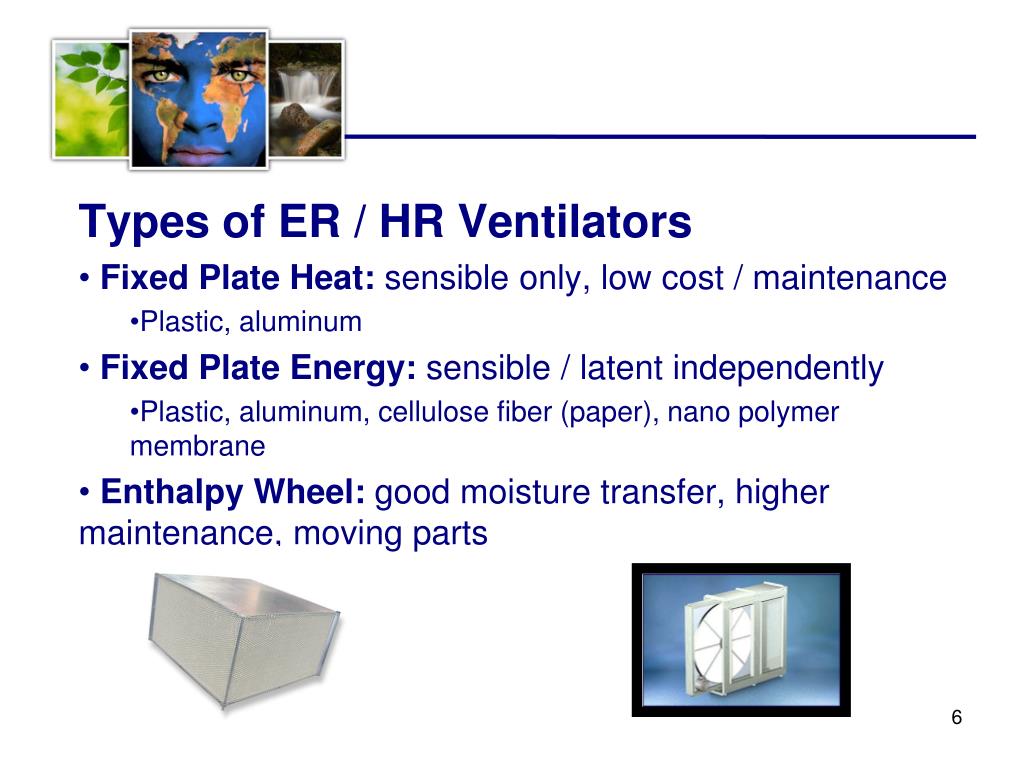

  6. Types of ER / HR Ventilators Fixed Plate Heat: sensible only, low cost / maintenance Plastic, aluminum Fixed Plate Energy: sensible / latent independently Plastic, aluminum, cellulose fiber (paper), nano polymer membrane Enthalpy Wheel: good moisture transfer, higher maintenance, moving parts

  7. Why Energy Recovery ? • Improves Indoor Air Quality • Reduces Co2, Formaldehydes, Allergens, etc. • Healthier Indoor Environment • Employees – increased productivity, reduced absence • Students – better performance, increased attendance • Reduces Humidity and Mold • Reduced Energy Consumption • Less work by hvac system • Reduced tonnage, new construction

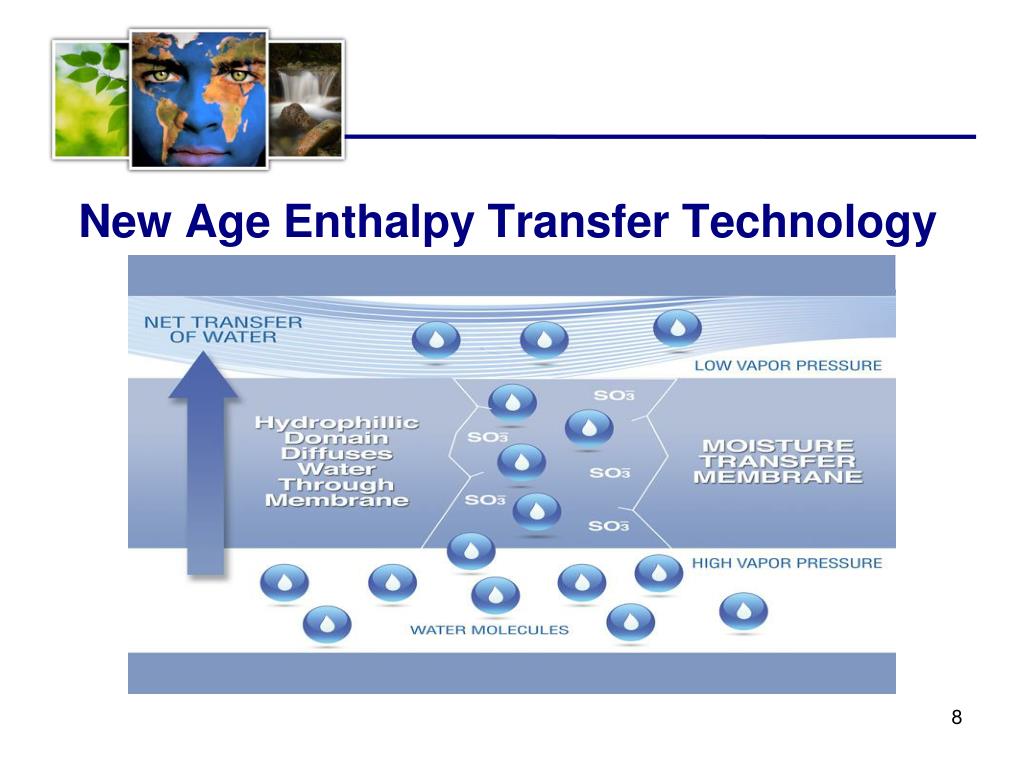

  8. New Age Enthalpy Transfer Technology

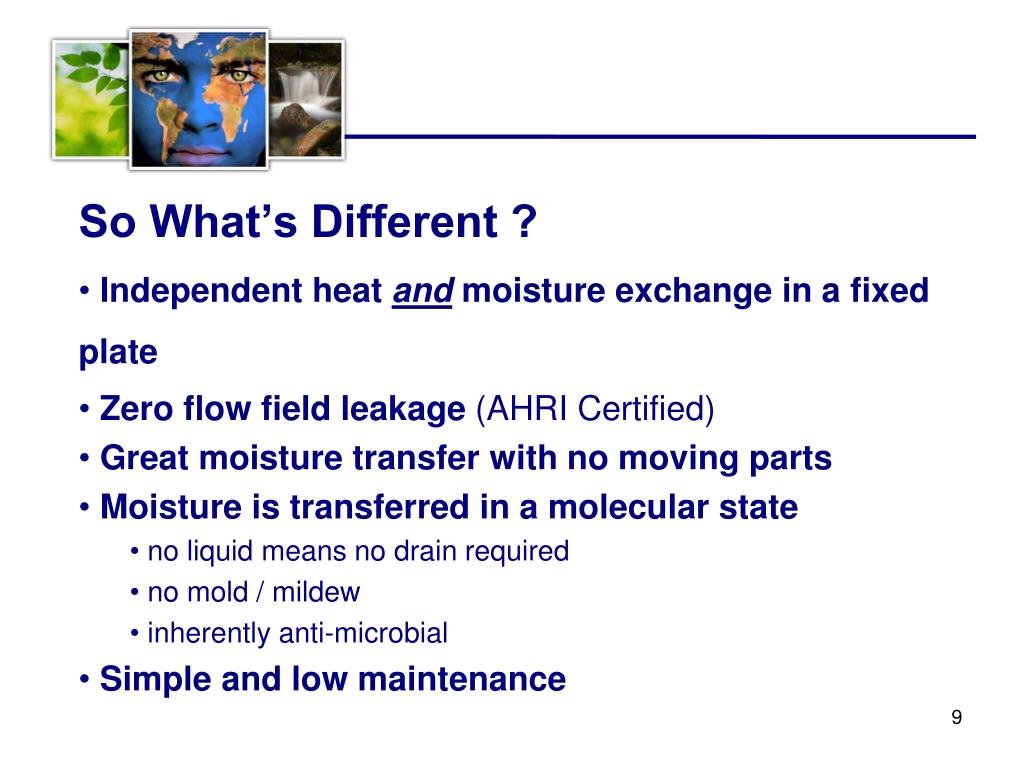

  9. So What’s Different ? Independent heat and moisture exchange in a fixed plate Zero flow field leakage (AHRI Certified) Great moisture transfer with no moving parts Moisture is transferred in a molecular state no liquid means no drain required no mold / mildew inherently anti-microbial Simple and low maintenance

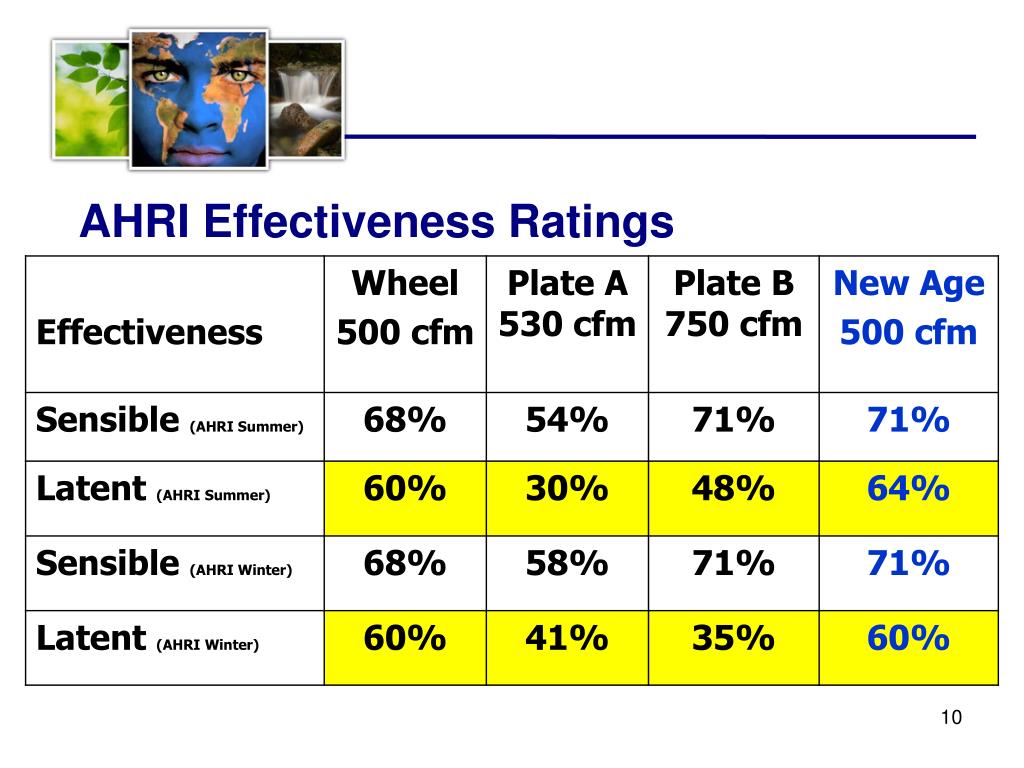

  10. AHRI Effectiveness Ratings

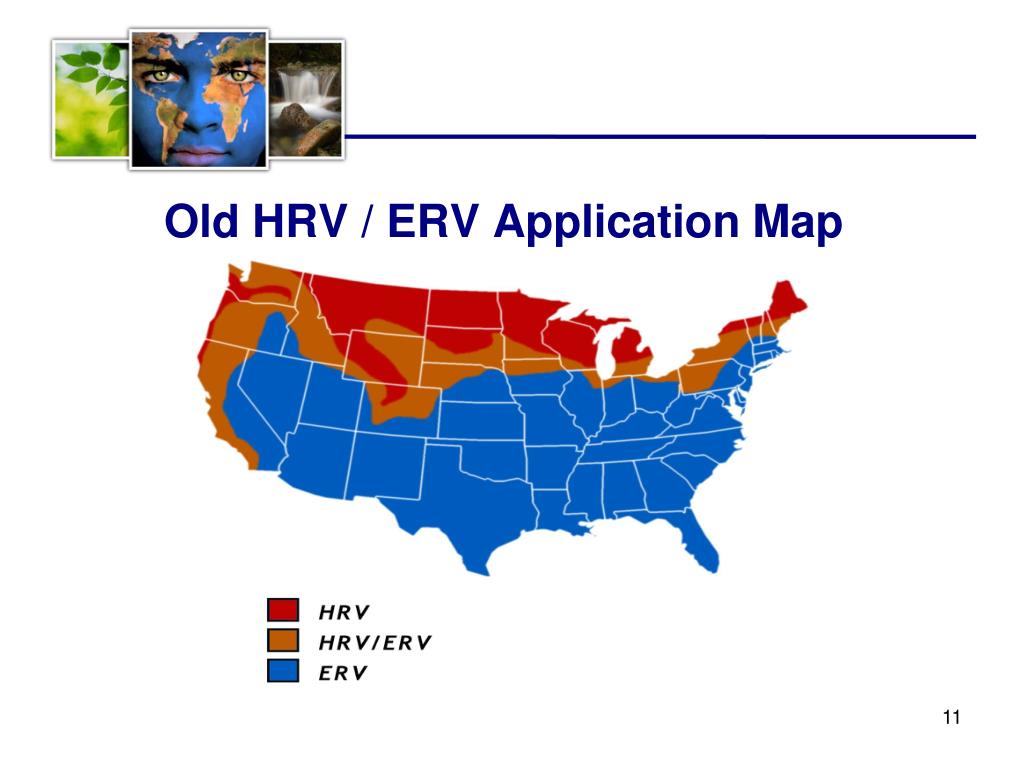

  11. Old HRV / ERV Application Map

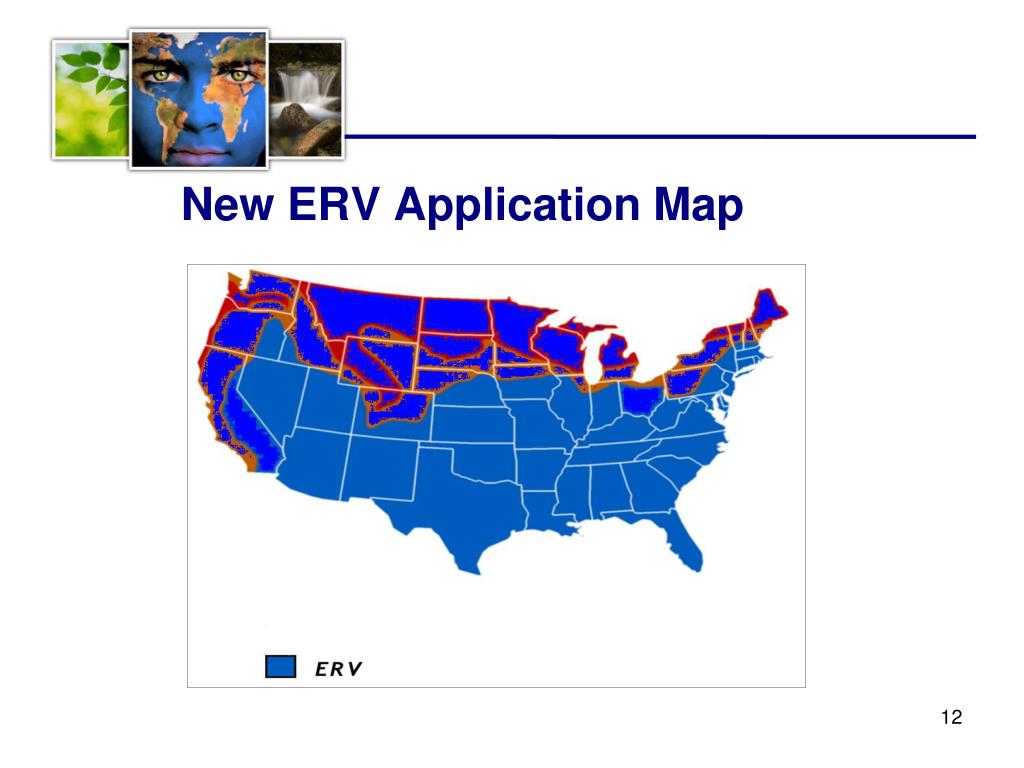

  12. New ERV Application Map

  13. Future R&D Projects for Membrane Desalination currently testing Advanced Air Conditioning R & D First Responders Clothing similar to gore tex Super Capacitor

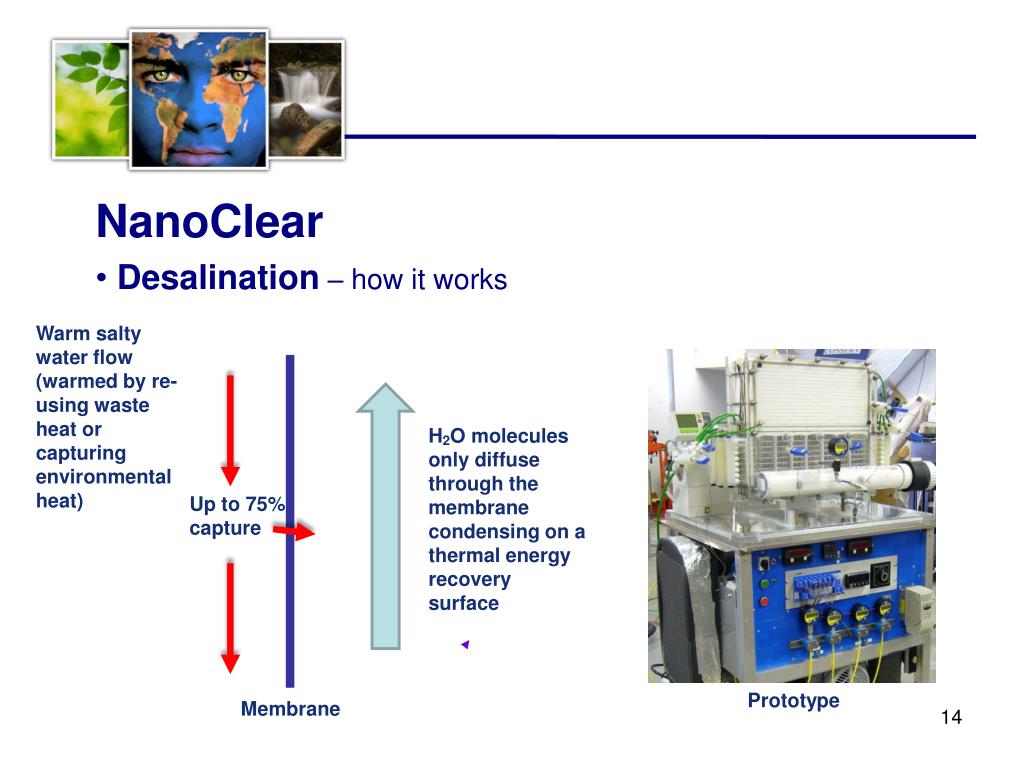

  14. NanoClear Desalination – how it works Warm salty water flow (warmed by re-using waste heat or capturing environmental heat) H2O molecules only diffuse through the membrane condensing on a thermal energy recovery surface Up to 75% capture Prototype Membrane

  15. Advanced Air Conditioning prototype

  16. New Age Enthalpy Transfer Questions ?
