Twin Silicon Nanowire Field Effect Transistor (TSNWFET)

Twin Silicon Nanowire Field Effect Transistor (TSNWFET). EE235 Presentation By: Rhesa Nathanael. Nanowire FET. Motivation: Superior gate control (minimize short channel effects). High drive current. Less sensitive to process variations. Improved transport property.

korbin
Download Presentation

Twin Silicon Nanowire Field Effect Transistor (TSNWFET)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Twin Silicon Nanowire Field Effect Transistor(TSNWFET) EE235 Presentation By: Rhesa Nathanael

  2. Nanowire FET • Motivation: • Superior gate control (minimizeshort channel effects). • High drive current. • Less sensitive to process variations. • Improved transport property. • Twin Silicon Nanowire FET demonstrated.

  3. GAA-TSNWFET Fabrication • Fully CMOS compatible. • Highly reproducible top-down approach. 9

  4. Performance Lg=30nm dNW=10nm Tox=2nm Lg=15nm dNW=8nm Tox=3.5nm NMOS Ion=2.64mA/um Ioff=3.1nA/um PMOS Ion=1.11mA/um Ioff=5.6pA/um NMOS Ion=1.44mA/um Ioff=2.0nA/um PMOS Ion=1.94mA/um Ioff=1.0nA/um

  5. VDS=1~5mV Lg=45nm T=4.2K Ballistic transport in ballistic regime Transport Property Study dNW=10.8nm Tox=3.5nm Coulomb Oscillations  single electron tunneling (Lg=45nm, T=4.2K) Conduction quantization (Lg=125nm, up to T~60K)

  6. Size Dependence Study Why? Volume inversion dominant until dnw=4nm. Surface, phonon and back scattering dominant below dnw=4nm. Optimum point: dNW=4nm

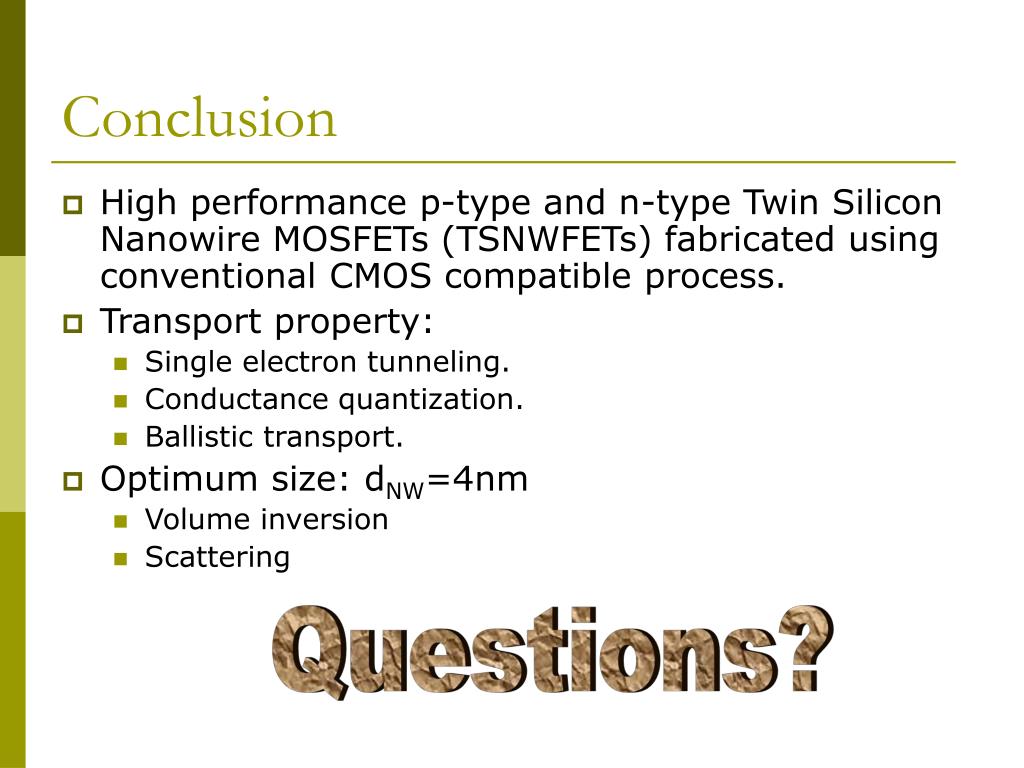

  7. Conclusion • High performance p-type and n-type Twin Silicon Nanowire MOSFETs (TSNWFETs) fabricated using conventional CMOS compatible process. • Transport property: • Single electron tunneling. • Conductance quantization. • Ballistic transport. • Optimum size: dNW=4nm • Volume inversion • Scattering Questions?

  8. References • Sung Dae Suk, et al., “High performance 5nm radius Twin Silicon Nanowire MOSFET (TSNWFET): Fabrication on Bulk Si Wafer, Characteristics, and Reliability,” IEDM 2005, pp. 717-720. • Kyoung Hwan Yeo, et al., “Gate-All-Around (GAA) Twin Silicon Nanowire MOSFET (TSNWFET) with 15nm length gate and 4nm radius nanowires,” IEDM 2006. • Keun Hwi Cho, et al., “Observation of single electron tunneling and ballistic transport in twin silicon nanowire MOSFETs (TSNWFETs) fabricated by top-down CMOS process,” IEDM 2006. • Sung Dae Suk, et al., “Investigation of nanowire size dependancy on TSNWFET,” IEDM 2007, pp. 891-894.
