Presentation Transcript
first update presentation

First Update Presentation

High Speed UAV Team Fall 2005

topics

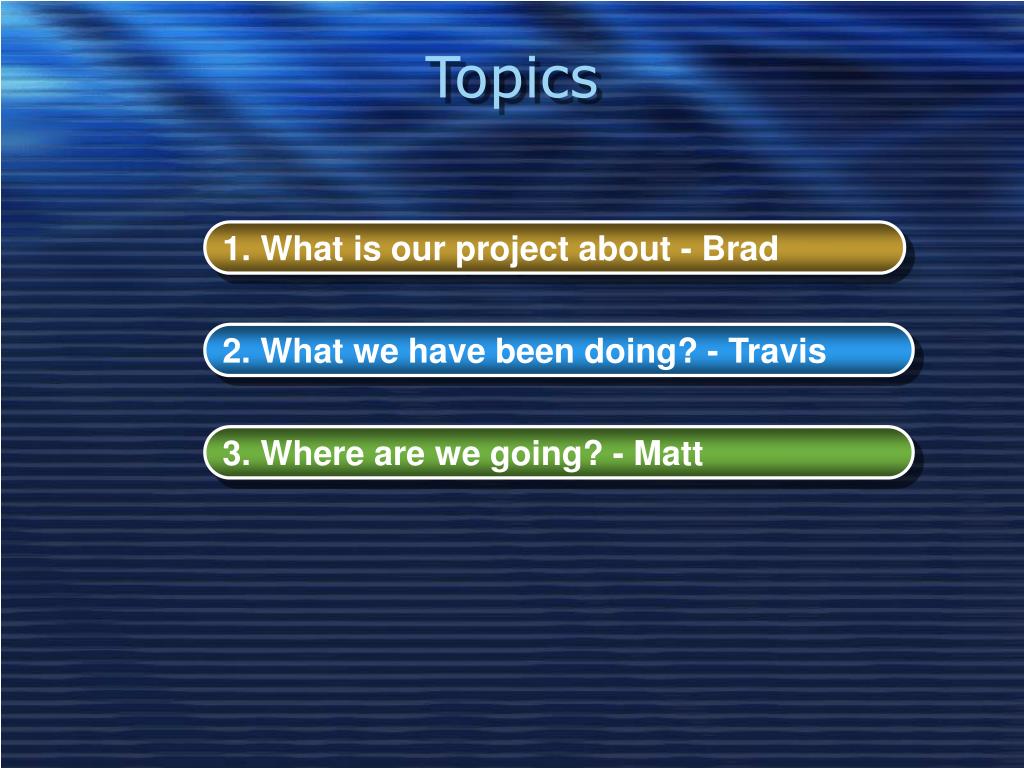

Topics

1. What is our project about - Brad

2. What we have been doing? - Travis

3. Where are we going? - Matt

high speed uav project outline

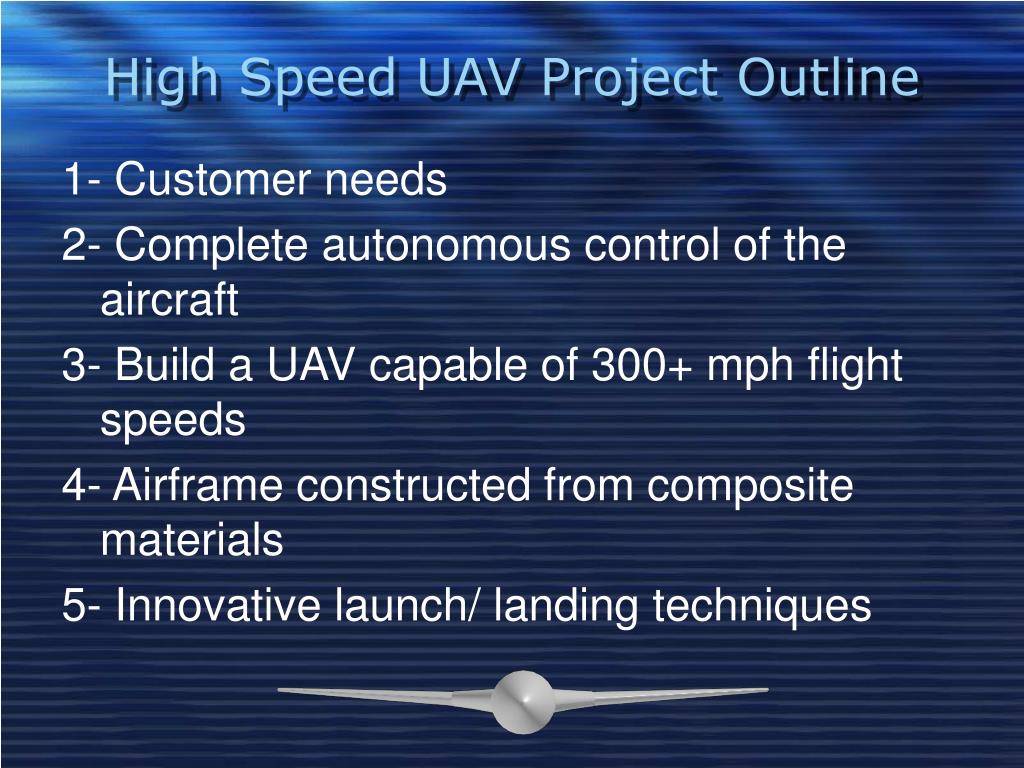

High Speed UAV Project Outline

1- Customer needs

2- Complete autonomous control of the aircraft

3- Build a UAV capable of 300+ mph flight speeds

4- Airframe constructed from composite materials

5- Innovative launch/ landing techniques

high speed uav project outline1

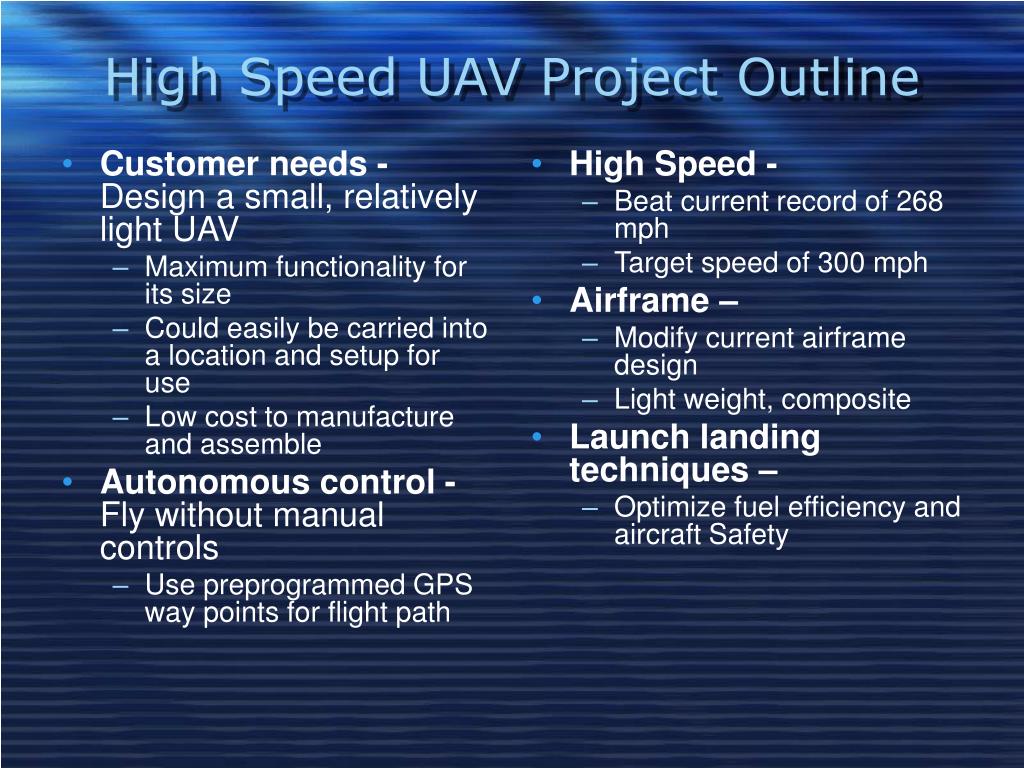

Customer needs- Design a small, relatively light UAV

Maximum functionality for its size

Could easily be carried into a location and setup for use

Low cost to manufacture and assemble

Autonomous control -Fly without manual controls

Use preprogrammed GPS way points for flight path

High Speed -

Beat current record of 268 mph

Target speed of 300 mph

Airframe –

Modify current airframe design

Light weight, composite

Launch landing techniques –

Optimize fuel efficiency and aircraft Safety

High Speed UAV Project Outline
what we ve been up to

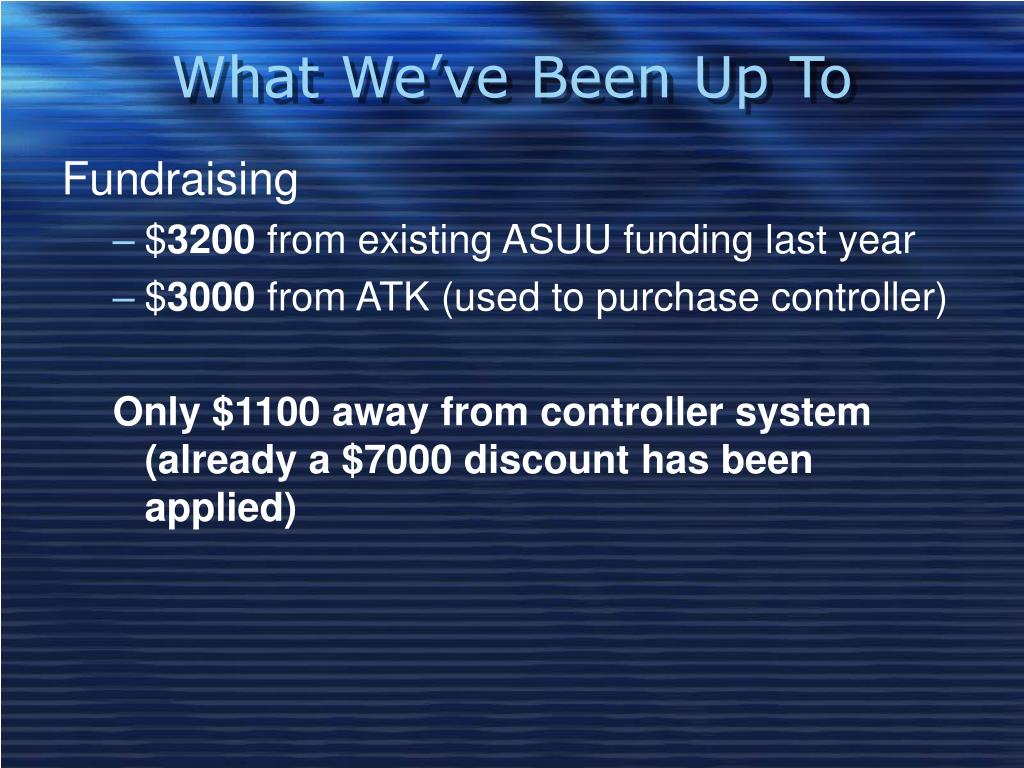

What We’ve Been Up To

Fundraising

  • $3200 from existing ASUU funding last year
  • $3000 from ATK (used to purchase controller)

Only $1100 away from controller system (already a $7000 discount has been applied)

slide7

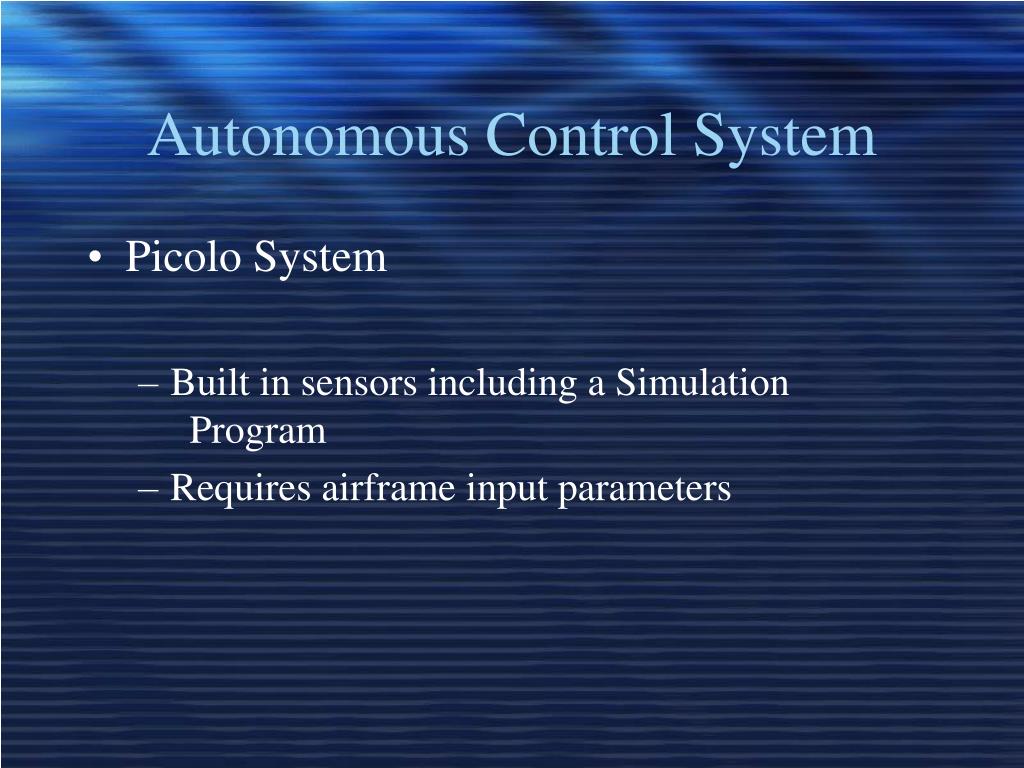

Autonomous Control System

  • Picolo System
    • Built in sensors including a Simulation Program
    • Requires airframe input parameters
slide8

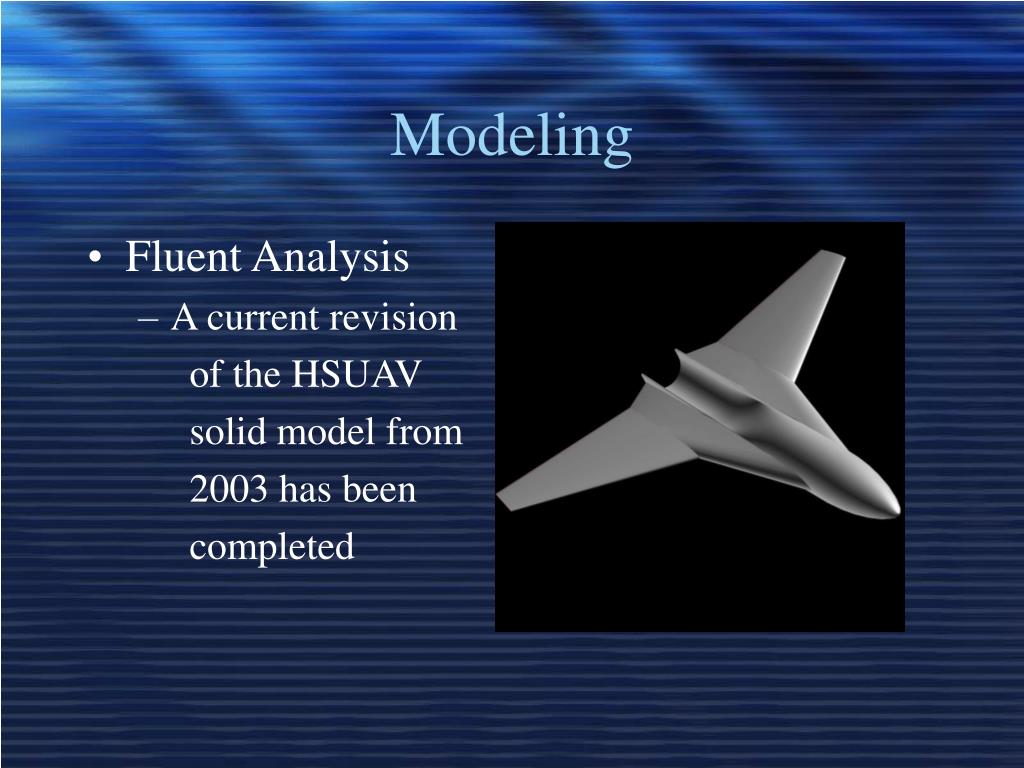

Modeling

  • Fluent Analysis
    • A current revision
    • of the HSUAV
    • solid model from
    • 2003 has been
    • completed
slide9

Current HSUAV Designs

  • Excalibur TUAV
  • Wingspan: 8 ft.
  • Length: 13 ft.
  • Weight: 992 lb.
  • Flight time: 4 hrs.
  • Max Speed: Mach 0.71
  • Shadow 200
  • Altitude: 15,000 ft.
  • Range: 32 nm
  • Endurance: 4 hrs.
  • Cruise Speed: 84 kts.
  • Maximum Speed: 150 kts.
  • Propulsion: 37 hp
  • Weight: 215 lbs.
  • Length: 9 ft.
  • Wingspan: 12.75 ft.
project aspects

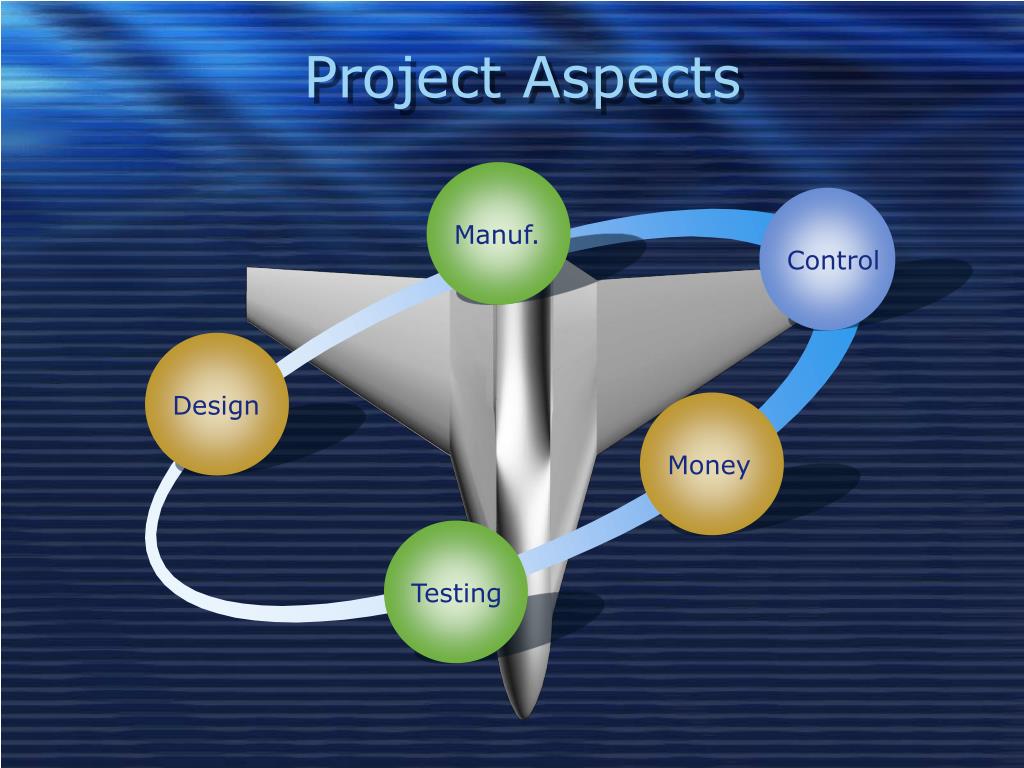

Project Aspects

Manuf.

Control

Design

Money

Testing

design tasks

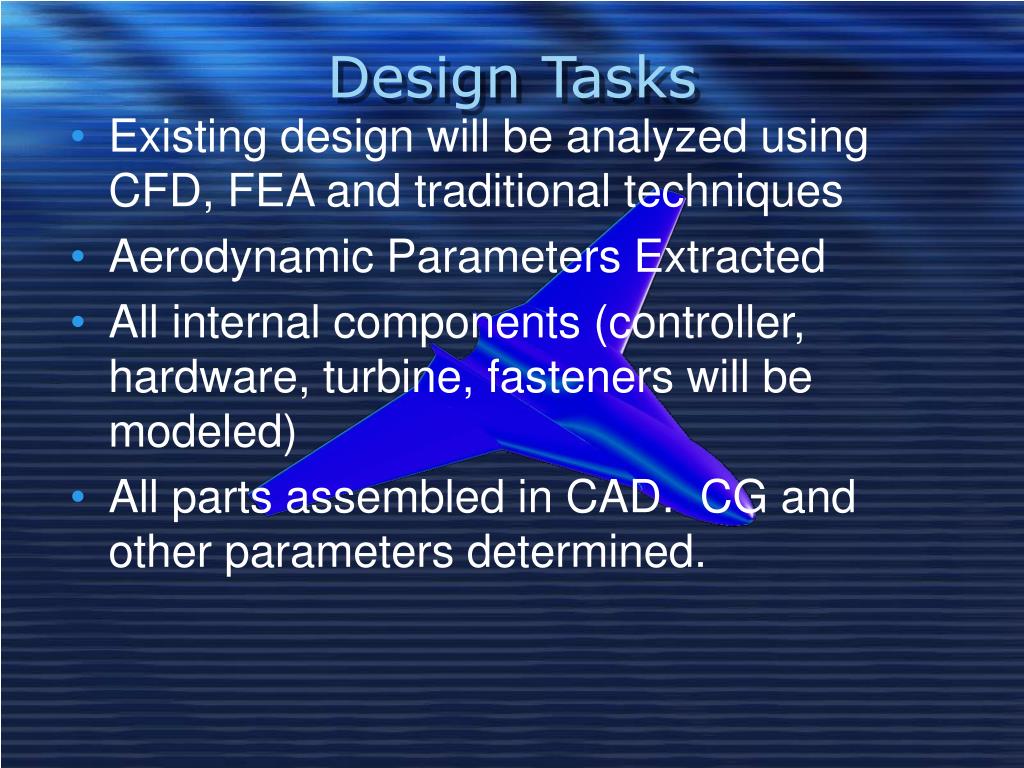

Design Tasks
  • Existing design will be analyzed using CFD, FEA and traditional techniques
  • Aerodynamic Parameters Extracted
  • All internal components (controller, hardware, turbine, fasteners will be modeled)
  • All parts assembled in CAD. CG and other parameters determined.
manufacturing tasks
Manufacturing Tasks
  • Mold for Rev 2 model finished
  • Models created from mold
  • Control Surfaces Installed
  • Linkages, servos and hardware installed
  • Turbine Mounted
  • Landing Gear
  • Launch
control tasks

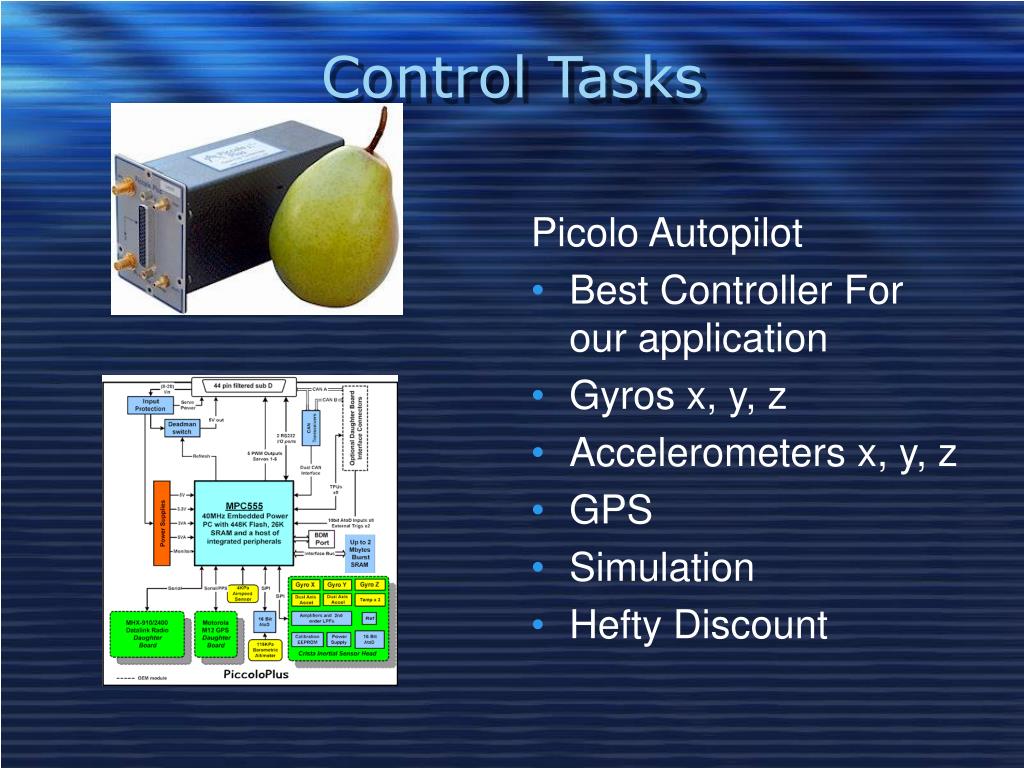

Control Tasks

Picolo Autopilot

  • Best Controller For our application
  • Gyros x, y, z
  • Accelerometers x, y, z
  • GPS
  • Simulation
  • Hefty Discount
fundraising tasks

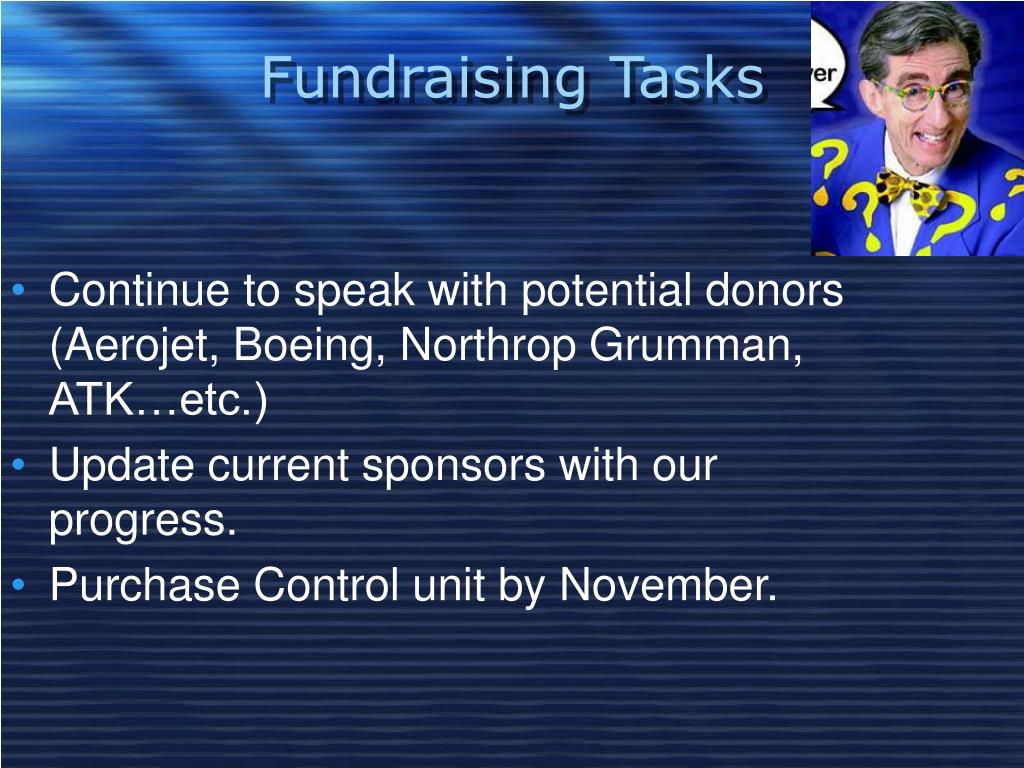

Fundraising Tasks
  • Continue to speak with potential donors(Aerojet, Boeing, Northrop Grumman, ATK…etc.)
  • Update current sponsors with our progress.
  • Purchase Control unit by November.
testing
Testing
  • Fluent Test
  • Wind Tunnel Test
  • Controller Simulation
  • Car Tow
  • Final Test
