Presentation Transcript


  1. CARBON AND ITS COMPOUNDS

  2. CARBON • Carbon belongs to the group IV of the periodic table. • It has four electrons in its outermost orbit, so its valency is four. • Carbon is a non-metal.

  3. Compounds of Carbon are Widely Distributed in Nature • The number of carbon compounds is larger than that of all other elements put together.

  4. Why so many Carbon Compounds in nature? • Because carbon is chemically unique. • Only carbon atoms have the ability to combine with themselves to form long chains

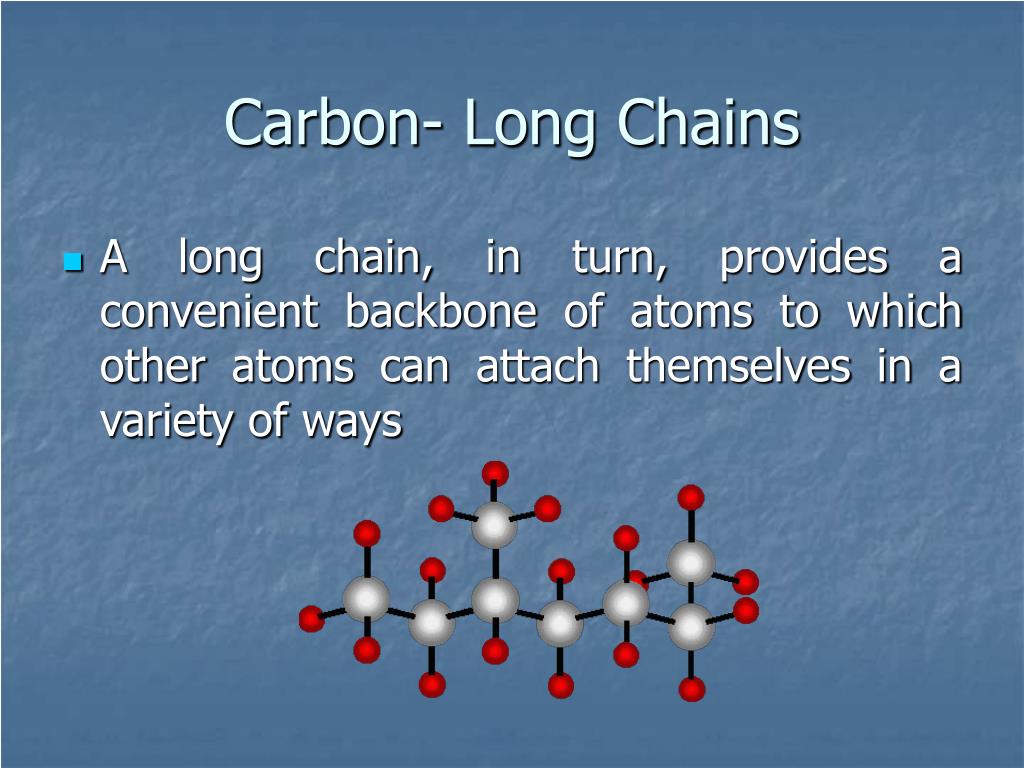

  5. Carbon- Long Chains • A long chain, in turn, provides a convenient backbone of atoms to which other atoms can attach themselves in a variety of ways

  6. Allotropes of Carbon • In nature, pure carbon occur in two forms- • Diamond • Graphite

  7. What are Allotropes ? • Allotropes are elements which are chemically identical, but they differ markedly in their physical properties. • Diamond and Graphite – two allotropes of carbon differ in their physical properties.

  8. Physical Properties of Diamond and Graphite

  9. How Diamond and Graphite are chemically identical? • These results of thes experiments answer this question: • On heating diamond or graphite in the air, they burn completely to form carbon dioxide. • Equal quantities of diamond and graphite when burned, produce exactly the same amount of carbon dioxide.

  10. Why the physical properties of diamond and graphite are so different? • Due to the difference in the arrangement of carbon atoms in diamond and graphite

  11. Hydrocarbons • Hydrocarbons are compounds of carbon and hydrogen. The natural source of hydrocarbons is petroleum (crude oil)

  12. The Simplest Hydrocarbon A molecule of methane has four hydrogen atoms linked to one central atom of carbon. Methane CH4

  13. Hydrocarbons Saturated Alkanes

  14. Alkanes • The hydrocarbons methane, ethane propane and butane form a series of carbon compounds known as alkanes • The alkane series can be represented by the general formula

  15. Isomerism • Compounds having the same molecular formulae but different structural arrangement of atoms in them are known as isomers, and the phenomenon is known as isomerism Isomers of Butane – Obtained by rearranging the carbon and the hydrogen atoms

  16. Unsaturated Hydrocarbons • Unsaturated hydrocarbons contain a double or triple bond between two carbon atoms. • The one with double bond are called alkenes

  17. Alkenes

  18. Alkynes • Unsaturated hydrocarbons which contain triple bond between two carbon atoms.
