  1. Infrasound Data Processing atGeoscience Australia David J Brown

  2. Overview • Current State of the automatic infrasound processing system operating at GA. • signal detection • source location • job queuing • example • summary

  3. Signal Detection Parameter Space, P Image Space, S Hough Transform

  4. Source location The Neighbourhood algorithm:minimise the misfit Initial state M=0.24 Iteration one M=0.24 • distribute points in computational domain • find the region about each point that is closer to that point than any other (voronoi cell) • distribute the same number of points randomly in the first few voronoi cells with the smallest values of misfit Iteration two M=0.004 Iteration three M=0.004

  5. Source location • access travel-time data using lat/lon information via a minimal perfect hash Unique 16-digit string (24.0948, 63.4349) 24.0948.063.4349 (23.8670,76.7989) 23.8670.076.7989 (35.2644,75.0000) 35.2644.075.0000 data file generated for each station and stored as a shared memory segment on the host travel-time and azimuthal deviation information assuming each grid point is a source location and acoustic propagation for some prescribed climatological model is determined and stored in a vector accessible using an index that is a hash of the lat/lon string

  6. job queuing • main operation controlled by the Infer Listener GUI • an instance will need to run on each host that wants to process data colour panel shows state of processing for each hour for each station Start/Stop button to toggle operation of the current instance. Stop All button to stop operation of all instances Infer Listener is constantly trawling the infer noticeboard looking for jobs to run. Currently processing jobs are displayed in this panel

  7. job queuing • main operation controlled by the Infer Listener GUI • an instance will need to run on each host that wants to process data Infer Listener is constantly trawling the infer noticeboard looking for jobs to run. Currently processing jobs are displayed in this panel

  8. hostname3 listener hostname1 listener hostname2 listener job queuing noticeboard job1.x arg1 arg1 arg3 arg4 - date s - job2.x arg1 arg1 arg3 - date m 300 - job3.x arg1 arg1 - date m 60 - job4.x arg1 arg1 arg3 arg4 - date s - listener grabs job from noticeboard listener updates noticeboard forks hostname1 child pid noticeboard job1.x arg1 arg2 arg3 arg4 hostname1 date s pid=1234 job2.x arg1 arg2 arg3 hostname2 date m 300 pid=2345 job3.x arg1 arg2 hostname3 date m 60 pid=3456 job4.x arg1 arg2 arg3 arg4 hostname1 date s pid=4567

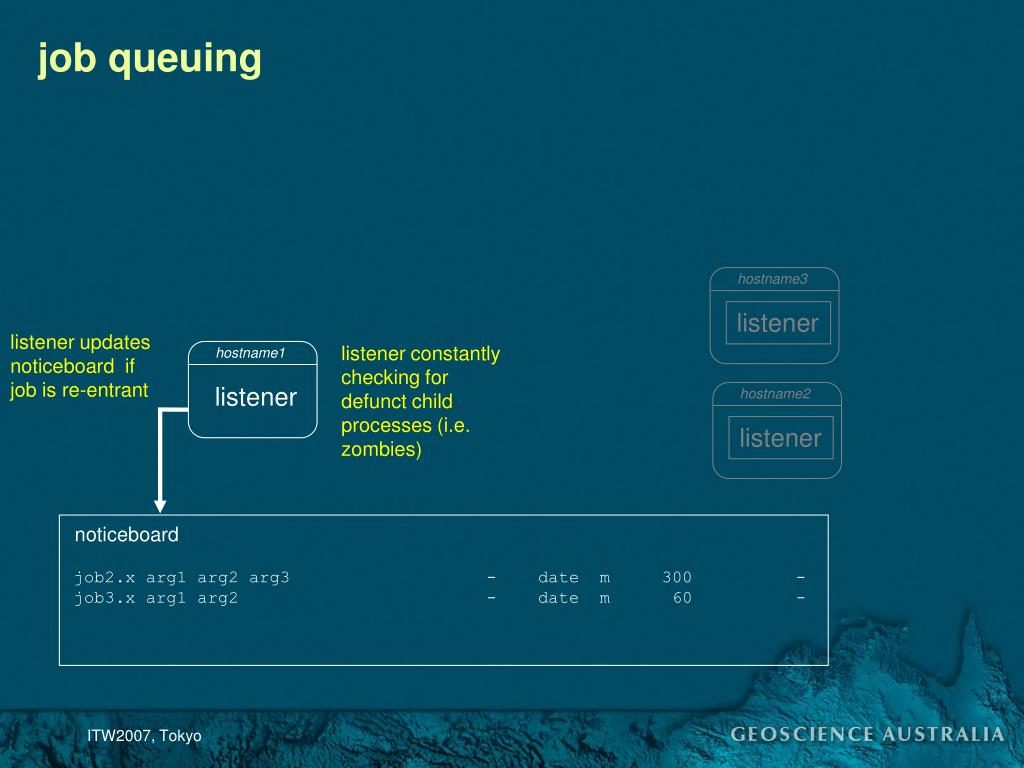

  9. hostname3 listener hostname1 listener hostname2 listener job queuing listener updates noticeboard if job is re-entrant listener constantly checking for defunct child processes (i.e. zombies) noticeboard job2.x arg1 arg2 arg3 - date m 300 - job3.x arg1 arg2 - date m 60 -

  10. job queuing • Infer Noticeboard • starting jobs list 1 INFER_LISTNER/bin/check_alert alert_type=Volcano Region=‘New Britain’ sta_list IS04 IS05 IS07 INFER_LISTNER/bin/check_alert alert_type=Volcano Region=‘Java’ sta_list IS04 IS05 IS07 INFER_LISTNER/bin/check_alert alert_type=Volcano Region=‘Lesser Sunda’ sta_list IS04 IS05 IS07 INFER_LISTNER/bin/check_alert alert_type=Standard Region=‘All’ sta_list IS04 IS05 IS07 INFER_LISTNER/bin/check_event INFER_LISTNER/bin/infer_det INFER_LISTNER/bin/infer_loc sta_list IS04 IS05 IS07 INFER_LISTNER/bin/tickle_man INFER_LISTNER/bin/remove_logs 2 3 4 5 6 7 8 9

  11. job queuing • Infer Noticeboard • starting jobs list 2 3 1 checks the arrival table for significant signals from a volcanic region for the sta list INFER_LISTNER/bin/check_alert alert_type=Volcano Region=‘Java’ sta_list IS04 IS05 IS07 4 checks the arrival table for significant signals from any region INFER_LISTNER/bin/check_alert alert_type=Standard Region=‘All’ sta_list IS04 IS05 IS07

  12. job queuing Alert Name: Volcano ================================================= Region: New Britain lat lon Location: name: Manam -4.10 145.06 name: Rabaul -4.271 152.203 name: Langila -5.525 148.42 name: Garbuna_Group -5.45 150.03 name: Pago -5.58 150.52 name: Ulawun -5.05 151.33 name: Lolabau -4.92 151.158 Region: Java Location: name: Merapi -7.542 110.442 name: Ruang -8.125 114.042 name: Kelut -7.93 112.308 Region: Lesser Sunda Location: name: Batu_Tara -7.792 123.579 name: Soputan 1.108 124.730 Alert Name: Standard ================================================== Region: All lat lon Location: name: All - - • regions file

  13. job queuing • alert email issued • alert name + region name in subject heading Volcano Alert: New Britain ================================================= Station: IS04 Azimuth: 56.4 Frequency: 1.0 Time(UTC): 2007304 18:38:23 Fstat: 24.8 Duration: 320.0 Arid: 37829

  14. job queuing • Infer Noticeboard • starting jobs list 5 checks the origin table for formed events+sends email alert INFER_LISTNER/bin/check_event Infrasonic Event: ================================================= Lat: -22.1459 Lon: 134.5100 Time(UTC): 2007304 05:22:18 Ndef: 3 6 checks the wfdisc table for unprocessed data, places entries onto noticeboard to initiate detector INFER_LISTNER/bin/infer_det

  15. job queuing • Infer Noticeboard • starting jobs list 7 queues consecutive four hour intervals for location for stations in the sta_list INFER_LISTNER/bin/infer_loc sta_list IS04 IS05 IS07 tickle shared memory segment used in source location if non-constant velocity model used 8 INFER_LISTNER/bin/tickle_man 9 remove processing log files INFER_LISTNER/bin/remove_logs

  16. hostname1 hostname2 hostname4 hostname3 Oracle listener listener listener listener • arrival • detection • infra_features • site • wfdisc • lastid • affiliation • origin job queuing • NFS atomic-level file-locking (discretionary) noticeboard logfile

  17. job queuing: • software design • no commercial software or expert knowledge to install • standard languages • ANSI-C • python • fortran • free-ware • FFTWhttp://www.fftw.org/ • Oracle 10gXEhttp://www.oracle.com/technology/software/products/ database/xe/htdocs/102xelinsoft.html • python2.4, Pmwhttp://www.python.org/http://pmw.sourceforge.net/ • NAhttp://rses.anu.edu.au/~malcolm/na/na.html • LockFilehttp://mail.python.org/pipermail/mailman-developers/ 2000-April/006657.html

  18. Example: The Taree Bolide, December 06, 2004 Large explosion woke residents along northern NSW coast Significant acoustic signals recorded on IS05, IS07 IS07 125.5 deg 19:24:08 IS05 23.8 deg 18:27:48

  19. Example: The Taree Bolide, December 06, 2004 wfdisc data for 7 hours known to contain signals is loaded into Oracle db Listener ready to start

  20. Example: The Taree Bolide, December 06, 2004 • infer_det has run and has queued all hours for processing. • Alert checking code continually being re-loaded. • each instance is limited to two concurrent processes.

  21. Example: The Taree Bolide, December 06, 2004 • after some time 5 hours of data have successfully passed detection, one hour is currently processing and one hour is queued for processing • check alert has run and found several significant signals: • IS07 125.5 deg 2.0 Hz • IS05 23.8 deg 2.0 Hz • IS05 110.0 deg 0.06 Hz • IS05 125.0 deg .0.06 Hz Infrasound Automatic Alert ========================================= Station: IS05 Azimuth: 23.8 Frequency: 2.0 Time(UTC): 2007309 18:27:48 Fstat: 24.8 Duration: 60.0 Arid: 2010

  22. Example: The Taree Bolide, December 06, 2004 • all hours have successfully passed detection and infer_loc has queued them for location • needs 4 consecutive hours that have passed detection

  23. Example: The Taree Bolide, December 06, 2004 • processing complete: • one event formed and check_event has generated email Infrasonic Event: ========================================= Lat: -30.6793 Lon: 153.5019 Time(UTC): 2007309 17:11:07 Ndef: 2

  24. Summary • Purpose of the infrasound processing system is to provide non-expert users: • a facility for detecting significant acoustic signals in IMS array data • an alert via email for significant signals • an estimate of when and where the event occurred for multiple station recordings • Ease of installation and use: • no software engineering knowledge required or a necessity to resort to commercial software

  25. Summary • Automatic infrasound processing system is maturing • signal detection is rugged • population of arrival, detection and infra_features table is reliable • need to incorporate uncertainty estimatefor az+time • source location process is maturing • occasionally NA location algorithm gets trapped in local minima • conflict resolution in the association phase needs further testing • need to provide uncertainty in location

  26. Summary • Automatic infrasound processing system is maturing • python queuing code works in general • a few idiosyncrasies • possible in rare circumstances for two hosts to execute the same job. • need mechanism to restore lost jobs when host dies • need to add extra features to the GUI: • user selectable detector/locator parameter selection • waveform display • improved error reporting
