  1. Electrodes and Transducers OBJECTIVE Without reference, identify at least four out of six principles pertaining to the application of transducers related to patient care.

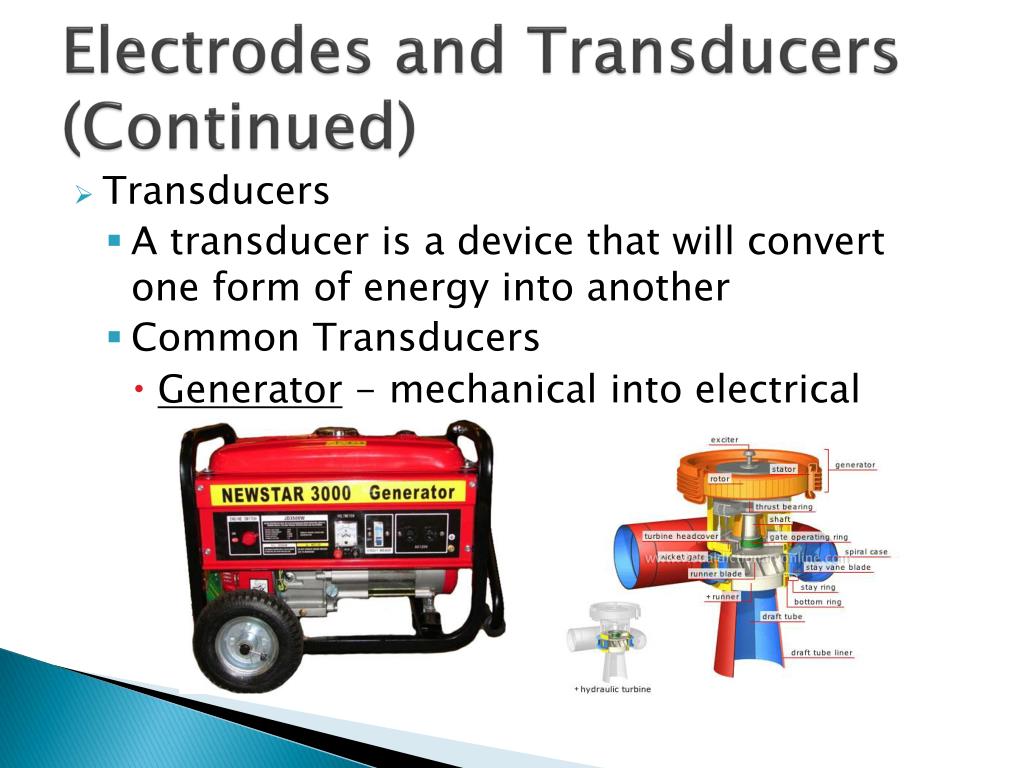

  2. Electrodes and Transducers (Continued) • Transducers • A transducer is a device that will convert one form of energy into another • Common Transducers • Generator - mechanical into electrical

  3. Electrodes and Transducers (Continued) • Microphone - sound into electrical

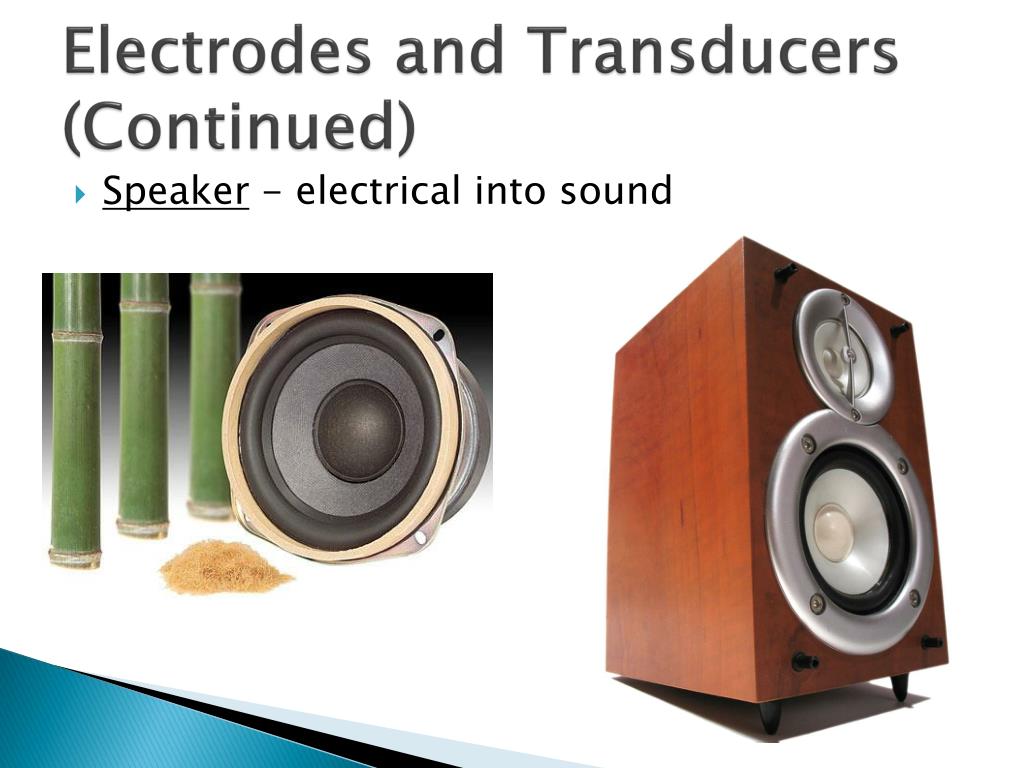

  4. Electrodes and Transducers (Continued) • Speaker - electrical into sound

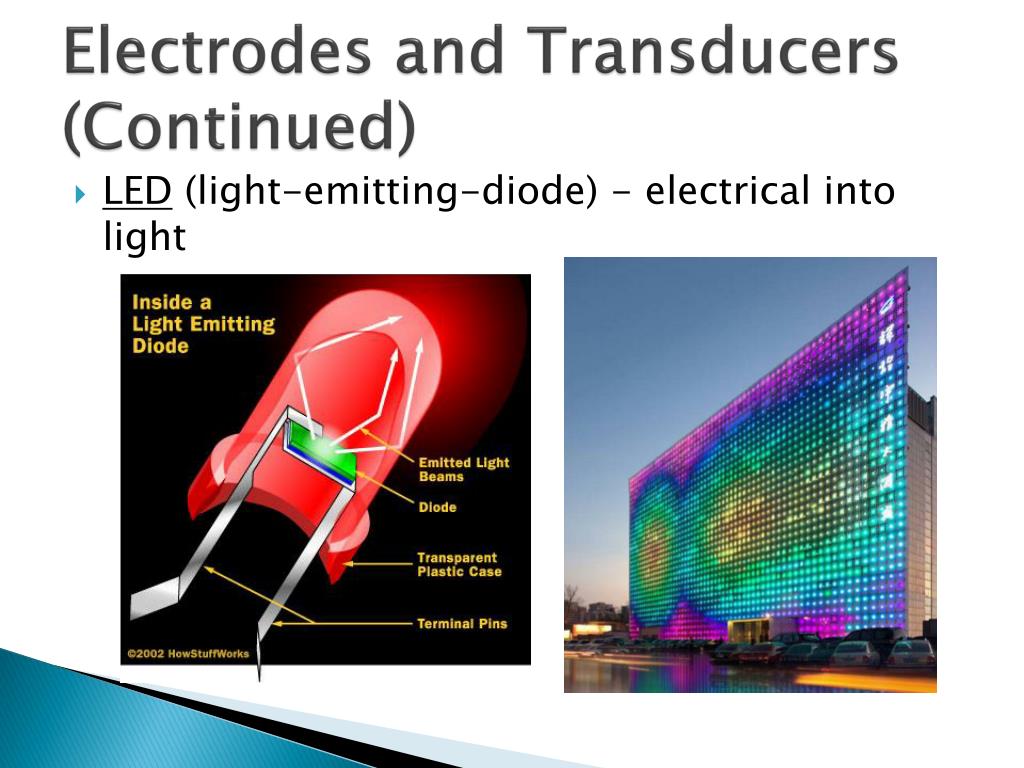

  5. Electrodes and Transducers (Continued) • LED (light-emitting-diode) - electrical into light

  6. Electrodes and Transducers (Continued) • Piezoelectric (crystal) - pressure into electrical

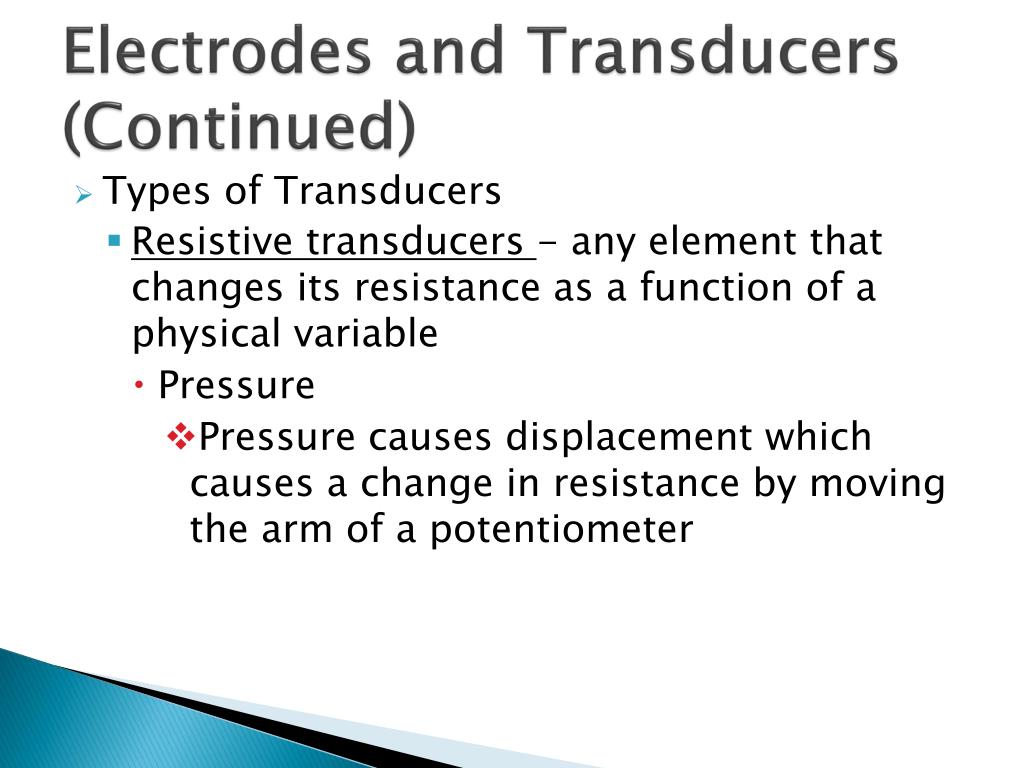

  7. Electrodes and Transducers (Continued) • Types of Transducers • Resistive transducers - any element that changes its resistance as a function of a physical variable • Pressure • Pressure causes displacement which causes a change in resistance by moving the arm of a potentiometer

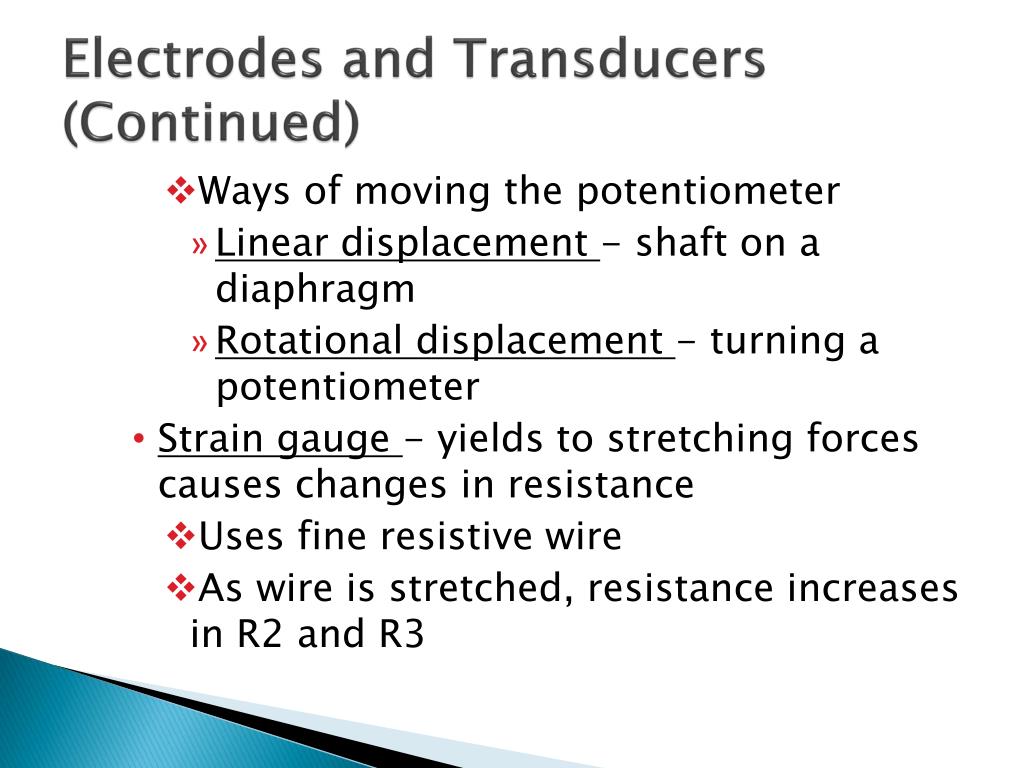

  8. Electrodes and Transducers (Continued) • Ways of moving the potentiometer • Linear displacement - shaft on a diaphragm • Rotational displacement - turning a potentiometer • Strain gauge - yields to stretching forces causes changes in resistance • Uses fine resistive wire • As wire is stretched, resistance increases in R2 and R3

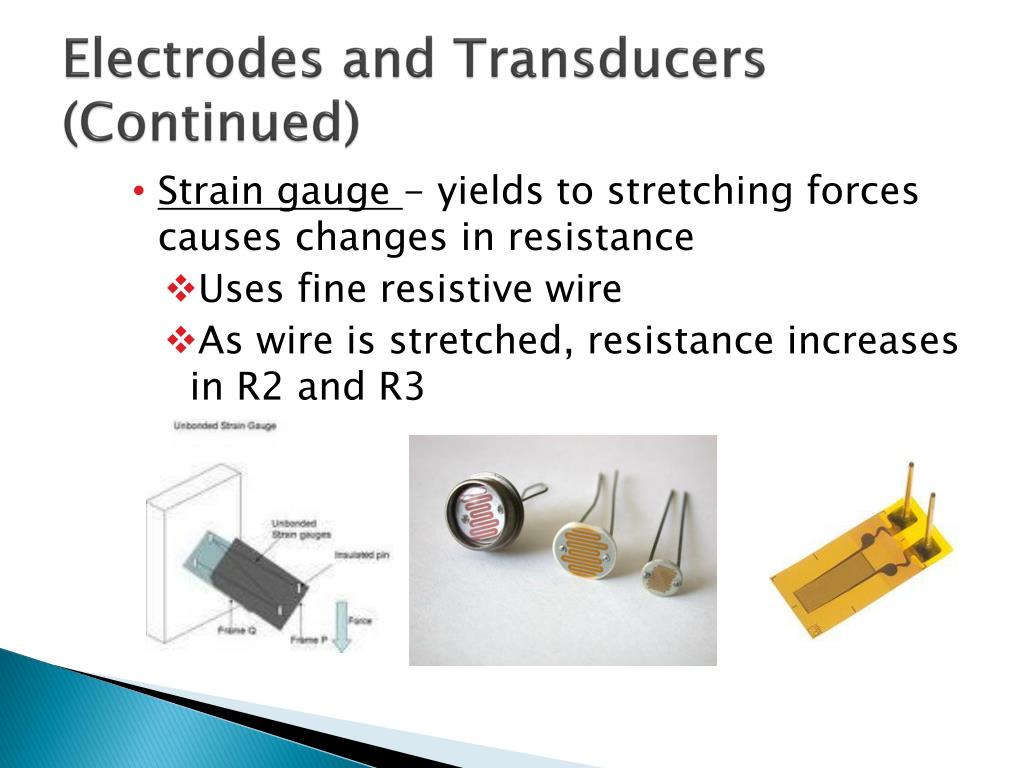

  9. Electrodes and Transducers (Continued) • Strain gauge - yields to stretching forces causes changes in resistance • Uses fine resistive wire • As wire is stretched, resistance increases in R2 and R3

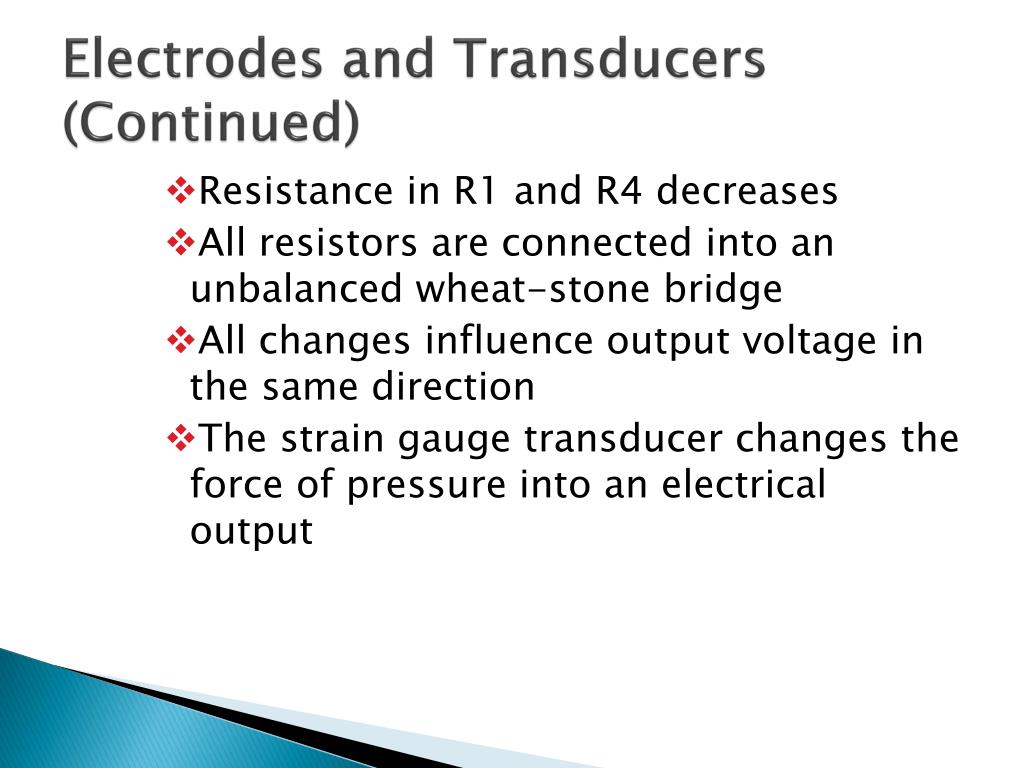

  10. Electrodes and Transducers (Continued) • Resistance in R1 and R4 decreases • All resistors are connected into an unbalanced wheat-stone bridge • All changes influence output voltage in the same direction • The strain gauge transducer changes the force of pressure into an electrical output

  11. Electrodes and Transducers (Continued) • Thermistor • Changes resistive value in a predictable manner with changes in temperature • Has a positive or negative temperature coefficient • Positive coefficient - as temperatureraises, resistanceraises • Negative coefficient - as temperature raises, resistance falls • Solid state PN junction - resistance decreases as temperature increases (negative temperature coefficient)

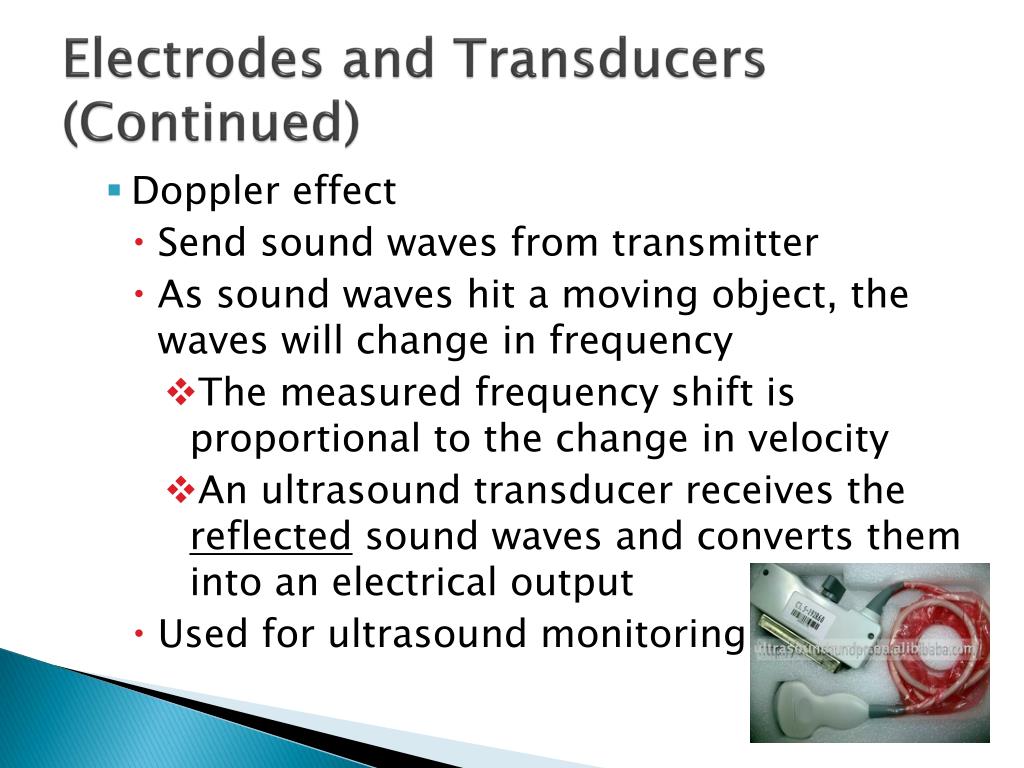

  12. Electrodes and Transducers (Continued) • Doppler effect • Send sound waves from transmitter • As sound waves hit a moving object, the waves will change in frequency • The measured frequency shift is proportional to the change in velocity • An ultrasound transducer receives the reflected sound waves and converts them into an electrical output • Used for ultrasound monitoring

  13. Electrodes and Transducers (Continued) • Inductive transducer • Physical movement of a permeable core within an inductor • Affects the iron / ferrite core inside of the coil or the magnetic field of the core • Capacitive transducer • Causes capacitance of the transducer to vary with a stimulus • Uses a stationary plate or plates and a moveable plate that changes position under the influence of a stimulus

  14. Electrodes and Transducers (Continued) • Thermocouple • Two dissimilar conductors or semiconductors joined together at one end (junction) • A potential is generated when the junction is heated and the electrons begin to flow

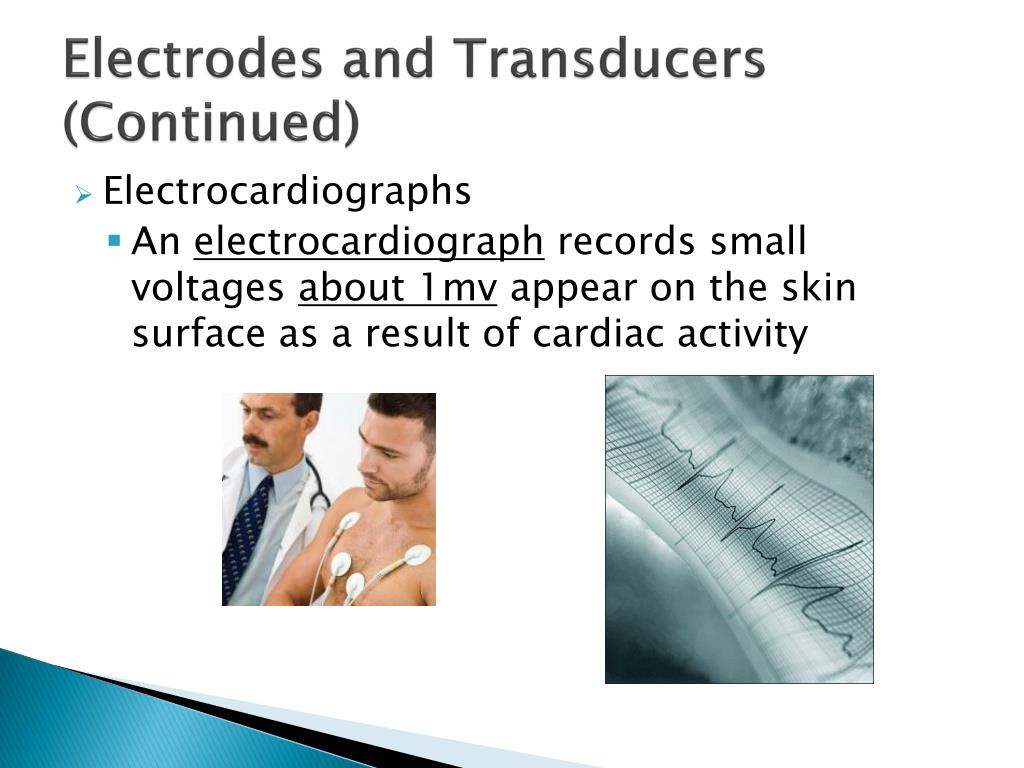

  15. Electrodes and Transducers (Continued) • Electrocardiographs • An electrocardiograph records small voltages about 1mv appear on the skin surface as a result of cardiac activity

  16. Electrodes and Transducers (Continued) • Signal Acquisition • Most medical instruments are electronic devices requiring an electrical signal for an input • Bioelectric potentials generated in the body are ionic potentials, produced by ionic current flow

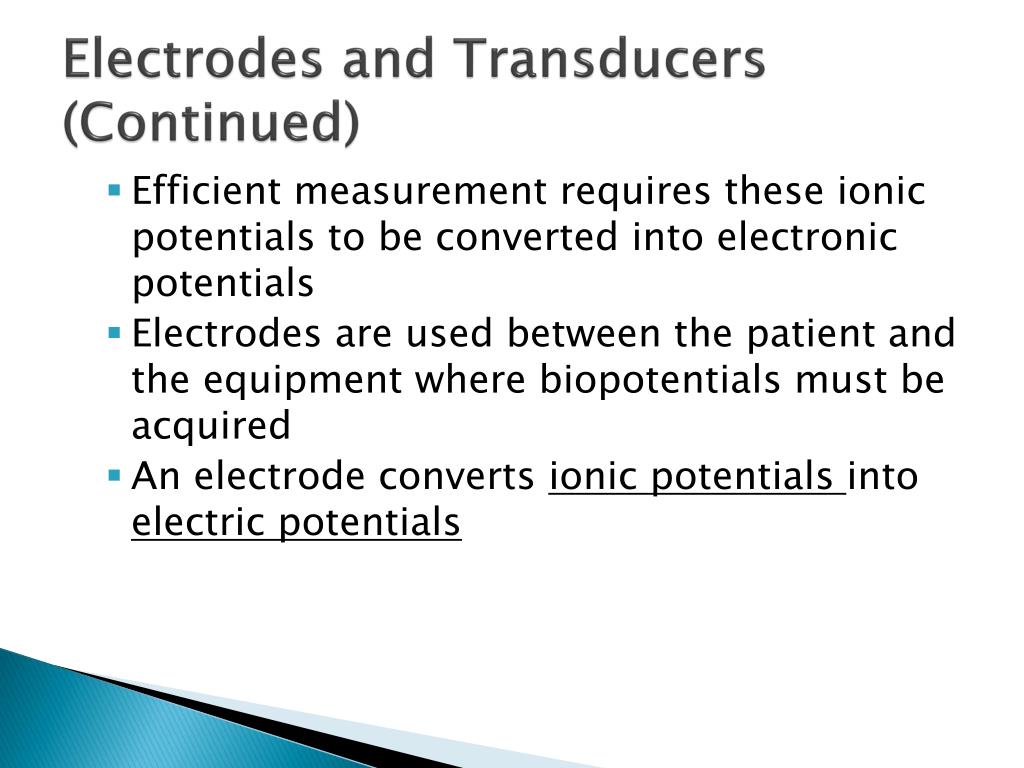

  17. Electrodes and Transducers (Continued) • Efficient measurement requires these ionic potentials to be converted into electronic potentials • Electrodes are used between the patient and the equipment where biopotentials must be acquired • An electrode converts ionic potentials into electric potentials

  18. Electrodes and Transducers (Continued) • Electrode • An electrode is a device that converts ionic potentials into electronic potentials and establishes electrical contact with a nonmetallic part of a circuit

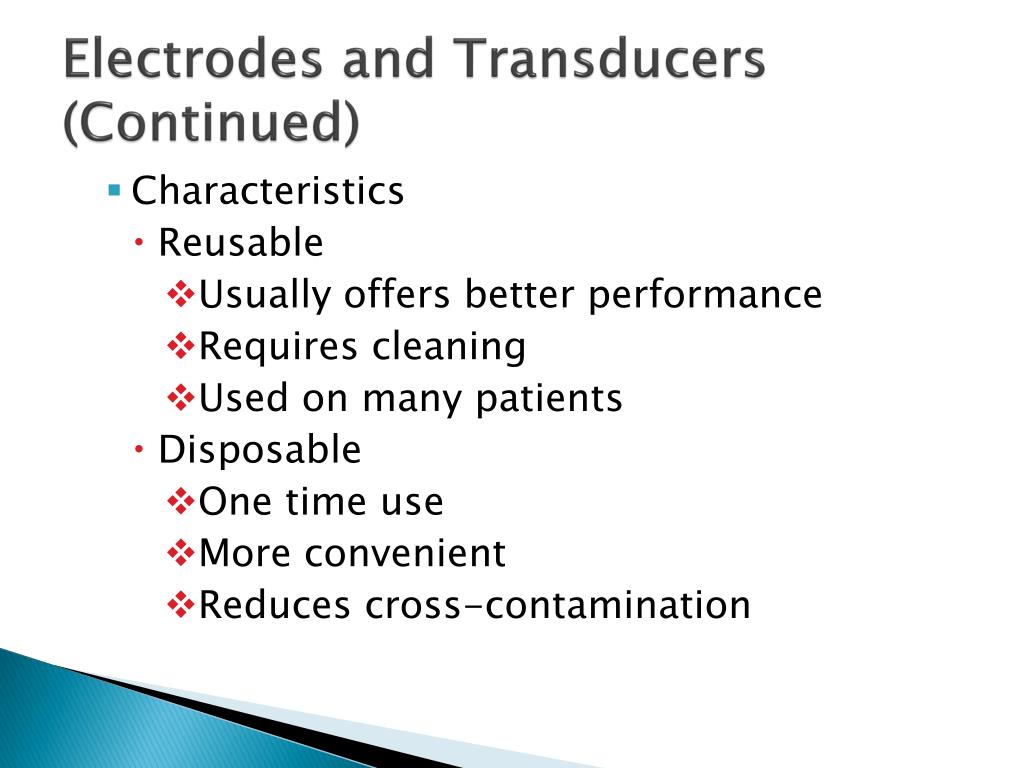

  19. Electrodes and Transducers (Continued) • Characteristics • Reusable • Usually offers better performance • Requires cleaning • Used on many patients • Disposable • One time use • More convenient • Reduces cross-contamination

  20. Electrodes and Transducers (Continued) • Types • Suction cup • Used for connecting portions of the body other than the extremities (head, face, chest) • Electrode is made from silver/silver chloride due to its superior conductive characteristics • Disadvantage - during long recordings, the electrode is prone to movement or slippage

  21. Electrodes and Transducers (Continued) • Plate • Connected to patient's extremities held in place by a rubber strap • 3 cm x 5 cm metallic plate constructed with silver/silver chloride • One time use • Column • Reduces motion artifact generated by patient movement by eliminating electrode slippage

  22. Electrodes and Transducers (Continued) • Used for long term applications • Held in place by adhesive • Needle electrode • Disposable • Uses • EEG monitoring - to reduce interface impedance and movement artifact • ECG monitoring - during surgery or when extremely fast electrode application is desired

  23. Electrodes and Transducers (Continued) • Electromyography monitoring - tracing of muscle action potentials • Fetal ECG monitoring • Construction • Stainless steel hypodermic needles • Fine copper or platinum wire • Length is two to six inches

  24. Electrodes and Transducers (Continued) • Using Electrodes • At least two electrodes are required to detect an ECG • Third is used as a reference to reduce electrical interference • Single electrode pair cannot completely represent the electrical activity of heart • Several electrodes arranged in standard configurations (leads) are used

  25. Electrodes and Transducers (Continued) • Groups of Lead Configurations • Bipolar • Measures ECG signal between two specific electrodes • Lead 1 measures between left arm (LA) and right arm (RA) • Lead 2 measure between right arm (RA) and left leg (LL) • Lead 3 measures between left arm (LA) and left leg (LL)

  26. Electrodes and Transducers (Continued) • Augmented • Measures voltage between one limb electrode (RA, LA, LL) and an average of remaining two electrodes • AVR measures potential at RA using LA and LL to form indifferent electrode • AVL measures potential at LA using RA and LL to form indifferent electrode • AVF measures potential at LL using RA and LA to form indifferent electrode

  27. Electrodes and Transducers (Continued) • Precordial • Chest electrodes labeled V1, V2, V3, V4, V5, and V6 • Measures voltage between one chest electrode and the average of all limb electrodes • Cardiologist commonly work with 12 lead ECG • 10 electrodes • Signals from various groupings of these electrodes provide a complete view of heart's electrical activity
