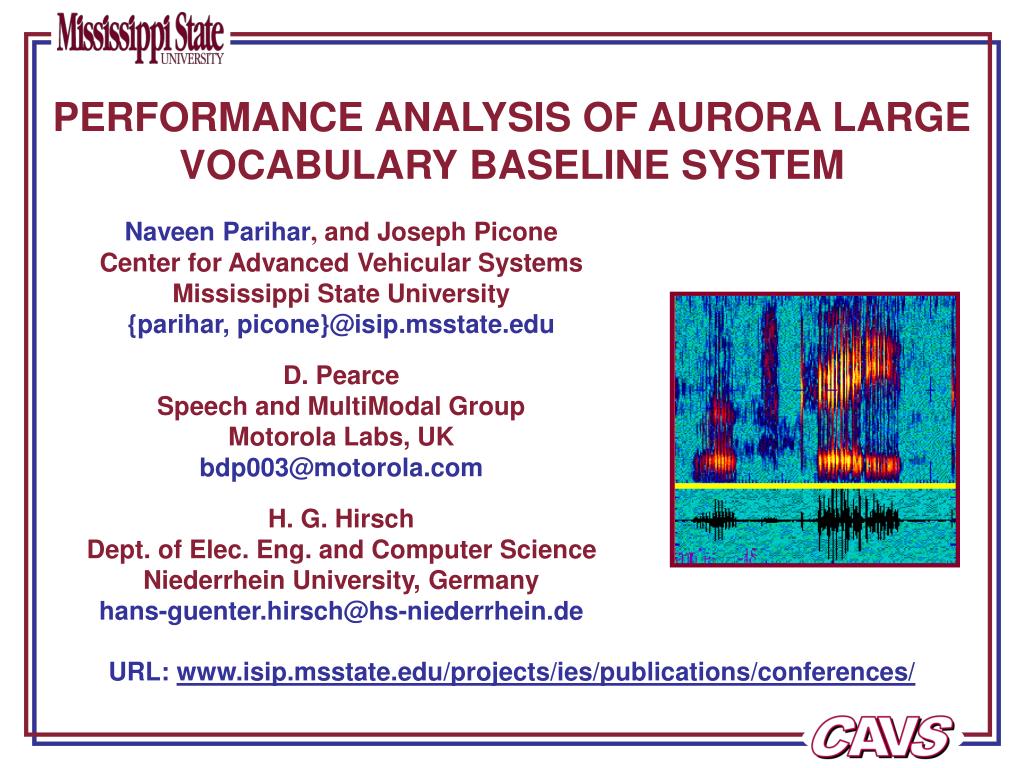

PERFORMANCE ANALYSIS OF AURORA LARGE VOCABULARY BASELINE SYSTEM

1. Naveen Parihar, and Joseph Picone Center for Advanced Vehicular Systems Mississippi State University {parihar, picone}@isip.msstate.edu D. Pearce Speech and MultiModal Group Motorola Labs, UK bdp003@motorola.com H. G. Hirsch Dept. of Elec. Eng. and Computer Science Niederrhein University, Germany hans-guenter.hirsch@hs-niederrhein.de PERFORMANCE ANALYSIS OF AURORA LARGE VOCABULARY BASELINE SYSTEM URL: www.isip.msstate.edu/projects/ies/publications/conferences/

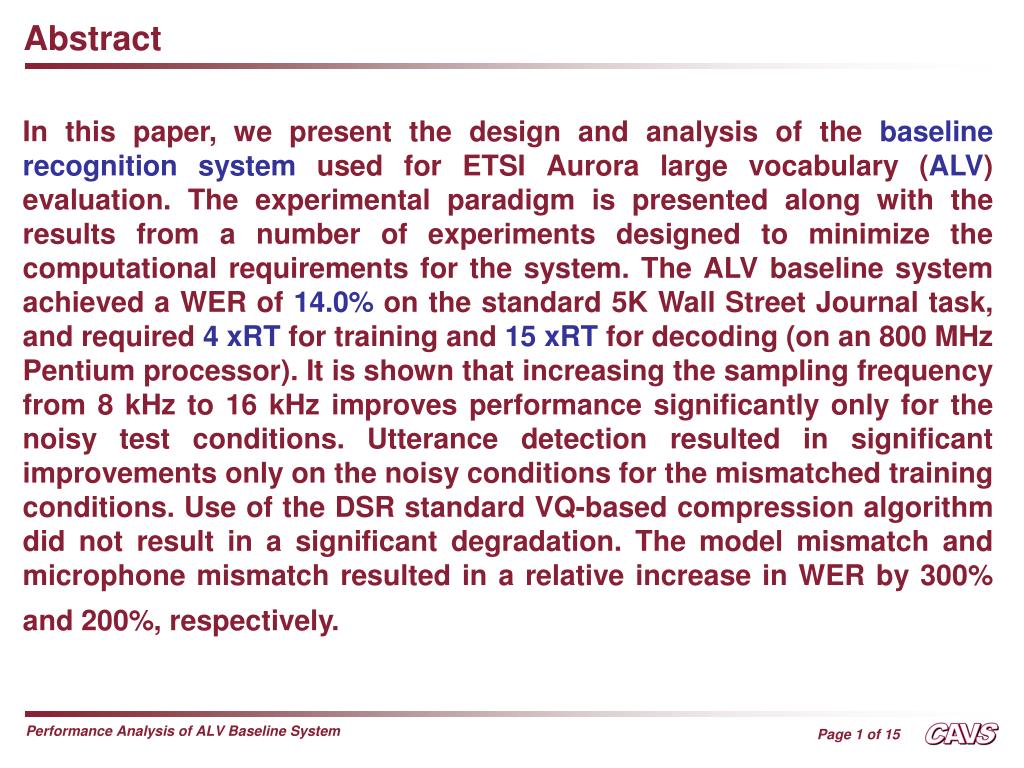

2. Abstract In this paper, we present the design and analysis of the baseline recognition system used for ETSI Aurora large vocabulary (ALV) evaluation. The experimental paradigm is presented along with the results from a number of experiments designed to minimize the computational requirements for the system. The ALV baseline system achieved a WER of 14.0% on the standard 5K Wall Street Journal task, and required 4 xRT for training and 15 xRT for decoding (on an 800 MHz Pentium processor). It is shown that increasing the sampling frequency from 8 kHz to 16 kHz improves performance significantly only for the noisy test conditions. Utterance detection resulted in significant improvements only on the noisy conditions for the mismatched training conditions. Use of the DSR standard VQ-based compression algorithm did not result in a significant degradation. The model mismatch and microphone mismatch resulted in a relative increase in WER by 300% and 200%, respectively.

3. Motivation • ALV goal was at least a 25% relative improvement over the baseline MFCC front end • Develop generic baseline LVCSR system with no front end specific tuning • Benchmark the baseline MFCC front end using generic LVCSR system on six focus conditions — sampling frequency reduction, utterance detection, feature-vector compression, model mismatch, microphone variation, and additive noise

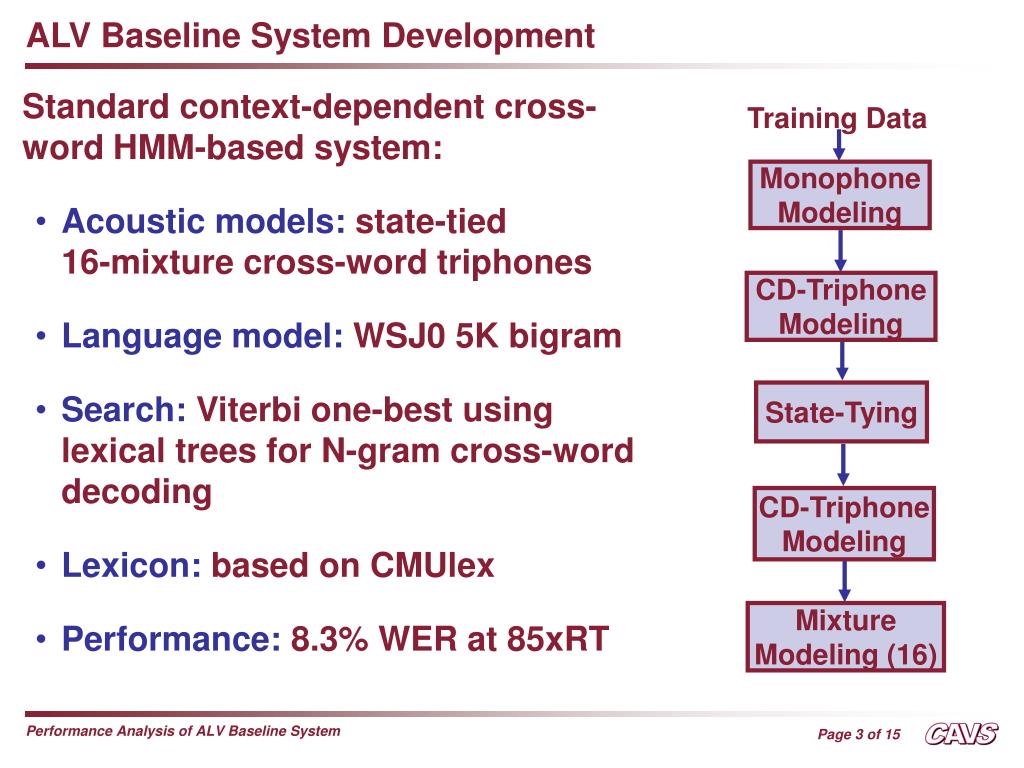

4. Training Data Monophone Modeling CD-Triphone Modeling State-Tying CD-Triphone Modeling Mixture Modeling (16) • ALV Baseline System Development • Standard context-dependent cross-word HMM-based system: • Acoustic models:state-tied16-mixture cross-word triphones • Language model:WSJ0 5K bigram • Search:Viterbi one-best usinglexical trees for N-gram cross-word decoding • Lexicon:based on CMUlex • Performance: 8.3% WER at 85xRT

5. Input Speech Zero-mean and Pre-emphasis Energy Fourier Transf. Analysis Cepstral Analysis / • The baseline HMM system used an ETSI standard MFCC-based front end: • ETSI WI007 Front End • Zero-mean debiasing • 10 ms frame duration • 25 ms Hamming window • Absolute energy • 12 cepstral coefficients • First and second derivatives

6. Real-time reduction • Derived from ISIP WSJ0 system (with CMS) • Aurora-4 database terminal filtering resulted in marginal degradation • ETSI WI007 front end is 14% worst (no CMS) • ALV Baseline System performance: 14.0% • Real-time:4 xRT for training and 15 xRT for decoding on an 800 MHz Pentium

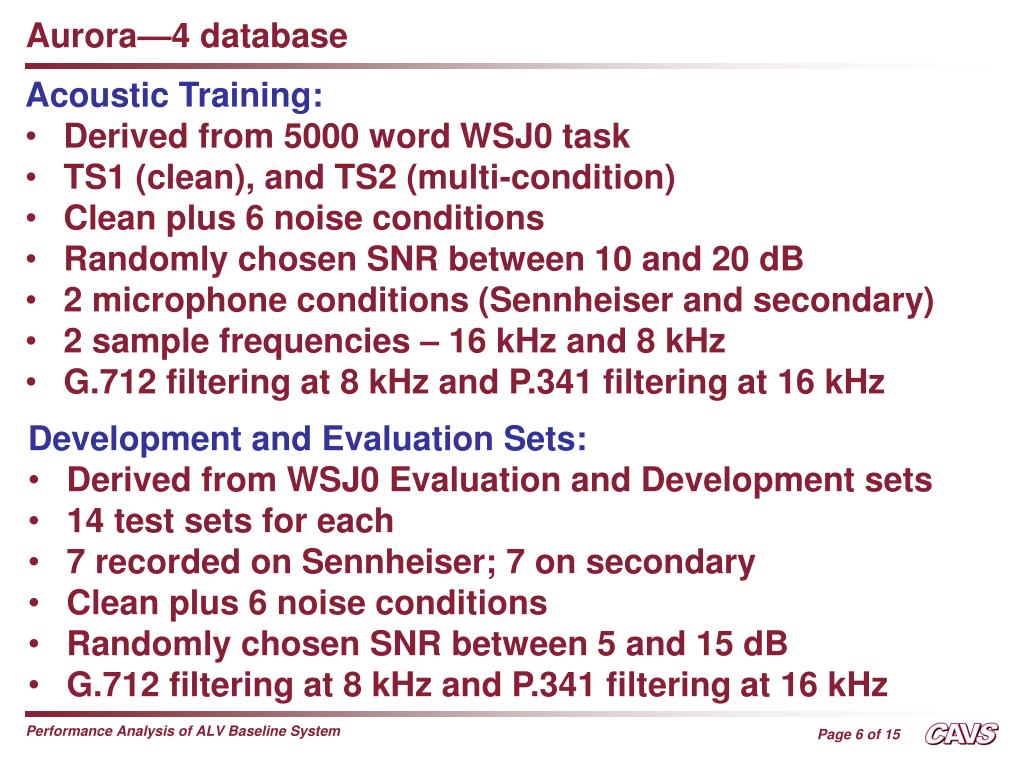

7. Aurora—4 database • Acoustic Training: • Derived from 5000 word WSJ0 task • TS1 (clean), and TS2 (multi-condition) • Clean plus 6 noise conditions • Randomly chosen SNR between 10 and 20 dB • 2 microphone conditions (Sennheiser and secondary) • 2 sample frequencies – 16 kHz and 8 kHz • G.712 filtering at 8 kHz and P.341 filtering at 16 kHz • Development and Evaluation Sets: • Derived from WSJ0 Evaluation and Development sets • 14 test sets for each • 7 recorded on Sennheiser; 7 on secondary • Clean plus 6 noise conditions • Randomly chosen SNR between 5 and 15 dB • G.712 filtering at 8 kHz and P.341 filtering at 16 kHz

8. 16 kHz 8 kHz 40 30 20 10 0 TS3 TS4 TS5 TS6 TS7 TS1 TS2 • Sampling Frequency Reduction • Perfectly-matched condition (TrS1 and TS1): No significant degradation • Mismatched conditions (TrS1 and TS2-TS14): No clear trend • Matched conditions (TrS2 and TS1-TS14): Significant degradation on noisy conditions recorded on Senn. mic. (TS3-TS8)

9. Test Set • W/O Endpointing • With Endpointing • Sub. • Del. • Ins. • Sub. • Del. • Ins. • TS2 (Senn., Car) • 41.4% • 3.6% • 20.1% • 40.0% • 3.6% • 13.0% • TS9 (Sec., Car) • 54.4% • 12.3% • 15.1% • 49.1% • 15.1% • 10.1% • Utterance Detection • Perfectly-matched condition (TrS1 and TS1):No significant improvement • Mismatched conditions (TrS1 and TS2-TS14):Significant improvement due to reduction in insertions • Matched conditions (TrS2 and TS1-TS14):No significant improvement

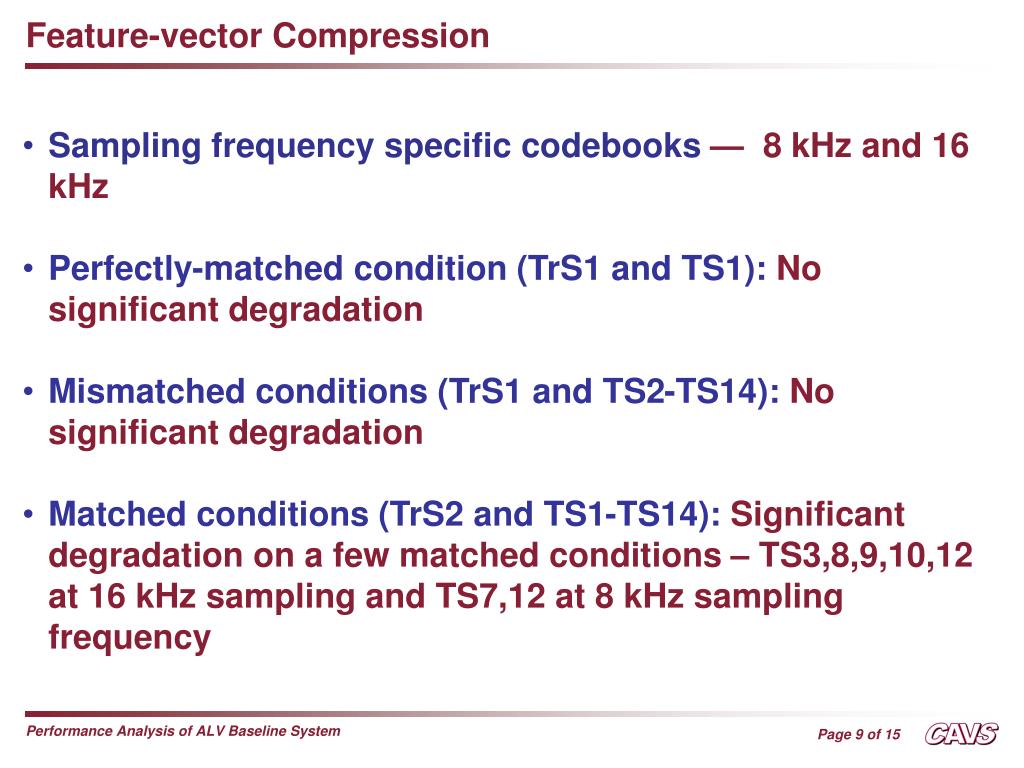

10. Feature-vector Compression • Sampling frequency specific codebooks — 8 kHz and 16 kHz • Perfectly-matched condition (TrS1 and TS1): No significant degradation • Mismatched conditions (TrS1 and TS2-TS14):No significant degradation • Matched conditions (TrS2 and TS1-TS14):Significant degradation on a few matched conditions – TS3,8,9,10,12 at 16 kHz sampling and TS7,12 at 8 kHz sampling frequency

11. TrS1 TrS2 TS1 (Clean) 70 60 50 40 30 20 10 0 TS2 TS3 TS4 TS5 TS6 TS7 40 30 20 10 0 TS2 TS3 TS4 TS5 TS6 TS7 • Model Mismatch • Perfectly-matched condition (TrS1 and TS1):Best performance • Mismatched conditions (TrS1 and TS2-TS14):Significant degradations • Matched conditions (TrS2 and TS1-TS14):Better than mismatched conditions

12. Senn. Sec. 40 35 30 25 20 15 10 5 0 TrS2 TrS1 • Microphone Variation • Train on Sennheiser mic.; evaluate on secondary mic. • Perfectly-matched condition (TrS1 and TS1):Optimal performance • Mismatched condition (TrS1 and TS8):Significant degradation • Matched conditions:Less severe degradation when samples of sec. microphone seen during training

13. TrS1 TrS2 TS1 (Clean) 70 60 • Mismatched Conditions: Performance degrades on noise condition when systems are trained only on clean data 50 40 30 20 10 0 TS2 TS3 TS4 TS5 TS6 TS7 • Matched Conditions: Exposing systems to noise and microphone variations (TS2) improves performance 40 30 20 10 0 TS2 TS3 TS4 TS5 TS6 TS7 • Additive Noise

14. Summary and Conclusions • Presented a WSJ0 based LVCSR system that runs at 4xRT for training and 15xRT for decoding on a 800 MHz Pentium • Reduction in benchmarking time from 1034 to 203 days • Increase in sampling frequency from 8 kHz to 16 kHz results in significant improvement only on matched noisy test conditions • Utterance detection resulted in significant improvements only on the noisy conditions for the mismatched training conditions • VQ based compression is robust in DSR environment • Exposing models to different noisy conditions and microphone conditions improves the speech recognition performance in adverse conditions

15. Aurora Project Website:recognition toolkit, multi-CPU scripts, database definitions, publications, and performance summary of the baseline MFCC front end • Speech Recognition Toolkits:compare front ends to standard approaches using a state of the art ASR toolkit • ETSI DSR Website:reports and front end standards • Available Resources

16. Brief Bibliography • N. Parihar,Performance Analysis of Advanced Front Ends, M.S. Dissertation, Mississippi State University, December 2003. • N. Parihar, and J. Picone, “An Analysis of the Aurora Large Vocabulary Evaluation,” Eurospeech 2003, pp. 337-340,Geneva, Switzerland, September 2003. • N. Parihar and J. Picone, “DSR Front End LVCSR Evaluation - AU/384/02,” Aurora Working Group, European Telecommunications Standards Institute, December 06, 2002. • D. Pearce, “Overview of Evaluation Criteria for Advanced Distributed Speech Recognition,” ETSI STQ-Aurora DSR Working Group, October 2001. • G. Hirsch, “Experimental Framework for the Performance Evaluation of Speech Recognition Front-ends in a Large Vocabulary Task,” ETSI STQ-Aurora DSR Working Group, December 2002. • “ETSI ES 201 108 v1.1.2 Distributed Speech Recognition; Front-end Feature Extraction Algorithm; Compression Algorithm,” ETSI, April 2000.
