  1. ECE 450 Introduction to Robotics Section: 50883 Instructor: Linda A. Gee 10/05/99 Lecture 10

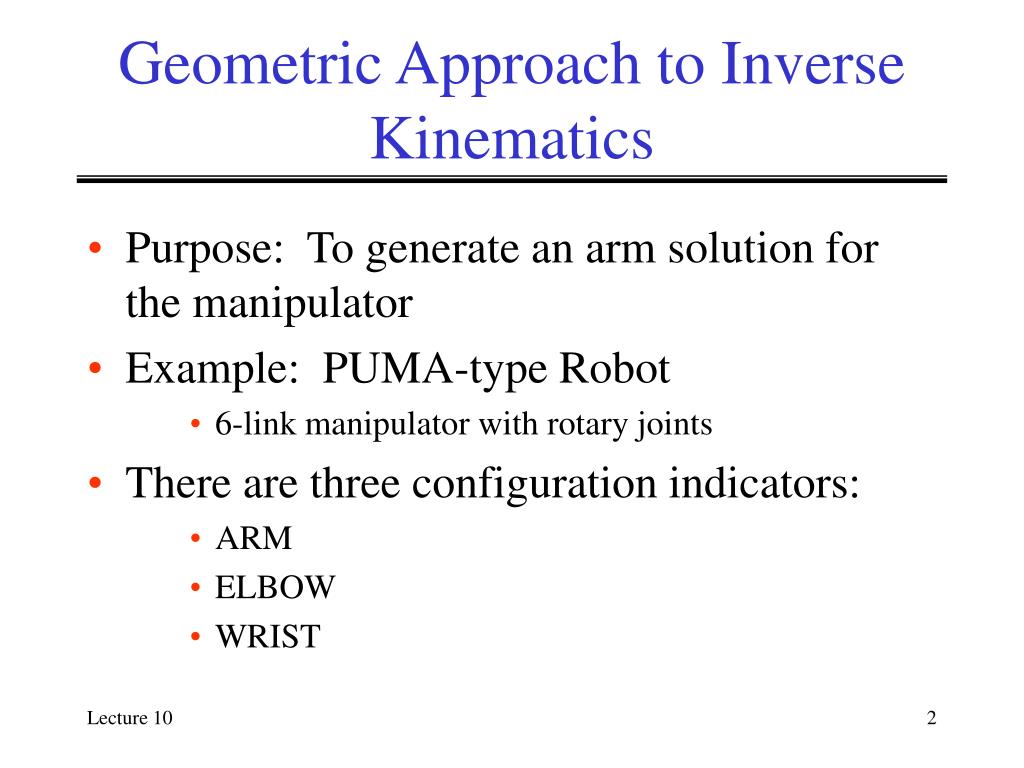

  2. Geometric Approach to Inverse Kinematics • Purpose: To generate an arm solution for the manipulator • Example: PUMA-type Robot • 6-link manipulator with rotary joints • There are three configuration indicators: • ARM • ELBOW • WRIST

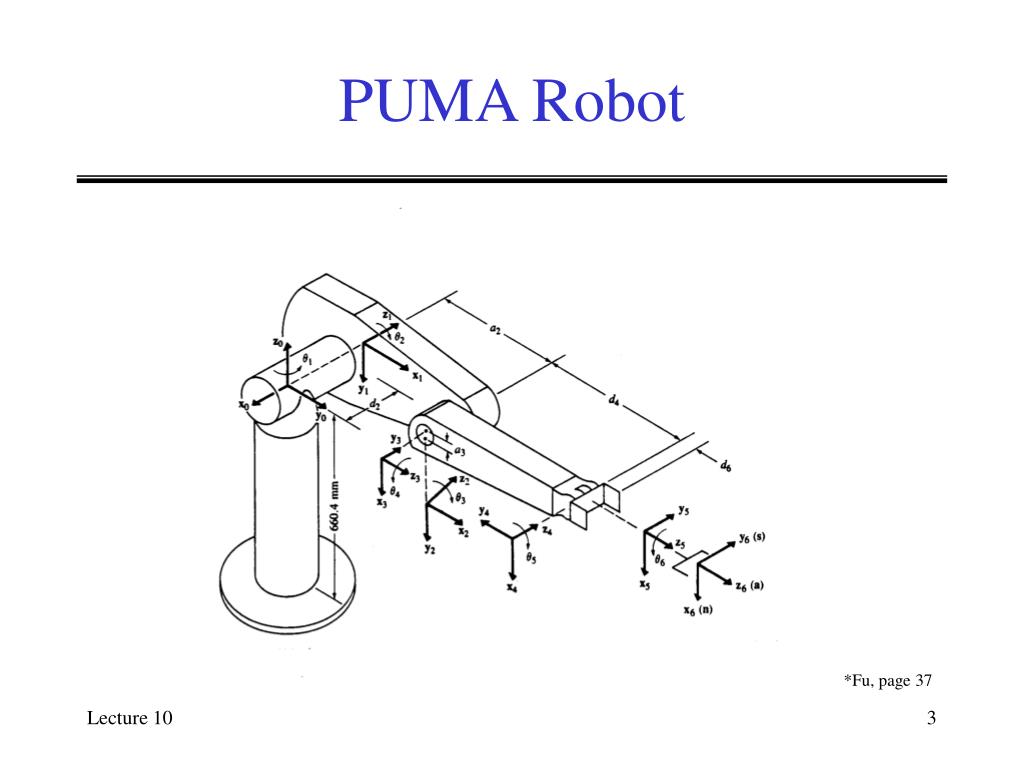

  3. PUMA Robot *Fu, page 37

  4. Inverse Kinematics Solution Properties • Two solutions are associated with the first three joints (i = 1, 2, 3) • One solution is associated with the last three joints (i = 4, 5, 6) • By solving the arm solution geometrically, a consistent solution is found

  5. Inverse Kinematics Solution of PUMA Robot • For a 6-axis PUMA robot arm • Four solutions exist for the first three joints (i = 1, 2, 3) • Two solutions exist for the last three joints (i = 4, 5, 6)

  6. Inverse Kinematics Solution cont’d • The first two indicators lead to a solution (1 of 4) for the first three joints • ARM • ELBOW • Third indicator leads to a solution (1 of 2) for the last three joints • WRIST • Arm configuration indicators are specified by the user for finding the inverse transform

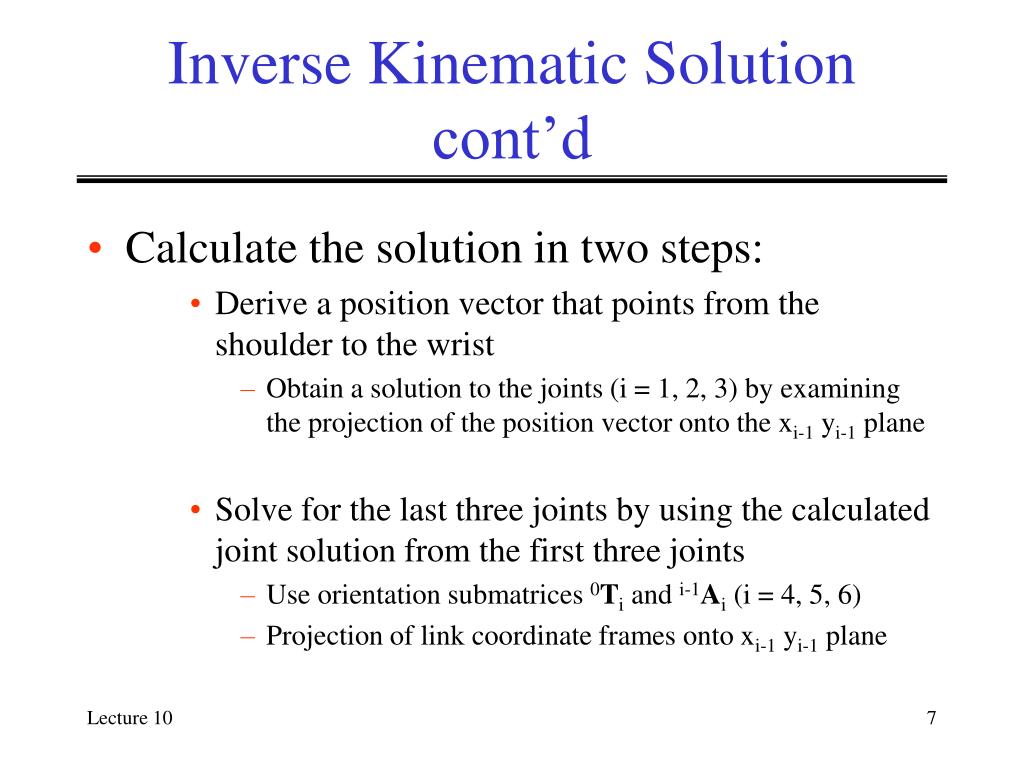

  7. Inverse Kinematic Solution cont’d • Calculate the solution in two steps: • Derive a position vector that points from the shoulder to the wrist • Obtain a solution to the joints (i = 1, 2, 3) by examining the projection of the position vector onto the xi-1 yi-1 plane • Solve for the last three joints by using the calculated joint solution from the first three joints • Use orientation submatrices 0Ti and i-1Ai (i = 4, 5, 6) • Projection of link coordinate frames onto xi-1 yi-1 plane

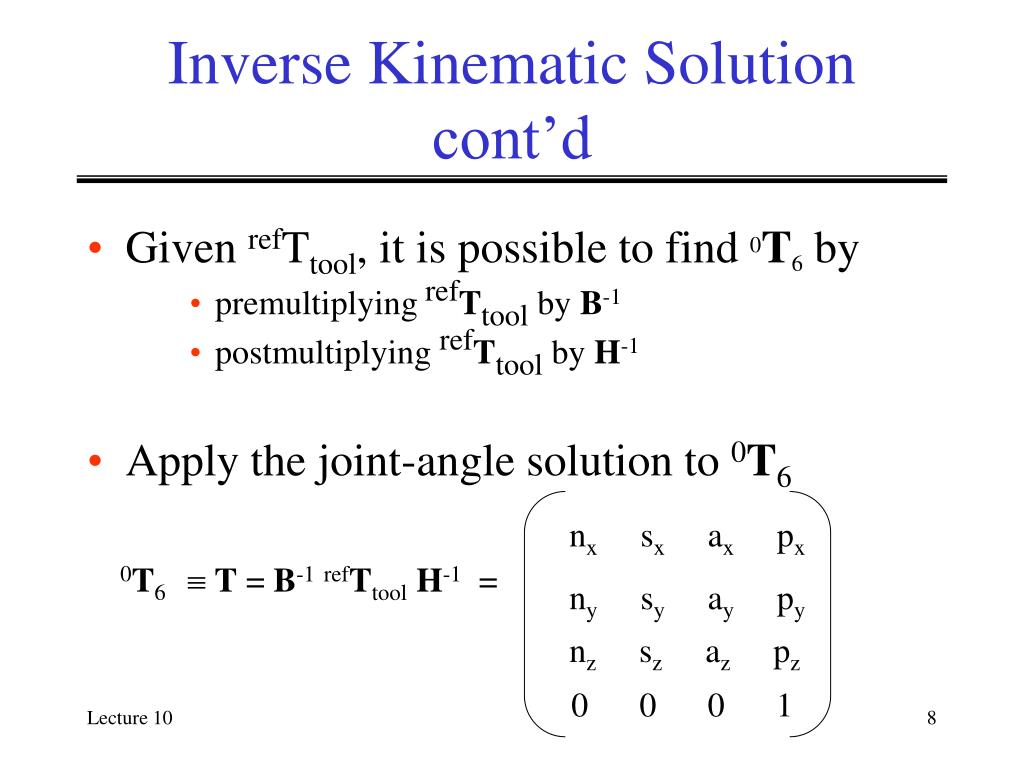

  8. nx sx ax px 0T6  T = B-1refTtoolH-1 = ny sy ay py nz sz az pz 0 0 0 1 Inverse Kinematic Solution cont’d • Given refTtool, it is possible to find 0T6 by • premultiplying refTtool by B-1 • postmultiplying refTtool by H-1 • Apply the joint-angle solution to 0T6

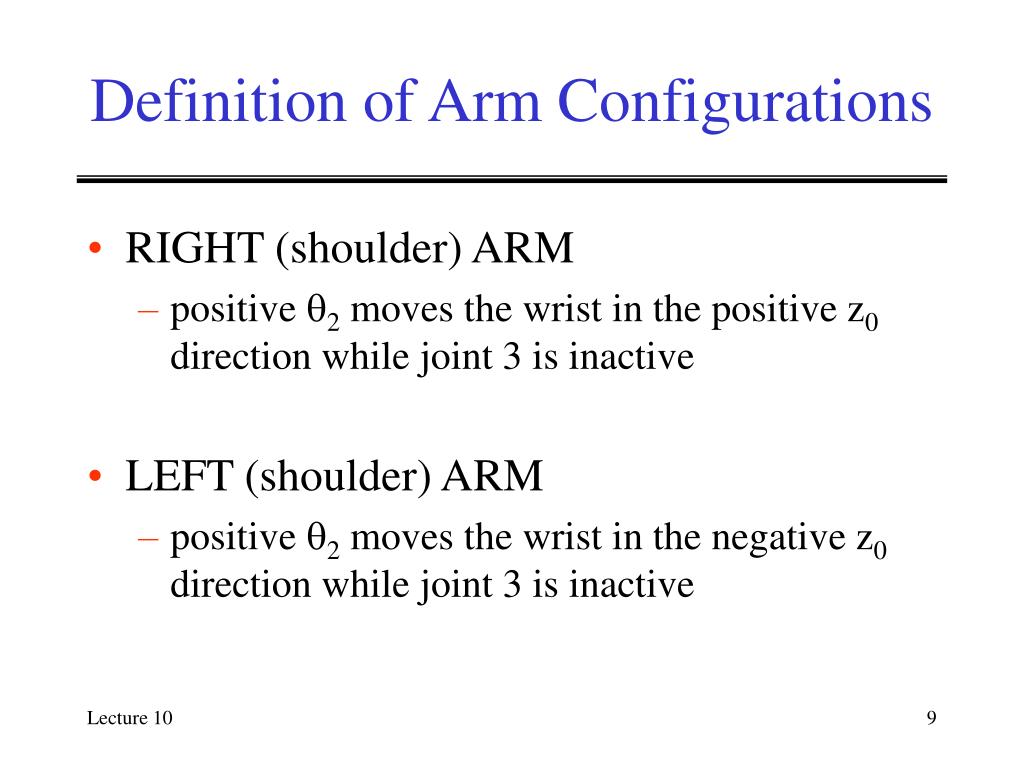

  9. Definition of Arm Configurations • RIGHT (shoulder) ARM • positive 2 moves the wrist in the positive z0 direction while joint 3 is inactive • LEFT (shoulder) ARM • positive 2 moves the wrist in the negative z0 direction while joint 3 is inactive

  10. Arm Configurations cont’d • ABOVE ARM (elbow above wrist) • position of wrist of RIGHT/LEFT arm w.r.t. shoulder coordinate system has negative/positive coordinate value along the y2 axis • BELOW ARM (elbow below wrist) • position of wrist of RIGHT/LEFT arm w.r.t. shoulder coordinate system has negative/positive coordinate value along the y2 axis

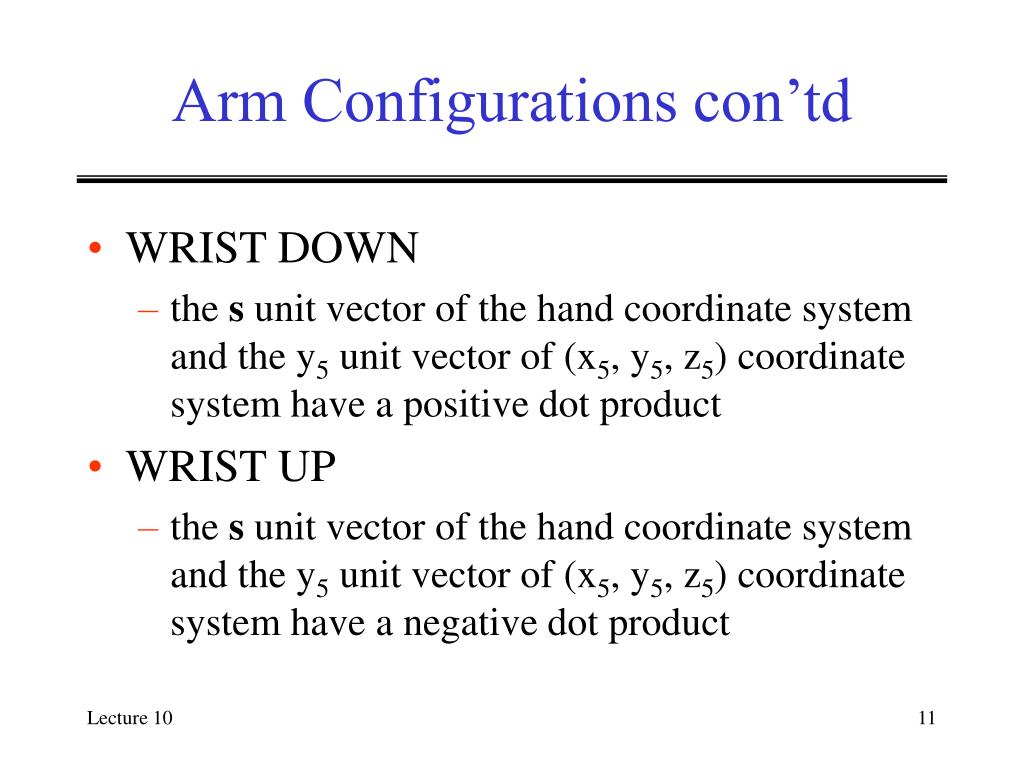

  11. Arm Configurations con’td • WRIST DOWN • the s unit vector of the hand coordinate system and the y5 unit vector of (x5, y5, z5) coordinate system have a positive dot product • WRIST UP • the s unit vector of the hand coordinate system and the y5 unit vector of (x5, y5, z5) coordinate system have a negative dot product

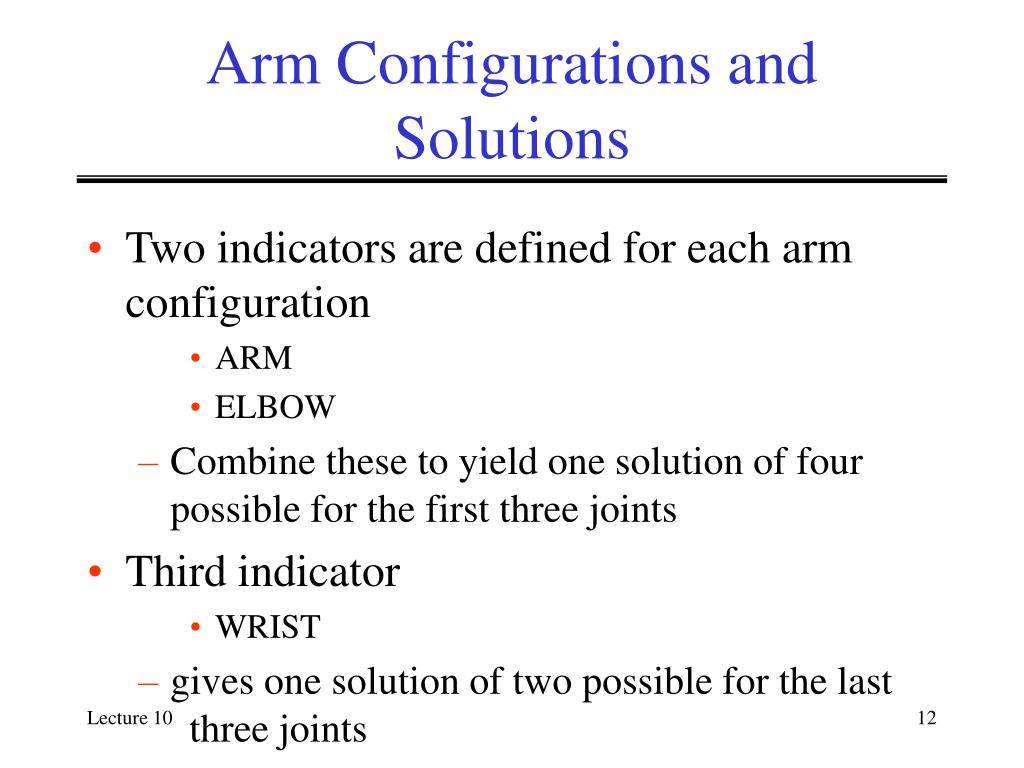

  12. Arm Configurations and Solutions • Two indicators are defined for each arm configuration • ARM • ELBOW • Combine these to yield one solution of four possible for the first three joints • Third indicator • WRIST • gives one solution of two possible for the last three joints

  13. Indicator Definitions • ARM • +1: RIGHT arm • -1: LEFT arm • ELBOW • +1: ABOVE arm • -1: BELOW arm • WRIST • +1: WRIST DOWN • -1: WRIST UP FLIP +1: Flip wrist orientation -1: Remains stationary

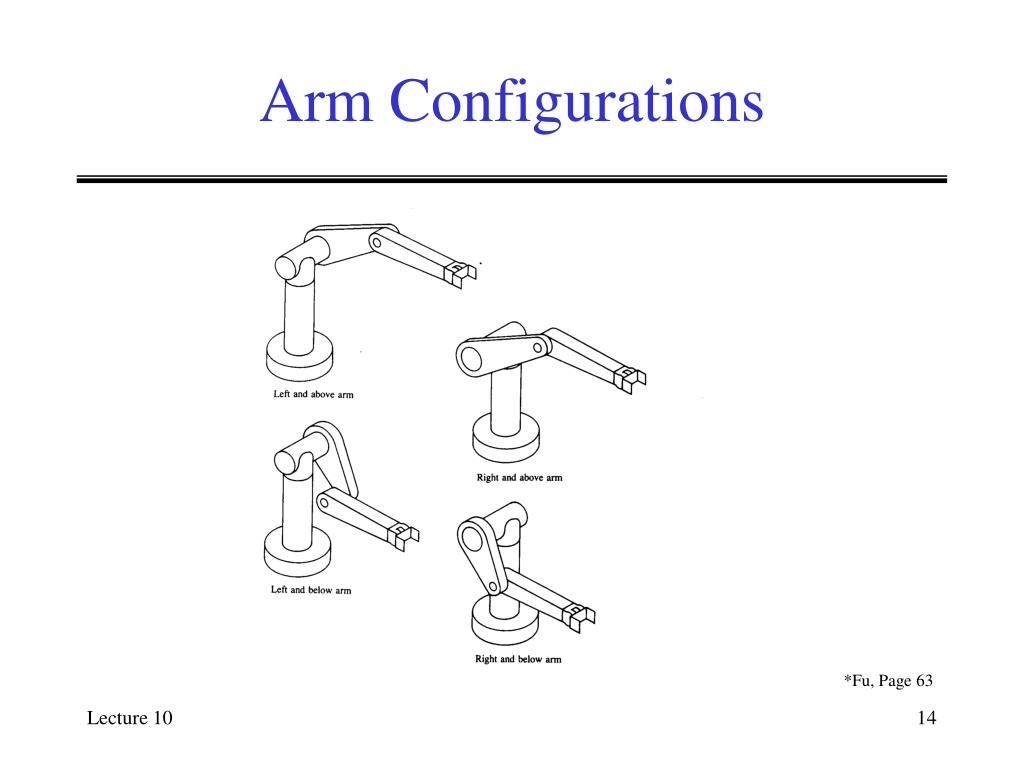

  14. Arm Configurations *Fu, Page 63

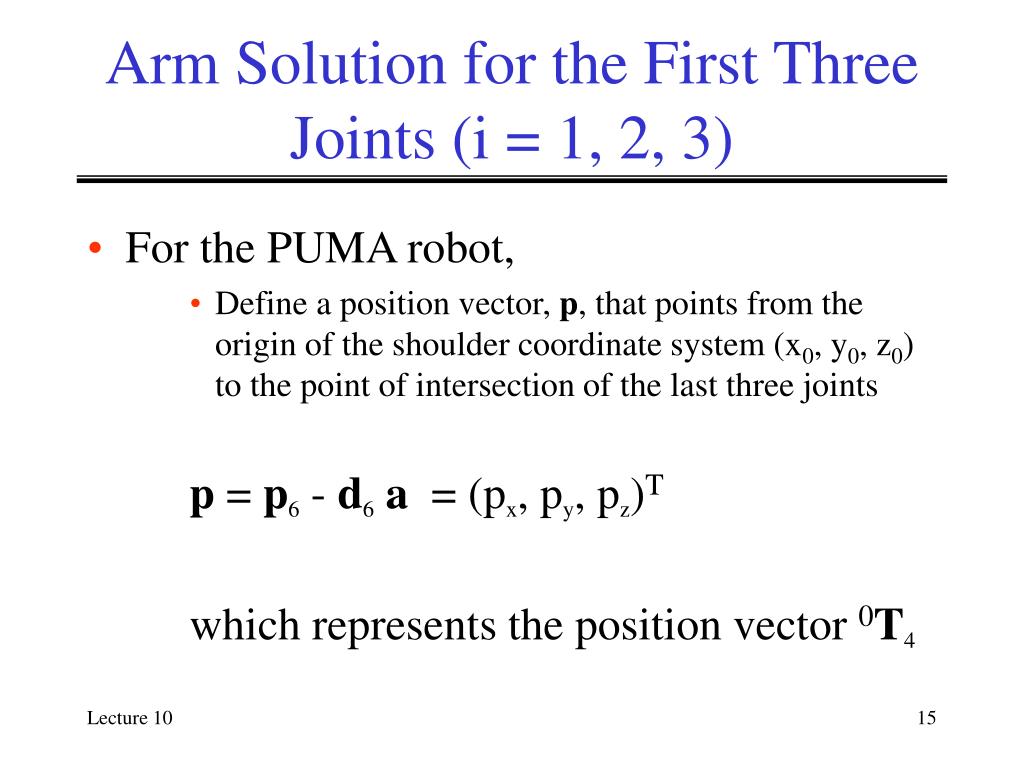

  15. Arm Solution for the First Three Joints (i = 1, 2, 3) • For the PUMA robot, • Define a position vector, p, that points from the origin of the shoulder coordinate system (x0, y0, z0) to the point of intersection of the last three joints p = p6 - d6a = (px, py, pz)T which represents the position vector 0T4

  16. Hand Coordinate System *Fu, page 43

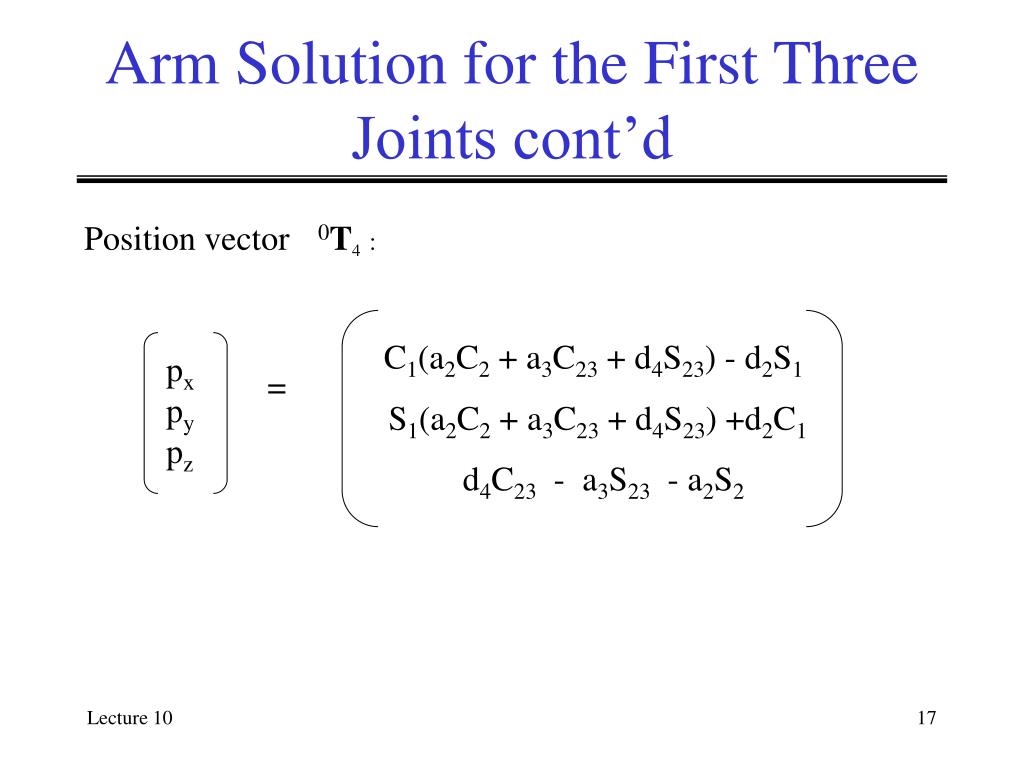

  17. C1(a2C2 + a3C23 + d4S23) - d2S1 px py pz = S1(a2C2 + a3C23 + d4S23) +d2C1 d4C23 - a3S23 - a2S2 Arm Solution for the First Three Joints cont’d Position vector 0T4 :

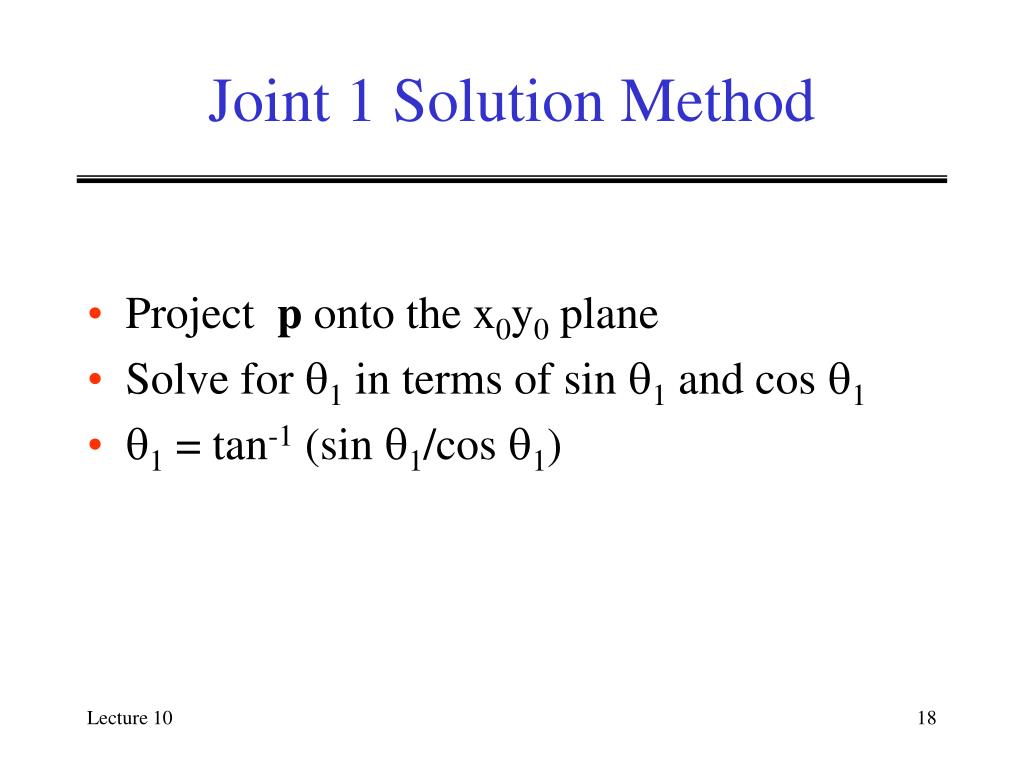

  18. Joint 1 Solution Method • Project p onto the x0y0 plane • Solve for 1 in terms of sin 1 and cos 1 • 1 = tan-1 (sin 1/cos 1)

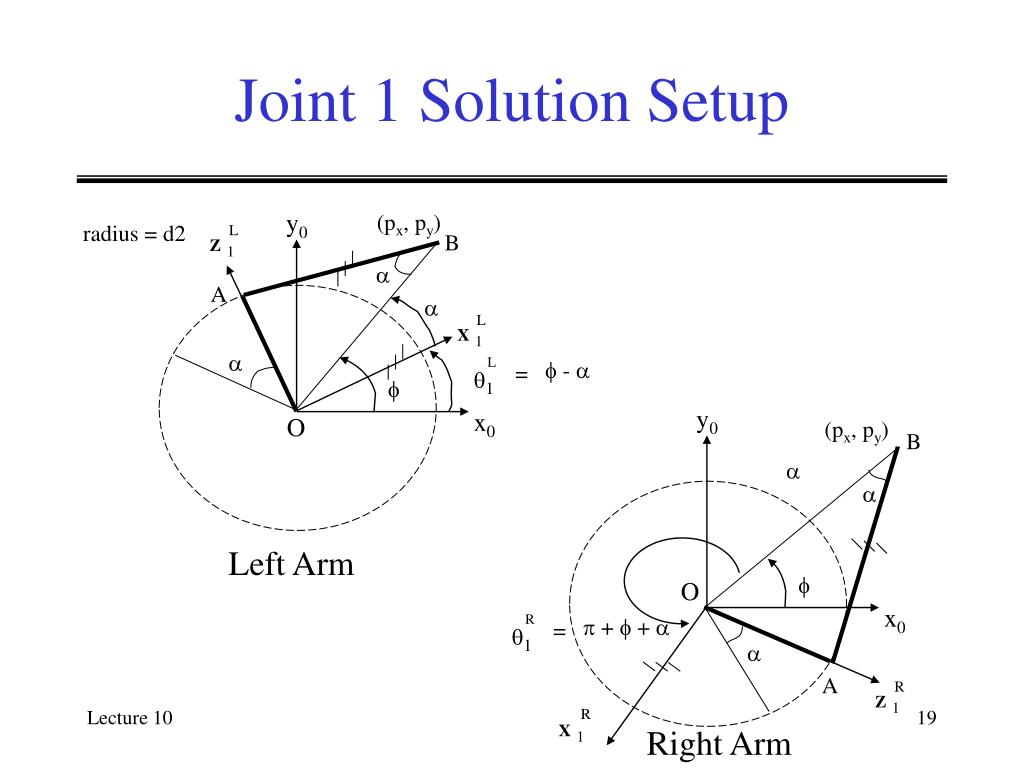

  19. R L  +  +   -  = = 1 1 Joint 1 Solution Setup y0 (px, py) radius = d2 L B Z1  A  L X1   y0 x0 O (px, py) B   Left Arm  O x0  A R Z1 R X1 Right Arm
