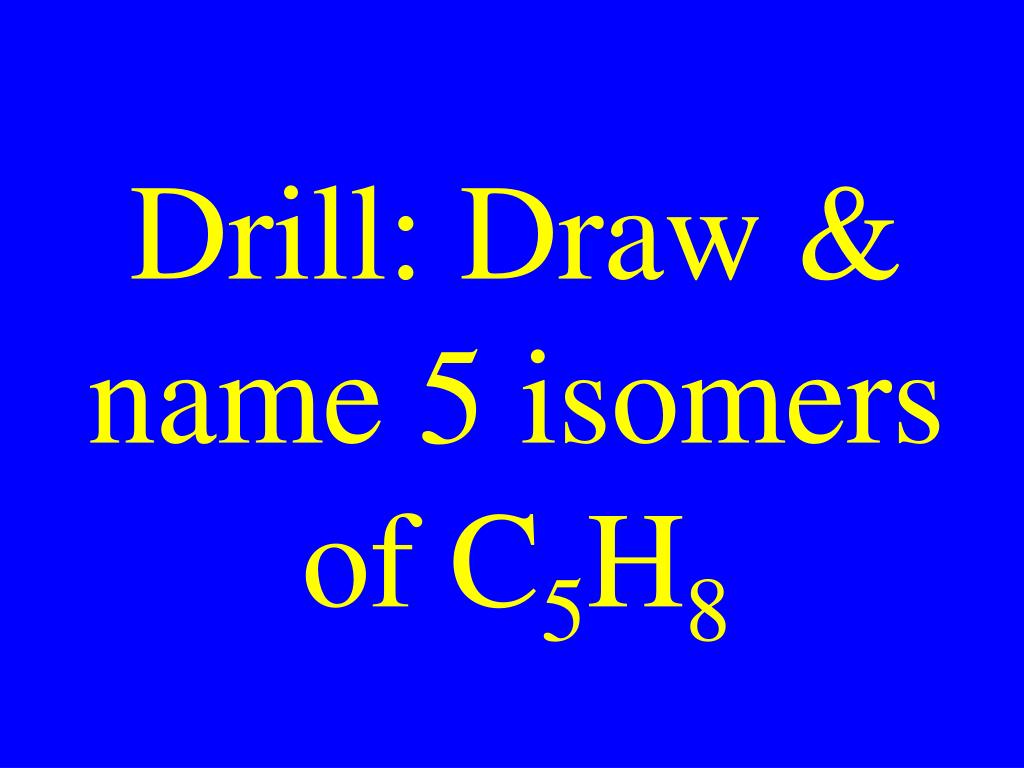

  1. Drill: Draw & name 5 isomers of C5H8

  2. Functional Groups

  3. Draw & Name Isomers of:C4H6

  4. Functional Groups • Chemically active part of an organic compound

  5. Functional Groups • Anything other than singularly bonded carbon & hydrogen in an organic compound

  6. Functional Groups • The name of any organic compound ends with the suffix for the most important functional group

  7. Terminology • R- represents the part of the organic compound you are not referring to

  8. Terminology • R-OH • -OH is the functional group • R- anything else

  9. Alkene • C=C

  10. Alkyne • C=C

  11. Halides • R-X • X = F, Cl, Br, or I • haloalkane • alkylhalide

  12. Ethers • R1-O-R2 • alkylalkylether • alkoxyalkane

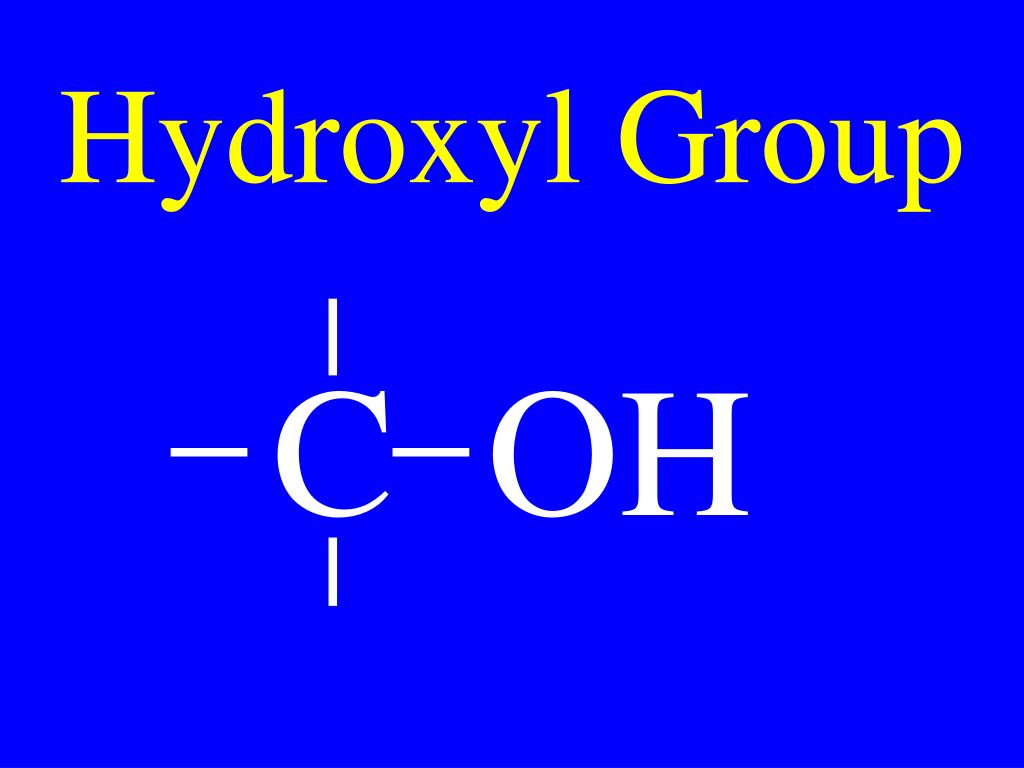

  13. Hydroxyl Group C OH

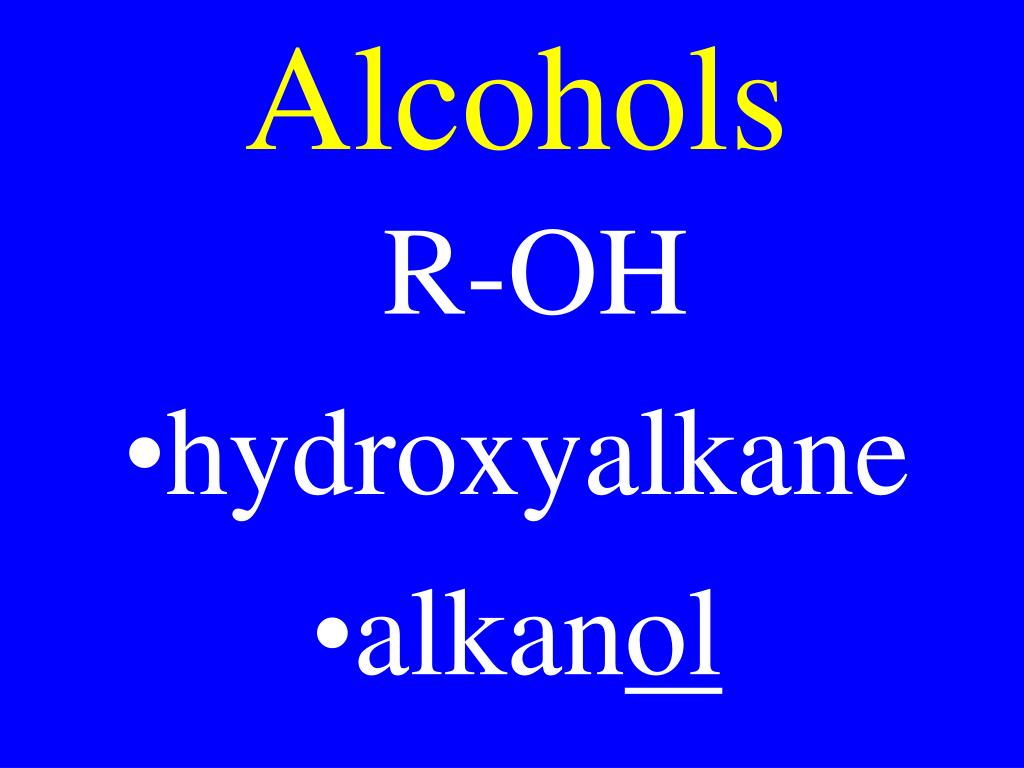

  14. Alcohols • R-OH • hydroxyalkane • alkanol

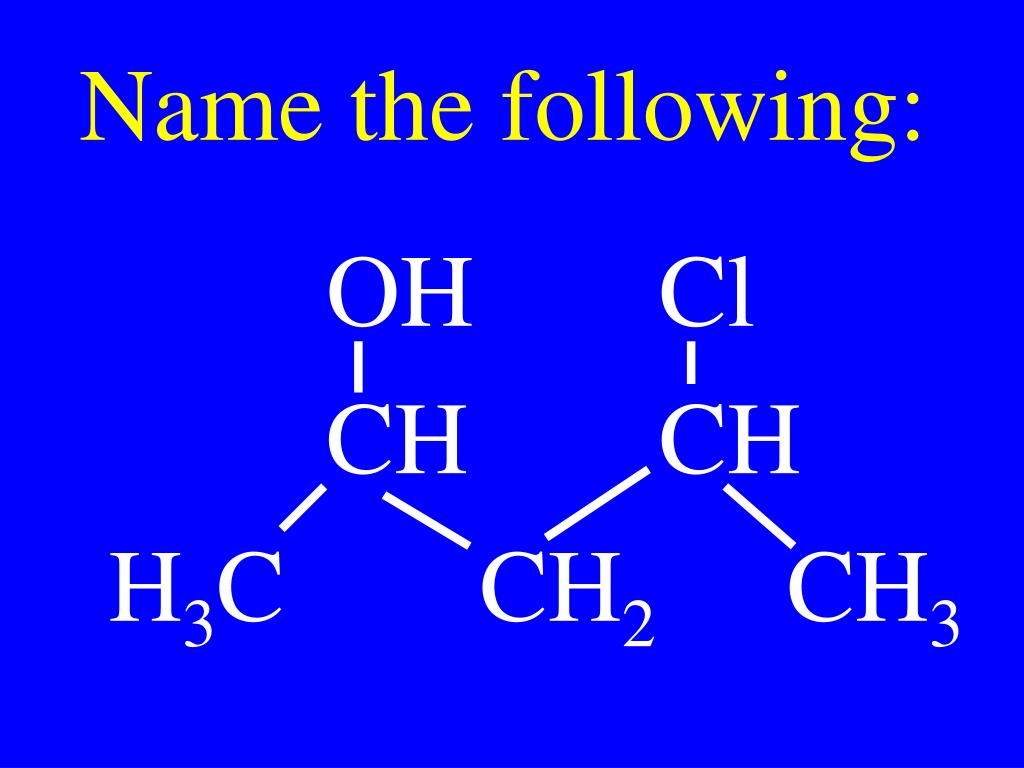

  15. Name the following: OH Cl CH CH H3C CH2 CH3

  16. Carbonyl Group C=O

  17. Ketones • O • R-C-R • Oxy or ketoalkane • alkanone

  18. Aldehydes O • R-C-H • alkanal • alkanaldehyde

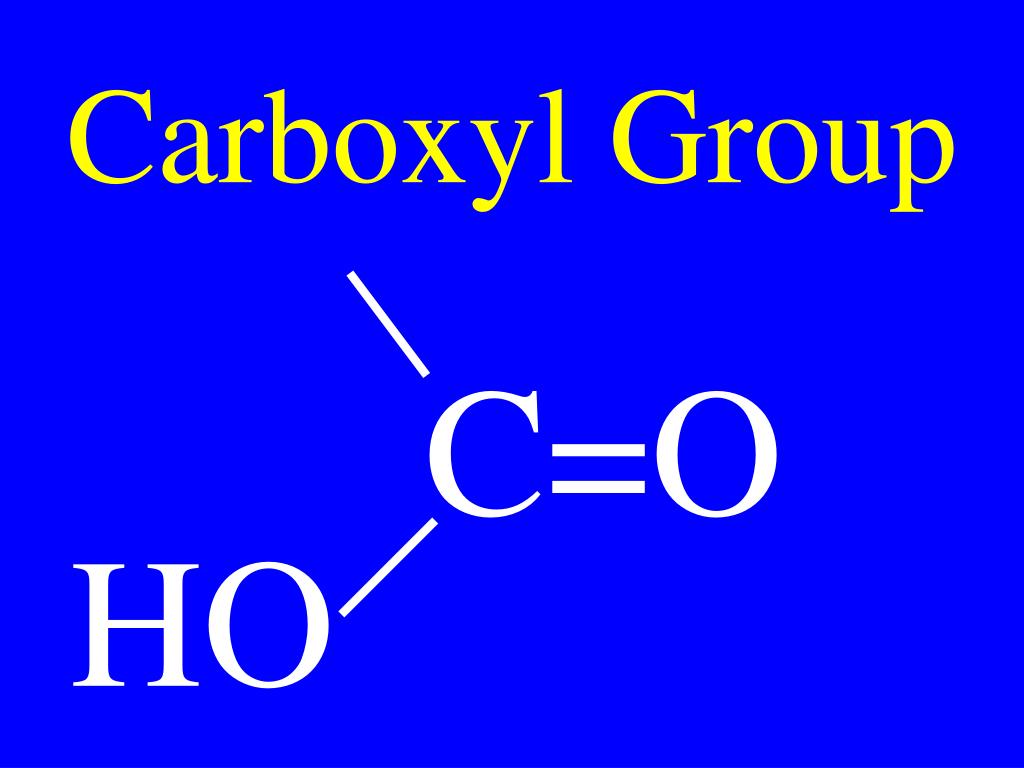

  19. Carboxyl Group C=O HO

  20. Carboxylic Acid • O • R-C-OH • Alkanoic Acid

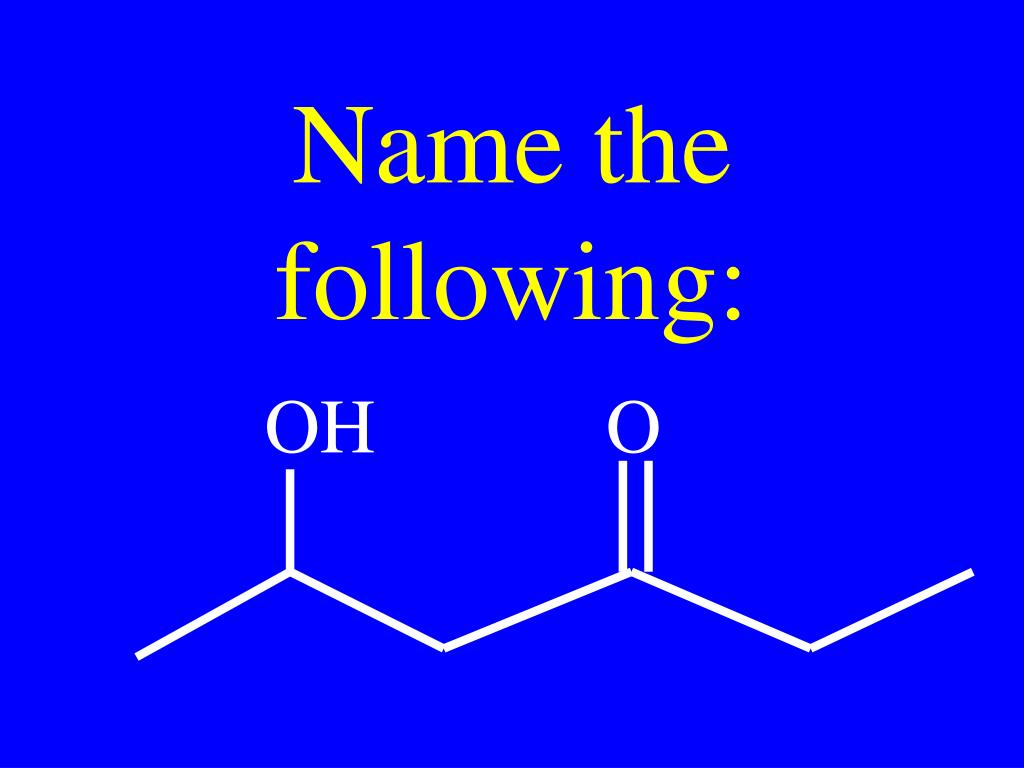

  21. Name the following: OH O

  22. Draw & name 5 types of isomers of: OH OH

  23. Homework • Draw & Name 5 isomers of C4H8O

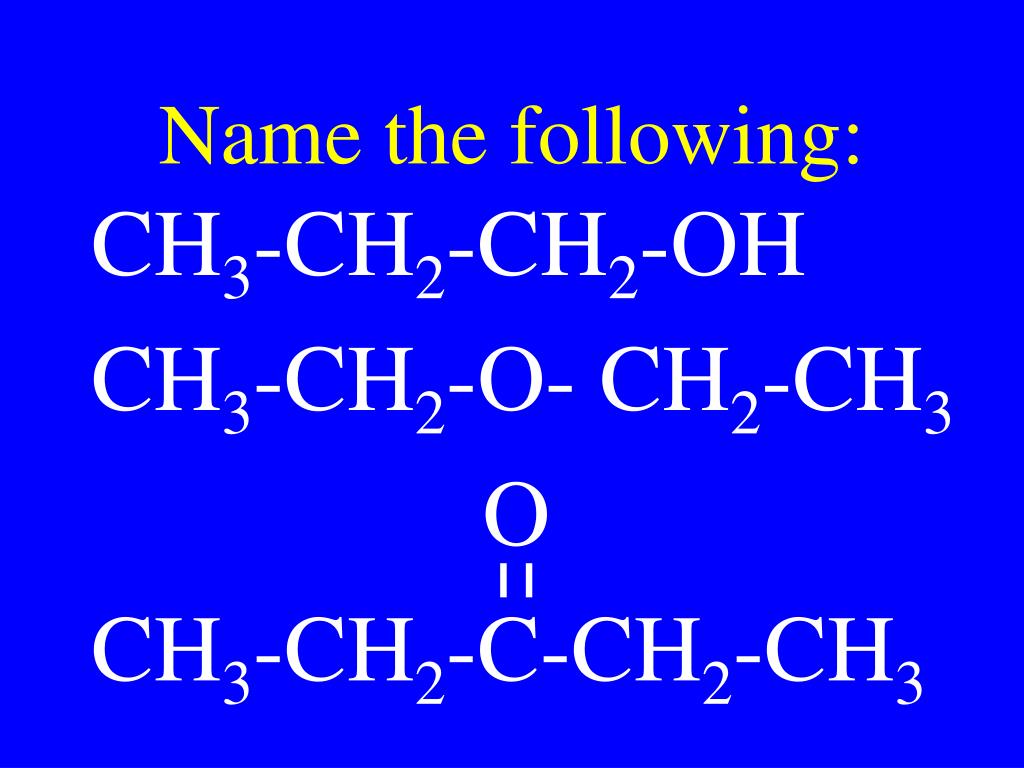

  24. Name the following: • CH3-CH2-CH2-OH • CH3-CH2-O- CH2-CH3 • O • CH3-CH2-C-CH2-CH3

  25. Name the following: O O C C H3C CH OH OH

  26. Name the following: • O • CH3-CH2-CH2-C-OH • O • CH3-CH2-C-H

  27. Carboxyl Derivatives C=O O

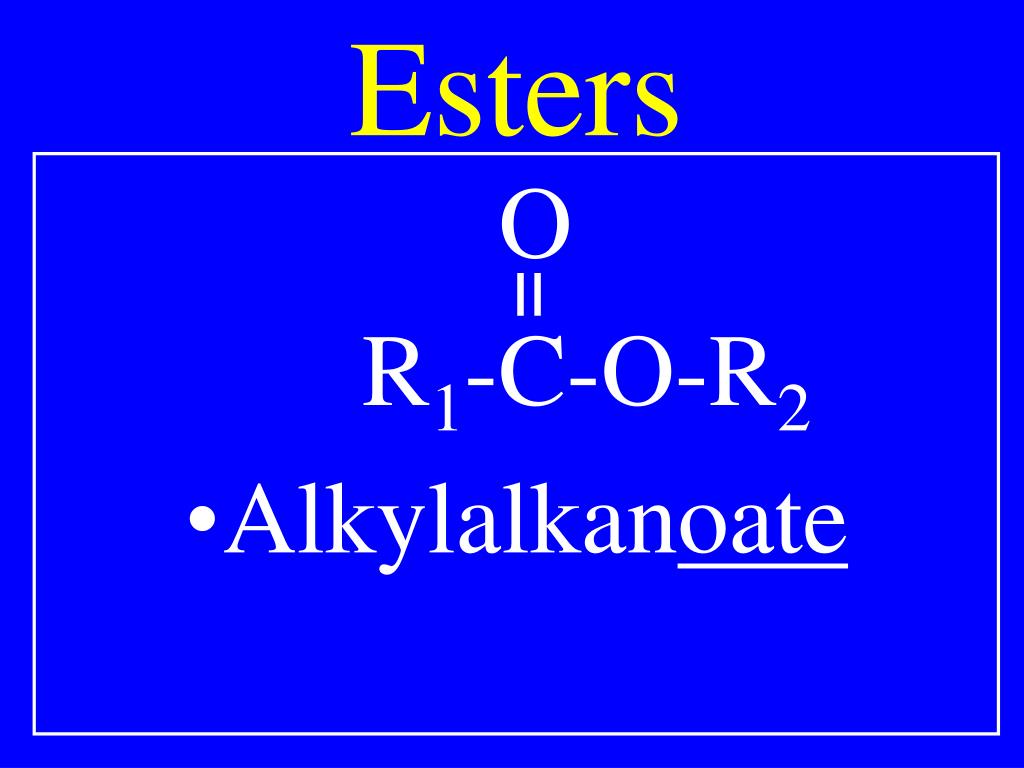

  28. Esters • O • R1-C-O-R2 • Alkylalkanoate

  29. Drill: Draw & Name 5 isomers of: C3H6O2

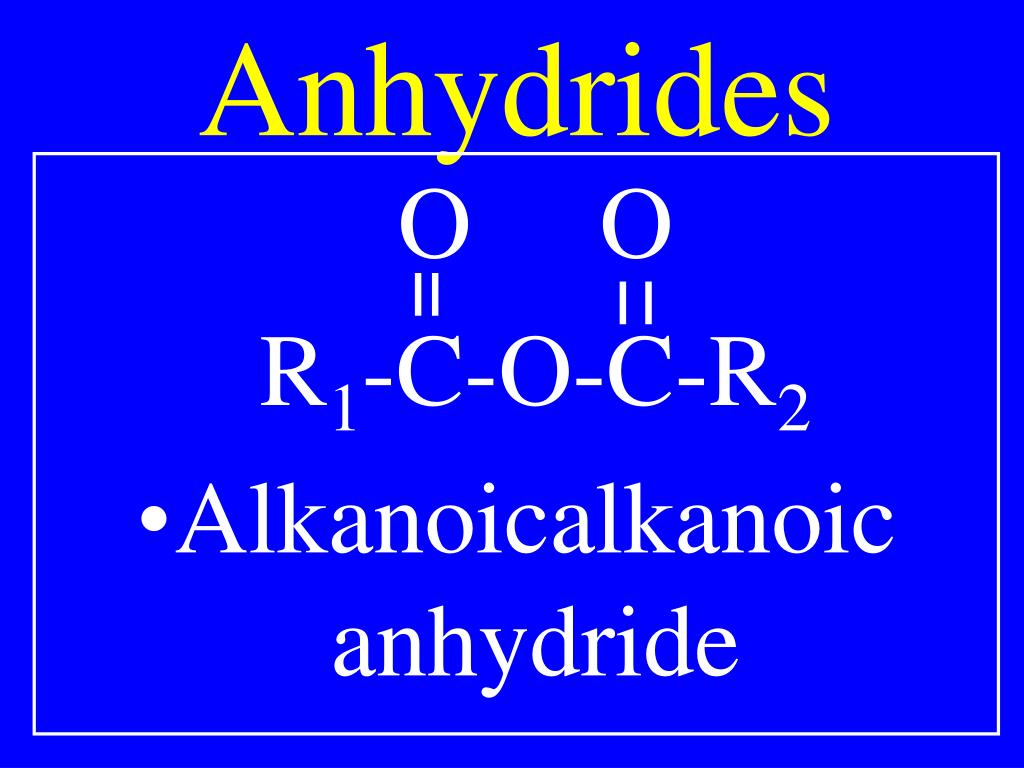

  30. Anhydrides • O O • R1-C-O-C-R2 • Alkanoicalkanoic anhydride

  31. Draw the following: • 2-hydroxypentanal • Methylpropylether • Trichloroacetic acid • Ethylbutanoate • Aceticformic anhydride

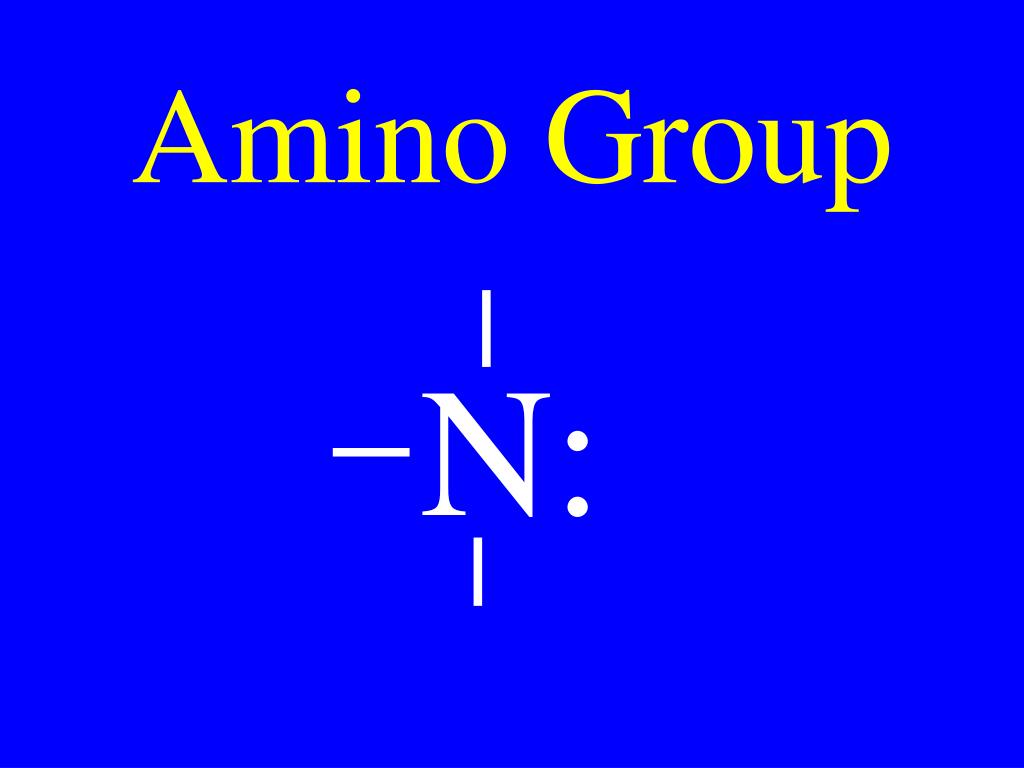

  32. Amino Group N:

  33. Ammonia :NH3

  34. Ammonium NH4+

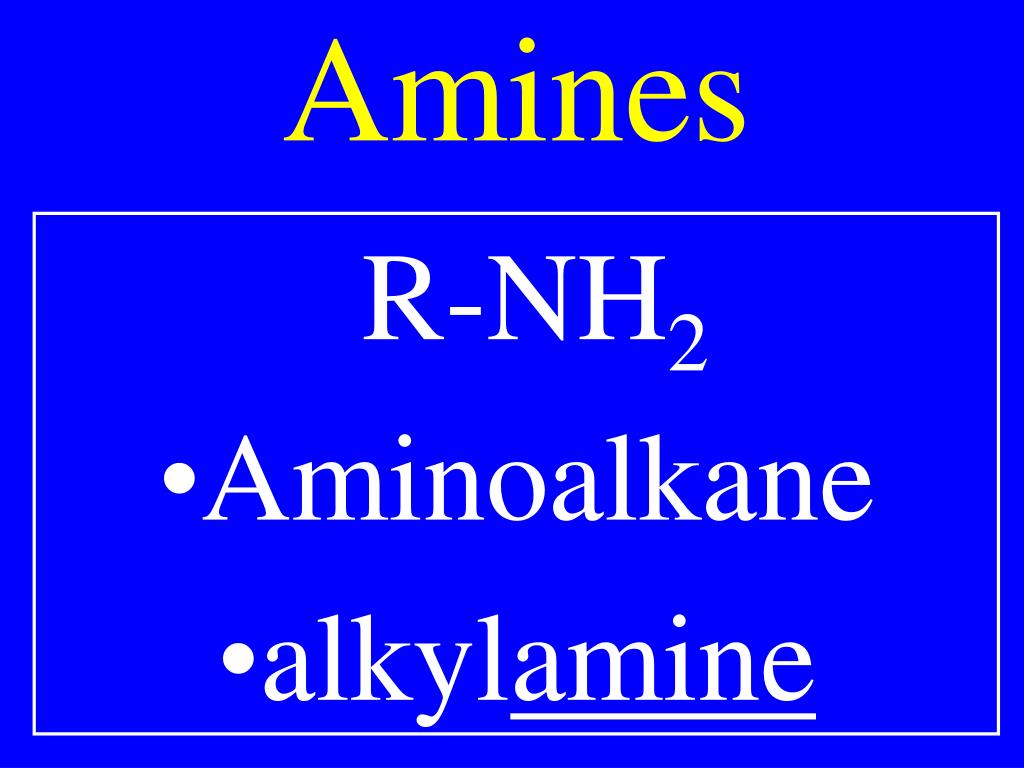

  35. Amines • R-NH2 • Aminoalkane • alkylamine

  36. Primary Amines R-NH2 • Aminoalkane • alkylamine

  37. Secondary Amines • R2 • R1-NH Alkylalkylamine

  38. Tertiary Amines • R2 • R1-N-R3 Alkylalkyl-alkylamine

  39. Quaternary Amines • R2 • R1-N-R3 • R4 • Tetraalkylammonium

  40. Amides • O • R1-C-NH2 • Alkanoamide

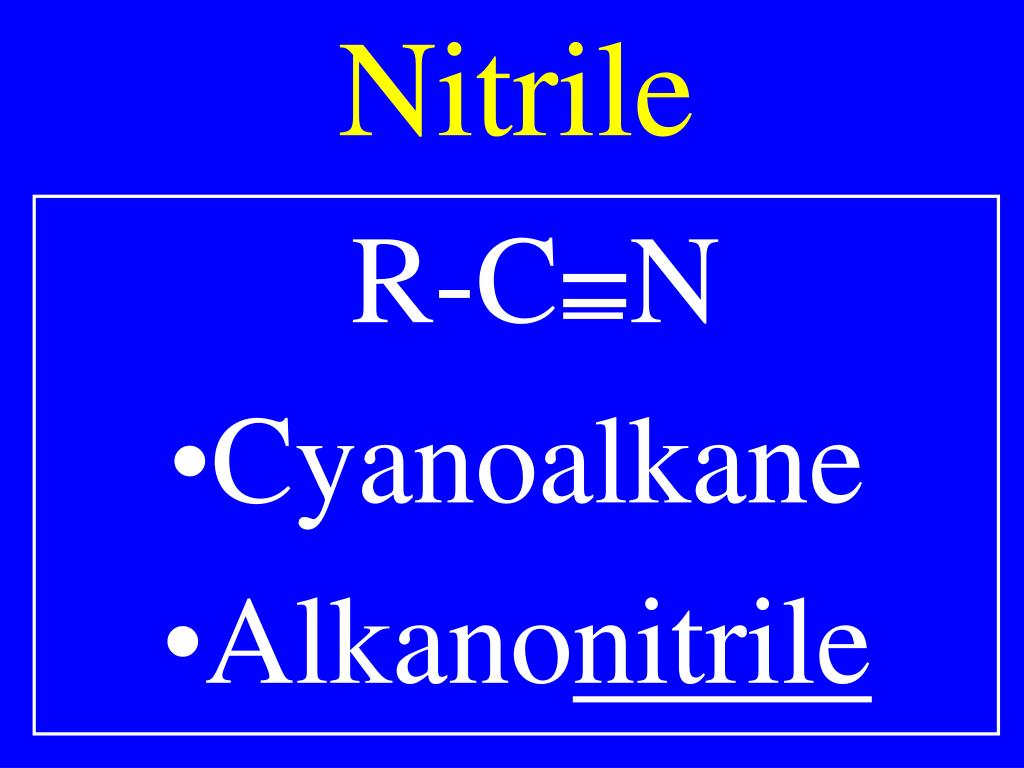

  41. Nitrile • R-C=N • Cyanoalkane • Alkanonitrile

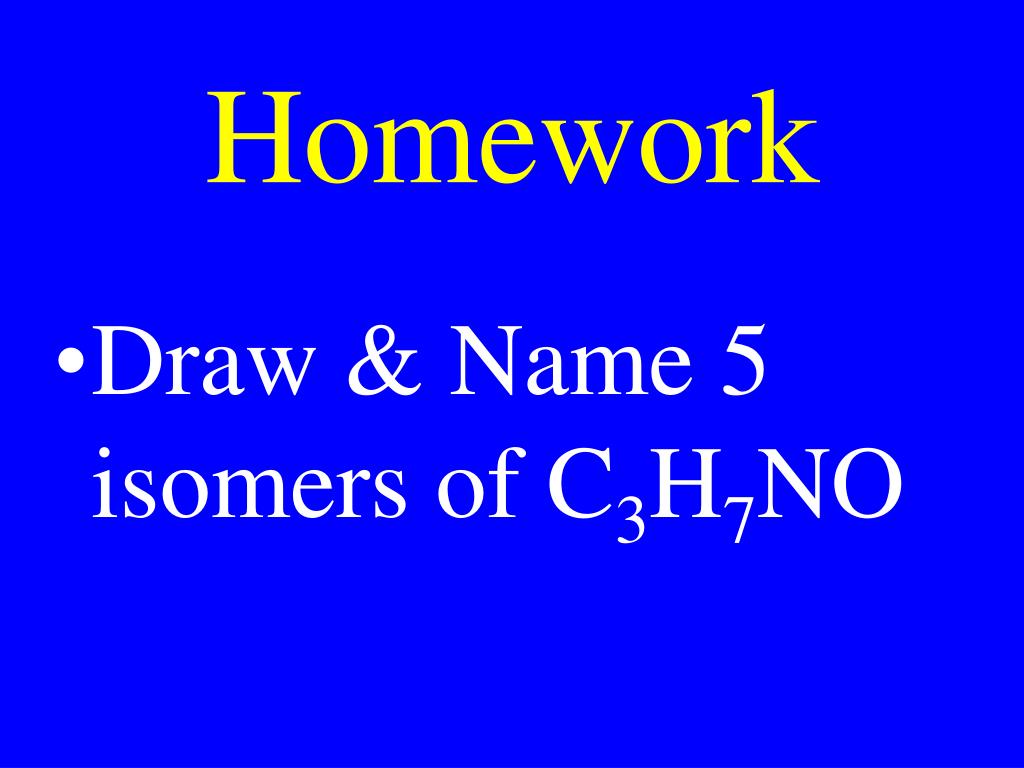

  42. Homework • Draw & Name 5 isomers of C3H7NO

  43. Drill: Name N H OH C N O

  44. Cyanate • R-O-C=N • Alkylcyanate

  45. Isocyanate • R-N=C=O • Alkylisocyanate

  46. Drill: Draw & Name 5 isomers of: C3H7NO2

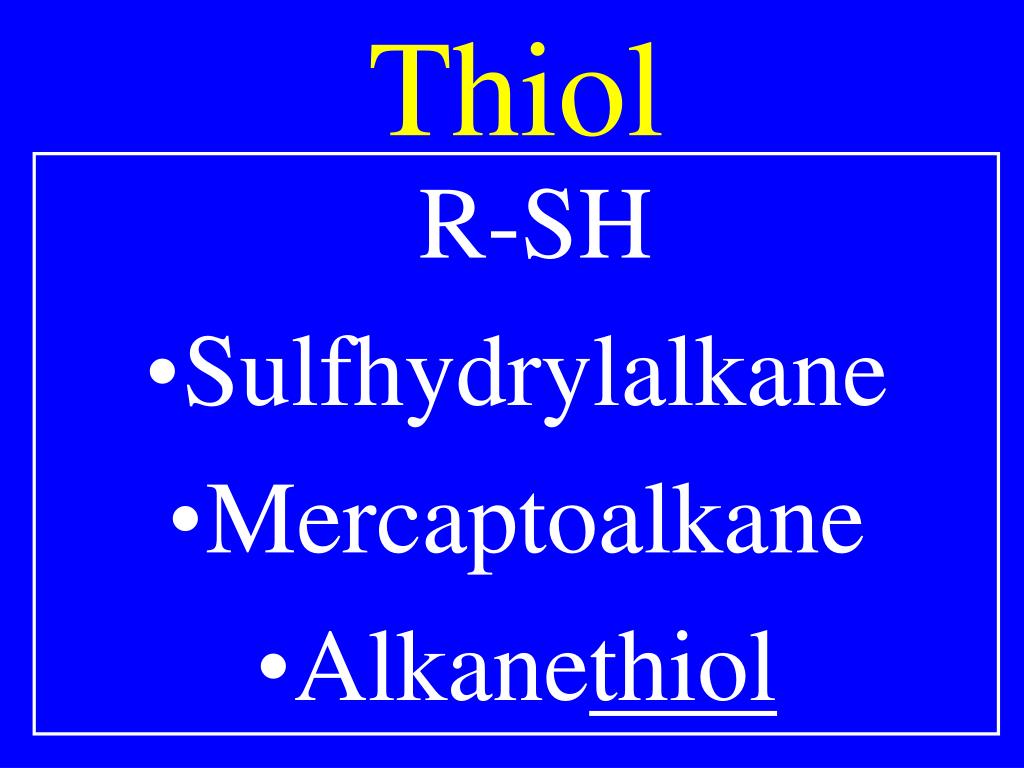

  47. Thiol • R-SH • Sulfhydrylalkane • Mercaptoalkane • Alkanethiol

  48. Sulfide • R1-S-R2 • Alkylalkylsulfide • Alkylalkylthioether

  49. Disulfide • R1-S-S-R2 • Alkylalkyldisulfide

  50. Thioesters • O • R1-C-S-R2 • Alkylthioalkanoate
