  1. The Energy Savings Scheme AnEffective Model for a National Energy Savings Initiative? Margaret Sniffin General Manager 29 February 2012

  2. Today’s presentation • What is the ESS? • How does it work? • Why participate? • What does it cost? • What is covered? • How has it performed? • What lessons have been learned? • Is it an effective model for a national scheme?

  3. Energy Savings Scheme – key facts • ESS commenced on 1 July 2009 – in NSW only • Mandatory scheme – established by legislation Electricity retailers are the liable parties • Market based mechanism that involves the creation and trading of Energy Savings Certificates (ESCs) • Not a funding or grants program • IPART is both Scheme Administrator and Regulator - we accredit companies to create certificates • we monitor compliance by obligated parties

  4. Administrative Structure of ESS Legislation: • Electricity Supply Act 1995 (the Act) • Electricity Supply Regulation 2001(the Regulation) • Energy Savings Scheme Rule (ESS Rule) – define eligible activities • Will run to end 2020 unless replaced by a national scheme 4 4

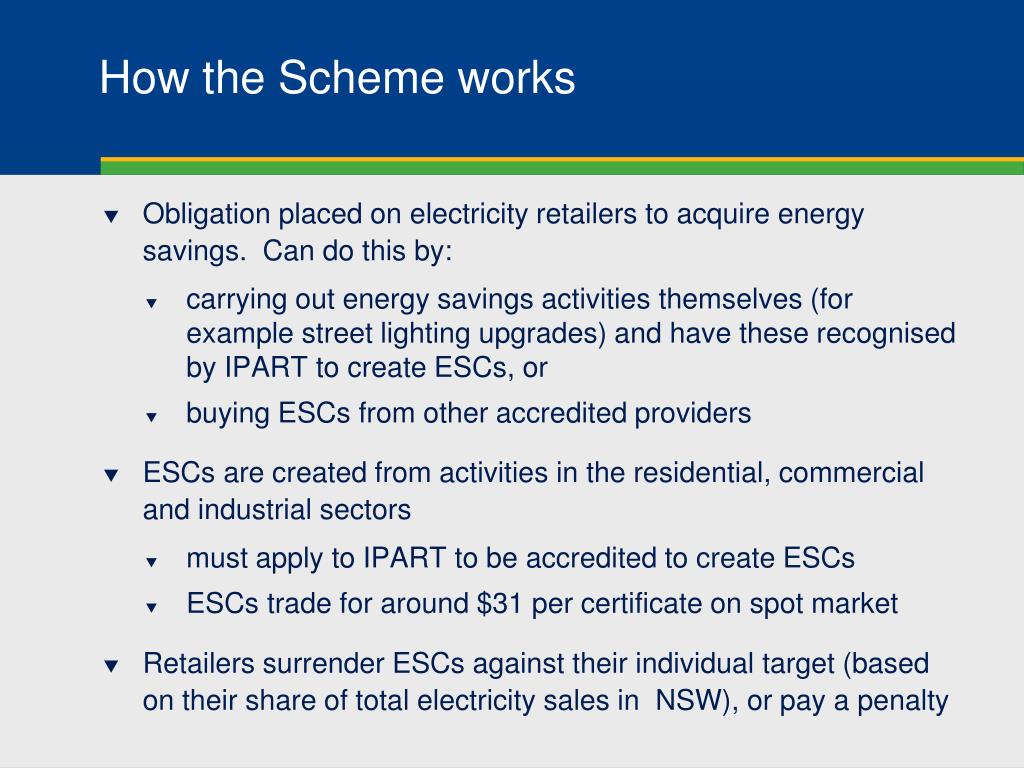

  5. How the Scheme works • Obligation placed on electricity retailers to acquire energy savings. Can do this by: • carrying out energy savings activities themselves (for example street lighting upgrades) and have these recognised by IPART to create ESCs, or • buying ESCs from other accredited providers • ESCs are created from activities in the residential, commercial and industrial sectors • must apply to IPART to be accredited to create ESCs • ESCs trade for around $31 per certificate on spot market • Retailers surrender ESCs against their individual target (based on their share of total electricity sales in NSW), or pay a penalty

  6. Scheme targets drive demand for ESCs • 2011 target was 2.5% of annual liable electricity salesor approximately 1,400 GWh • surrender of ~1.4 million ESCs to avoid paying penalties • By 2014, target will be 5% of annual liable electricity sales or about 3,000 GWh per annum in energy savings • surrender of ~3.0 million ESCs to avoid paying penalties 6

  7. ESC Supply & Demand for CY2010 & 11 ESC registered as % of Annual Target. CY2011 includes un-surrendered prior vintage ESCs – tight supply situation 1 July 31 December 30 June

  8. What obligations and costs do Accredited parties face? • $500 Application Fee – once off • Annual Reporting – pro forma statement • Report future creation and any changes to project • Not required for small projects with one-off creation of ESCs • Audits - based on risk assessment • Nature of project, ESC volume, compliance history • Costs range from $8,000 - $25,000 per audit • ESC registration fee - $0.70 per certificate • Penalties enforced for contraventions 8

  9. The lifecycle of a ESC Registration, transfer and surrender of ESCs is done via the Registry at www.ess.nsw.gov.au 9

  10. ESC Spot Price History • Certificate price theoretical ceiling: ~$35 set by the penalty rate Trends in the ESC spot price over the period July 2009 to Dec 2011 (source: NextGen) 18 March – compliance deadline 10

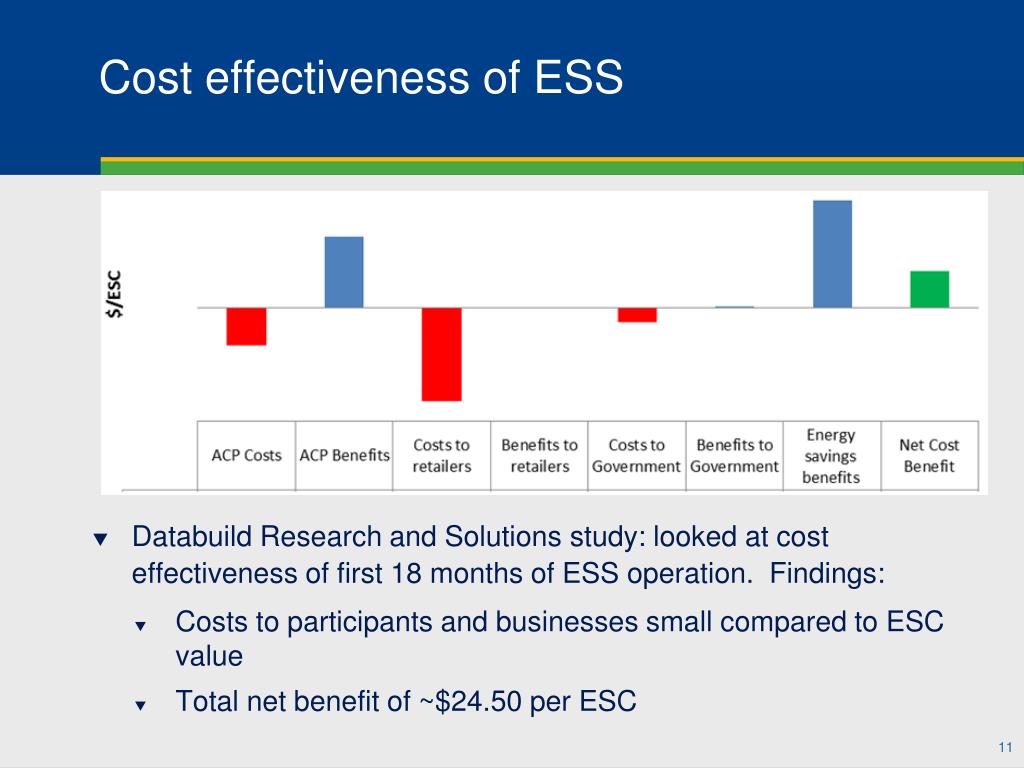

  11. Databuild Research and Solutions study: looked at cost effectiveness of first 18 months of ESS operation. Findings: Costs to participants and businesses small compared to ESC value Total net benefit of ~$24.50 per ESC Cost effectiveness of ESS 11

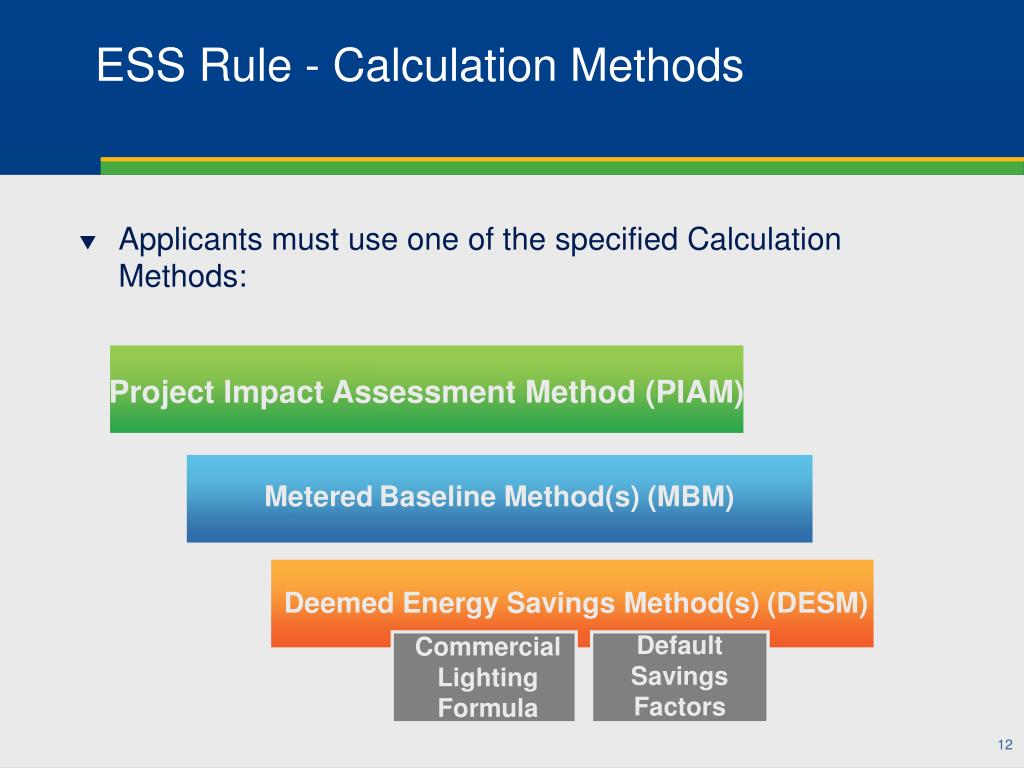

  12. ESS Rule - Calculation Methods Project Impact Assessment Method (PIAM) Project Impact Assessment Method (PIAM) MeteredBaseline Method(s) (MBM) Deemed Energy Savings Method(s) (DESM) Deemed Energy Savings Method(s) (DESM) Default Savings Factors Commercial Lighting Formula • Applicants must use one of the specified Calculation Methods: 12 12 12

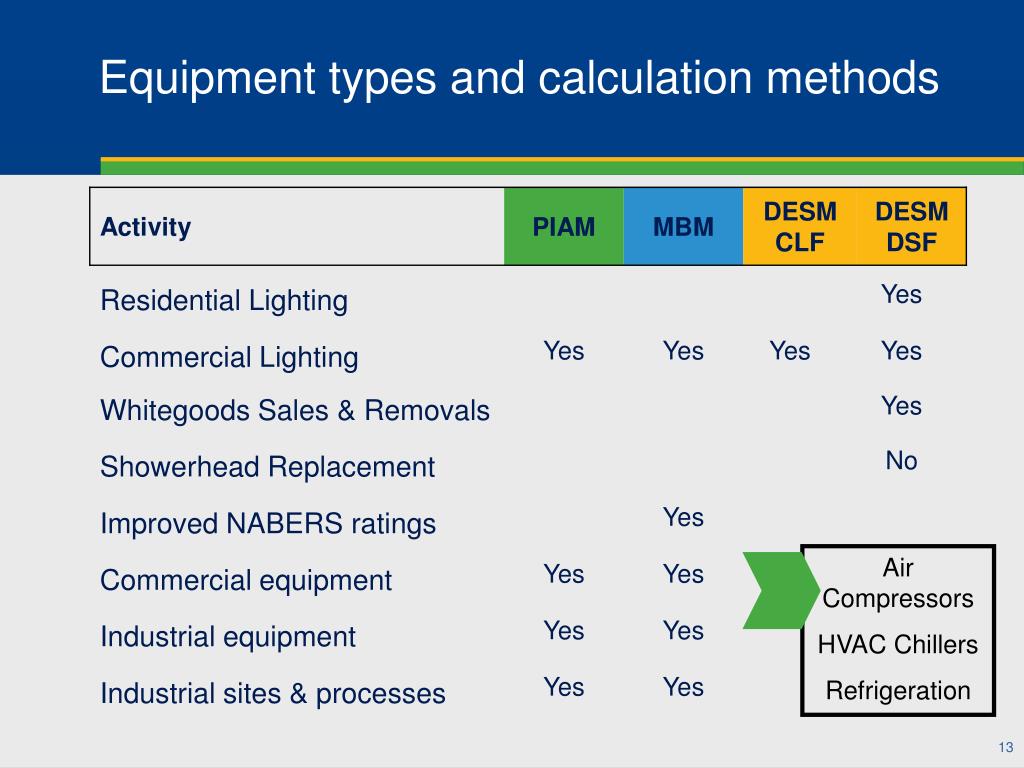

  13. Air Compressors HVAC Chillers Refrigeration Equipment types and calculation methods 13

  14. Accreditations in ESS – by year 104 accreditations; 160 projects in total. Showerhead programs no longer eligible *As of 24 February 2012

  15. Engineering assessment or situation-specific data used to calculate energy savings from the intervention Project Impact Assessment Method (PIAM) Project Impact Assessment Description: Savings are small compared to overall site consumption Unexplained variation in baseline energy consumption is high Data for a site’s electricity consumption is not available Use when: Commercial, Industrial, (Not typically residential) Sectors: It is possible under the PIAM to create ESCs for up to 5 years in advance, with some discounting of expected future ESC volumes 15

  16. PIAM Projects Discrete upgrade of a small part of a site Energy Savings achieved are small relative to whole site, perhaps the savings are ‘lost in the noise’ Forward creation of ESCs is possible, providing early cash flows. Discounting is used to calculate the upfront ESCs, with top-ups available to ensure full crediting over time 16 16

  17. PIAM Case Study: Out Performers - Penrith City Council Chiller Upgrade • Council replaced 2 chillers with 1 ultra efficient two stage centrifugal compressor Key facts: • Saves 331 MWh per year • Generates certificates worth $8,771 (or 350 ESCs) per year • Engaged an aggregator • Used Project Impact Assessment Method 17

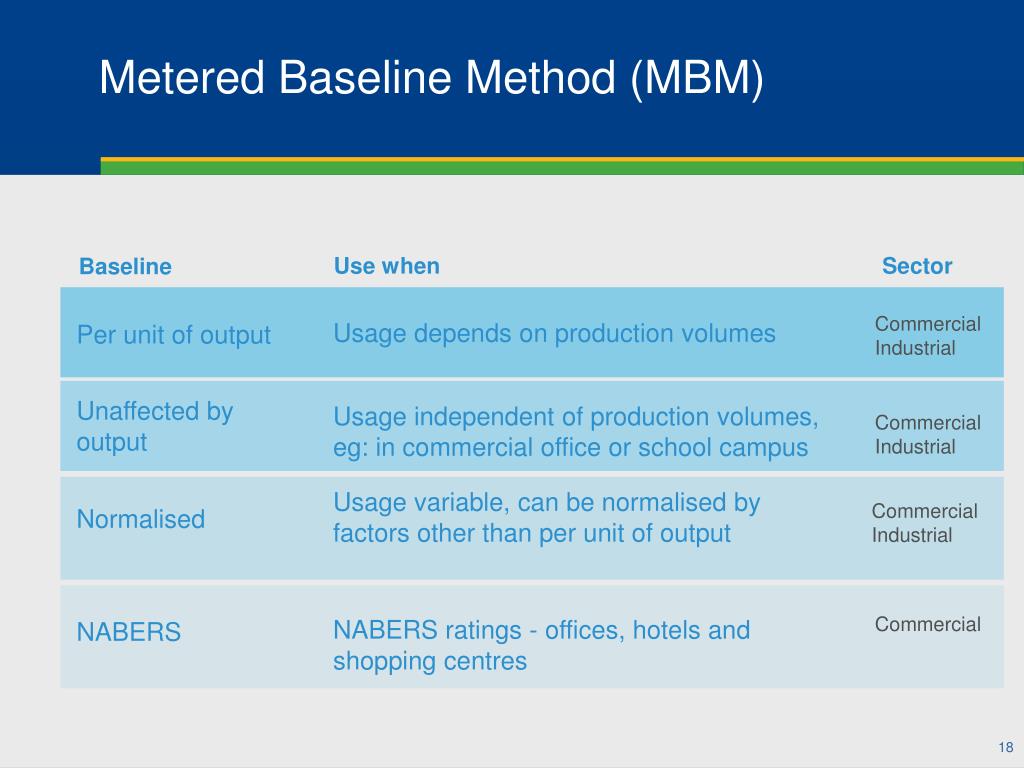

  18. Metered Baseline Method (MBM) Use when Sector Baseline Commercial Industrial Usage depends on production volumes Per unit of output Unaffected by output Usage independent of production volumes, eg: in commercial office or school campus Commercial Industrial Usage variable, can be normalised by factors other than per unit of output Commercial Industrial Normalised Commercial NABERS ratings - offices, hotels and shopping centres NABERS 18

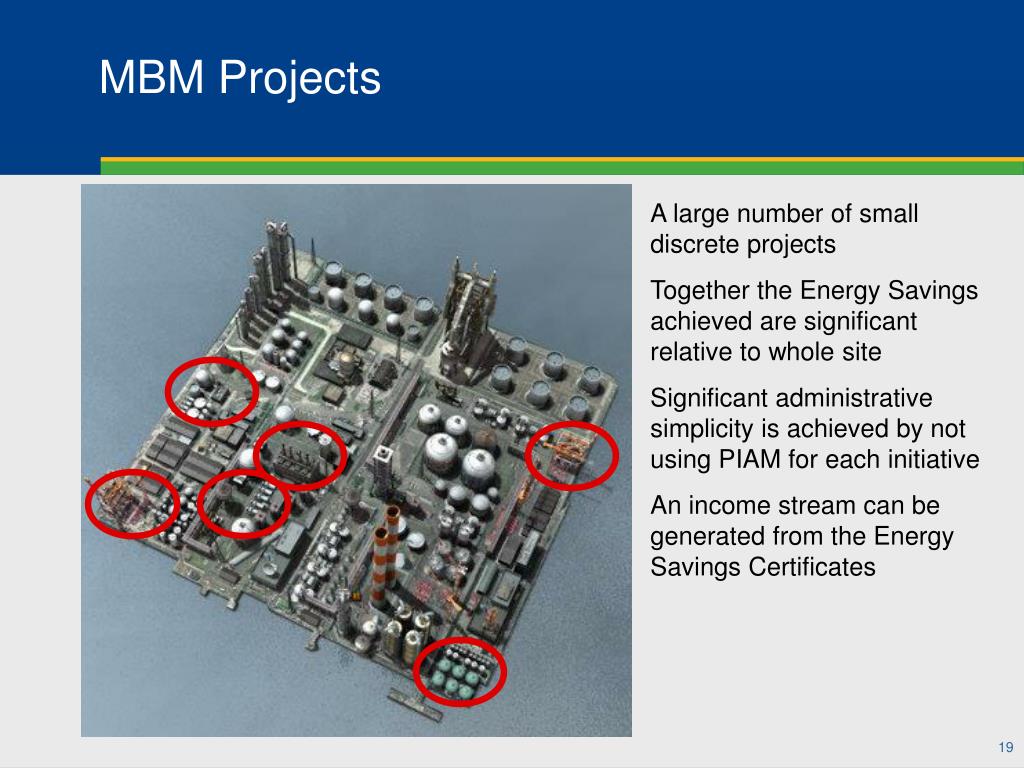

  19. MBM Projects A large number of small discrete projects Together the Energy Savings achieved are significant relative to whole site Significant administrative simplicity is achieved by not using PIAM for each initiative An income stream can be generated from the Energy Savings Certificates 19 19

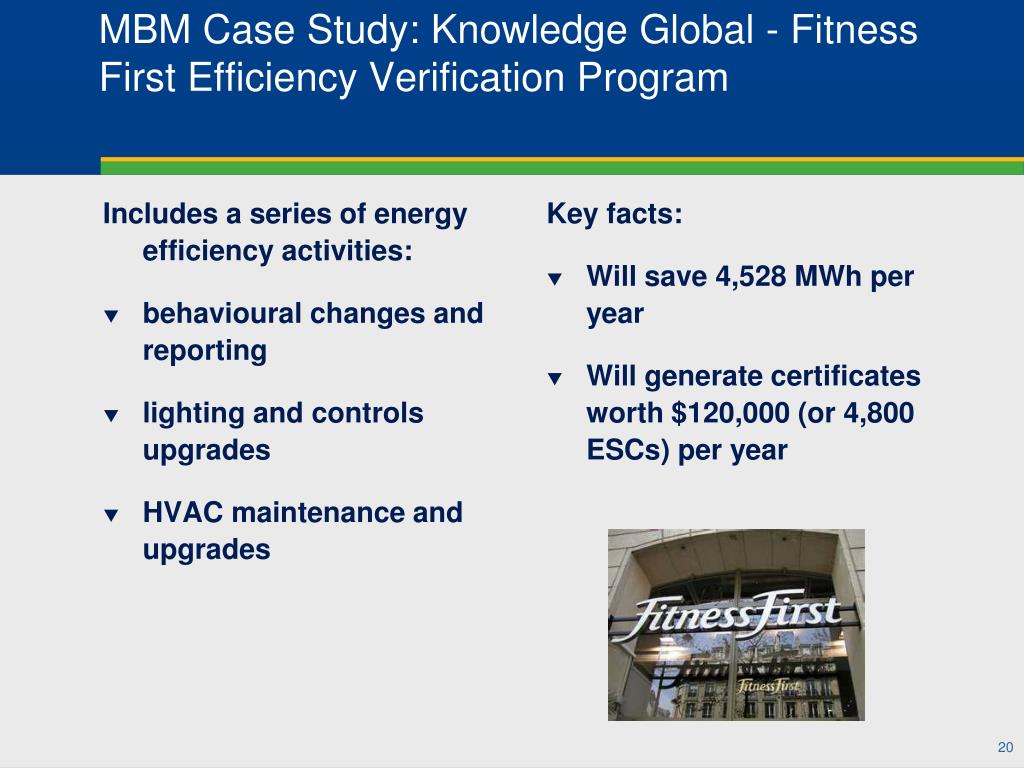

  20. MBM Case Study:Knowledge Global - Fitness First Efficiency Verification Program Includes a series of energy efficiency activities: • behavioural changes and reporting • lighting and controls upgrades • HVAC maintenance and upgrades Key facts: • Will save 4,528 MWh per year • Will generate certificates worth $120,000 (or 4,800 ESCs)per year 20

  21. Deemed Energy Savings Method Four deemed sub-methods Baseline Use when Sector Installing new efficient standard appliances Replacing inefficient appliances Removing surplus appliances Default Savings Factors Residential Commercial Industrial Lighting retrofits Commercial Lighting Formula Commercial Industrial Sale/installation of motors that that meet the high efficiency levels of AS/NZS1359.5:2004 High Efficiency Motor Formula Commercial Industrial Power Factor Correction Formula Install power factor correction equipment in an electricity distribution network Commercial Industrial 21

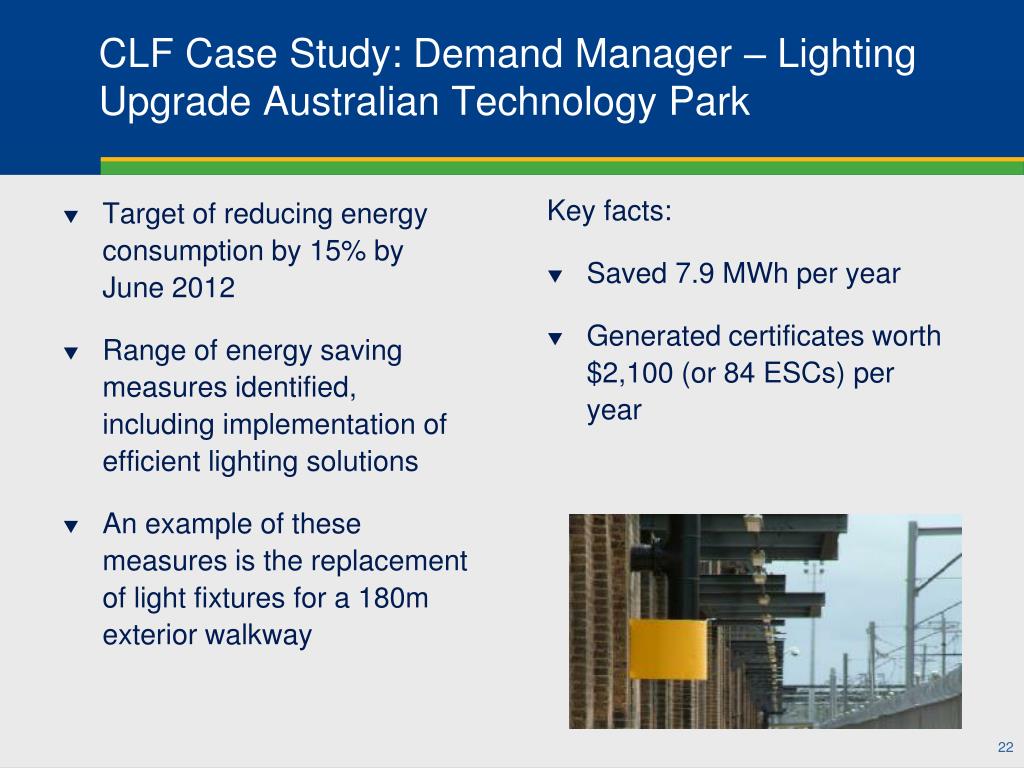

  22. CLF Case Study: Demand Manager – Lighting Upgrade Australian Technology Park • Target of reducing energy consumption by 15% by June 2012 • Range of energy saving measures identified, including implementation of efficient lighting solutions • An example of these measures is the replacement of light fixtures for a 180m exterior walkway Key facts: • Saved 7.9 MWh per year • Generated certificates worth $2,100 (or 84 ESCs) per year 22

  23. How has ESS performed? *Note: total forfeits include incorrectly registered ESC creation **2010 total forfeits largely due to showerhead over-creation 23

  24. Lessons learned Balance between upfront assessment & ongoing compliance audits Encouraging applications from long-term / sustainable businesses – especially industrial sector Tailoring audit regime to project risk e.g. phone surveys for 3rd party business models Importance of clear Scheme documentation – new website, new application documents Improving efficiency of application assessment process - pre-application workshops Being responsive to changes in market (ie growth in commercial lighting) 24 24

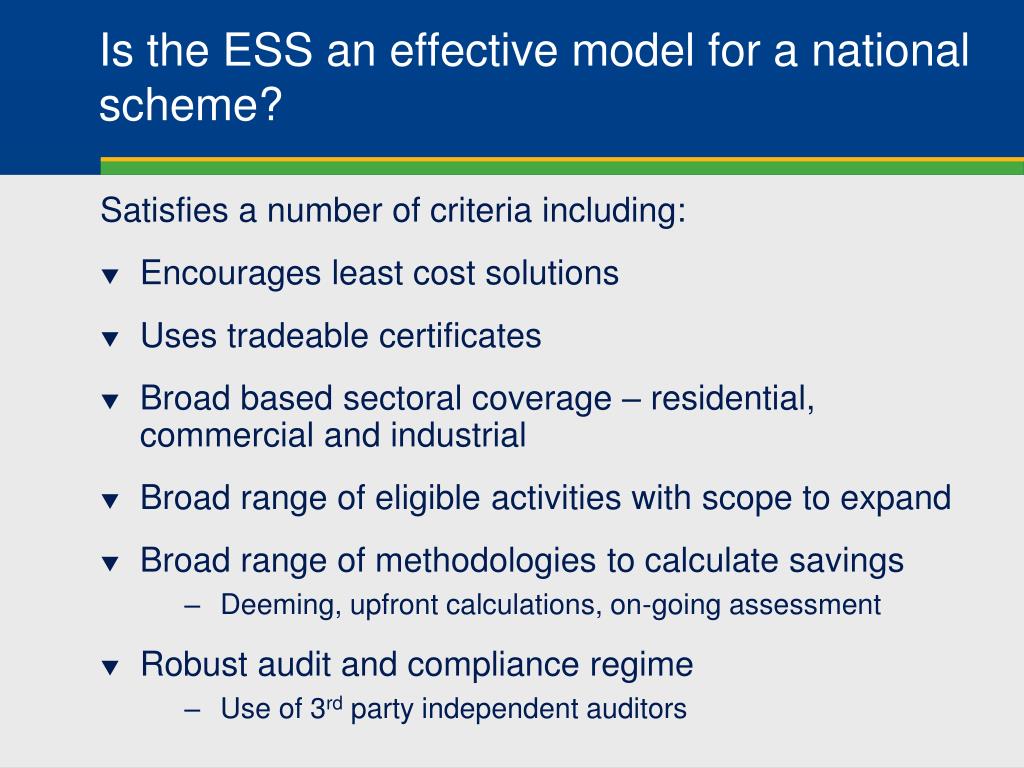

  25. Is the ESS an effective model for a national scheme? Satisfies a number of criteria including: • Encourages least cost solutions • Uses tradeable certificates • Broad based sectoral coverage – residential, commercial and industrial • Broad range of eligible activities with scope to expand • Broad range of methodologies to calculate savings • Deeming, upfront calculations, on-going assessment • Robust audit and compliance regime • Use of 3rd party independent auditors

  26. For more information: visit our new Website: www.ess.nsw.gov.au 26

  27. www.ess.nsw.gov.au Independent Pricing and Regulatory Tribunal www.ipart.nsw.gov.au
