Angular Spectrometer

Angular Spectrometer is a tabletop unit, offers angle measurement accuracy of 1 inch and diopter compensation range of u2265 u00b1 5 diopters. Incorporated with<br>two verniers at the opposite edges, to remove errors induced by the off center errors of the divided circle and thrusting bearing under the divided circle<br>for smooth rotation. Equipped with magnifier with handle, optical parallel plate and planar holographic grating. Built in with adjustable dioptre, moveable<br>telescopes eyepiece and adjustable stage.

kibmer
Download Presentation

Angular Spectrometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

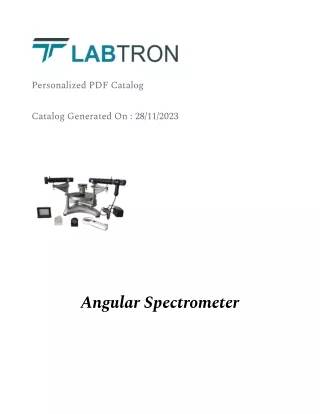

  1. Personalized PDF Catalog Catalog Generated On : 28/11/2023 Angular Spectrometer

  2. https://www.labtron.info/ info@labtron.info | Description : Angular Spectrometer is a tabletop unit, offers angle measurement accuracy of 1 inch and diopter compensation range of ≥ ± 5 diopters. Incorporated with two verniers at the opposite edges, to remove errors induced by the off center errors of the divided circle and thrusting bearing under the divided circle for smooth rotation. Equipped with magnifier with handle, optical parallel plate and planar holographic grating. Built in with adjustable dioptre, moveable telescopes eyepiece and adjustable stage. Specifications :

  3. Angle Measureme 1inch nt Accuracy Maximum Effectiv Focal Length Focal Field Slit Diopter e Length of Between Lengt of Widt Compensatio Apertur Telescope’s Collimator h View h n Range e Eyepiece and Optical Telescope Parameter 3° 0.02 170 Φ 22 ≥ ± 5 22inc 24.3 mm 120 mm to 2 mm mm diopters h mm Diameter Circle Graduation Division Vernier Reading Value Divided Circle Φ178 mm 0° to 360° 0.5° 1inch Diameter Rotating Range Range of Vertical Adjustment Stage Φ70 mm 360° 20 mm

  4. Prism Planar Holographic Transformer Angle Grating Attachment s 6.3 Ⅴ/220 Ⅴ (3 60° ± 5inch 300/ mm ⅤA) Dimensions 251×518×250 mm (W×D×H) Net Weight 11.8 kg Features : Highly efficient and safe with complete functions

  5. Easy to clean, corrosion resistant, stainless steel lining Compact and space saving design Easy to use, operate and less maintenance Built in with fine adjusting knob of telescope, collimator unit and brake mount

  6. Applications : Angular Spectrometer is widely used for angular measurements based on polarization, diffraction, refraction and interference. It is commonly used in color measurements, concentration determination of chemical components and electromagnetic radiation analysis.

  7. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
