slide1

CS152 – Computer Architecture andEngineeringLecture 12 – Pipeline Wrap up: Control Hazards, RAW/WAR/WAW

2004-10-07

John Lazzaro(www.cs.berkeley.edu/~lazzaro)

Dave Patterson (www.cs.berkeley.edu/~patterson)

www-inst.eecs.berkeley.edu/~cs152/

pipelining review
Pipelining Review
  • What makes it easy
    • all instructions are the same length
    • just a few instruction formats
    • memory operands appear only in loads and stores
  • Hazards limit performance
    • Structural: need more HW resources
    • Data: need forwarding, compiler scheduling
  • Data hazards must be handled carefully
  • MIPS I instruction set architecture made pipeline visible (delayed branch, delayed load)
outline
Outline
  • Pipelined Control
  • Control Hazards
  • RAW, WAR, WAW

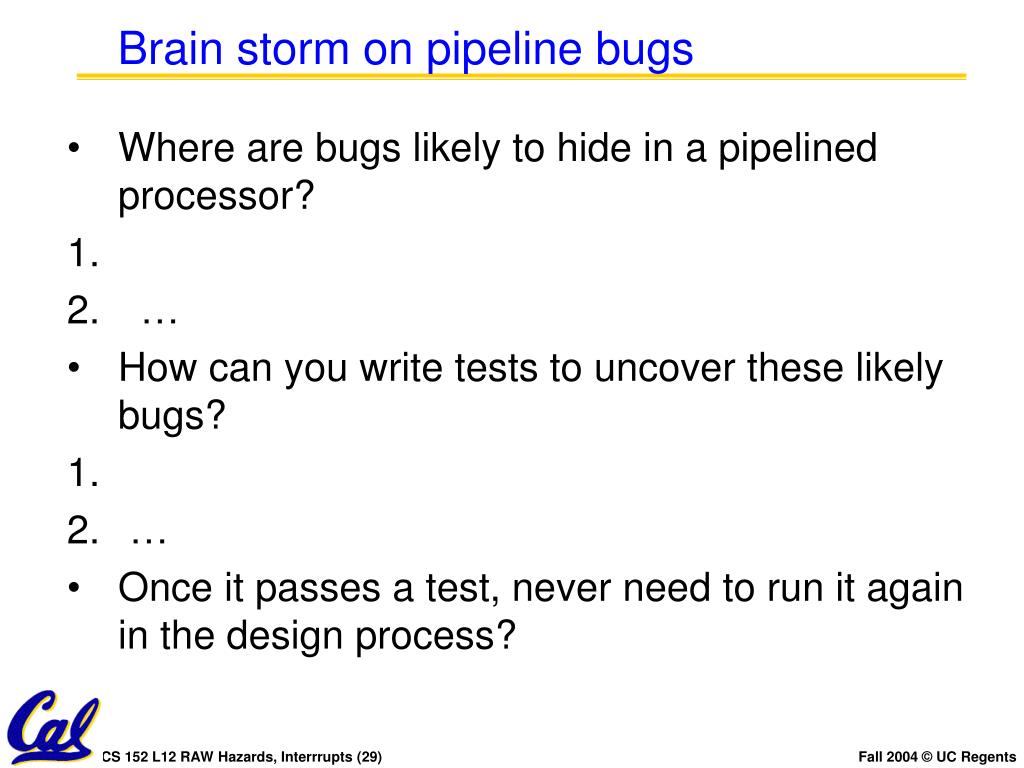

  • Brainstorm on pipeline bugs
mips pipeline data control paths a fast
MIPS Pipeline Data / Control Paths A (fast)

1

PCSrc

ID/EX

0

EX/MEM

EX

Control

MEM

IF/ID

Add

MEM/WB

Branch

Add

WB

4

RegWrite

Shift

left 2

Read Addr 1

Instruction

Memory

Data

Memory

Register

File

Read

Data 1

Read Addr 2

MemtoReg

Read

Address

ALUSrc

PC

Read

Data

Address

1

Write Addr

ALU

Read

Data 2

0

Write Data

0

Write Data

1

ALU

cntrl

MemWrite

MemRead

Sign

Extend

16

32

ALUOp

0

1

RegDst

mips pipeline data control paths debug

Control

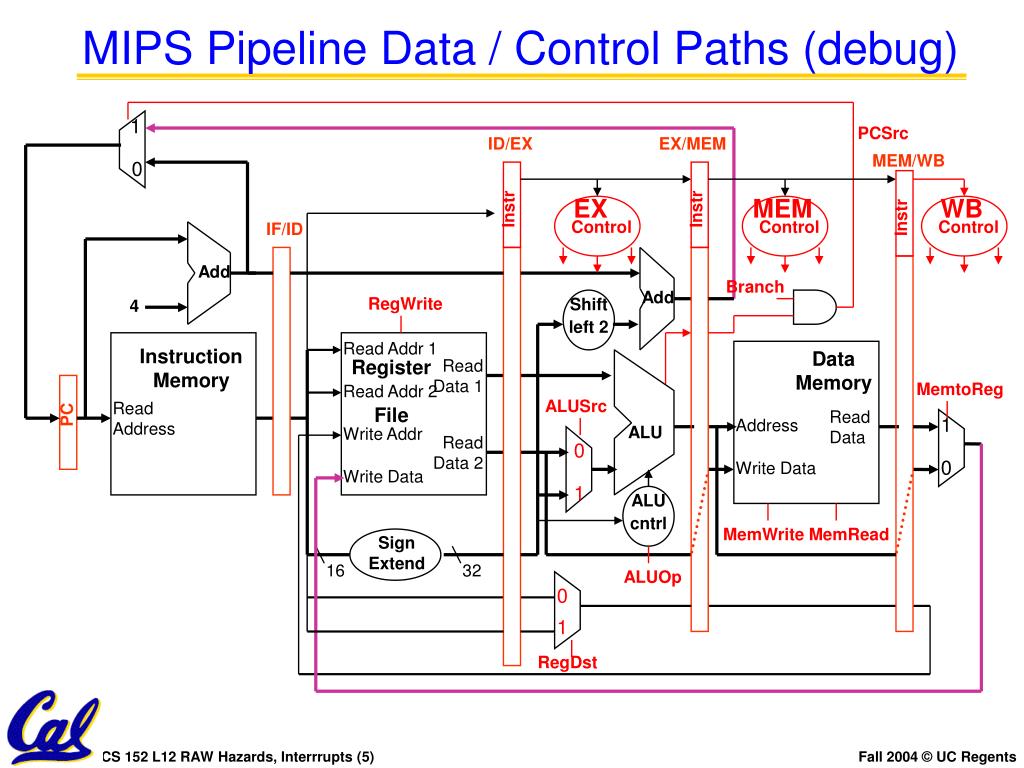

MIPS Pipeline Data / Control Paths (debug)

1

PCSrc

ID/EX

EX/MEM

MEM/WB

0

EX

MEM

WB

Instr

Instr

Instr

IF/ID

Control

Control

Add

Branch

Add

4

RegWrite

Shift

left 2

Read Addr 1

Instruction

Memory

Data

Memory

Register

File

Read

Data 1

Read Addr 2

MemtoReg

Read

Address

ALUSrc

PC

Read

Data

Address

1

Write Addr

ALU

Read

Data 2

0

Write Data

0

Write Data

1

ALU

cntrl

MemWrite

MemRead

Sign

Extend

16

32

ALUOp

0

1

RegDst

mips pipeline control pipelined debug
MIPS Pipeline Control (pipelined debug)

1

PCSrc

ID/EX

EX/MEM

MEM/WB

0

Instr

Instr

Instr

EX

MEM

IF/ID

WB

Control

Control

Control

Add

Branch

Add

4

RegWrite

Shift

left 2

Read Addr 1

Instruction

Memory

Data

Memory

Register

File

Read

Data 1

Read Addr 2

MemtoReg

Read

Address

ALUSrc

PC

Read

Data

Address

1

Write Addr

ALU

Read

Data 2

0

Write Data

0

Write Data

1

ALU

cntrl

MemWrite

MemRead

Sign

Extend

16

32

ALUOp

0

1

RegDst

control hazards
Control Hazards
  • When the flow of instruction addresses is not what the pipeline expects; incurred by change of flow instructions
    • Conditional branches (beq, bne)
    • Unconditional branches (j)
  • Possible solutions
    • Stall
    • Move decision point earlier in the pipeline
    • Predict
    • Delay decision (requires compiler support)
  • Control hazards occur less frequently than data hazards; there is nothing as effective against control hazards as forwarding is for data hazards
datapath branch and jump hardware

Jump

1

PCSrc

1

0

ID/EX

Shift

left 2

EX/MEM

0

IF/ID

Control

Add

MEM/WB

PC+4[31-28]

Branch

Add

4

Shift

left 2

Read Addr 1

Instruction

Memory

Data

Memory

Register

File

Read

Data 1

Read Addr 2

Read

Address

PC

Read

Data

Address

1

Write Addr

ALU

Read

Data 2

1

Write Data

0

Write Data

0

ALU

cntrl

16

32

Sign

Extend

0

1

Forward

Unit

Datapath Branch and Jump Hardware
administrivia
Administrivia
  • Finish Lab 3; meet with TA Friday
  • Midterm Tue Oct 12 5:30 - 8:30 in 101 Morgan
    • Northwest corner of campus, near Arch and Hearst
    • Midterm review Sunday Oct 10, 7 PM, 306 Soda
    • Bring 1 page, handwritten notes, both sides
    • Nothing electronic: no calculators, cell phones, pagers, …
    • Meet at LaVal’s Northside afterwards for Pizza
jumps incur one stall

DM

DM

DM

Reg

Reg

Reg

Reg

Reg

Reg

IM

IM

IM

ALU

ALU

ALU

stall

Jumps Incur One Stall
  • Jumps not decoded until ID, so one stall is needed
  • Fortunately, jumps are very infrequent – only 2% of the SPECint instruction mix

j

I

n

s

t

r.

O

r

d

e

r

lw

and

review branches incur three stalls

DM

DM

Reg

Reg

Reg

Reg

IM

IM

IM

ALU

ALU

ALU

stall

stall

stall

lw

DM

Reg

and

Review: Branches Incur Three Stalls

beq

Can fix branch hazard by waiting – stall – but affects throughput

I

n

s

t

r.

O

r

d

e

r

moving branch decisions earlier in pipe
Moving Branch Decisions Earlier in Pipe
  • Move the branch decision hardware back to the EX stage
    • Reduces the number of stall cycles to two
    • Adds an and gate and a 2x1 mux to the EX timing path
  • Add hardware to compute the branch target address and evaluate the branch decision to the ID stage
    • Reduces the number of stall cycles to one (like with jumps)
    • Computing branch target address can be done in parallel with RegFile read (done for all instructions – only used when needed)
    • Comparing the registers can’t be done until after RegFile read, so comparing and updating the PC adds a comparator, an and gate, and a 3x1 mux to the ID timing path
    • Need forwarding hardware in ID stage
  • For longer pipelines, decision points are later in the pipeline, incurring more stalls, so we need a better solution
early branch forwarding issues

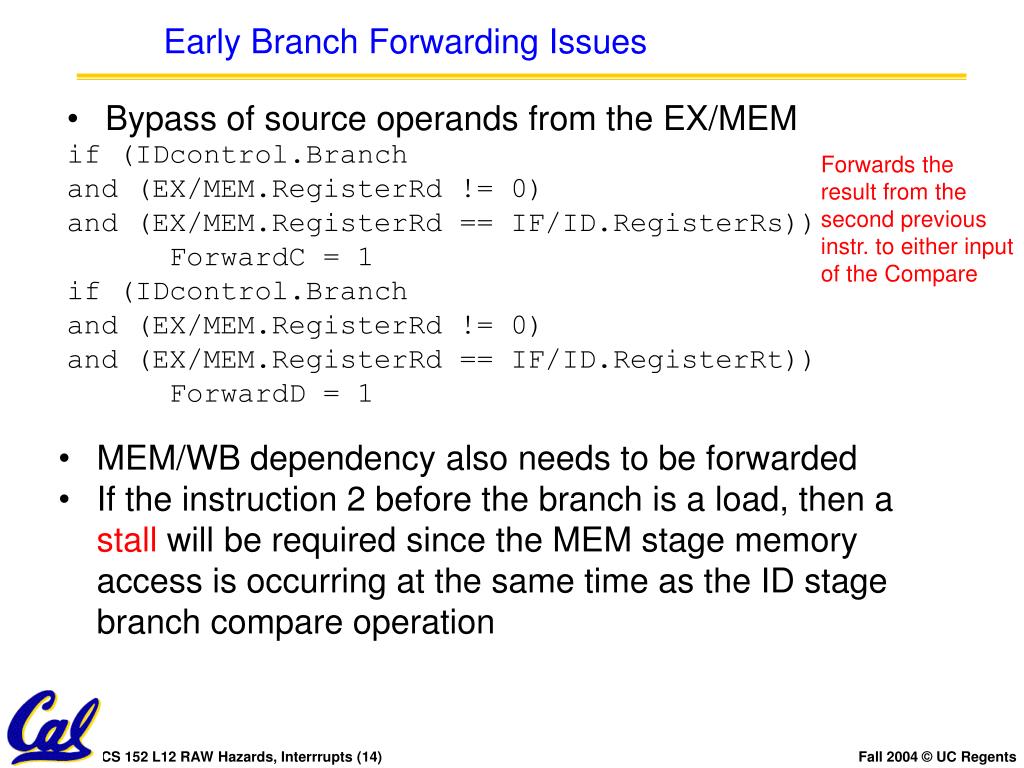

Early Branch Forwarding Issues
  • Bypass of source operands from the EX/MEM

if (IDcontrol.Branch

and (EX/MEM.RegisterRd != 0)

and (EX/MEM.RegisterRd == IF/ID.RegisterRs))

ForwardC = 1

if (IDcontrol.Branch

and (EX/MEM.RegisterRd != 0)

and (EX/MEM.RegisterRd == IF/ID.RegisterRt))

ForwardD = 1

Forwards the result from the second previous instr. to either input of the Compare

  • MEM/WB dependency also needs to be forwarded
  • If the instruction 2 before the branch is a load, then a stall will be required since the MEM stage memory access is occurring at the same time as the ID stage branch compare operation
branch prediction
Branch Prediction
  • Resolve branch hazards by assuming a given outcome and proceeding without waiting to see the actual branch outcome
  • Predict not taken – always predict branches will not be taken, continue to fetch from the sequential instruction stream, only when branch is taken does the pipeline stall
    • If taken, flush instructions in the pipeline after the branch
      • in IF, ID, and EX if branch logic in MEM – three stalls
      • in IF if branch logic in ID – one stall
    • ensure that those flushed instructions haven’t changed machine state– automatic in the MIPS pipeline since machine state changing operations are at the tail end of the pipeline (MemWrite or RegWrite)
    • restart the pipeline at the branch destination
flushing with misprediction not taken

I

n

s

t

r.

O

r

d

e

r

DM

DM

DM

DM

Reg

Reg

Reg

Reg

Reg

Reg

Reg

Reg

flush

IM

IM

IM

IM

ALU

ALU

ALU

ALU

16 and $6,$1,$7

20 or r8,$1,$9

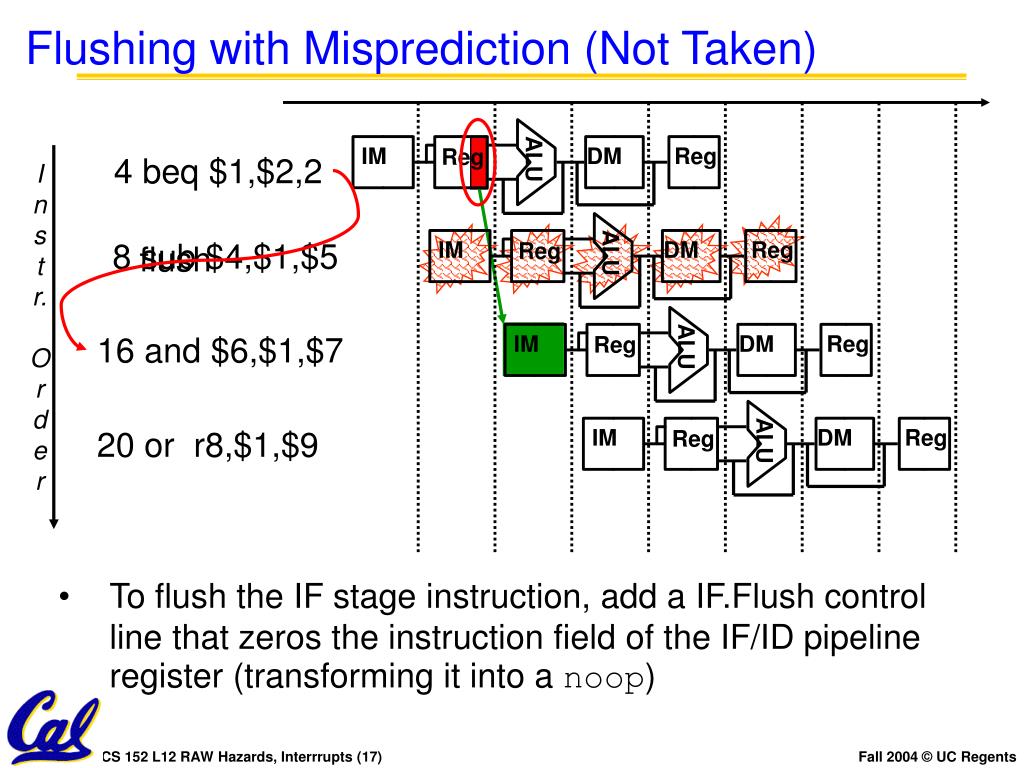

Flushing with Misprediction (Not Taken)
  • To flush the IF stage instruction, add a IF.Flush control line that zeros the instruction field of the IF/ID pipeline register (transforming it into a noop)

4 beq $1,$2,2

8 sub $4,$1,$5

branch prediction con t
Branch Prediction, con’t
  • Resolve branch hazards by statically assuming a given outcome and proceeding
  • Predict taken – always predict branches will be taken
    • Predict taken always incurs a stall (if branch destination hardware has been moved to the ID stage)
  • As the branch penalty increases (for deeper pipelines), a simple static prediction scheme will hurt performance
  • With more hardware, possible to try to predict branch behavior dynamically during program execution
  • Dynamic branch prediction – predict branches at run-time using run-time information
dynamic branch prediction
Dynamic Branch Prediction
  • A branch prediction buffer (aka branch history table (BHT)) in the IF stage, addressed by the lower bits of the PC, contains a bit that tells whether the branch was taken the last time it was execute
    • Bit may predict incorrectly (may be from a different branch with the same low order PC bits, or may be a wrong prediction for this branch) but the doesn’t affect correctness, just performance
    • If the prediction is wrong, flush the incorrect instructions in pipeline, restart the pipeline with the right instructions, and invert the prediction bit
  • The BHT predicts when a branch is taken, but does not tell where its taken to!
    • A branch target buffer (BTB) in the IF stage can cache the branch target address (or !even! the branch target instruction) so that a stall can be avoided
1 bit prediction accuracy
1-bit Prediction Accuracy
  • 1-bit predictor in loop is incorrect twice when not taken
  • Assume predict_bit = 0 to start (indicating branch not taken) and loop control is at the bottom of the loop code
  • First time through the loop, the predictor mispredicts the branch since the branch is taken back to the top of the loop; invert prediction bit (predict_bit = 1)
  • As long as branch is taken (looping), prediction is correct
  • Exiting the loop, the predictor again mispredicts the branch since this time the branch is not taken falling out of the loop; invert prediction bit (predict_bit = 0)

Loop: 1st loop instr

2nd loop instr

.

.

.

last loop instr

bne $1,$2,Loop

fall out instr

  • For 10 times through the loop we have a 80% prediction accuracy for a branch that is taken 90% of the time
2 bit predictors
2-bit Predictors
  • A 2-bit scheme can give 90% accuracy since a prediction must be wrong twice before the prediction bit is changed

right 9 times

Loop: 1st loop instr

2nd loop instr

.

.

.

last loop instr

bne $1,$2,Loop

fall out instr

wrong on loop fall out

Taken

Not taken

1

Predict

Taken

Predict

Taken

1

Taken

right on 1st iteration

Not taken

Taken

Not taken

0

Predict

Not Taken

Predict

Not Taken

0

Taken

Not taken

delayed decision
Delayed Decision
  • First, move the branch decision hardware and target address calculation to the ID pipeline stage
  • A delayed branch always executes the next sequential instruction – the branch takes effect after that next instruction
    • MIPS software moves an instruction to immediately after the branch that is not affected by the branch (a safe instruction) thereby hiding the branch delay
  • As processor go to deeper pipelines and multiple issue, the branch delay grows and need more than one delay slot.
    • Delayed branching has lost popularity compared to more expensive but more flexible dynamic approaches
    • Growth in available transistors has made dynamic approaches relatively cheaper
scheduling branch delay slots

becomes

becomes

becomes

if $2=0 then

add $1,$2,$3

if $1=0 then

add $1,$2,$3

sub $4,$5,$6

add $1,$2,$3

if $1=0 then

sub $4,$5,$6

Scheduling Branch Delay Slots

A. From before branch

B. From branch target

C. From fall through

  • A is the best choice, fills delay slot & reduces instruction count (IC)
  • In B, the sub instruction may need to be copied, increasing IC
  • In B and C, must be okay to execute sub when branch fails

add $1,$2,$3

if $1=0 then

add $1,$2,$3

if $2=0 then

sub $4,$5,$6

delay slot

delay slot

add $1,$2,$3

if $1=0 then

sub $4,$5,$6

delay slot

3 generic data hazards raw war waw
3 Generic Data Hazards: RAW, WAR, WAW
  • Read After Write (RAW)InstrJ tries to read operand before InstrI writes it
  • Caused by a “Dependence” (in compiler nomenclature). This hazard results from an actual need for communication.
  • Forwarding handles many, but not all, RAW dependencies in 5 stage MIPS pipeline

I: add r1,r2,r3

J: sub r4,r1,r3

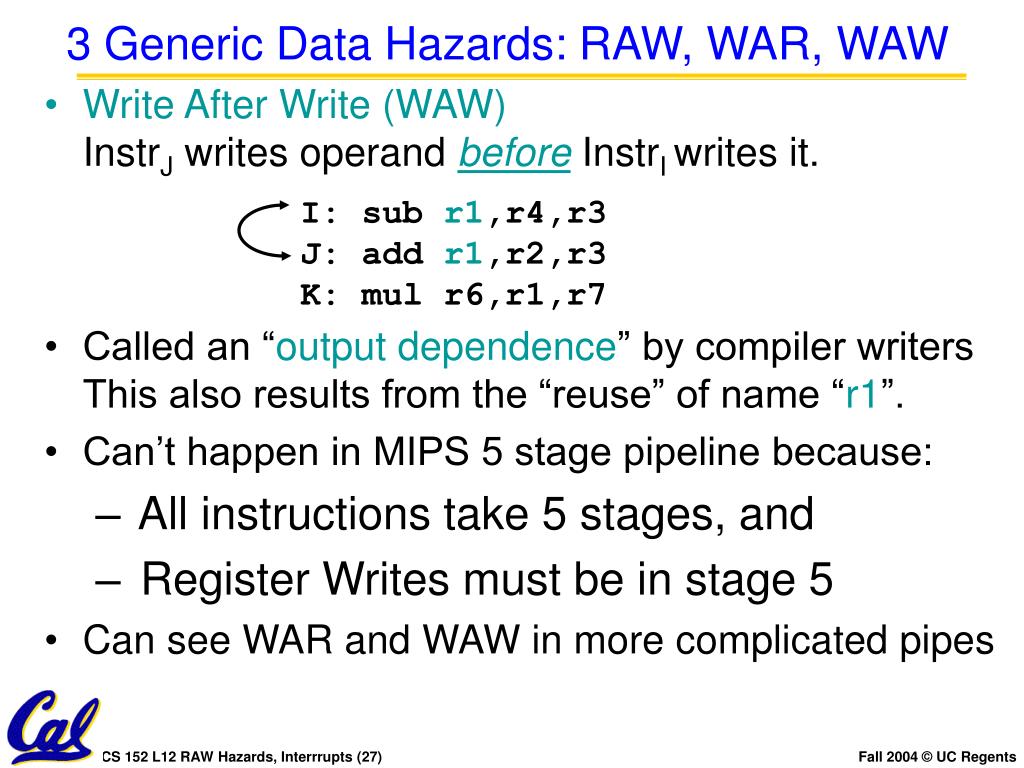

3 generic data hazards raw war waw1

I: sub r4,r1,r3

J: add r1,r2,r3

K: mul r6,r1,r7

3 Generic Data Hazards: RAW, WAR, WAW
  • Write After Read (WAR)InstrJ writes operand before InstrI reads it
  • Called an “anti-dependence” by compiler writers.This results from “reuse” of the name “r1”.
  • Can’t happen in MIPS 5 stage pipeline because:
    • All instructions take 5 stages, and
    • Reads are always in stage 2, and
    • Register Writes must be in stage 5
3 generic data hazards raw war waw2

I: sub r1,r4,r3

J: add r1,r2,r3

K: mul r6,r1,r7

3 Generic Data Hazards: RAW, WAR, WAW
  • Write After Write (WAW)InstrJ writes operand before InstrI writes it.
  • Called an “output dependence” by compiler writersThis also results from the “reuse” of name “r1”.
  • Can’t happen in MIPS 5 stage pipeline because:
    • All instructions take 5 stages, and
    • Register Writes must be in stage 5
  • Can see WAR and WAW in more complicated pipes
supporting id stage branches

IF.Flush

0

0

1

Supporting ID Stage Branches

PCSrc

Branch

1

Hazard

Unit

ID/EX

0

EX/MEM

0

1

0

Control

IF/ID

Add

MEM/WB

4

Shift

left 2

Add

Compare

Read Addr 1

Instruction

Memory

Data

Memory

RegFile

Read Addr 2

Read

Address

Read Data 1

PC

Read Data

1

Write Addr

ALU

Address

1

ReadData 2

Write Data

0

Write Data

0

ALU

cntrl

16

Sign

Extend

32

Forward

Unit

Forward

Unit

brain storm on pipeline bugs
Brain storm on pipeline bugs
  • Where are bugs likely to hide in a pipelined processor?
  • How can you write tests to uncover these likely bugs?
  • Once it passes a test, never need to run it again in the design process?
brain storm on pipeline bugs1
Brain storm on pipeline bugs
  • Depending on branch solution (move to ID, delayed, static prediction, dynamic prediction), where are bugs likely to hide?
  • How can you write tests to uncover these likely bugs?
  • Once it passes a test, don’t need to run it again?
peer instruction

Ifetch

Ifetch

Ifetch

Reg/Dec

Reg/Dec

Reg/Dec

Exec

Exec

Exec

Mem

Wr

Peer Instruction

Cycle 1

Cycle 2

Cycle 3

Cycle 4

Cycle 5

Cycle 6

Cycle 7

Clock

  • Suppose we use with a 4 stage pipeline that combines memory access and write back stages for all instructions but load, stalling when there are structural hazards. Impact?

1. The branch delay slot is now 0 instructions

2. Most loads cause stall since often a structural hazard on reg. writes

3. Most stores cause stall since they have a structural hazard

4. Both 2 & 3: most loads&stores cause stall due to structural hazards

5. Most loads cause stall, but there is no load-use hazard anymore

6. Both 2 & 3, but there is no load-use hazard anymore

7. None of the above

1st add

Mem/Wr

2nd lw

3rd add

Mem/Wr

summary designing a pipelined processor
Summary: Designing a Pipelined Processor
  • Go back and examine your data path and control diagram
  • Associate resources with states
    • Be sure there are no structural hazards: one use / clock cycle
  • Add pipeline registers between stages to balance clock cycle
    • Amdahl’s Law suggests splitting longest stage
  • Resolve all data and control dependencies
    • If backwards in time in pipeline drawing to registers=> data hazard: forward or stall to resolve them
    • If backwards in time in pipeline drawing to PC=> control hazard: we’ll see next time
  • 5 stage pipeline with reads early in same stage, writes later in same stage, avoids WAR/WAW hazards
  • Assert control in appropriate stage
  • Develop test instruction sequences likely to uncover pipeline bugs (If you don’t test it, it won’t work )
