Comparative Analysis of Springback in DP780 and TRIP780 Draw-bend Test

This study measures springback in DP780 and TRIP780 alloys using draw-bend tests. Yield strength, tool radius, and thickness variation were key parameters. The study examined R/t ratios and draw restraints at different levels. Equipment used included draw-bend equipment and tested specimens. Results show springback angles at different draw widths for both alloys.

keziah
Download Presentation

Comparative Analysis of Springback in DP780 and TRIP780 Draw-bend Test

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

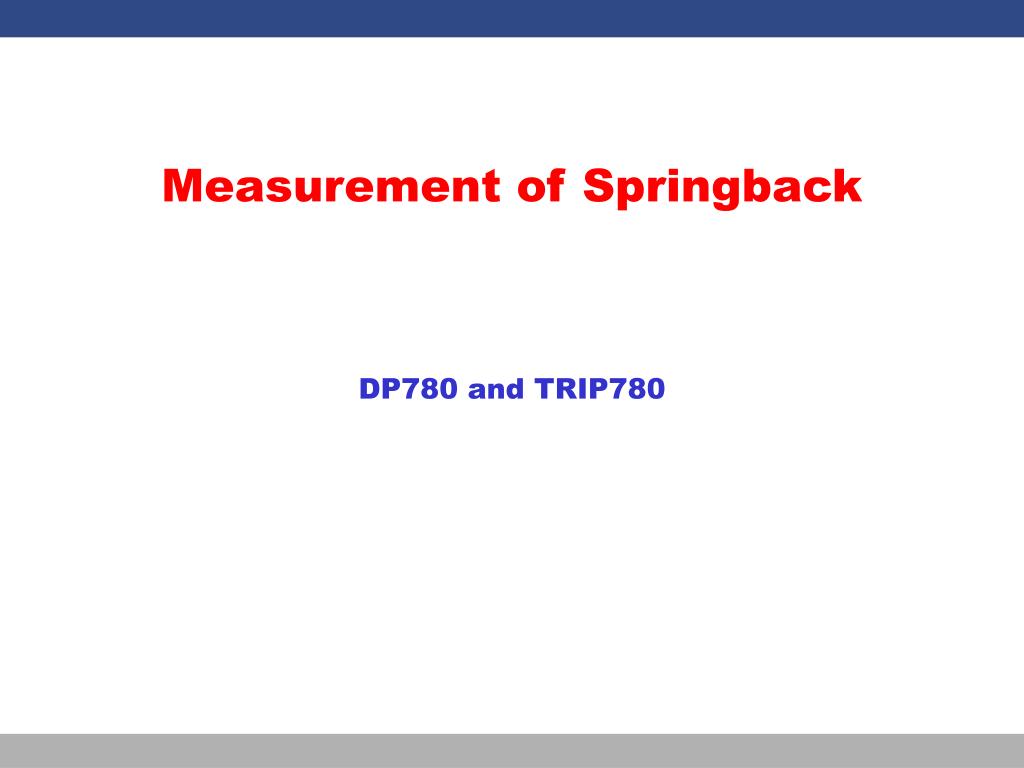

  1. Measurement of Springback DP780 and TRIP780

  2. Draw-bend Test • Yield Strength = 450 MPa • Tool radius =7/8 in. • Thickness was measured at 10 random points and averaged. 1.5755mm (DP), 1.4535mm (TRIP) • R/t = 7.053 (DP), 7.645 (TRIP) • Draw restraint (via back force) set at a fraction of material’s yield strength : 0.4, 0.6, 0.8, 0.9, 1.0, 1.1 25 mm, 50mm 25 in

  3. Draw-bend Equipment

  4. Draw-bend Equipment with sample loaded

  5. Tested Specimen (w=25mm) DP780 TRIP780

  6. Tested Specimen (w=50mm) DP780 TRIP780

  7. Springback Angles (w=25mm)

  8. Springback Angles (w=50mm)
