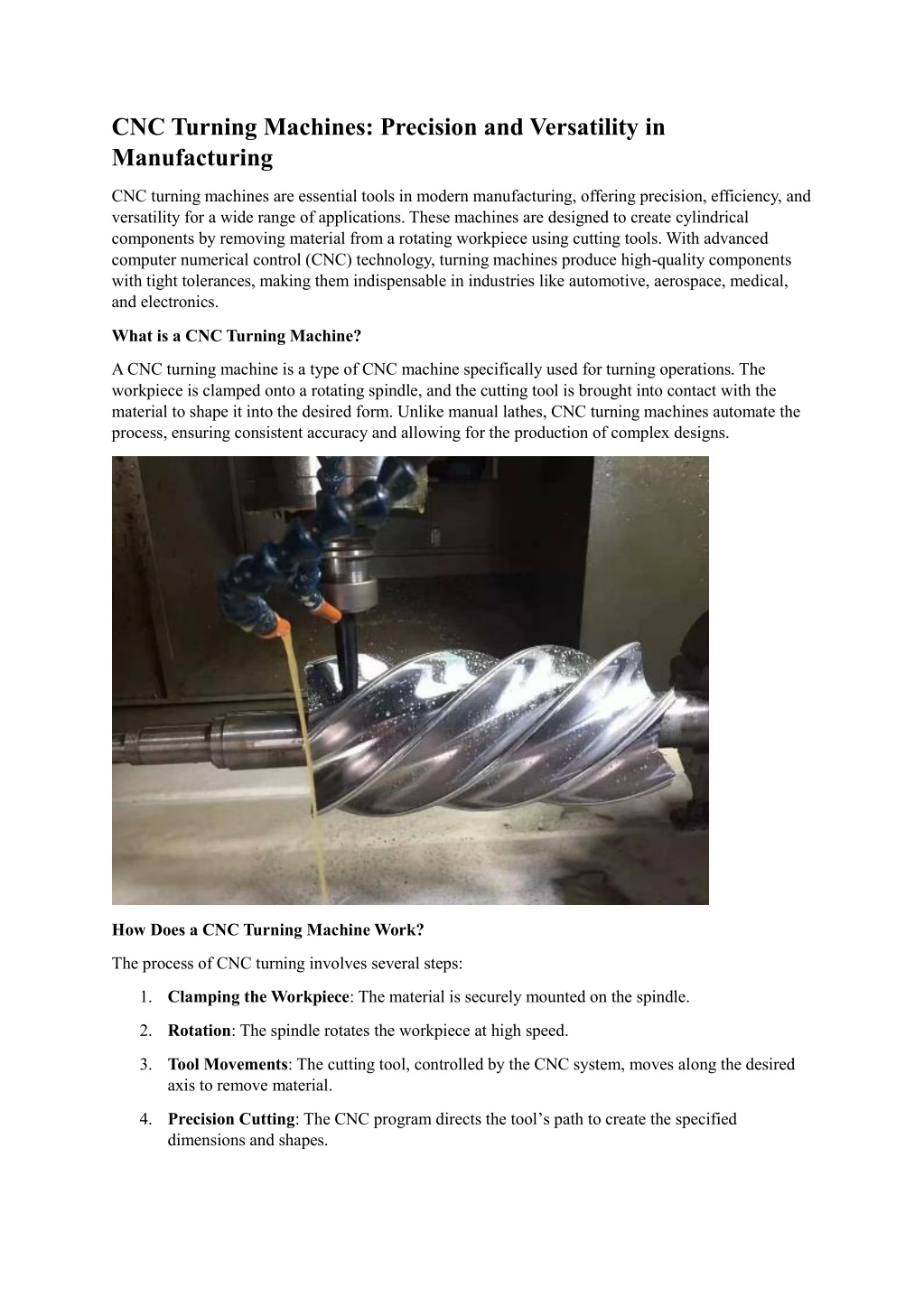

  1. CNC Turning Machines: Precision and Versatility in Manufacturing CNC turning machines are essential tools in modern manufacturing, offering precision, efficiency, and versatility for a wide range of applications. These machines are designed to create cylindrical components by removing material from a rotating workpiece using cutting tools. With advanced computer numerical control (CNC) technology, turning machines produce high-quality components with tight tolerances, making them indispensable in industries like automotive, aerospace, medical, and electronics. What is a CNC Turning Machine? A CNC turning machine is a type of CNC machine specifically used for turning operations. The workpiece is clamped onto a rotating spindle, and the cutting tool is brought into contact with the material to shape it into the desired form. Unlike manual lathes, CNC turning machines automate the process, ensuring consistent accuracy and allowing for the production of complex designs. How Does a CNC Turning Machine Work? The process of CNC turning involves several steps: 1.Clamping the Workpiece: The material is securely mounted on the spindle. 2.Rotation: The spindle rotates the workpiece at high speed. 3.Tool Movements: The cutting tool, controlled by the CNC system, moves along the desired axis to remove material. 4.Precision Cutting: The CNC program directs the tool’s path to create the specified dimensions and shapes.

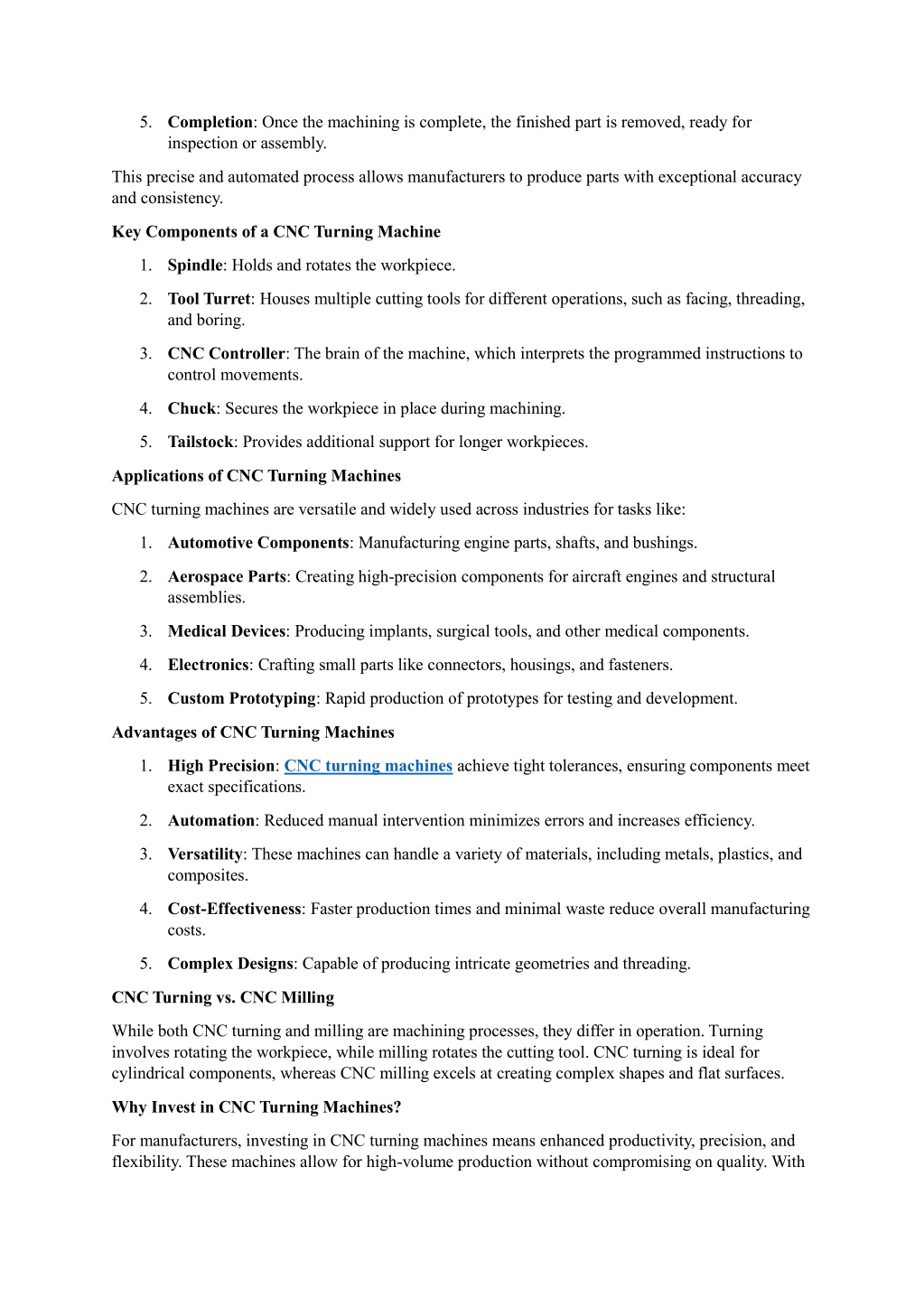

  2. 5.Completion: Once the machining is complete, the finished part is removed, ready for inspection or assembly. This precise and automated process allows manufacturers to produce parts with exceptional accuracy and consistency. Key Components of a CNC Turning Machine 1.Spindle: Holds and rotates the workpiece. 2.Tool Turret: Houses multiple cutting tools for different operations, such as facing, threading, and boring. 3.CNC Controller: The brain of the machine, which interprets the programmed instructions to control movements. 4.Chuck: Secures the workpiece in place during machining. 5.Tailstock: Provides additional support for longer workpieces. Applications of CNC Turning Machines CNC turning machines are versatile and widely used across industries for tasks like: 1.Automotive Components: Manufacturing engine parts, shafts, and bushings. 2.Aerospace Parts: Creating high-precision components for aircraft engines and structural assemblies. 3.Medical Devices: Producing implants, surgical tools, and other medical components. 4.Electronics: Crafting small parts like connectors, housings, and fasteners. 5.Custom Prototyping: Rapid production of prototypes for testing and development. Advantages of CNC Turning Machines 1.High Precision: CNC turning machines achieve tight tolerances, ensuring components meet exact specifications. 2.Automation: Reduced manual intervention minimizes errors and increases efficiency. 3.Versatility: These machines can handle a variety of materials, including metals, plastics, and composites. 4.Cost-Effectiveness: Faster production times and minimal waste reduce overall manufacturing costs. 5.Complex Designs: Capable of producing intricate geometries and threading. CNC Turning vs. CNC Milling While both CNC turning and milling are machining processes, they differ in operation. Turning involves rotating the workpiece, while milling rotates the cutting tool. CNC turning is ideal for cylindrical components, whereas CNC milling excels at creating complex shapes and flat surfaces. Why Invest in CNC Turning Machines? For manufacturers, investing in CNC turning machines means enhanced productivity, precision, and flexibility. These machines allow for high-volume production without compromising on quality. With

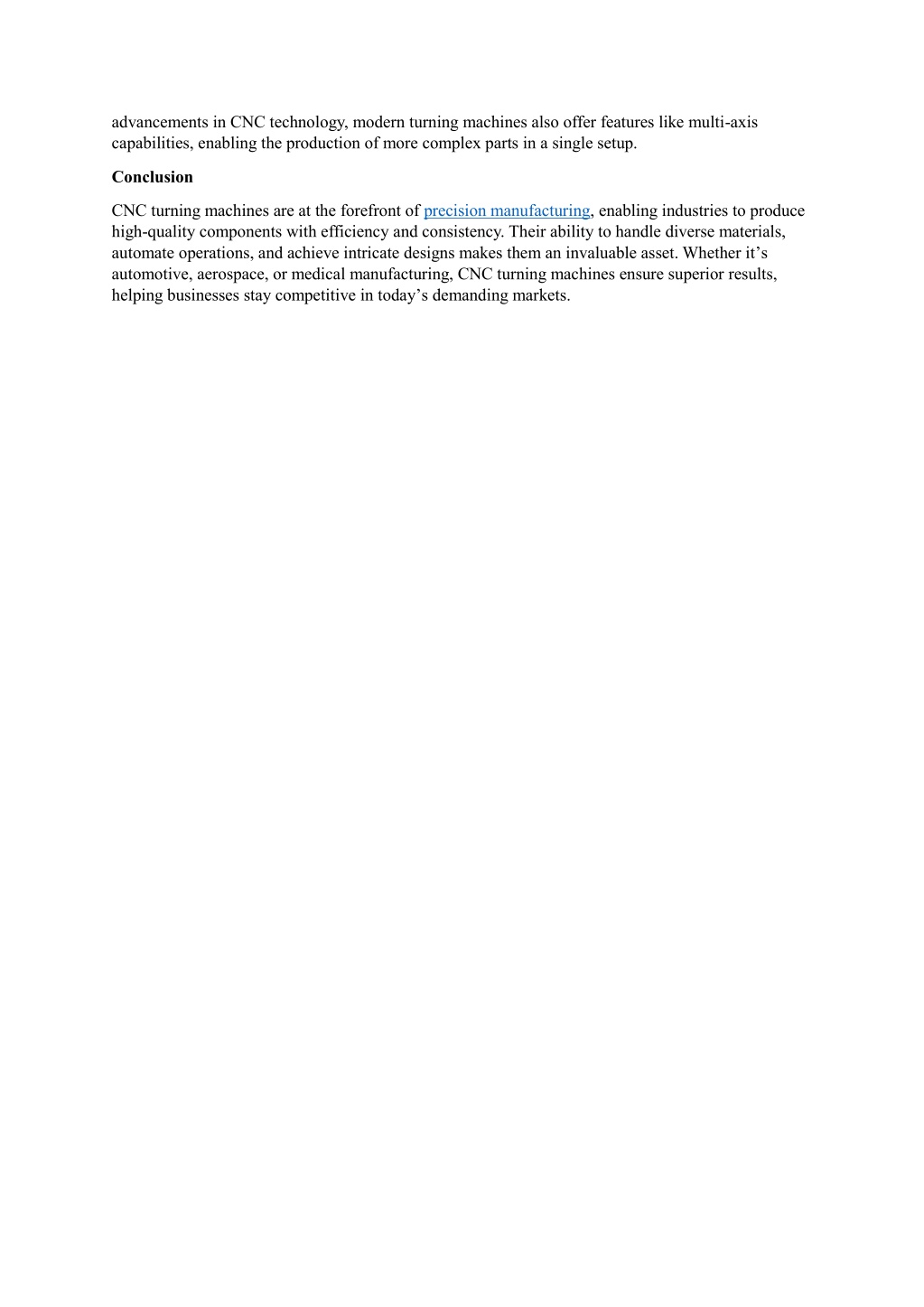

  3. advancements in CNC technology, modern turning machines also offer features like multi-axis capabilities, enabling the production of more complex parts in a single setup. Conclusion CNC turning machines are at the forefront of precision manufacturing, enabling industries to produce high-quality components with efficiency and consistency. Their ability to handle diverse materials, automate operations, and achieve intricate designs makes them an invaluable asset. Whether it’s automotive, aerospace, or medical manufacturing, CNC turning machines ensure superior results, helping businesses stay competitive in today’s demanding markets.
